Home Hvac Systems, EPS, 150-500 m3, Galvanized Steel

Home hvac systems — airflow 150-500 m3/h, material Galvanized Steel. The complete factory specification follows. Made by Beijing Holtop Air Conditioning Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of These Home Hvac Systems

• Model Number: CFA 150C-CFA 500C
• Airflow: 150-500 m3/h
• Material: Galvanized Steel
• Warranty: 1 Year
• Place Of Origin: Beijing, China
• Feature: Easy Install, Flexible, Energy Saving

Technical Specifications

Product Details

Product Description

ltem			CFA 150C	CFA 250C	CFA 350C	CFA 500C
Airfow[mª/h]			150	250	350	500
Extemnal Static Pressure[Pa]			95	85	160	120
Current [A]			0.45	0.48	0.98	1.15
Power[w]			58	62	140	165
Enthalpyexchangeefficiency[%]	Cooling	71-79	68-83	71-82	67-82
		Heating	73-79	70-83	72-84	69-83
Temperature exchange efficiency[%]			80-84	79-86	80-80	78-87
Noise dB(A)			28	27	32	34
Net weight (kg)			20	23	30	33
Energy consumption per unit airflow[W/(m3/h)]			0.38	0.25	0.4	0.33
Electrical	Power supply	230V 50Hz 1Ph
		Max. power	170W	320W	480W
		Max. current	1.5A	24A	3.2A

Product Structure

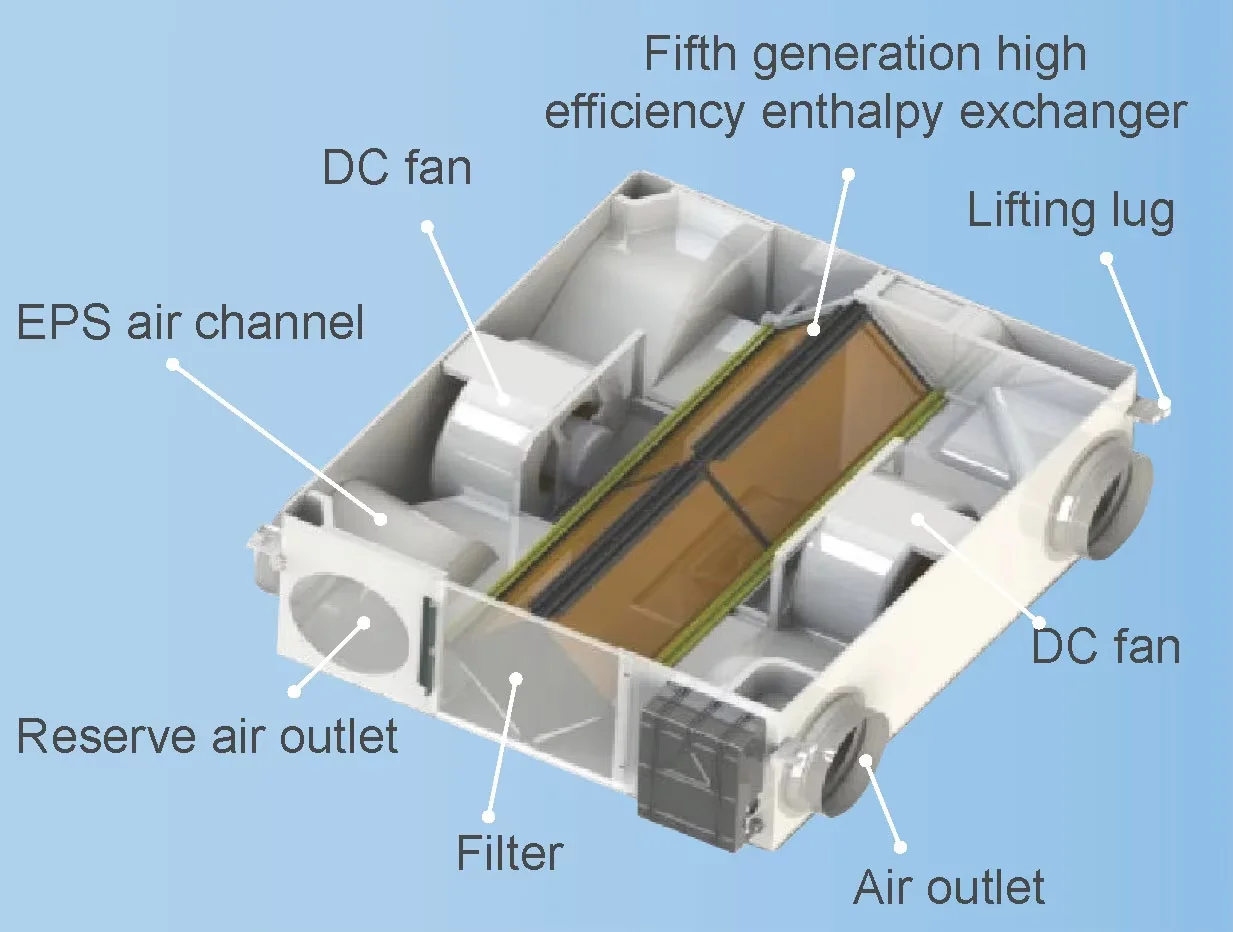

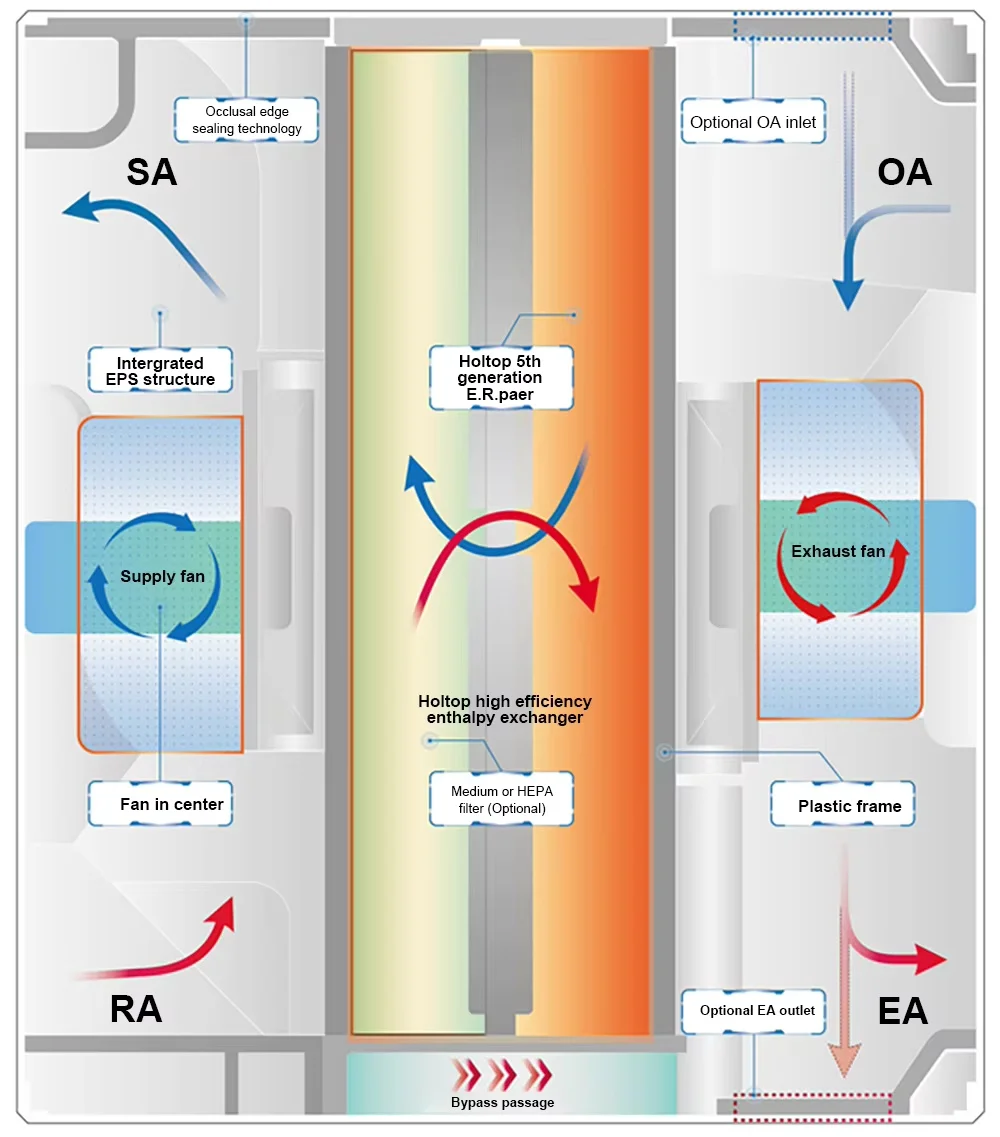

Internal structure

Integrated EPS for good insulation and air tightness and noise reduction performance.

The fans placed in the center is conducive to the uniform distribution of airflow, so that the heat exchange is more sufficient;

the equipment has a symmetrical counterweight, and the operation is more stable.

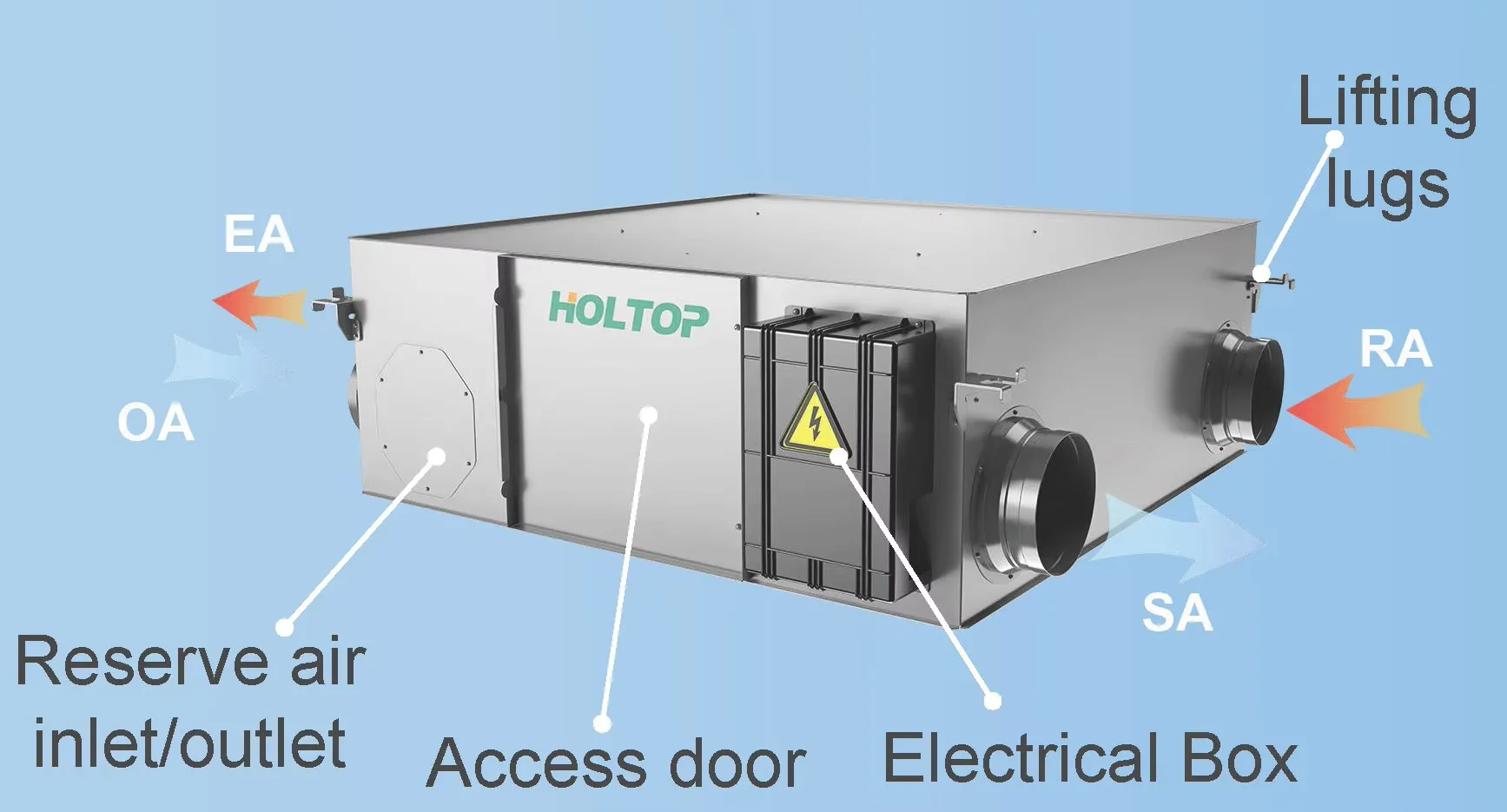

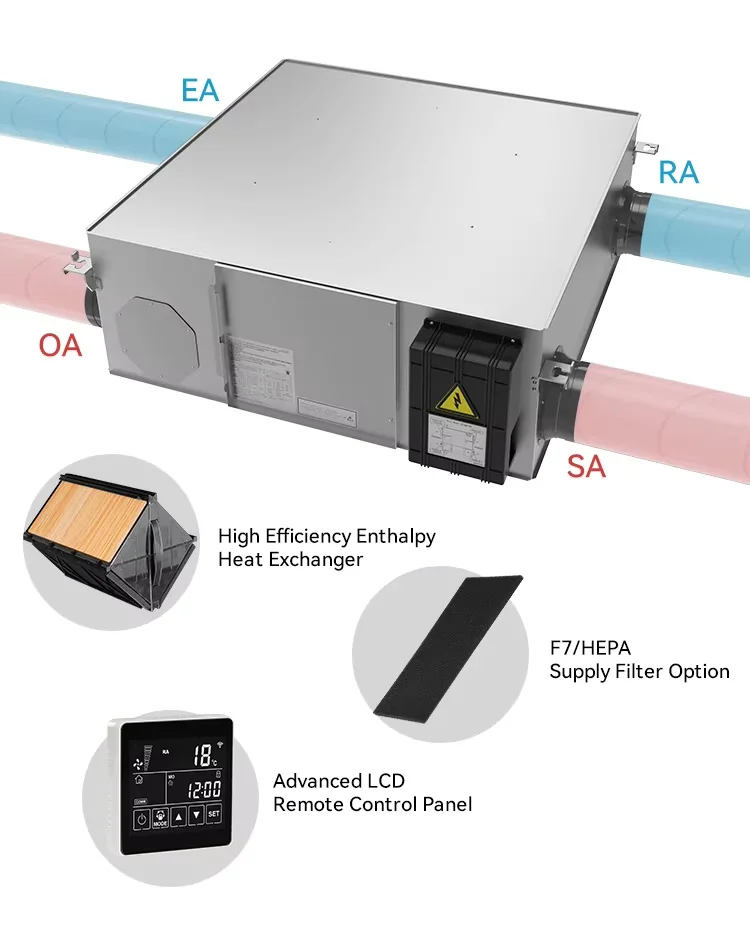

Easy installation

1. Parallel air flow

2. Reversable installation

3. Reserved air inlet/outlet for different installation position (OA/EA)

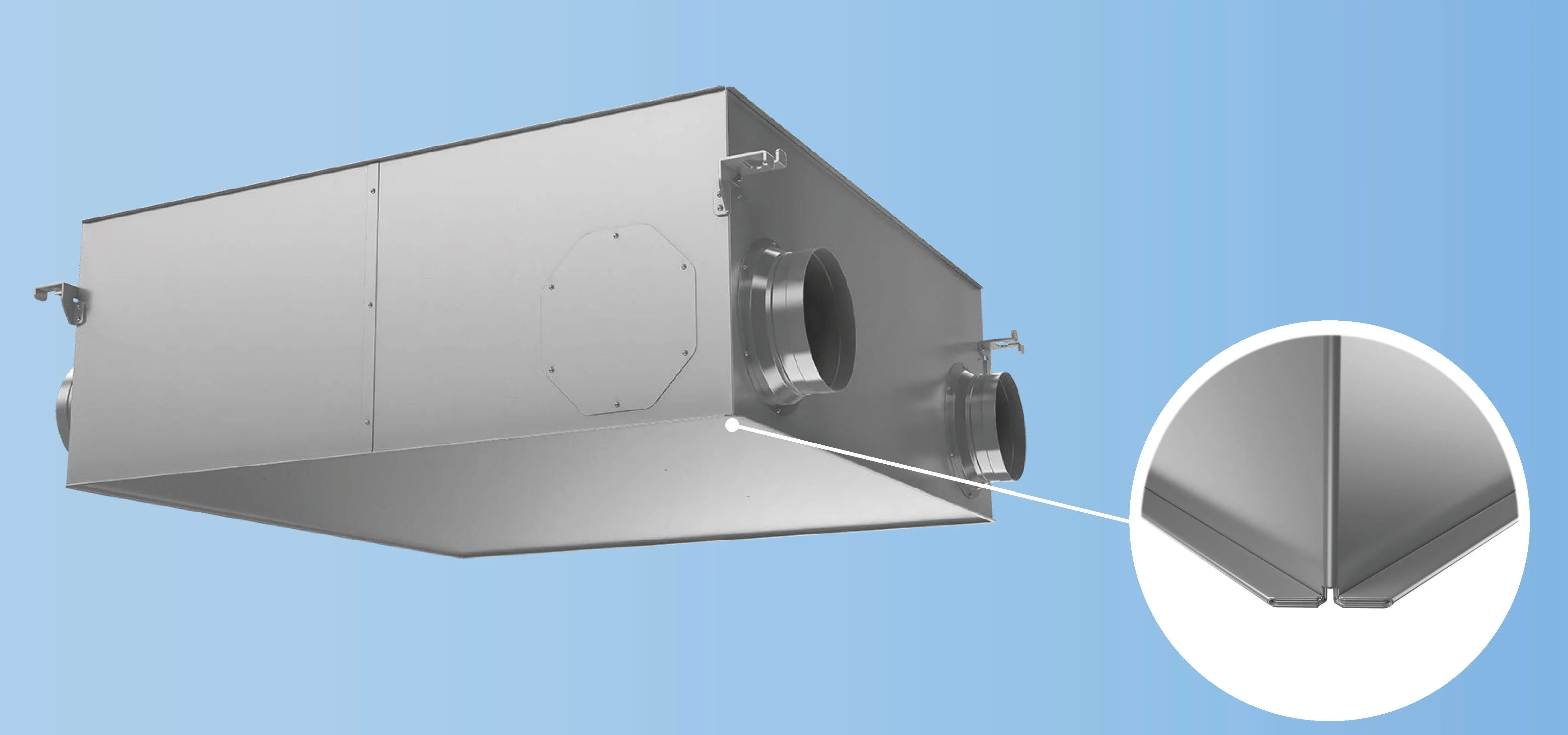

Occlusal edge sealing technology

The casing of CFA Series ventilator adopt the occlusal edge sealing process, which can improve the strength of the casing, and at

the same time to realize intelligent assembly, high assembly efficiency, greatly reduce the number of self-tapping screws, and

improve the aesthetics.

Bypass function

Bypass Mode

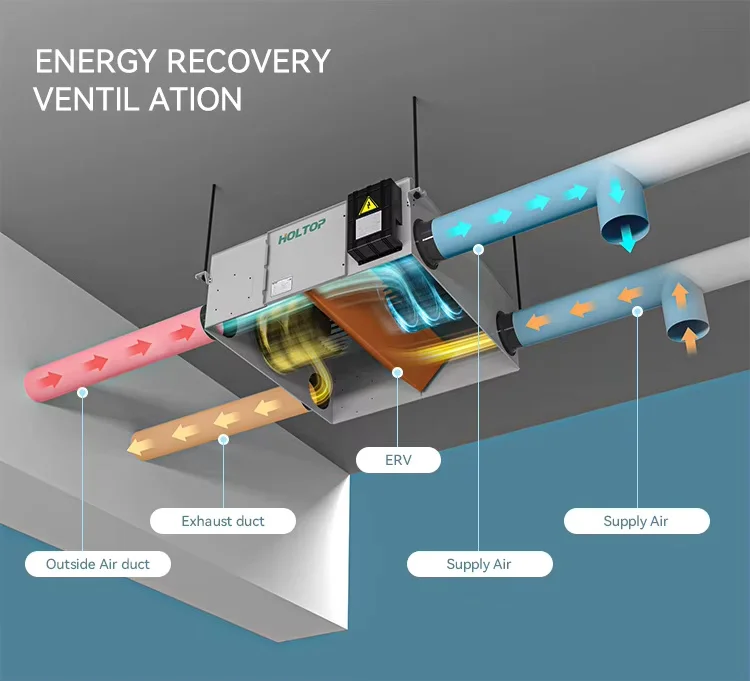

When the outdoor air is comfortable, the fresh air can be directly supplied to the room without heat exchange, and the exhaust air

in the room can be discharged at the same time, to improve the indoor air quality.

Auto Run Mode

The unit runs automatically according to the timer setting. When the auto bypass function is ON, the unit runs in heat exchange

mode or bypass mode depending on the indoor and outdoor air temperature.

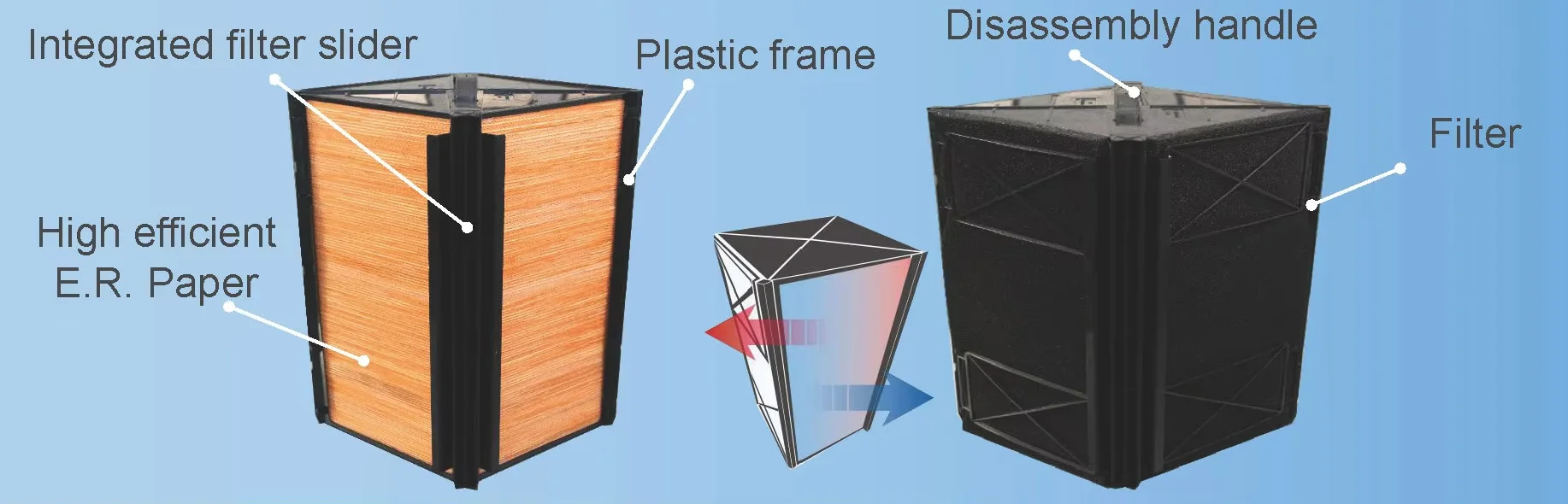

The fifth generation of heat exchange material (total heat recovery)

1. The heat exchange paper is thinner,

with better thermal conductivity and higher heat exchange efficiency.

2. The plastic frame integrates the filter slider,

which has simple structure, good sealing performance and beautiful appearance.

3. Reserve medium-efficiency filter slider.
