Specification
|
item
|
value
|
|
Type
|
Radial Fan
|
|
Applicable Industries
|
Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Energy & Mining, Advertising Company
|
|
Customized support
|
OEM, ODM
|
|
Electric Current Type
|
AC
|
|
Blade Material
|
Cast Iron
|
|
Mounting
|
Wall Fan
|
|
Place of Origin
|
China
|
|
Zhejiang
|
|
|
Brand Name
|
Hongke
|
|
Model Number
|
170FLJ7
|
|
Voltage
|
220V
|
|
Power
|
500W
|
|
After-sales Service Provided
|
Video technical support
|
Product Description

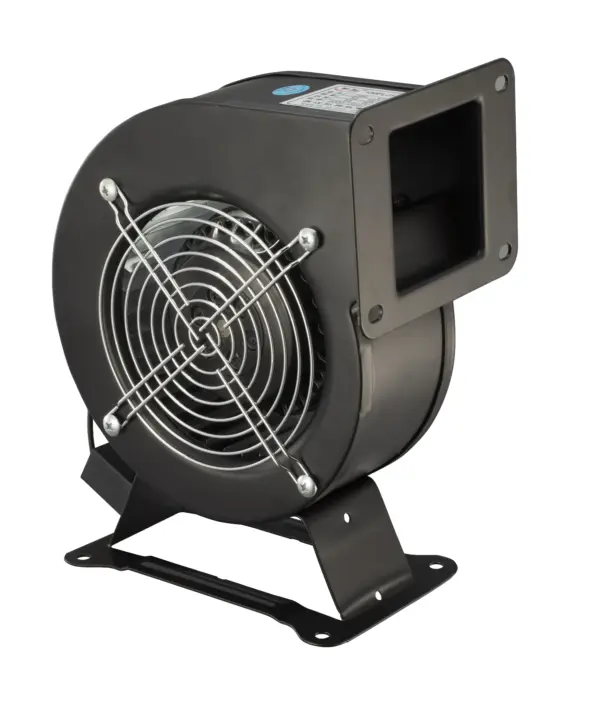

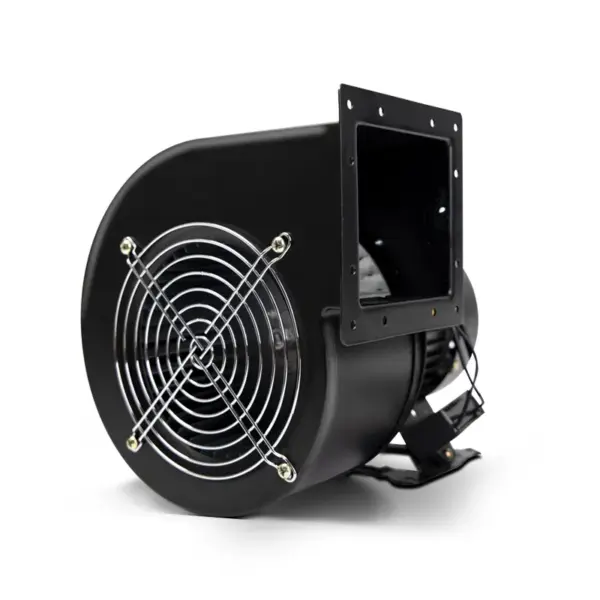

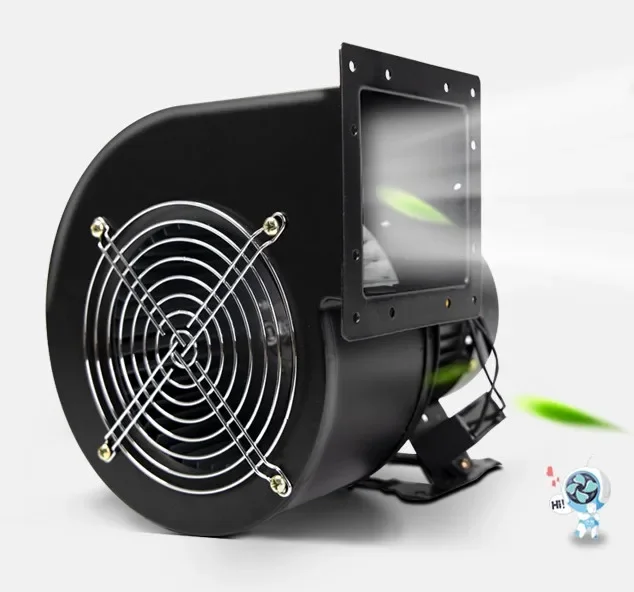

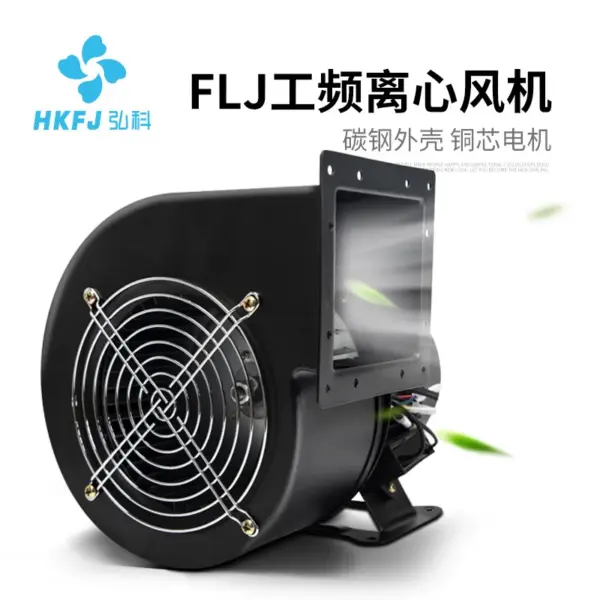

FLJ power frequency centrifugal fan
The FLJ series fan is composed of a single-phase asynchronous motor or a three-phase asynchronous motor, a volute, an impeller and mounting brackets, which is characterized by compact structure, light weight, small size, high efficiency, large air flow, and high air pressure.

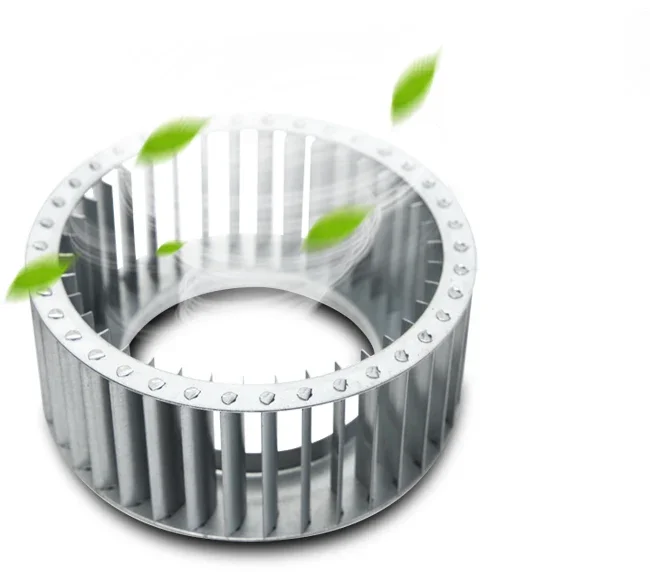

Galvanized sheet multi-wing blade
Not easy to rust, wear-resistant and anti-oxidation, long service life, light and beautiful

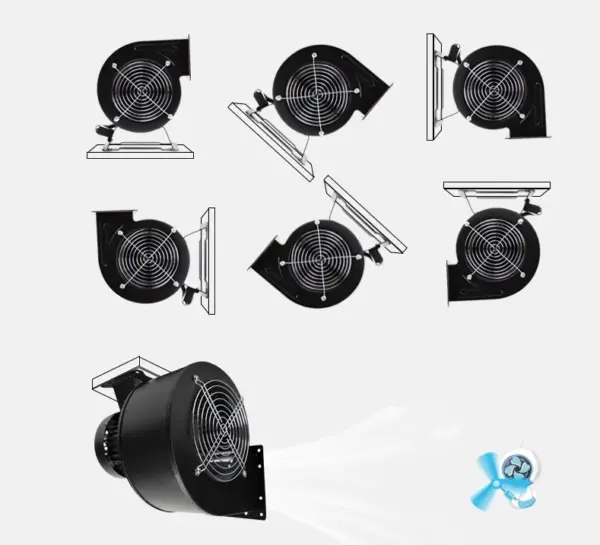

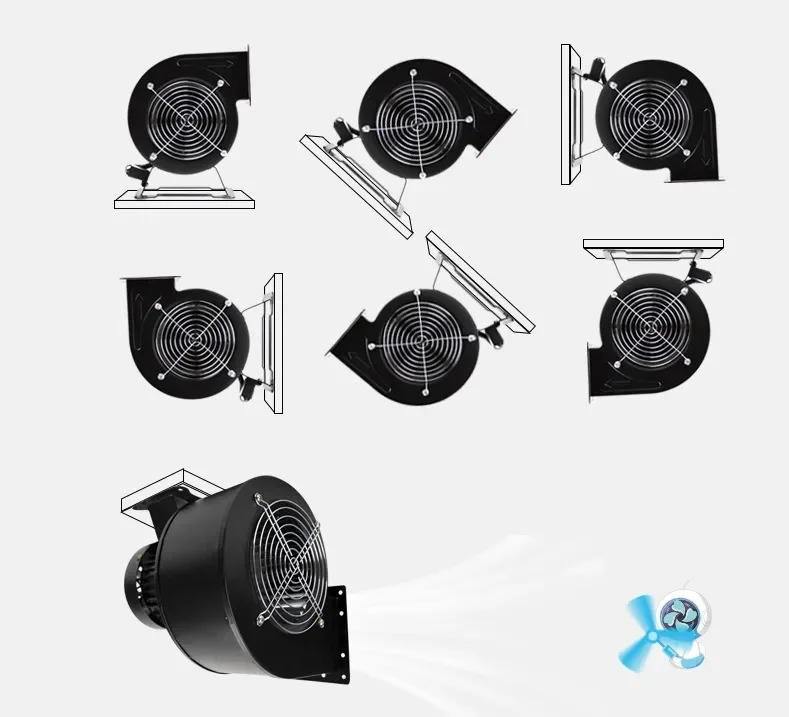

Multi-angle installation
360-degree free installation, can be installed in the forward direction of suspension

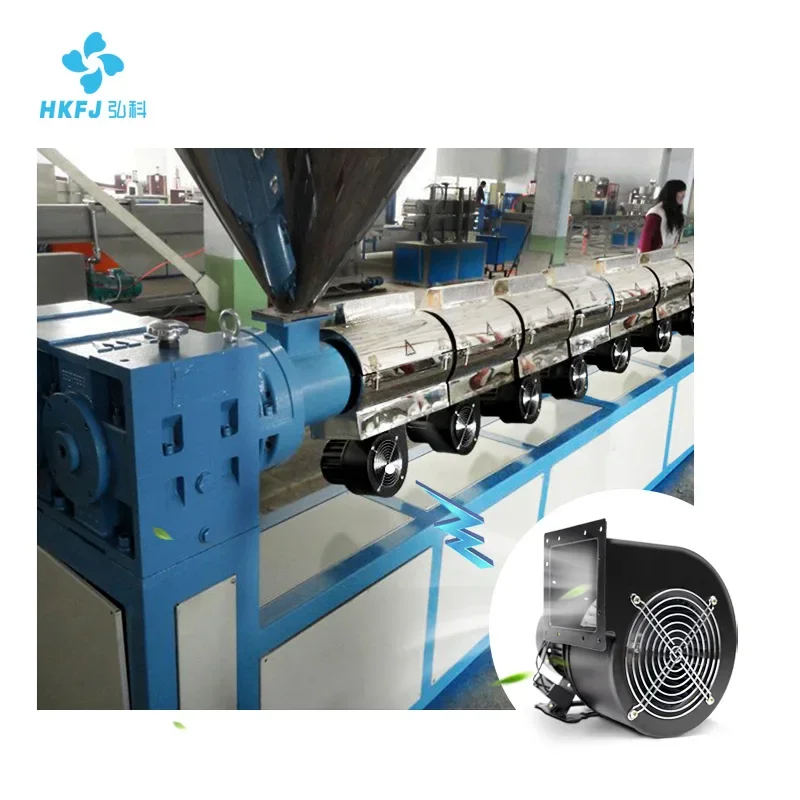

Use scene
Power frequency centrifugal fan is suitable for a variety of equipment, easy to install
Technique parameters
|
Model
|
Voltage
(V)
|
Current
(AMP)
|
Power
(W) |
Speed
(RPM) |
Flow
(m3/h)
|
Pressure
(Pa)
|
Niose
(dB-A)
|
Remark
|
|
130FLJ0
|
220
|
0.27
|
60
|
2600
|
168
|
200
|
<=60
|
|
|
380
|
0.16
|
60
|
2600
|
168
|
200
|
<=60
|
Unable to flange
|
|
|
130FLJ0-1
|
220
|
0.27
|
60
|
2600
|
168
|
280
|
<=60
|
|
|
380
|
0.16
|
60
|
2600
|
168
|
280
|
<=60
|
Unable to flange
|
|
|
130FLJ1
|
220
|
0.39
|
85
|
2500
|
216
|
280
|
<=70
|
|
|
380
|
0.25
|
85
|
2500
|
216
|
280
|
<=70
|
|
|
|
130FLJ1-1
|
220
|
0.39
|
85
|
2500
|
216
|
280
|
<=70
|
|
|
380
|
0.25
|
85
|
2500
|
216
|
280
|
<=70
|
|
|
|
130FLJ5
|
220
|
0.55
|
120
|
2600
|
330
|
350
|
<=72
|
|
|
380
|
0.25
|
120
|
2600
|
330
|
350
|
<=72
|
|
|
|
150FLJ 17
|
220
|
1.12
|
240
|
2650
|
540
|
420
|
<=72
|
|
|
150FLJ 15
|
380
|
0.7
|
240
|
2650
|
540
|
420
|
<=72
|
|
|
150FLJ 5
|
220
|
1.52
|
330
|
2800
|
660
|
450
|
<=76
|
|
|
150FLJ 6
|
380
|
0.83
|
330
|
2800
|
660
|
450
|
<=76
|
|
|
170FLJ7
|
220
|
2.28
|
500
|
2650
|
900
|
530
|
<=76
|
|
|
170FLJ5
|
380
|
1.35
|
500
|
2650
|
900
|
530
|
<=76
|
|
Note: 380V and borderless models without bracket

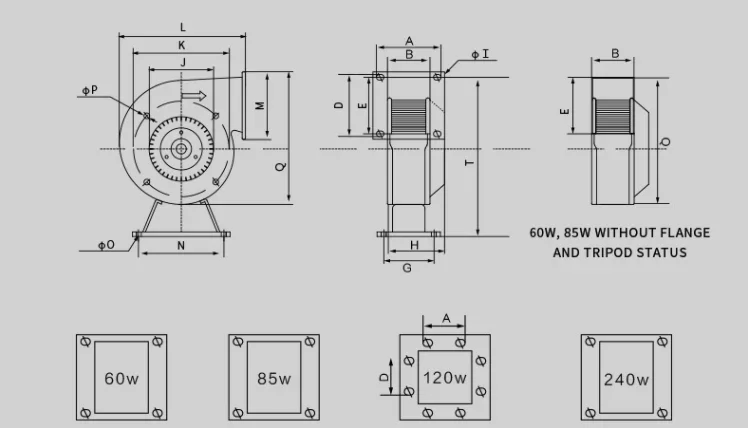

60, 85, 120, 240W size and screw hole installation diagram
|
Model
|
Power(W)
|
A
|
B
|
D
|
E
|
G
|
H
|
ΦI
|
J
|
|
130FLJ0
|
60
|
78
|
45
|
70
|
65
|
80
|
70
|
4-Φ8
|
110
|
|
130FLJ1
|
85
|
90
|
60
|
70
|
65
|
85
|
80
|
4-Φ6
|
110
|
|
130FLJ5
|
120
|
55
|
85
|
48
|
65
|
80
|
105
|
4-Φ6
|
100
|
|
150FLJ15
|
240
|
95
|
70
|
95
|
80
|
80
|
100
|
4-Φ8
|
115
|
|
150FLJ17
|
240
|
95
|
70
|
95
|
80
|
80
|
100
|
4-Φ8
|
115
|
|
|
|
|
|
|
|
|
|
|
|
|
Model
|
K
|
L
|
M
|
N
|
ΦO
|
ΦP
|
Q
|
T
|
|
|
130FLJ0
|
130
|
180
|
85
|
130
|
4-Φ8
|
4-Φ3
|
180
|
210
|
|
|
130FLJ1
|
130
|
180
|
90
|
130
|
4-Φ6
|
4-Φ3
|
180
|
210
|
|
|
130FLJ5
|
130
|
180
|
110
|
130
|
4-Φ6
|
4-Φ3
|
180
|
200
|
|
|
150FLJ15
|
150
|
205
|
115*115
|
130
|
4-Φ6
|
4-Φ3
|
210
|
240
|
|
|
150FLJ17
|
150
|
205
|
115*115
|
130
|
4-Φ6
|
4-Φ3
|
210
|
240
|
|

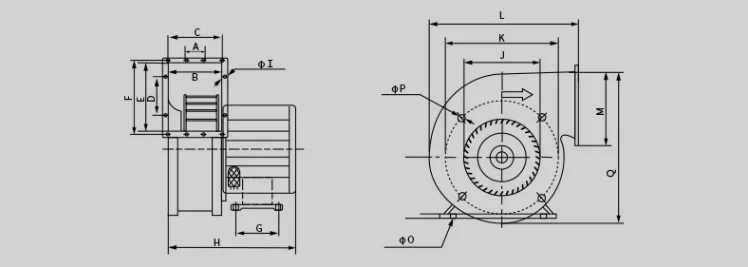

330, 500W installation diagram
|
Model
|
Power(W)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|
150FLJ5/6
|
330
|
50
|
90
|
102
|
50
|
90
|
102
|
80
|
230
|
|
170FLJ5/7
|
500
|
20
|
82
|
100
|
50
|
65
|
100
|
80
|
265
|
|
|
|
|
|
|
|
|
|
|
|
|
Model
|
I
|
J
|
K
|
L
|
M
|
N
|
O
|
P
|
Q
|
|
150FLJ5/6
|
12-Φ4
|
120
|
150
|
200
|
118*118
|
130
|
4-Φ6
|
4-Φ3
|
200
|
|
170FLJ5/7
|
12-Φ6
|
120
|
170
|
240
|
113*113
|
160
|
4-Φ5
|
4-Φ3
|
275
|
Company Profile

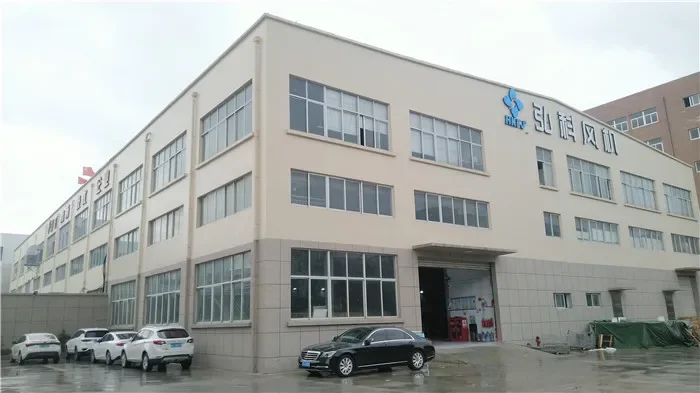

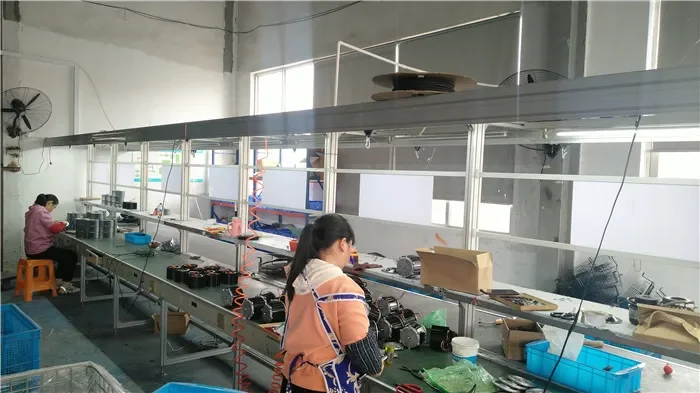

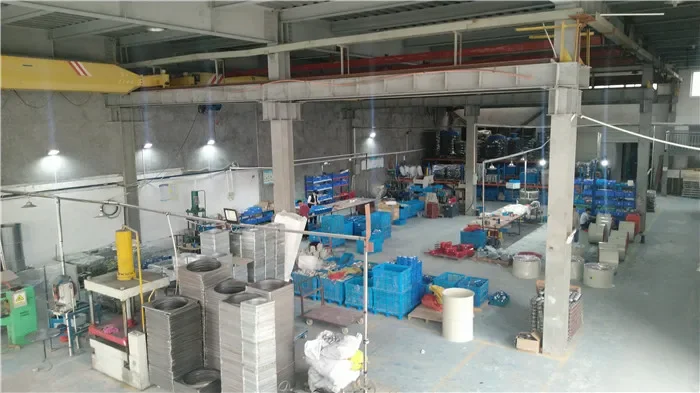

Zhejiang Hongke Electric, founded in 2010, is a professional manufacturer of fans and supporting products. Committed to providing small and medium-sized enterprises with plant ventilation and equipment cooling solutions, we have enabled closed factories and equipment to “breathe” the natural outdoor air freely. With 10 years of development, we currently have a production workshop of 4,000 square meters, a warehouse center of 2,000 square meters, and 50 pieces of production and inspection equipment, and we employ over 100 professional production workers. Our presence has been expanded across China, serving over 300,000 clients. Our products include axial flow fans, centrifugal fans, explosion-proof fans, external rotor axial flow fans, VF motor cooling fans, dry-type transformer fans, small blowers, cabinet cooling fans, boiler induced-draft fans, and high-pressure centrifugal fans. Factory ventilation and equipment cooling solutions are our two main product categories, and we also provide supporting services such as dedusting, boiler air inducing, and material transportation. Quality is the cornerstone of Hongke. We are well aware that high quality is essential to solve clients’ problems and also the reason why our clients choose us. We will continue to improve our pre-sales and after-sales service systems and integrate the demand and expectations of clients into our value chain to improve product quality, develop and upgrade our products and services. In this way, our clients can be provided with more efficient solutions. Hongke Fans unleash the full potential of wind!
