Ice machines — 380V~440V,50HZ,3P/220V,60HZ,3P, 500 W, 750 W. The complete factory specification follows. Made by Guangzhou Koller Refrigeration Equipment Co., Ltd. (19 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Ice Machines
- Model Number: DK30
- Power: 500 W, 750 W
- Voltage: 380V~440V,50HZ,3P/220V,60HZ,3P
- Ice Storage Capacity: Other
- Warranty: 12months
- After Warranty Service: Video technical support and online support
Technical Specifications
| Ice Shape | ICE BLOCK |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380V~440V,50HZ,3P/220V,60HZ,3P |
| Power | 500 W, 750 W |
| Compressor Brand | Other, Bitzer |
| Key Selling Points | Automatic |
| Application | Industrial |
| Warranty | 12months |
| Core Components | Motor, Other, Bearing, Pump, PLC, compressor |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2550 |
| Brand Name | KOLLER |
| Model Number | DK30 |
| Dimension(L*W*H) | 4900*1100*2000mm |
| Ice Size | 95mm*260mm*500mm for 10kg ice |
| The Freezing Time | 3Hours |
| Electrical Components | LG/LS |
| Control System | HP/LP switch with automatic reset |
| Refrigeration Components | Danfoss /Castel |
| Wildly Use | ice plant, hotel, restaurant, bar and so on |
| Cooling Way | air-cooling |
| After Warranty Service | Video technical support and online support |
| Certification | ce |
| Showroom Location | Indonesia |
| Selling Units | Single item |
Product Details
Product Information
Koller 3 Tons for Fishery Seafood Preservation Direct Cooling Ice Block Machine in America Europe
Model: DK30
Capacity: 3tons/day
Ice shape: block ice
Ice size: 50kg/piece
Ice dimension: 163mm*405mm*920mm
Ice freezing time: 12 hours per batch
Ice freezing time: 12 hours per batch
3. Models and technical parameters:
Daily capacity from 500 kg to 3 tons.
Model Item | DK04 | DK05 | DK10 | DK20 | DK30 | ||||||
Capacity (Ton/24hrs) | 0.4 | 0.5 | 1 | 2 | 3 | ||||||
Compressor Brand | Copeland | Copeland | Copeland | Copeland/Bit zer/Refcomp | Bit zer/Refcomp | ||||||
Compressor Power (kw) | 3 | 4 | 6 | 10 (9) | 18 (14) | ||||||
Refrigerant | R22/R404A/R507 | ||||||||||
Ice Size | 3kg/5kg | 3kg/5kg | 5kg/10kg | 5kg/10kg | 10kg/25kg | ||||||
Dimension (mm) | Length | 1250 | 1250 | 3080 | 3780 | 4780 | |||||
Width | 1050 | 1050 | 1100 | 1120 | 1140 | ||||||
Height | 1620 | 1620 | 1780 | 1950 | 1950 | ||||||
Cooling Way | Air Cooling | ||||||||||
Ice Harvest Way | Automatic | Manual Forklift | |||||||||
Daily capacity from 5 tons to 30 tons
Model Item | DK50 | DK80 | DK100 | DK150 | DK200 | DK300 | |||||||
Capacity (Ton/24hrs) | 5 | 8 | 10 | 15 | 20 | 30 | |||||||
Compressor Brand | Bit zer/Refcomp | Bit zer/Refcomp | Bit zer/Refcomp | Bit zer/Refcomp | Bit zer/Refcomp | Bit zer/Refcomp | |||||||
Compressor Power (kw) | 34 (28) | 68 (56) | 68 (56) | 88 (68) | 132 (102) | 146 | |||||||
Refrigerant | R22/R404A/R507 | ||||||||||||
Ice Size | 10kg/25kg | 10kg/25kg | 25kg/30kg/50kg | 25kg/30kg/50kg | 25kg/30kg/50kg | 25kg/50kg | |||||||
Dimension (mm) | Length | 5200 | 7500 | 8600 | 10890 | 11800 | 15500 | ||||||
Width | 1700 | 2300 | 2500 | 2300 | 2200 | 3000 | |||||||
Height | 2100 | 2500 | 2500 | 2500 | 2500 | 2700 | |||||||
Cooling Way | Air/Water Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling | |||||||
Ice Harvest Way | Manual Forklift | Manual Forklift | Manual Forklift | Auto Rise/Fall | Auto Rise/Fall | Auto Rise/Fall | |||||||
Ice size for choice. It also can be customized according to your need.
Ice Size/pc | Ice Dimension (mm) (Thickness*Width*Height) | Freezing Time (Hours) | Ice Making Frequency (Times) |
5KG | 95*130*500 | 3 | 7 |
10KG | 95*260*500 | 3 | 7 |
15KG | 123*300*500 | 6 | 4 |
123*215*710 | 6 | 4 | |
20KG | 123*285*710 | 6 | 4 |
25KG | 123*350*710 | 6 | 4 |
155*280*710 | 8 | 3 | |
30KG | 155*335*710 | 8 | 3 |
About The Details
Faster Ice Making and Lower Power Consumption

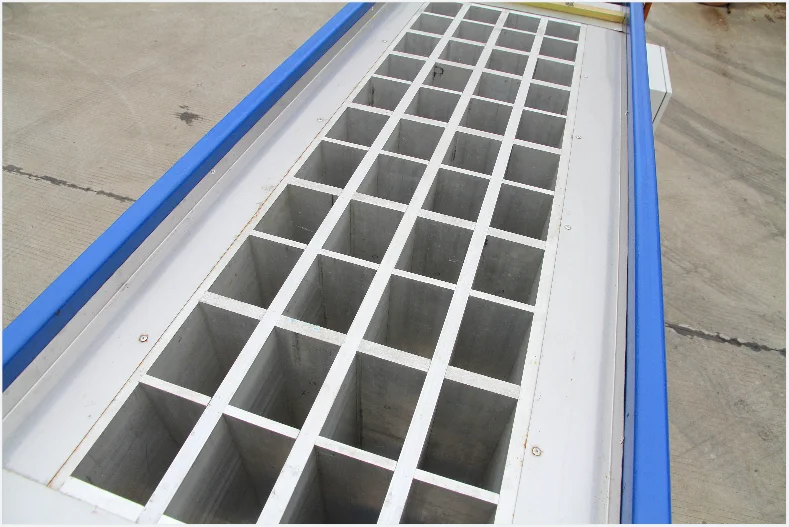

Aluminum evaporator is of 3 times higher heat exchange efficiency than other steel [SUS304, galvanized steel], so ice block can be completely frozen faster. In this way, it can produce more ice blocks with lower power consumption.
Clean ice Block and Eco-friendly
Koller direct cooling ice block machine can make ice block directly without brine or any other material, so it can produce clean ice blocks even for human consumption. Also it won't produce any pollution to the environment.
Longer service life
Without salt or other material's corrosion, Koller direct cooling ice block machine can have longer service life and you need just clean the ice moulds regularly. The future maintenance investment is lower. Less Space Requirement For Koller direct cooling ice block machine is integrated design, it takes less space than the brine type ice block machine for the same capacity.
Labor saving
Equipped with Siemens PLC system, Koller direct cooling ice block machine only only your labor cost to add the water and take the ice blocks out, all other process is automatically finished.
Product Display
Related Products
Client Feedback
Company Profile
FAQ
1. Why Should I Buy From You Not From Other Supplier? 1) We Have Rich Experience Since 2004. 2) We Have Sold Our Products To Over 180 Countries. 3) We Have Good Service With Quick Response. 4）we Have Many Customers Re-purchase Again And Again. 2. How Can You Guarantee The Quality? 1) We Have Our Quality Department To Inspect The Quality During The Production Process. 2) We Will Test The Whole Machine In Our Workshop And Testing Pictures Or Vedios Can Be Provided To You For Checking. 3. Is The Installation Difficult? Can You Supply Installation Service?
The Installation Is Not Difficulty. 1) We Will Test And Install The Machine Before Shipment, All Necessary Spare Parts Will Be Provided. Also Operation Manual And Video Are Provided To Guide The Installation. 2) We Can Send Our Engineer To Assist The Installation And Provide Technical Support And Train Your Workers. But You Should Provide Accommodation And Round-trip Ticket For Our Engineer. 4. What After-sales Service Can You Supply? 1) 12 Months Warranty After Delivery. 2) Professional After-sales Department To Provide 24/7 Technical Support, All Complaints Should Be Replied Within 24 Hours. 3) Over 10 Engineers Available To Service Machinery Overseas. 4) Free Spare Parts Replacement Within Warranty Period. 5) Beyond Guarantee Period, We Will Charge Market Price For Spare Parts. Any Other Question, Please Leave Your Meaasage Below, Our Salesman Will Reply You Immediately.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $13800 / set
- 5–9 set: US $13000 / set
- 10+ set: US $12300 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12months warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machines carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380V~440V,50HZ,3P/220V,60HZ,3P. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
