Key specification for this ice machines: 380v/50hz/3p, 4kw(5.36hp). Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ice Machines
- Power: 4kw(5.36hp)
- Voltage: 380v/50hz/3p
- Ice Storage Capacity: Other
- Material: SUS304 Staineless Steel
- Refrigerant: R404a
- Warranty: 1 Year
Technical Specifications
| Ice Shape | ICE BLOCK |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380v/50hz/3p |
| Power | 4kw(5.36hp) |
| Compressor Brand | Bitzer |
| Key Selling Points | Automatic |
| Application | Industrial |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1200 |
| Brand Name | Kingwell |
| Dimension(L*W*H) | 4900mm(L)*1100mm(W)*2000mm(H) |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Compressor | Bitzer/Customized |
| Ice Size | Customized Size |
| Cooling Way | Water/Air Cooling |
| Refrigerant | R404a |
| Material | SUS304 Staineless Steel |
| Type | Automatic Block Ice Machine |
| Control System | Simens PLC Control System |
| Name | Block Ice Machine |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

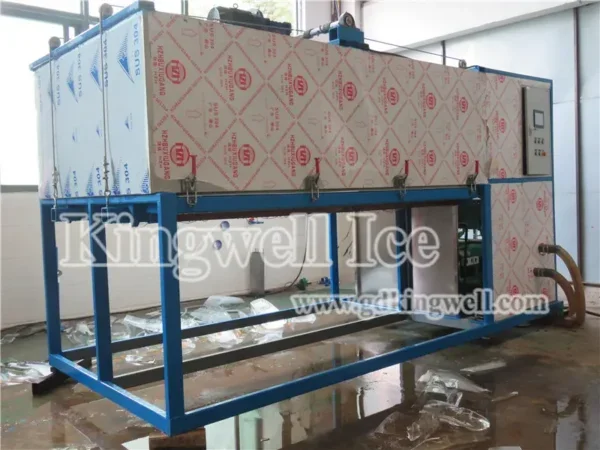

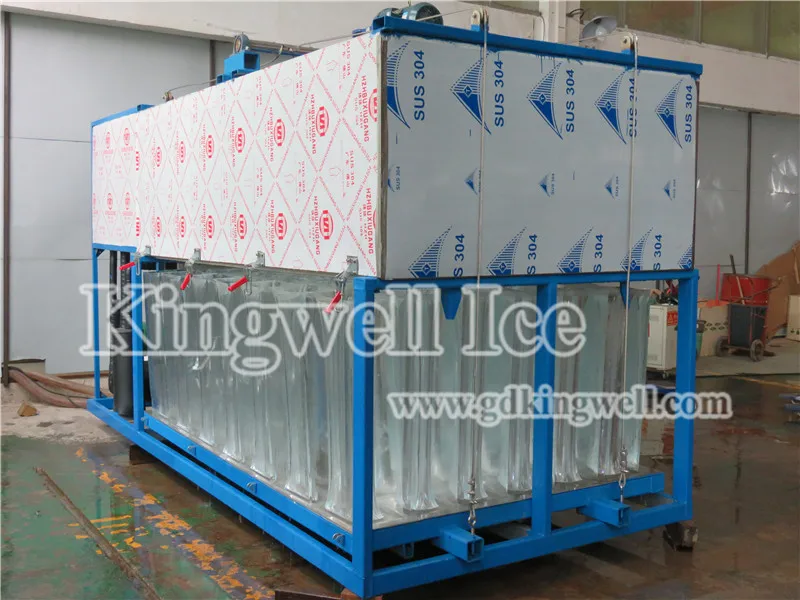

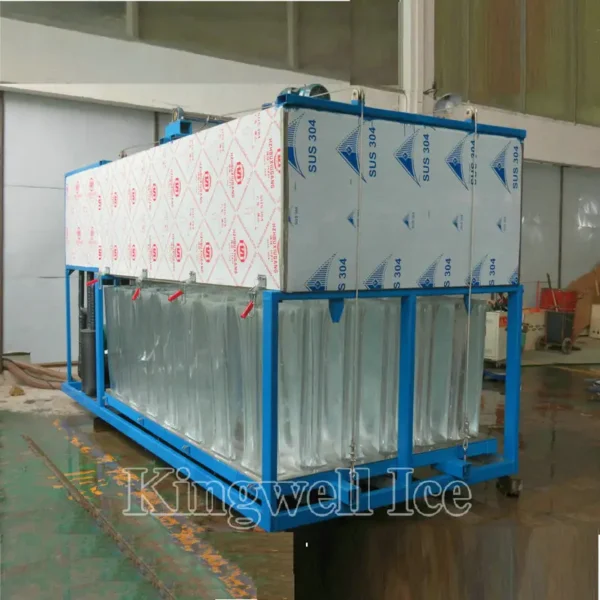

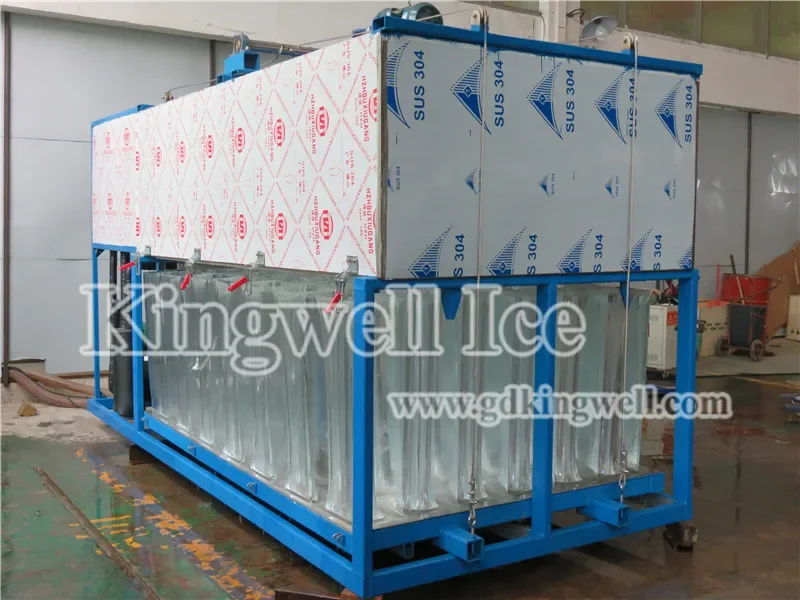

Block Ice Making Machine Ice Factory Machine Plant Ice Block Making Machine for Sale
SPECIFICATIONS OF 3 TONS DIRECT COOLING ICE BLOCK MACHINE | ||||||
Compressor | Brand | Bitzer, Germany | ||||
Horse Power | 18HP | |||||
Net Power | Semi-hermetic compressor | |||||
Technical specification | Supply Power | 380V, 50Hz, 3Phase / Customized | ||||
Input Water Temp. | 21℃ | |||||
Condensing Temp. | 40℃ | |||||
Measurement | Machinery unit | 4900mm(L)*1100mm(W)*2000mm(H) | ||||
Cooling tower | 1400mm(L)*1400mm(W)*1600mm(H) | |||||
Main Features
1). Sanitary and food grade block ice: Using aluminum plate evaporated directly, the ice can eat directly if the ice making water is clean enough;
2). Automatic ice making and harvest under control of PLC micro computer system, easy operation;
3). Anti-rust and anti-corrosive material: the aluminum ice cans is a good material anti-rust and anti-corrosive, it means the lifespan will be longer;
4). All-in-One refrigeration system, less space is required, easier for installation;
5). Shorter freezing and harvesting cycle, save labor cost.

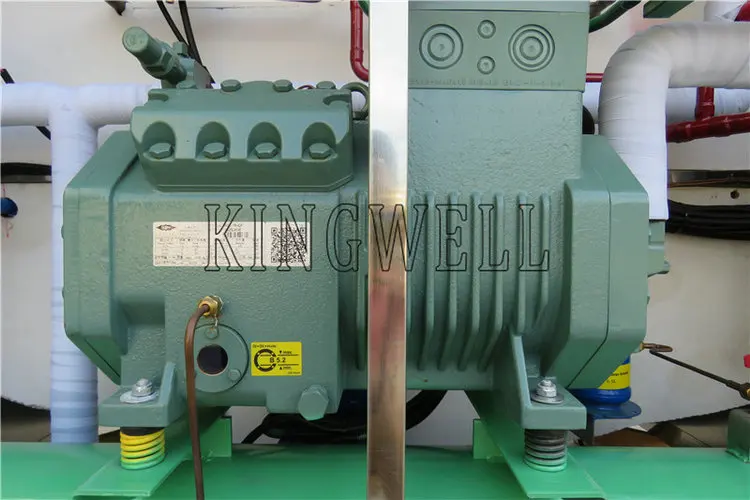

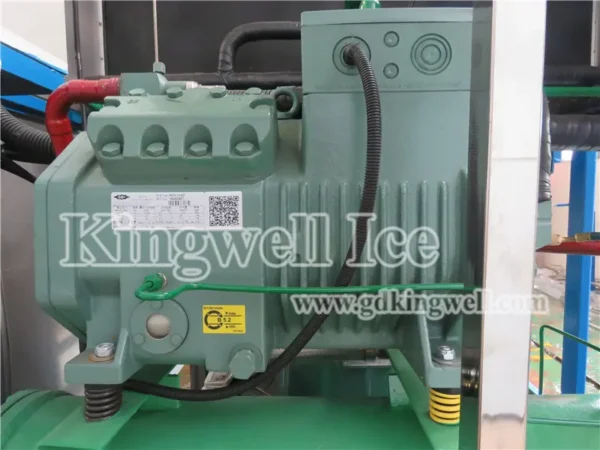

Compressor
Name: Bitzer
Brand: Germany brand
The compressor is the only engine of the refrigeration system, it's just as the heart for a human being, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.

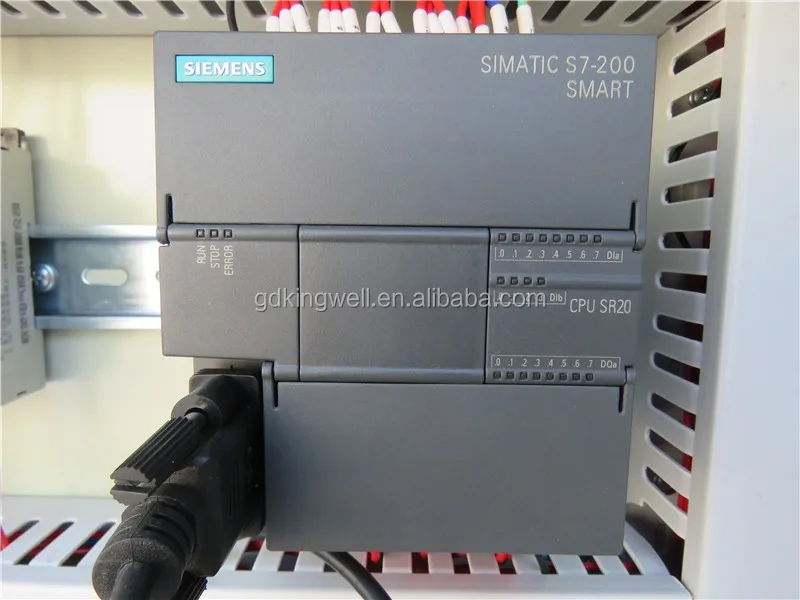

PLC Program Controller
Name: SIEMENS
Brand: Germany brand
This PLC is just as the brain for a human being, it controls all the electrical parts of the machine, to guide all part when to work and stop, so the whole ice making and ice falling process are totally automatic. SiEMENS brand is also widely used over the world.

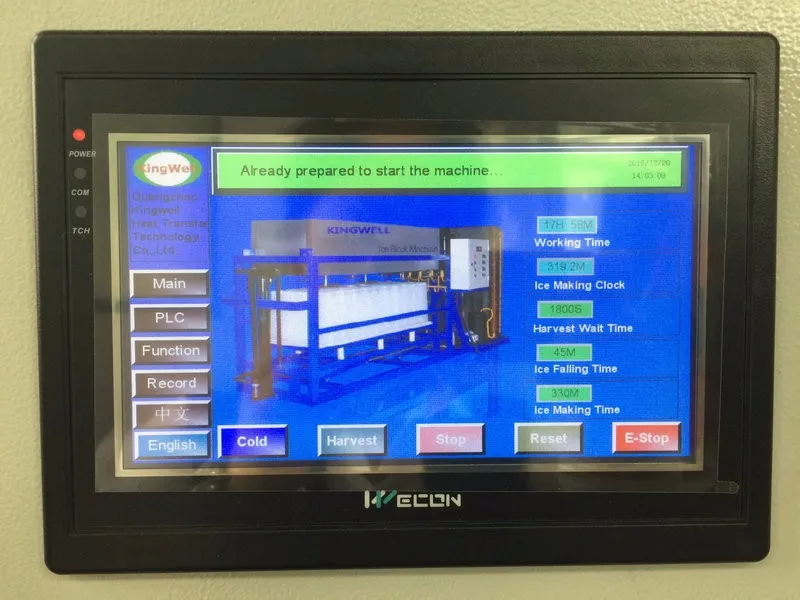

Touch Screen
Name: Weicon
Brand: Taiwan brand
This touch screen can adjust some datas and ice thickness, all the working states and working histories can be seen clearly on the screen, so when there is some error of the machine, you can show the video and picture to the factory, problems can be judged quickly

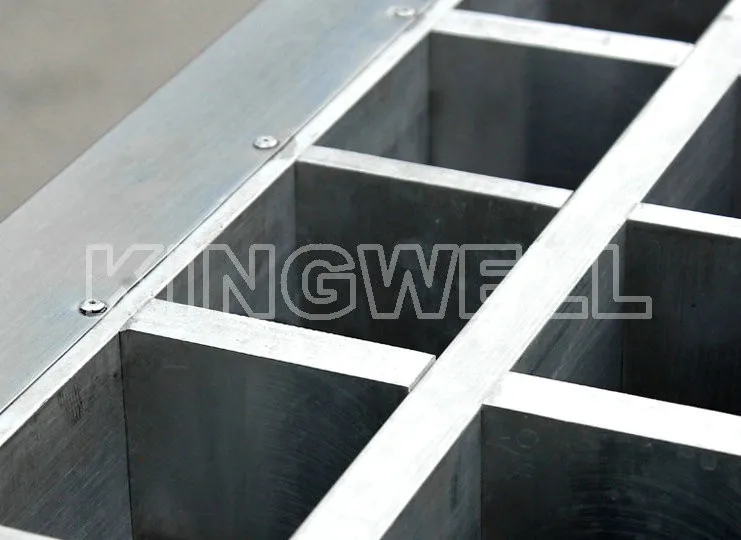

Aluminum plate ice can
Name: Kingwell
Material: aluminum plate
Function: for block ice freezing
The ice can is totally matched food-grade standard, we can make different sizes for your choice.

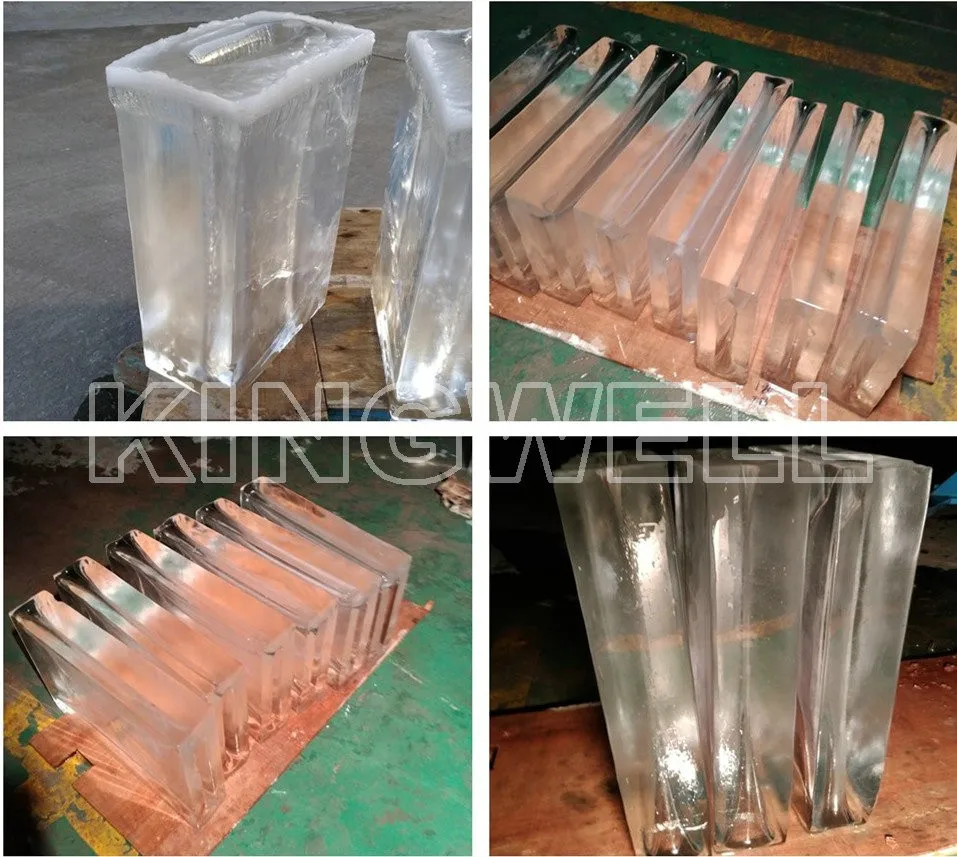

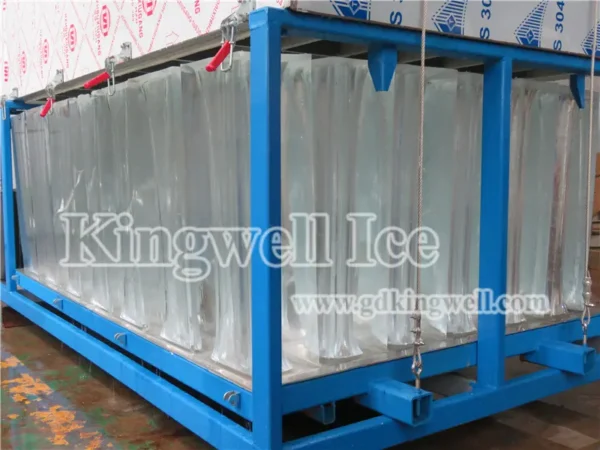

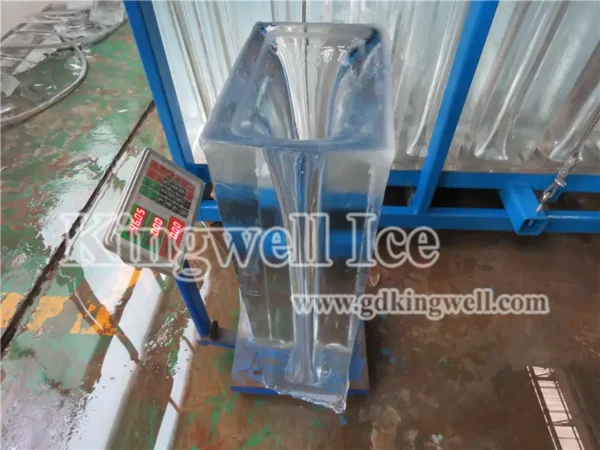

Crystal and transparent block ice , mostly used for human consumption or ice sculpture.
We have below standard sizes for your choice, if you need other size, we can made as per your demand!
Block Ice Weight | Ice Size (thickness*width*height,mm) | Freezing time(hours) | Frequency of ice making per day(times) |
5KG | 80*165*500 | 4.8 | 5 |
10KG | 100*205*610 | 6 | 4 |
15KG | 100*320*610 | 6 | 4 |
20KG | 120*320*750 | 8 | 3 |
25KG | 120*360*750 | 8 | 3 |
30KG | 150*280*1000 | 12 | 2 |
50KG | 150*450*1000 | 12 | 2 |
100KG | 210*550*1200 | 24 | 1 |
Please contact us for more detail
Guangzhou Kingwell Heat Transfer Technology Co., Ltd.
TEL / FAX: +86-2031136694
Add: No.102 Yongshan Village South Road,Shiqi Town,Panyu District,Guangzhou,China
Website : www.gdkingwell.en.alibaba.com / www.gdkingwell.com Facebook: www.facebook.com/Kingwellice
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $15000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380v/50hz/3p. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
