The industrial air cooler listed here carries 48 V, 24 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Henan Superfan Electronic Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Air Cooler
- Power Source: Electric
- Voltage: 48 V, 24 V
- Material: Plastic
- Blade Material: PBT
- Frame Material: Thermal Plastic 94V-0
- Speed: 2000~3000RPM
Technical Specifications
| Voltage | 48 V, 24 V |
|---|---|
| Speed | 2000~3000RPM |
| Type | dc cooling fan |
| Material | Plastic |
| Blade Material | PBT |
| Mounting Type | Mounting by Screws |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Field Maintenance and Repair Service |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | ANNEWELL |
| Product Name | DC Brussless Axial Flow Fan |
| Motor | 4-pole DC Copper Motor |
| Size | 200x200x60mm |
| Frame Material | Thermal Plastic 94V-0 |
| MPQ | 10 pcs/Carton |
| Life Expectancy | 50000 Hours |
| Optional Function | RD, FG, PWM, IP55~67 |
| Operating Temperature | -10~+75 Celsius Degree |
| Application | Power Supply Chassis Industrial PC ESS |
| Selling Units | Single item |
| Single Package Size | 23X23X9 cm |
| Single Gross Weight | 1.7 kg |
Product Details

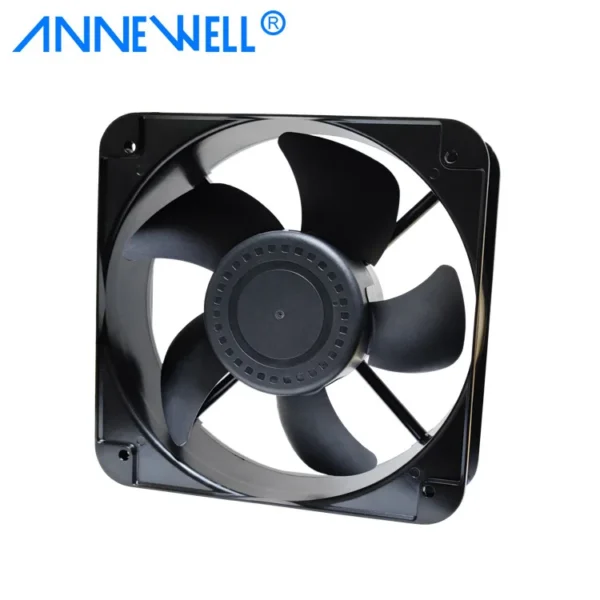

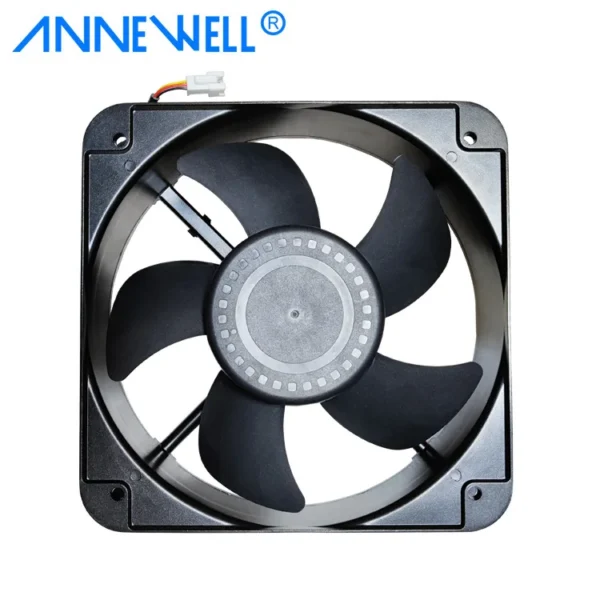

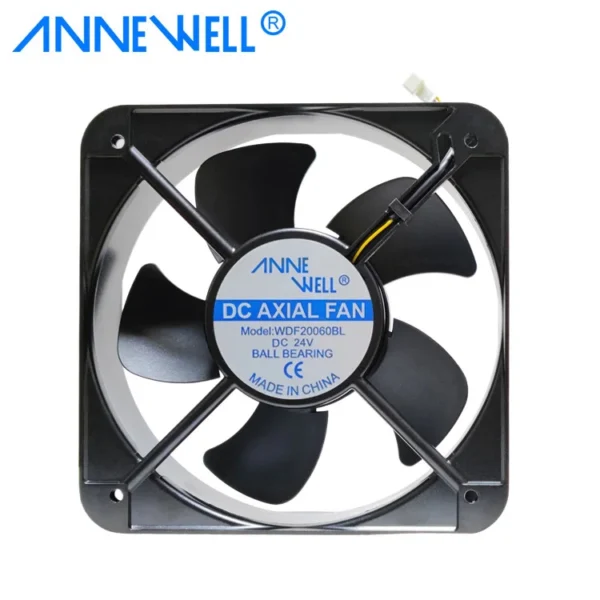

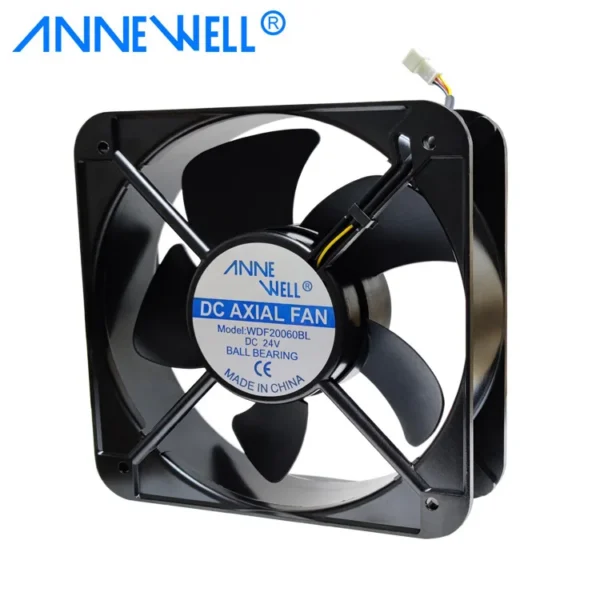

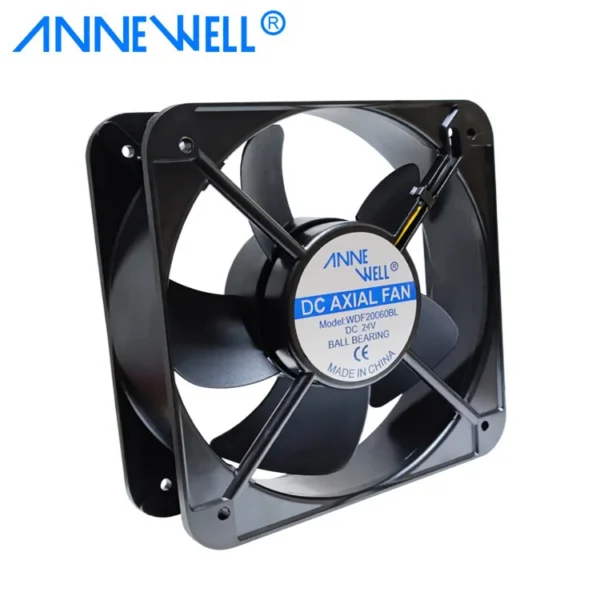

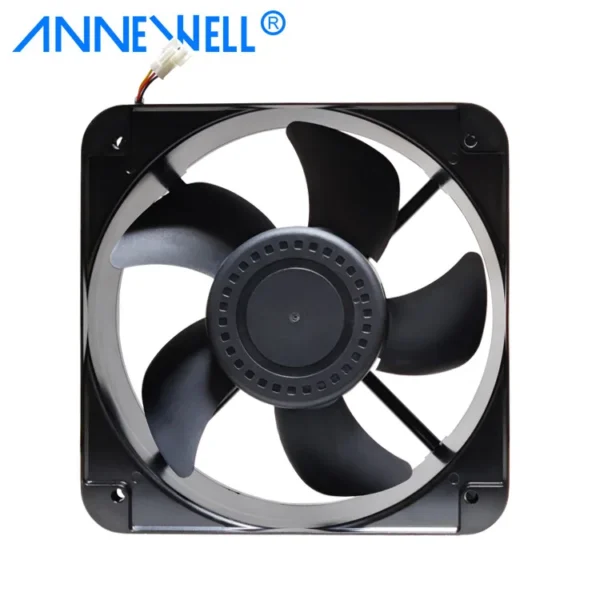

ANNEWELL 20cm 200mm Industrial Air Cooler Fan IP55 Waterproof Server Ventilation Cooling Fan 24v 48v 200x200x60mm DC Axial Fan
| Listed Model | Bearing System | Rated Voltage | Operation Voltage | Rated Current | Rated Power | Speed | Air Flow | Static Pressure | Noise Level | Available Features(Optional) | Weight | |||
| VDC | VDC | AMP | W | RPM | CFM | mmH2O | dBA | FG | RD | Thermal Control | PWM | G | ||
| WD20060HB | Ball | 24 | 21.6~26.4 | 2.50 | 60.0 | 3,000 | 640 | 24.6 | 68.0 | * | * | * | * | 1030 |
| WD20060MB | 1.50 | 36.0 | 2,500 | 530 | 18.8 | 58.0 | * | * | * | * | ||||
| WD20060LB | 1.00 | 24.0 | 2,000 | 490 | 15.5 | 50.0 | * | * | * | * | ||||
| WD20060HB | 48 | 43.2~52.8 | 1.20 | 57.6 | 3,000 | 640 | 24.6 | 68.0 | * | * | * | * | ||
| WD20060MB | 0.80 | 38.4 | 2,500 | 530 | 18.8 | 58.0 | * | * | * | * | ||||
| WD20060LB | 0.50 | 24.0 | 2,000 | 490 | 15.5 | 50.0 | * | * | * | * | ||||
PACKAGING: Brown carton or according to customer requirement.
SHIPPING:
1.Samples delivery time is 1-3 working days. Bulk order delivery time is 1~3 weeks and is according to the order quantity.
2.Fans can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
3.Fans could be delivered by express ( FedEx, DHL, UPS, TNT, EMS or SF ) for under 100 kg, our shipping agent have discount with these express company.
4.Large Measure are shipped by sea or air as customer's requirements.
5.FOB port can be Guangzhou, Shenzhen, Xiamen, Shanghai, Ningbo, Qingdao,etc.
1. What is a DC Axial Fan?
A DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. DC motor runs from the attract and repel of the permanent magnet inside the motor. It blows air along the axis of the fan, or parallel to the track of the blade axis to create changeable and not stable air-flow. Standard DC axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm, 120mm, 140mm, 150mm, 172mm, 200mm and 254mm.
2. How to choose a DC fan?
You should consider the points of blow:
-Size(MM)
-Rated voltage(V)
-Speed(RPM)
-Airflow(CFM)
-Noise level(dBA)
-Current(A)
-Connector
3. What is a Bearing?
Fan bearing includes
-Sleeve Bearing Fan: life expectancy 30000 hours,
-Hydraulic Bearing Fan: life expectancy 40000 hours,
-Ball Bearing Fan: life expectancy 50000 hours or more.
4. Are you a factory or a trading company?
Yes, we are a factory.
-Established Year: 2015
-The Number of total employees: 516
-No of R&D team member: 15
-No of QC team member: 15
-Production & Test Facility: 39
-No of Production Line: 6
-Certification: UL, CUL,TUV,CE,CCC,SGS,ISO:9001-2008
5. What is the delivery time?
Sample lead time: 3~5 business days. Mass production delivery lead time: 1~3 weeks,
Delivery Ways: FedEX, DHL, UPS, TNT Door to Door Express service, By Air, By Sea, etc.
6. Can you provide any sample? Is it free or extra?
Yes, we can offer the samples for free charge, but you are suggested taking charge of the relative freight cost.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $19 / piece
- 500–999 piece: US $18 / piece
- 1000–9999 piece: US $17 / piece
- 10000+ piece: US $15.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial air cooler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial air cooler be supplied for my local voltage?
The standard configuration is 48 V, 24 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Superfan Electronic Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Superfan Electronic Equipment Co., Ltd. range on HVACR Nexus.
