The industrial axial cooling fan listed here carries 380V-460V, blade material aluminum alloy or FRP, documented exactly as the manufacturer publishes it. Made by SHENZHEN ZOUWEY EQUIPMENT CO., LTD. (13 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Industrial Axial Cooling Fan
- Voltage: 380V-460V
- Blade Material: aluminum alloy or FRP
- Housing Material: fiberglass, lifetime: 30years
- Warranty: 1 Year
- Place Of Origin: China
- Mounting Type: Wall Fan
Technical Specifications
| Voltage | 380V-460V |
|---|---|
| Blade Material | aluminum alloy or FRP |
| Mounting Type | Wall Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | China |
| Brand Name | FW |
| Housing Material | fiberglass, lifetime: 30years |
| Air Outlet Size | Dia17" ~ Dia55" |
| Fan Type | aixal fan |
| Rotation Rate | 430 ~ 1400 RPM |
| Motor | 0.37KW ~ 1.5KW IP54 4 ~ 12pole |
| Transmission Structure | motor direct-drive & belt drive |
| Shutter | PVC |
| Blade | SMC blades |
| Usage | industry greenhouse, poultry house, factory workshop, supermarket |
| Item Name | industrial axial cooling fan |
| Packaging Details | industrial axial cooling fan package: carton or wood plate or according to clients’ request |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Supply Ability | 300 pieces per Month industrial axial cooling fan supplying capacity |
Product Details

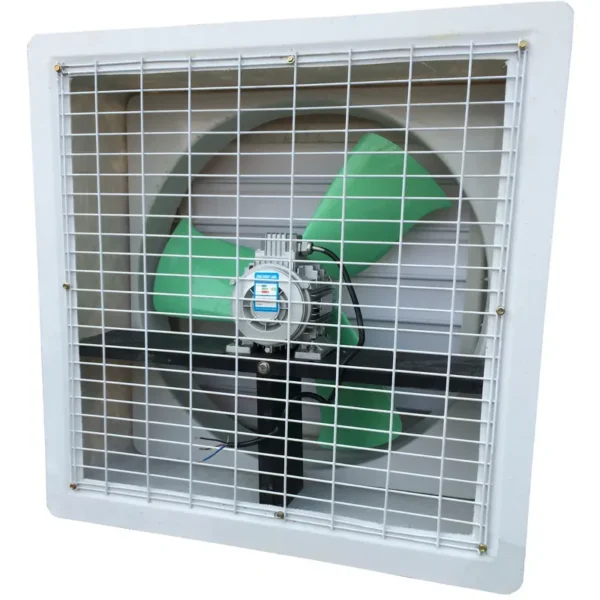

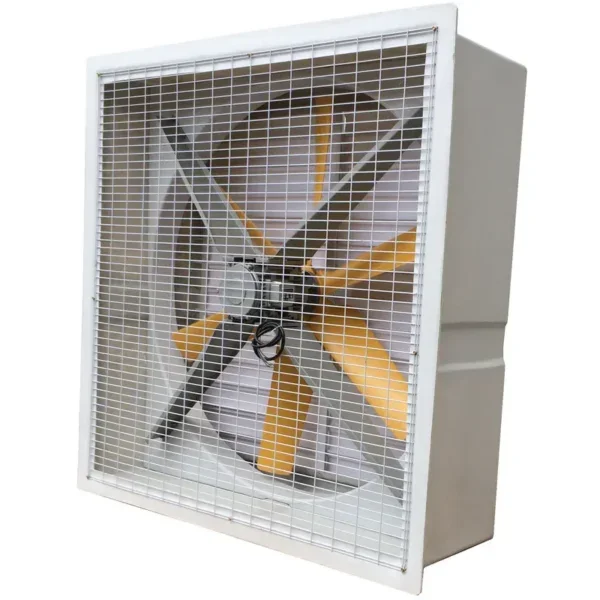

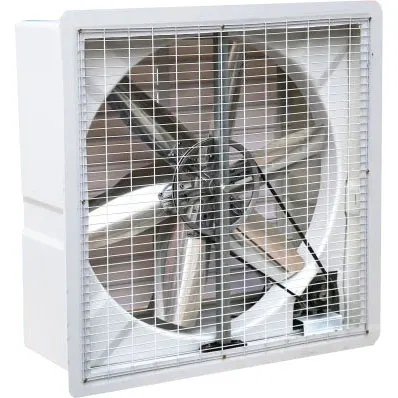

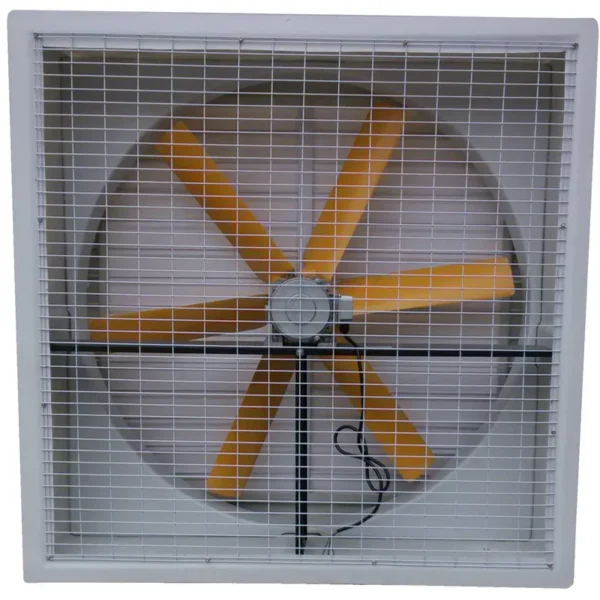

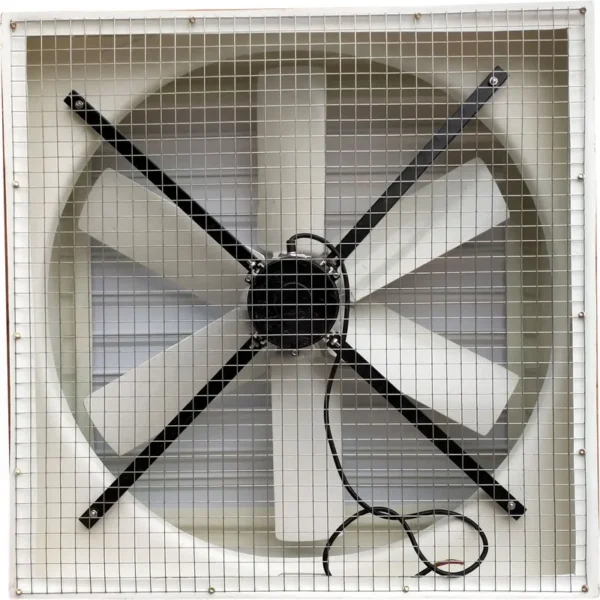

industrial commercial basement window wall mounted fiberglass industrial axial cooling fan with auto shutter
Specification
1. 33years factory history
2. Guaranteed quality with CE
3. Fine performance
4. Larger wind output
5. Low power & low price
6. 10 years housing lifetime
Main Parameter of Industrial Axial Cooling Fan
| Product No. | FW-WS51FH3F | FW-WS68FH6F | FW-WS80FH6F | FW-WS100FH6F |
| Diameter of Fan | 420mm | 540mm | 620mm | 850mm |
| Rotation Speed | 1400RPM | 700RPM | 700RPM | 550RPM |
| Air Volume | 5000 m³/h | 12000 m³/h | 21500 m³/h | 25500 m³/h |
| Noise | ≤68dB | ≤65dB | ≤66dB | ≤65dB |
| Motor | 0.37KW 4pole | 0.37KW 4pole | 0.37KW 4pole | 0.55KW 10pole |
| Voltage | 220V/380V/415V | 220V/380V/415V | 220V/380V/415V | 220V/380V/415V |
| Product w/o Flange Size | 510*510*270mm | 680*680*320mm | 800*800*320mm | 1000*1000*320mm |
| Product w/ Flange Size | 550*550*270mm | 760*760*320mm | 860*860*320mm | 1060*1060*320mm |
| Product No. | FW-WS116FH6F | FW-WS122FH6F | FW-WS138FH6F | FW-WS152FH6F |
| Diameter of Fan | 850mm | 1050mm | 1250mm | 1400mm |
| Rotation Speed | 550RPM | 550RPM | 430RPM | 430RPM |
| Air Volume | 25500 m³/h | 33500 m³/h | 42000 m³/h | 60000 m³/h |
| Noise | ≤70dB | ≤68dB | ≤68dB | ≤68dB |
| Motor | 0.55KW 10pole | 0.75KW 12pole | 1.1KW 12pole | 1.5KW 4pole |
| Voltage | 220V/380V/415V | 220V/380V/415V | 220V/380V/415V | 220V/380V/415V |
| Product w/o Flange Size | 1220*1220*320mm | 1380*1380*320mm | ||
| Product w/ Flange Size | 1160*1160*450mm | 1260*1260*320mm | 1460*1460*320mm | 1600*1600*450mm |
Advantage of Industrial Axial Cooling Fan
1.Huge airflow, low noise, high efficiency.Good looking, surface smoothness & gloss without rough edges.
2.Be introduced the advanced technology from Europe, suitable for various environment.
3.Fan Housing: strength fiberglass.
4.Shutters: good plastic
5.Fan Propeller: 6pcs blades of propeller made by mould pressing.
6.Motor: die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside.
7.Bearing: imported auto bearing to ensure stable operation for the fan propeller and low noise.
8.Cable outlet: cable outlet is on the back of the fan, it makes the fan with more convenience for installation.
Main Parts of Industrial Axial Cooling Fan
Exhaust Fan Housing
corrosion resistant fiberglass housing impact resistant with U.V. protection for better durability, and life
extra liner FRP resin inside for easy cleaning, minimal dirt, disease build-up and maximum air flow flush, eliminates
any protrusions or obstructions in the inside area, self draining sloped housing
Exhaust Fan Motor
motor is 0.75KW
standard motors are totally enclosed, high efficiency
all motors are designed and rated for years of trouble free operation
each motor is individually tested for 100% quality control
heavy duty casting pulley and hub
Exhaust Fan Propeller
Exhaut Fan Motor Bracket
stamped 3mm iron plate bracket, all corners are polished

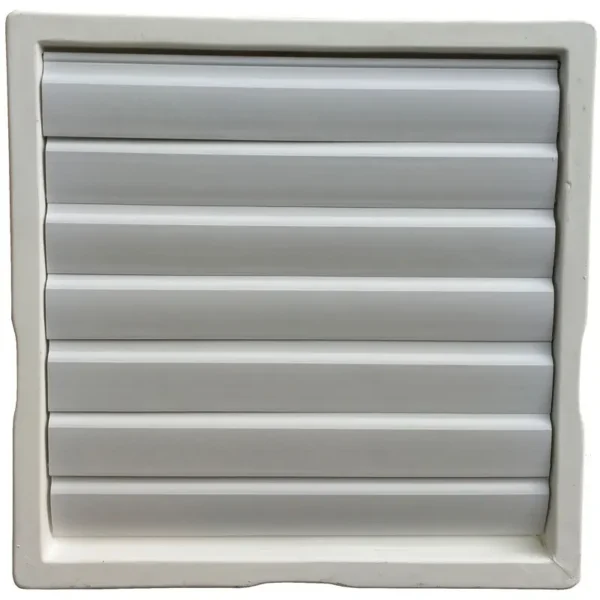

Exhust Fan Shutter
shutter with PVC extrusion frame
all corner are weld and have extra stainless steel corner
PVC louver with T bar
wire by pass
easy clip to remove shutter
guard; powder coat and cold zinc galvanise for better protection
Exhaust Fan and Cooling Pad Cool Schematic Diagram
Application of Industrial Axial Cooling Fan
This fiberglass exhaust fan are widely used in agriculture, industry and other busy or closed places for cooling, such as greenhouse (flower, vegetable and plant), poultry house(animal husbandry, livestock breeding, cow/chicken/sheep house),factory workshop(textile, chemical, medicine, tea, vegetable storage)restaurant and supermarket
CE certificate of Industrial Axial Cooling Fan
Our Markets
FAQ
1 .Q: May I get free sample?
A:Normally, our samples for charger are not free. However, the sample fee will be refunded when customer place bulk orders for that item.
2 .Q:How to got the order?
3. Q: Can you supply OEM or ODM service?
A:We can supply OEM/ODM service of any charger or cable, power bank absolutely!
4. Q: Which shipment available?
A:Normally, we ship goods by sea, air and express. Special requirement also acceptable.
By sea to your nearest sea port
By air to your nearest air port
By express(UPS,DHL.FEDEX,TNT…) to your door
5. Q : How to guarantee after sale ?
A : We supply 1 year products warranty. If the item is found to be defective in warranty,please contact us as soon sa possible, so that we can help to solve the problem at fastest rate : send back to our factory for repairing, or we send new one for you.
Contact us
Jack Peng
E-mail: info @ fwventilators.com
fwventilators @ yeah.net
QQ: 2955 6037 65
Skype: fwventilators
WeChat: ForeverWin168
Tel: +86-755-3284 8588
MP: +86-180 6293 2755
Http://www.fwventilators.com
Thanks for your visiting our products. For more detailed information, please send us inquiry. Thank You.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial axial cooling fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial axial cooling fan be supplied for my local voltage?
The standard configuration is 380V-460V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
