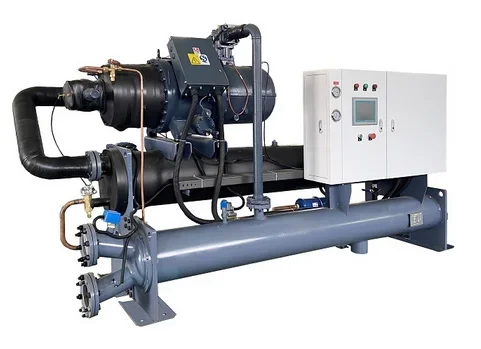

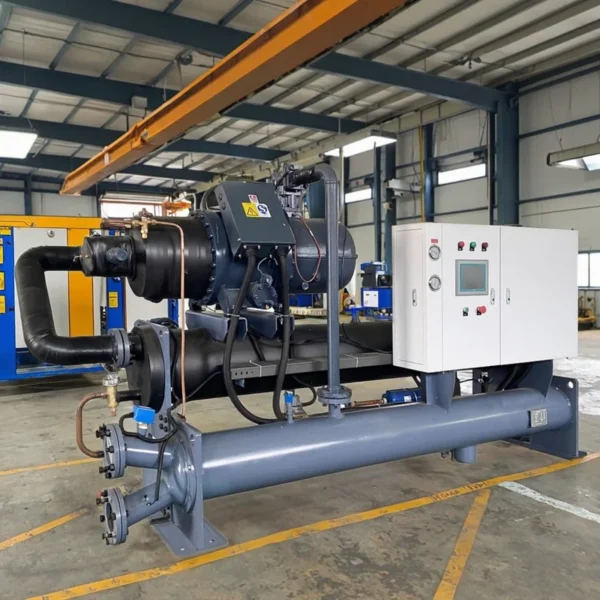

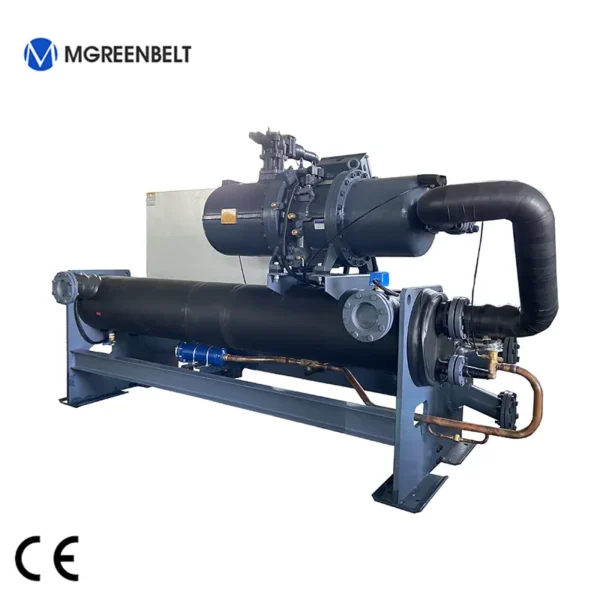

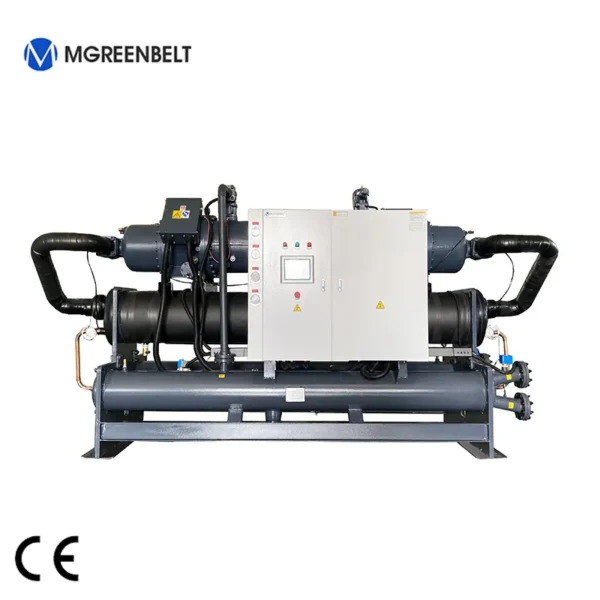

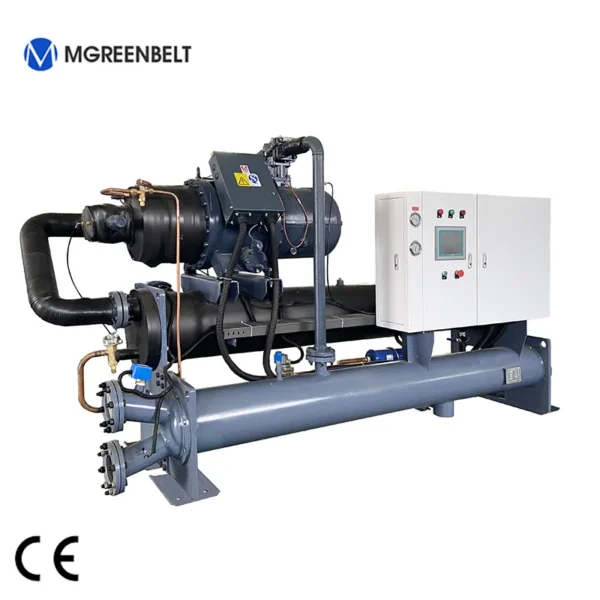

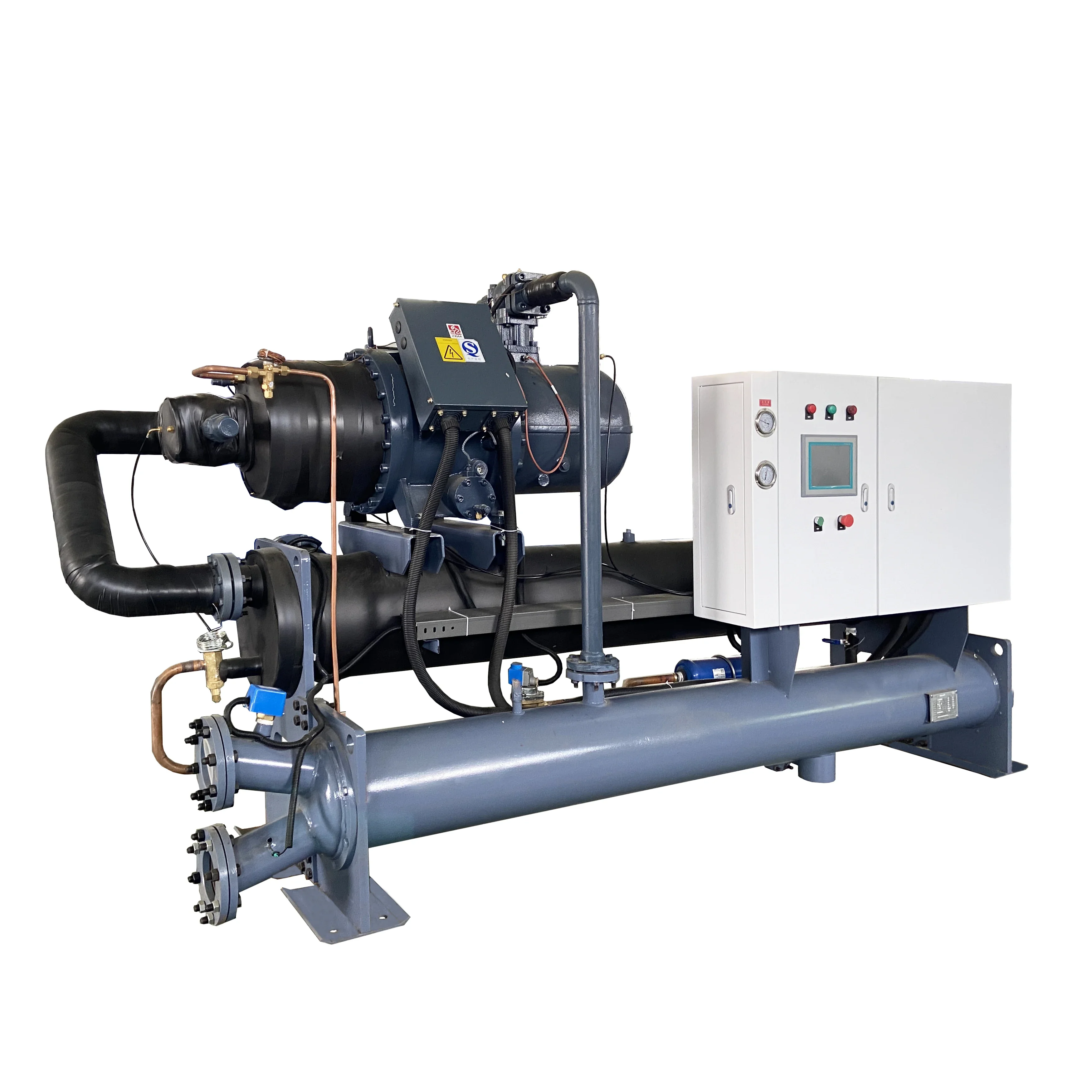

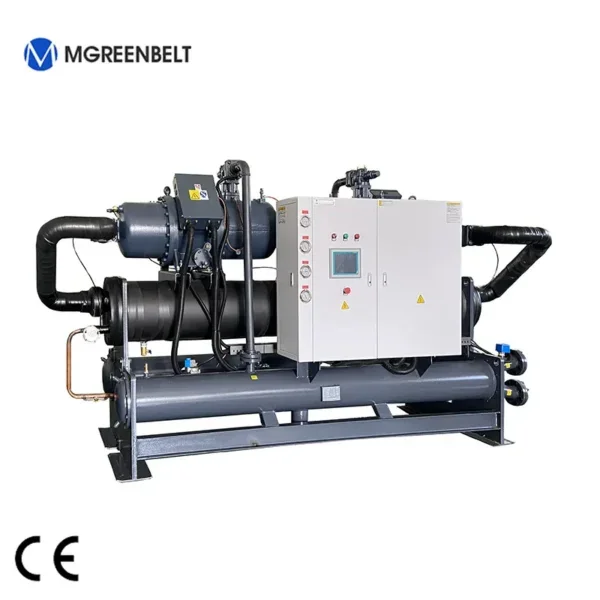

Water Cooled Chiller, 50Ton, 100Ton, 150Ton, 200Ton

The water cooled chiller listed here carries 380V/3P/50HZ & others, 200KW(268.20hp), documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Water Cooled Chiller

• Model Number: 50Ton, 100Ton, 150Ton, 200Ton
• Power: 200KW(268.20hp)
• Voltage: 380V/3P/50HZ & others
• Refrigerant: R407C, R-404A, R507, R22
• Warranty: 1 Year
• Place Of Origin: Shandong

Technical Specifications

Product Details

Product Description

Design of Water cooled water chiller

As industrial cooling solutions provider, Mgreenbelt offers full ranges of screw type chillers for variety of industries. Air
cooled screw chillers are equipped with effective capacity control. These line of industrial screw chillers can provide excellent cooling capacity so usually used for large capacity applications and industrial processing cooling , such as plastic injection, plastic extrusion, plastic bottle blowing and film blowing, concrete, chemicals. food and beverages, ice rink, brewing,etc.

Model	Cooling Capacity	Compressor Power	Water Flow Rate
MG-220W	220 KW / 60 Ton	50 KW	38 m3/h
MG-240W	246 KW / 70 Ton	55 KW	40 m3/h
MG-280W	281 KW / 80 Ton	62 KW	50 m3/h
MG-330W	328 Kw/ 90 Ton	72 KW	55 m3/h
MG-350W	353 KW / 100 Ton	78 KW	60 m3/h
MG-390W	386 KW / 110 Ton	86 KW	65 m3/h
MG-460W	467KW / 130 Ton	103 KW	80 m3/h
MG-480W	492 KW / 140 Ton	106 KW	85 m3/h
MG-540W	539 KW / 150 Ton	119 KW	90 m3/h
MG-580W	584 KW / 165 Ton	128 KW	100 m3/h

Main Brands

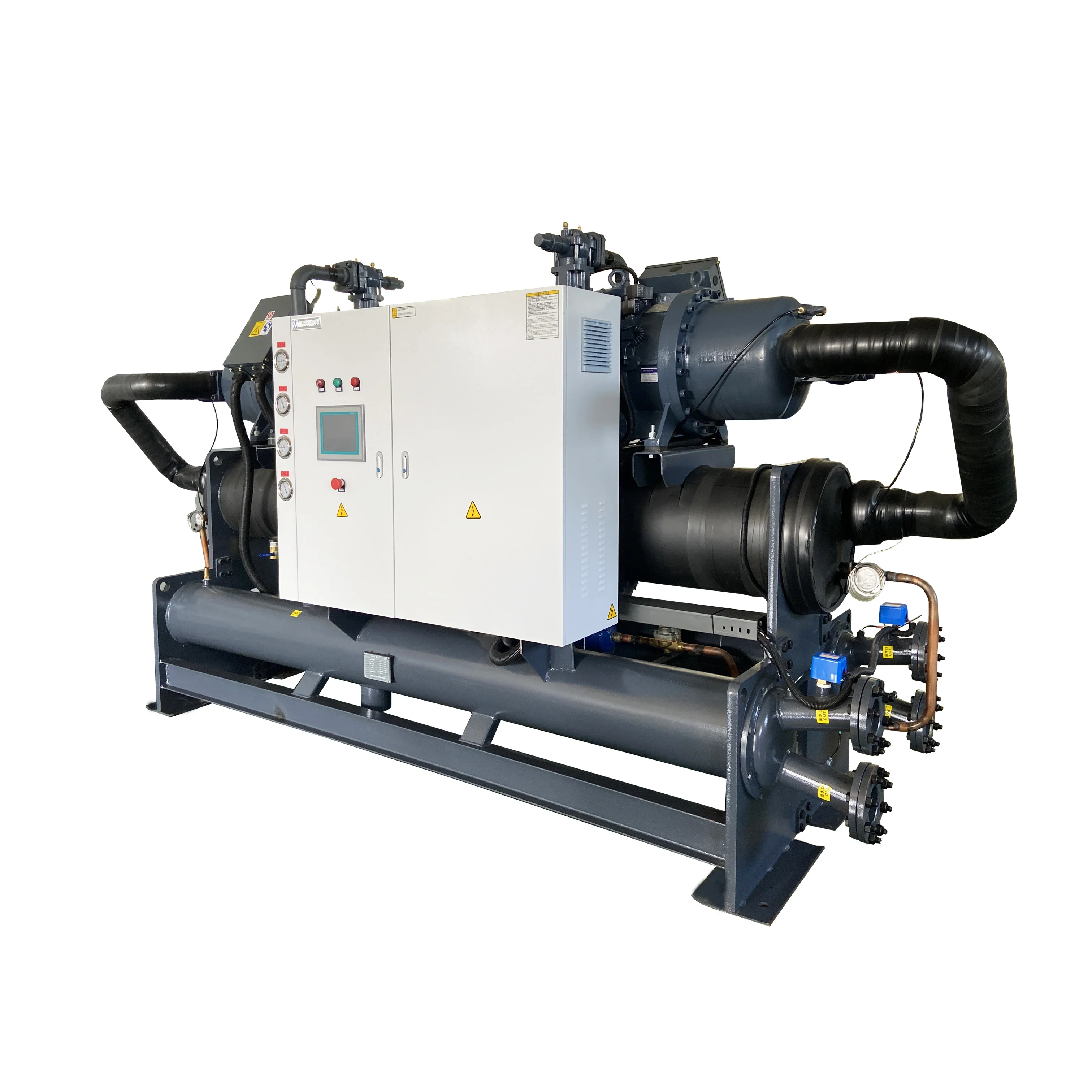

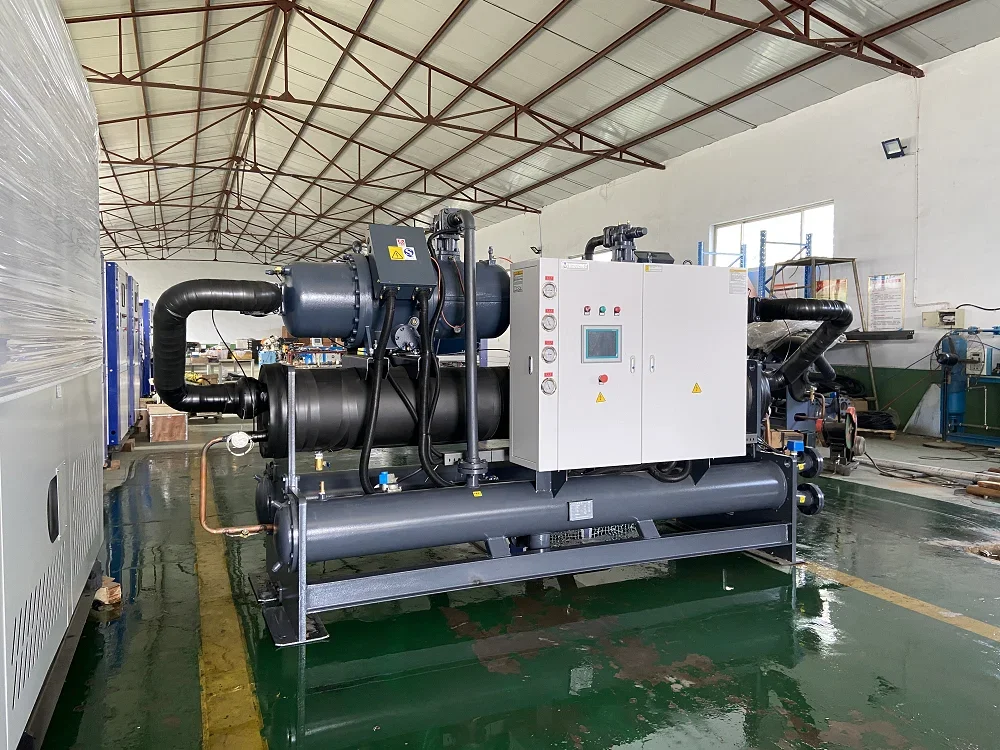

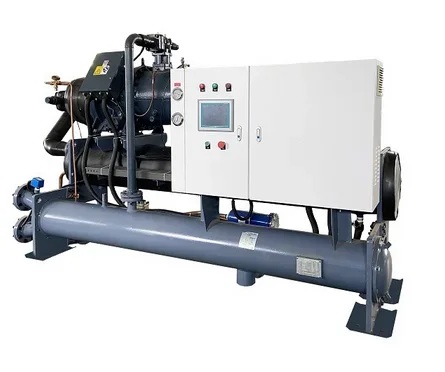

Products Show

Main Features of Air Cooled Chiller

(1). Outlet water temperature : 7 deg C~30 C

(2). Cooling capacity: 90-700kW
(3). Electric power supply available : 3phase-208v/220v/380v/415v/440v/460v-50Hz/60Hz
(4). Gas optional R407C / R134a / R22/R404A
(5). Compressor can be 1 or 2 units for one chiller

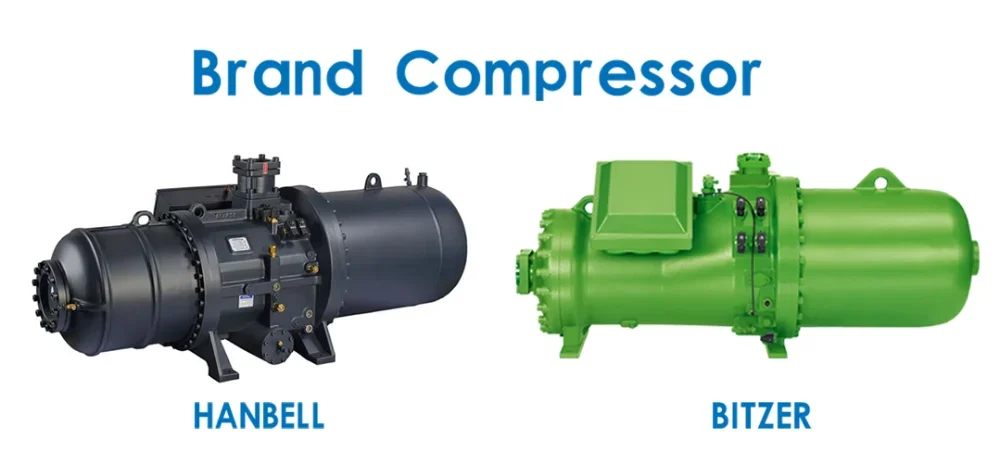

(6). Brand screw type compressor: Hanbell, ,Bitzer, Fusheng for options

Screw Water Cooling Chiller(Single Unit)Series
Model			MG-90W	MG-130W	MG-160W	MG-180W	MG-220W	MG-240W	MG-280W	MG-330W
Capty	USRT	26.2	35.8	46.6	50.3	62.3	67.1	79.6	93.3
		Kcal/h	79120	108360	141040	152220	188340	202960	240800	282080
		KW	92	126	164	177	219	236	280	328
Power			3PH-380V-50Hz
Refrigerant	Type	R407C
		Control	Thermostatic expansion valve
Comperssor	Type	Semi-closed screw type
		kw Power	23	32	39	42	54	58	65	73
		Start	Y-△
		Capacity	33-66-100（%）					25-50-75-100（%）
Evaporator	Type	High efficiency copper tube shell and tube type
		Flow m³/h	15.8	21.6	28.1	30.3	37.5	40.5	48.0	56.2
		Inlet/Outlet	DN65	DN65	DN80	DN80	DN80	DN100	DN100	DN100
Condenser	Type	High efficiency threaded copper tube shell and tube type
		Flow m³/h	21.7	29.8	38.3	41.3	51.5	55.4	65.1	75.6
		Inlet/Outlet	DN65	DN65	DN80	DN80	DN80	DN100	DN100	DN100
Protection System			Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	2200	2200	2200	2500	2800	2800	3200	3200
		W	1000	1000	1000	1000	1100	1100	1100	1100
		H	1400	1400	1400	1500	1500	1500	1500	1500
Weight	kg	660	700	800	975	1000	1150	1250	1400

Product Details

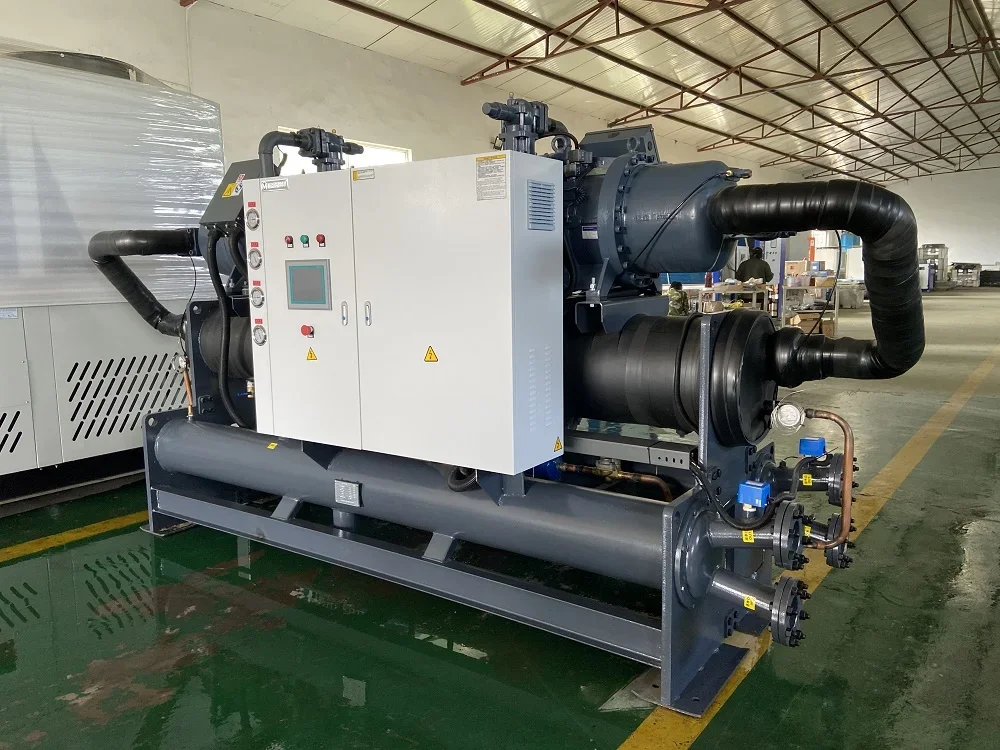

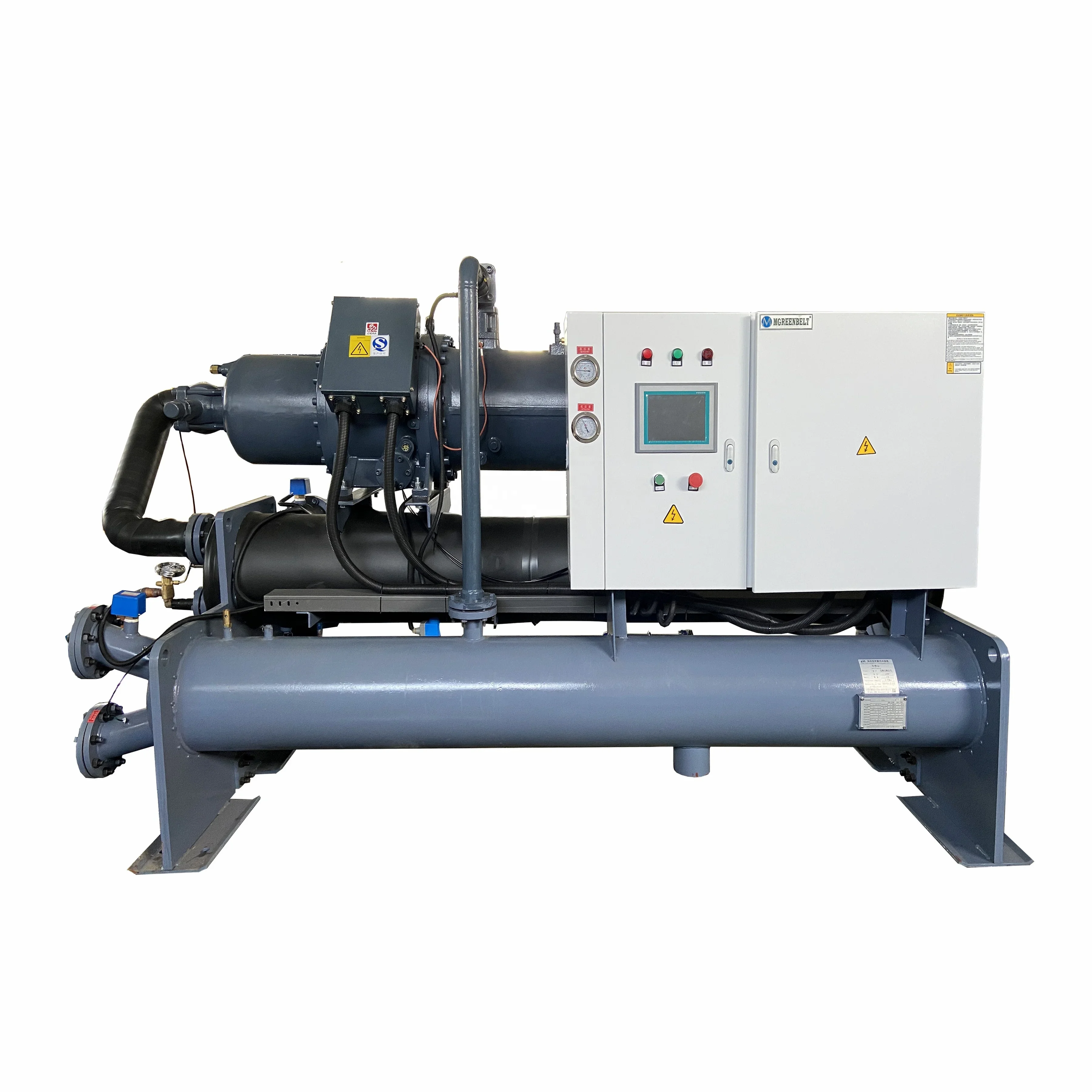

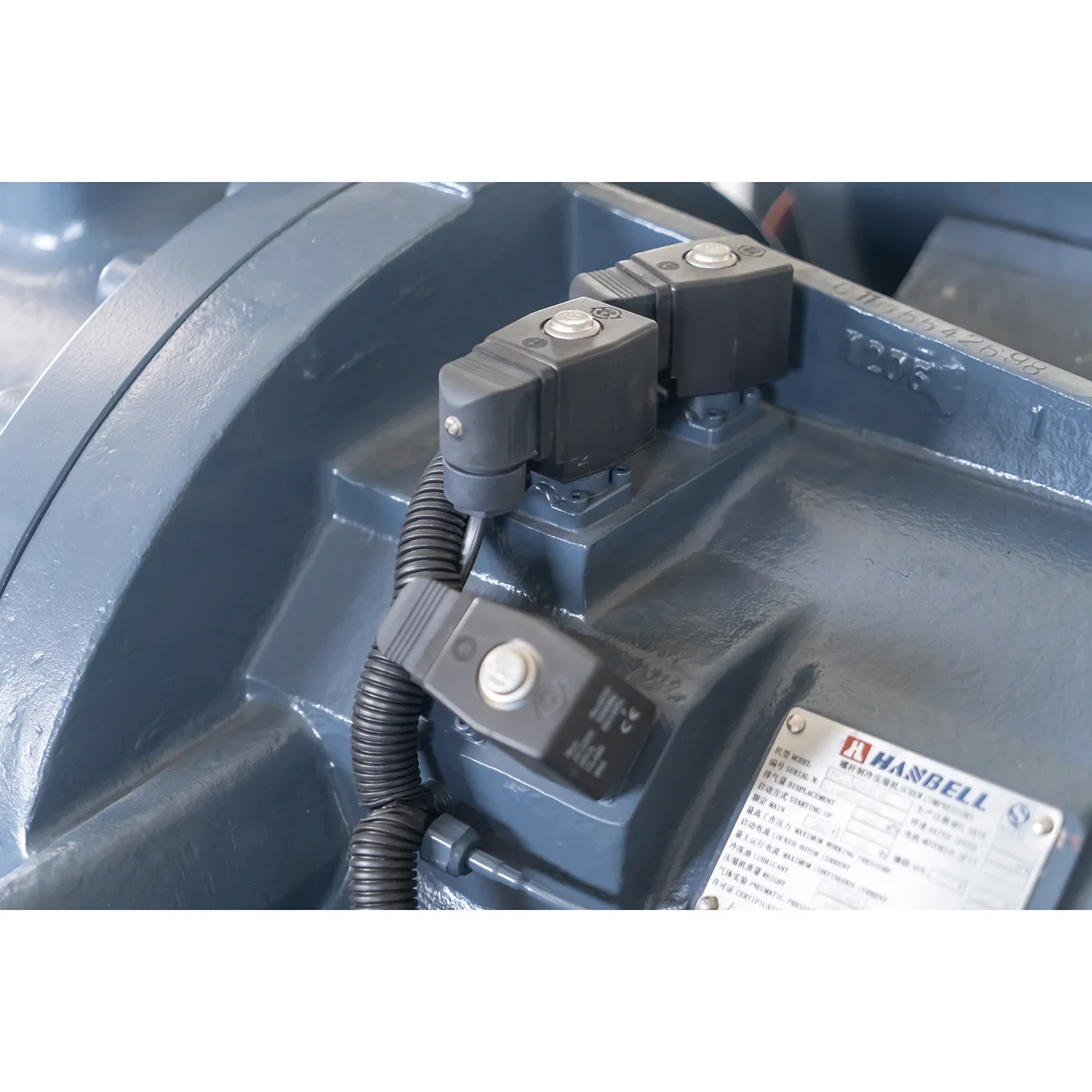

Semi-hermetic compressor;

Brand: Hanbell / Fusheng /Bitzer

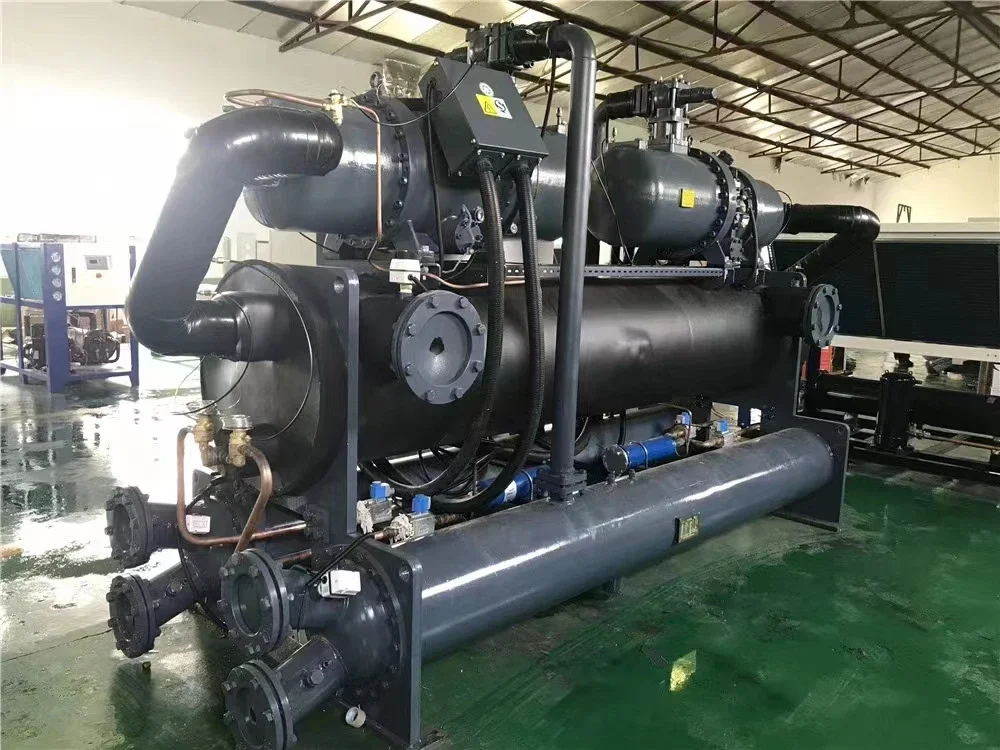

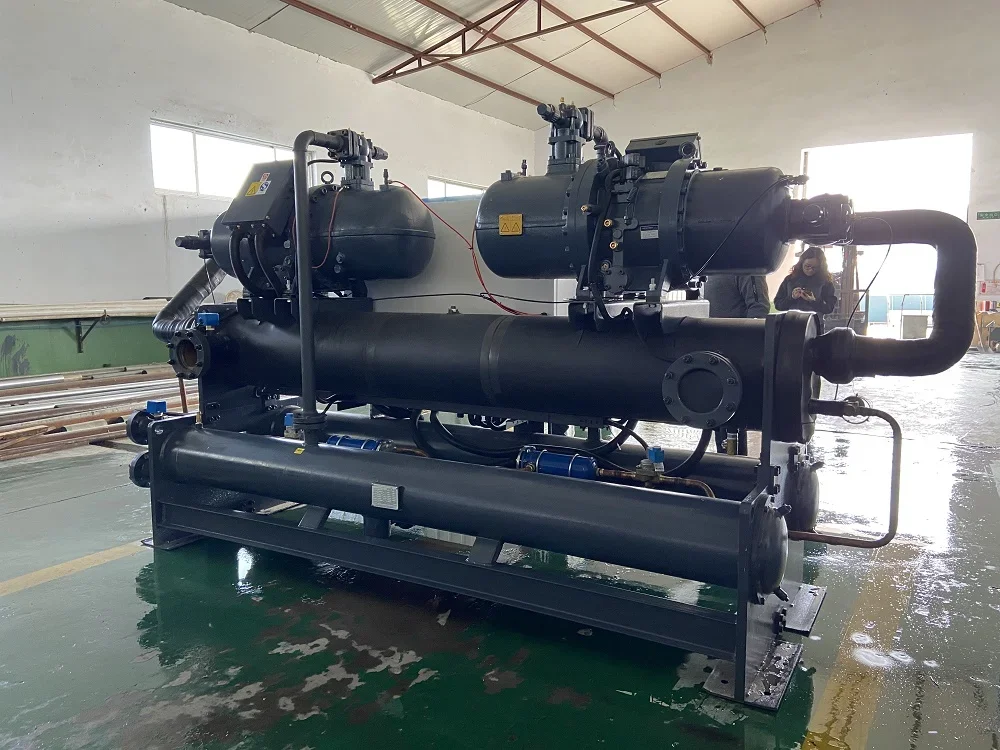

Two compressor circuit system; each one can working alone; easy repair and maintenance .

Integrated PLC control system with a human-computer interface

LED touch screen panel for easy operation;

Each screw compressor comes with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller operates when stable with high refrigeration performance.

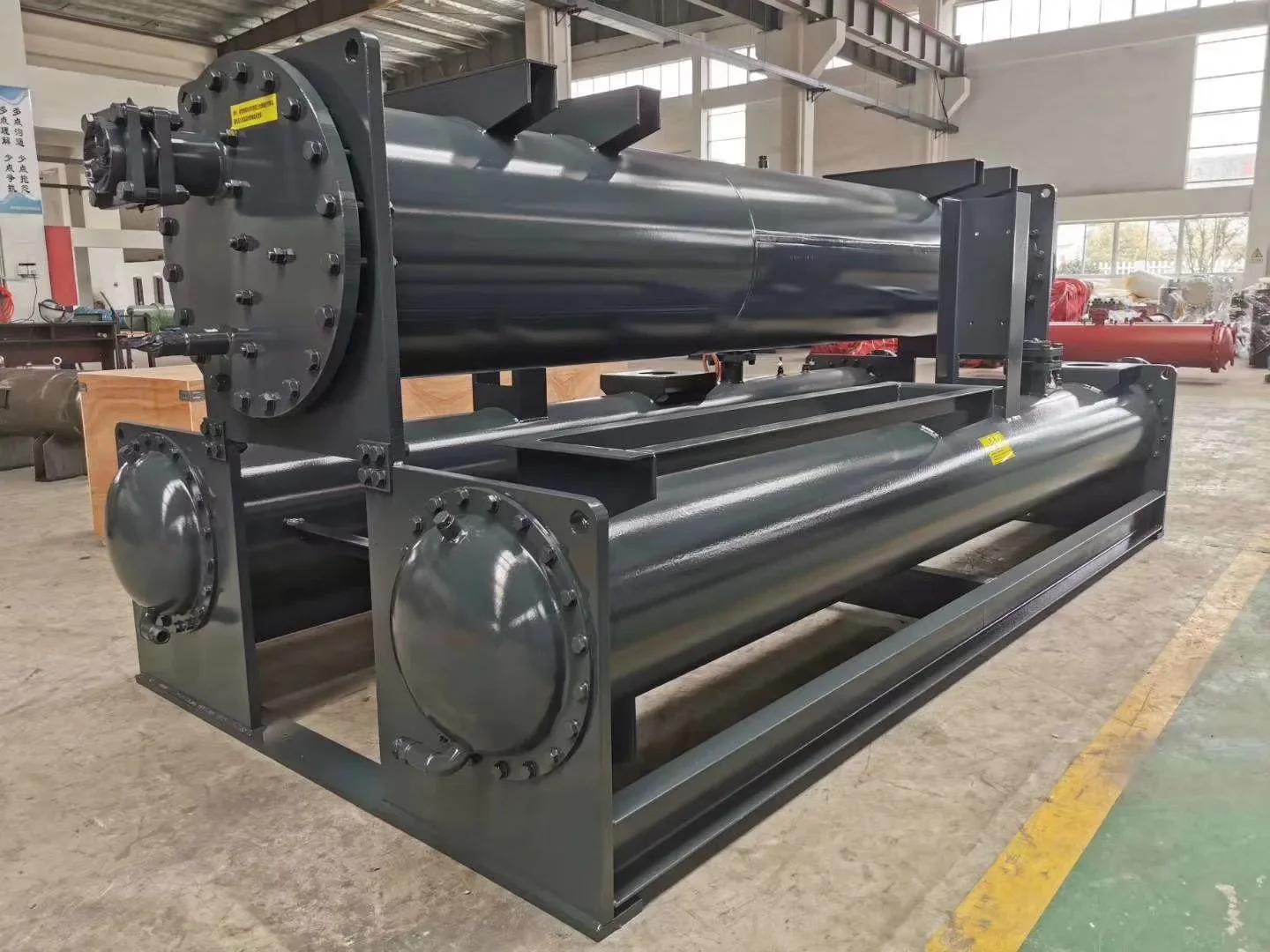

Shell and tube condenser, shell 10mm thick, tube 1.2mm

Shell and tube Evaporator, shell 12mm thickness, tube 0.8mm

Pressurized heat exchanger with high efficiency, Thickness

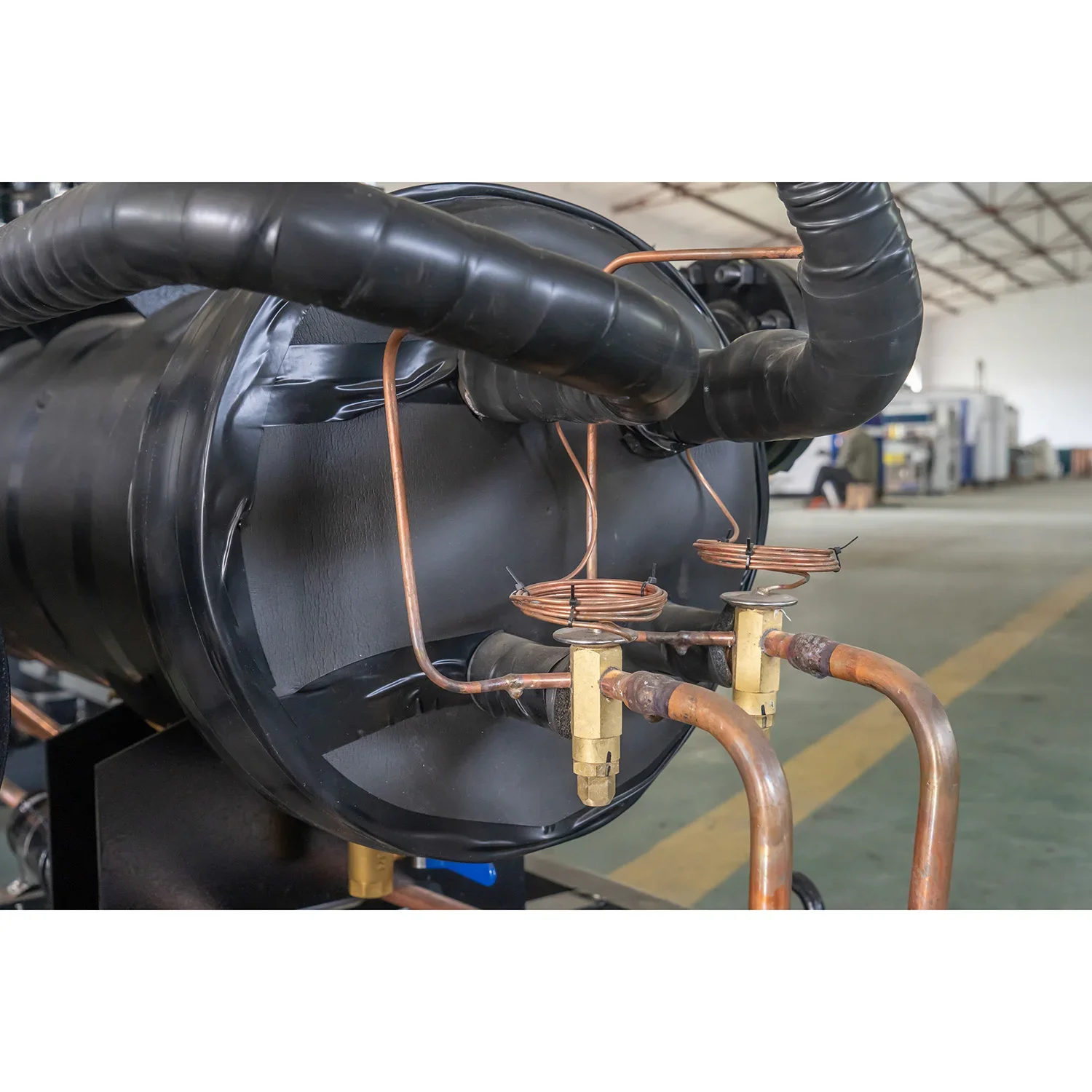

Electronic or thermostatic Danfoss / Emerson expansion vale , to make the refrigerant working smoothly in the system

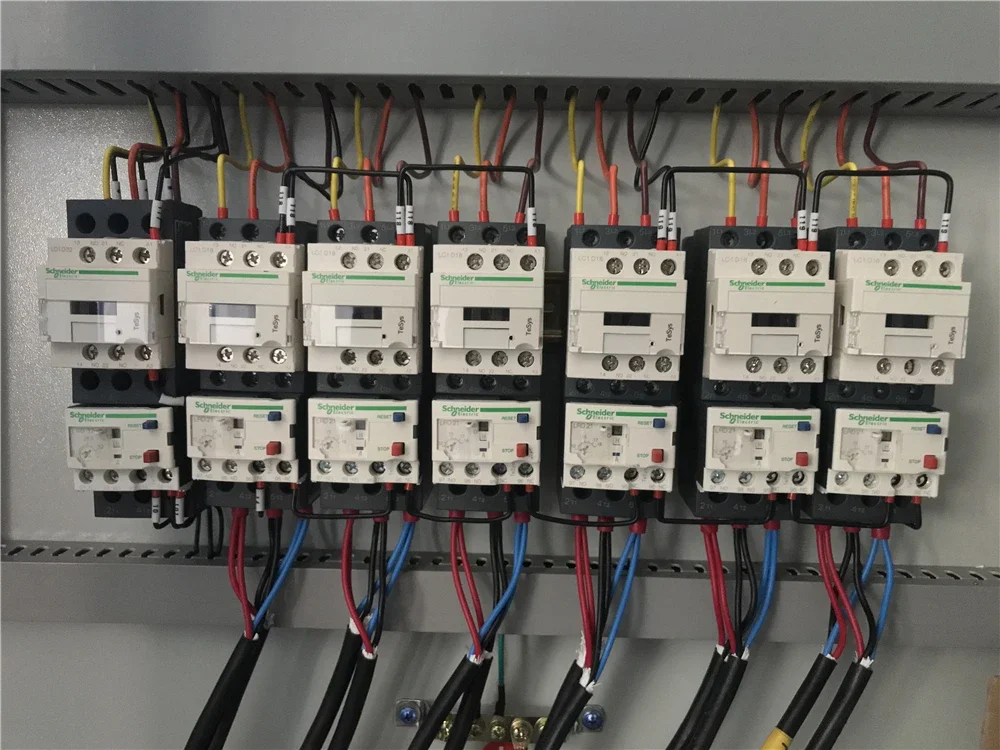

Standard Schneider electric components, also ABB, Simens optional, for special demands, we can do electrical with CSA UL certificate

Water Cooled Screw Chiller Features：

1. Screw machine chiller characteristics

(1) The water-cooled screw machine is generally an open upper and lower structure of the chiller. Simple structure, less moving parts, convenient installation and debugging, reliable operation, low cost;

(2) the single machine has large cooling capacity and high volumetric efficiency;

(3) the cooling capacity can be stepless adjustment.

2. Control system

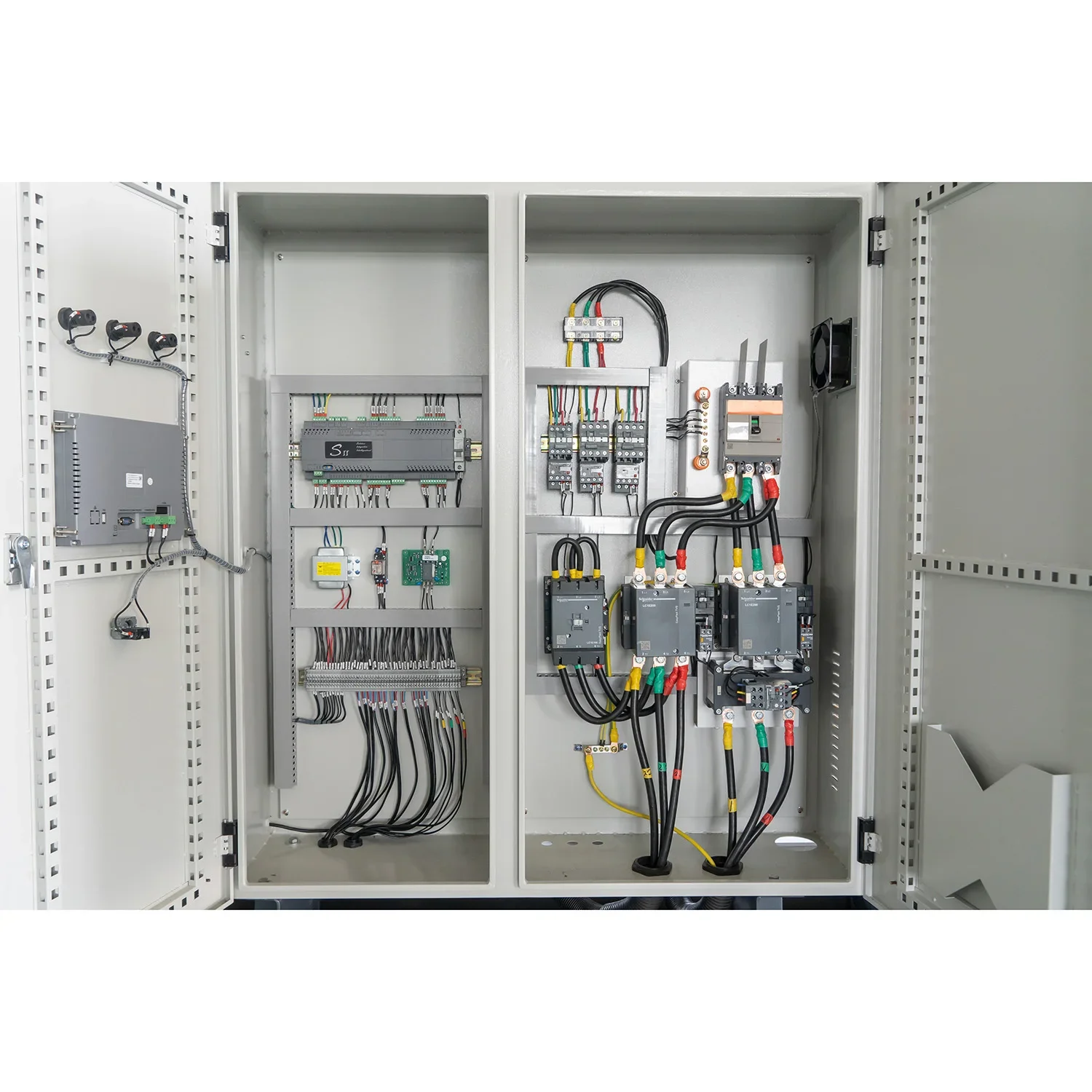

The controller of Bump screw chiller, all electrical parts adopt Schneider brand. Electric control box waterproof design.

Independent and precise control system makes the system run stably and accurately.

3. Water system

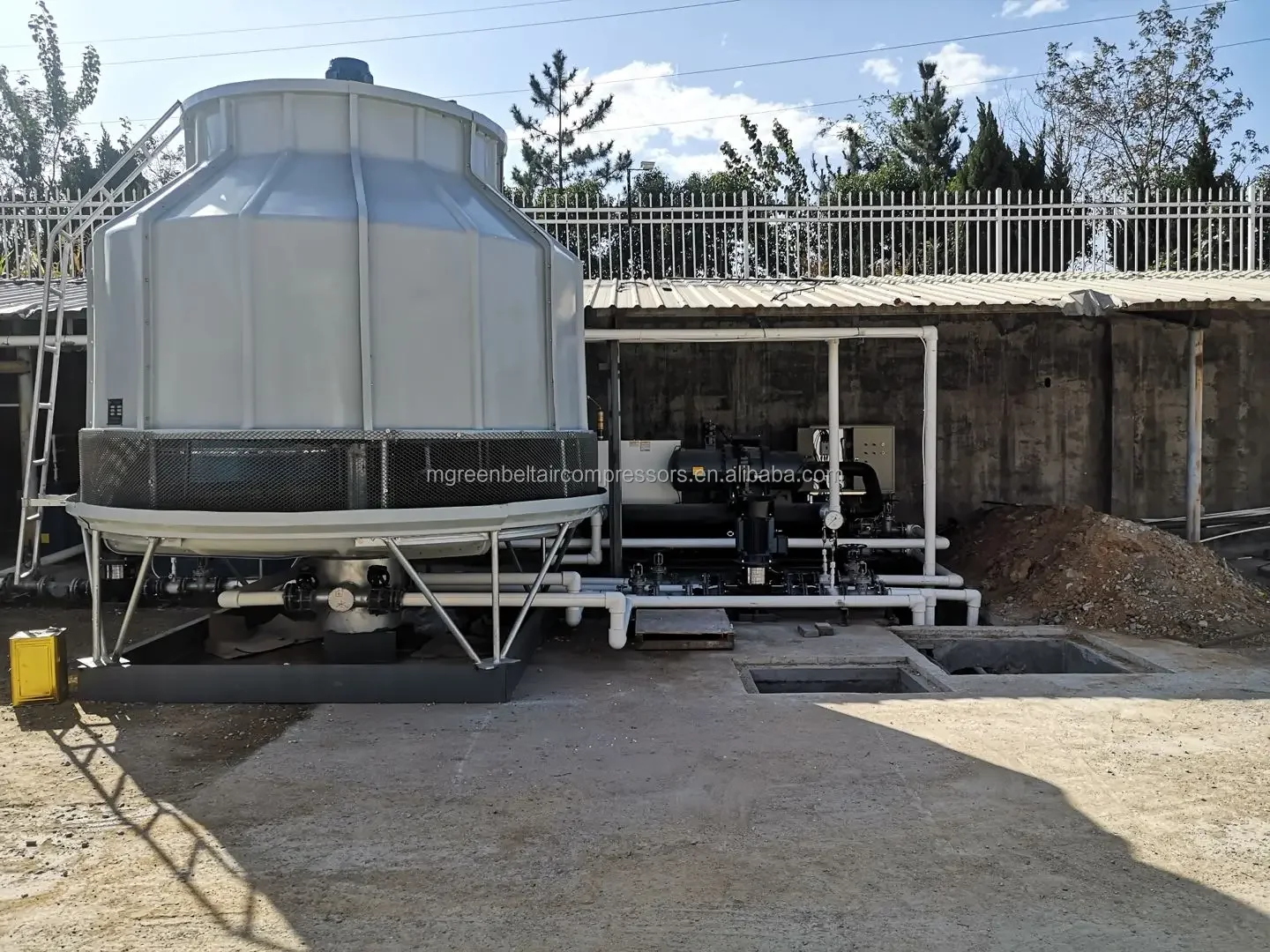

The pump connected to the user tank on the chilled water side of the evaporator is the chilled water pump. The condenser side needs to be connected to the cooling water side, and the cooling pump and cooling tower need to be equipped to take away the heat of the condenser in the working system of the chiller, so as to achieve the function of refrigeration.

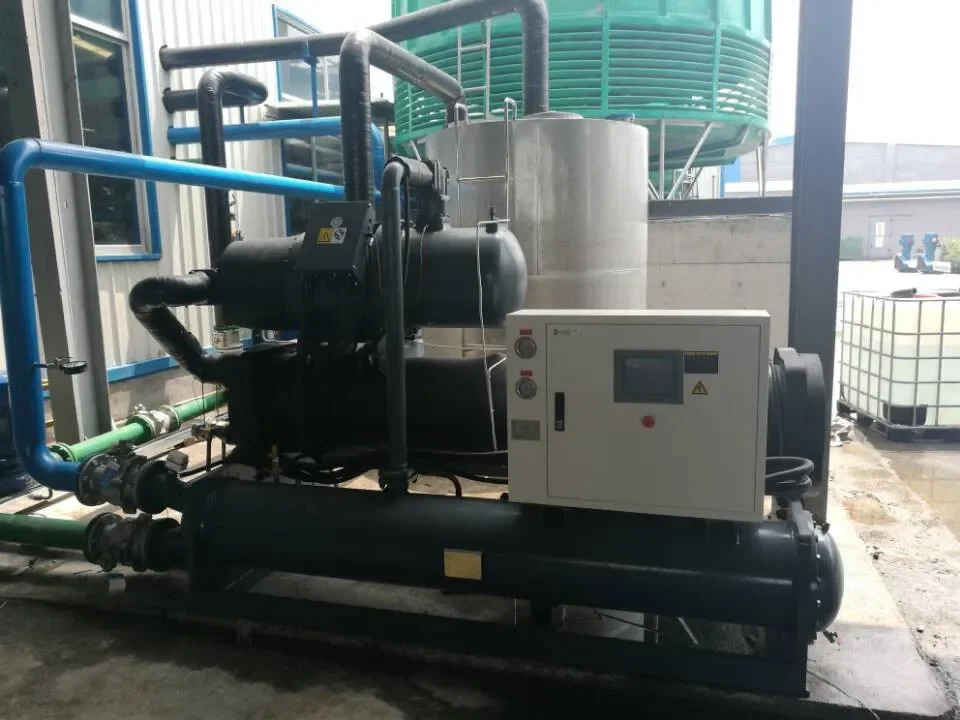

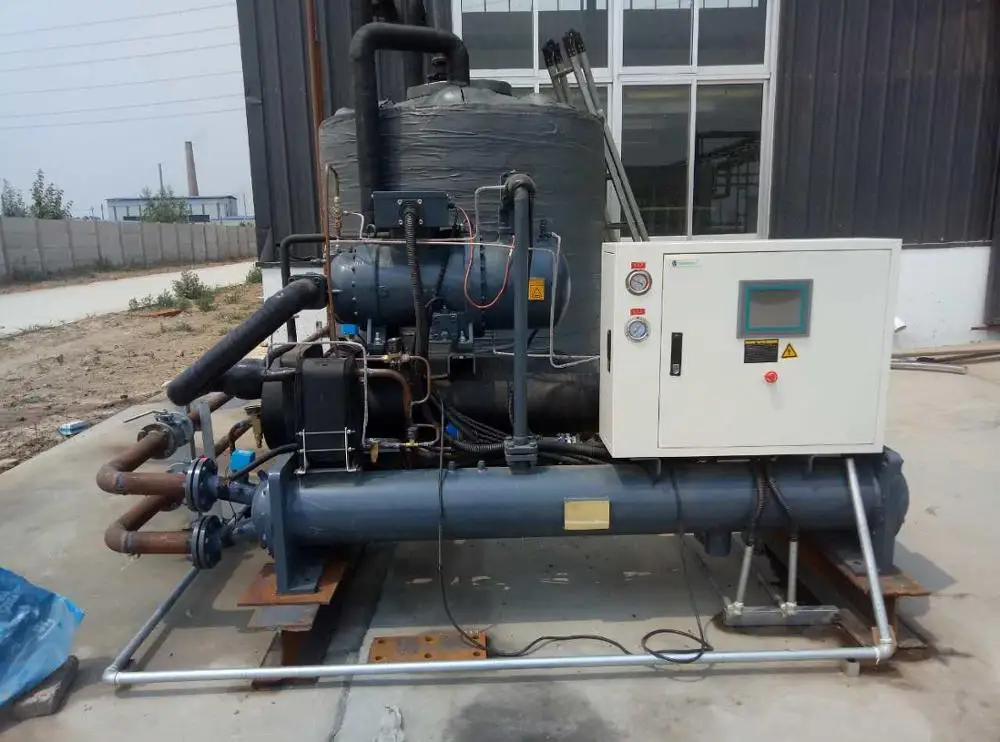

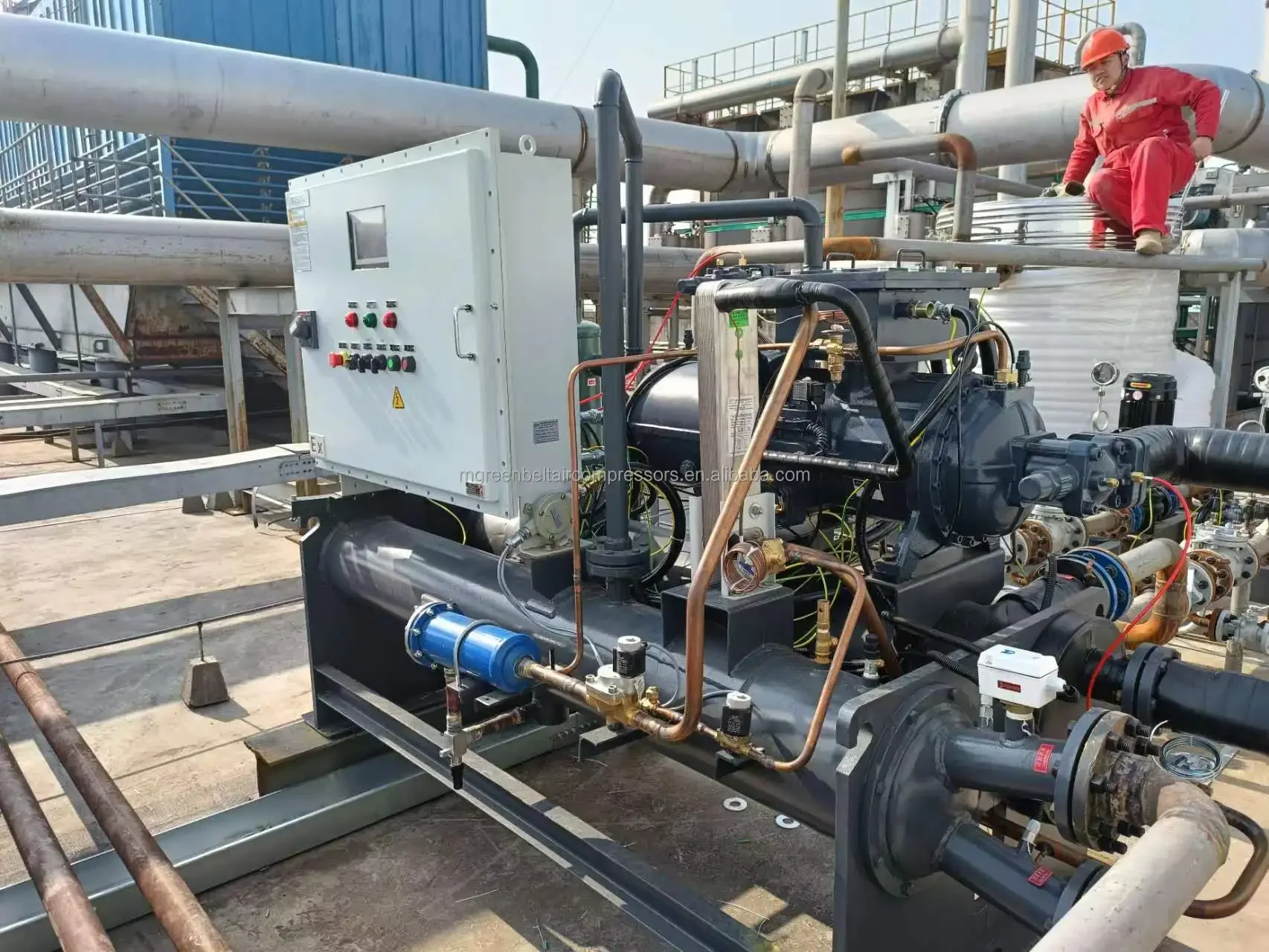

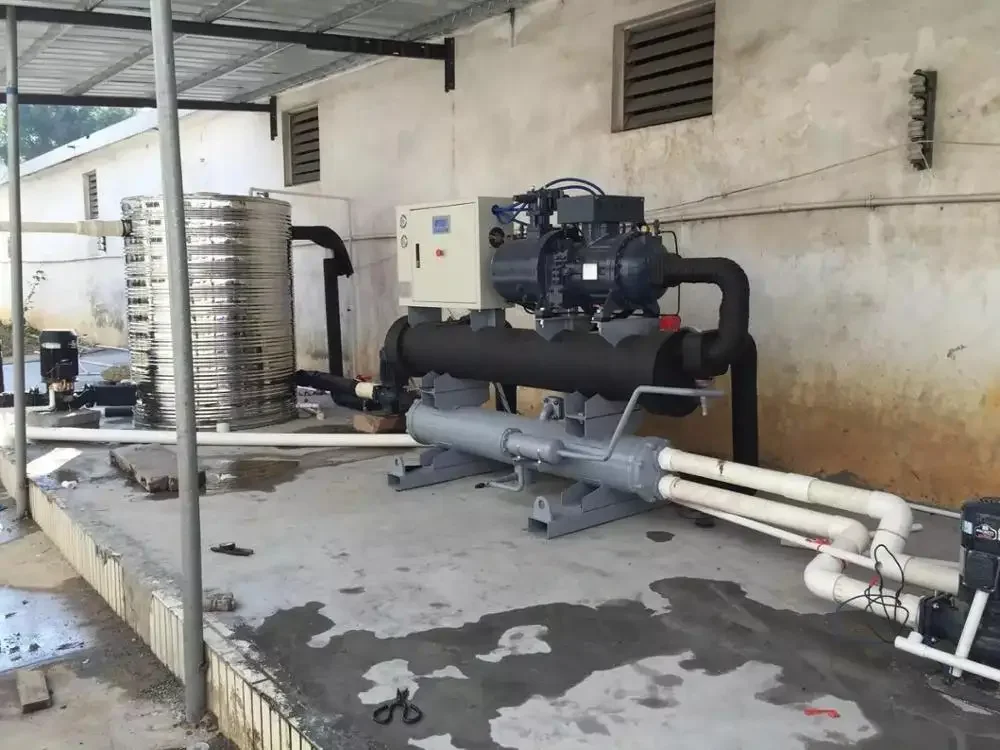

SUCCESSFUL PROJECT

PET Bottle Blowing Machine COOLING

PET plastic factory using

PLASTIC INDUSTRIAL COOLING

chemical plants cooling

Injection molding machine cooling

Extruder factory cooling

Application

At present, many industries need refrigeration facilities in daily production. The application range of chiller is increasingly wide. It can control the temperature within a specific range, and the refrigeration effect is stable, which is suitable for many industries. Examples include plastics and rubber manufacturing, electronic products, wine brewing, medical chemistry, ultrasonic cooling and printing business, food processing, machinery manufacturing, etc. It can accurately provide the required temperature for modern industrial manufacturing and greatly improve efficiency and product quality.

MGREENBELT industrial chiller simple operation, reasonable design, excellent quality, there are more than one hundred models, is the best choice of modern industry.

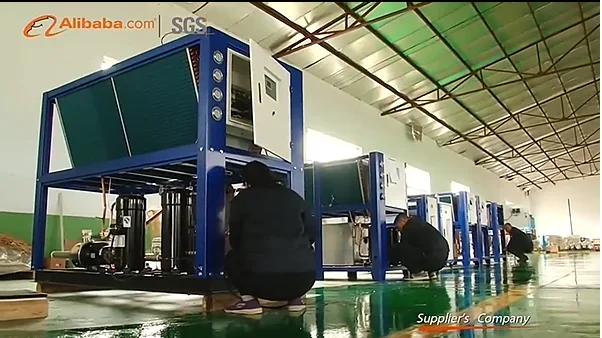

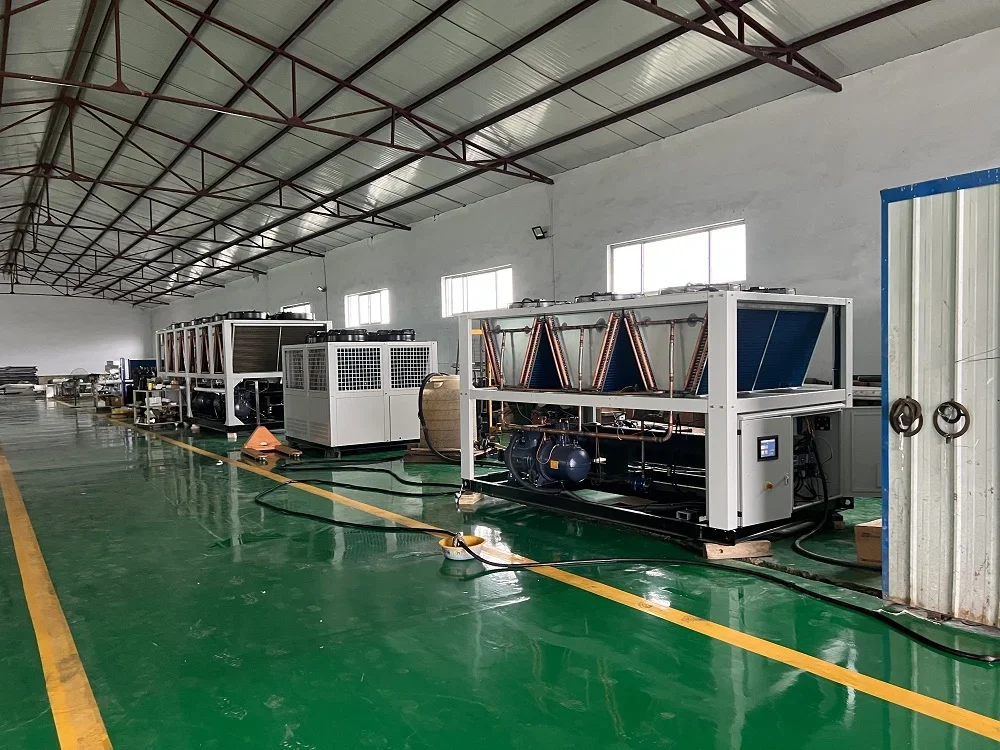

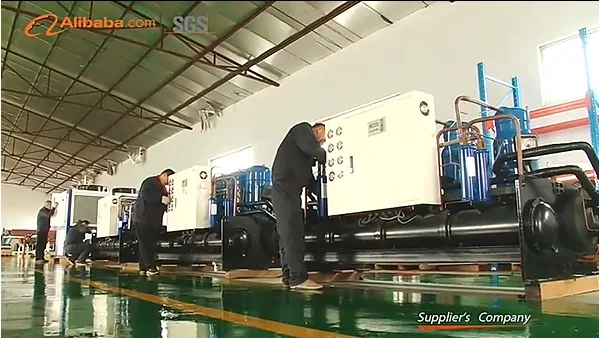

Our Company

Shandong Mgreenbelt Machinery Co., Ltd. mainly specialized in the research and manufacturing of industrial chiller, refrigeration unit and other refrigeration equipment. After more than ten years of innovation and development, our company has passed ISO9001 quality system certification, EU CE certification, international BV, SGS and other third-party certification bodies inspection and testing, and gradually grown into a manufacturer committed to one-stop refrigeration solutions, providing customers with systematic and supporting industrial chiller. Our products are exported at home and abroad, covers more than hundreds of countries and regions in the world. It provides a stable, efficient, intelligent and environmental solutions for the food, beverage, plastics, chemical, electroplating, medical, electronics, concrete, vacuum pump, power generation equipment and ultrasonic cleaning and other industries.

Our Certifications

Our company has passed ISO9001 quality system certification, EU CE certification, international BV, SGS and other third-party certification bodies inspection and testing.

Our Service

Technical service

1, We calculate the capacity and recommend the best models.

2, We design and develop the new products according to your requirement besides our standard products

3, We supply you the professional refrigeration technical support and electronic technical support for your installation,

debugging and operation.

4, We supply the spare parts and technical support in & after the warranty time.

5, We supply the training course to your workers at our factory if you need.

After-sale service

1. where the purchase of our company's products will be implemented in three guarantees: debugging, training and guidance installation. All products are free warranty for 12 months, lifelong maintenance, fully ensure that customers have no worries.

2. The company has a perfect after-sales system to ensure that customers' after-sales problems are solved in time to achieve customer satisfaction and recognition.

3. Timely and considerate on-site maintenance services.

4. Lifelong free pre-sales, sales, after-sales technical support.

FAQ

Q:How to choose a right chiller model? A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlet temperature need?
Then we will calculate what's hte cooling capacity you need.

Q: How to quote a accurate solution for you?

A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.

Contact Us

We have more different size chiller, if these models above not workable for your project, please do not hesitate to contact with us.
Miss Amanda Wu
Email:amanda@mgreenbelt.com
Whatsapp, Wechat/Cell: +86 18615589083

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $4500 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water cooled chiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the water cooled chiller be supplied for my local voltage?

The standard configuration is 380V/3P/50HZ & others. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jinan Mgreenbelt Machinery Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jinan Mgreenbelt Machinery Co., Ltd. range on HVACR Nexus.
