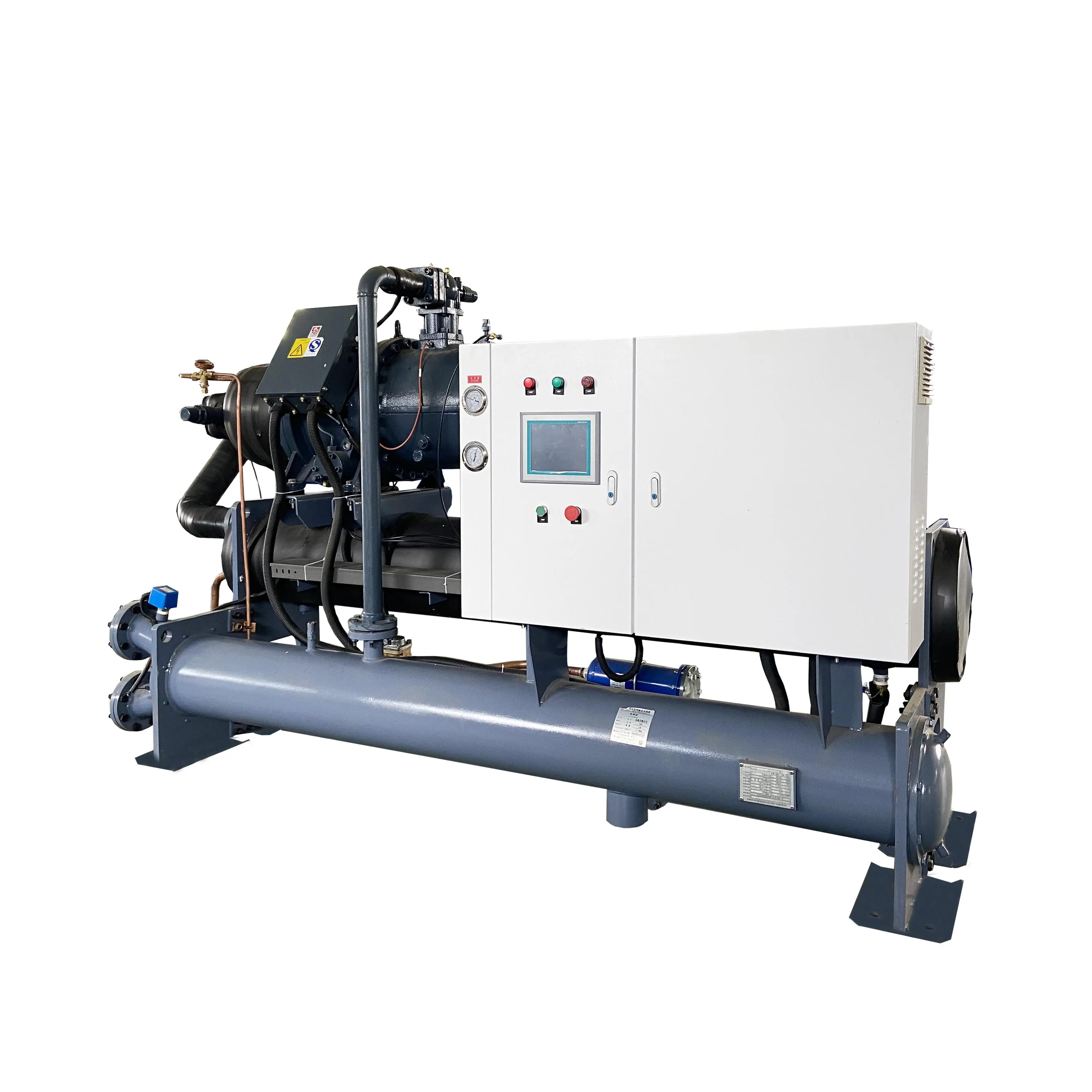

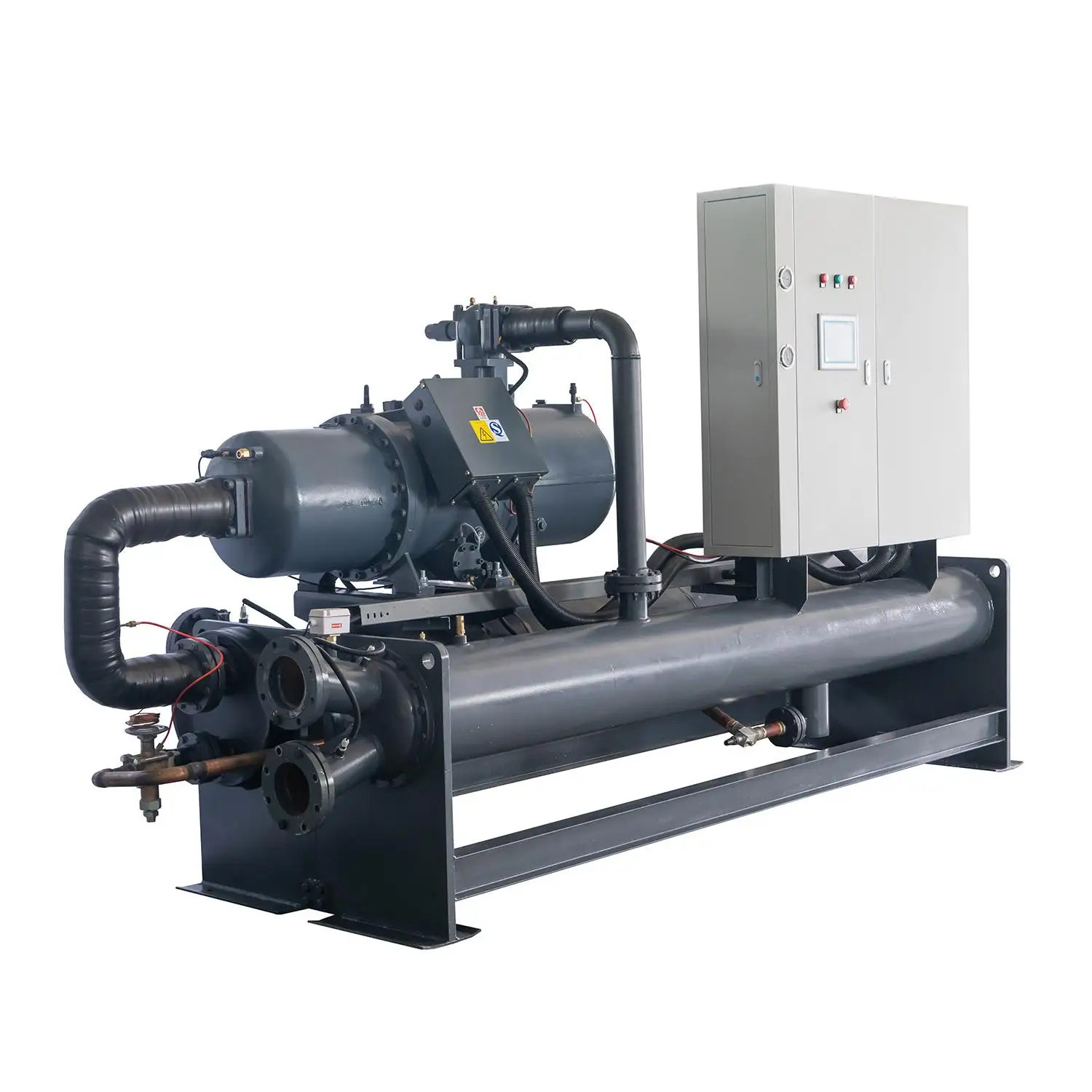

Water cooled chiller — 380V/50HZ, 200kw. The complete factory specification follows. Quantity and destination market determine the final price — tell us both for a firm quote.

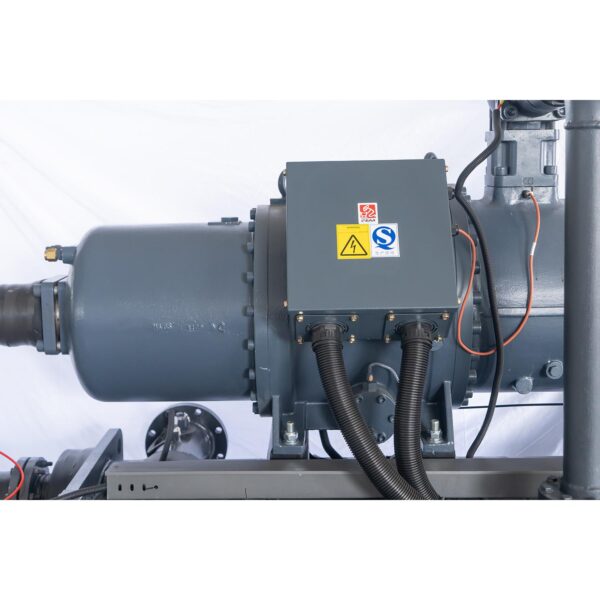

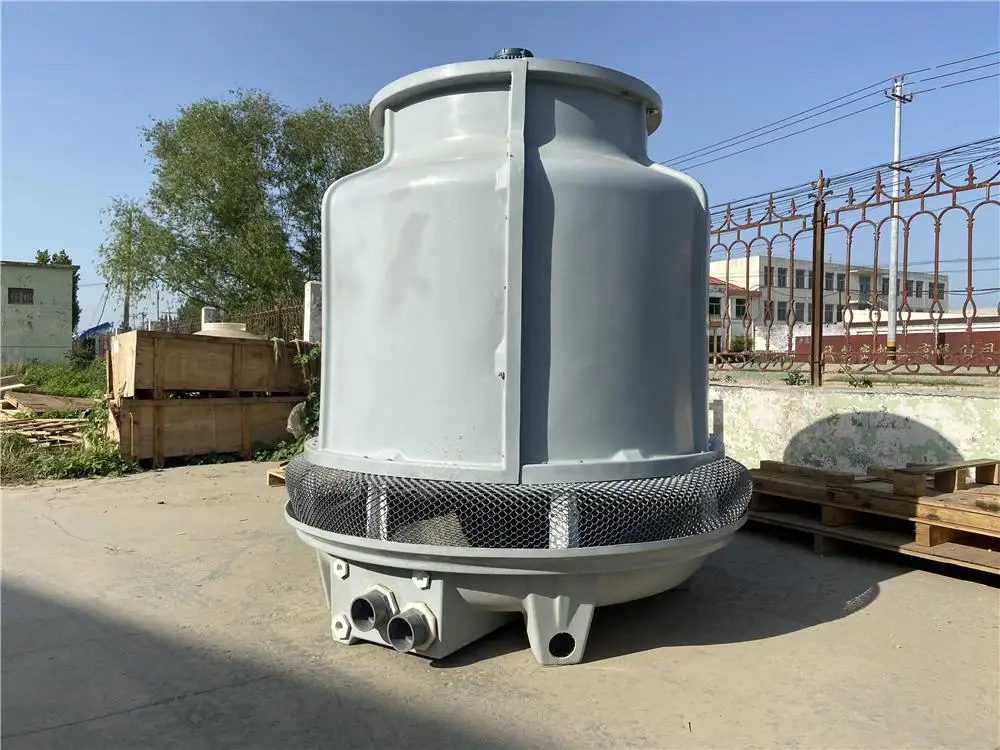

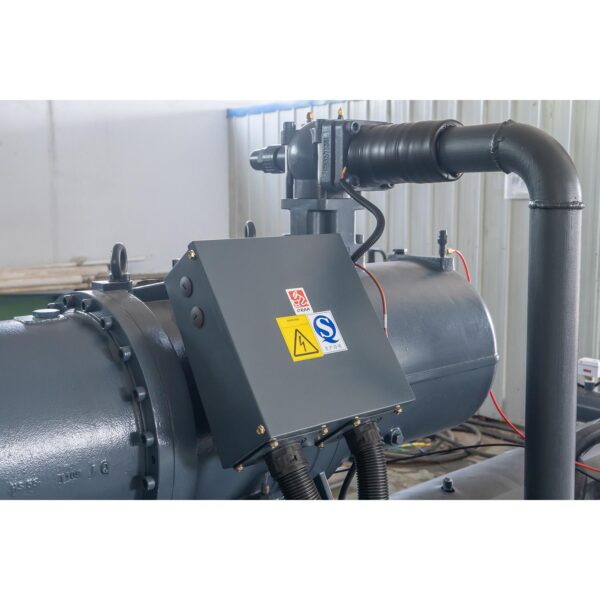

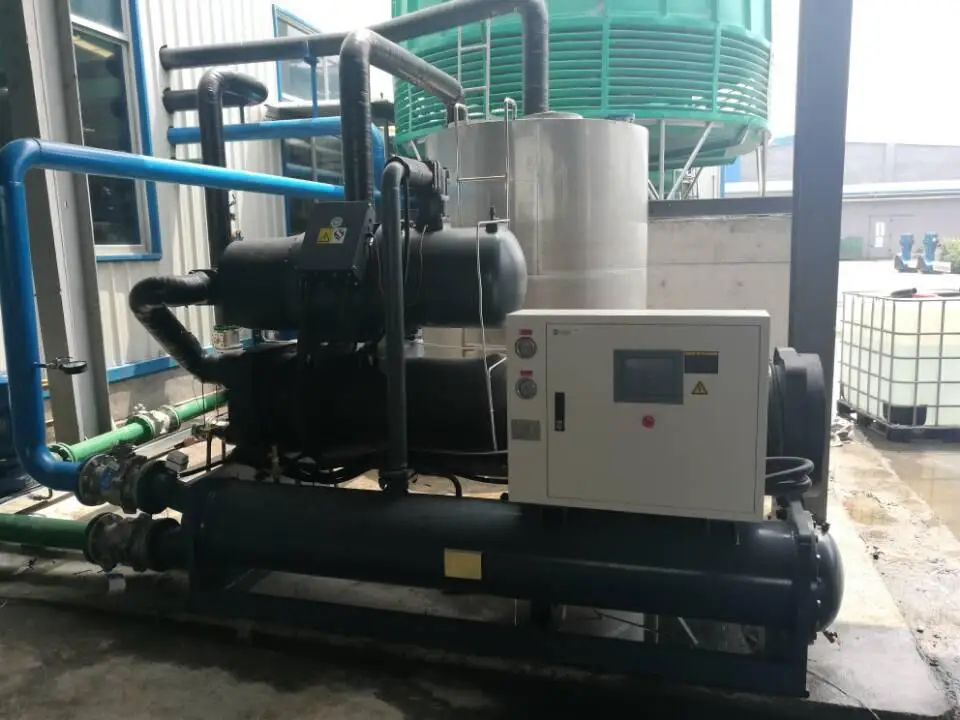

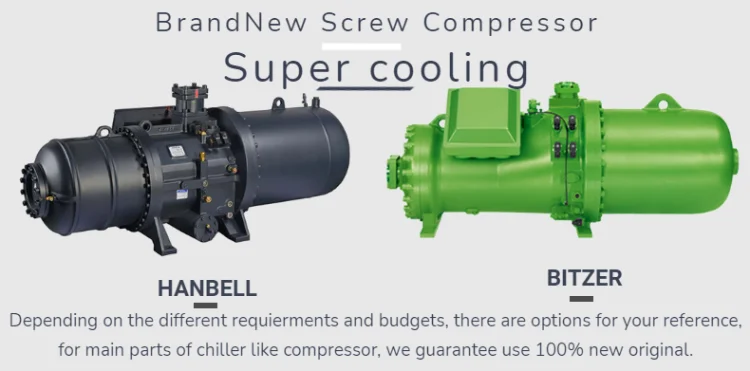

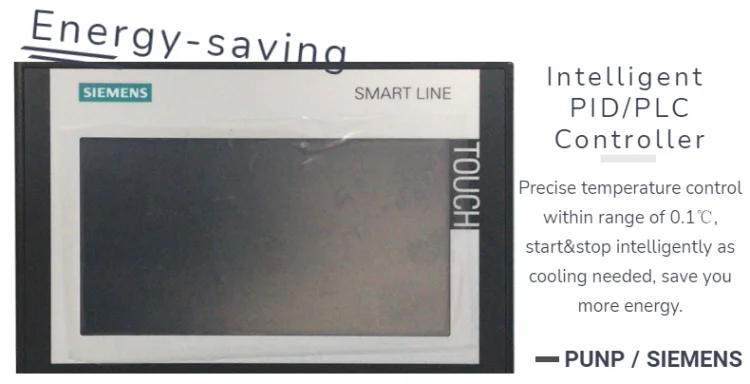

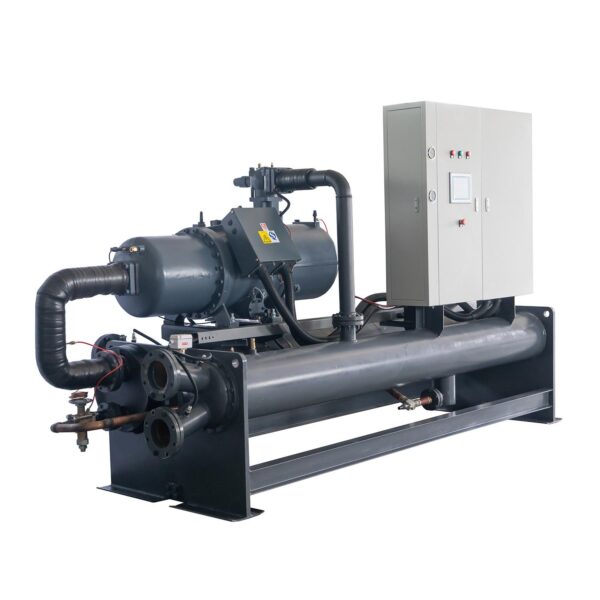

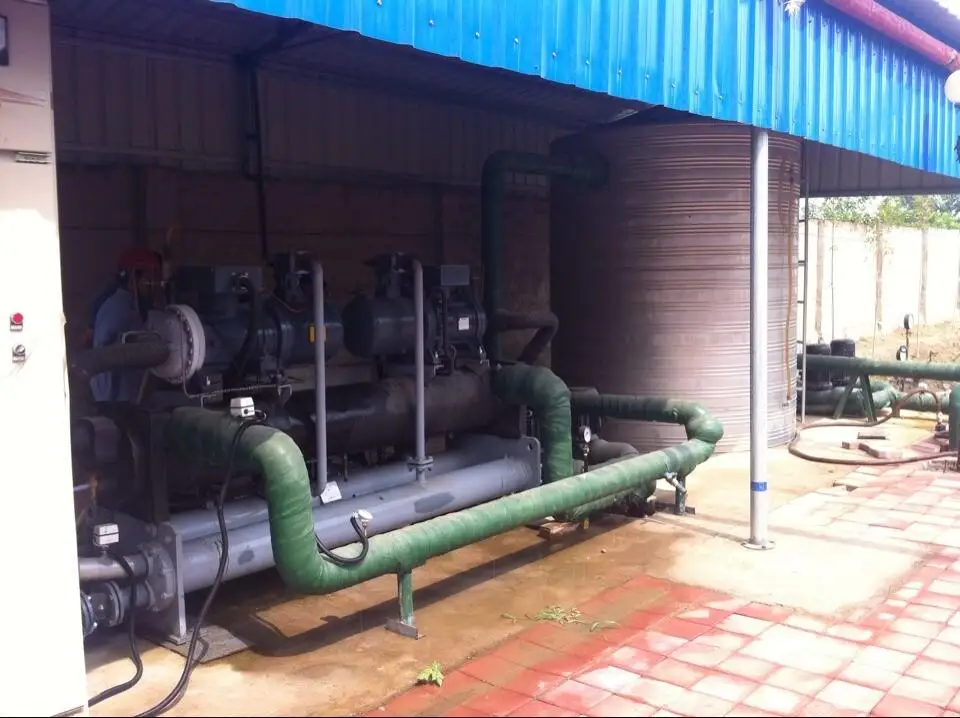

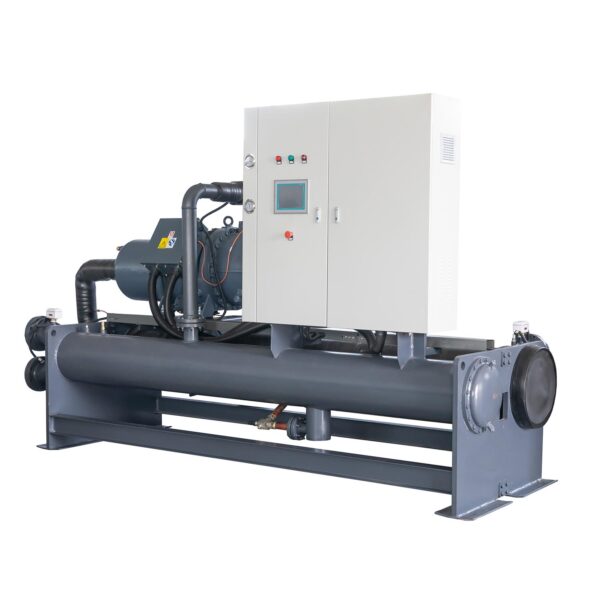

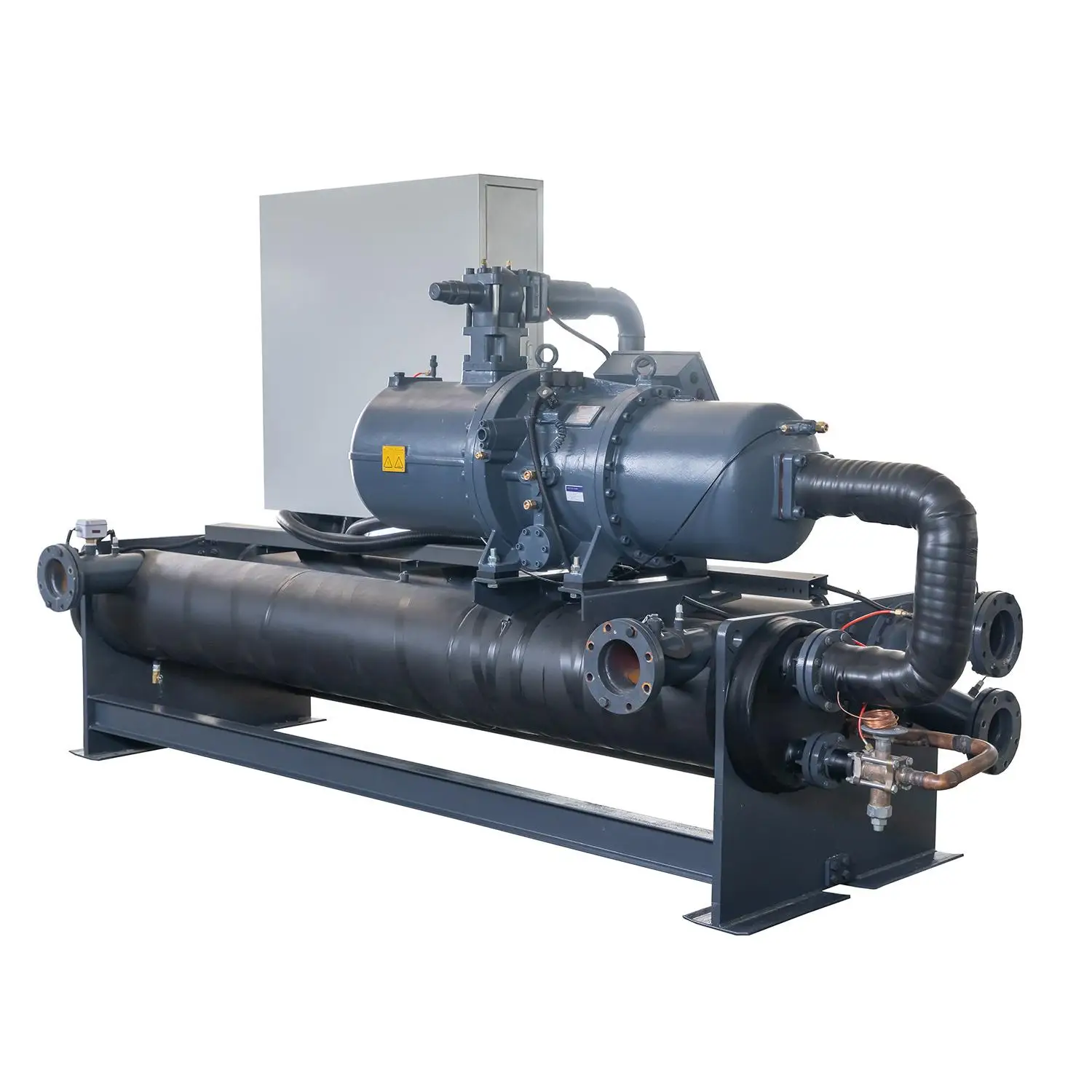

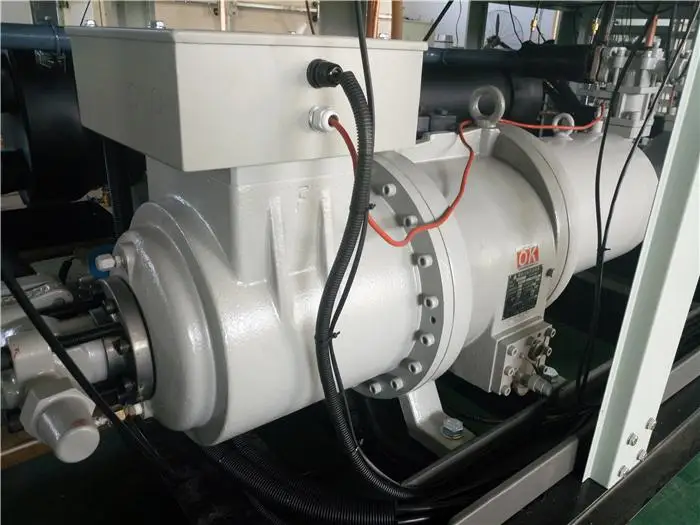

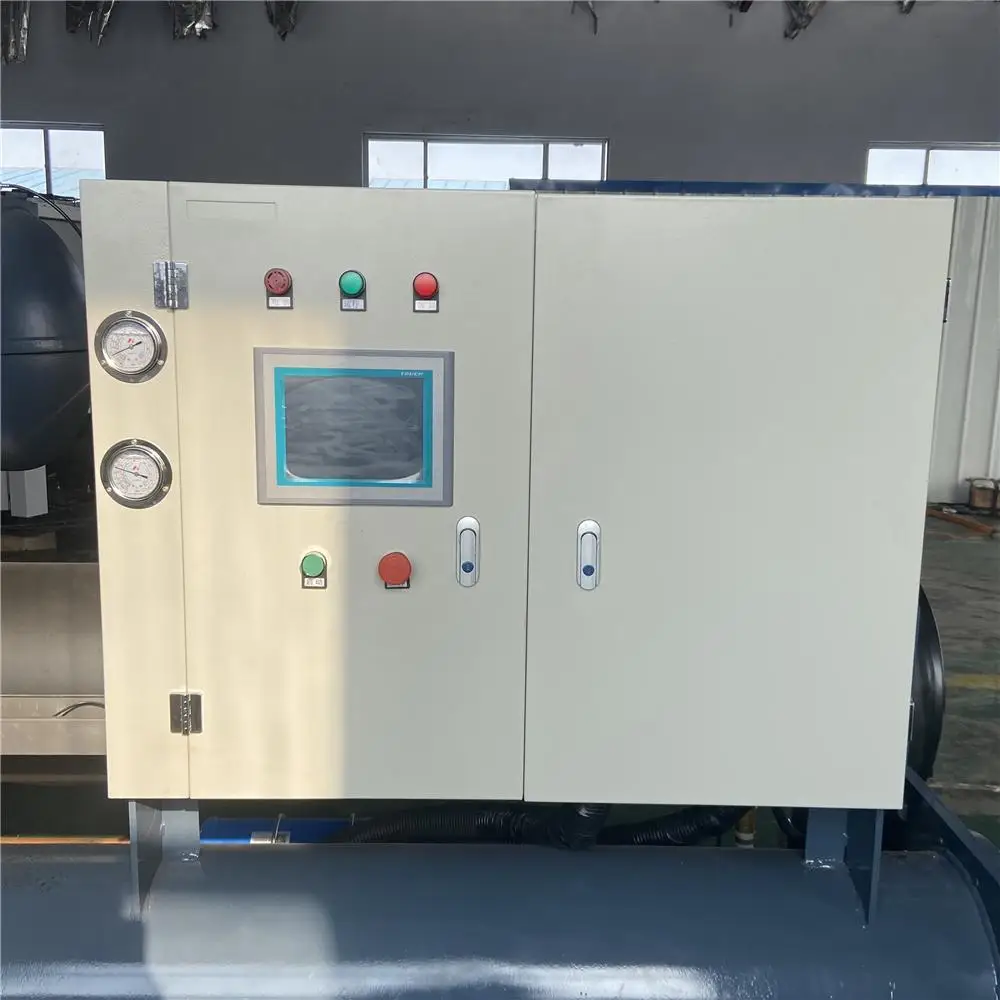

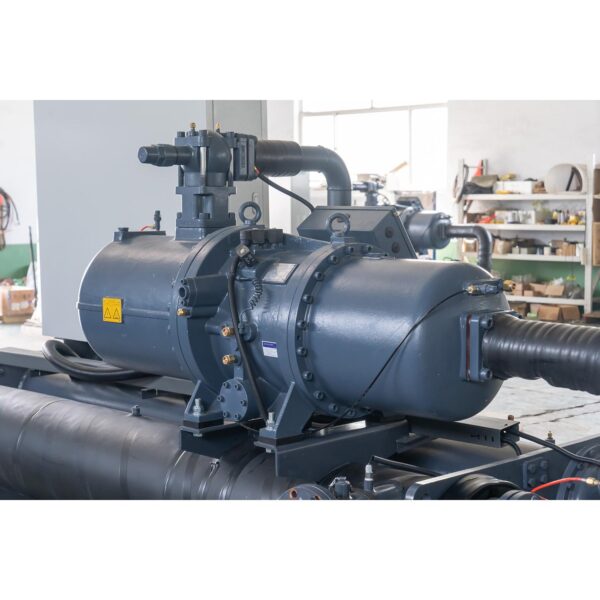

At 200kW this water cooled chiller is process plant, paired with a cooling tower to reject heat and typically serving injection moulding, food processing or a building chilled water loop. A screw compressor is the right choice at this capacity: it unloads smoothly across the range where a scroll would have to stage, and it tolerates continuous full-load running. Copeland screw on R407C at 380V/50Hz with PLC control.
Key Features of This Water Cooled Chiller
- Voltage: 380V/50HZ
- Cooling Capacity: 200kw
- Refrigerant: R407C
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Compressor Type: Screw
Technical Specifications
| Cooling Capacity | 200kw |
|---|---|
| Temperature | 18-20c, -20-8c |
| Compressor Brand | Copeland |
| Compressor Type | Screw |
| Key Selling Points | Eco-Friendly |
| Voltage | 380V/50HZ |
| Warranty | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Video Outgoing-Inspection | Provided |
| Refrigerant | R407C |
| Place Of Origin | Shandong, China |
| Weight (KG) | 100 |
| Selling Units | Single item |
| Single Package Size | 220X10X13 cm |
| Single Gross Weight | 80.000 kg |

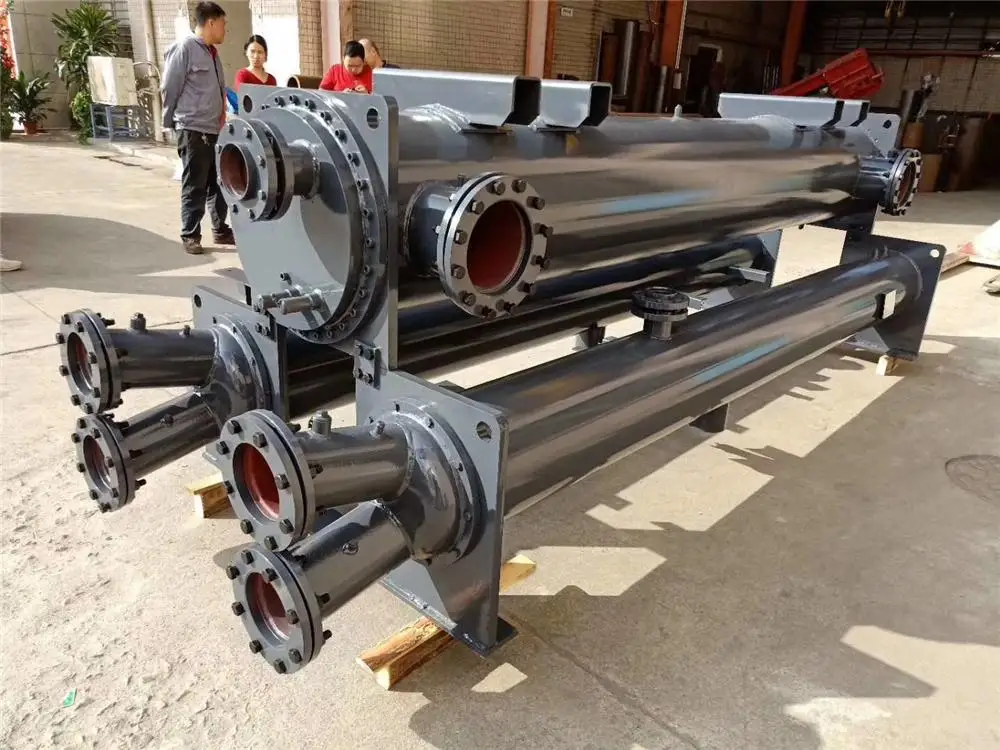

80 Ton Industrial Water Cooled Chiller Cooling Tower Water Chiller Condensing Unit Chiller Price
|
Model
|
Item
|
MG-330WS
|
MG-390WS
|
MG-460WS
|
|||
|
Cooling capacity
|
Kw ( @-5 deg C out)
|
228
|
266
|
324
|
|||
|
Kcal/h( @-5 deg C out)
|
196080
|
228760
|
278640
|
||||
|
Ton( @-5 deg C out)
|
65
|
76
|
92
|
||||
|
Power Supply
|
3 Phase – 220V/380/440V/460V-60HZ/60HZ
|
||||||
|
Refrigerant
|
Type
|
R22 / R407c/ R134a / R507 / R404a
|
|||||
|
Compressor
|
Power
|
69
|
83
|
99
|
|||
|
Evaporator
|
Type
|
Shell and tube
|
|||||
|
Water flow
|
m3/h
|
39.1
|
45.6
|
55.5
|
|||
|

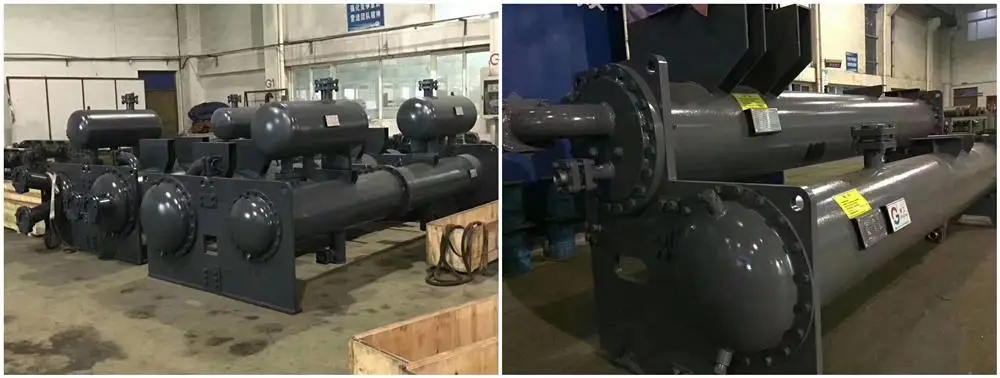

Condenser
|
Type
|
Shell and tube
|
|||||
|
Cooling water flow
|
m3/h
|
60.2
|
71.3
|
86.2
|
|||
|
Dimension
|
mm
|
3200*1100*1500
|
3500*1200*1750
|
3500*1200*1750
|
|||
|
Weight
|
kg
|
1400
|
1600
|
1700
|
|||
|
Model
|
Cooling Capacity
|
Power
|
Pump
|
Water Flow
|
|
MG-90WS
|
92 KW / 26.2 Ton
|
23 KW
|
3 KW
|
15.8 m3/h
|
|
MG-165WS
|
164 KW / 46.6 Ton
|
39 KW
|
4 KW
|
28.1 m3/h
|
|
MG-220WS
|
219 KW / 62.3 Ton
|
54 KW
|
4 KW
|
37.5 m3/h
|
|
MG-280WS
|
280 Kw/ 79.6 Ton
|
57.5 KW
|
4 Kw
|
48 m3/h
|
|
MG-350WS
|
352 KW / 100 Ton
|
70 KW
|
5.5 KW
|
50.6 m3/h
|
|
MG-500WS
|
480 KW / 136.5 Ton
|
106 KW
|
7.5 KW
|
82.3 m3/h
|
|
MG-600WS
|
611 KW / 173.7Ton
|
134 KW
|
11 KW
|
104.7 m3/h
|
|
MG-650WS
|
634 KW / 180.3 Ton
|
142 KW
|
11 KW
|
108.7 m3/h
|
|
MG-750WS
|
740 KW / 210.4 Ton
|
165 KW
|
11 KW
|
126.9 m3/h
|
Frequently Asked Questions
What is the minimum order quantity for this water cooled chiller?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this water cooled chiller?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380V/50HZ. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
