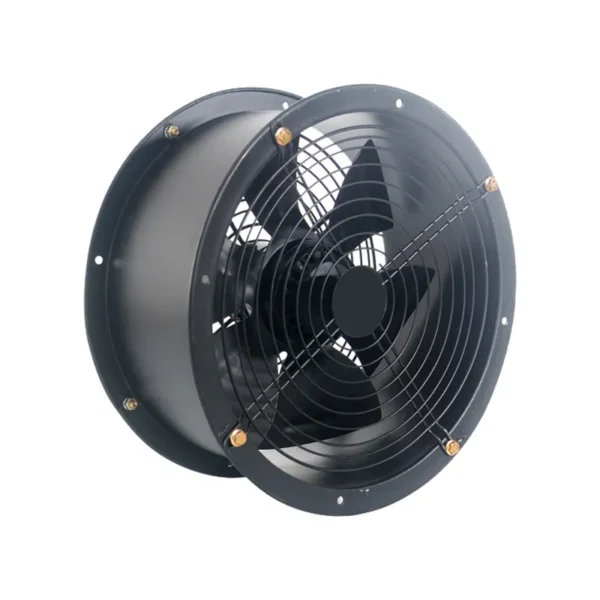

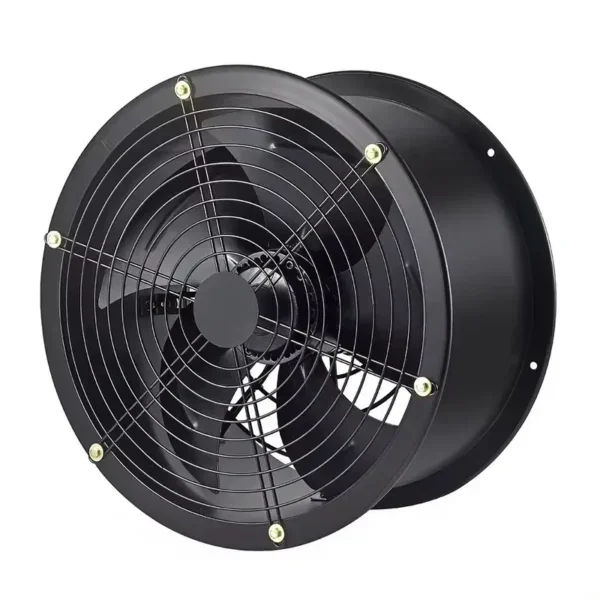

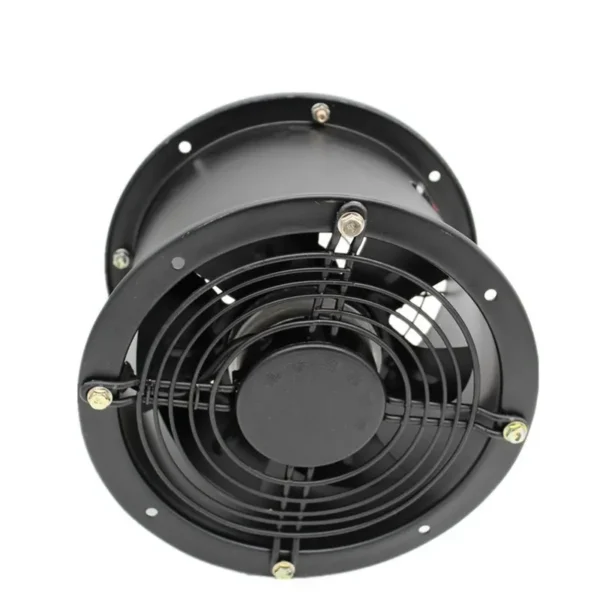

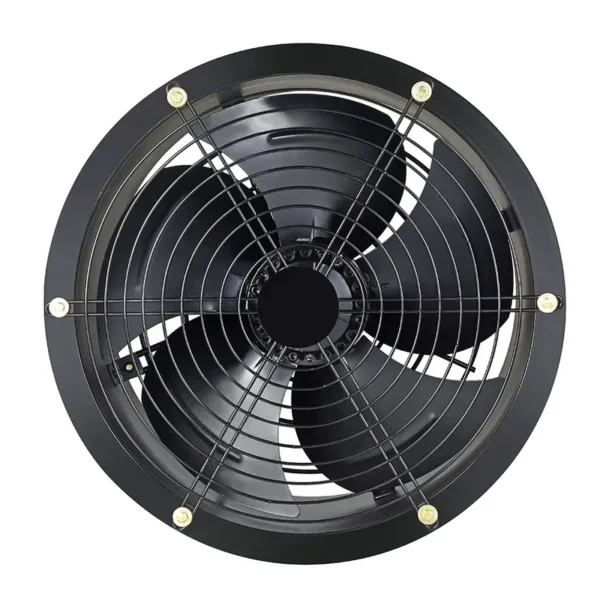

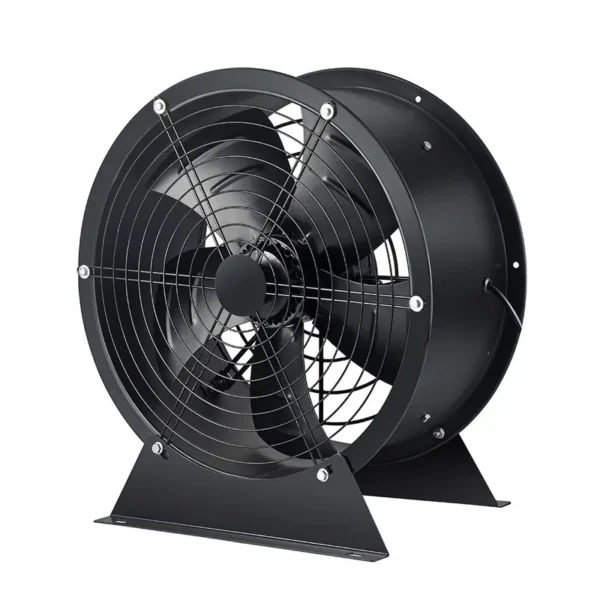

Industrial External Rotor Tube, 300mm, 220V, 380V, Axial

This industrial external rotor tube is published with the manufacturer’s full specification — 220V/380V, blade material Cast Iron. Made by Taizhou Qiou Mechanical And Electrical Co., Ltd. (3 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Industrial External Rotor Tube

• Model Number: YWF-300
• Voltage: 220V/380V
• Blade Material: Cast Iron
• Material: Cast Iron
• Warranty: 1 Year
• Place Of Origin: Zhejiang, China

Technical Specifications

Product Details

Product Description

300mm 220V 380V Durable Industrial External Rotor Tube Flow Motor AC Axial Ventilation Exhaust Fan

-YWF series of axial fan adopts external rotor motor, this series of external rotor motor has features as compact structure, easy installation, reliable operation, low noise, energy saving , high efficiency, etc. -YWF series of axial fan are divided into single-phase asynchronous capacitor operation and three-phase asynchronous operation. It is widely used in condensers, evaporators and other refrigeration equipment and the requirements of large air volume of the ground automatic control devices, large electronic equipment, medical equipment. Computers, office supplies automation, welding machine and other ventilation and cooling, it can also be used for buildings, plant ventilation, ventilation, purification and so on. -YWF series of axial fan insulation class B-class, F-class. Voltage: single-phase capacitor running fan for 220V / 50Hz, three-phase fan for 380V / 50Hz. We can develop and manufacture according to customer demand with different voltage and frequency. -The ambient temperature of -30° C -60 °C. -R.H.≤90%, altitude≤1000 m. -The average use life of the fan＞30,000 hours. -The motor's ground wire must be effectively connected to the external grounding device before use the fan. -The fan characteristic curve is tested with a windshield and without a cover. -The standard power wires is 1.5 meters long, with junction box.

Specification

Model	Voltage	Power	Speed	Air Flow	Pressure	Noise	Current
YWF2E-300	220V	135W	2600rpm	3300m3/h	210Pa	66dBA	0.80A
YWF2D-300	380V	135W	2500rpm	3250m3/h	210Pa	66dBA	0.30A
YWF4E-300	220V	90W	1400rpm	1950m3/h	70Pa	60dBA	0.35A
YWF4D-300	380V	90W	1400rpm	1950m3/h	70Pa	60dBA	0.25A

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Taizhou Qiou Mechanical and Electrical Co., Ltd. is engaged in the field of electric motor, axial fan, blower,centrifugal fan,industrial fan, exhaust fan and other fans. With over 10 years of experience in the design,development,and manufacture of the fans and motors,we export to over 30 countries and regions. High quality, prompt delivery, superior service and competitive prices are always assured. Developing business based on the quality is the tenet we have always held. Besides the products listed in our catalogs, we also offer OEM services. Feel free to reach us for any customized fans and motors solutions. We sincerely wish to cooperate with clients and friends worldwide to build a brilliant future together!

FAQ

Q: How about the quality guarantee period? A: One year. Q: What tests do your products need to go through? A: Air pressure flow test – Flame retardant test of plastic shell – High temperature resistance test – Low temperature test -Noise test – Stacked – Water proof – Drop destructive test. Q: Can you provide samples? A: After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable. Q: Do you accept OEM or ODM orders? A: Yes, we accept OEM and ODM from customers. Q: How long is your delivery time? A: Small quantity is around 5-7 working days after receiving the prepayment. Large quantity orders need to negotiate the delivery time. Q: How are you going to ship my order? A: Usually, for sample order we will ship by express like EMS, DHL, FedEx, UPS, special-line logistic. For bulk order, we will ship by sea or air to your destination sea port or airport. If you have own freight forwarder, we can deliver the goods to them as well.    Q: When can I get the quotation? A: We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on other chat tools or call us directly.   Q : What are your terms of payment? A : Generally, 30% T/T in advance, 70% balance before shipment.The common way is by T/T. We can also accept other payment terms.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial external rotor tube?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial external rotor tube be supplied for my local voltage?

The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Taizhou Qiou Mechanical And Electrical Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Taizhou Qiou Mechanical And Electrical Co., Ltd. range on HVACR Nexus.
