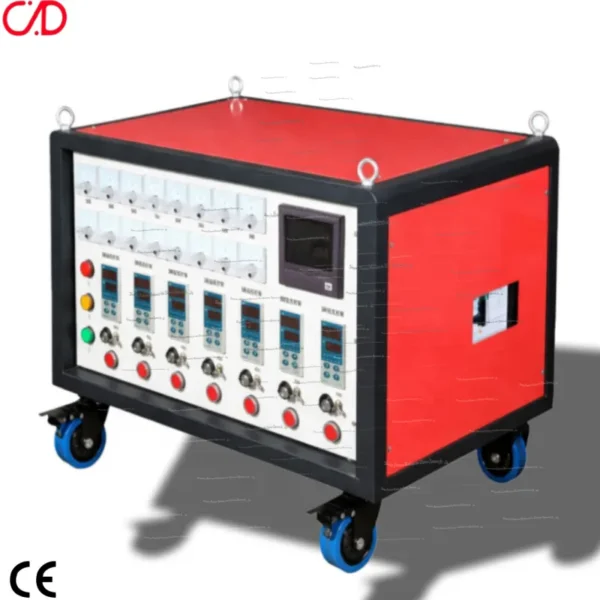

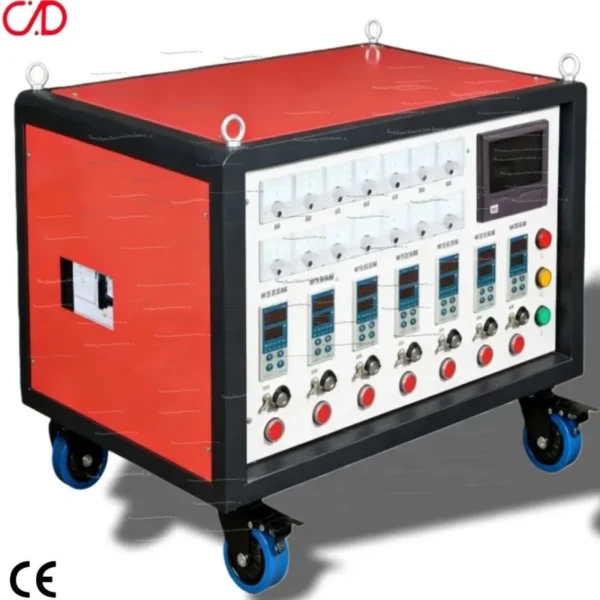

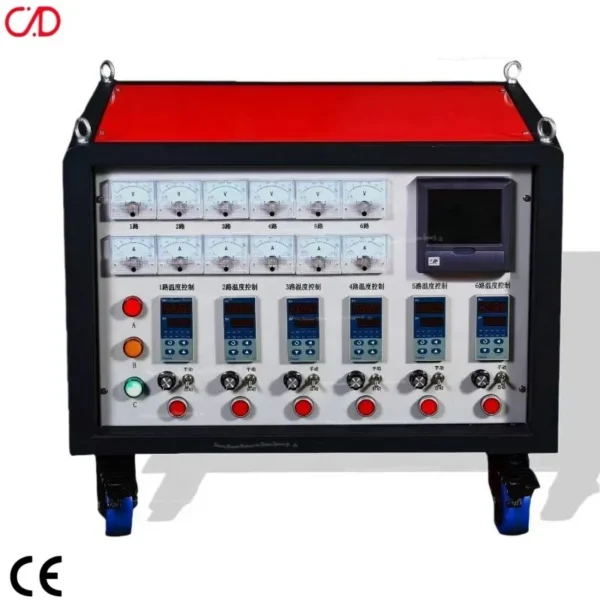

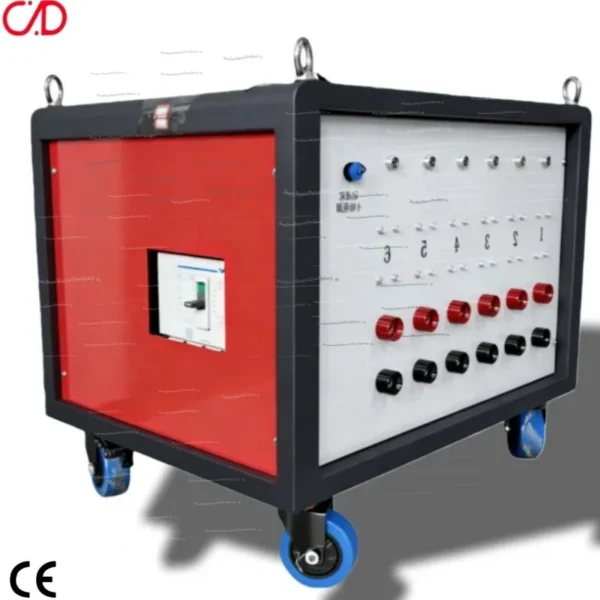

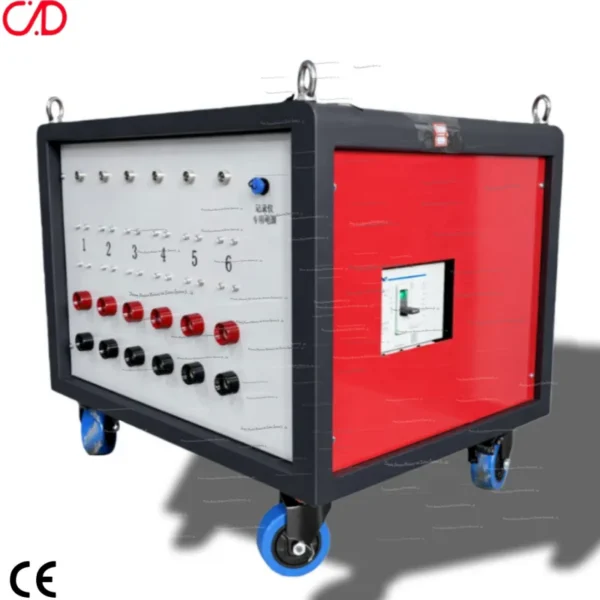

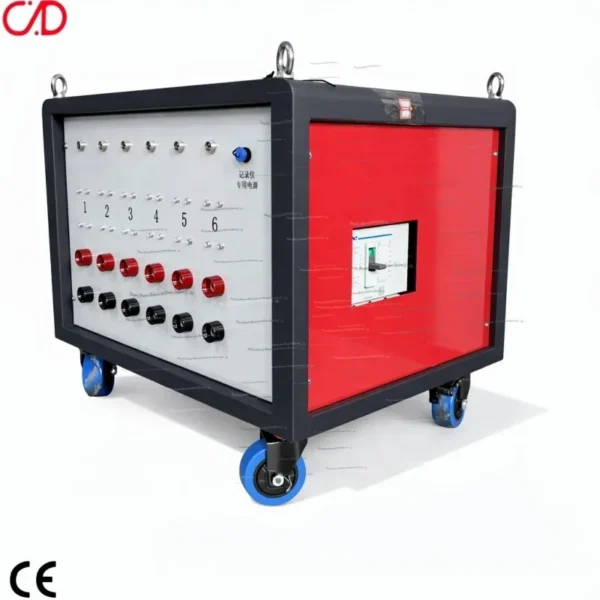

Industrial Intelligent Induction Heater, Explosion-Proof

Industrial intelligent induction heater — 380V+20%, 120KW(160.92hp). The complete factory specification follows. Made by Shenyang Chengxinda Mechanical And Electronic Equipment Co., Ltd. (1 year on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Industrial Intelligent Induction Heater

• Power (KW): 120KW(160.92hp)
• MAX Power Output(KW): 120Kw
• Voltage: 380V+20%
• Output Voltage Of Every Loop: 0-220V
• Warranty: 1 Year
• Place Of Origin: Liaoning, China

Technical Specifications

Product Details

Model	CXD-30KW
Input voltage	380V+20%(Unbalanced 3-Phase4-Wire 50-60Hz)
MAX Power output	30KW
Control output loop	3
Output power of every loop	0-20KW
0utput voltage of every loop	0-220V
0utput current of every loop	0-90A
Control accuracy	±1℃
Environment temperature	-20-60℃
Thermocouple type	K
Cooling mode	Air cooling
Length, width,height	530*400*320mm
Weight	19KG

Model	CXD-60KW
Input voltage	380V+20%(Unbalanced 3-Phase 4-Wire 50-60Hz)
MAX Power output	60KW
Control output loop	6
0utput power of every loop	0-10KW
0utput voltage ofevery loop	0-220V
0utput current of every loop	0-45A
Control accuracy	士1℃
Environment temperature	-20-60℃
Thermocouple type	K
Cooling mode	Air cooling
Length, width, height	700*500*550mm
Weight	56KG

Mode1	CXD-90KW
Input voltage	380V+20%(Unbalanced 3-Phase 4-Wire 50-60Hz)
MAX Power output	9OKW
Control output loop	3
Output power of every loop	0-30KW
0utput voltage of every loop	0-220V
Output current of every loop	0-135A
Control accuracy	±1℃
Environment temperature	-20-60℃
Thermocouple type	K
Cooling mode	Air cooling
Length, width, height	520*420*540mm
Weight	35KG

Mode1	CXD-120KW
Input voltage	380V+20%(Unbalanced 3-Phase 4-Wire 50-60Hz）
MAX Power output	120KW
Control output loop	6
0utput power of every oop	0-20KW
0utput voltage of every loop	0-220V
0utput current ofevery loop	0-90A
Control accuracy	±1℃
Environment temperature	-20-60℃
Thermocouple type	K
Cooling mode	Air cooling
Length, width, height	800*550*800mm
Weight	85KG

Model	CXD-120KW
Input voltage	380V+20%(Unbalanced 3-Phase 4-Wire 50-60Hz)
MAX Power output	120KW
Control output loop	6
0ut put power of every loop	0-20KW
0ut put voltage of every loop	0-220V
0utput current of every loop	0-90A
Control accuracy	±1℃
Environment temperature	-20-60℃
Thermocouple type	K
Cooling mode	Air cooling
Length, width, height	540*800*920mm
Weight	72KG

Model	CXD-120KW
Input voltage	380V+20%(Unbalanced 3-Phase 4-Wire 50-60Hz)
MAX Power output	120KW
Control output loop	6
0ut put power of every loop	0-20KW
0ut put voltage of every loop	0-220V
0utput current of every loop	0-90A
Control accuracy	±1℃
Environment temperature	-20-60℃
Thermocouple type	K
Cooling mode	Air cooling
Length, width, height	700*500*630 mm
Weight	60KG

Model	CXD-240KW
Input voltage	380 V+20%(Unbalanced 3-Phase 4-Wire 50-60 Hz)
MAX Power output	240KW
Control output loop	12
0ut put power of every loop	0-20KW
0ut put voltage of every loop	0-220V
0utput current of every loop	0-90A
Control accuracy	±1℃
Environment temperature	-20-60℃
Thermocouple type	K
Cooling mode	Air cooling
Length, width, height	950*600*860 mm
Weight	60KG

Model	CXD-270KW
Input voltage	380 V+20%(Unbalanced 3-Phase 4-Wire 50-60 Hz)
MAX Power output	270KW
Control output loop	9
0ut put power of every loop	0-30KW
0ut put voltage of every loop	0-220V
0utput current of every loop	0-135A
Control accuracy	±1℃
Environment temperature	-20-60℃
Thermocouple type	K
Cooling mode	Air cooling
Length, width, height	1000*600*920 mm
Weight	95KG

Model	CXD-360KW
Input voltage	380 V+20%(Unbalanced 3-Phase 4-Wire 50-60 Hz)
MAX Power output	360KW
Control output loop	12
0ut put power of every loop	0-30KW
0ut put voltage of every loop	0-260V
0utput current of every loop	0-135A
Control accuracy	±1℃
Environment temperature	-20-60℃
Thermocouple type	K
Cooling mode	Air cooling
Length, width, height	1060*650*1520mm
Weight	180KG

0ptional:
1.connector	5.Extend cable
2.PLC color touch screen	6.Thermocouple extension wire
3.induction coil	7.Heat treatment insulation blanket
4.K thermocouple	8.High temperature resistant ceramic heater
Of course, other customization needs are also welcome to contact us.

The high-end intelligent heat treatment temperature control equipment of Shenyang Chengxinda Mechanical And Electronic Equipment Co., Ltd. , ranging from 20 kilowatts to 480 kilowatts can be customized according to customer requirements. With its ingenious appearance design, easy mobility and transportation, and light weight, it is your best choice for heating equipment before and after welding.

Advanced microcomputer control, each channel is equipped with manual and automatic voltage increase and power failure memory function. After a power failure, the temperature can be directly recorded when power is restored.

The powerful main circuit design, with the protection of imported modules, reduces the pressure for your weld heat treatment support. The dual fan forced ventilation design avoids over-temperature protection in high -temperature and closed environments, Equipped with precise recorders, your data will be flawless.

Our company's heat treatment temperature control equipment provides practical operation machines for heat treatment training centers in the national power industry.

1Q: How to buy your products ? A: We have some products in stock , you can take away the products after you arrange the payment ; if we don't have the products in stock you want, we will start production once getting the payment.

2Q: Are you factory or trading company ? A: We are an integrated manufacturing and trading company with independent R¢D and production capabilities. All our machines are built in-house, and we offer customized solutions tailored to your specific requirements.

3Q: What certificates do we all have ? A: Heating Equipment Testing and Experimentation Qualification Certificate,.CE,ISO.

4Q: Can we visit your factory ? A : Of course, welcome to visit our factory if you come to China.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial intelligent induction heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial intelligent induction heater be supplied for my local voltage?

The standard configuration is 380V+20%. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
