Industrial Water Chiller, 19, R22, 9.48 M3

The industrial water chiller listed here carries 50Kw 100Kw air cooled chiller, power 19,63KW, documented exactly as the manufacturer publishes it. Made by Shandong Taicheng Precision Technology Co., Ltd. Jinan Branch (4 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Industrial Water Chiller

• Power: 19,63KW
• Compressor Power: 8.13 Kw*2
• Voltage: 3PH-380V-50Hz or according to customer need
• Cooling Capacity: 50Kw 100Kw air cooled chiller
• Refrigerant: R22 / R407c / R134a / R507
• Warranty: 1 Year

Technical Specifications

Product Details

Product Overview

Hydroponic water cooling equipment 5 ton 10 ton industrial water chiller with tank for sale

TAICH believe that customer will not only need a chiller, but also a supplier with rich experience in the cooling field to solve your cooling problems. TAICH Chiller have 15 years experience refrigeration engineer team, and 10 years manufacture experience, can support you a professional water cooling solution and stable quality chillers, we will be your reliable partner.

TAICH Water cooled chiller with the follow performance which can ensure your future use feel happy.

Specification:

1. Outlet temperature range: -10 C ~+35 deg C 2. Pump included 3. Stainless steel tank included 4. No need cooling tower, convenient for use. 5.Electric Power saving. 6.“V" Type Air Cooled finned condenser, with good heat exchange. 7.Micro-computer intelligent control system; SIEMENS PLC option. 8.Temperature automatic control no need operate by manual. 9. CE, UL, SGS certificate 10. No need to install a cooling tower Easy installation&Operation and maintenance

Product Paramenters

Hydroponic water cooling equipment 5 ton 10 ton industrial water chiller with tank for sale
Model			TC-20(D)	TC-25(D)	TC-30C(D)	TC-40C(F)	TC-50C(F)
Cooling Capacity	Kw	55.3	64.2	83.6	110.6	128.4
		Kcal/h	47558	55212	71896	94256	110424
Input Power	Kw	19.63	24.48	32.33	38.52	49.96
Power Supply			3PH-380V-50Hz or according to customer local need
Refrigerant	Type	R22 / R407c / R134a /R507
		Control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll type
		Power (Kw)	8.13*2	9.79*2	8.13*3	8.13*4	9.79*4
Evaporator	Type	Shell and tube or Tank with coil
		Water flow            ( m3/h)	9.48	11.01	14.33	18.79	22
		Inlet / Outlet	DN40	DN40	DN65	DN65	DN80
Tank volume	L	360	360	530	740	930
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
		Cooling Air (m3/h)	20000	25000	30000	40000	50000
Pump	Power(Kw)	1.5	1.5	2.2	2.2	4
		Pressure (bar）	2	2	2	2	2
Protect System	Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L(mm)	2100	2100	2200	2500	2000
		W(mm)	1000	1000	1160	1460	2000
		H(mm)	1700	1700	1800	2000	1750
Weight	KG	850	900	1150	1350	1600

Manufacturing Technique

Water Chiller Control System

TAICH has developed a highly intelligent PLC and PC-level computer control system, which can be used for remote monitoring and control. Simple operation, connect with power supply directly, with lower failure, and high safety factor, easy installation. User can set the parameter as real working need, intuitive and reliable; SIEMENS PLC is workable.

Touch Type Panel

SIEMENS Brand Control System; Touch Type LED Panel

Electric Components

Schneider Brand Electric Components

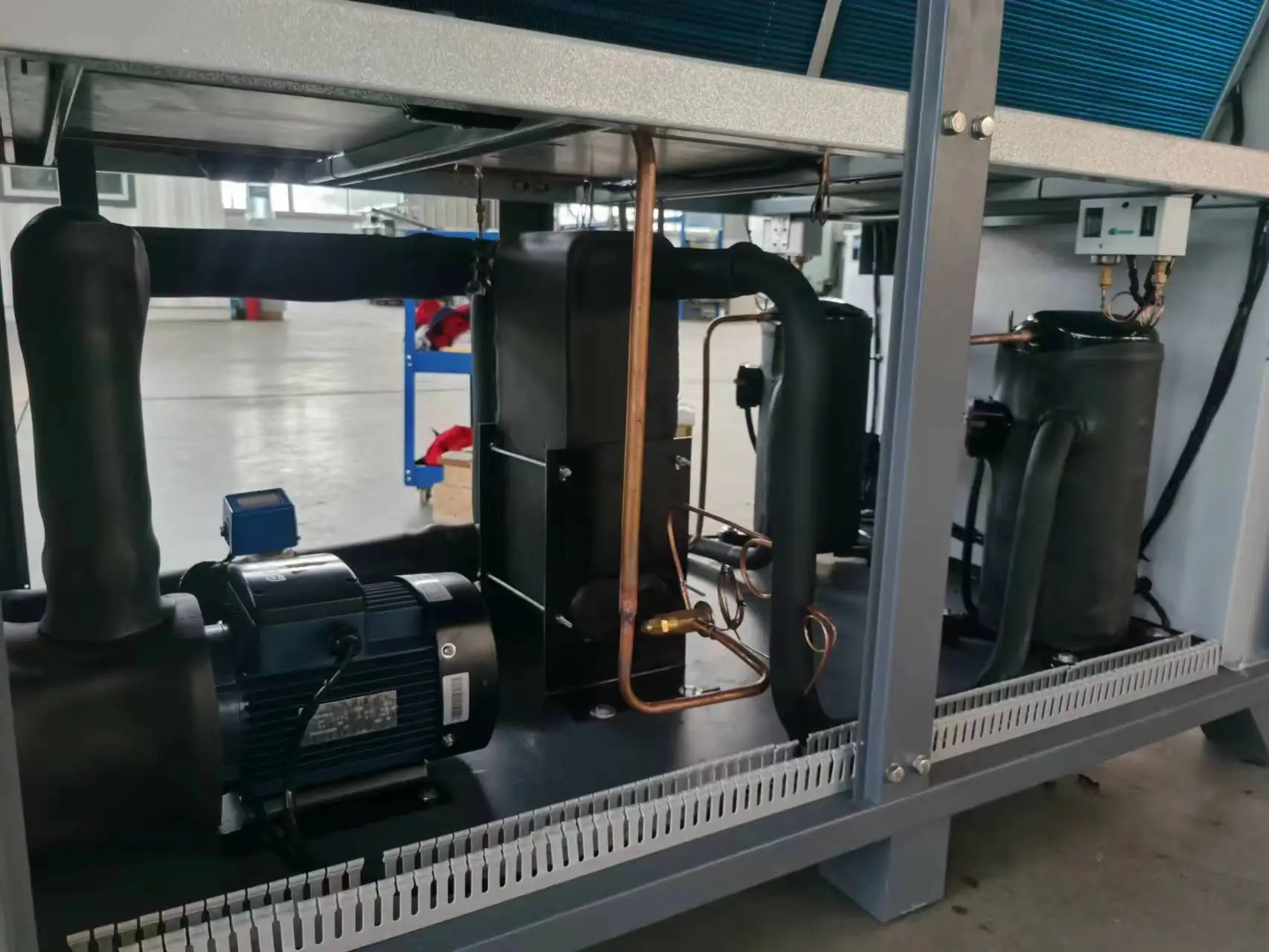

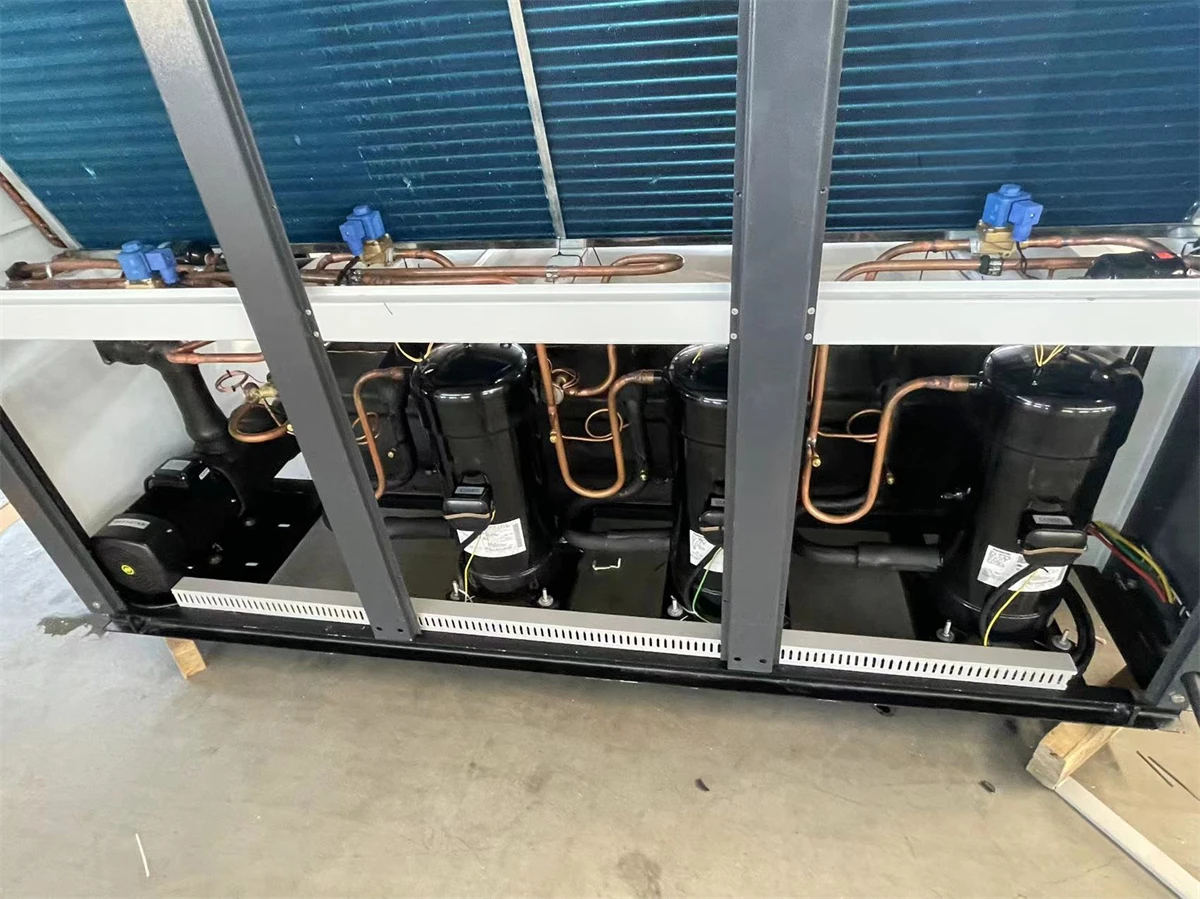

Industrial Water Chiller Compressor

It adopt the world famous brand hermetic scroll type compressor, which can saving 20-30% energy than the reciprocating compressor. It's running more stably, reliably, with high efficiency, fewer failures, less vibration, lower noise and easy maintenance. The compressors can automatically running alternately according to the load change, to balance the running speed of each compressor, and greatly extend the service life of the chiller.

Heat Exchanger -Evaporator

(1). Tank with coil: If customer will connect with a closed water loop;
(2). Shell and tube: If customer will connect with a open water loop;
(3). It adopts internal and external threaded tubes, the inner surface of the copper tube is threaded and surface is smooth, the cooling efficiency is higher. The outside of the evaporator is insulated with 25mm thick PE insulation board, no condensation, and small loss of cooling capacity.

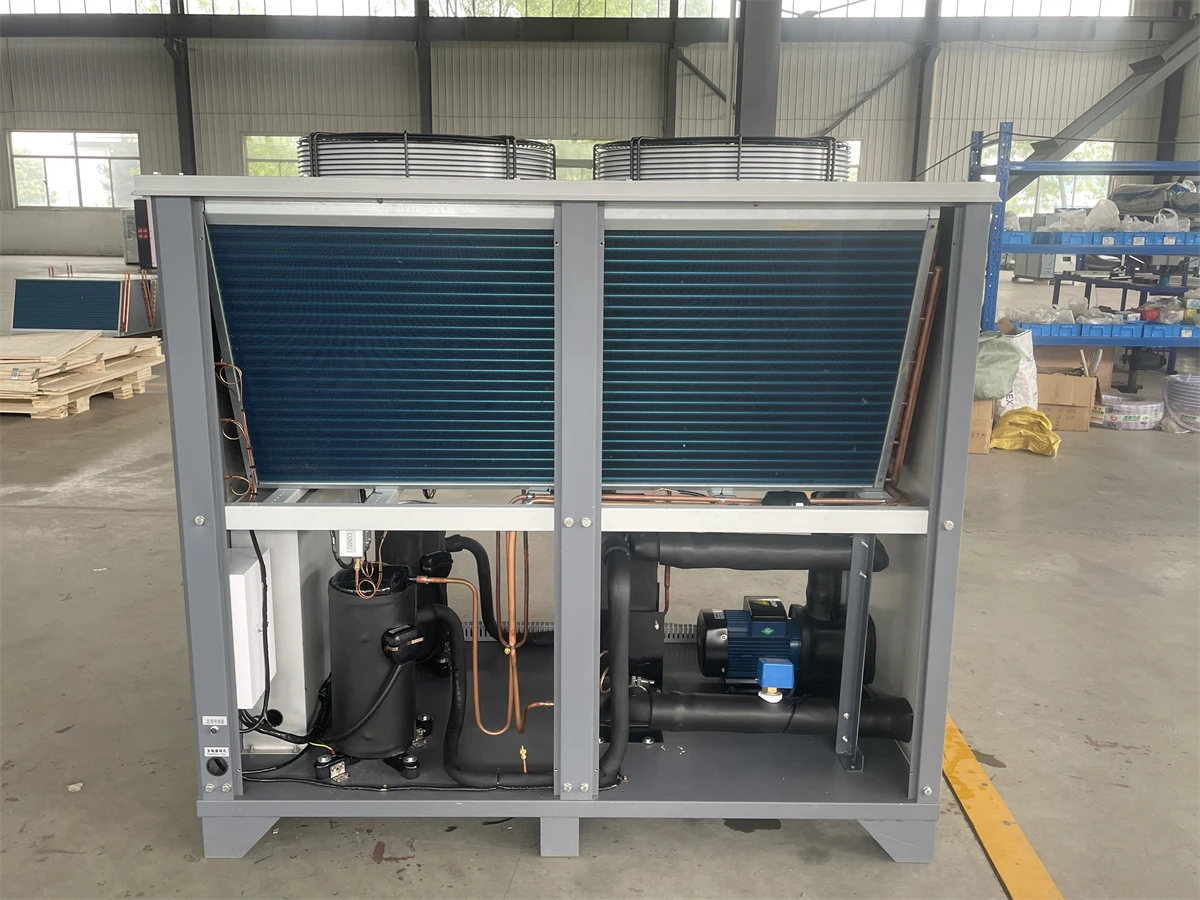

Condenser

Equipped with high-efficiency transverse slit fins and internal threaded copper tubes, with high heat exchange efficiency and good stability.

Successful Project

TAICH industrial water chiller with best price, widely application:

PVC Line Chiller, Extruder, Injection; and any other industry required outlet temperature no less than +7C; workable for +7C~35C chiller; Brewery, winery, fermentation workable for -5C chiller; Or lower outlet such as -10C, -15C; you can send me message to get the detailed specification.

Certifications

Company Profile

TAICH-Your Reliable Industrial Water Chiller Manufacturer

1. With 15,000 square meters workshop; with three management system: R&D Center, Manufacturing center and Quality control center. With CNC machining center, automatic pipe bending machine, laser welding machine, high-frequency welding machine, high and low temperature testing platform and etc high-end manufacturing and testing equipment , so from the R&D to production to quality control, all-round guarantee of product delivery.

2. 40+ Skilled Workers and 15+ experienced R&D,Service Team.

3. 5000+ Annual Sales Chiller Units, Provided To 100+ Countries Market.

4. 10+ Years Experience In Industrial Cooling Worked For 50+ Field.

5. "Quality first, technological innovation" is our product concept, which requires us to be extremely responsible to customers, with zero tolerance for product defects, and requires us to focus on product optimization. We believe that by adhering to the business philosophy of "quality for survival, service for development" to build the company into a strong enterprise in the industrial refrigeration industry!

Recommend Products

Air Cooled Screw Chiller

Capacity: 80Kw ~600Kw

Water Cooled Screw Chiller

Capacity: 90 Kw ~1500 Kw

Air Cooled Scroll Chiller

Capacity: 1 Kw~120 Kw

FAQ

Q 1: If you are manufacturer or trader?

Reply: We are manufacturer, all product will be factory direct price, and factory one to one directly service.

Q 2: How can I choose a right water chiller model?

Reply: If you can make sure the cooling capacity need, can find the suitable model according to our parameter data, or inform us, we choose for you. If you are not sure the cooling capacity, can inform us:

(1). Your process line description, such as what's the industry, what's the production capacity, what's the power and etc;

(2). What's the water flow in your system?

(3). What's the inlet and outlet temperature need?

(4).Or any more information you can share us, we will calculate and suggest a suitable water chiller proposal for you.

If you are looking for the most suitable Water Chiller, TAICH Chiller is the right choice. Call our sales manager for further guidance on the models, sizes, and configurations, and place your order at a very reasonable price.

Welcome to visit our factory.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $5000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial water chiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial water chiller be supplied for my local voltage?

The standard configuration is 3PH-380V-50Hz or according to customer need. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Taicheng Precision Technology Co., Ltd. Jinan Branch, based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Taicheng Precision Technology Co., Ltd. Jinan Branch range on HVACR Nexus.
