Industrial Water Chiller, 3PH~220V, 3500

Industrial water chiller — voltage 3PH~220V/380/415V~50HZ/60HZ, cooling capacity 3500/4500Kcal/h. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Industrial Water Chiller

• Model Number: ACW
• Power: 5.3KW(7.11hp)
• Voltage: 3PH~220V/380/415V~50HZ/60HZ
• Cooling Capacity: 3500/4500Kcal/h
• Refrigerant: R-404A, R134a, R-410A, R407C
• Warranty: 1 Year

Technical Specifications

Product Details

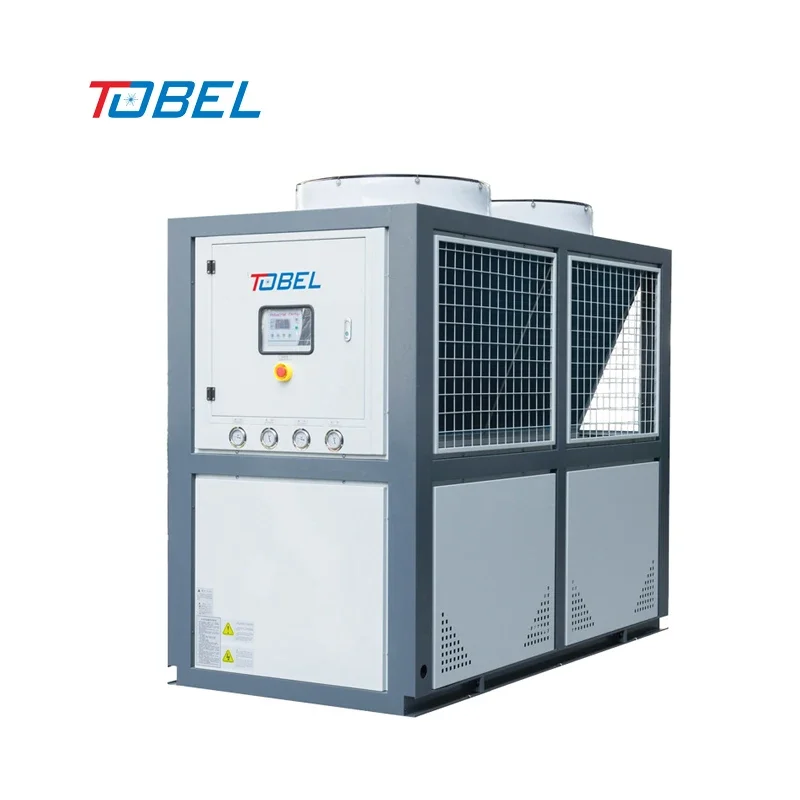

TOBEL Air-Cooled Water Chiller

We focus on industrial chiller refrigeration units, have supporting experience in different industries, and provide complete customized services.

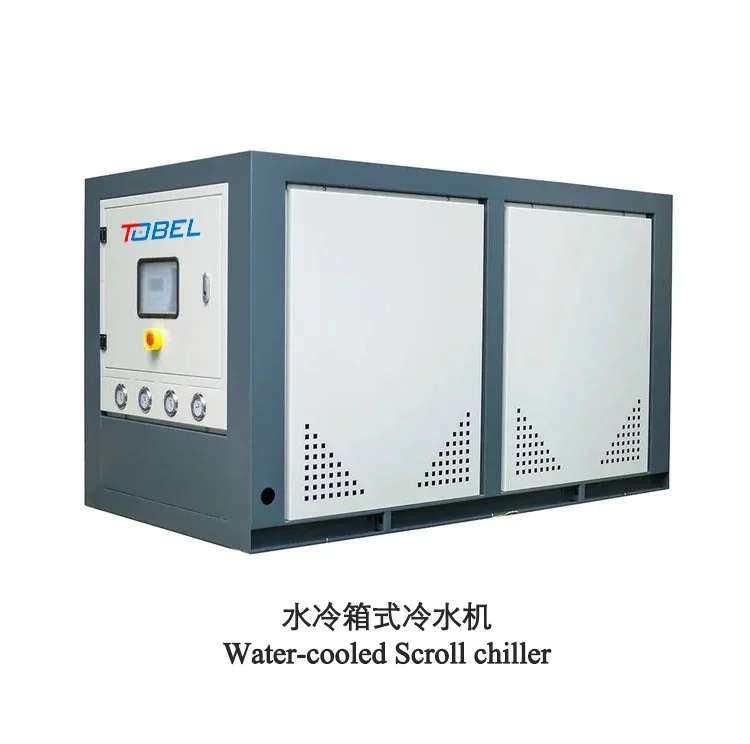

Industrial water chillers are divided in two types:

air-cooled and water-cooled, mainly referring to the different condensers. Technically, water cooling is 300 to 500 kcal/h higher than air cooling; In terms of price, water cooling is much lower than air cooling.
In the installation, water cooling needs to be incorporated into the cooling tower before use, and air cooling is mobile without other assistance.
However, air cooled water chiller relies on the fan to dissipate heat, which has requirements for the ambient environment: such as ventilation, humidity, air PH value and etc…

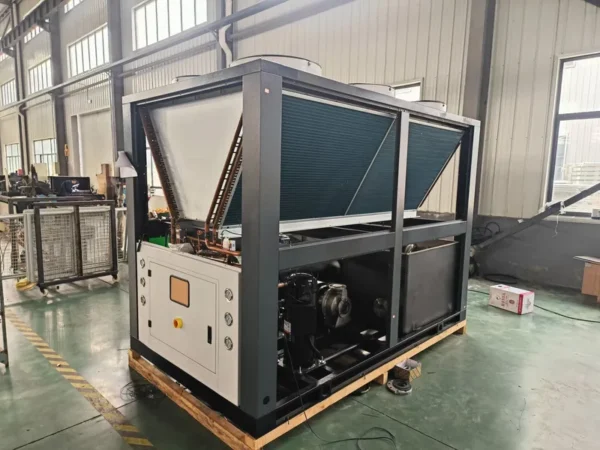

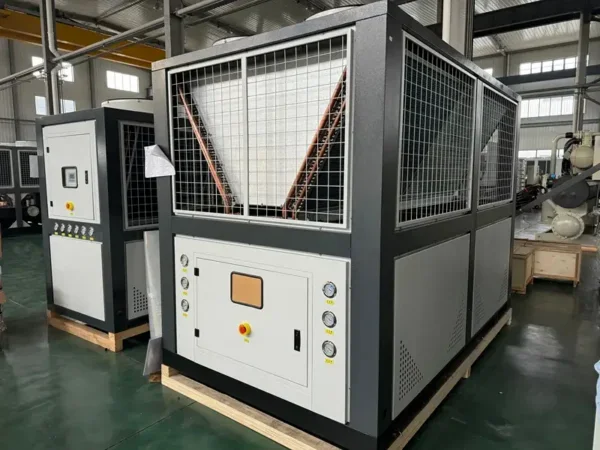

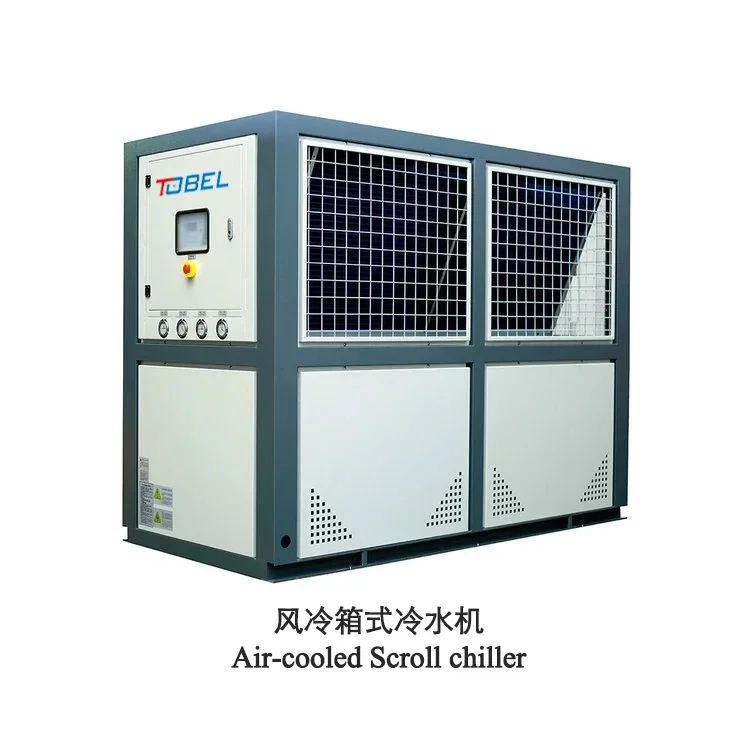

TOBEL Industrial air cooled box type industrial chillers.

Scope of application
* High speed motorized spindle of machining center
* Water-cooled servo motor
* CNC cutting machine
* Quenching machine, high-power motor, high-power frequency converter
* Semiconductor manufacturing, optical equipment and experimental instruments
* Optical equipment, plastic machinery, mold, quenching machine and welding equipment
* Food and plastics machinery, mould cooling

Characteristics

The water chiller has compact structure, small footprint and simple pipeline design, only needs to connect external water pipe. Easy installation and maintenance. With intelligent control, the chiller can automatically adjust the output of the compressor according to the load change, so that the chiller has the best work efficiency at any time. Fully sealed compressor with superior performance and strong resistance to liquid shock Man-machine interface: the chiller adopts well-known brand controller and control interface, digital display, one-click operation Water pump tank: The unit adopts the overall design and manufacture, built-in standard efficient centrifugal pipeline pump, 304 stainless steel cold storage tank. Environmentally friendly refrigerant is available, such as R407c, R134a or R410a and so on.

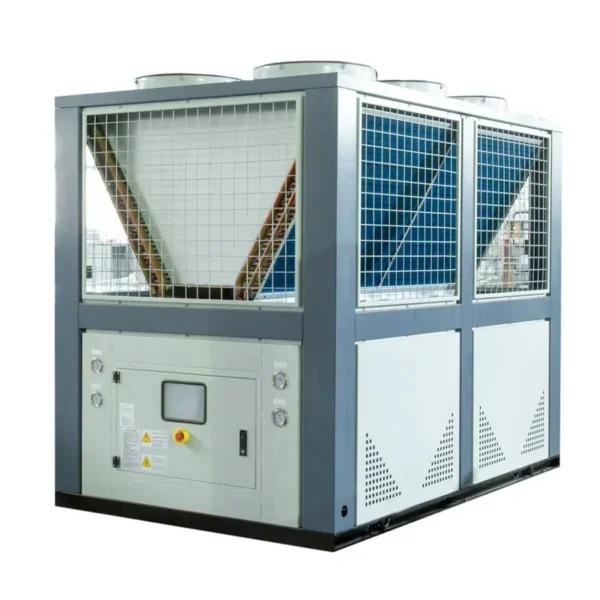

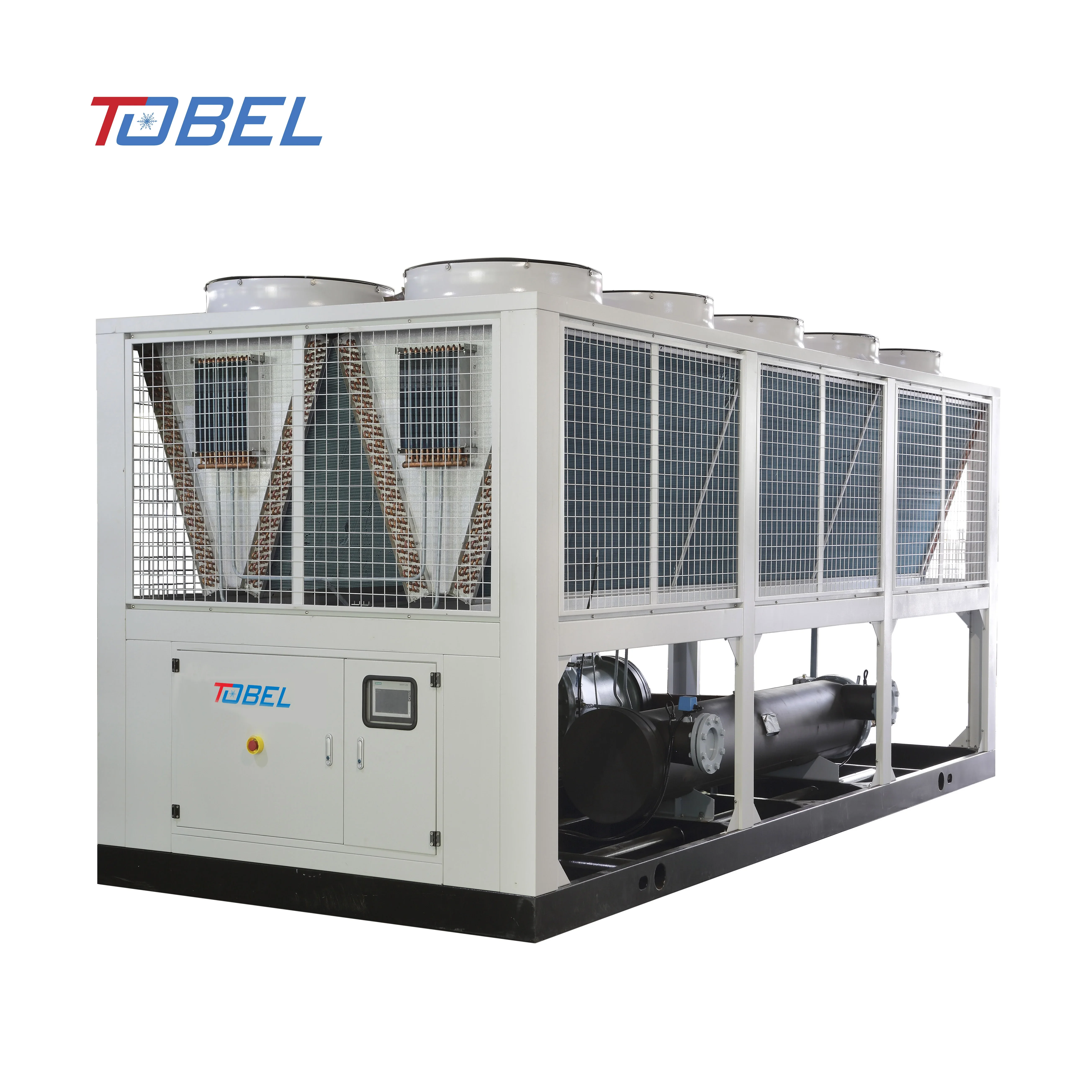

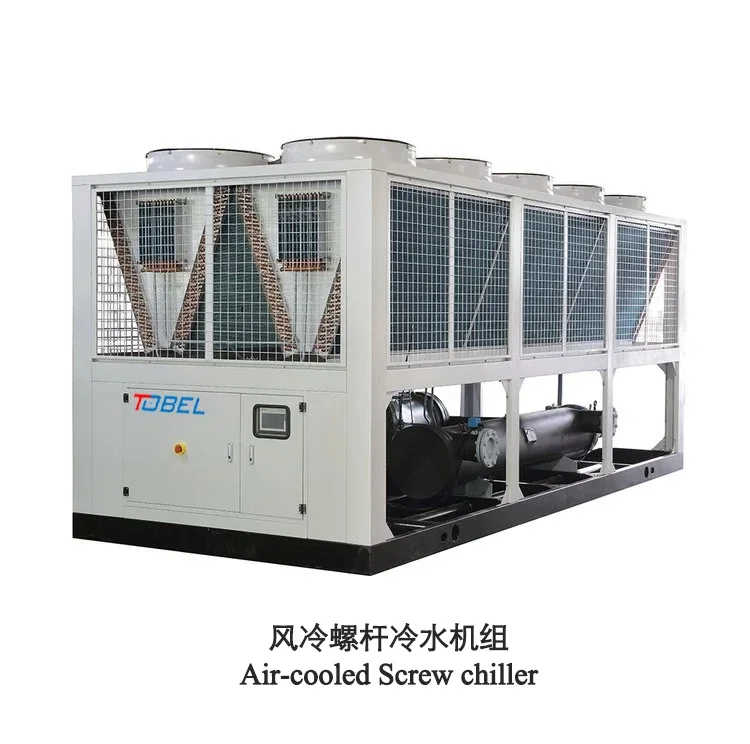

TOBEL Industrial Air cooled screw type water chiller.

Characteristics
* World-renowned twin-screw compressor, high efficiency, low noise, less wearing and long service life

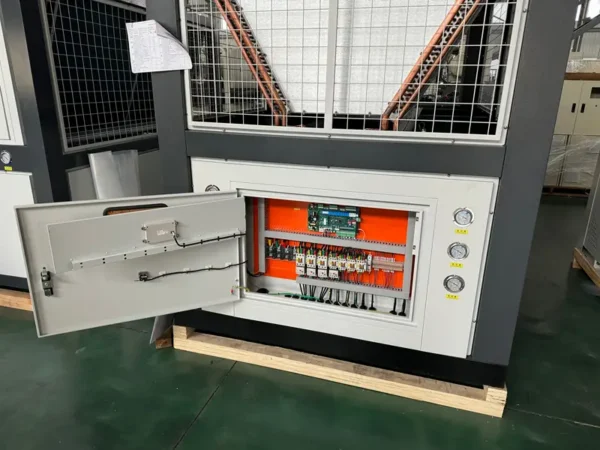

* SIEMENS PLC controller with Chinese/English human-computer interface
* Perfect breakdown protection：high and low pressure protection, anti-freezing protection, water flow protection, reverse and lack phase protection
* The chiller uses high efficiency heat exchanger with advanced, unique shape design and systems.

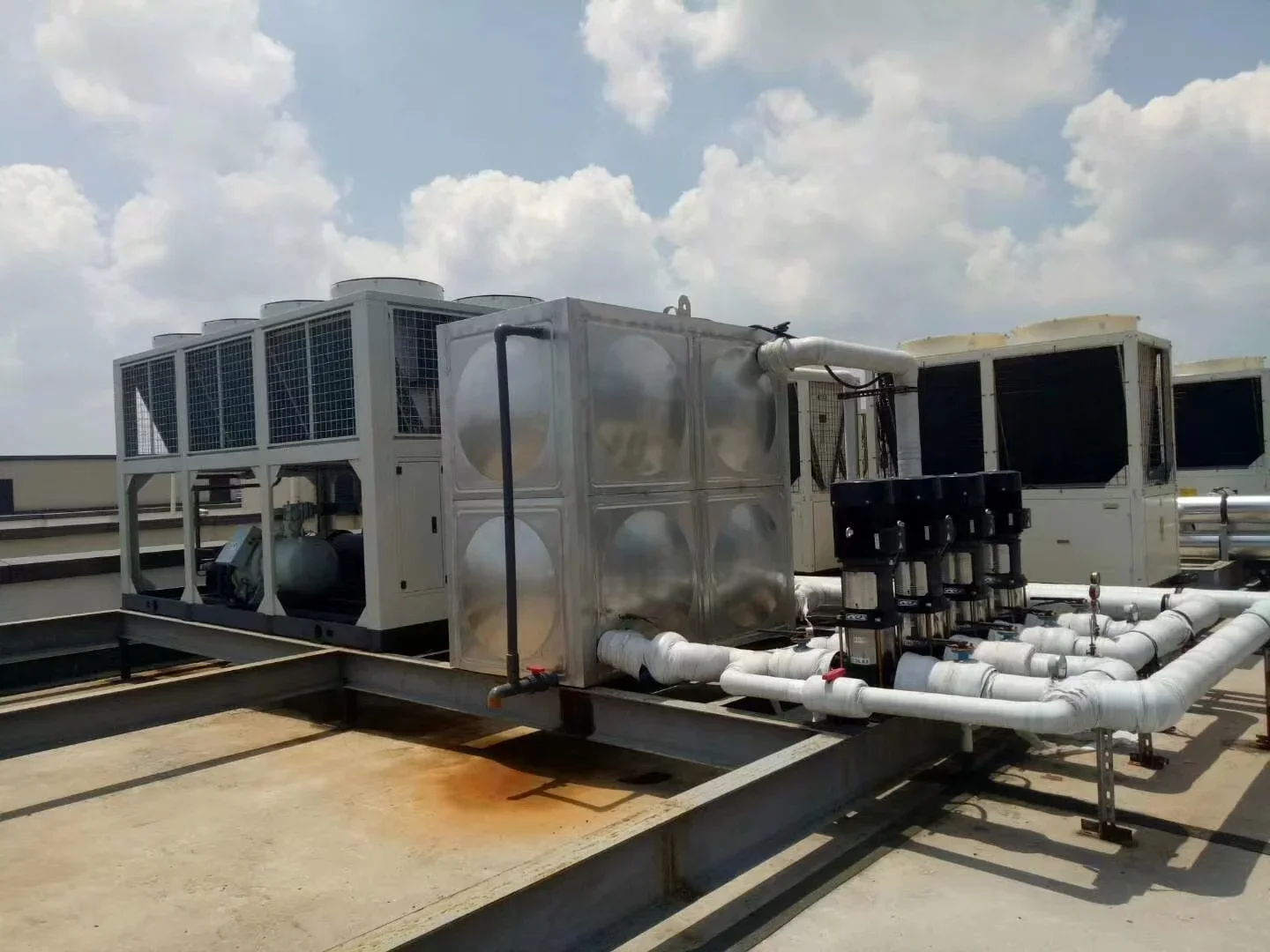

* The chiller can be installed directly on the roof, or the other outdoor well-ventilated places.
* High utilization rate of space with using W shape coil design
* The unit adapts to outdoor harsh weather conditions and has a good operating results during the life cycle.
* Maintenance: the chiller is strong anti-corrosionwith waterproof control cabinet, not easy to fade and corrosion.

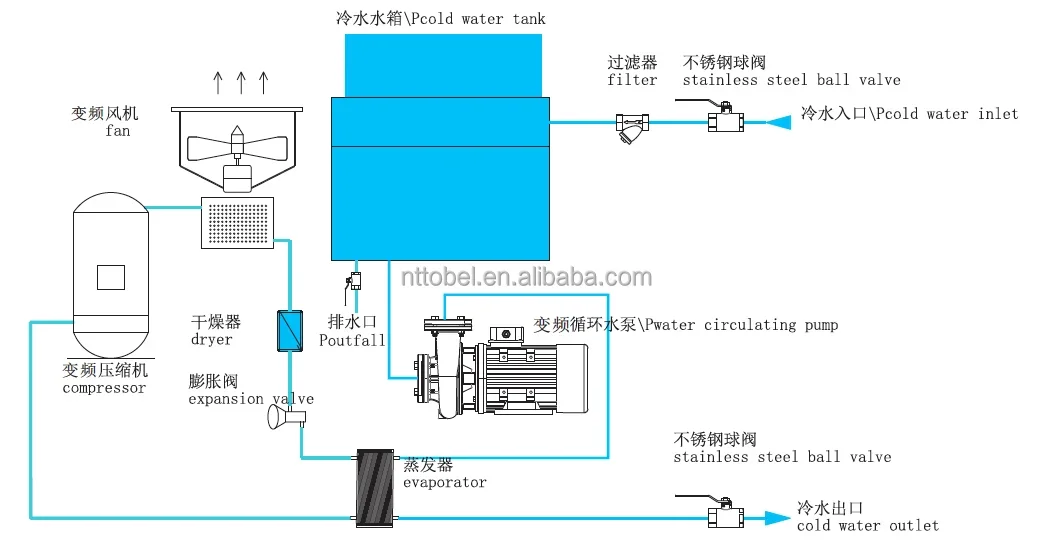

Schematic diagram

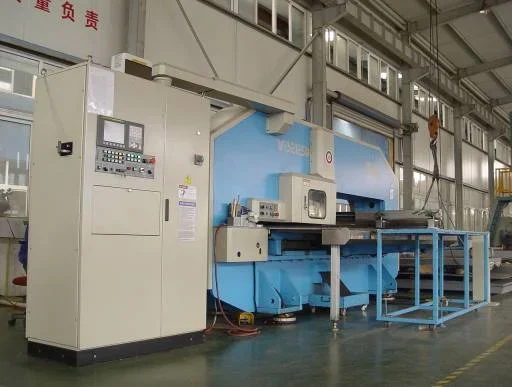

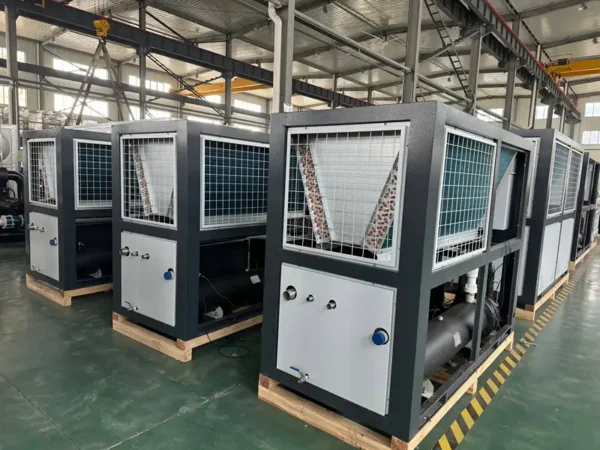

Perfect production line and testing equipment

Different high-quality components join together to make your Air Cooled Chiller fully functional.

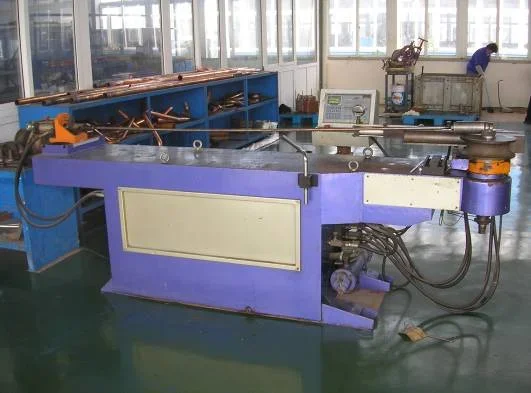

The company has more than 30 pieces of production, processing and testing equipment such as CNC lathes, CNC machining centers, shear triggers, bending machines, radial drilling machines, CNC punch machines, CNC folding machines, and ordinary grinders.

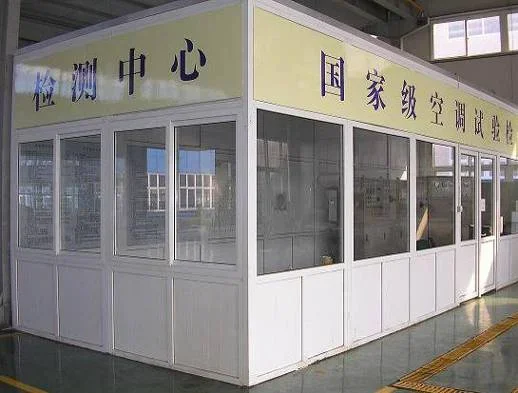

It also established a chiller testing center, which has been approved by the National Compressor Refrigeration Equipment Quality Supervision and Inspection Center.

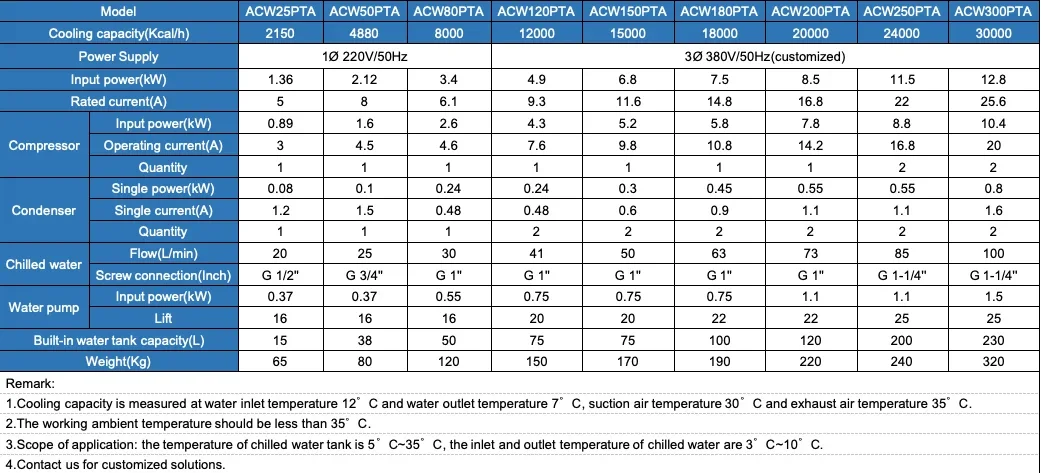

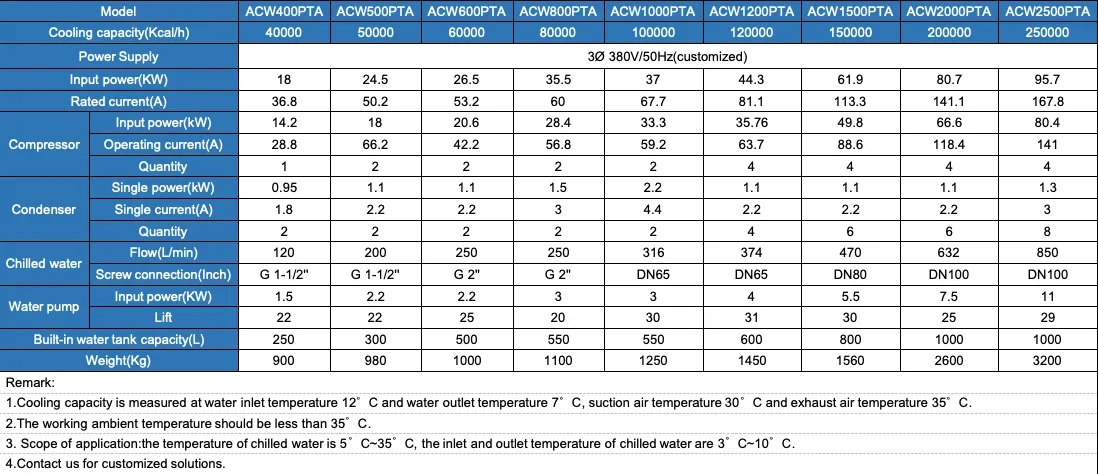

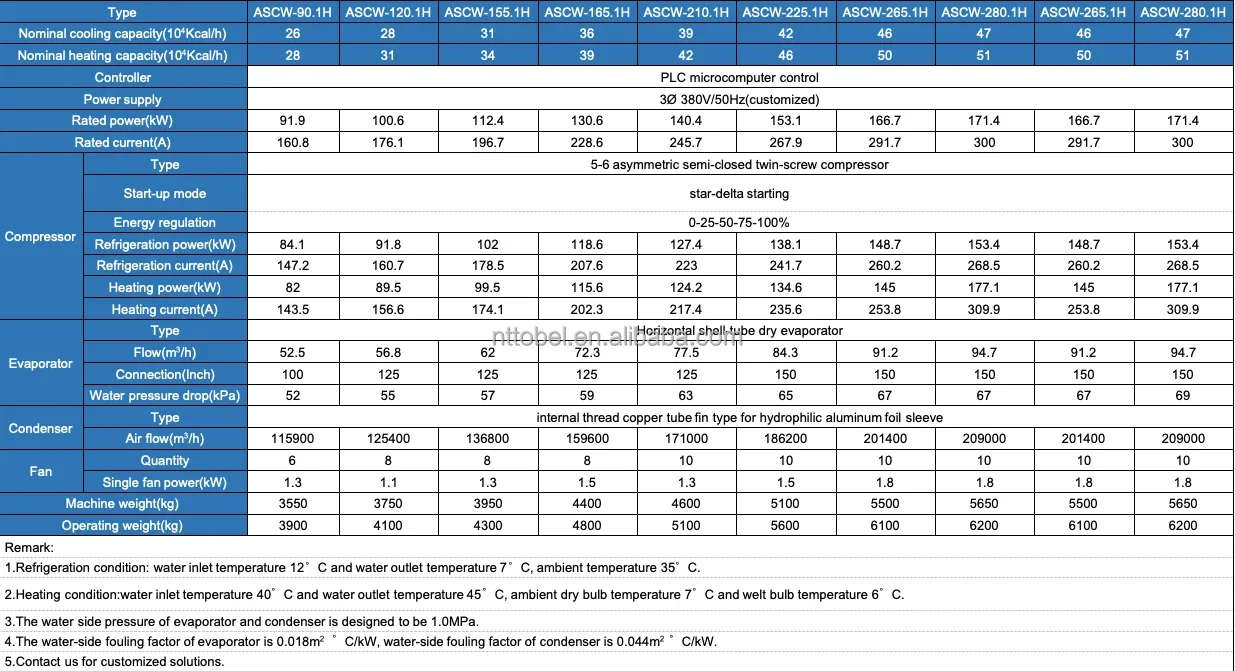

Water Chiller Technical Specifications

ACW series — Air-cooled box type water chiller

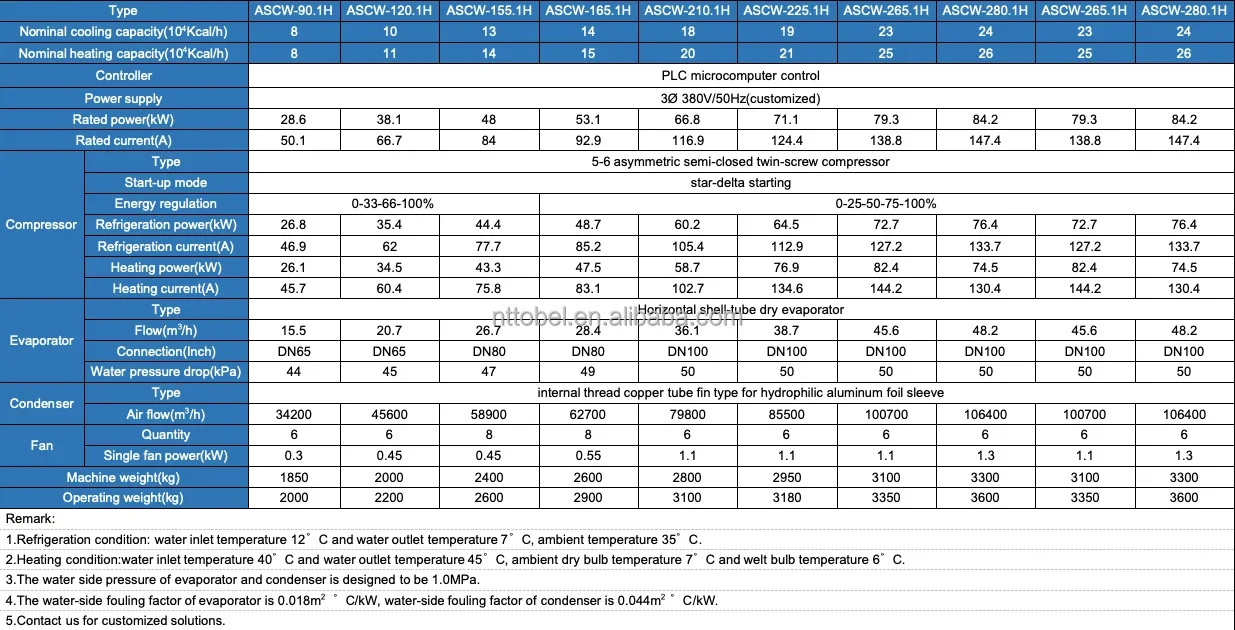

ASCW series — Air-cooled screw type water chiller

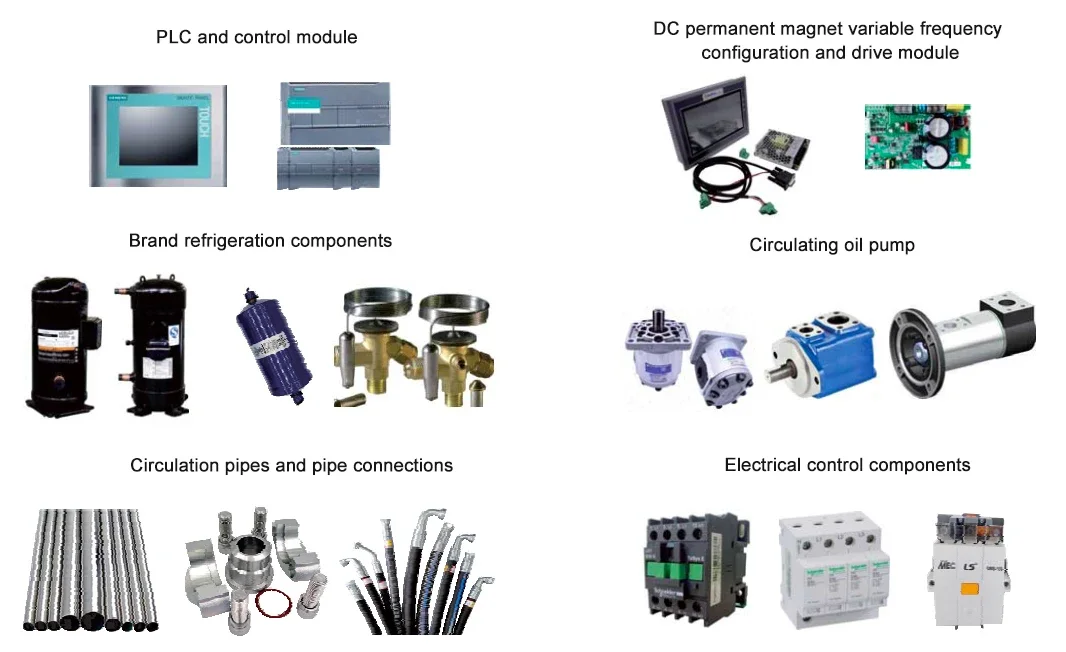

Selected accessories

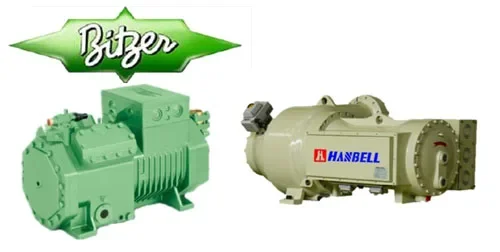

Compressor

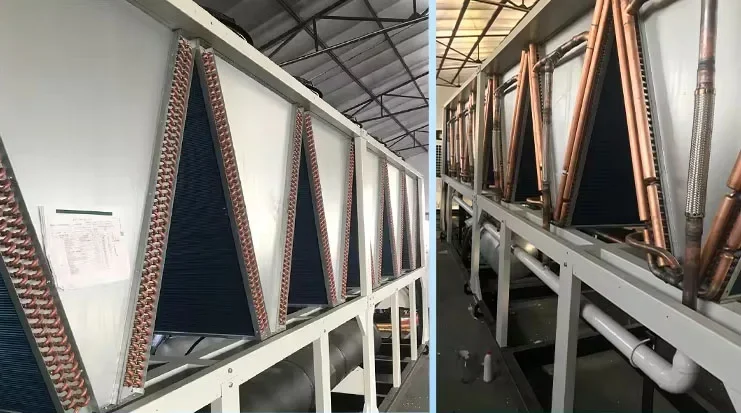

High efficiency cooling condenser

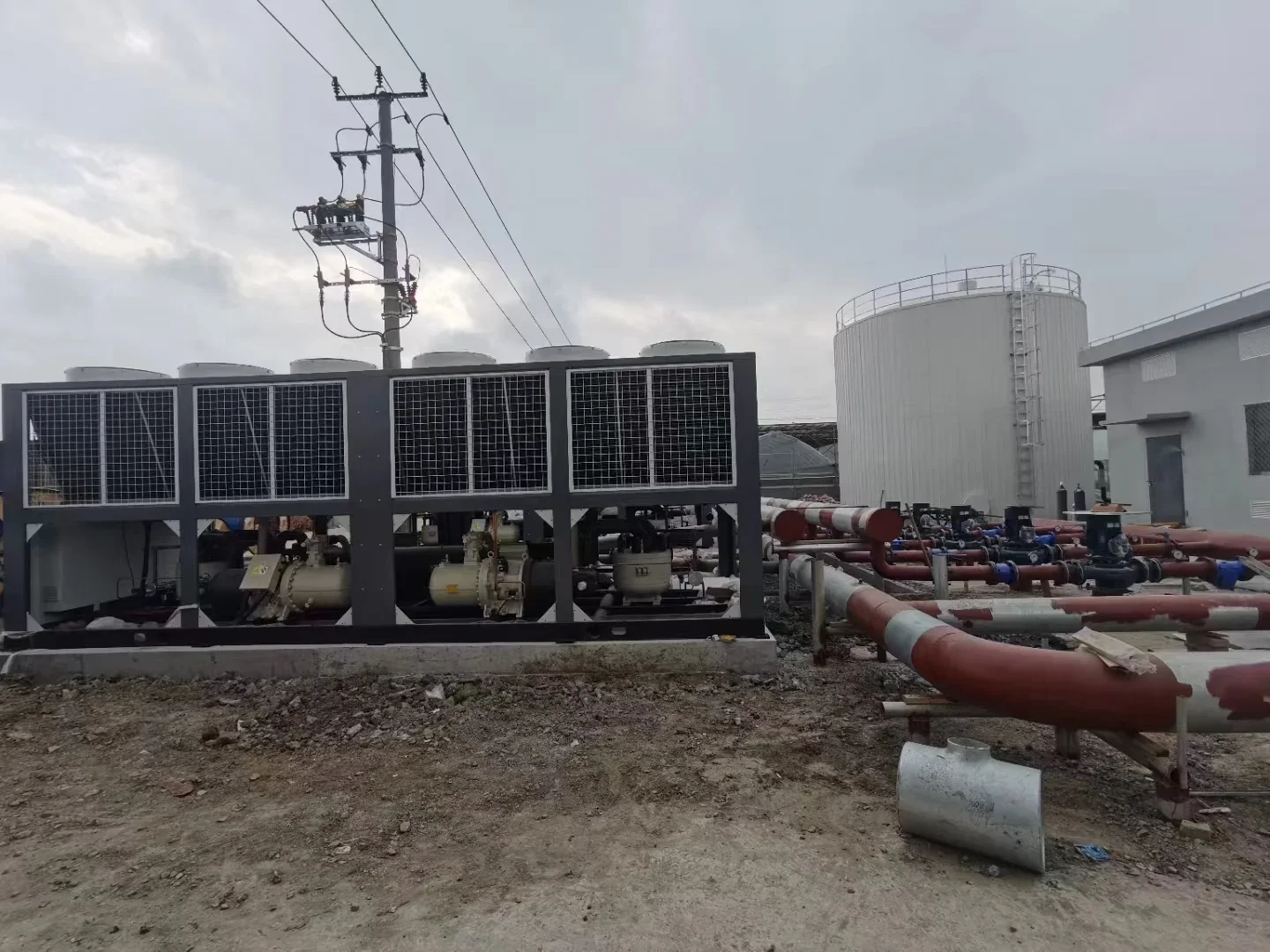

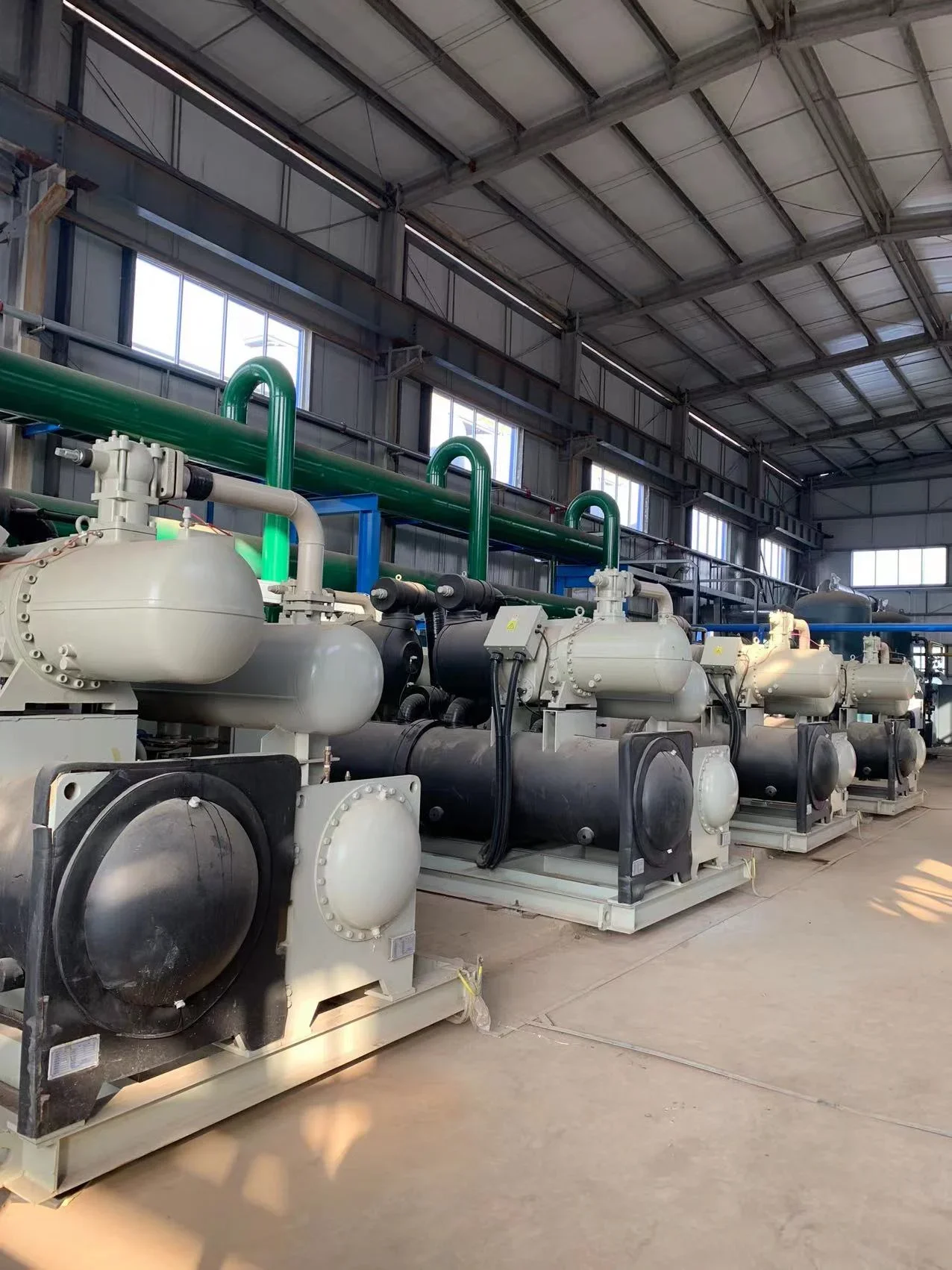

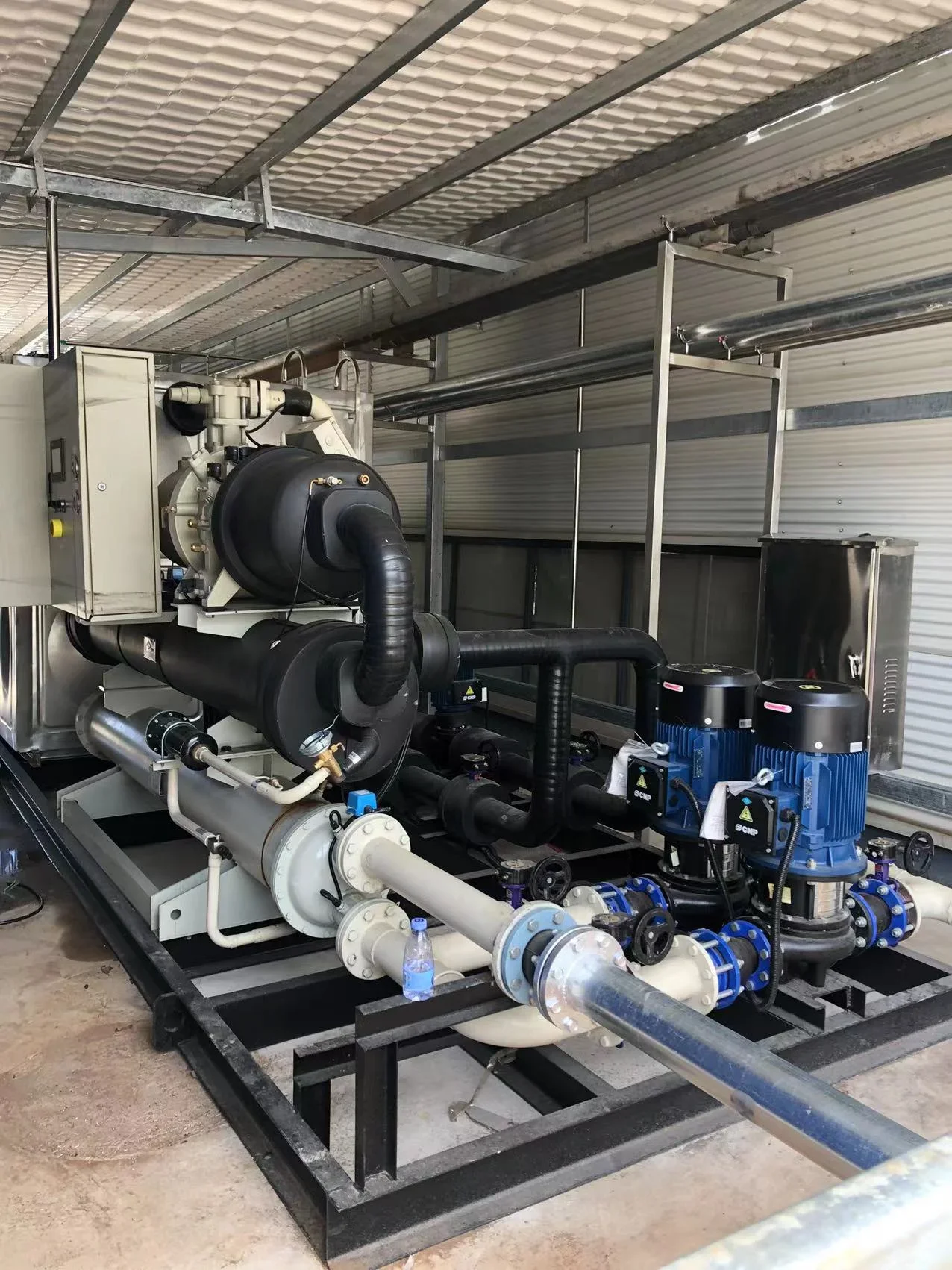

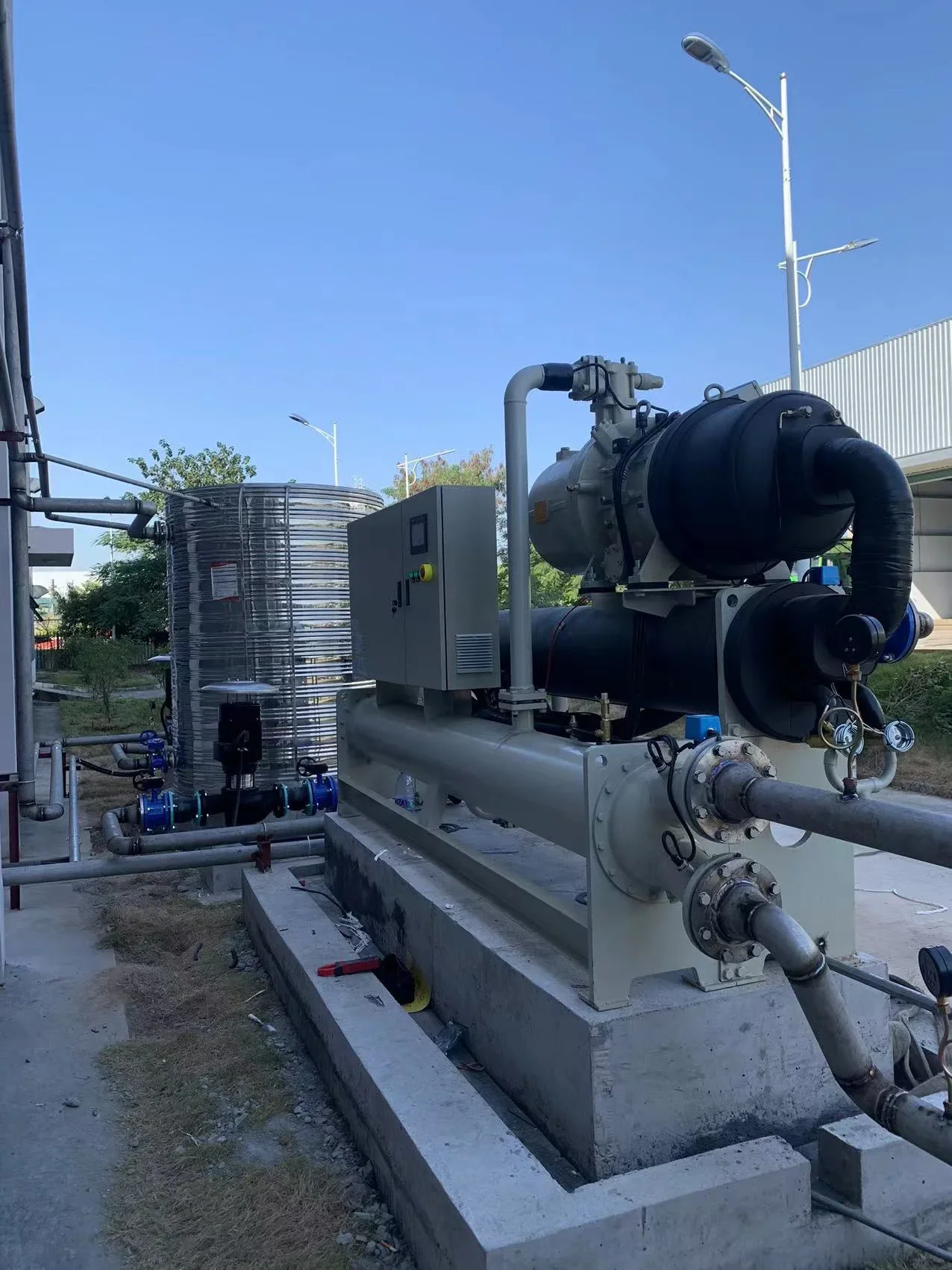

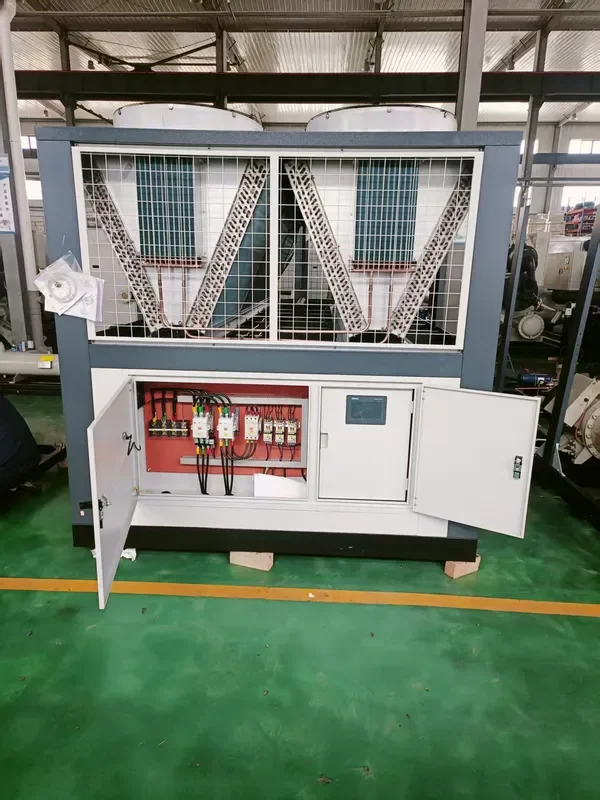

Customer Photos

Industrial chiller widely used in:

Medical industry, injection molding industry, chemical industry, textile industry, smelting industry, electroplating industry, electronics industry, construction industry, food industry and other fields

Exhibition

Nantong Tobel intelligent controlling equipment Co., Ltd. (formerly Jiangsu top Refrigeration Technology Co., Ltd) is located in Haian County, Jiangsu province. It is a modern enterprise of R & D, production and sales. The company has brought together the advanced refrigeration technology talents in the field of central air conditioning industry, which has unique resource advantages, which makes the performance of the product always in the leading position in the same industry. The company's leading industrial refrigeration series is divided into three categories, industrial cooling oil, industrial chiller and closed cooling tower, more than ten series and hundreds of specifications, which have successfully solved the heating problems of many large and medium domestic enterprises in the process of production. At present, products are widely used in many industries such as machine processing, textile processing, communication and electronics, automation control system and so on.

FAQ

1. What is a Water Chiller?
Water Chiller is a specifically designed chilling unit that releases extra heat from industrial machines by using chilled water. It is used in various business applications and industries worldwide.

2. How Does a Water Chiller Differ from an Air Chiller?
A Water-cooled Chiller differs from an air-cooled chiller based on efficiency, usage of water, cooling load, capacity, and many other factors.

3.How to Choose a Suitable Size Water Chiller for your Industry?
To choose the right Water Chiller for your application, consider the following factors: Power:The most common power categories are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase. Although it changes with different nations and each one has its scale. Water Pump:The water pump has to be proportional to the size of the system so that you can obtain maximum productivity. Size Connection:The higher the flow rate, the greater is the efficiency. Therefore, the radius of the pipelines shall be per the size and the demand. Refrigerant:R22, R410A, R407C, R404A, R134A are the most advised choices.

4. How to choose refrigerant？
R22, although it is very efficient, it is illegal in many countries due to its damaging effects on the ozone layer. R410A is highly eco-friendly and is being extensively used in many countries worldwide. R407C, due to the great cooling impact, is preferred on R22. R404A is ideal for low-temperature applications. R134A is preferably used at a higher temperature.

5. What are the Additional Accessories of a Water Chiller?
The evaporator, condenser, compressor, and expansion valves are present in the air and water type chiller. Still, the cooling tower and the water pump are exclusive and unique to the Water Chiller.

6. What is the Temperature Ranges for a Water Chiller? A Water Chiller is capable enough to control the range from 5 to 35 degrees Celsius. Talking about low temperatures, it can go as low as -40 degrees.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $770 / set
  • 10+ set: US $710 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial water chiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this industrial water chiller carry?

It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the industrial water chiller be supplied for my local voltage?

The standard configuration is 3PH~220V/380/415V~50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Nantong Tobel Intelligent Controlling Equipment Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Nantong Tobel Intelligent Controlling Equipment Co., Ltd. range on HVACR Nexus.
