Key specification for this infrared ceramic heater: 220 V, heating capacity Good. Everything below is reproduced from the factory data sheet. Made by Wuhan Elite Industry Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Infrared Ceramic Heater
- Power Source: Electric
- Voltage: 220 V
- Voltages Available: 230V
- Heating Capacity: Good
- Material: Ceramic
- Warranty: 1 Year
Technical Specifications
| Type | Infrared Heater |
|---|---|
| Power Source | Electric |
| Voltage | 220 V |
| Material | Ceramic |
| Core Components | heating element |
| Key Selling Points | High Productivity |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | Good |
| Place Of Origin | Hubei, China |
| Weight (Kg) | 0.8 |
| Brand Name | HT Elite |
| Dimension(L*W*H) | customized |
| Working Temperature Range | 1 – 100 ℃ |
| Voltages Available | 230V |
| Shape | Rectangle |
| Product Name | Infrared Ceramic Heater |
| Function | High Temperature Heating |
| Size | Standard |
| Color | Customized Color |
| Wattage | Customized |
| Packaging | Carton Box or Wooden Case |
| Sample | Available |
| Selling Units | Single item |

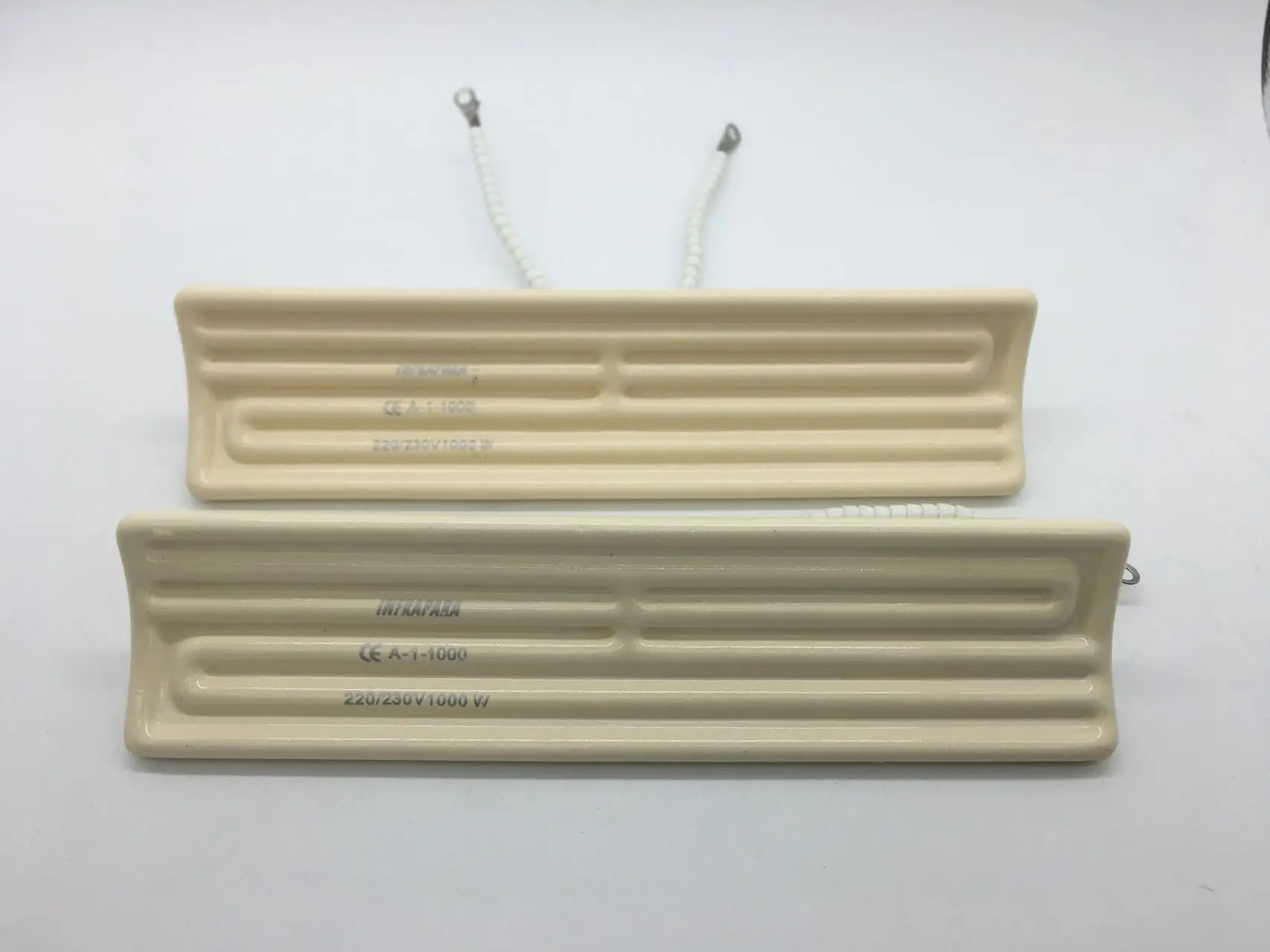

Product Details
The working under temperature 300°C to 700°C (572°F – 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb.
A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.
Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high.
2. Thermal response time: Less than 20 minutes from the room temperature to the set temperature
3. Durability: The surface keeps smooth after five times heating and cooling exchanges.
4. The radiation surface temperature uniformity: ≤15%
5. Power error: ≤5%
6. Cold insulation resistance: 500V mega meter >2m
7. Thermal insulation resistance: 500V megameter >0.5m
8. Average Operating Life-Up to 20,000 hrs depending on conditions.
8. Recommended radiation distance from heater is 100 mm to 250 mm.
9. Supplied with 100mm ceramic beaded power leads.
Advantages | High operating temperatures,no light,save energy |

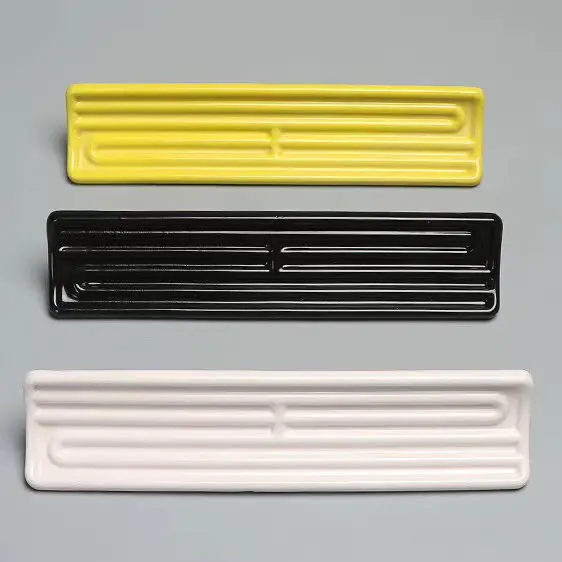

Color | white, yellow, black, etc |
Certificate | CE |
Power | 150-1500W |
Warranty | One year |
Delivery date | 7-10 Days after payment |

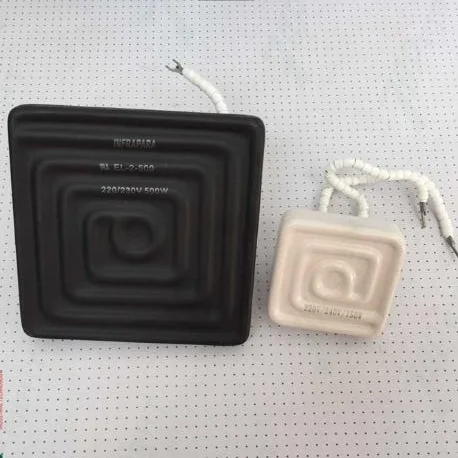

Common Sizes | 245 x 60, 245 x 80, 122 x 122, 122 x 60, 60 x 60mm |
Products export to more than 60+ countries,mainly markets are US,Canada,European and South American markets. Production capacity
is about 30000+pcs per month. Strict quality control with fully sets test equipments. And Friendly after-sales service,let all
clients can buy from us safely.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for infrared heater?
Q3. Is it OK to print my logo on infrared heater?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Are you trading company or manufacturer ?
A: We are factory.
Q5.How long is your delivery time?
A:Generally it is 7-10 days , according to quantity.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–19 piece: US $5.5 / piece
- 20+ piece: US $5.3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this infrared ceramic heater?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the infrared ceramic heater be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuhan Elite Industry Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Wuhan Elite Industry Co., Ltd. range on HVACR Nexus.
