Inline duct fan — voltage 100-240V, power source Electric. The complete factory specification follows. Made by Shenzhen Hongguan Mechatronics Co., Ltd. (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Inline Duct Fan
- Model Number: HF-100P
- Power Source: Electric
- Voltage: 100-240V
- Material: Plastic
- Blade Material: Plastic
- Speed: 1850-2200RPM

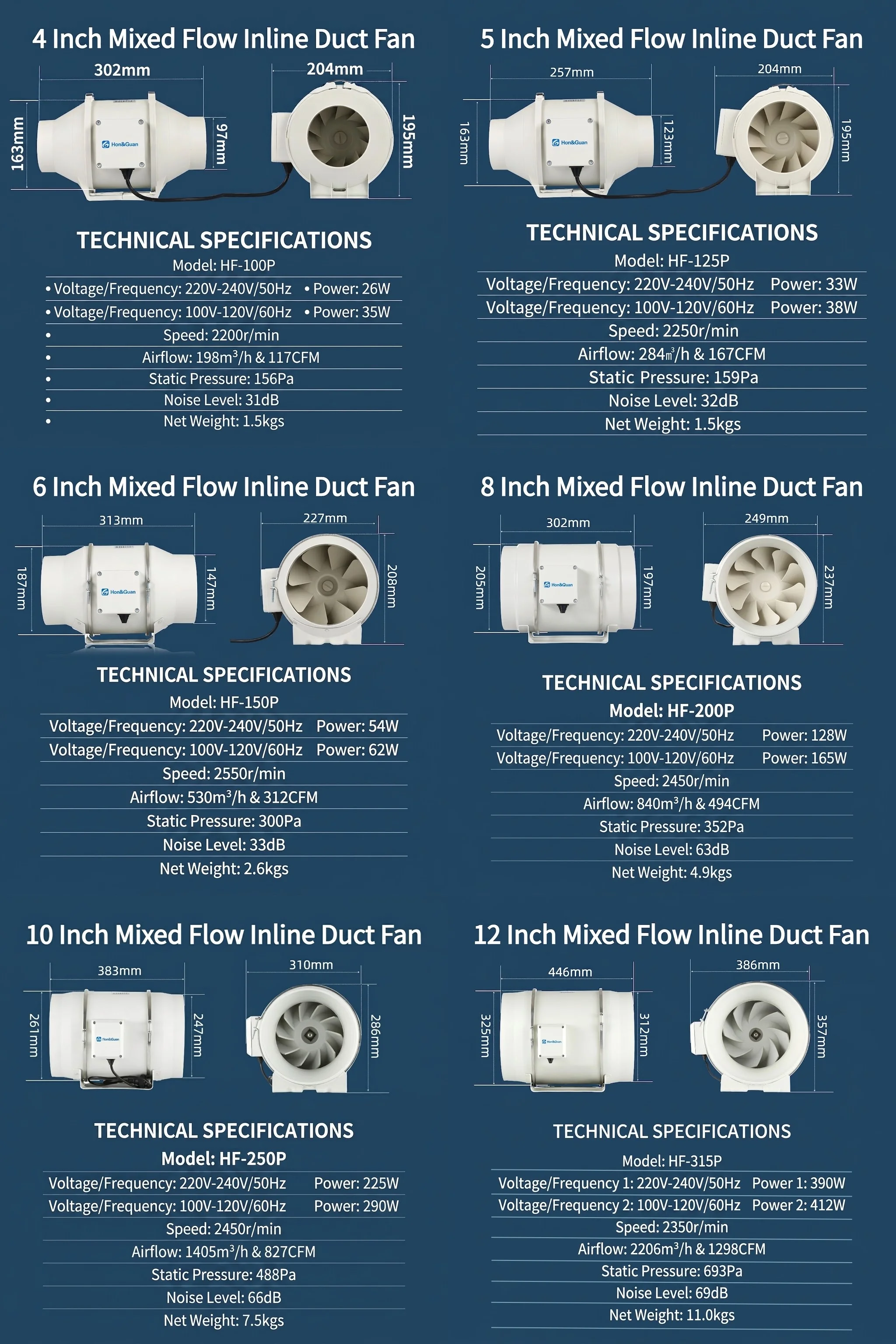

Technical Specifications
| Voltage | 100-240V |
|---|---|
| Speed | 1850-2200RPM |
| Type | HVAC Inline Duct Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Hon&Guan |
| Model Number | HF-100P |
| Color | White, Custom |
| Current | 0.11/0.12~1.22/0.24Amps |
| Air Pressure | 131/156Pa |

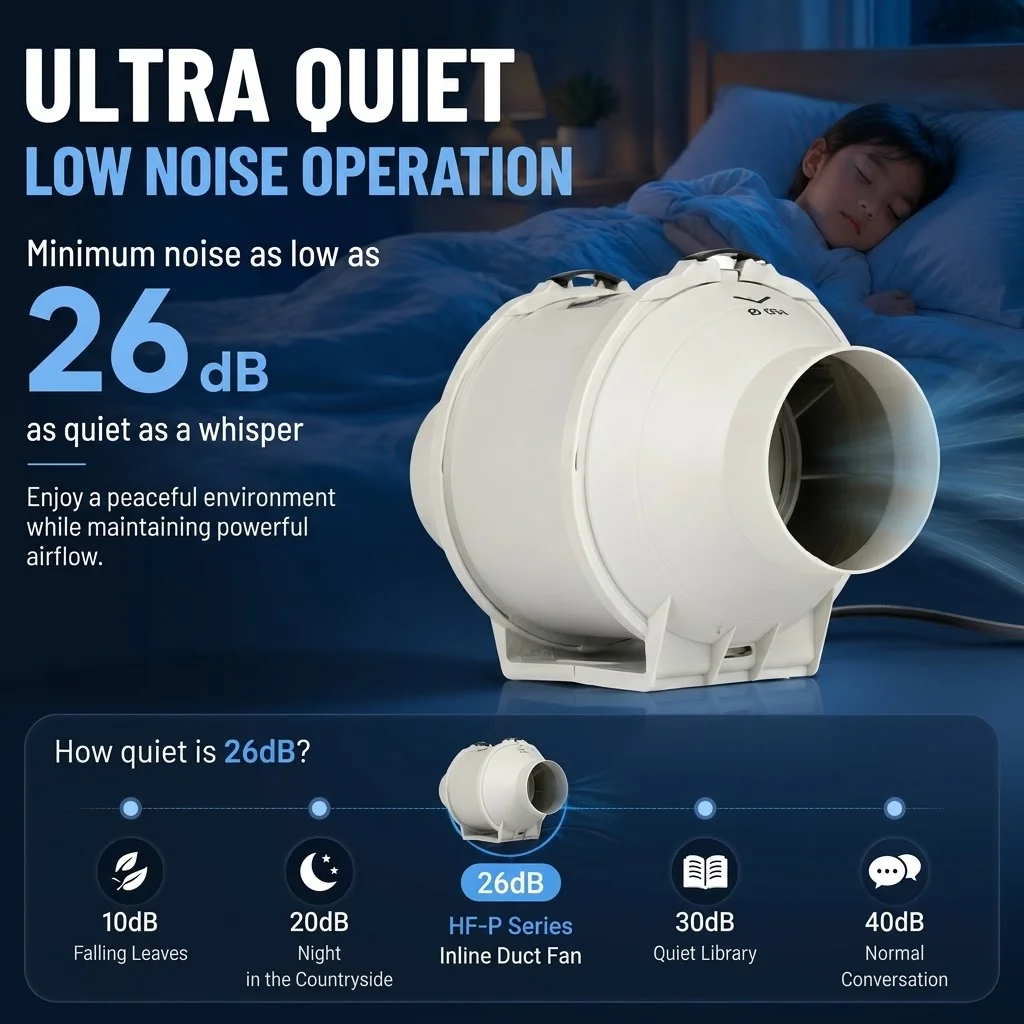

| Noise | 26/31dB |
| Fan Diameter | 100mm |
| Working Life | Over 50000hours |
| Motor Type | Double NMB ball bearing |
| Application | Gym, kitchen, grow tent, meeting room,hotel,greenhouse,etc |
| Product Type | Mixed-Flow fan |
| Certification | ce/ccc/rohs/saa/ul/pse/cb |
| Selling Units | Single item |
Product Details
Products Description

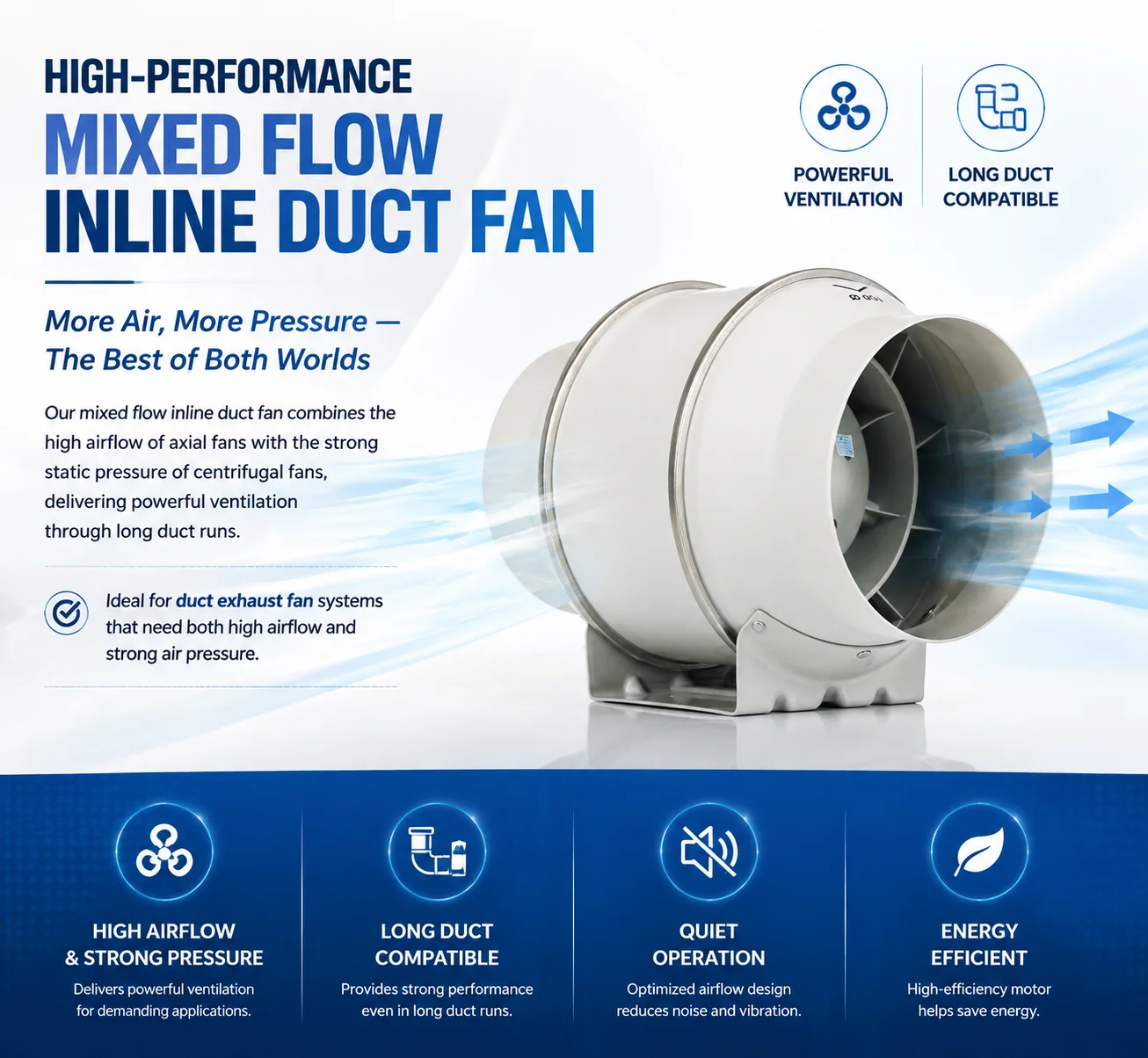

High-Performance Mixed Flow Inline Duct Fan: More Air, More Pressure — The Best of Both Worlds Our mixed flow inline duct fan combines the high airflow of axial fans with the strong static pressure of centrifugal fans, delivering powerful ventilation through long duct runs. Ideal for duct exhaust fan systems that need both high airflow and strong air pressure.
Durable PP Material Construction: Built to Survive Harsh Environments The housing is molded from high-quality PP material with excellent acid and alkali resistance— no rust, no corrosion in humid hydroponics and grow tent environments. A corrosion-proof ventilation fan built for years of service.

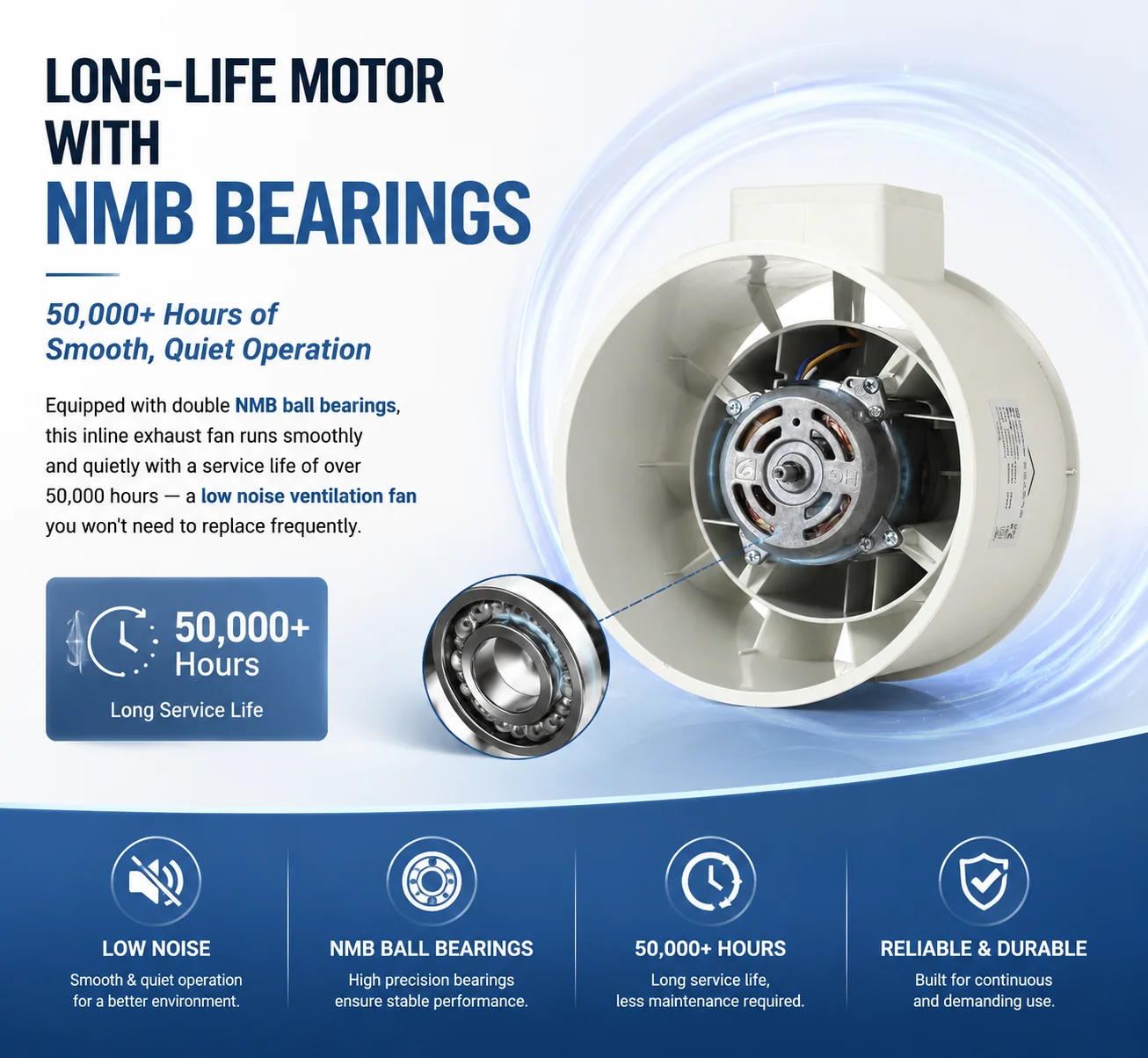

Long-Life Motor with NMB Bearings: > 50,000+ Hours of Smooth, Quiet Operation Equipped with double NMB ball bearings, this inline exhaust fan runs smoothly and quietly with a service life of over 50,000 hours — a low noise ventilation fan you won't need to replace frequently.

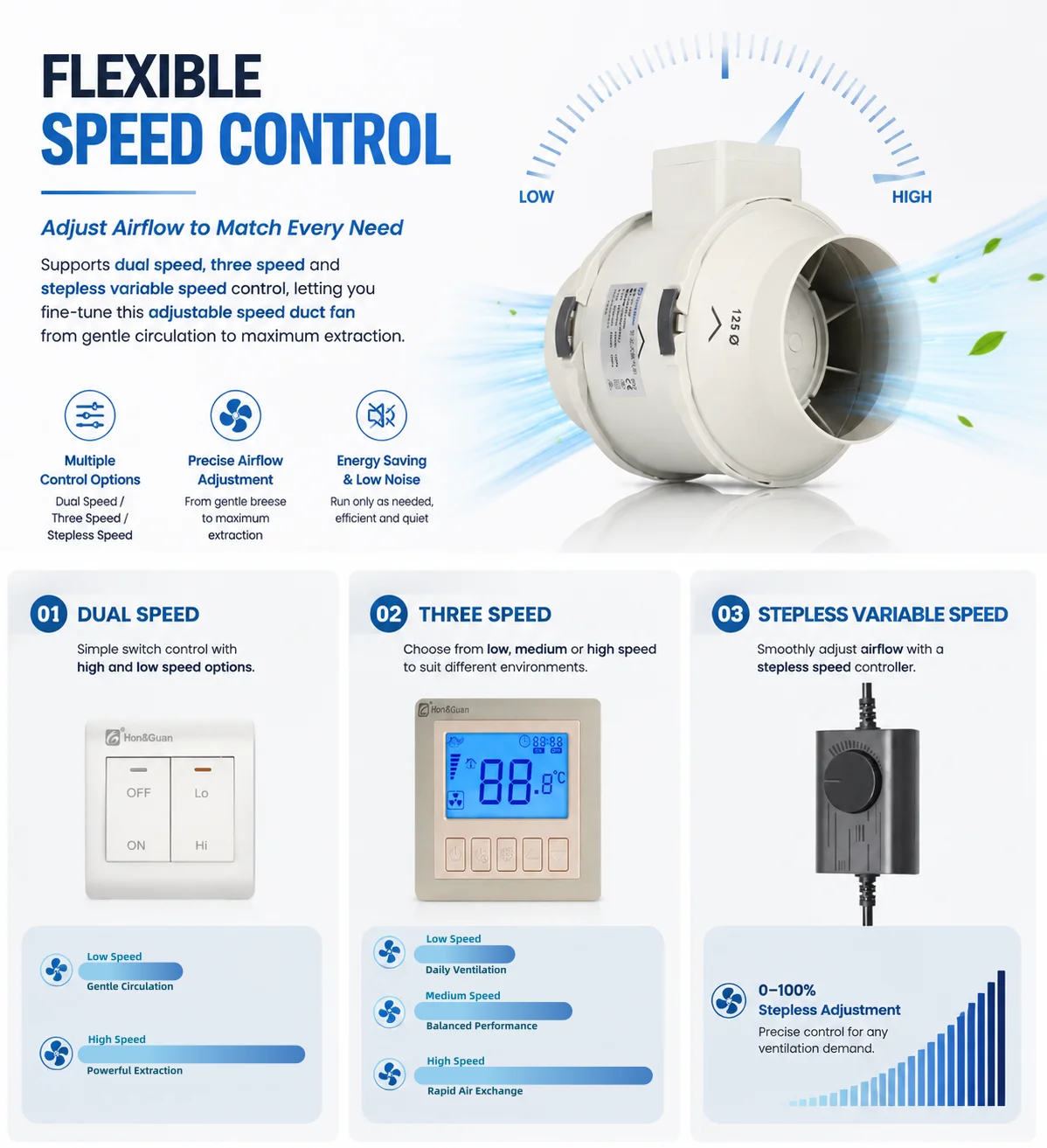

Flexible Speed Control: Adjust Airflow to Match Every Need Supports dual speed, three speed and stepless variable speed control, letting you fine-tune this adjustable speed duct fan from gentle circulation to maximum extraction.
Intelligent Control Functions: Smarter Ventilation, Automatic Operation An optional temperature and humidity sensor enables automatic on/off operation, and the timer function adds smarter energy management — a thermostat duct fan that ventilates exactly when you need it.

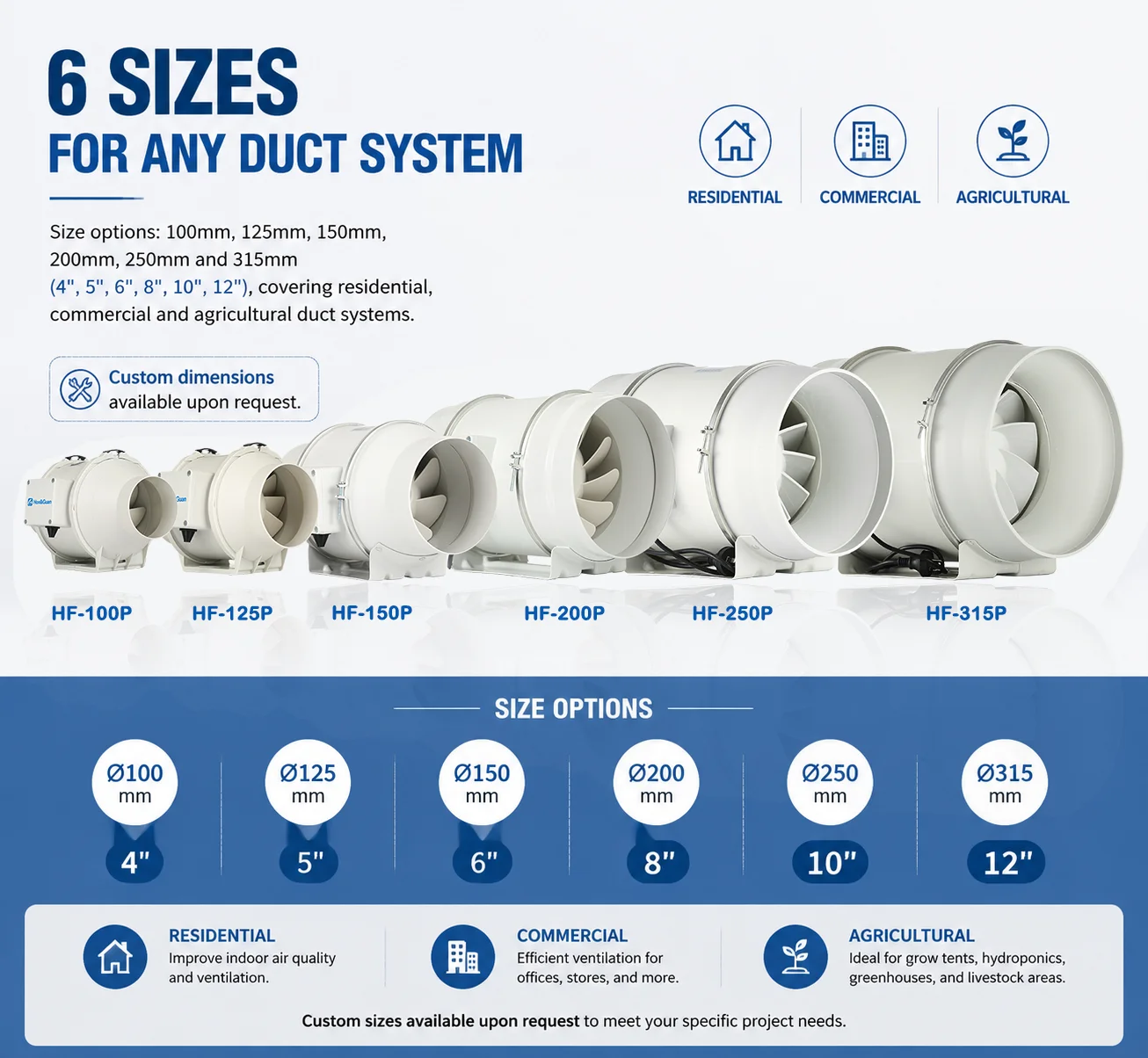

Full Range of Sizes: 6 Sizes for Any Duct System Size options: 100mm, 125mm, 150mm, 200mm, 250mm and 315mm (4", 5", 6", 8", 10", 12"), covering residential, commercial and agricultural duct systems. Custom dimensions available upon request.

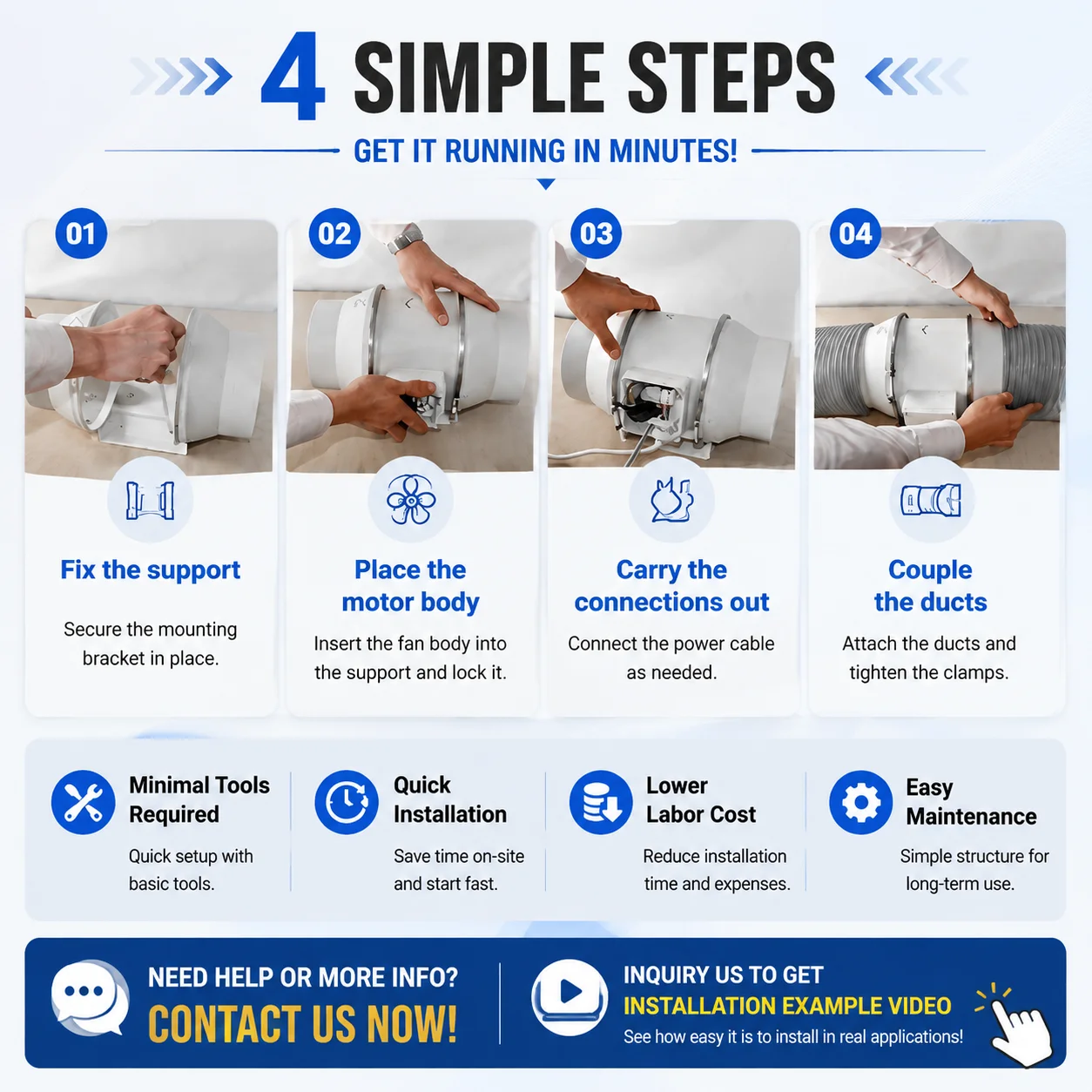

Easy Installation & Maintenance: Quick Install, Lower Labor Cost Designed for quick and convenient installation with minimal tools — a duct ventilation fan that saves installation time and reduces labor cost on site.

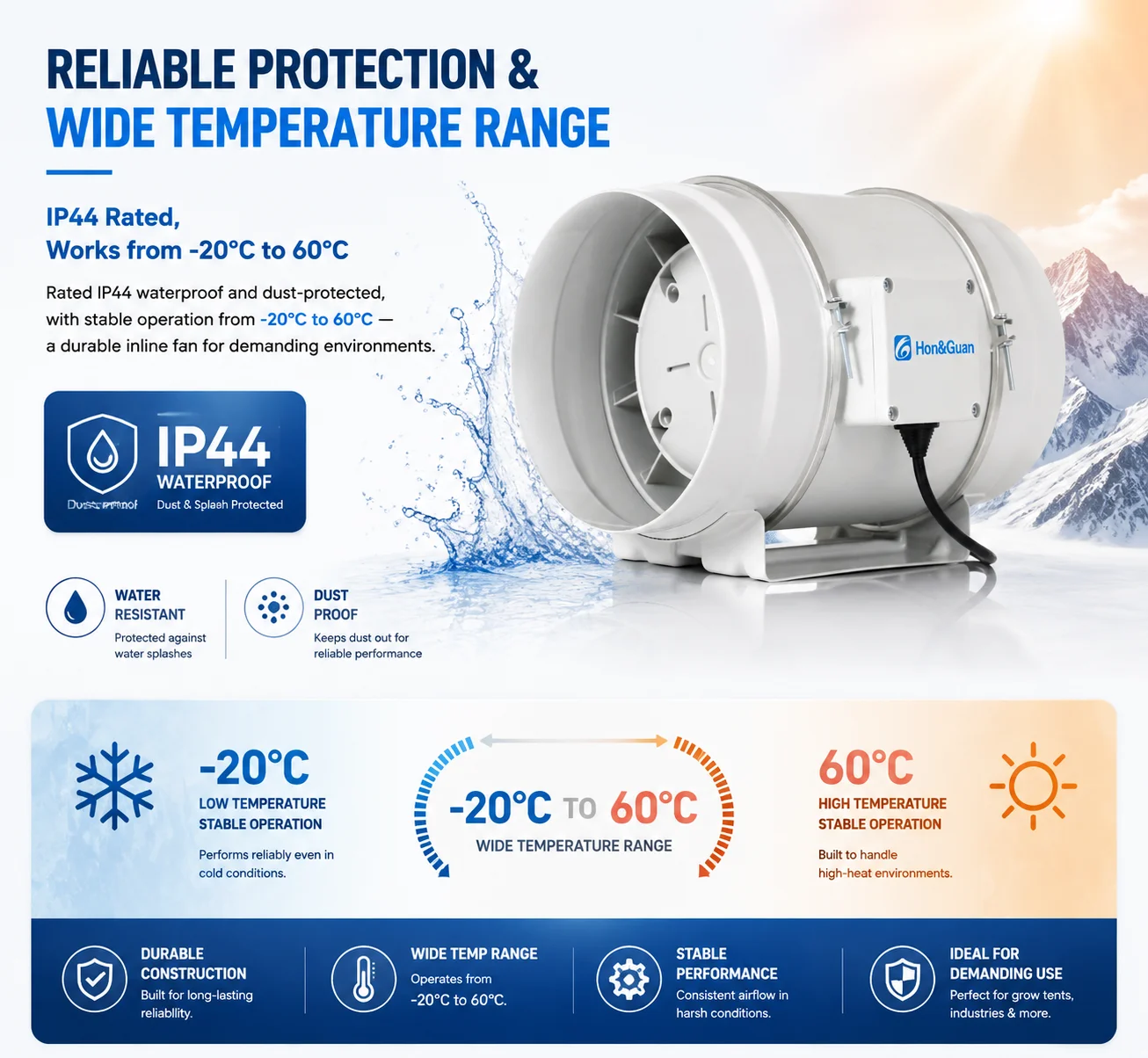

Reliable Protection & Wide Temperature Range: IP44 Rated, Works from -20°C to 60°C Rated IP44 waterproof and dust-protected, with stable operation from -20°C to 60°C — a durable inline fan for demanding environments.

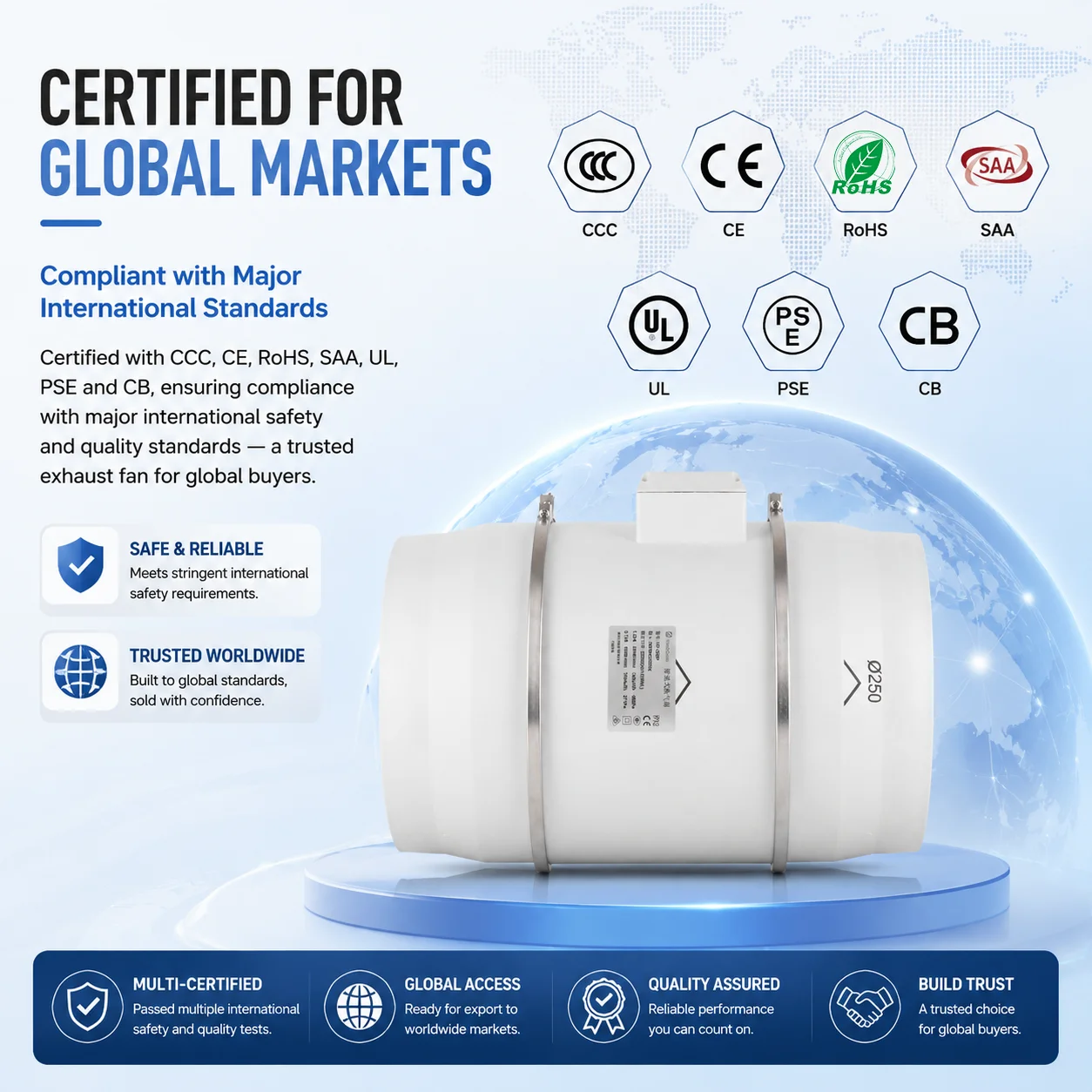

Certified for Global Markets: Compliant with Major International Standards Certified with CCC, CE, RoHS, SAA, UL, PSE and CB, ensuring compliance with major international safety and quality standards — a trusted exhaust fan for global buyers.
Versatile Applications: One Fan, Endless Applications Ideal for offices, hotels, apartments, hospitals, KTVs, plus hydroponic systems, grow tents and paint booths — a multi-purpose ventilation fan for commercial and agricultural use.
OEM Service
Our Advantages
About us
Shenzhen Hongguan Mechatronics Co., Ltd., established in 2010, is a manufacturer of ventilation fans and fresh air systems under the HON&GUAN brand. Headquartered in Shenzhen, our main production is now based in a new facility in Jiangmen, covering about 60,000 m² of plant with over 400 employees.
We focus on R&D and manufacturing of air replacement, fresh air ventilation and ventilation equipment, covering mixed flow inline duct fans, silent exhaust fans, square duct fans, EC centrifugal fans, EC mixed flow inline duct fans, AC/DC cooling fans, shutter exhaust fans and ventilation accessories, for HVAC system, hydroponics, commercial buildings, residential buildings, subways, farms, chicken coops, warehouses, bathrooms, kitchens, greenhouses, factories and grow tents.
Hon&Guan was certified as a national High-Tech Enterprise in 2016, owning invention, utility model and design patents developed in-house. All main products comply with CCC, CE, SAA, RoHS, UL and CUL certifications (10+ total). We export to 80+ countries and regions, mainly the US, Poland, Brazil, Ireland, Singapore and New Zealand.
Our engineering strengths include energy-efficient EC motors with double ball bearing outer rotor design (50,000h service life), noise as low as 22 dB, flexible controls (0-10V PWM, remote, temperature/humidity automatic), and options like IP67 protection and pure copper motors. Every product passes strict QC: incoming material, first article, in-process inspection, online testing, pre-shipment inspection and so on.
We provide complete OEM/ODM services: customization, logo printing, packaging design, private label. Our Products MOQ starts from 1 piece; sample/small trial orders welcome for testing or market validation. Sample delivery takes 3-7 days; bulk orders 25-35 days (customized orders counted from sample confirmation). Our team offers 24-hour response, technical support and a 12 to 36-month product warranty. As a 14-year Gold Supplier on Alibaba.com, Hon&Guan is committed to being an honest, reliable and responsible partner for global buyers.
We focus on R&D and manufacturing of air replacement, fresh air ventilation and ventilation equipment, covering mixed flow inline duct fans, silent exhaust fans, square duct fans, EC centrifugal fans, EC mixed flow inline duct fans, AC/DC cooling fans, shutter exhaust fans and ventilation accessories, for HVAC system, hydroponics, commercial buildings, residential buildings, subways, farms, chicken coops, warehouses, bathrooms, kitchens, greenhouses, factories and grow tents.
Hon&Guan was certified as a national High-Tech Enterprise in 2016, owning invention, utility model and design patents developed in-house. All main products comply with CCC, CE, SAA, RoHS, UL and CUL certifications (10+ total). We export to 80+ countries and regions, mainly the US, Poland, Brazil, Ireland, Singapore and New Zealand.
Our engineering strengths include energy-efficient EC motors with double ball bearing outer rotor design (50,000h service life), noise as low as 22 dB, flexible controls (0-10V PWM, remote, temperature/humidity automatic), and options like IP67 protection and pure copper motors. Every product passes strict QC: incoming material, first article, in-process inspection, online testing, pre-shipment inspection and so on.
We provide complete OEM/ODM services: customization, logo printing, packaging design, private label. Our Products MOQ starts from 1 piece; sample/small trial orders welcome for testing or market validation. Sample delivery takes 3-7 days; bulk orders 25-35 days (customized orders counted from sample confirmation). Our team offers 24-hour response, technical support and a 12 to 36-month product warranty. As a 14-year Gold Supplier on Alibaba.com, Hon&Guan is committed to being an honest, reliable and responsible partner for global buyers.
3D Showroom
VR
Packing & Delivery
FAQ
Q1. What is your minimum order quantity (MOQ)? Our MOQ is only 1 piece. We support sample orders and small trial orders so you can test the performance of our inline duct fan, exhaust fan, or air extractor fan before committing to bulk purchases.. For bulk orders, we offer tiered pricing — the more you order, the better the unit price. Please contact our sales team with your target model and quantity for an exact quotation. Q2. Can you provide OEM/ODM services? What can be customized? Yes, OEM/ODM is one of our core strengths. We offer a wide range of customization options for our inline duct fan, ec fan, exhaust fan, booster fan to meet different market and project requirements. Our customization capabilities cover different ventilation applications, including residential ventilation, commercial exhaust systems, and industrial air extraction projects. This includes: Appearance: color, logo, and design details; Packaging: customized packaging solutions; Performance: voltage, frequency, airflow, IP rating, and material options (e.g., fire-resistant materials); Dimensions: product size and structural adjustments; Customization is available based on specific project requirements and order conditions. Q3. What certifications do your products have? Our ventilation fans and inline duct fans comply with CCC, CE, SAA, RoHS, UKCA, CB, PSE, UL and ETL certifications, and we hold more than 200 certificates in total. We can provide the corresponding certification documents for your target market. If your market requires a specific certification not listed, contact us and we will check the feasibility of compliance for that standard. Q4. What is your warranty and after-sales service? We provide a 12-month to 36-month warranty for our ventilation fans, inline duct fans, and exhaust fan products. Before delivery, every fan passes a strict quality inspection process: incoming material inspection, first article inspection, in-process inspection, online testing of each unit on the production line, and final pre-shipment inspection. Our after-sales support includes free parts replacement within the warranty period, repair guidance and technical consultation, plus 24-hour customer service. Q5. What is your production lead time? Sample orders can usually be prepared within 3-7 days. For bulk orders, the standard production lead time is around 25-35 days. For customized (OEM/ODM) orders, the production lead time is approximately 25-35 days after sample confirmation. For standard models available in stock, we can arrange shipment within 1-7 days after order confirmation. Q6. What payment terms do you accept? We commonly accept T/T (30% deposit in advance, balance before shipment) and L/C for larger orders, and we also support Alibaba Trade Assurance for online orders to protect both parties. Other payment methods can be discussed. Please contact us to confirm the most suitable terms for your order. Q7. How do you ship products? Do you support sea, air or express? We support all common shipping methods: sea freight (FOB/CIF), air freight and express (DHL, FedEx, UPS, TNT) for small trial orders. Our logistics team will recommend the most cost-effective solution based on your order weight, destination and urgency. We also provide proper export packaging to protect the goods during long-distance transport. Q8. Can I get samples before placing a bulk order? Yes, samples are available. Sample production takes about 3-7 days and we ship by express. For standard models, the sample cost is chargeable but will be refunded or deducted from your bulk order. For OEM/ODM samples, the cost depends on the customization complexity. Since our MOQ is only 1 piece, you can also place a small trial order to validate performance and market response.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $30 / piece
- 50–99 piece: US $23 / piece
- 100+ piece: US $21 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this inline duct fan carry?
It is supplied with ce/ccc/rohs/saa/ul/pse/cb documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the inline duct fan be supplied for my local voltage?
The standard configuration is 100-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Hongguan Mechatronics Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Hongguan Mechatronics Co., Ltd. range on HVACR Nexus.
