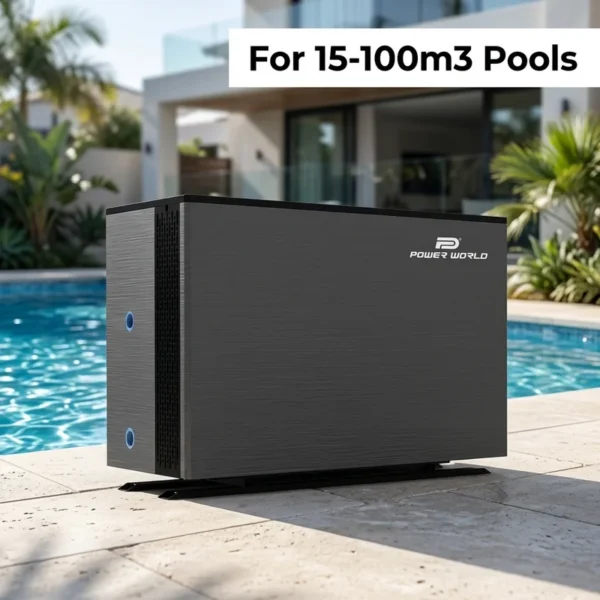

Air Source Heat Pump, R32, Inverter, 5kw, 7kw

Key specification for this air source heat pump: 220V/1p/ 50Hz-60HZ, power source Electric. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Source Heat Pump

• Model Number: PW010-KZXYC-B
• Power Source: Electric
• Power Supply: 220V/1p/ 50Hz-60HZ
• Housing Material: ABS plastic / Galvanized steel
• Refrigerant: R32
• Noise Level: <54 dB

Technical Specifications

Product Details

Products Description

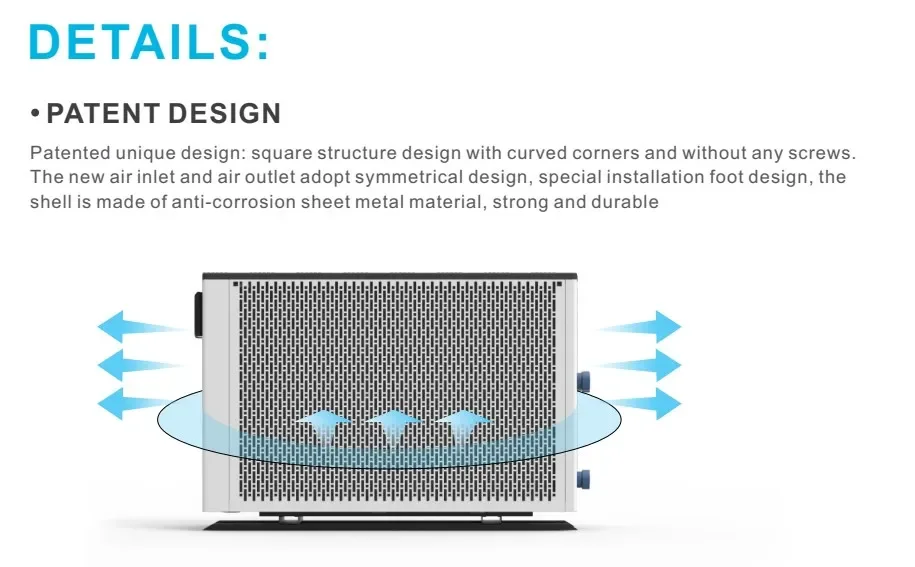

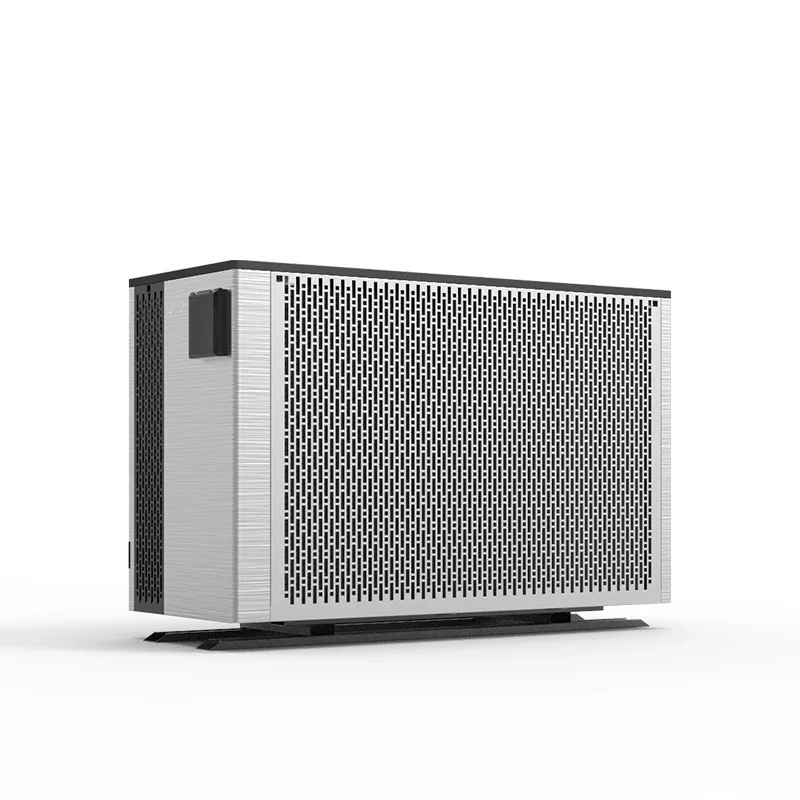

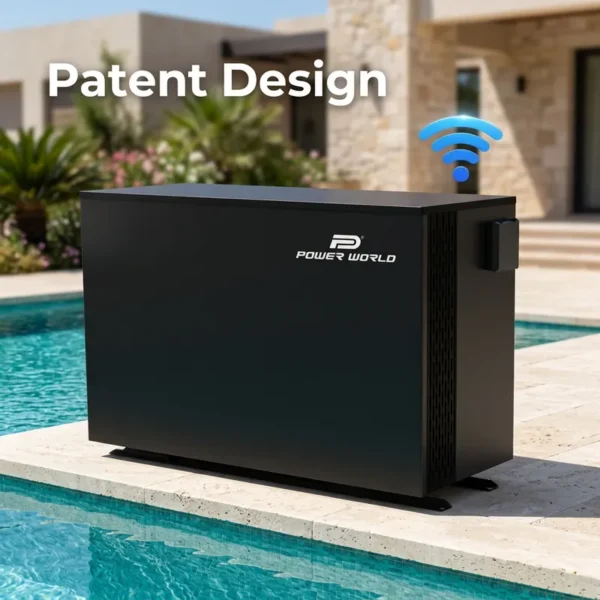

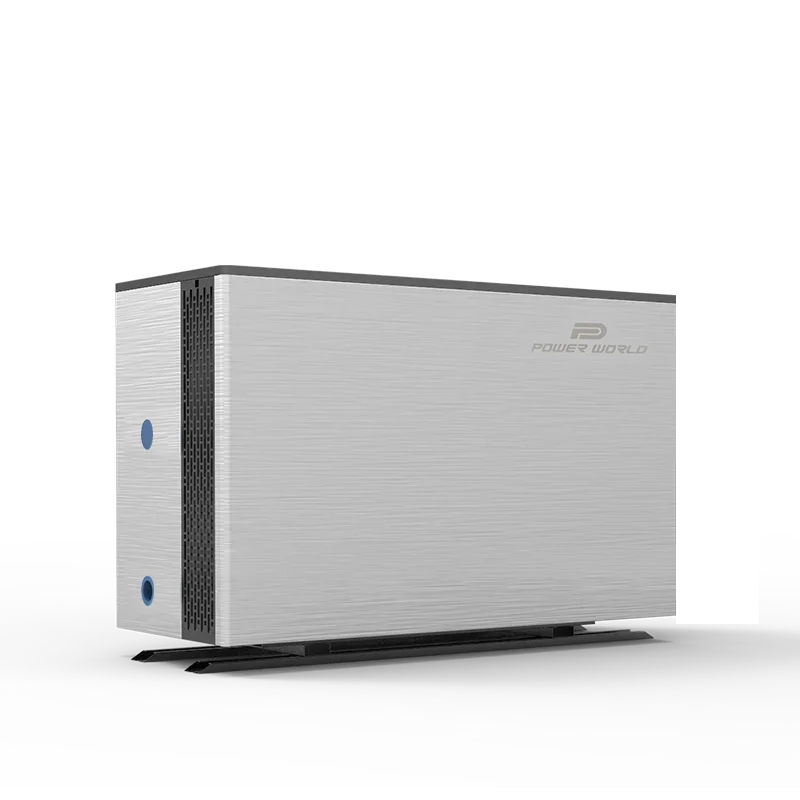

PATENT DESIGN

Patented unique design Quiet series inverter pool heat pump with square structure design with curved corners and without any screws. The new air inlet and air outlet adopt symmetrical design, special installation foot design, the shell is made of
anti-corrosion sheet metal material, strong and durable.

Emerson Driver Board

Using advanced DSP and full digital control technology,

the system has higher stability and can realize online maintenance and expansion

Reduce Noise

Equipped with compressor sound insulation cotton to reduce the noise of the unit, and there is also a silent mode.

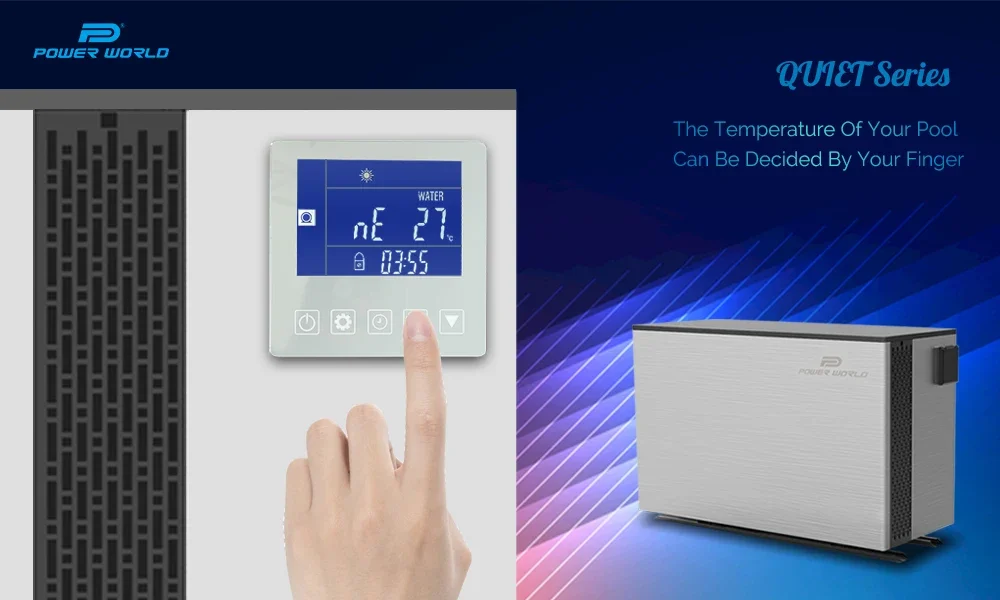

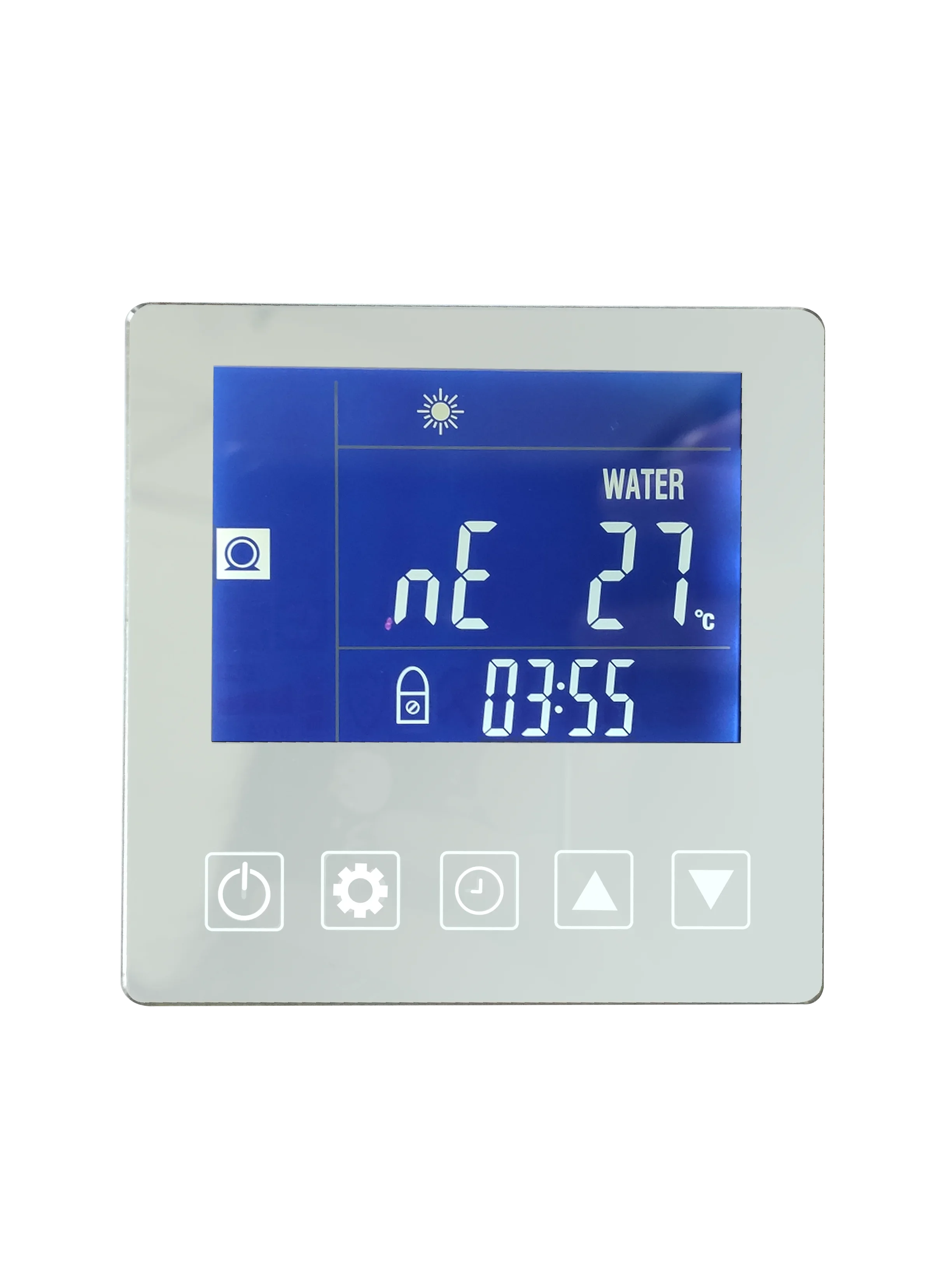

Intelligent Control System

Intelligent frequency conversion control system.With

three modes of strong, energy saving and mute, simple operation, powerful control function and perfect

protection function.

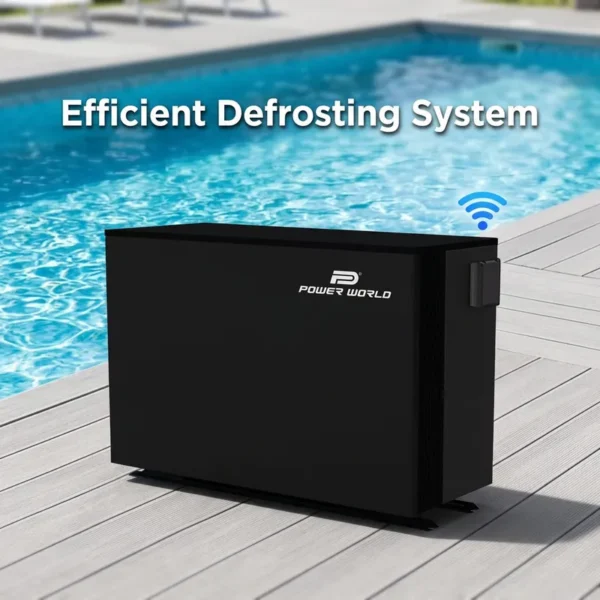

Corrugated Fins

The built-in corrugated fins not only have a good heat exchange effect, but also have a good drainage effect when defrosting.

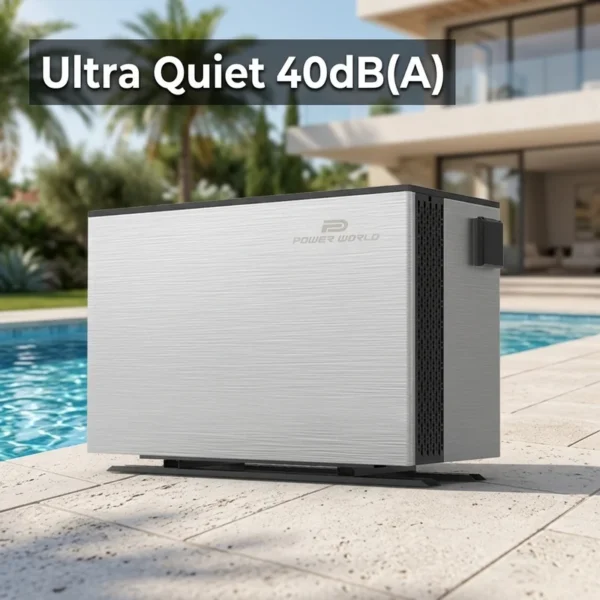

SUPER SILENCE

Thanks to patented silent-design, Quiet series inverter pool heat pump makes a quieter swimming environment and friendly
neighborhood for you.

The sound level is only 40dB.

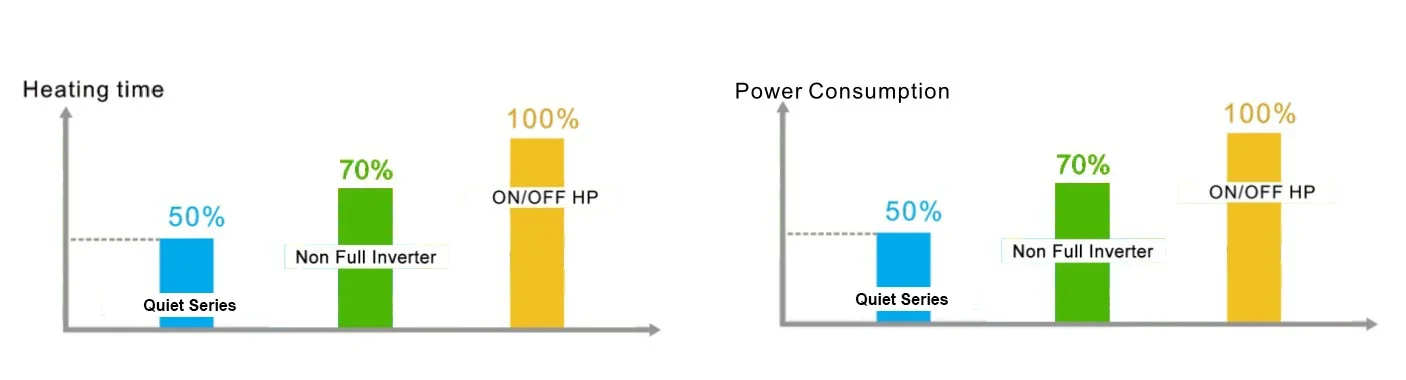

Save Energy and Speed up Heating Time

With short heating time, users don’t need to wait for a long time to enjoy swimming. In the meanwhile, it saves more energy than ON/OFF heat pump and non Full inverter heat pump.

Model

PW010-KZXYC-B

PW015-KZXYC-B

PW020-KZXYC-B

PW030-KZXYC-B

PW040-KZXYC-B

PW050-KZXYC-B

Advised pool volume (m3)

15~30

20~40

25~50

30~60

40~75

55~100

Operating air temperature (℃)

-7 ~43

Performance Condition: Air 27°C, Water 26°C, Humidity 80%

Heating capacity (kW)

7.50~1.92

9.50~2.10

11.00~2.50

14.00~3.15

17.00~3.75

20.00~4.00

Heating Capacity(Btu)

25500~6528

32300~7140

37400~8500

47600~10710

57800~13090

68000~13600

Consumed power (kW)

1.15~0.13

1.46~0.14

1.83~0.17

2.15~0.21

2.62~0.25

3.33~0.27

COP

6.5~14.8

6.5~15.0

6.0~14.7

6.5~15.0

6.5~15.0

6.0~14.8

COP at 50% capacity

10.50

11.00

11.00

10.50

11.00

11.00

Performance Condition: Air 15°C, Water 26°C, Humidity 70%

Heating capacity (kW)

5.80~1.42

7.2~1.50

8.5~1.65

10.7~2.40

13.0~2.65

15.6~2.85

Heating Capacity(Btu)

19720~4828

24480~5100

28900~5610

36380~8160

44200~9010

53040~9690

Consumed power (kW)

1.15~0.20

1.43~0.21

1.77~0.23

2.12~0.34

2.58~0.36

3.25~0.40

COP

5.0~7.1

5.0~7.2

4.8~7.2

5.0~7.1

5.0~7.4

4.8~7.0

COP at 50% capacity

6.50

6.50

6.50

6.50

6.50

6.50

Performance Condition: Air 35℃,Water 28℃, Humidity 80%

Cooling capacity (kW)

4.0

5.2

6.0

7.2

8.6

10.1

Sound pressure at 1m dB(A)

38~48

38~48

40~50

42~51

43~52

43~53

Sound pressure of 50% capacity at 1m dB(A)

40

40

41

43

44

44

Sound pressure at 10m dB(A)

18~25

18~25

19~26

22~27

23~30

24~31

Heat exchanger

Spiral titanium tube in PVC

Casing

Metal Casing

Power supply

230V/1 Ph/50Hz

Water Connection (mm)

Φ50

Rated input current at air 15℃（A）

5.1~0.9

6.3~0.9

7.8~1.0

9.3~1.5

11.3~1.6

14.3~1.8

Advised water flux (m³/h)

2~4

2~4

3~5

4~6

6~9

8~10

Water Pressure Drop (max) kPa

2

3

4

5

5

6

Net weight/Gross weight（kg)

62/70

62/70

64/72

77/87

81/91

81/91

Carton size（mm）

980*402*636

1107*503*760

Refrigerant consumption（g）

350g

440g

450g

550g

750g

800g

Company Profile

VR

FAQ

Q1: Are you heat pump supplier of trading company or manufacturer?
A1: We are R&D and manufacturer factory. With 300,000 sq meters modern factory in Shenzhen City & Dongguan City. with OEM service provided, MOQ> 20 Units.

Q2: How long is your Heat Pump delivery time?
A2: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.

Q3: Do you also provide other kind of heat pump?
A3: ASHP of EVI(8KW-132KW) | SWIM POOL(2KW-150KW) I Domestic heat pump(80L-300L tank size),etc.

Q4: Wonder if you accept small orders?
A4: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q5: Can you send products to my country?
A5: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q6: Can you do OEM for me?
A6: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q7: What's your payment terms?
A7: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q8: How can I place the order?
A8: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.

Q9 When can I get the quotation?
A9: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.

Power World

Email:marketing@powerworld-e.com
WhatsApp:+86-13725812376
Website: www.powerworld-e.com

Add:Headquarters Add:No.24,the fourth industrial zone,HouTing Street,ShaJing Town,BaoAn District,Shenzhen China.
Fatory Add: No.32 Luxi 2nd Road,Xixi Street,Liaobu Town,Dongguan,China.

If you are interested in this product,please fill in the below and send us,we will reply you and also send you the latest product catalog and latest quotation within 1 hour.

↓↓↓↓↓

Ordering and Pricing

• Minimum order quantity: 2 piece
• Volume pricing:
  • 2–9 piece: US $752 / piece
  • 10–49 piece: US $718 / piece
  • 50+ piece: US $655 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air source heat pump?

The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the air source heat pump be supplied for my local voltage?

The standard configuration is 220V/1p/ 50Hz-60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Power World New Energy Technology Co., Ltd., based in China. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Power World New Energy Technology Co., Ltd. range on HVACR Nexus.
