Key specification for this water heater: power source Electric, material Stainless Steel Duplex/316L/304. Everything below is reproduced from the factory data sheet. Made by Shenzhen Power World New Energy Technology Co., Ltd. (21 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Water Heater
- Model Number: PF020-KFJRS 300L
- Power Source: Electric
- Housing Material: galvanized sheet
- Material: Stainless Steel Duplex/316L/304
- Refrigerant: R410A
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Commercial, Household |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | galvanized sheet |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Logo/Graphic Design | Silk Screen Printing, Laser Printing, Hot Stamping, Inkjet Printing, UV printing, Heat-Transfer Printing, 3D Printing |
| Place Of Origin | Guangdong, China |
| Brand | POWER WORLD |
| Model Number | PF020-KFJRS 300L |
| Case Color | Powder White |
| Function | Hot Water |
| Compressor | Copeland |
| Refrigerant | R410A |
| Fan | Axial |
| Heat Source | Air Source 75%+electricity25% |
| Evaporator | Blue Hydrophilic Aluminum Fin |
| Usage | DHW System |
| Material | Stainless Steel Duplex/316L/304 |
| Noise | 50dba |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

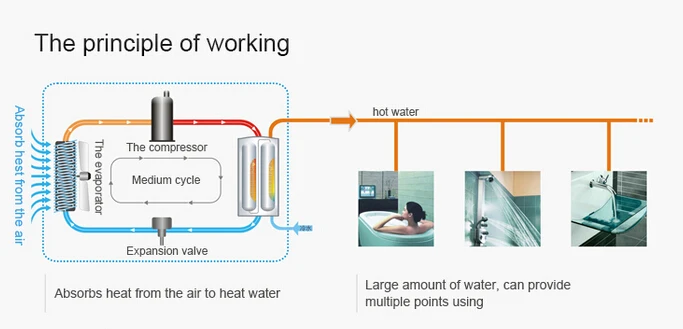

Split Refrigerant Cycle Heat Pump
This series adopts SS316 coil heat exchanger inside the pressurized water tank,supply hot water for homes and residence.
| Product model | PF010-KFJRS 150L/200L | PF015-KFJRS 200L/300L | PF020-KFJRS 300L/500L | |
| Parameters | Heating capacity (kW) | 3.5 | 5 | 6.5 |
| Input power (kW) | 0.86 | 1.26 | 1.66 | |
| Rated current (A) | 4.1 | 6 | 7.9 | |
| COP (Coefficient of Performance) | 4.07 | 3.97 | 3.92 | |
| Rated outlet water temperature (℃) | 55 | 55 | 55 | |
| Highest outlet water temperature(℃) | 60 | 60 | 60 | |
| Production capacity (L/H) | 75 | 107 | 140 | |
| Working area | -7~43℃ | |||
| IP Grade (Level of protection) | IPX4 | IPX4 | IPX4 | |
| Anti-electric shock Rate | I | I | I | |
| Noise (dB(A)) | ≤49 | ≤49 | ≤52 | |
| Unit Body size(W*D*H) | 760×552×256mm | 760×552×256mm | 820x605x300mm | |
| Unit Net weight/Gross weight(kg) | 29/33 | 35/39 | 48/53 | |
| Combine Water tank Capacity(L) | 150/200 | 200/300 | 300/500 | |
| Water tank Body size(mm) | Φ470*1440/Φ555*1255 | Φ555*1255/Φ555*1800 | Φ555*1800/Φ700*1840 | |
| Water tank Net weight/Gross weight(kg) | 32/37-39/45 | 39/45-62/69 | 62/69-96/105 | |
| Diameter of pipe (mm) | DN15/DN15 | DN15/DN20 | DN20/DN20 | |
| Connecting pipe | (Φ9.52mm+Φ6.35mm)×3m | (Φ9.52mm+Φ6.35mm)×3m | (Φ12.7mm+Φ6.35mm)×3m | |
| Standard Configuration | Compressor | Panasonic | ||
| Refrigerant | R22/R417A | |||
| Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | |
| Motor (with capacitance) | 31W*1(2.5μf) | 31W*1(2.5μf) | 68W*1(4μf) | |
| Fan | φ408*1 | φ408*1 | φ430*1 | |
| Controller | Single System(Motorola Chip) | Single System(Motorola Chip) | Single System(Motorola Chip) | |
| Low-voltage switch | 0.05/0.15MPa | 0.05/0.15MPa | 0.05/0.15MPa | |
| High-voltage switch | 2.4/3.0MPa | 2.4/3.0MPa | 2.4/3.0MPa | |
| Power line connect with unit | 3*1.5mm2 | 3*1.5mm2 | 3*1.5mm2 | |
| Package | Polywood packing | |||
| Remark: working condition, Inlet water temperature 15℃, Outlet water temperature 55℃, Dry bulb temperature 20℃, Wet bulb temperature15℃. | ||||
Features & Benefits
- High efficiency Panasonic rotary compressor with R417a / R22 refrigerant
- Automatic defrosting function included(with reserve cycle valve inside)
- Water temperature drop is less than 3 Celsius in 24 hours.
- Save 75% electric energy compare to electric heater
- Sanitary hot water all year round
- Easy indtallation and good stabillity
Power World is a professional heat pump manufacturer since 2004,successfully publicly listed on the NEEQ in 2016 with stock code 870092.It covers an area of 30000 m2 factory in Dongguan,China and has more than 358 employees.And it is honored to be top 10 brand heat pump supplier in China with one billion USD output value per year. Power World has a heat pump R&D center with a team of 20 engineersand four professional laboratories. Complying with ISO9001:2008 & ISO14001:2004, all products get CE,CB(IEC) certificate and ERP Energy Label on EN14825,EN14511,stictly to latest EHPA requirement.
A. Technical Support
1. We calculate the capacity and recommend the best models.
2. We design and develop the new products according to your requirement besides our standard products.
3. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4. We supply the spare parts and technical support in & after the warranty time.
5. We supply the training course to your workers at our factory if you need.
B. After-sales service
1. Technical support for your installation, operation and maintenance.
2. 18 months’ warranty, and you can pay for extended warranty.
3. Spare parts and technical support at most economic prices after the warranty.
4. Update you the latest products information and price adjustment every year.
C. Customized service
1. OEM service
2. ODM service
3. New product R&D service
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory. With 300,000 sq meters modern factory in Shenzhen City & Dongguan City. with OEM service provided, MOQ> 20 Units.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: Do you also provide other kind of heat pump?
A: ASHP of EVI(9KW-132KW) | SWIM POOL(5KW-150KW) I Domestic heat pump(80L-300L tank size) I etc.
Q: What is your terms of payment for heat pump ?
A: You can choose 100% payment or 30% payment T/T in advance are available.
AIibaba trade assurance payment or L/C Payment are available.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $982 / unit
- 10–49 unit: US $958 / unit
- 50+ unit: US $899 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Power World New Energy Technology Co., Ltd., based in China. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Power World New Energy Technology Co., Ltd. range on HVACR Nexus.
