This inverter rooftop package unit is published with the manufacturer’s full specification — airflow 18000m³/h, power 3N-380V-50Hz. Made by Guangdong Head-Power Air-Conditioning Co., Ltd. (18 years on the platform, typical reply ≤15h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Inverter Rooftop Package Unit
- Power: 3N-380V-50Hz
- Operating Voltage: 380V
- Cooling Capacity: 13-68KW
- Airflow: 18000m³/h
- Material: Metal
- Refrigerant: R417A/R407C/R404A//R410A/R134A
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Airflow | 18000m³/h |
| Operating Voltage | 380V |
| Mounting Type | Floor Standing |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC |
| Place Of Origin | Guangdong, China |
| Brand Name | Head-Power |
| After-Sales Service Provided | Overseas service center available |
| Color | White/Customize |
| Fan Style | Direct drive |
| Application | Commercial/Office/Hotel/Hospital,etc |
| Material | Metal |
| Certification | Avaiable Specifications |
| Power | 3N-380V-50Hz |
| Cooling Capacity | 13-68KW |
| Refrigerant | R417A/R407C/R404A//R410A/R134A |
| Packaging Details | 30TON Energy Saving Inverter Rooftop Package Unit Central Air Conditioner Specifications subject to changes without prior notice. |
| Port Of Dispatch | Guangzhou/Shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 600 sets per Week 30TON Energy Saving Inverter Rooftop Package Unit Central Air Co |
Product Details

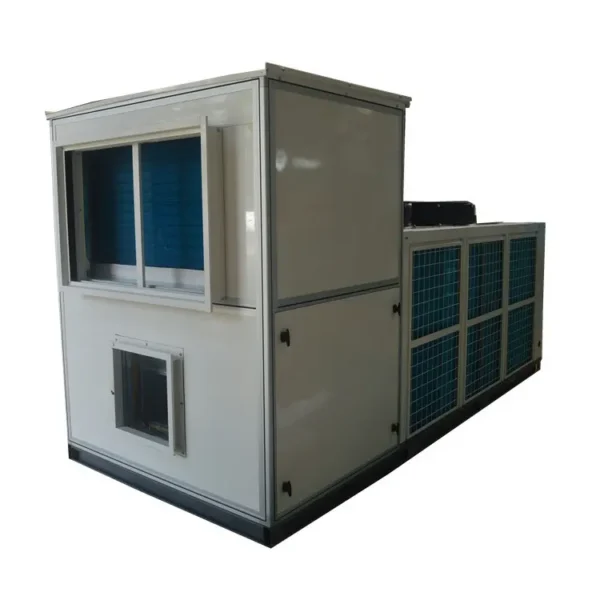

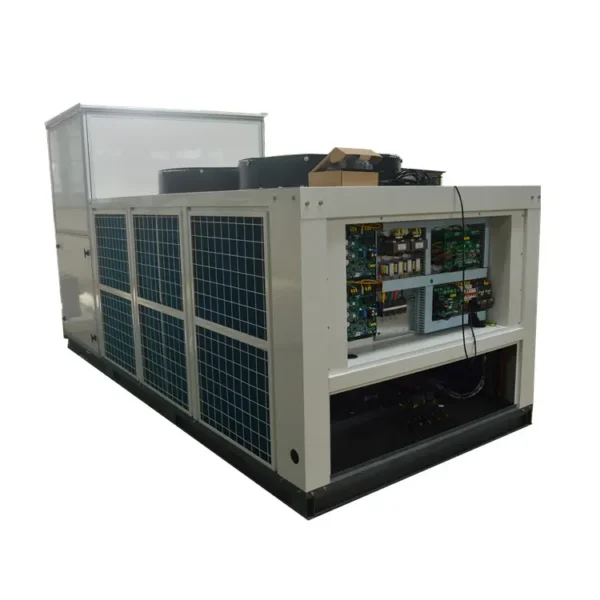

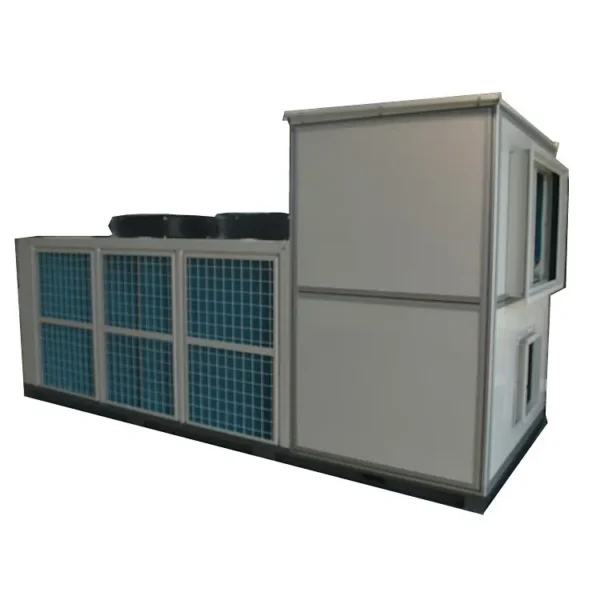

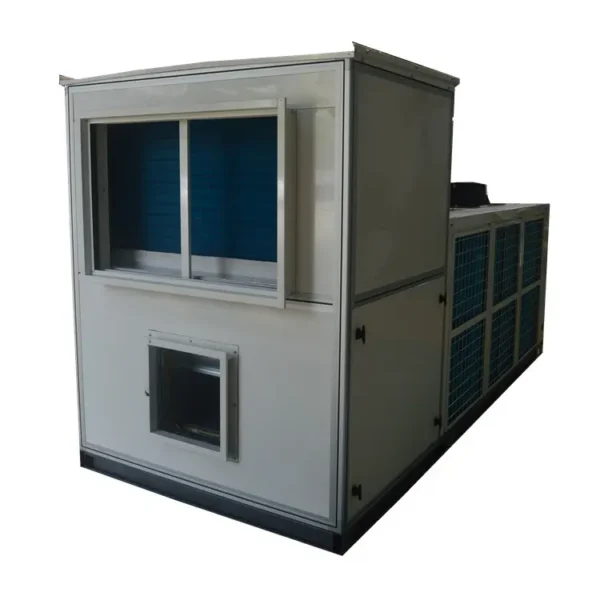

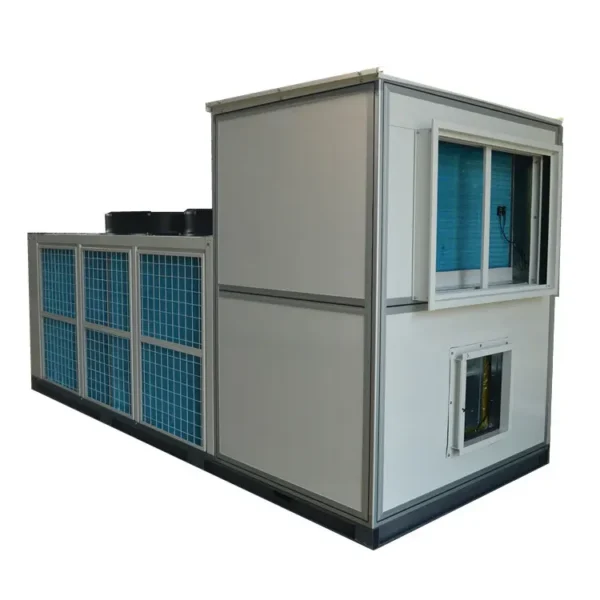

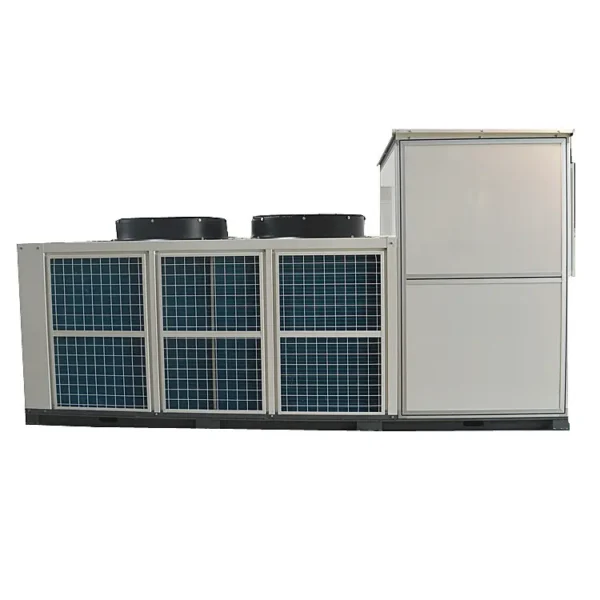

30TON Energy Saving Inverter Rooftop Package Unit Central Air Conditioner
Specifications:
Hermetic scroll compressor
Cooling capacity:13~255kw
Cooling only, electric heating, heat pump type
High static pressure duct type
R22, R407C.
Features:
1) Applied to dry areas;
2) Compact structure, installed on the roof, convenient for installation, occupy no indoor space ;
3) Sufficient external static pressure, suitable for connecting air duct system, reduce indoor noise greatly;
4) Different series of products, meet different requirements;
5) The framework of units is anti-cold bridge aluminum alloy, which eliminates cooling leakage and condensate water due to large temperature difference between inside and outside.
6) The main parts are imported quality products, with excellent performance;
7) The evaporator and condenser adopts technology of enhancing heat transfer, which makes the exchanger high efficiency and save energy
|
Cooling System |
Cooing Capacity |
Medun |
R22/R407C/R410A/R134A |
||||||||
|
DgaansionWay |
Thermal Expansion Valve,Emerson USA |
||||||||||
|
Compressor |
Type |
Hermetic Scroll |
|||||||||
|
norminal power kw |
R22 |
24 |
28.5 |
32 |
38 |
47.5 |
57 |
66.5 |
76 |
||
|
R407C |
24.6 |
29.1 |
32.8 |
38.8 |
48.5 |
58.2 |
68 |
77.6 |
|||
|
Evaporator |
Type |
Copper tubes with aluminum fins |
|||||||||
|
|
Fin Type |
Two-way slotted aluminum fin |
|||||||||
|
condenser |
Type |
Copper tubes with aluminum fins |
|||||||||
|
|
fin type |
Corrugated aluminum fin |
|||||||||
|
Fan System |
condensing fan |
type&drive mode |
Ultra-low-Noise Wide Blade Axial/ Direct Drive |
||||||||
|
Max.outdoor temperature |
45C |
||||||||||
|
power kw |
2.2 |
3 |
3 |
4.4 |
6 |
6 |
9 |
9 |
|||
|
SA Fan |
Type |
Ultra-low-noise double-inlet centrifugal unit |
|||||||||
|
Drive Mode |
Belt Drive |
||||||||||
| humidity heater |
Type |
Fin Condenser/Electrode Type |
|||||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inverter rooftop package unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this inverter rooftop package unit carry?
It is supplied with Avaiable Specifications documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the inverter rooftop package unit be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
