The jet ducted ventilation fan listed here carries voltage Other, 220V/380V, blade material Cast Iron, documented exactly as the manufacturer publishes it. Made by Qingdao Pengsheng Electric Appliance Co., Ltd. (12 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Jet Ducted Ventilation Fan
- Model Number: SFG
- Voltage: Other, 220V/380V
- Blade Material: Cast Iron
- Material: cast iron
- Warranty: 1 Year
- Certification: CCC/CE/ISO9001
Technical Specifications
| Voltage | Other, 220V/380V |
|---|---|
| Blade Material | Cast Iron |
| Mounting Type | Duct Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | PengSheng |
| Model Number | SFG |
| Material | cast iron |
| Name | Axial Fan |
| Product Type | Metal Fan |
| Color | blue |
| Usage | Poultry Industry Greenhouse Ventilation |
| Certification | CCC/CE/ISO9001 |
| Type | Axial Flow Fan |
| Selling Units | Single item |
| Single Package Size | 180X100X80 cm |
| Single Gross Weight | 500.000 kg |
Product Details

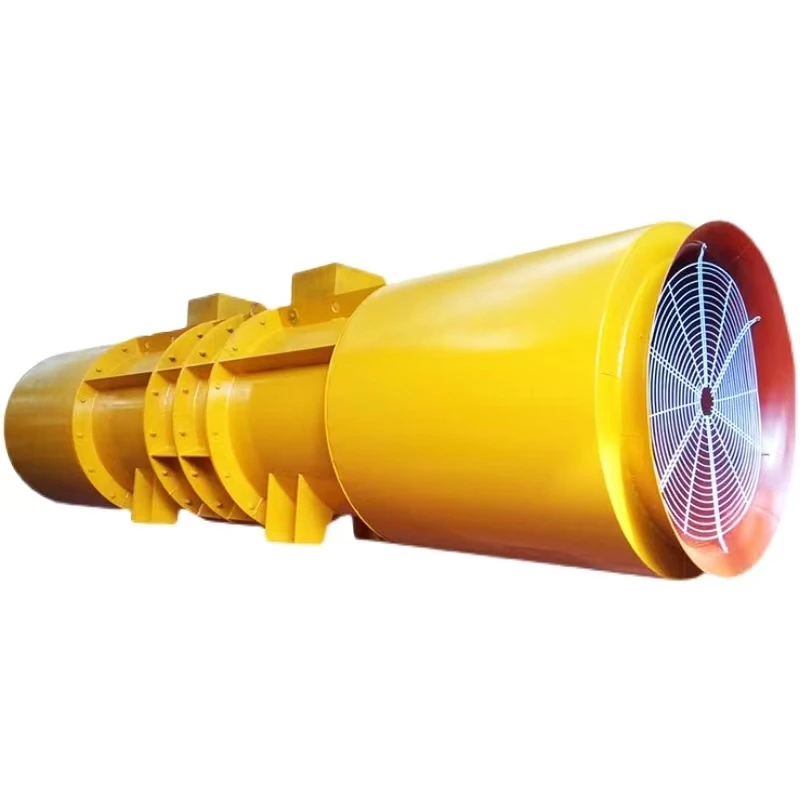

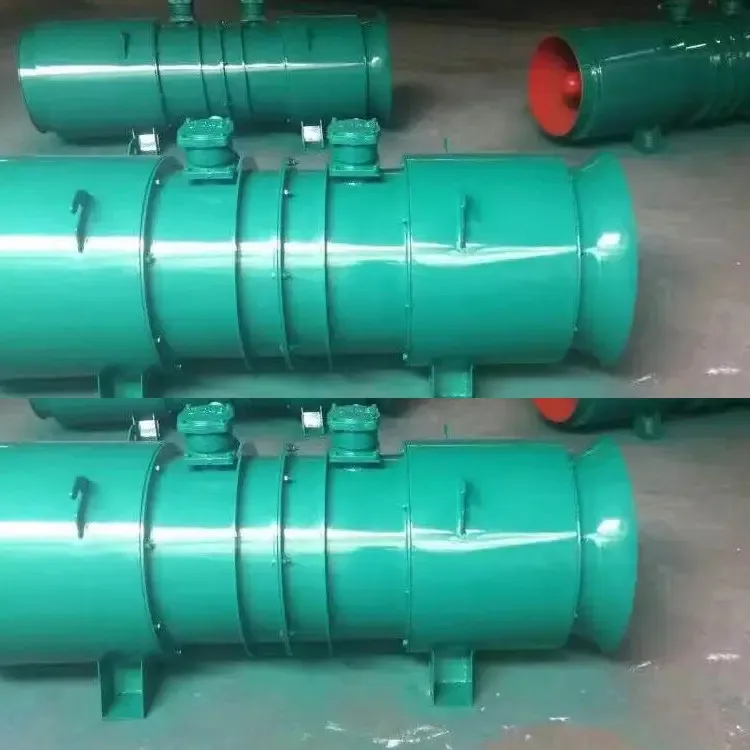

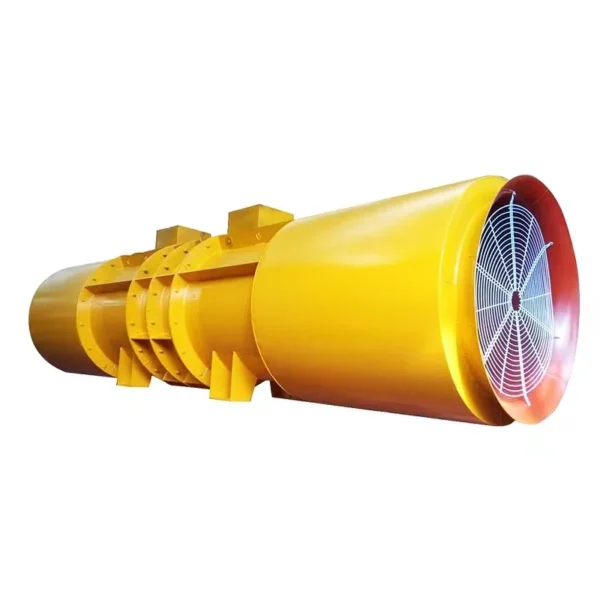

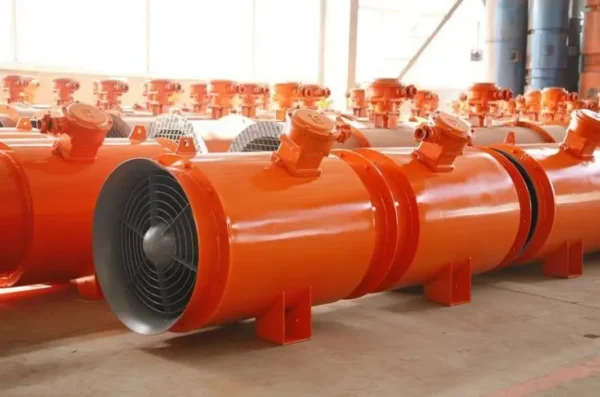

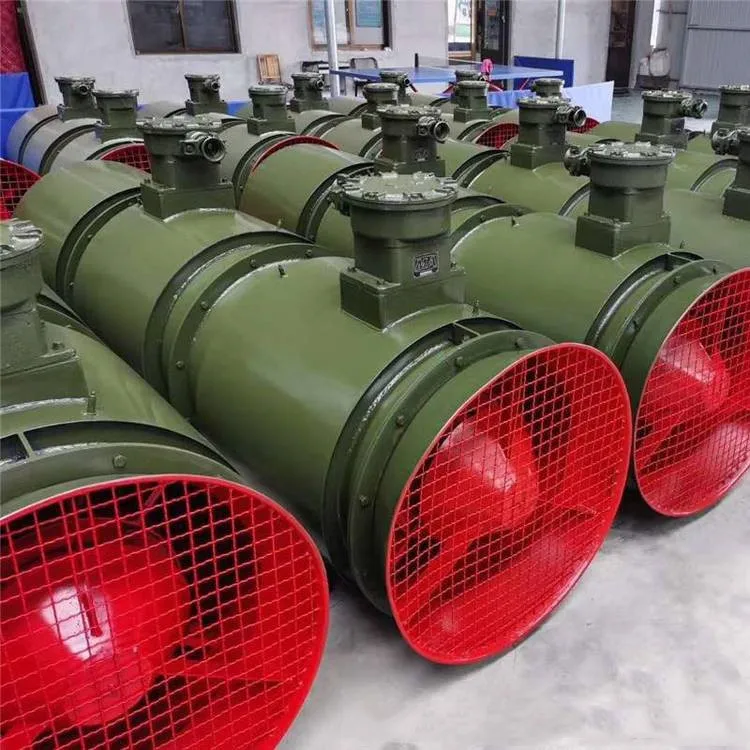

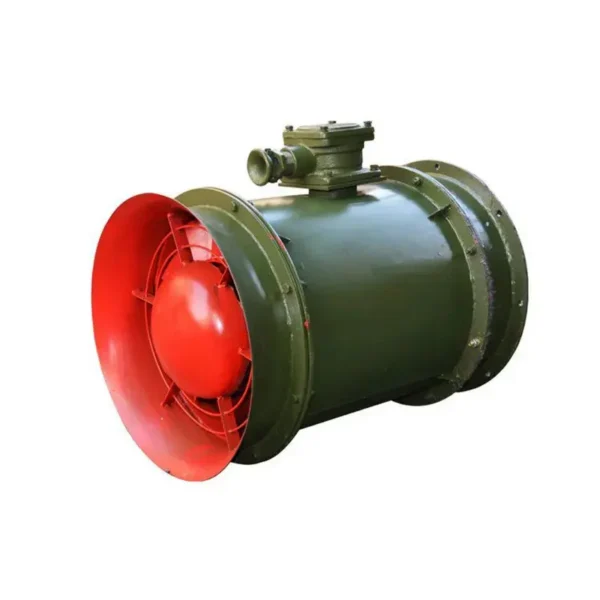

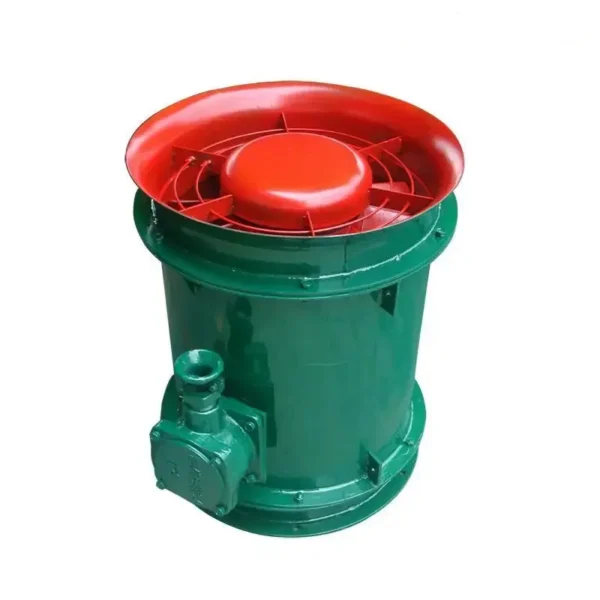

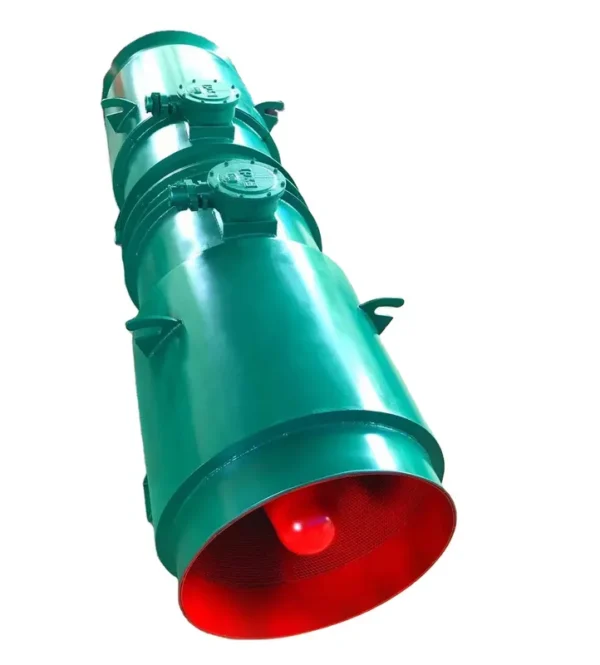

FBD Series explosion-proof Axial Fan for Tunnel and Coal Mine

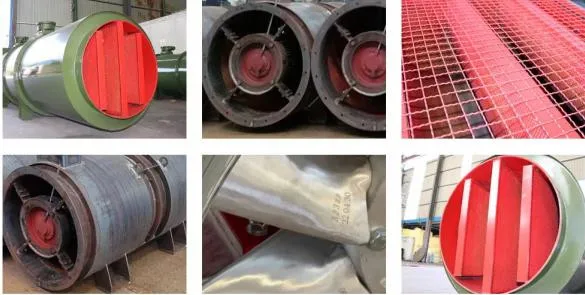

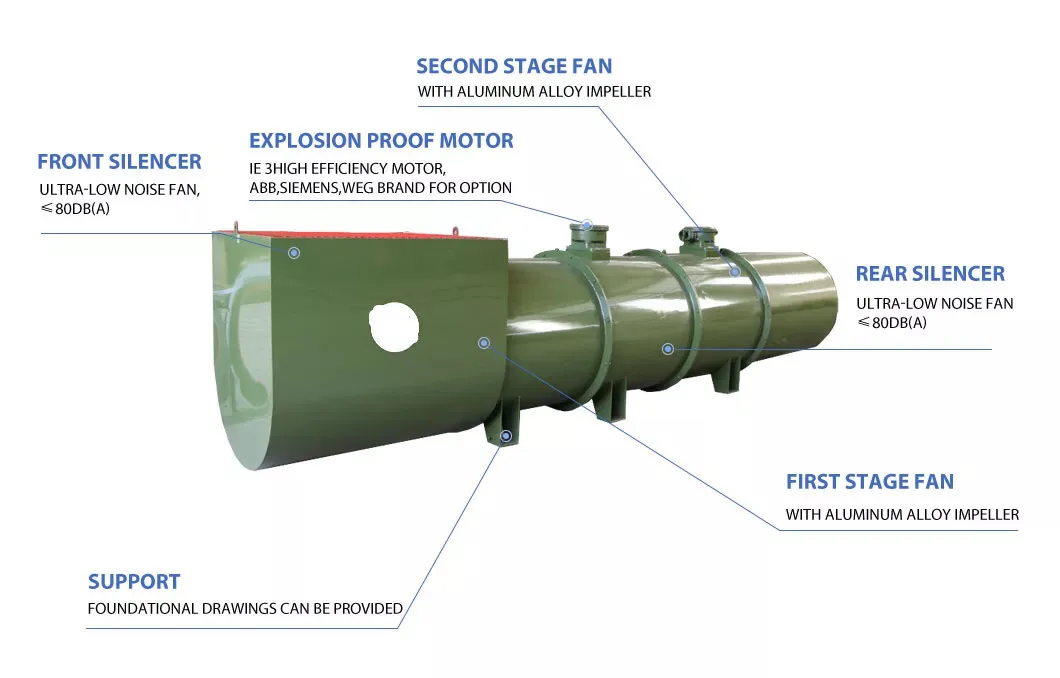

1. The product is composed of explosion-proof motor, vanes, air duct and others;
2. It's in low noise, low consumption and perfect performance;
3. Besides being used for ventilation and exhausting, it also can be installed in series to improve the pressure in pipe;
4. The enclosure material can be armor plate or fiber flass reinforced plastic;
5. Wiring with cable.
· Function: far distance ventilation, big power ventilation, low noisy, high efficiency, energy-saving, various style available
· Temperature range:-20°C~+40°C
NO. | Rotation speed (r/min) | Motor model | Power (kw) | DC current (A) | Air volume (m3/min) | Pressure (Pa) | Highest efficiency (%) | sound Level (dB) |
4.0 | 2900 | YBF2-90L-2 | 2×2.2 | 4.85/2.79 | 136~89 | 256~2050 | ≥75 | ≤30 |
YBF2-100L-2 | 2×3 | 6.4/3.7 | 150~100 | 325~2500 | ≥75 | ≤30 | ||
YBF2-112M-2 | 2×4 | 8.1/4.7 | 165~109 | 375~3040 | ≥75 | ≤30 | ||
5.0 | 2900 | YBF2-112M-2 | 2×4 | 8.1/4.7 | 217~145 | 275~2060 | ≥75 | ≤30 |
YBF2-132S1-2 | 2×5.5 | 11.1/6.4/3.7 | 240~161 | 325~2540 | ≥75 | ≤30 | ||
YBF2-132S2-2 | 2×7.5 | 14.8/8.66/4.97 | 266~178 | 400~3155 | ≥75 | ≤30 | ||
5.6 | 2900 | YBF2-132S2-2 | 2×7.5 | 14.8/8.66/4.97 | 286~188 | 275~2850 | ≥80 | ≤25 |
YBF2-160M1-2 | 2×11 | 21.6/12.6/7.2 | 324~215 | 375~3690 | ≥80 | ≤25 | ||
YBF2-160M2-2 | 2×15 | 28.8/17.0/9.6 | 400~236 | 1107~4500 | ≥80 | ≤25 | ||
6.3 | 2900 | YBF2-160M2-2 | 2×15 | 28.8/17.0/9.6 | 410~237 | 400~4775 | ≥80 | ≤25 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $699 / set
- 10+ set: US $669 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this jet ducted ventilation fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this jet ducted ventilation fan carry?
It is supplied with CCC/CE/ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the jet ducted ventilation fan be supplied for my local voltage?
The standard configuration is Other, 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
