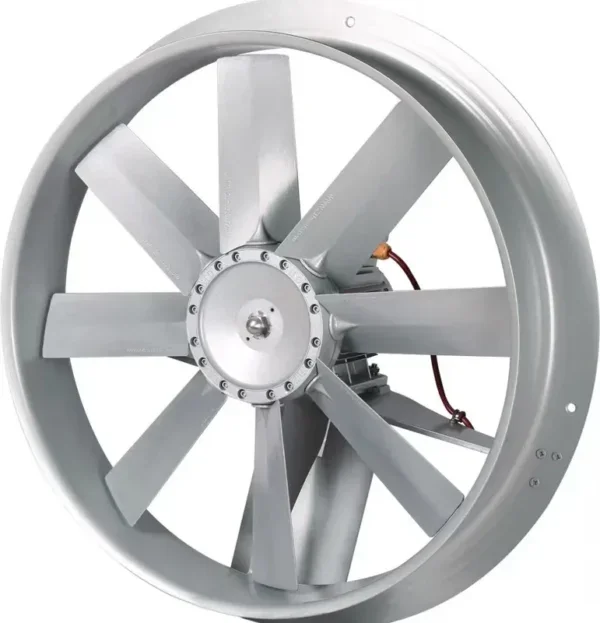

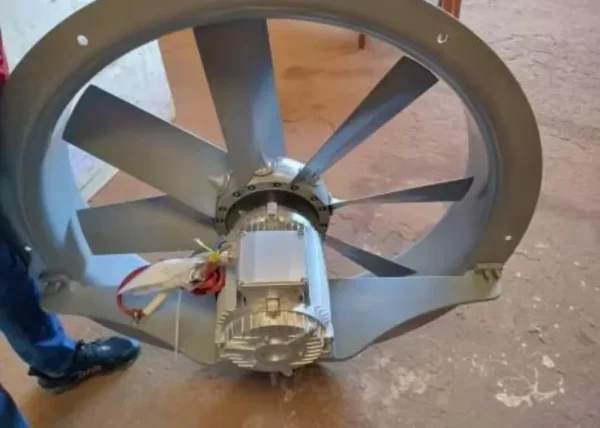

This kiln high-temperature axial fan is published with the manufacturer’s full specification — 220v, 380v, power source Electric. Made by Xiamen Topfan General Equipment Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Kiln High-Temperature Axial Fan
- Model Number: TOPF-5GWF
- Power Source: Electric
- Power: 0.75KW/0.55KW
- Voltage: 220v, 380v
- Rated Voltage: 220v/380v
- Material: Aluminum Alloy
Technical Specifications
| Voltage | 220v, 380v |
|---|---|
| Type | High-Temperature Axial Fan |
| Material | Aluminum Alloy |
| Blade Material | Aluminum Alloy |
| Mounting Type | Piping fan / Square type |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM |
| Place Of Origin | Fujian, China |
| Brand Name | TOPFANS |
| Model Number | TOPF-5GWF |
| Diameter | 500mm |
| Rated Voltage | 220v/380v |
| Power | 0.75KW/0.55KW |
| Fan Blades | 4/6 pieces aluminum alloy |
| Full Pressure | 115-150/140-170Pa |
| Insulation Class | Class F(120℃), Class H(180℃) |
| Motor | high temp. resistant 100% Copper Motor |
| Relative Humidity | ≤98% |
| Frame | aluminum alloy |
| Protection Class | IP55 |
| Selling Units | Single item |
| Single Package Size | 59.0X42.0X59.0 cm |
| Single Gross Weight | 28.0 kg |
Product Details
High temperature high humidity axial fan |

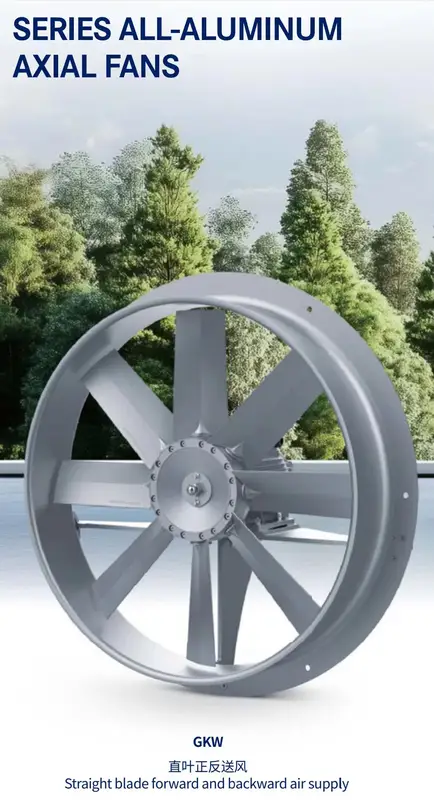

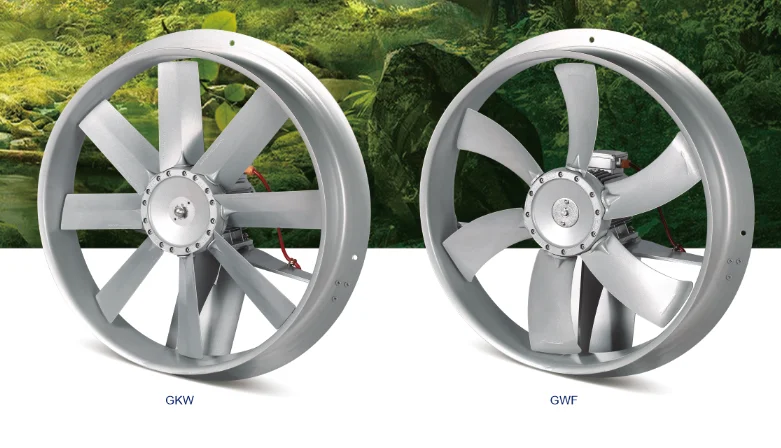

GKW/GWF series drying kiln special high temperature high humidity axial fan,is special designed for drying kiln,which ventilator equipment.It has remarkable characteristic of resistant to high temperature,resistant to high humidity,large air volume,high efficiency,energy saving,and convenient installation.The axial fan is used in the ventilation system for wood drying kiln and other drying equipment.As the blades diameter is different,there are 7 model,No.4,5,6,7,8,9,10.The angle of fan can be adjusted according to the clients' requirements. |
The fans blades can be direct connected with the motor.The circumferential velocity of the impeller does not exceed the condition,there are three different rotational speed:2900 r/min,1450 r/min,960r/min. Since the frame size and the blades diameter are different,the installation angle of the blades,speed of main shaft is different.Air ,air pressure and motor output are different.The air pressure from 60Pa to 400Pa,the air from 1000 cbm/h to 60000cbm/h.(details as per performance table). |
Applied conditions:Max. Temp:<130℃,Rellative humidity:<98%,in the of weak alkali,vapor and no flammable gas,the motor can be also used in the vacuum drying equipment according to the speicific conditions. |
Detailed description |
Tech data |
Item No. | Speed (rpm) | Air(m³/h) | Power (KW) | pressure (Pa) | Hydrostatic(Pa) | Air Volume(m³/h) | Noise(dB) | No. of blades |
4 | 2900 | -5500 | 230-300 | 145-250 | 712-2 | 0.55 | ≤73 | 4 |
4000-6500 | 250-330 | 145-270 | 801-2 | 0.75 | ≤74 | 4 | ||
5000-7500 | 270-380 | 150-320 | 802-2 | 1.1 | ≤75 | 6 | ||
1450 | 2500-4300 | 80-106 | 40-80 | 711-4 | 0.25 | ≤66 | 4 | |
2800-5000 | 100-120 | 50-95 | 712-4 | 0.37 | ≤68 | 6 | ||
3200-5200 | 110-130 | 70-90 | 801-4 | 0.55 | ≤68 | 6 | ||
5 | 1450 | 5000-7500 | 115-150 | 75-120 | 801-4 | 0.55 | ≤70 | 4 |
5400-8700 | 140-170 | 80-137 | 802-4 | 0.75 | ≤74 | 6 | ||
6 | 1450 | 7500-12000 | 195-220 | 130-180 | 90S-4 | 1.1 | ≤76 | 4 |
9000-14500 | 250-280 | 160-230 | 90L-4 | 1.5 | ≤78 | 6 | ||
7 | 1450 | 11000-18000 | 170-250 | 100-210 | 90L-4 | 1.5 | ≤78 | 4 |
1-20500 | 200-275 | 120-230 | 100L1-4 | 2.2 | ≤80 | 4 | ||
8 | 1450 | 16000-25000 | 200-320 | 100-280 | 100L1-4 | 2.2 | ≤80 | 6 |
20000-29000 | 220-340 | 110-290 | 100L2-4 | 3 | ≤82 | 8 | ||
22000-32000 | 300-400 | 170-340 | 112M-4 | 4 | ≤86 | 8 | ||
960 | 14500-21000 | 130-175 | 75-150 | 100L-6 | 1.5 | ≤78 | 8 | |
16500-24000 | 140-190 | 78-155 | 112M-6 | 2.2 | ≤80 | 8 | ||
9 | 1450 | 20000-34000 | 240-340 | 160-320 | 112M-4 | 4 | ≤86 | 8 |
24000-37000 | 300-450 | 180-370 | 132S-4 | 5.5 | ≤88 | 8 | ||
960 | 15000-26500 | 170-205 | 105-150 | 112M-6 | 2.2 | ≤82 | 6 | |
18000-29000 | 180-230 | 110-180 | 132S-6 | 3 | ≤83 | 8 | ||
10 | 1450 | 34000-42000 | 330-470 | 200-400 | 132S-4 | 5.5 | ≤90 | 8 |
38000-46000 | 350-480 | 210-410 | 132M-4 | 7.5 | ≤91 | 8 | ||
960 | 21000-3 | 200-230 | 130-180 | 132M1-6 | 4 | ≤85 | 8 | |
27000-40000 | 260-290 | 160-250 | 132M2-6 | 5.5 | ≤85 | 8 |

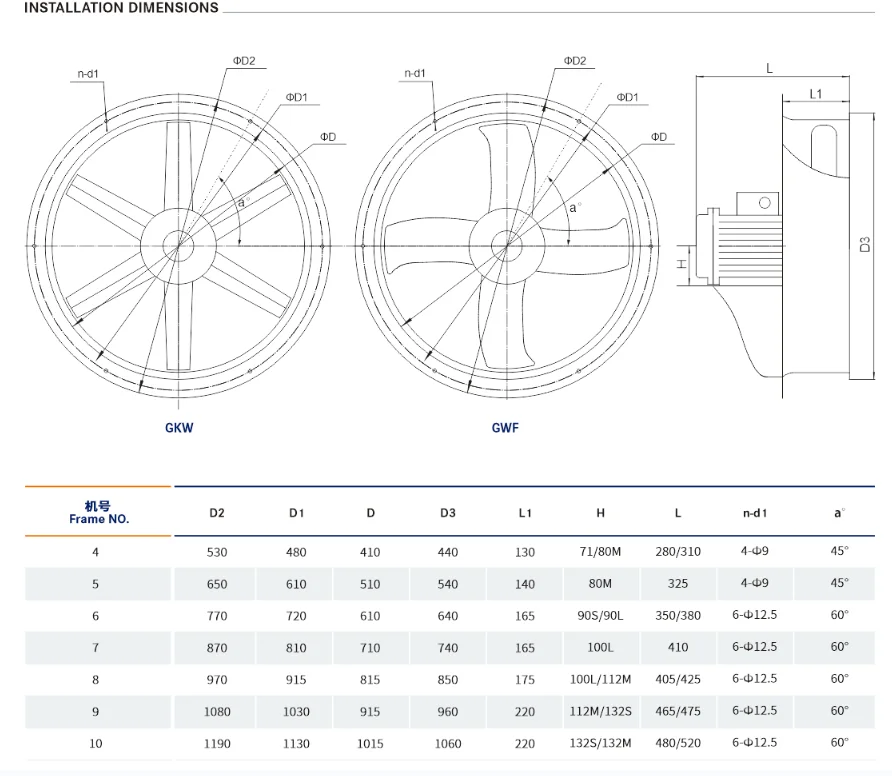

Installation dimension |
Company Introduction Fujian Electrical and Mechanical Equipment Co.,Ltd is specialized in hvls industrial fans and axial fans. We offer high quality goods with the most competitive factory prices.Our fans are popular with customers from more than 30 countries. We offer different diameters to meet different of air .If u have any requirements on ventilation system,pls do not hesitate to contact us.We will try our best to offer best goods and after sales service. |

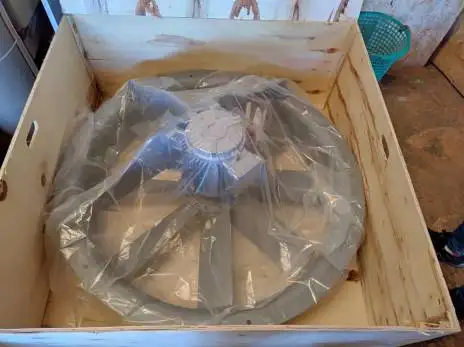

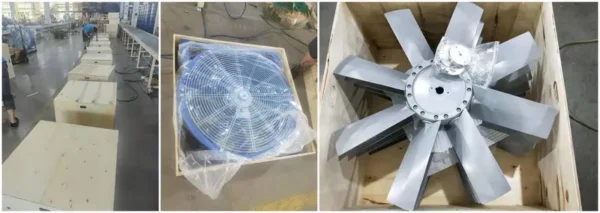

Packing Details |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $139 / set
- 20–49 set: US $136 / set
- 50+ set: US $132 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
