Kit for Ducted Fan, 6-Zone, HVAC, 600BTU, 900CFM

 Complete 6-Zone Insulated Plenum Kit for Ducted Fan Coil

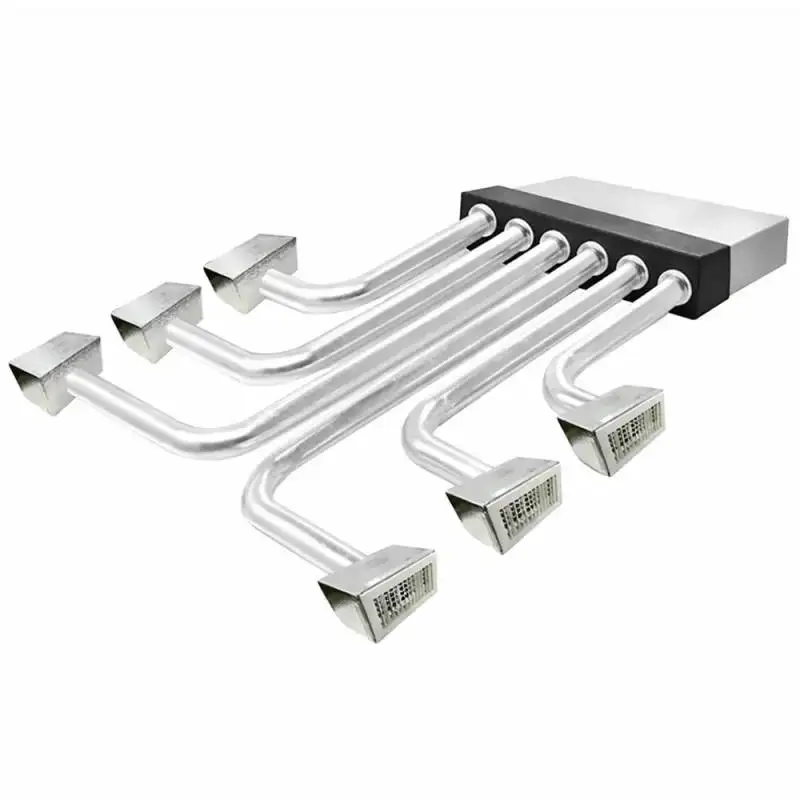

The complete 6-zone insulated plenum kit for ducted fan coil, for air distribution through outlets, is a system consisting of: Insulated plenum in polyurethane; Collars; Supply outlets; Return grille. Official Warranty Italy

The complete plenum kit;

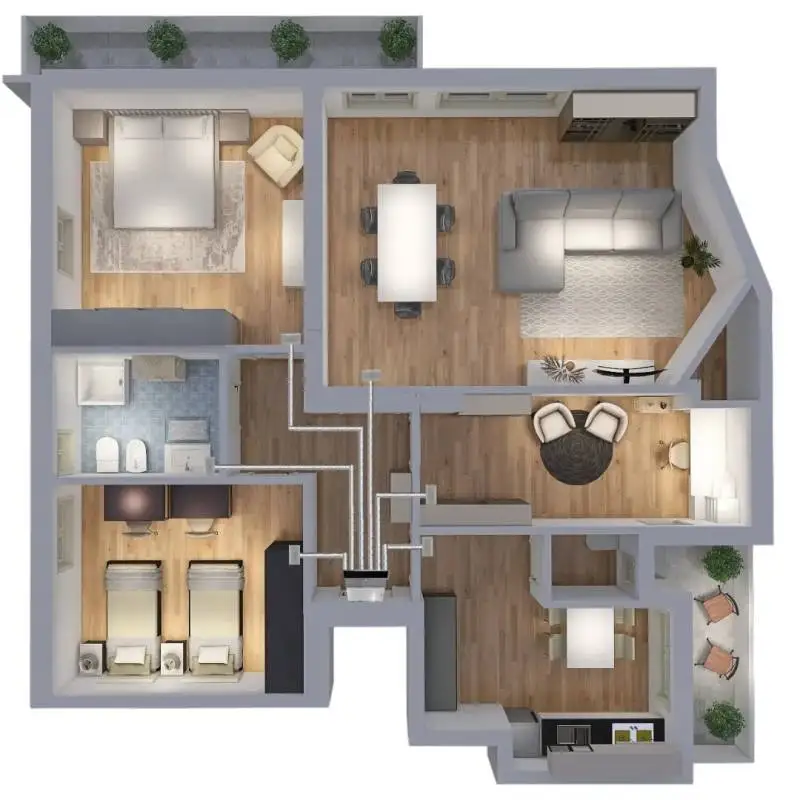

The new kits contain all the necessary accessories (plenum, dampers, grilles, tubing, collars, straps, etc…) to properly channel the air produced by the indoor unit and distribute it optimally to each room, with the possibility of adjusting and directing the airflow thanks to the dampers and adjustable outlet fins, thus providing maximum efficiency and the best comfort inside homes or offices.

KIT COMPOSITION

1 Insulated Plenum for Indoor Unit

6 Collars for Plenum Connection D. 150

6 Supply Outlets, White Vertical Attachment, Installation Hole 300X150, External Dimensions 332X182

6 Insulated Plenums in Expanded Polyurethane with Rear Attachment for Outlet (332X182)

1 ABS White Return Grille with Filter and Frame 780X430

Ducted Tubing, Inner Diameter 152 mm, Length 10 m

Insulated Plenum for Indoor Unit;

Sandwich panels consisting of an insulating component in rigid expanded polyurethane, covered on both sides with aluminum sheets for the construction of air ducts.

A panel of high-density closed-cell expanded polyurethane (49Kg/m3 of foam alone) is at the heart of this innovation: its structure with thicknesses of 20.5 mm is both light and advanced, achieving key performance such as pre-insulation with a significantly lower weight than that of insulated sheet metal.

The aluminum coating is much more than just a "cover." It performs a fundamental function in two directions:

a solid and resistant surface, with a thickness of 80 microns, for greater longevity of the duct,

bacteriostatic properties and ease of cleaning for better air quality.

Collars for Plenum Connection D. 150;

Aluminum sheet collars with a height of 150 mm, designed to connect flexible tubes to supply/return plenums.

Supply Outlets;

Insulated Plenums with Rear Attachment for Outlet

made with high-quality 80-micron corrugated and lacquered aluminum sheets, insulated with rigid expanded polyisocyanurate foam (PIR)

total thickness 20 mm, fire-resistant, highly thermally insulating, waterproof, hygienic, and practical

Polyurethane Panels;

Sandwich panels consisting of an insulating component in rigid expanded polyurethane, covered on both sides with aluminum sheets for the construction of air ducts.

A panel of high-density closed-cell expanded polyurethane (49Kg/m3 of foam alone) is at the heart of this innovation: its structure with thicknesses of 20.5 mm is both light and advanced, achieving key performance such as pre-insulation with a significantly lower weight than that of insulated sheet metal.

The aluminum coating is much more than just a "cover." It performs a fundamental function in two directions:

a solid and resistant surface, with a thickness of 80 microns, for greater longevity of the duct,

bacteriostatic properties and ease of cleaning for better air quality.

Insulated Plenums with Rear Attachment for Outlet;

The coated plenums with rear attachment are constructed with galvanized sheet metal and external insulation in closed-cell polyethylene, with a thickness of 5 mm.

In the case of using the outlet with a coated plenum, the mounting profile is not necessary.

N.B.

THE PHOTO IS ILLUSTRATIVE
