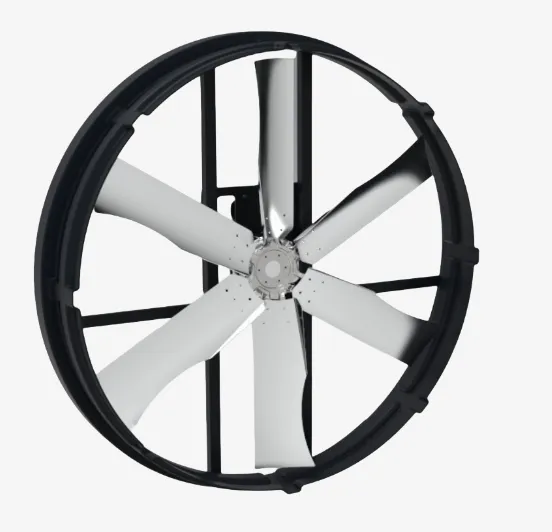

This livestock ventilation fan is published with the manufacturer’s full specification — voltage 380-480v, 38800CFM. Made by Goodwind LLC (2 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Livestock Ventilation Fan
- Model Number: YBA055DECGS6460WMA5
- Power Source: Electric
- Input Power: 1200w
- Voltage: 380-480v
- Max Airflow: 38800CFM
- Material: High-strength double-layer PE
Technical Specifications
| Blade Diameter | 55in |
|---|---|
| Voltage | 380-480v |
| Speed | 460RPM |
| Type | Wall-Mounted Axial Fan |
| Material | High-strength double-layer PE |
| Blade Material | Aluminum Alloy |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Texas, United States |
| Brand Name | Bonawind |
| Model Number | YBA055DECGS6460WMA5 |
| Current | 2.4A |
| Input Power | 1200w |
| Air Volume/W | 55m³/h |
| Motor | Outer rotor permanent magnet brushless DC motor |
| Max Airflow | 38800CFM |
| Frame Size | 63"*63”*13.6" |
| Air Speed | 5.3m/s- 6m to the fan |
| Frame Material | High-strength double-layer PE |
| Noise | ≤70dB |
| Selling Units | Single item |
Product Details
BONAWIND PANEL FANKEY UPGRADES AND FEATURES
1.Design: High-strength double-layer PE housing, corrosion-resistant, durable, and structurally robust. 2.Motor Performance: Outer rotor permanent magnet brushless DC motor, highly efficient, energy-saving, low-noise, and reliable. 3.Blade Material: Full aluminum alloy panel blades, lightweight yet robust, ensuring uniform airflow and extended service life. 4.Control System: Supports Bonawind IoT APP for intelligent speed control, real-time monitoring, and easy operation. 5.Installation: Wall-mounted or chain-suspended for flexible setup and convenient maintenance.
Product Name | Power | Air Flow@0.00″SP | Rotation Speed | CFM/Watt | Remote Contral |
114″Panel Fan | 7500W / 10.2HP@3PH 460V | 176000 CFM | 285 RPM | 23 | RS485/0-10v MoonetAPP |
98″Panel Fan | 5000W / 6.8HP@3PH 460V | 134000 CFM | 300 RPM | 27 | RS485/0-10v MoonetAPP |
86″Panel Fan | 3300W / 4.5HP@3PH 460V | 91100 CFM | 320 RPM | 28 | RS485/0-10v MoonetAPP |
78″Panel Fan | 2400W / 3.3HP@3PH 460V | 79460 CFM | 310 RPM | 33 | RS485/0-10v MoonetAPP |
72″Panel Fan | 2000W / 2.7HP@3PH 460V | 70630 CFM | 345 RPM | 35 | RS485/0-10v MoonetAPP |
63″Panel Fan | 1700W / 2.3HP@3PH 460V | 52980 CFM | 444 RPM | 31 | RS485/0-10v MoonetAPP |
55″Panel Fan | 1200W / 1.6HP@3PH 460V | 38860 CFM | 460 RPM | 32 | RS485/0-10v MoonetAPP |
48″Panel Fan | 700W / 0.9HP@3PH 460V | 26490 CFM | 460 RPM | 38 | RS485/0-10v MoonetAPP |
45″Panel Fan | 500W / 0.7HP@3PH 460V | 20580 CFM | 680 RPM | 41 | RS485/0-10v MoonetAPP |
38″Panel Fan | 300W / 0.4HP@3PH 460V | 15890 CFM | 750 RPM | 53 | RS485/0-10v MoonetAPP |
72″Louver Fan | 2000W / 2.7HP@3PH 460V | 70630 CFM | 345 RPM | 35 | RS485/0-10v MoonetAPP |
45″ Square Panel Fan | 600W / 0.8HP@3PH 460V | 23960 CFM | 610 RPM | 40 | RS485/0-10v MoonetAPP |
38″ Square Panel Fan | 410W / 0.6HP@3PH 460V | 16070 CFM | 750 RPM | 39 | RS485/0-10v MoonetAPP |
1.Can be equipped with the Bonawind Internet of Things APP system. 2.Insulated and Rust-Free Housing. 3.Outer rotor permanent magnet brushless EC motor. 4.Full alloy fan blades ensure the strength of the blades while providing strong and uniform airflow. 5.To quickly expel indoor stale air and enable fresh air to circulate inside, creating a continuous indoor airflow.
With Bonawind’s versatile design, our Panel Fan can be customized to meet your specific requirements, including single-phase or three-phase motors configured for the appropriate voltage in your region, as well as blade materials and installation options. Please contact us to tell us your needs, and we will gladly provide the best solutions.
''Bonawind'' brand established in 2002, recognized for high-quality industrial ventilation solutions.The advantages can be summarized as follows:
Fair Price All products are sold directly from the manufacturer, eliminating middlemen and giving customers maximum cost-effectiveness. Stable Quality With over 23 years of experience, Bonawind has an expert technical team, mature production processes, and reliable suppliers to ensure consistent product quality. Professional Service Our enthusiastic sales team is available 24/7, with responsive after-sales staff ready to provide efficient and comprehensive support. Independent Spare Parts Support Bonawind operates its own spare parts service, offering fast and comprehensive parts procurement to save your time. 100% full inspection of every fan, 23 quality inspection processes, which include noise, vibration, blade speed, air volume, concentric performance, efficiency, etc.
Good heat dissipation, high efficiency, large torque, and more durable.
Driven by innovation, we hold over 20 patents and serve customers in more than 110 countries. Our commitment to excellence is reinforced by a rigorous in-house quality management system, ensuring top-tier standards in every product.
Goodwind has actively participated in exhibitions in the USA, Germany, and other European countries. We are committed to serving all esteemed industries all over the world.
We sincerely hope to work together with you and establish a win-win cooperation in the future. Thank you very much for visiting our website, and we hope you find products you like. When you contact us, we will provide the following professional and enthusiastic services:
Q: Are your fans manufactured by the original factory? A: Yes, Bonawind is the official leading manufacturer of high-quality industrial and commercial fans in the USA. Q: What is the delivery time? A: Delivery is usually made within 30 working days after receiving the deposit. Q: What payment terms are acceptable? A: Typically, we accept a 30% advance payment by T/T, and the remaining 70% is payable after the fan is completed. Q: What is the transportation method? A: Our fans are mainly transported by sea or land, depending on your location and order quantity. Q: Why should I purchase from Bonawind instead of other suppliers? A:We are a factory, reducing intermediary costs and lowering your procurement expenses. We continuously innovate, adopt new technologies, and develop new fan models to meet market demands. Bonawind products are recognized for high quality and reliability, with many models certified by CE and ISO.
Our fans have been sold globally, covering Europe, North America, South America, and Southeast Asia, and are widely trusted by customers. Q: What is the warranty period? A: 3-year warranty. Q: Do you accept customized fans? A: Yes, we accept customized fans, including options for size, voltage, motor type, blade material, and OEM/ODM branding.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $1350 / piece
- Ships from: US
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this livestock ventilation fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the livestock ventilation fan be supplied for my local voltage?
The standard configuration is 380-480v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Goodwind LLC. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Goodwind LLC range on HVACR Nexus.
