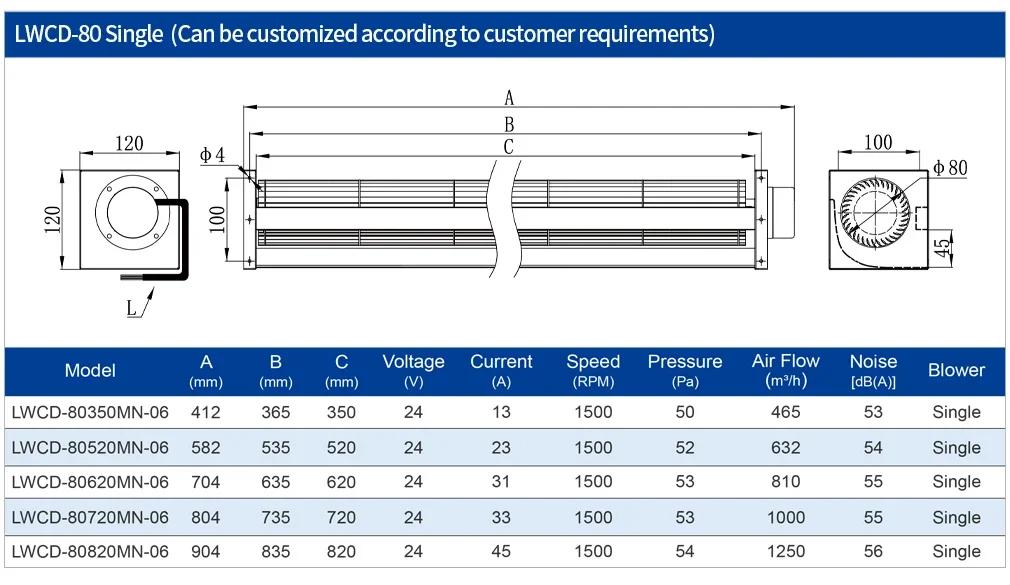

Specification
|
Model（Single）
|
A（mm）
|
B(mm)
|
C(mm)
|
Voltage（V)
|
Current(A)
|
Speed (RPM)
|
Pressure(Pa)
|
Air Flow(m3/h)
|
Noise[dB(A))
|
|
LWCD-80350MN-06
|
412
|
365
|
350
|
24
|
13
|
1500
|
50
|
465
|
53
|
|
LWCD-80520MN-06
|
582
|
535
|
520
|
24
|
23
|
1500
|
52
|
632
|
54
|
|
LWVCD-80620MN-06
|
704
|
635
|
620
|
24
|
31
|
1500
|
53
|
810
|
55
|
|
LWCD-80720MN-06
|
804
|
735
|
720
|
24
|
33
|
1500
|
53
|
1000
|
55
|
|
LWCD-80820MN-06
|
904
|
835
|
820
|
24
|
45
|
1500
|
54
|
1250
|
56
|
Product Description

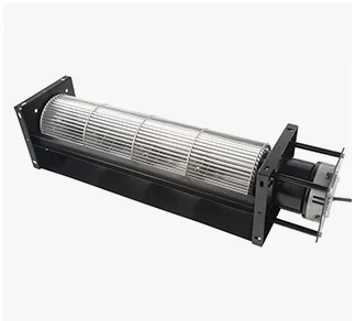

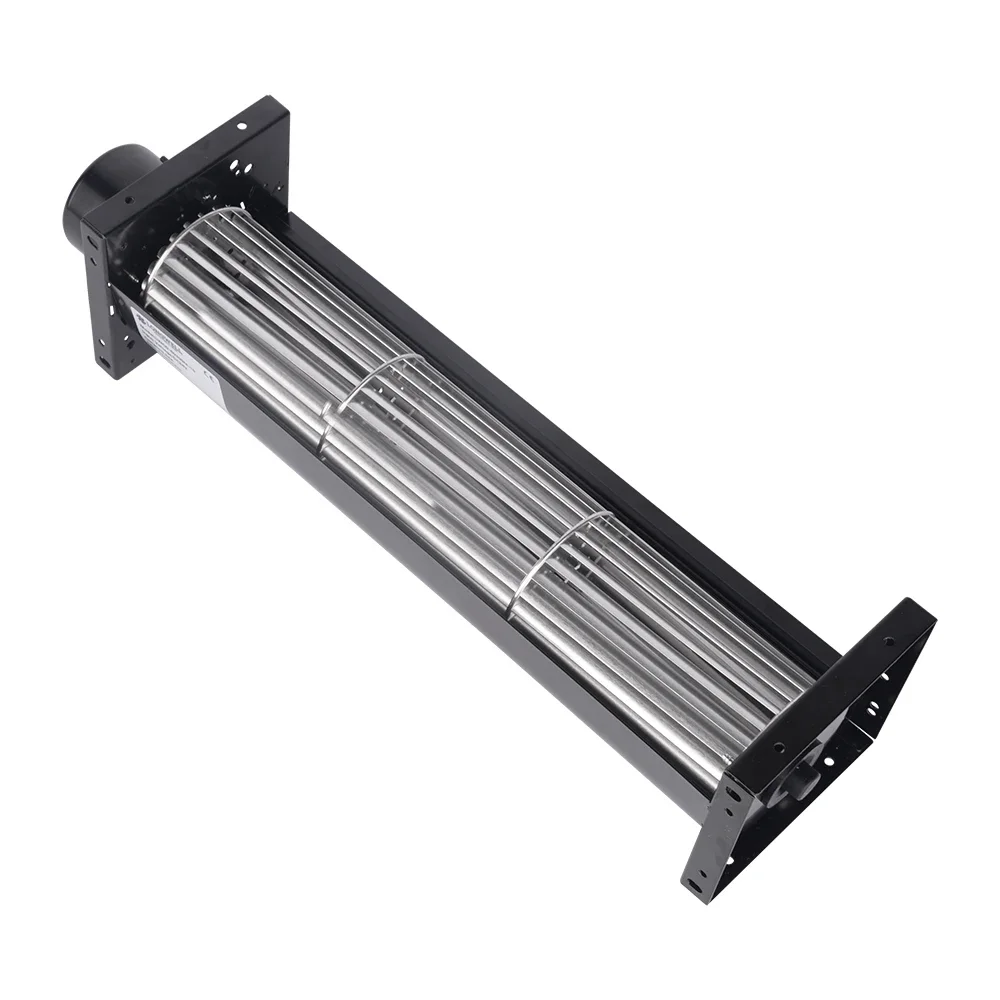

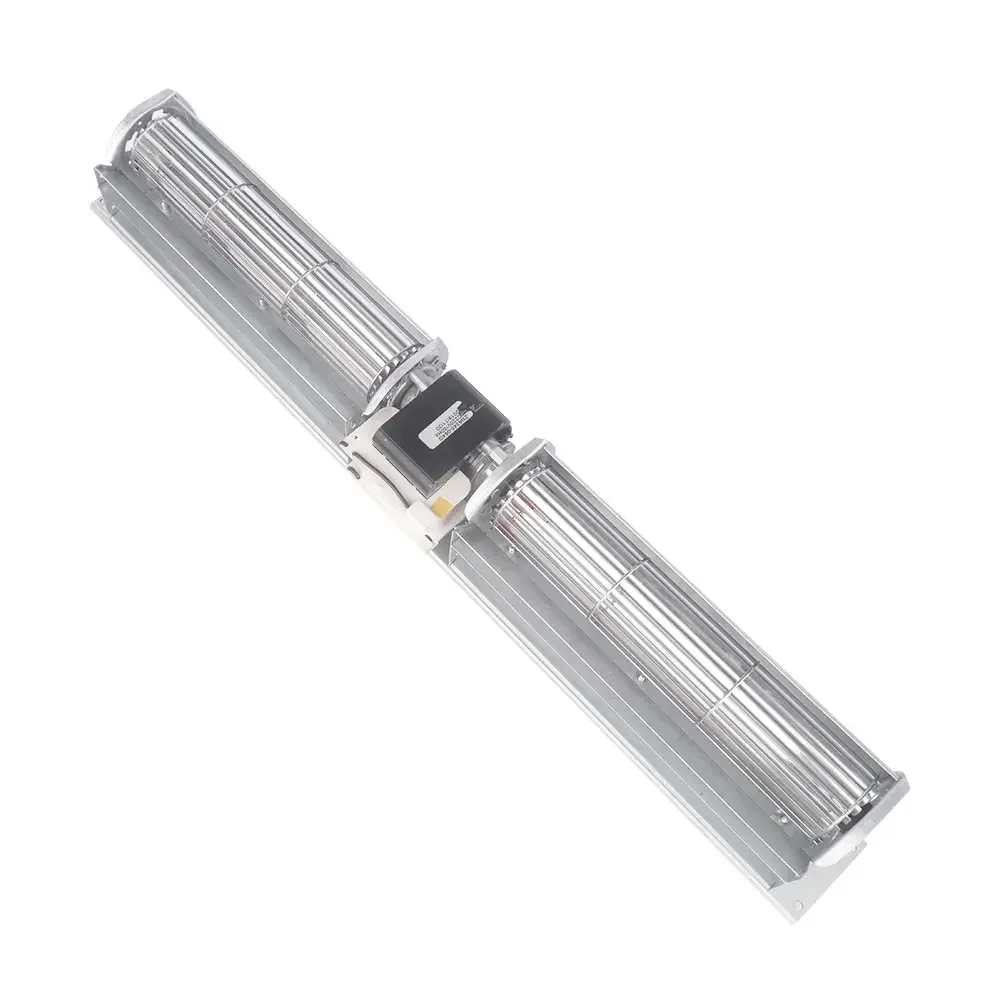

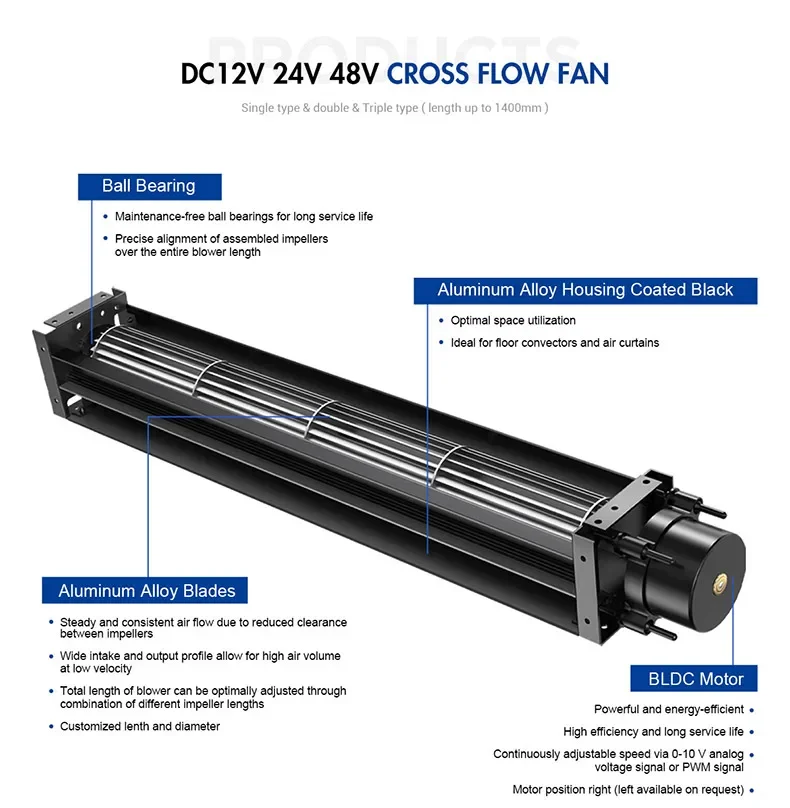

DC Cross Flow Fans-Double Blower

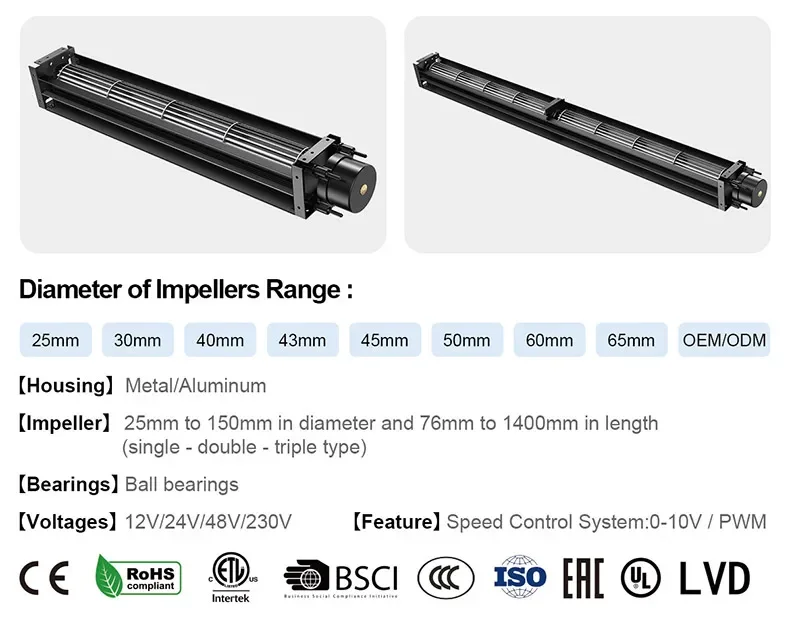

Diameter of lmpeller : 30,40,45,50,60,65mm Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)
Motor Type: BLDC External Rotor
MotorSpeed Range : Up to 2400 RPM

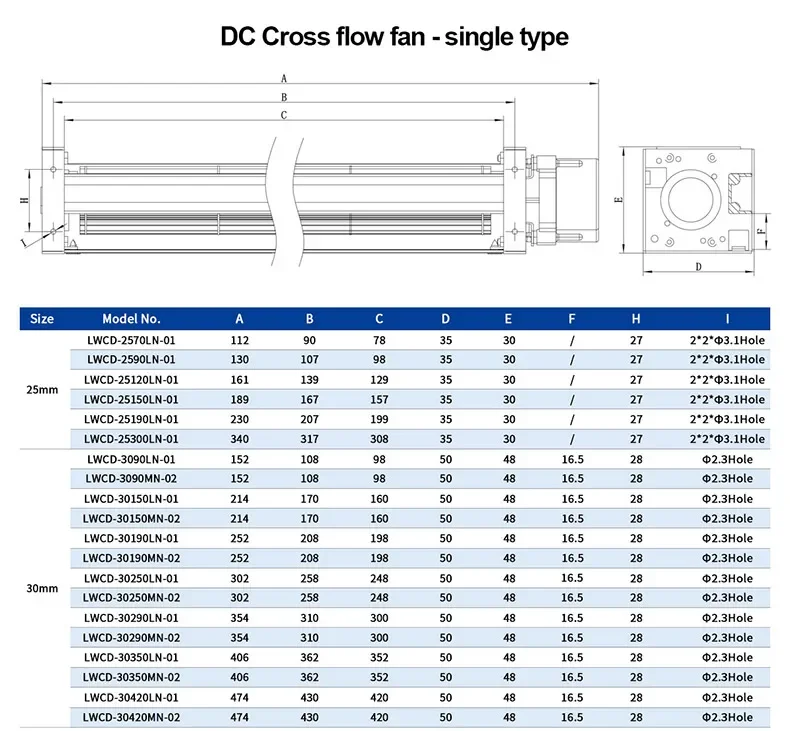

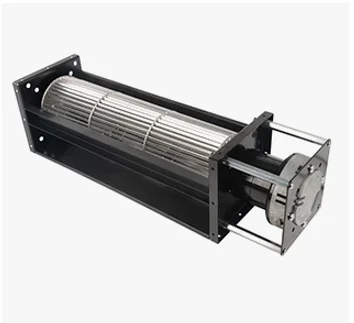

DC Cross Flow Fans-Single Blower
Diameter of lmpeller : 30,40,43,45,50,60,65,80,90,100,110,120,150mm
Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)
Motor Type: BLDC External Rotor
MotorSpeed Range : Up to 2400 RPM

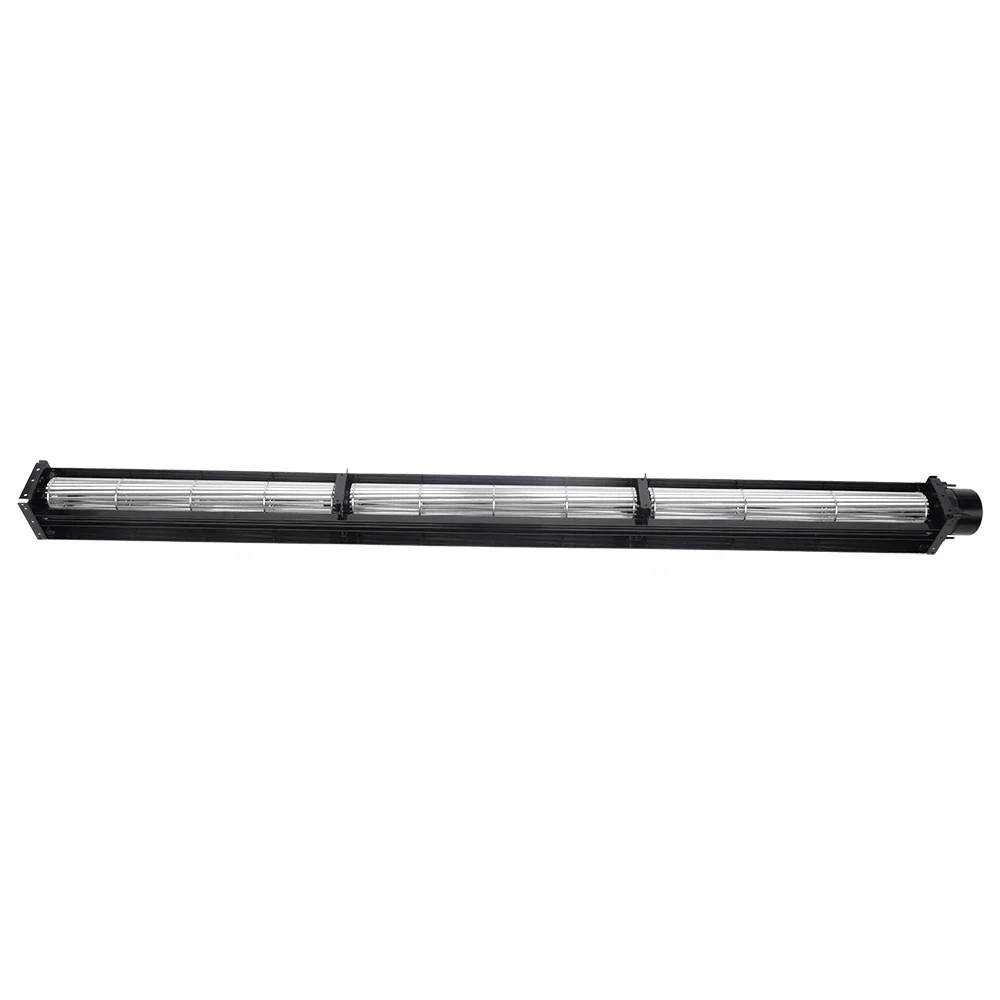

DC Cross Flow Fan – Trip Blower
Diameter of lmpeller : 30,40,50,60,65mm
Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)
Motor Type: BLDC External Rotor
MotorSpeed Range : Up to 2400 RPM

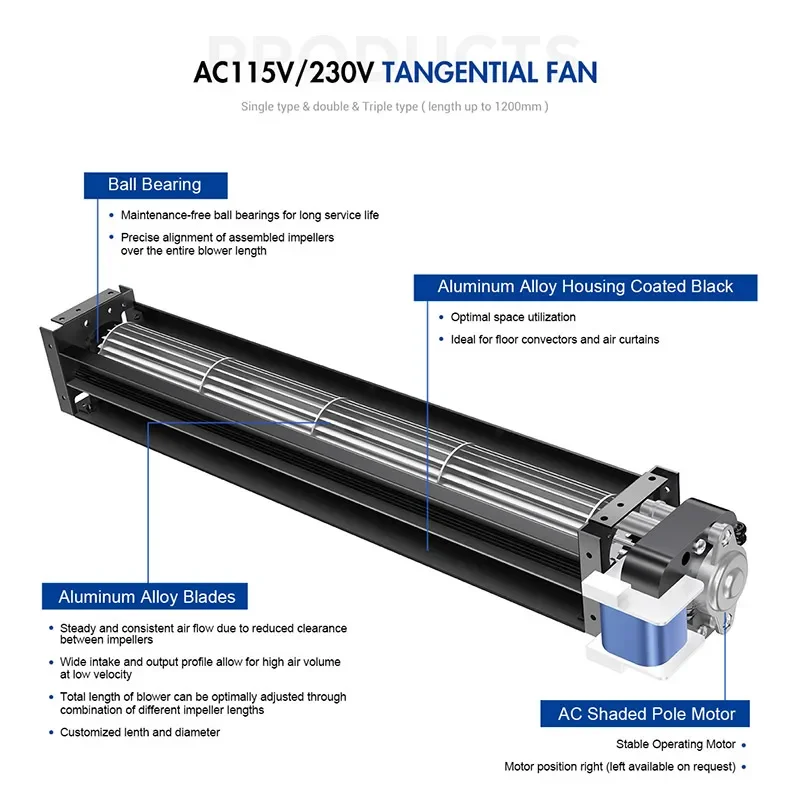

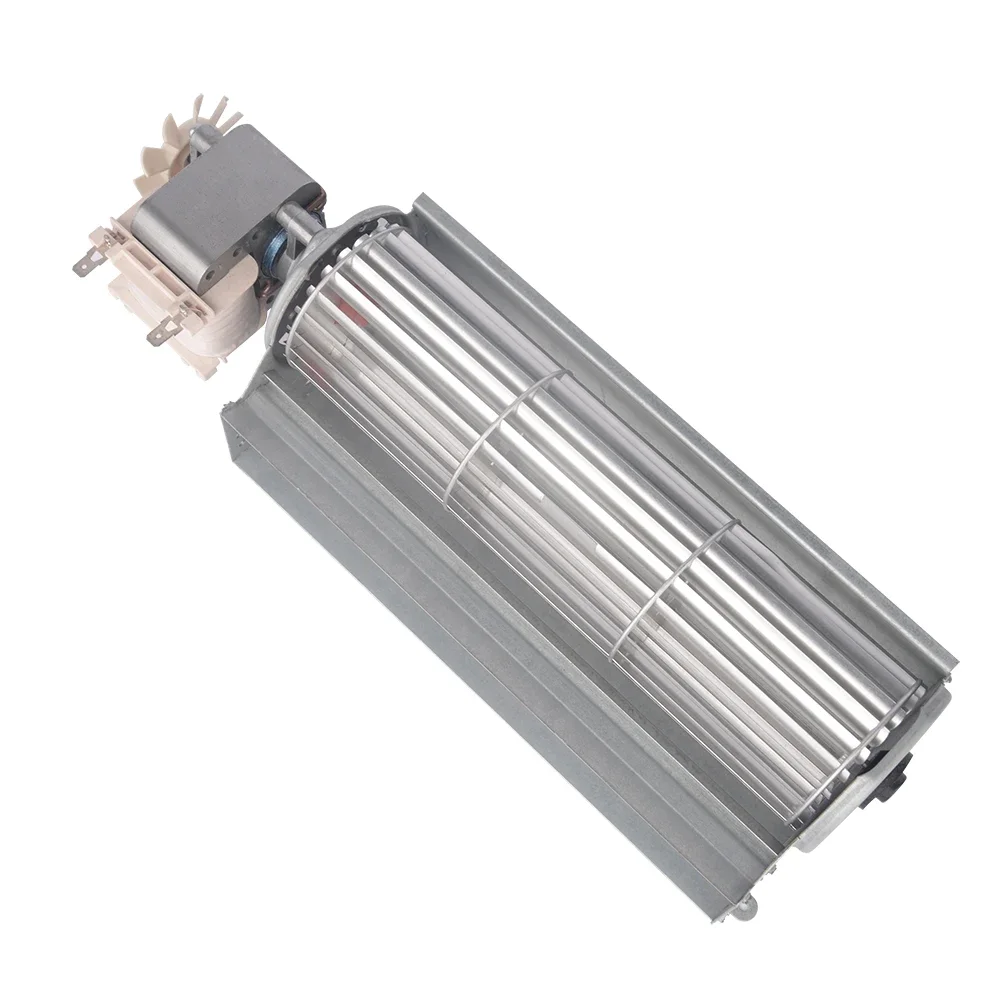

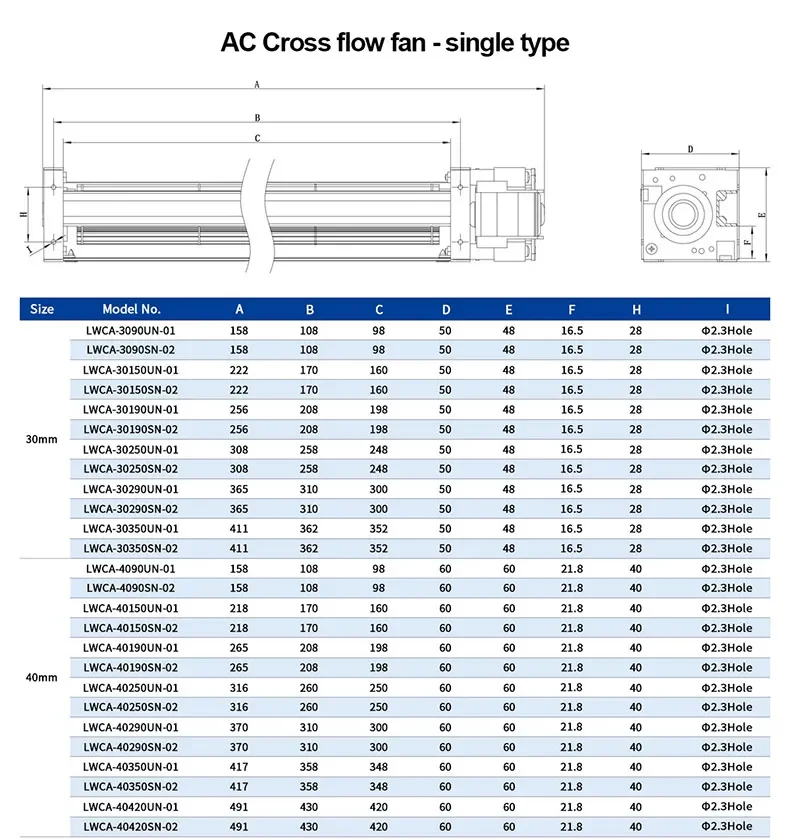

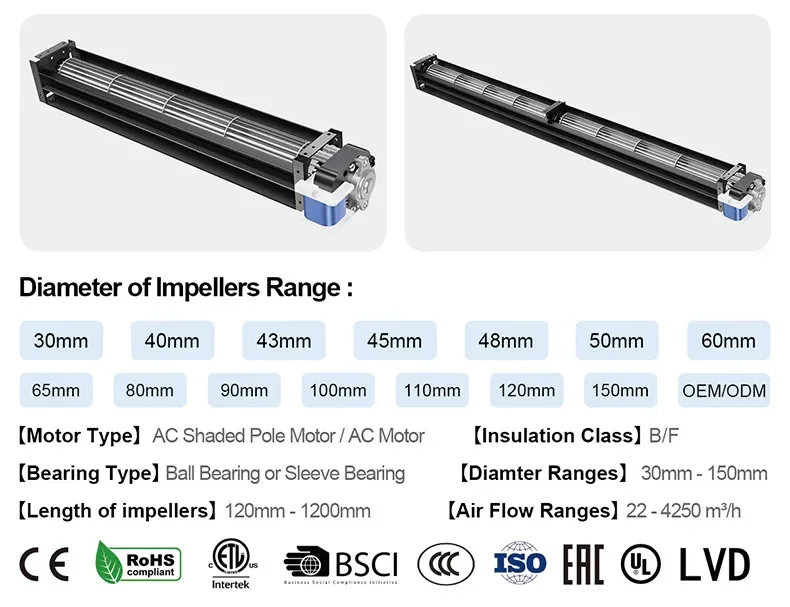

AC Cross Flow Fan – Single
Diameter of lmpeller : 30,40,43,45,50.60,80,90,100.110,120.150mm
Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)
Motor Type: AC Shaded Pole MotorSpeed Range : Up to 3000 RPM
AC Cross Flow Fan – Double
Diameter of lmpeller : 30,40,43,45.5060,80,90,100,110,120,150mm
Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)
Motor Type: AC Shaded Pole MotorSpeed Range : Up to 3000 RPM
AC Cross Flow Fan
Diameter of Impeller : 30,40,43,45,5060,80,90,100,110,120,150mm
Materials : Galvanized Metal(HousingAluminum Alloy(Blades)
Motor Type: AC Shaded Pole MotorSpeed Range : Up to 3000 RPM
EC Cross Flow Fan
Diameter of impeller : 80,90,100,110.120,150mm
Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)
Motor Type: EC Motor Speed Range : Up to 1500 RPM
EC Cross Flow Fan
Diameter of lmpeller : 80,90,100,110,120.150mm Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)
Motor Type: EC Motor
Speed Range : Up to 1500 RPM

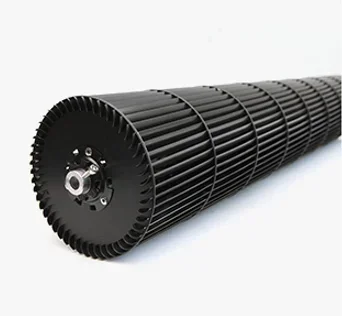

Cross Flow lmpellers
Diameter(lmpeller):30-200mm Materials : Aluminum Alloy High Strength design with Dust& water Proof
Top 10 reasons why customers choose LONGWELL:
1. （1）high efficiency（2）long life span （3）compact design which can replace EBM fans lEHL-ABEGG fan directly
2.LONGWELL is a professional manufacturer which is the specialist in HVACR fans, motor and components for the applications of
airconditioner, air ex-changer, coolers, heaters, floor convectors, sterilization purifier, air purifiers, medical purifiers,
andventilation ,energy industry, 5G cabinet…
airconditioner, air ex-changer, coolers, heaters, floor convectors, sterilization purifier, air purifiers, medical purifiers,
andventilation ,energy industry, 5G cabinet…
3.We have many authoritative international certifications .
4.Have professional sales team more than 200 person, Set up sites in many countries around the world，to help you solve the problem
any time !
5.LONGWELL Promise will never release unqualified products !
6.Rich experience in different fields and word’s most comprehensive fan soluions
7.Quality is life ! with strict quality control system,supervise the whole process from raw materials, production, quality
inspection, packaging and delivery!
8.Born for High-Quality Breathing, LONGWELL Fans Power Your Equipment
9.LONGWELL have own delivery department, make sure fast delivery and regular feedback of production progress !
10.Professional after-sales team provides 24-hour online service !
4.Have professional sales team more than 200 person, Set up sites in many countries around the world，to help you solve the problem
any time !
5.LONGWELL Promise will never release unqualified products !
6.Rich experience in different fields and word’s most comprehensive fan soluions
7.Quality is life ! with strict quality control system,supervise the whole process from raw materials, production, quality
inspection, packaging and delivery!
8.Born for High-Quality Breathing, LONGWELL Fans Power Your Equipment
9.LONGWELL have own delivery department, make sure fast delivery and regular feedback of production progress !
10.Professional after-sales team provides 24-hour online service !
Company Profile
Certifications

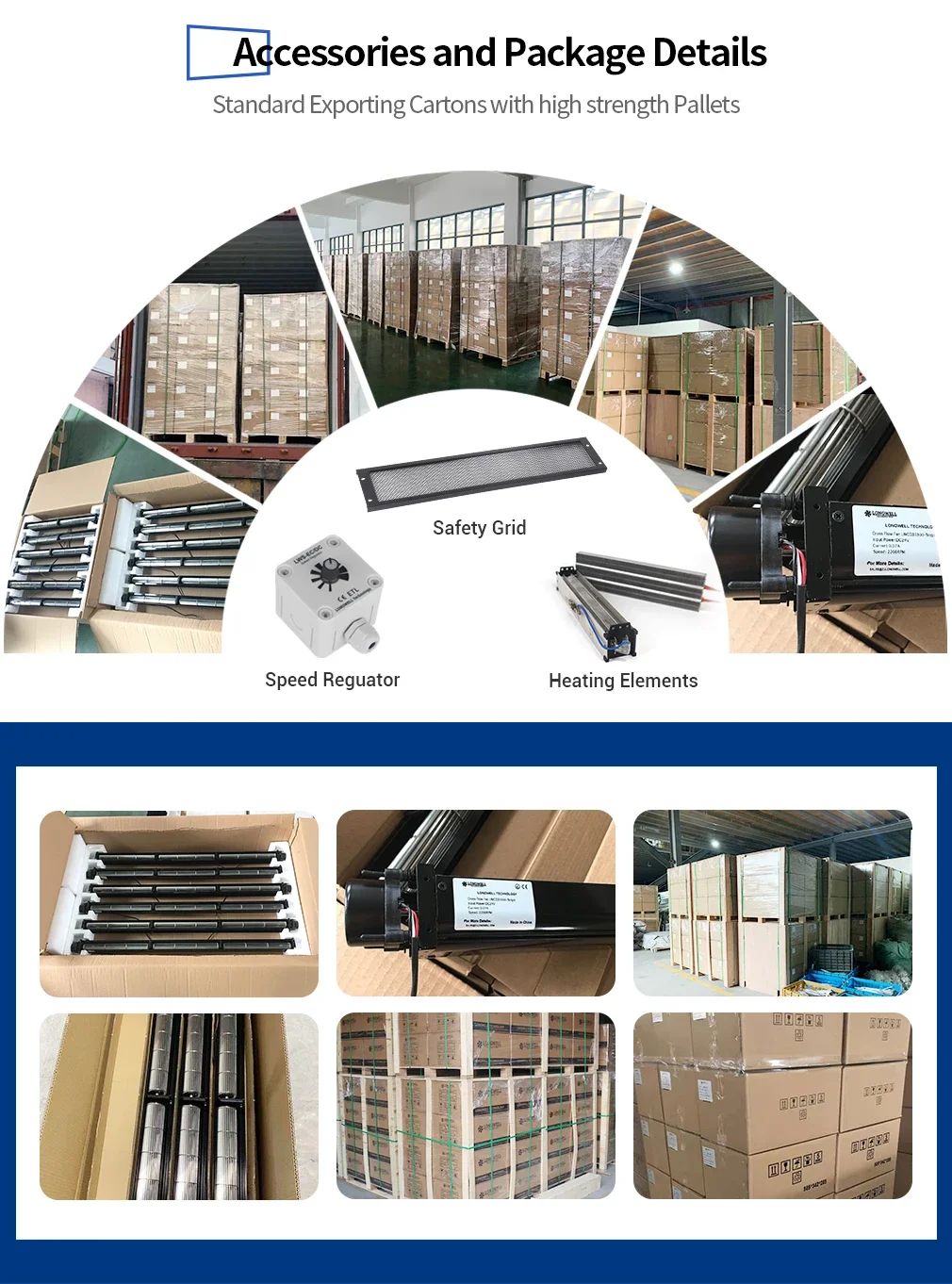

Delivery and Packaging
