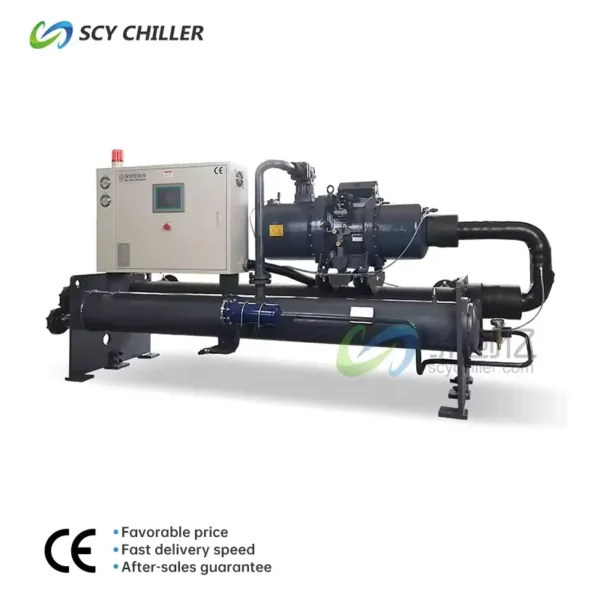

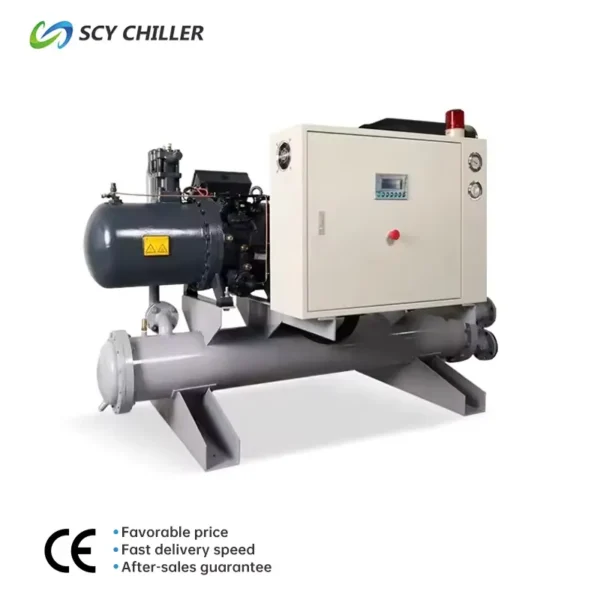

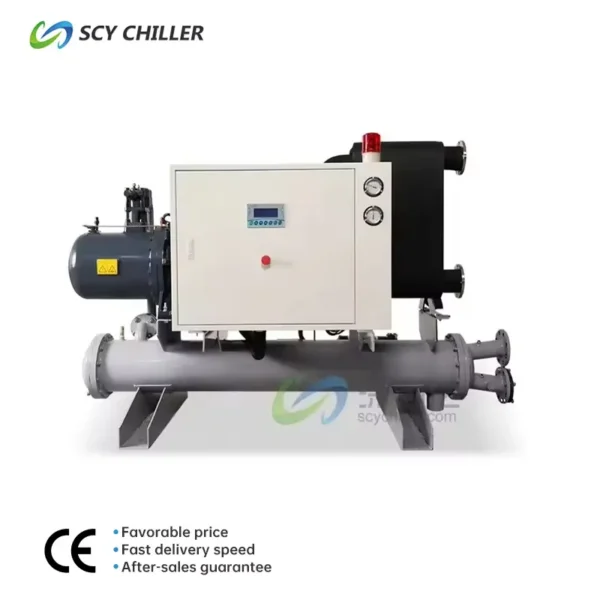

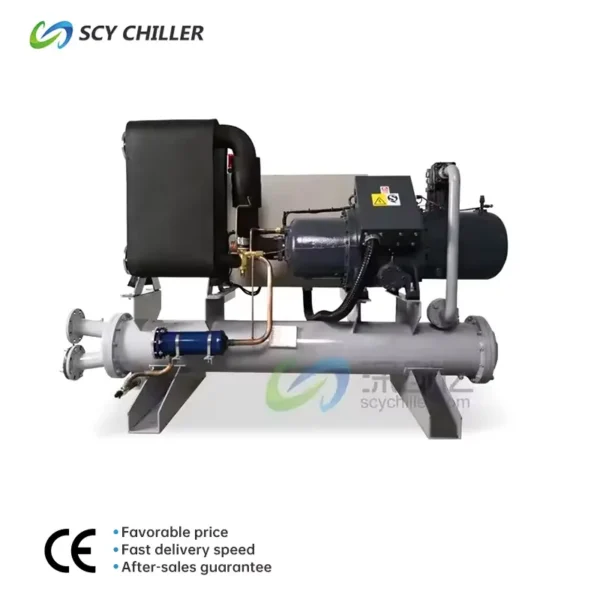

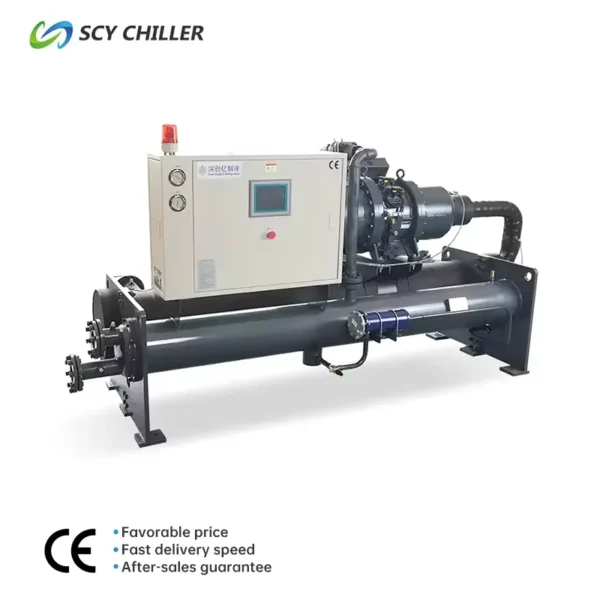

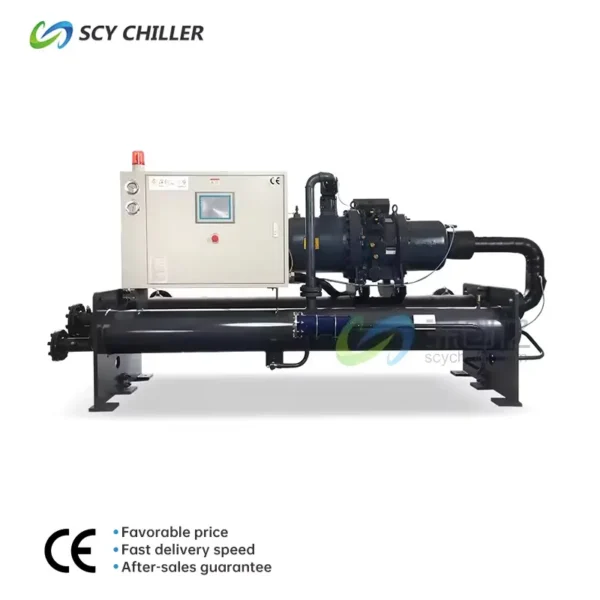

Key specification for this low temperature ghycol chiller: voltage 3PH-50Hz-380v, 244.1KW, 267.3KW, 318KW. Everything below is reproduced from the factory data sheet. Made by ShenChuangYi Refrigeration Co., Ltd. (6 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Low Temperature Ghycol Chiller
- Model Number: SCY-Low temperature Screw Chiller
- Power: 244.1KW, 267.3KW, 318KW
- Compressor Power: 76.5KW
- Voltage: 3PH-50Hz-380v
- Refrigerant: R134a/R407c
- Refrigerant Filling Volume(Kg): 62
Technical Specifications
| Voltage | 3PH-50Hz-380v |
|---|---|
| Power | 244.1KW, 267.3KW, 318KW |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly |
| Core Components | Evaporator |
| Model Number | SCY-Low temperature Screw Chiller |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2380 |
| Brand Name | SCY |
| Dimension(L*W*H) | 3050*1060*1700mm |
| Working Temperature Range | -5-30 |
| Name | Low Temperature Circulating Chiller |
| Refrigerant | R134a/R407c |
| Type | Semi-hermetic Screw |
| Quantity(Pcs) | 1 |
| Volume Control(%) | 0,33,66,100 OR 0,25,50,100 |
| Compressor Power | 76.5KW |
| Refrigerating Oil Filling Volume(L) | 18 |
| Refrigerant Filling Volume(Kg) | 62 |
| Cooling Water Flow | 82m³/h |
| Freeze Water Flow | 53m³/h |
| Selling Units | Single item |
| Single Package Size | 305X106X170 cm |
| Single Gross Weight | 2380.0 kg |
Product Details
Introduction
Compressors
Model | SCY-120WL | SCY-130WL | SCY-150WL | ||||
Power supply | 3-50Hz-380v( 220V/400V/460V) | ||||||
Cooling capacity | kw | 244.1 | 267.3 | 318 | |||
TONS | 69.41 | 76 | 90.42 | ||||
Kcal/h | 209930 | 229880 | 273480 | ||||
Running current | A | 131.3 | 148.2 | 172 | |||
Power consumption | kw | 76.5 | 86.6 | 66.8 | |||
Freeze water flow | m³/h | 53 | 58 | 65 | |||
Cooling water flow | m³/h | 82 | 89 | 98 | |||
Compressor | Type | Semi-hermetic Screw | |||||
Start method | Y-△ start | ||||||
Quantity(pcs) | 1 | ||||||
Volume control(%) | 0,33,66,100 OR 0,25,50,100 | ||||||
Input power(kw) | 76.5 | 86.8 | 100.8 | ||||
Refrigerating oil | Type | SUNISO-4GS | |||||
Filling volume(L) | 18 | 18 | 23 | ||||
Refrigerant | Type | R22, R134a, R407c | |||||
Control method | External balanced thermostatic expansion valve | ||||||
Filling volume(kg) | 62 | 66 | 75 | ||||
Evaporator | Type | Shell and tube | |||||
Pipe diameter(in) | 5” | 5” | |||||
Condenser | Type | Shell and tube | |||||
Pipe diameter(in) | 5” | 5” | |||||
Safty protector | Pressure protection, overload protection, anti-freeze protection, delay protection, over-temperature protection, water flow protection | ||||||
Dimension | Length(mm) | 3050 | 3150 | 3150 | |||
Width(mm) | 1060 | 1060 | 1060 | ||||
Heiht(mm) | 1700 | 1700 | 1700 | ||||
Weight(kg) | 2380 | 2520 | 2670 | ||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this low temperature ghycol chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the low temperature ghycol chiller be supplied for my local voltage?
The standard configuration is 3PH-50Hz-380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ShenChuangYi Refrigeration Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ShenChuangYi Refrigeration Co., Ltd. range on HVACR Nexus.
