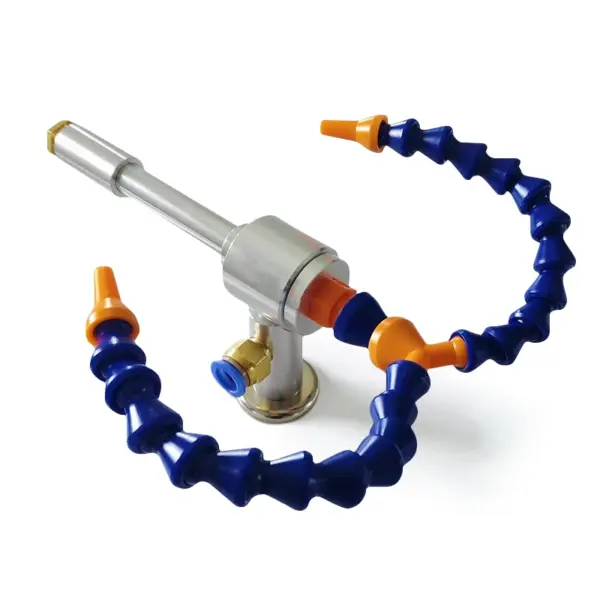

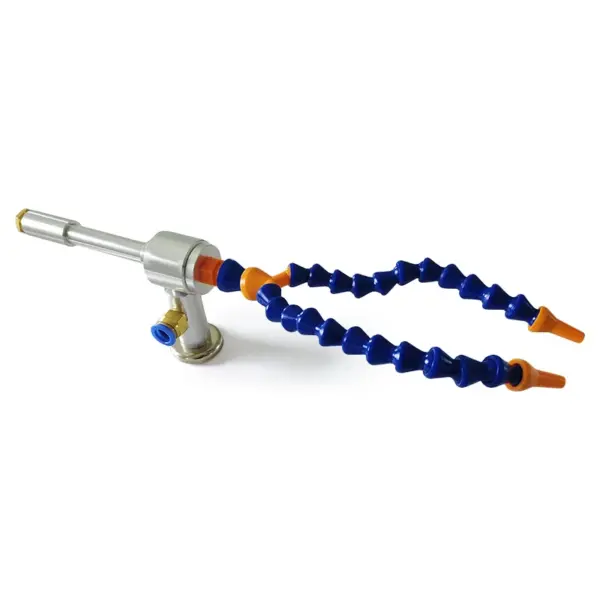

Machine Tool Instant Cooling Vortex Tube Cold air Gun Dry Cooler for Laser Cutting

$190.00

& Free Shipping

Category: Dry Cooler Brand: Dongguan Jieming Electric Tech Co., Ltd.

Guaranteed Safe Checkout

Product Description

Factory supply Vortex Tube cooling gun cold air pipe compressed air cooling system

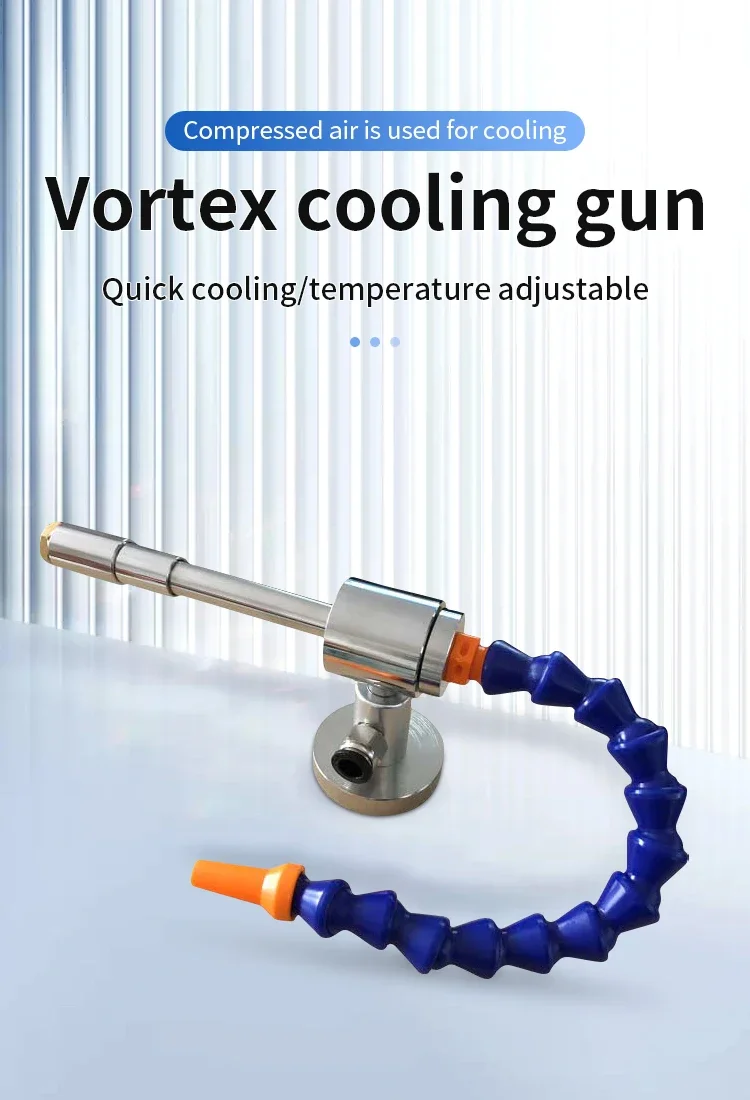

Cold air gun introduction

Cold air gun is also known as vortex tube cooling gun, cold air pipe, vortex tube cold air gun, local cooler, dry cooler, etc.

Cold air gun is a cooling equipment suitable for factory application.The cooling range of the cooling gun is to reduce the
compressed air temperature of 140°F (77°C) to 75°F (41°C).Because the compressed air temperature is close to the ambient temperature, it can reduce the compressed air with an ambient temperature of 75° F to a cooling airflow of 0°F (-18°C).

How does Cold Air Gun Work

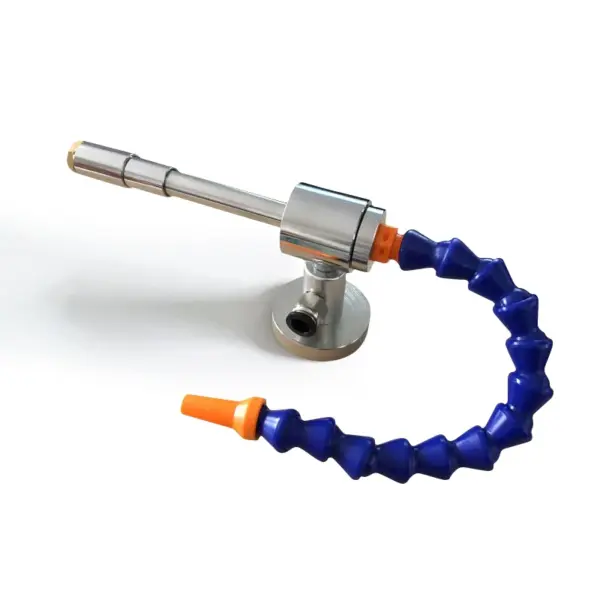

The vortex tube cooling gun uses the vortex tube to turn the ordinary compressed air into hot and cold low pressure airflow.The hot air flow is emitted through the rejector,the part is discharged from the hot air outlet, and the cold air flow is discharged from the universal hose. The soft pipe is directly pointed to the part to be cooled, and the heating parts are cooled immediately.Cooling gun belt-a magnetic base, very easy to install, and very lightweight.

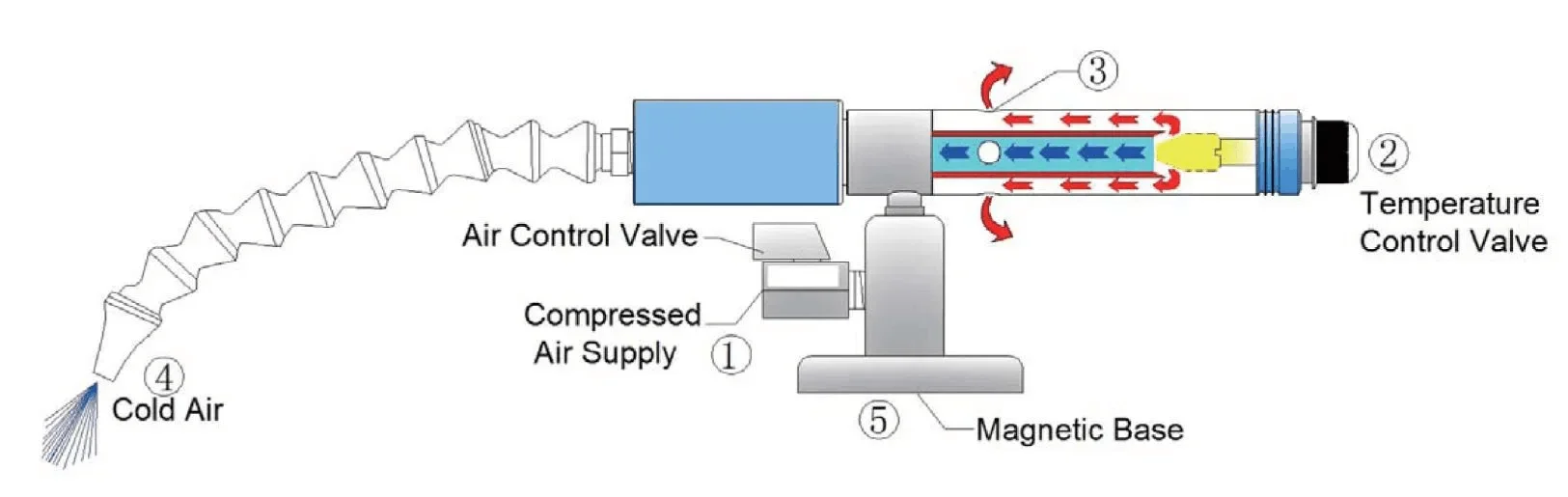

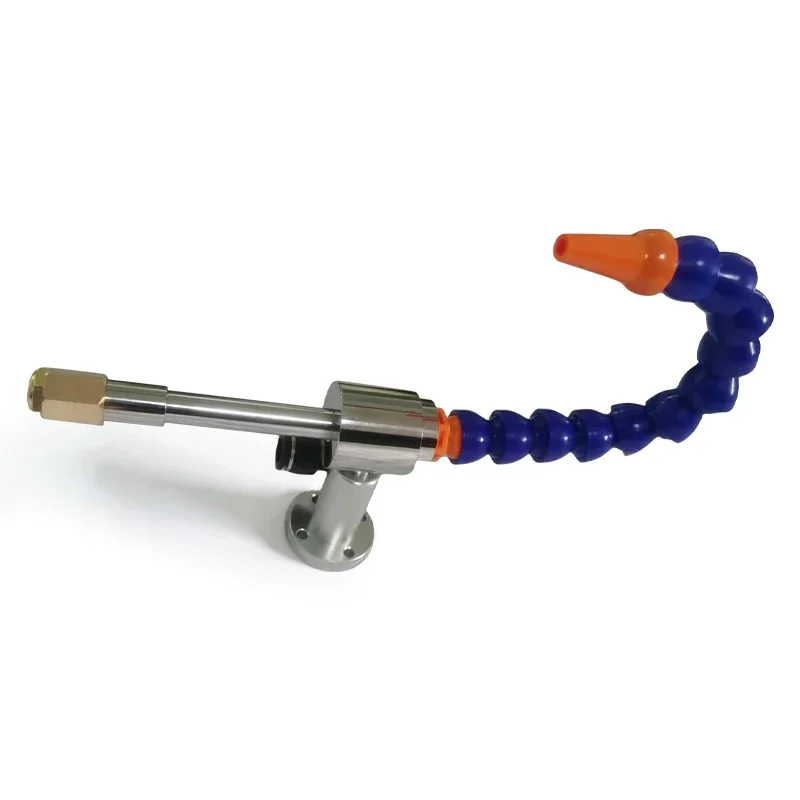

Working principle

Compressed air into adjustable cold gun(1), one hot and one cold.

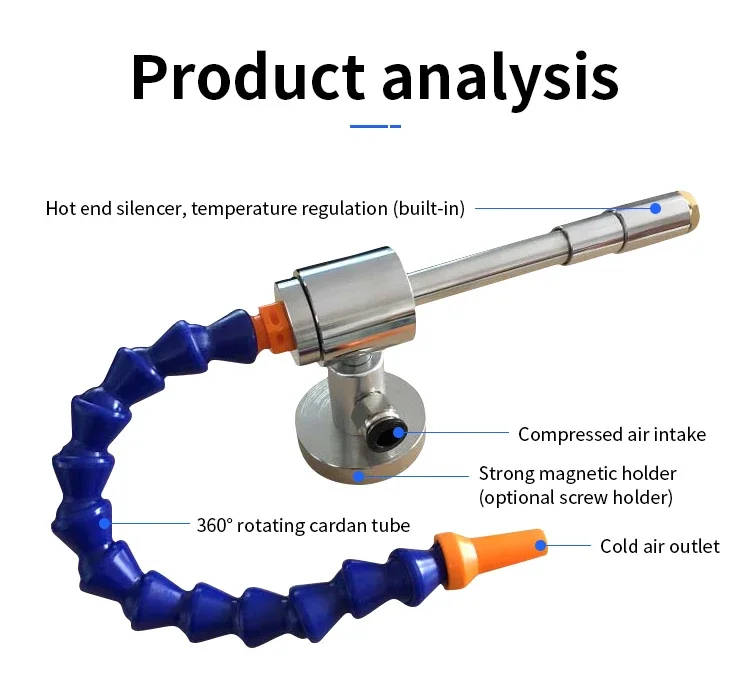

With the turn of a knob, the temperature control valve(2) allows some hot air to flow through a muffing sleeve and out the hot air exhaust(3).The cold air is muffled and discharged through the flexible hose(4), which directs it to the point of use.Easy mounting and portability are provided through the use of an attached magnetic base(5).

The advantage of cold air gun

♦Stainless steel structure, not affected by the harsh environment,the surface of the cooling gun does not produce dents or corrosion and rust

♦Low temperature, low cost, long life, low noise

♦Dry cutting reliable solutions

♦No active parts, no maintenance without refrigerant, no electricity, pollution-free

♦Reduce the deformation of the parts during processing to ensure the size accuracy

♦More easy to remove debris, to ensure the work piece surface precision

♦Light weight, equipped with magnetic base easy to operate

Specification

model	Air Consumption m³/min	Air Pressure Bar	Cooling Capacity (Btu/hr)	Noise dBa
JMET-C015	0.43	6.9	1050	50
JMET-C025	0.71	6.9	1730	52
JMET-C030	0.85	6.9	2100	54
JMET-C040	1.13	6.9	2900	56

Operation instruction

1.Connect the cooling gun to the magnetic base.

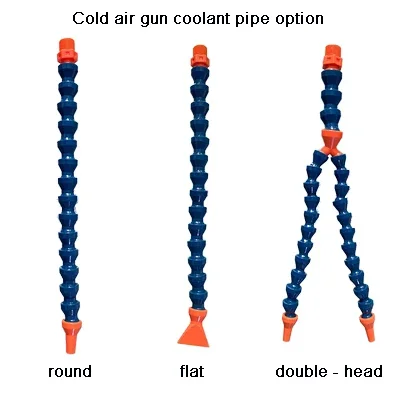

2.The cold air outlet is connected to tens of universal coolant pipe.
3. Compressed air supply is connected to the air inlet and the air pressure is 6.9 kg.
4. Control the opening and stop of the cooling gun through the ball valve switch on the magnetic base.

Failed to achieve the cooling effect and the solution

Reason:

1. The compressed air intake pressure does not meet the requirements, and the flow rate is not enough.(The standard pressure of the cooling gun is 6.9Bar), leading to the poor cooling effect.

2. The diameter of pipe of compressed air is not required enough or air leakage occurs during assembly.

3. Compressed air is not clean, containing moisture, oil pollution and impurities (air is not filtered).

Solution:

1. Increase the compressed air pressure and flow rate

2. Compressed air intake adopts a pipe diameter between 10mm and 16mm.

3. Check the pipeline for air leakage and ensure the sealing between the components.

4. Compressed air must use an air filter to ensure that the air is a dry and clean air.

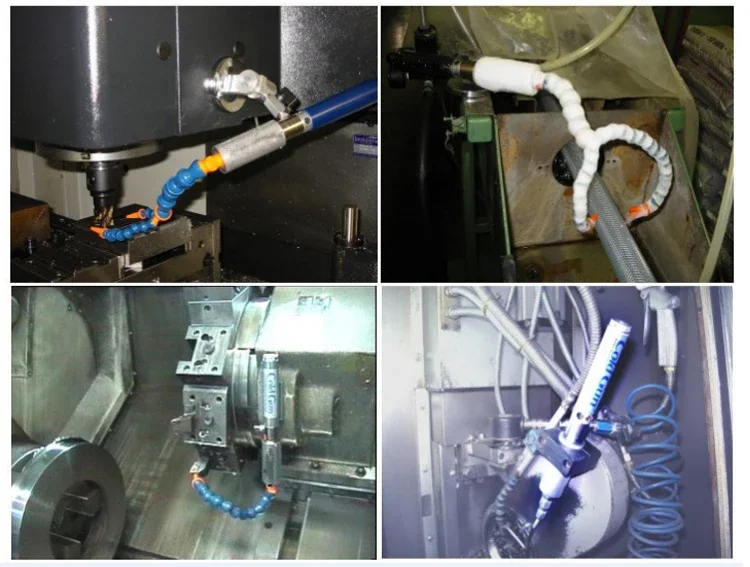

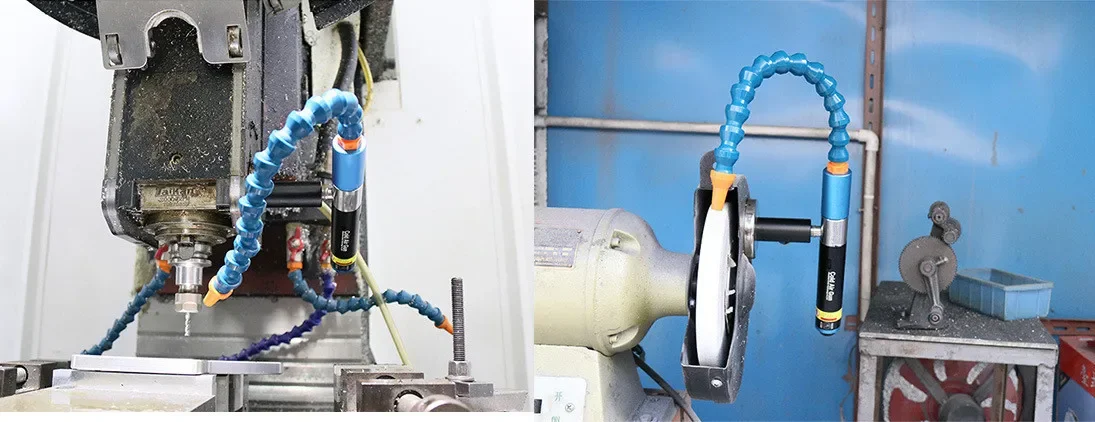

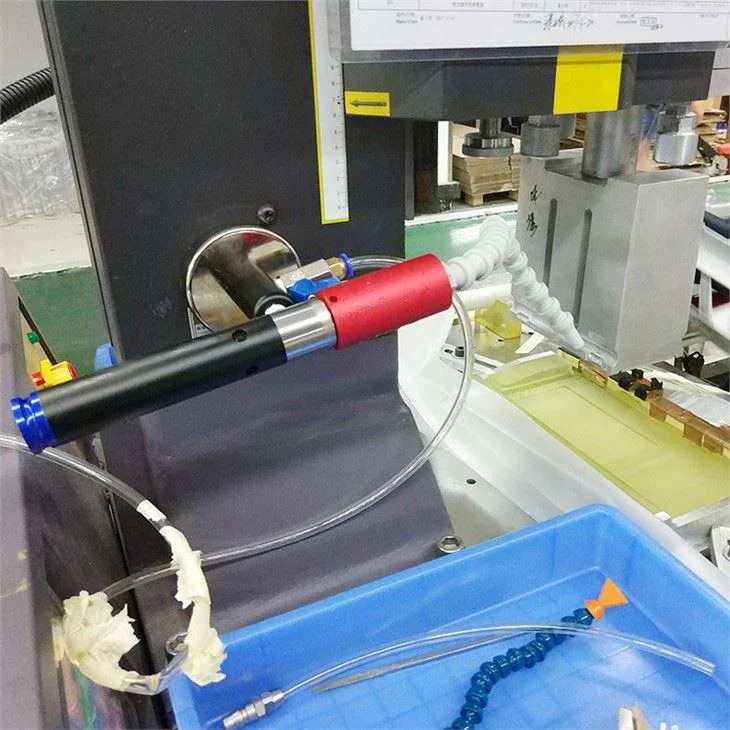

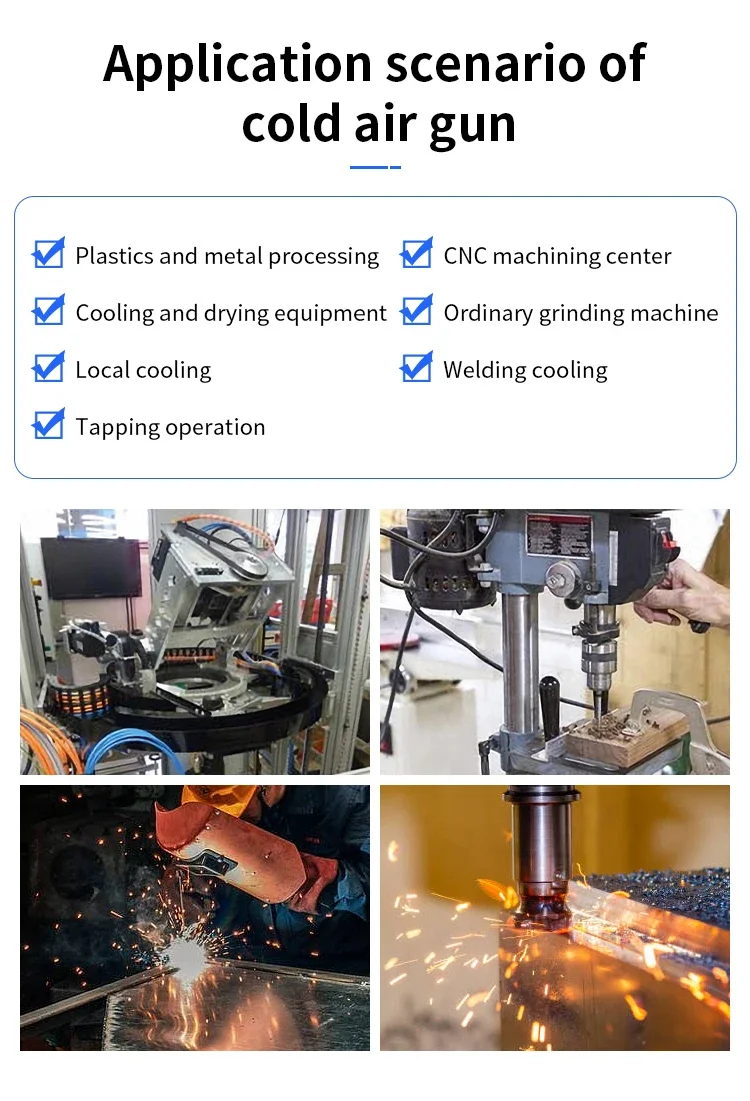

Application Display

♦For the metal working, composites, plastics, rubber, and wood processing industries

♦Milling,,Drilling, Routing and Surface Grinding

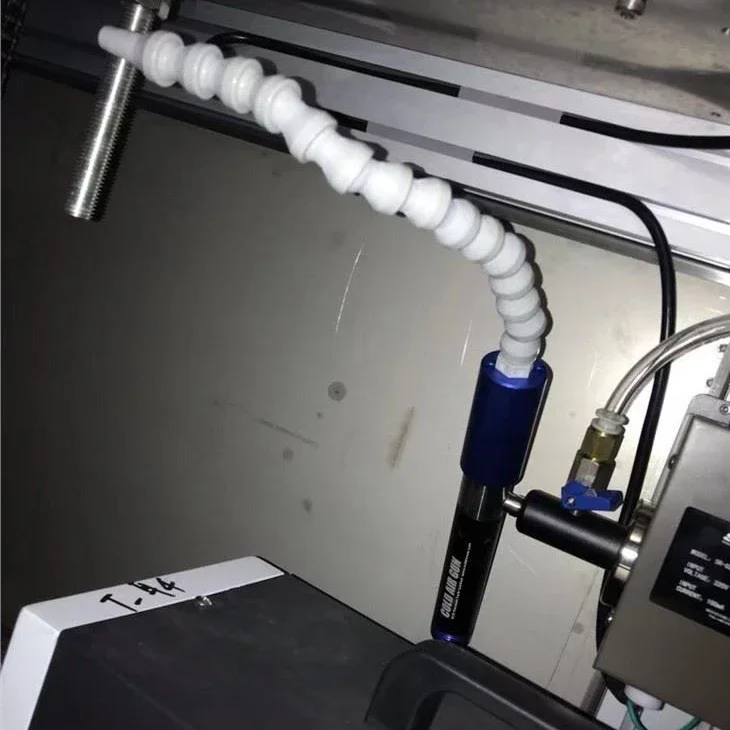

♦Laser Cutting,CNC routers

♦Band Saw Blade Cooling,Chill Roll Nip Cooling

♦Spot cooling of parts, molds and assemblies

♦Industrial sewing and textiles

♦Hot Melt Adhesives

♦Electronic components, circuit boards, and temperature regulators for cooling heat detection

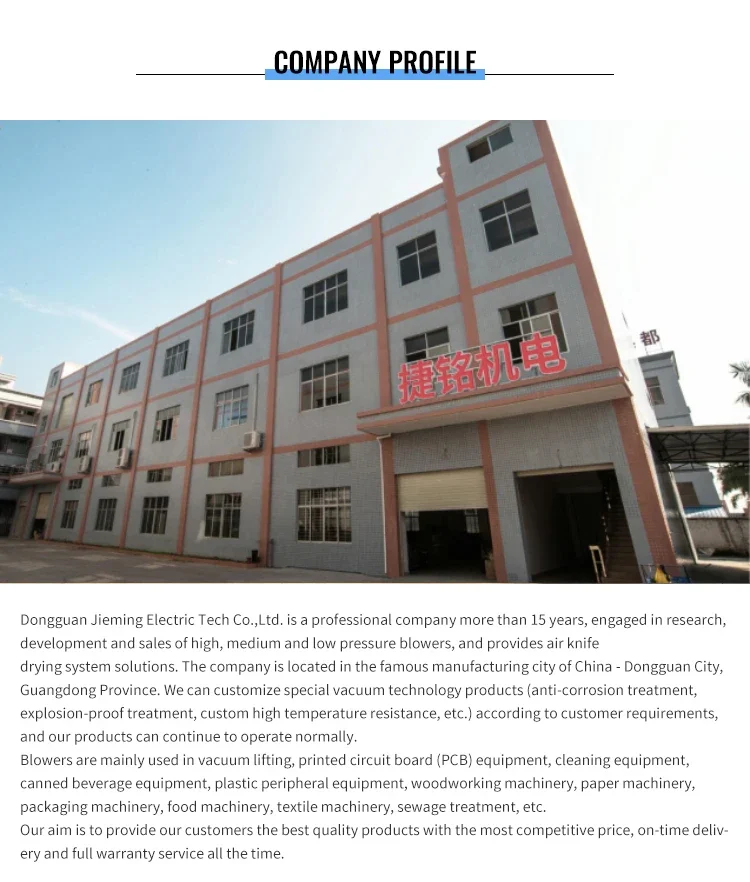

Our Company

Dongguan Jieming Electric Tech Co.,Ltd.

Establish in July 2002,Factory space 9000m2.
Dia casting machine,CNC machining equipment, automatic wire winding machine,electric test machine,rotor balancing
machining machine,impeller balancing testing and machining machine.
Professional R&D , Technicists and management.Quality First,Customer first.
CCC,CE,Energy and environment protection Certificate.

Our Service

Jieming export service:

♦12 months warranty and long-term marketing, after-sale support.
♦Professional engineer will help to recommend the most suitable models after studying customers’ requirements,
and customize solution for any of your special applications Such as ATEX, gas tight,special voltage special design etc
OEM service available.
♦Clear pictures, curves and dimensions are ready for your website development.
♦24 hours service online,you can touch us by email, skype , wechat , what’s app,telephone ,QQ etc
♦7 days delivery time and safe shipment
♦Best prices and best quality always.
♦Customer first service first,Quality first..

Packing & Delivery

Jieming Export Delivery terms:

♦CIF by sea or air freight terms
♦FOB terms SHENZHEN/GUANGZHOU and other sea port is ok
♦EX-WORK TERMS
♦DDP/DDU
♦DHL fast delivery shipping door to door
♦Other delivery terms are negotiable.
♦Best package suitable for export shipping request.
♦Air shipping Fob shen zhen , guangzhou ,shanghai condition.
♦Other shipping method based on customers’ request.

FAQ

1. What is the warranty of your machine?
R: 12 months, any product itself question,you can contact with us.

2. What is the material of your cold air gun
R: Our cold air gun is stainless steel structure

3. How to operate your machine?
R: Plese see above Operation instruction.

4. You are trading company or manufacture?
R: We are manufacture, we can provide long-term supply with fast speed.

5. How to contact with you?
R: You can send messages to me directly by alibaba trade manager, or add me as above contact.

place of origin	Guangdong, China
warranty	1 Year
Weight (KG)	1
Brand Name	JMET
video outgoing-inspection	Provided
core components	Vortex Tube

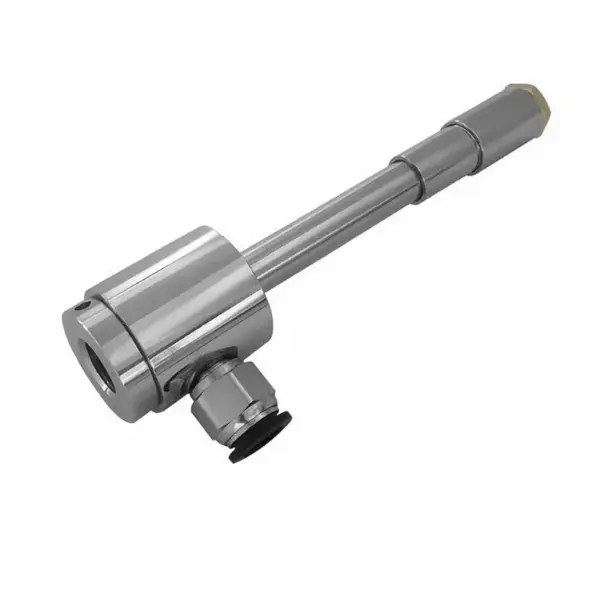

Tube Material	Stainless Steel Body
Type	Vortex Tube Cold Air Gun
Application	Process Cooling
Cooling Capacity	1050-2900BTU/h
Air Consumption	15-40/SCFM
Muffler Port	3/8"BSPT
Selling Units	Single item
Single package size	29X8X8 cm
Single gross weight	1.000 kg
