This mini air cooling fan is published with the manufacturer’s full specification — rated voltage DC 12V/14V, 5V, power source Electric. Made by Shenzhen Topfan Technology Development Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Mini Air Cooling Fan
- Model Number: MX4010GBU5
- Power Source: Electric
- Rated Voltage: DC 12V/14V, 5V
- Material: Plastic
- Blade Material: Plastic
- Speed: 4000-14000RPM
Technical Specifications
| Application | Fan Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | DC 12V/14V, 5V |
| Electric Current Type | DC |
| Motor Type | DC Motor |
| Speed | 4000-14000RPM |
| Material | Plastic |
| Blade Material | Plastic |
| Pressure | High Pressure |
| Warranty | 1 years |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | TOPFAN |
| Model Number | MX4010GBU5 |
| Product Name | CPAP fan |
| Size | 40* 10mm |
| Bearing Type | Ball Bearing |
| Color | Black |
| Certification | CE ROHS |
| Usage | Blowing Air |
| Motor | Brushless DC Motor |
| Keyword | Large Air Flow Cooling Fan |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 0.500 kg |
Product Details

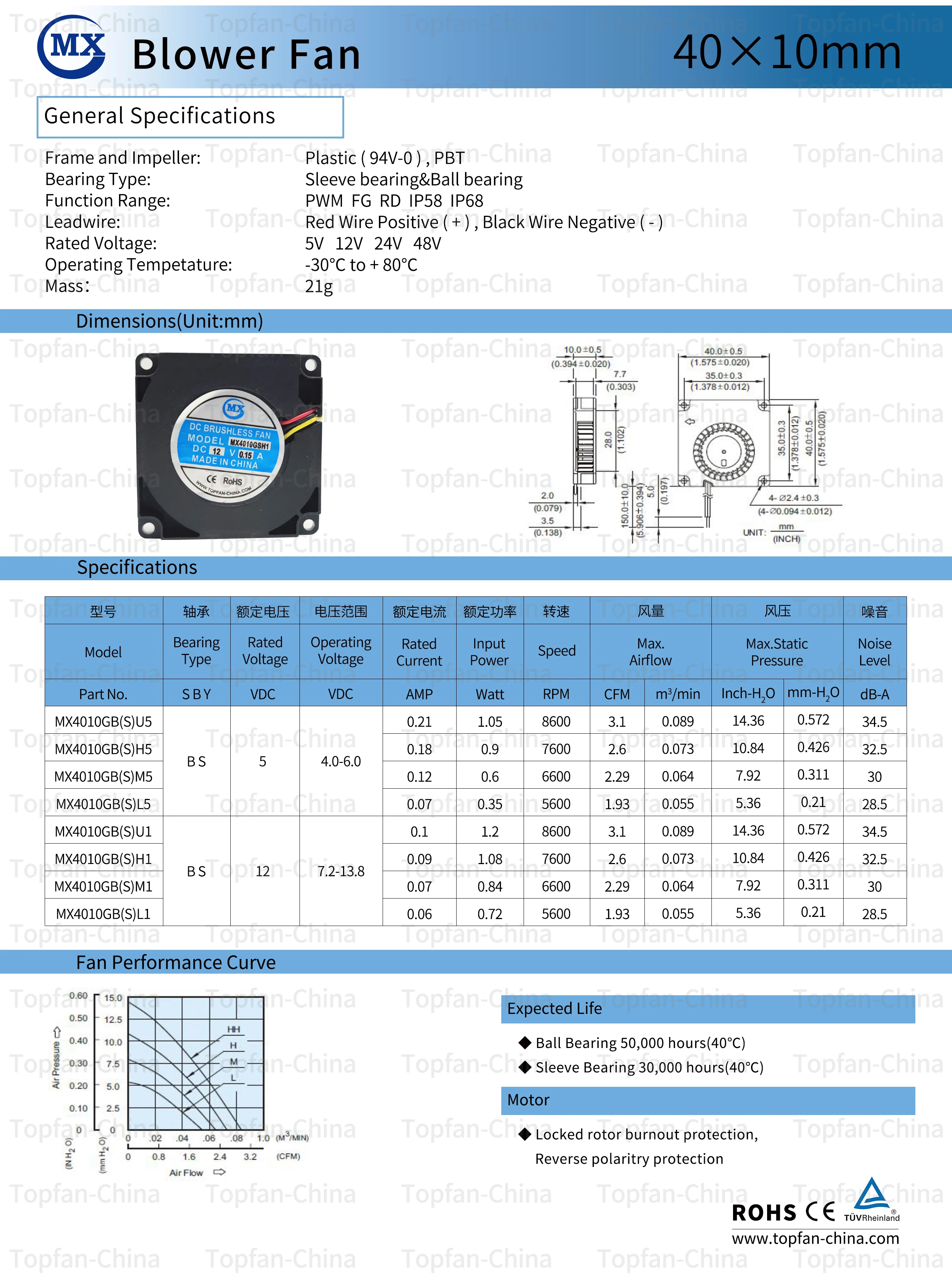

Model | Bearing Type | Rated Volt | Operating Volt | Rated Current | Input Power | Speed | Max. Airflow | Max. Static Pressure | Noise Level | ||||||||
Part No. | S B Y | VDC | VDC | AMP | Watt | RPM | CFM | Inch-H₂O | dB-A | ||||||||
MX4010GB(S)U5 | BS | 5 | 4.0-6.0 | 0.21 | 1.05 | 8500 | 3.1 | 14.36 | 34.5 | ||||||||
MX4010GB(S)H5 | BS | 5 | 4.0-6.0 | 0.18 | 0.9 | 7600 | 2.6 | 10.84 | 32.5 | ||||||||
More Models | Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. | ||||||||||||||||
Product Name | DC Blower Fan |
Brand | MX topfan/OEM/ODM |
Frame and Impeller | Plastic(94V-0)，PBT |
Bearing Type | Sleeve bearing&Ball Bearing |
Function Range | PWM FG RD IP58 IP68 |
Leadwire | Red Wire Positive(+)，Black Wire Negative(-) |
Rated Voltage | 5V 12V 24V 48V … |
Operating Tempetature | -30℃ to +80℃ |
Product Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–19999 piece: US $3.55 / piece
- 20000+ piece: US $2.39 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this mini air cooling fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this mini air cooling fan carry?
It is supplied with CE ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the mini air cooling fan be supplied for my local voltage?
The standard configuration is DC 12V/14V, 5V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Topfan Technology Development Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shenzhen Topfan Technology Development Co., Ltd. range on HVACR Nexus.
