Pmsm Motor, Ceiling, 380 V, Corded Electric

The pmsm motor listed here carries 380 V, 220 V, power source type Corded Electric, documented exactly as the manufacturer publishes it. Made by Zhejiang Bichen Environmental Technology Co., Ltd. (5 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Pmsm Motor

• Model Number: BC-D540YC73
• Power Source Type: Corded Electric
• Power: 2.2kw
• Voltage: 380 V, 220 V
• Material: Aluminum Alloy, Iron
• Blade Material: Aluminum Alloy

Technical Specifications

Product Details

Products Description

PERMANENT MAGNET LARGE FAN

01 / LARGE AIR VOLUME COVERAGE When running, reduce the resistance of electricenergy efficient conversion of air energy, for the downward transmission ofa large amount of air, so as to form a 1-3m airflow layer on the ground, in theopen field, the air coverage can reach 1000-1500 square meters.

02/PERSONNELCOOLING Super large energy-saving fan can produce a similar large area of naturalsoft air supply, three dimensional blowing of the human body from all sidespromote the evaporation of sweat to take away the body heat, and the humanbody feels the temperature drop 3-5°

03 / DEHUMIDIFICATION AND MOISTURE

RESISTANCE The use of industrial large fans can promotethe circulation of air, disperse the smoke and moisture in the air and quickly discharge the room to improve the indoor air quality. lt can also effectivelyprevent the problem of mold and achieve the effect of safe storage and protection of products.

Permanent magnet motor

●High torque permanent magnet synchronous motor, the motor is integrally installed on the axle to form an overall direct drive system, that is one axle is one drive unit to

maintenance-free.The tenslie strenght can reach 595MPa,and maintenance is not required.

Fan blade connection system

● Connecting the chassis and the fan blades, safety here is very important. Bichen uses the outer clip aviation hard aluminum material.Tested and certified by authoritative organizations. The ultra-high hardness ensures that the fan blade does not fall off when it
operates for a long time, ensuring the safety of the product.

Variable-frequency drive

● The integrated frequency conversion control system can effectively prevent the impact. And built-in overload and overcurrent protection, automatically cut off the power output in the event of an accident, improving the safety factor. The operation is simple, the control system only needs to turn the speed control button to meet the needs of different wind conditions, the protection of the inverter and the cooling fan is more reliable, the control box is safe, and the service life is longer.

WhatsAPP:+86 17785656995 Tel l :+86-578-2760959 E-mail:sales5@cnbichen.com

Address: No.6, Zone 3, Wanyang Zhongchuangcheng,Liandu District, Lishui City, Zhejiang Province, Chin

Product Paramenters

Technical parameter
Model	BC-D5-38YC61
The fan diameter	20ft/6.1m
Air volume	12200m³/min
Speed	60rpm
Fan blade number	5
Weight	108kg
Power	1.5kw
Voltage	380v/220v
Fan blade parameters
Material	6063-T6
Width	190mm
Thickness	2.0mm

Fitting parameters
Construction	Interpolation/Upper and lower bracket	Interpolation/Upper and lower bracket
Material	High strength alloy steel	High strength alloy steel
Tensile strenght	600MPa	600MPa

You can customize LED headlights

Customized LED lighting large ceiling fan to solve the workshop shadow, while with lighting and ventilation functions of
high-quality LED light source, brightness increase lighting stability.

WhatsAPP:+86 17785656995 Tel l :+86-578-2760959 E-mail:sales5@cnbichen.com

Address: No.6, Zone 3, Wanyang Zhongchuangcheng,Liandu District, Lishui City, Zhejiang Province, Chin

Company Profile

Zhejiang Bichen Environmental Technology Co., Ltd.

High starting point High technology

High quality High safety

Zhejiang Bichen Environment Technology Co.,Ltd is a modern enterprise thatintegrates research,development, production,and sales of ventilation andcooling equipment. With over a decade ofexperience, our company has beendedicated to the production and R&D of industrial fans. By combining industryventilation requirements with the characteristics of traditional ultra-high-power industrial fans,we have incorporated advanced technologies andprocesses to develop a new generation of PMSM ultra-large energy-savingfans.These cutting-edge products are considered the optimal choice forventilation and cooling in modern enterprises.Our company boasts an exceptional testing center, processing center.automatic production lines,and other state-of-the-art facilities.Several products from our portfolio have obtained various domestic authoritativeinspection certifications including lS09001 quality management systemcertification lS014001environmental system certification,CE certification.Additionally,we hold multiple patents for our innovative solutions.Our productsare exported to global markets as we strive to provide superior ventilationsolutions for users worldwide.

Equipment comparison

Type	Power（KW）	Quantity（set）	Costs（thousands/year）	Comparison of electricity charges10 years of electricity （thousands/year）	Comparison of electricity charges
Industrial ceiling fan	1.5	10	2.2	22	1.9％
General fan	0.3	200	9	90	7.7％
Water cooled air conditioning	1.5	70	15.7	157	14％
Center airconditioning	600	1	90	900	77％

WhatsAPP:+86 17785656995 Tel l :+86-578-2760959 E-mail:sales5@cnbichen.com

Address: No.6, Zone 3, Wanyang Zhongchuangcheng,Liandu District, Lishui City, Zhejiang Province, Chin

FEATURES AT A GLANCE

Extra large air volume coverage

In operation, the streamlined ultra-long fan blade made by the aerodynamic principle and advanced technology can transport a large amount of air flow outward and form a super-large range of air flow layer..

Title goes here.

Operation to produce full coverage of the full range of air supply function, large ceiling fan downward transport with a feeling similar to the natural wind. Large area blowing to every corner of the human body, a full range of three-dimensional blowing wind,so that the human body by the wind area to the maximum.

Aluminium alloy blade

●The enlarged alloy aluminum alloy fan blade is used, and the built-in reinforcing ribs are supported up and down to ensure the strength and hardness of the fan blade, and the safety factor is significant. The surface is oxidized.
●Fan leaves after complex oxidation and then paint secondary treatment (adhesion is 0), no cleaning, no deformation.

Title goes here.

● 1. Large indoor space, poor ventilation and poor air circulation 2. The environment is hot and uncomfortable, and employees are
in high mood 3. Traditional air conditioning costs a lot and consumes a lot of power 4. Adverse reactions caused by long-term air conditioning by personnel 5. Heat and humidity cause mildew of raw materials

Personnel to cool

When the fan is running, it can produce a large area of natural and soft air, blow the body three-dimensional in all directions,promote the evaporation of sweat to take away the body heat, and the human body feels the temperature to drop 3-5°

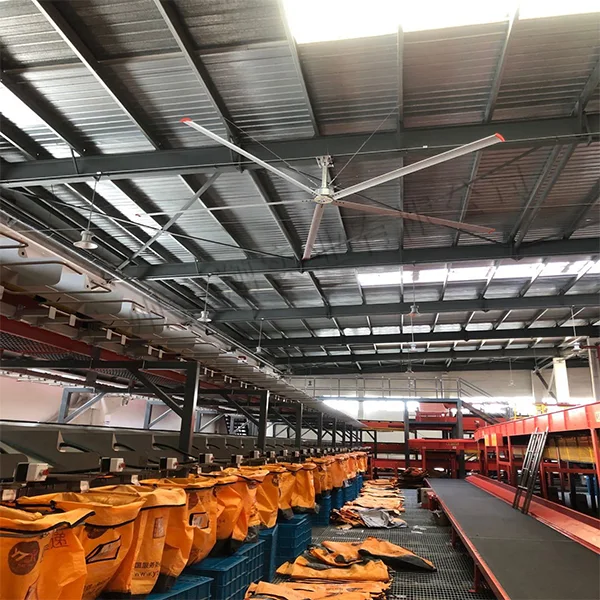

Doesn't take up interior space

Installed at the top of the room, will not occupy the indoor ground space, at the same time to avoid the use of traditional fans placed too much impact on the indoor appearance, wiring complex security risks, not only save space and achieve practical and beautiful.

Air flow diagram

◆Open indoor use promotes air renewal;

◆Enclosed indoor use to form air circulation circulation;

WhatsAPP:+86 17785656995 Tel l :+86-578-2760959 E-mail:sales5@cnbichen.com

Address: No.6, Zone 3, Wanyang Zhongchuangcheng,Liandu District, Lishui City, Zhejiang Province, Chin

Five Lines Of Security

Fan diagram

A： hanging board: install the hanging board to the top.

B ： Host: connect the host to the derrick and install it on the hanging board

C ： Wire rope: the fan four sides are fixed with wire rope.

D ： blades: install the blades on the main engine.Install upperarc plate。

E ： The tail fin is mounted on the wind blade.

Wire rope protection

Four steel wires will connect the main engine and the building, can make the fuselage run more stable, prevent the fuselage shake,
each pull stress strength up to 1000KG, 4 load-bearing pull protection of 4000KG.

Anti-shedding protection system

The top of the motor is designed to protect the shaft from falling off and prevent the fuselage from falling off in case of accidents to ensure the safety of the ceiling fan..

Fan blade protection device

Connect all blades to the main engine to form a whole. Keeping the blades in balance can also prevent individual blades from
falling off.

Aluminium alloy blade

6063 magnesium aluminum alloy material, thickness of 2.0mm at the same time built-in multiple reinforcement, with ultra-high headiness, to ensure that the fan blade will not fracture even if affected by external impact.

Abnormal warning system

Built-in protection system, frequency conversion system automatically alarm and stop operation when overvoltage, overvoltage, lack of equal accident.

WhatsAPP:+86 17785656995 Tel l :+86-578-2760959 E-mail:sales5@cnbichen.com

Address: No.6, Zone 3, Wanyang Zhongchuangcheng,Liandu District, Lishui City, Zhejiang Province, Chin

WhatsAPP:+86 17785656995 Tel l :+86-578-2760959 E-mail:sales5@cnbichen.com

Address: No.6, Zone 3, Wanyang Zhongchuangcheng,Liandu District, Lishui City, Zhejiang Province, Chin

WhatsAPP:+86 17785656995 Tel l :+86-578-2760959 E-mail:sales5@cnbichen.com

Address: No.6, Zone 3, Wanyang Zhongchuangcheng,Liandu District, Lishui City, Zhejiang Province, Chin

Packing & Delivery

WhatsAPP:+86 17785656995 Tel l :+86-578-2760959 E-mail:sales5@cnbichen.com

Address: No.6, Zone 3, Wanyang Zhongchuangcheng,Liandu District, Lishui City, Zhejiang Province, Chin

FAQ

1. Are you the factory?

Yeah, our factory in Zhejiang Province specializing in HVLS fans since from 2010, prices we offer are our

factory prices.

2. Can you do customize?
Yes, we can do OEM at MOQ requirement.

3.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

4.what services can we provide?
Accepted Delivery Terms: FOB,CIF,CNF,CFR,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese

5. where are we?
We are based in Zhejiang, China, start from 2018,sell to Domestic Market(60.00%),North America(10.00%),

Southeast Asia(10.00%), Mid East(10.00%),Eastern Asia(10.00%).

6. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

7. Are you a manufacturer or trading company?
We are manufacturer ,we have our own factory in Lishui,Zhejiang.

8. What's the payment term?
Usually we appreciate T/T 50% in advance, the balance shall be paid before delivery and Cash are accepted.

9.How about the Delivery time?
Lead time since receipt of 50% T/T deposit payment: 10 days. Samples will be prepared with in 2 Days.
Generally it is 3-7 days if the goods are in stock, or it is 8-15 days if the goods are not in stock, it is

according to quantity.

10. What is your quality control process?
All our goods will be inspected 4 times experiments Finished goods 100% inspected by QC staff. To meet

customer,we can produce qualified produce meet the requirement under CE, ISO,ROHS, etc.

11. Can your company handle shipping for customers?
Yes, just give us destination sea port or container yard. But the designated port is Ningbo Port

12. What's the MOQ?
Generally speaking, the MOQ is 1PCS, but we also can provide you samples for quality inspection.

13. What is your terms of delivery?
FOB 、CIF、CNF etc.

14. OEM is available?
Yes, we can do as our customer's requirement,

15. Do you charge for the sample?
According to the company policy, we will only charge the cost.

16. Can you tell me your main customers?
That's our customer's privacy, we should protect their information. At the same time, please rest assured

that your information is also safe here.We'll offer you the quotation as soon as poss.

Ordering and Pricing

• Minimum order quantity: 2 set
• Volume pricing:
  • 2+ set: US $1312 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this pmsm motor?

The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the pmsm motor be supplied for my local voltage?

The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Zhejiang Bichen Environmental Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Bichen Environmental Technology Co., Ltd. range on HVACR Nexus.
