The poultry farm exhaust fan listed here carries 380V/220V/Customized, power source Electric, documented exactly as the manufacturer publishes it. Made by Shandong Lianrun Machinery Co., Ltd. (5 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Poultry Farm Exhaust Fan

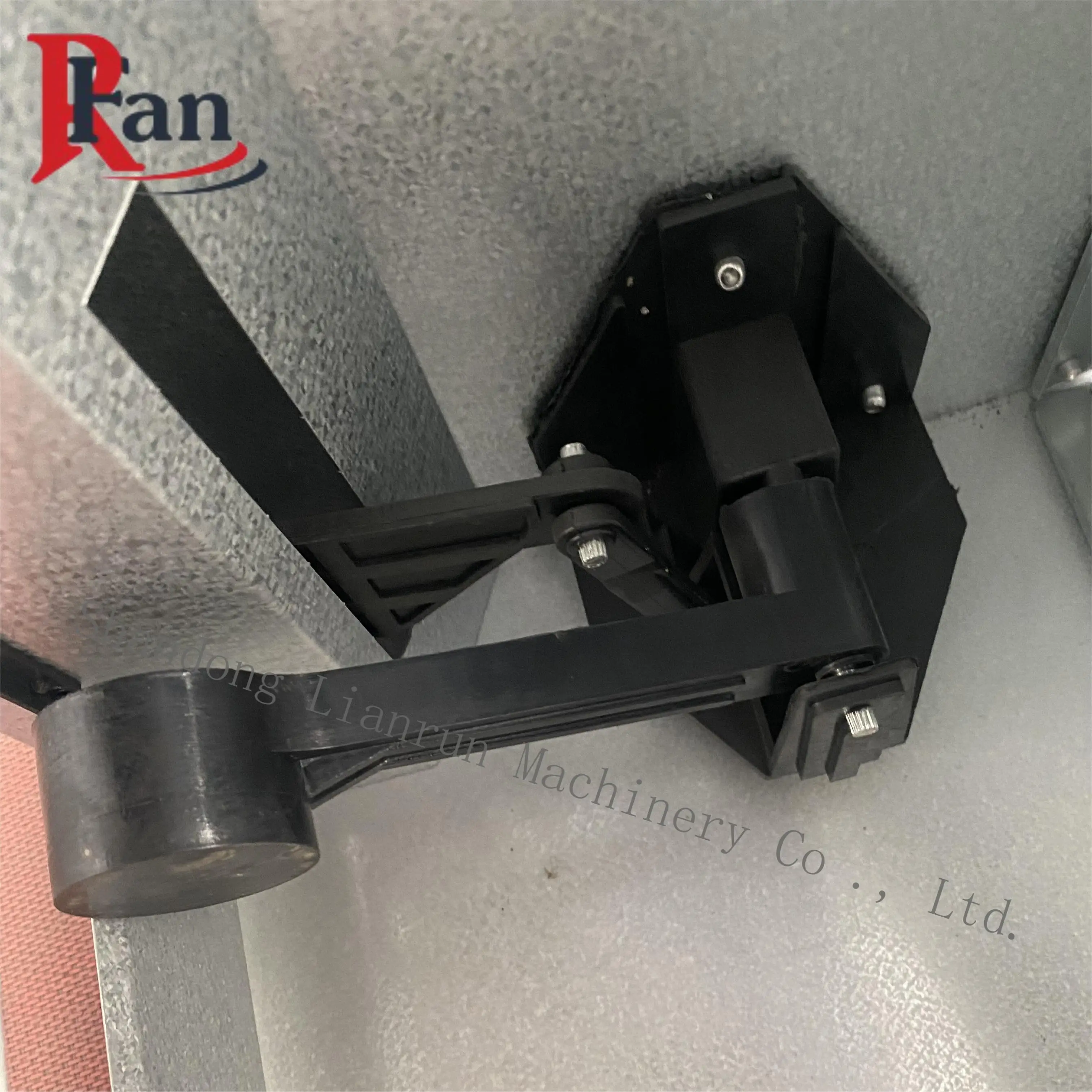

- Model Number: swung drop hammer exhaust fan
- Power Source: Electric
- Voltage: 380V/220V/Customized
- Blade Material: Stainless Steel/Nylon
- Frame Material: Stainless Steel/galvanized sheet/Aluminized zinc
- Warranty: 1 Year
Technical Specifications
| Voltage | 380V/220V/Customized |
|---|---|
| Type | exhaust fan |
| Blade Material | Stainless Steel/Nylon |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Shandong, China |
| Brand Name | Rfan |
| Model Number | swung drop hammer exhaust fan |
| Frame Material | Stainless Steel/galvanized sheet/Aluminized zinc |
| Motor | Siemens Motor/Chinese famous motor |
| Phase | 3 phase /single phase |

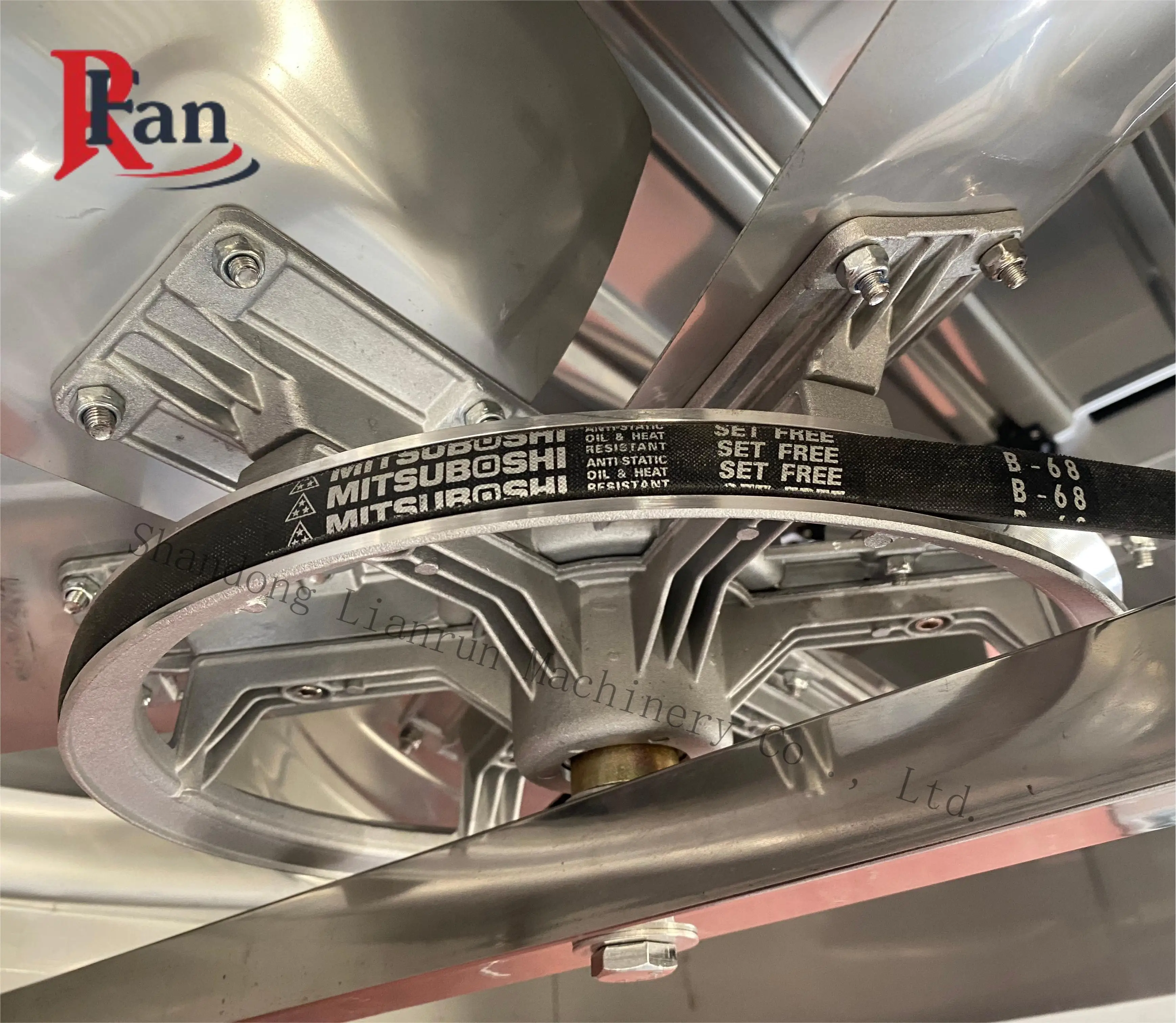

| Belt | Japanese Mitsuboshi brand |
| Frequency | 50HZ |
| Blades Diameter | 1400mm/1270mm/1100mm/1000mm/900mm etc. |

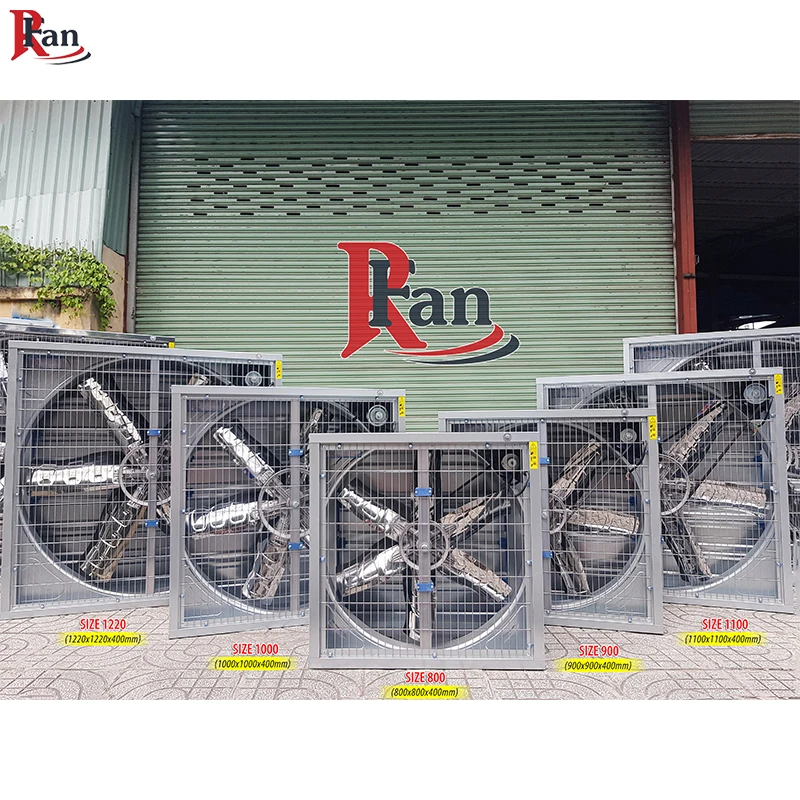

| Outline Size | 1530mm,1380mm,1220mm,1100mm,1000mm Customized |
| Applicable Industries | poultry house,greenhouse,industry,textile industry,ventilation,Farms |
| Selling Units | Single item |
| Single Package Size | 62X62X45 cm |
| Single Gross Weight | 28.000 kg |
Product Details
Model | Drive | Blades Diameter (mm) | Input Power (W) | Voltage | Motor Rotational Speed(rpm) | Air Flow (m³/h) | Noise (db) |
RF-600B | Direct | 450(18") | 370 | 380V/220V/50HZ | 1350 | 7380 | <60 |
RF-620B | Direct | 500(20") | 370 | 380V/220V/50HZ | 1350 | 9960 | <70 |
RF-800B | Belt | 710(28") | 370 | 380V/220V/50HZ | 1350 | 22000 | <60 |
RF-900B | Belt | 750(30") | 550 | 380V/220V/50HZ | 1400 | 28000 | <65 |
RF-1000B | Belt | 900(36") | 550 | 380V/220V/50HZ | 1400 | 30000 | <70 |
RF-1100B | Belt | 1000(40") | 750 | 380V/220V/50HZ | 1400 | 32500 | <70 |
RF-1220B | Belt | 1100(43") | 750 | 380V/220V/50HZ | 1400 | 38000 | <70 |
RF-1380B | Belt | 1250(50") | 1100 | 380V/220V/50HZ | 1400 | 44000 | <75 |
RF-1530B | Belt | 1400(55") | 1500 | 380V/220V/50HZ | 1400 | 55800 | <70 |
Model | Blades Rotational Speed (rpm) | Total pressure (Pa) | Height (mm) | width (mm) | Thickness (mm) |
RF-600B | 1350 | 60 | 600 | 600 | 370 |
RF-620B | 1350 | 60 | 620 | 620 | 370 |
RF-800B | 546 | 60 | 800 | 800 | 400 |
RF-900B | 566 | 65 | 900 | 900 | 400 |
RF-1000B | 566 | 62 | 1000 | 1000 | 400 |
RF-1100B | 488 | 70 | 1100 | 1100 | 400 |
RF-1220B | 395 | 73 | 1220 | 1220 | 400 |
RF-1380B | 418 | 56 | 1380 | 1380 | 400 |
RF-1530B | 418 | 60 | 1530 | 1530 | 400 |

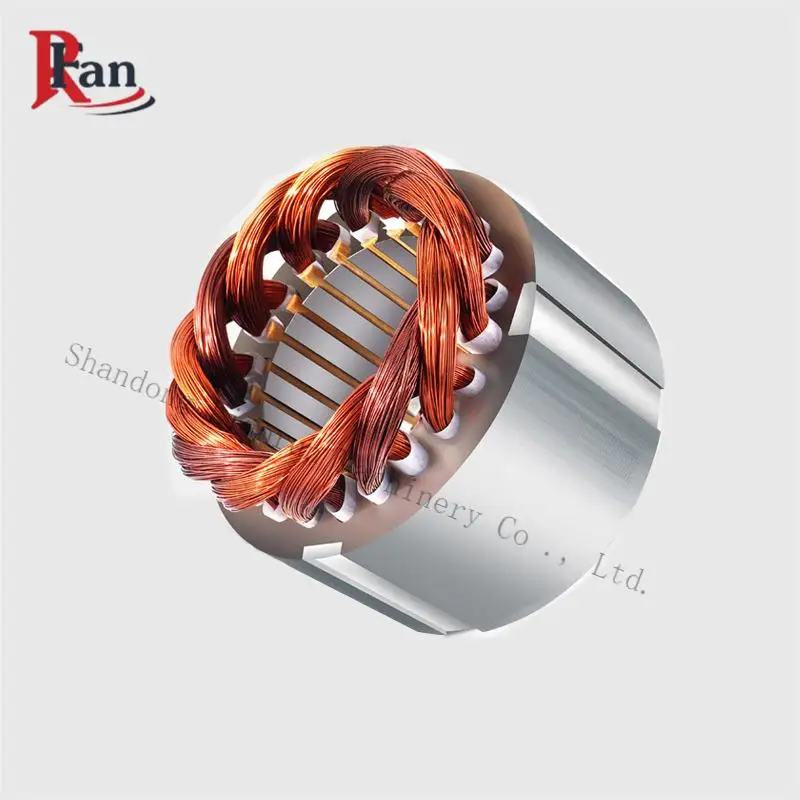

Chinese famous brand motor has open phase protection device,When the lack of power,can carry out their own power to control;Motor
protection grade IP55,insulation class:F.

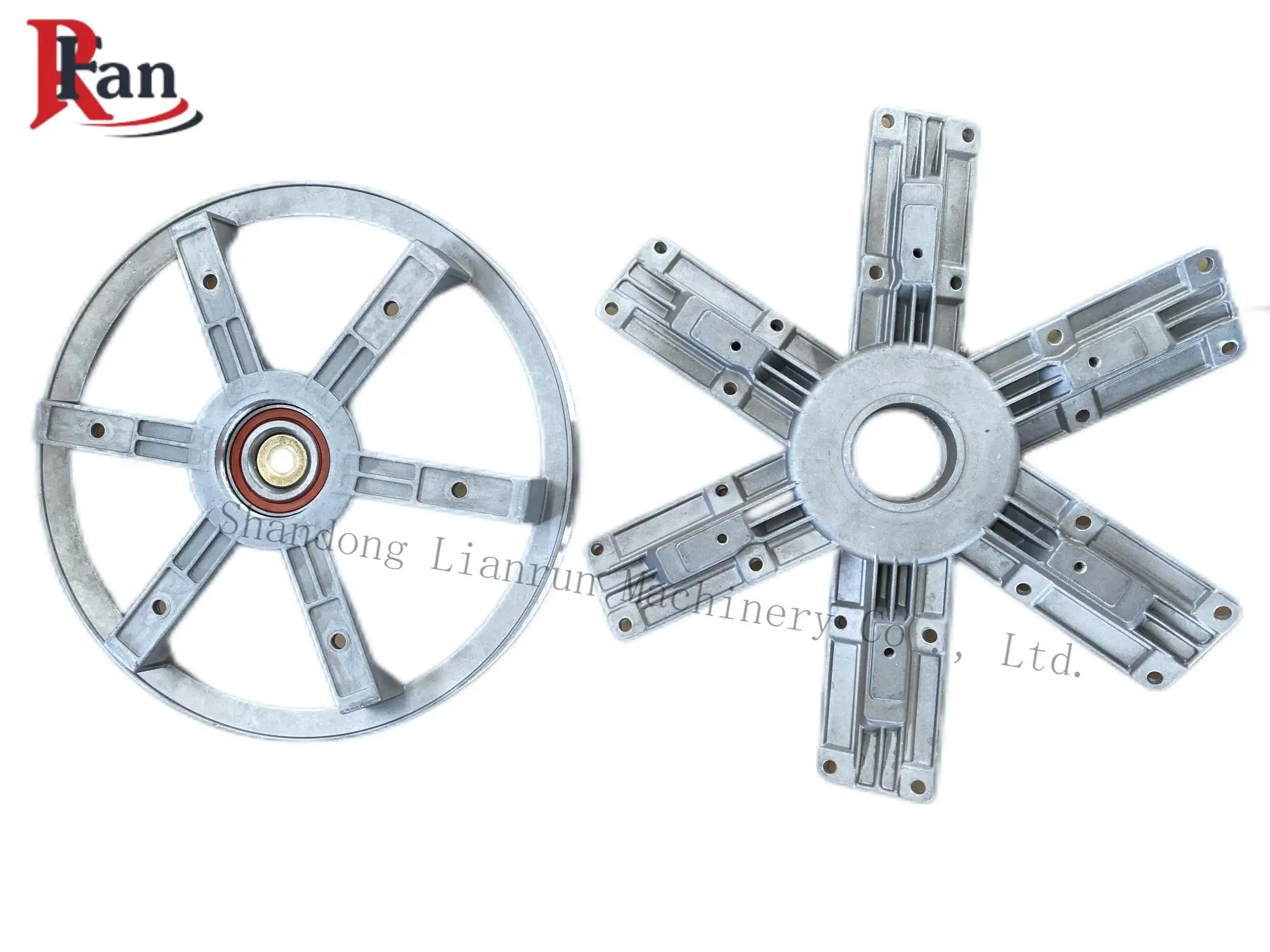

corrosion resistance. Special three reinforced ribs pulley design.Blast sanding treatment for attractive appearance,eliminate
internal stress to improve its own rigidity and stablity.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $99 / piece
- 100–299 piece: US $89 / piece
- 300+ piece: US $79 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this poultry farm exhaust fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the poultry farm exhaust fan be supplied for my local voltage?
The standard configuration is 380V/220V/Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Lianrun Machinery Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Lianrun Machinery Co., Ltd. range on HVACR Nexus.
