Key specification for this quick freezing small freezer: type Spiral Freezer. Everything below is reproduced from the factory data sheet. Made by Tianjin Sure International Trading Co., Ltd. (16 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Quick Freezing Small Freezer
- Power(W): customized
- Voltage: customized
- Cooling Capacity: Customized
- Capacity: customized
- Belt Material: Food Grade SUS304 Stainless Steel
- Warranty: 1 Year
Technical Specifications
| Type | Spiral Freezer |
|---|---|
| Voltage | customized |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Engine, Bearing, Gearbox, Motor, Gear |
| Key Selling Points | Competitive Price |
| Power(W) | customized |
| Place Of Origin | Tianjin, China |
| Cooling Capacity | Customized |
| Brand Name | SURE |
| Product Name | Spiral Freezer |
| Application | Food Quick Freezing |
| Function | IQF |
| Product Keywords | Cryogenic spiral freezers |
| Capacity | customized |
| Belt Material | Food Grade SUS304 Stainless Steel |
| Freezing Time | Adjusted |
| Advantage | Convenient Operation |
| Selling Units | Single item |
Product Details

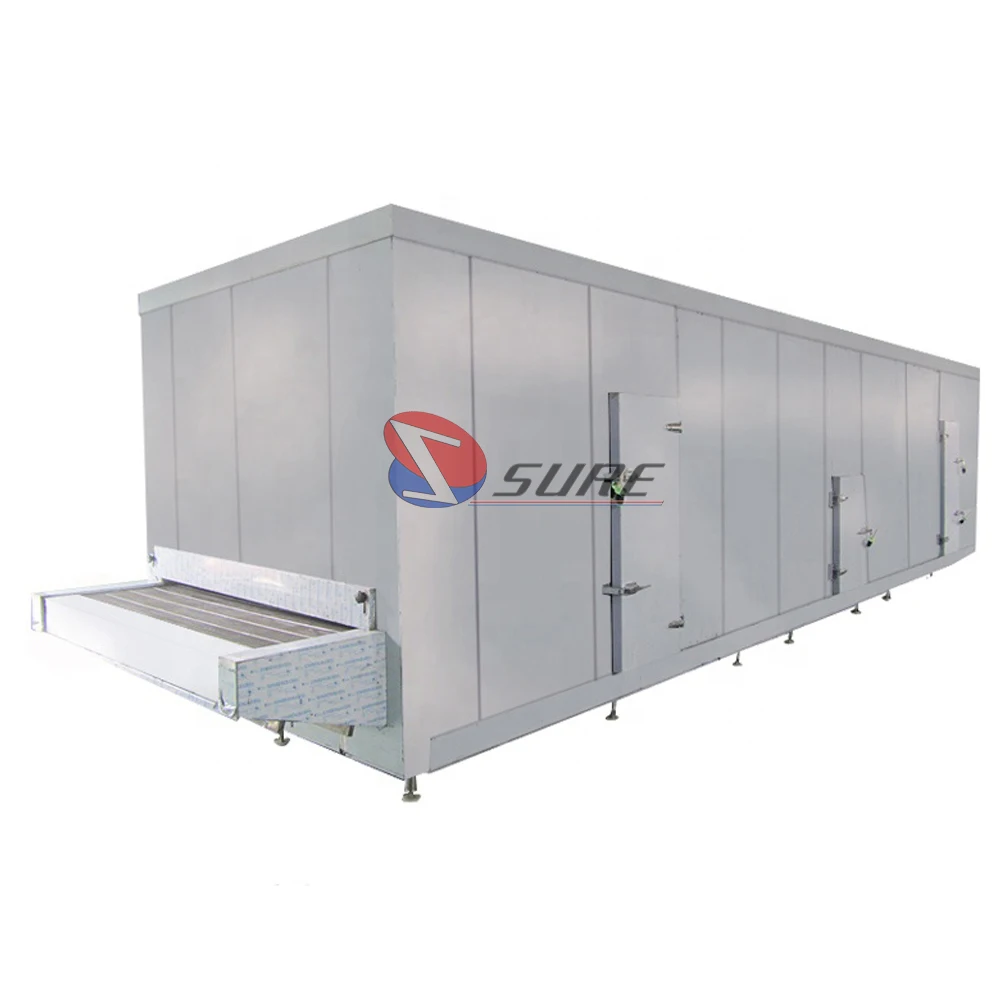

TUNNEL FREEZER
model | output | consunptioninstalled power | refrigeration power | dimension | belt width |
tf100 | 100kg/h | 2.25kw | 15kw | 7.4*1.5*2.2m | 1000mm |
tf150 | 150kg/h | 2.95kw | 21kw | 8.0*1.8*2.3m | 1300mm |
tf200 | 200kg/h | 4.5kw | 30kw | 10.2*1.8*2.3m | 1300mm |
tf300 | 300kg/h | 6.5kw | 43.5kw | 11.2*2.3*2.3m | 1800mm |
tf500 | 500kg/h | 10.3kw | 75kw | 13.5*3.0*2.5m | 2500mm |
tf1000 | 1000kg/h | 19.8kw | 142kw | 22.9*3.0*2.5m | 2500mm |
tf1500 | 1500kg/h | 28.6kw | 225kw | 26.4*3.5*2.5m | 3000mm |
(2) Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;
(5) Axial fans: stainless steel air box, aluminum blades;
(6) Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of
cabinet through stainless steel draining pipes;
2. Low operating cost through maximized cryogen efficiency.
3. Higher frozen product quality from a quicker freeze.
4. Reduced labor for cleaning and improved food safety through hygienic design.
5. Less product dehydration through reduced freezing time resulting in higher product yield
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $78900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this quick freezing small freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the quick freezing small freezer be supplied for my local voltage?
The standard configuration is customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tianjin Sure International Trading Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Tianjin Sure International Trading Co., Ltd. range on HVACR Nexus.
