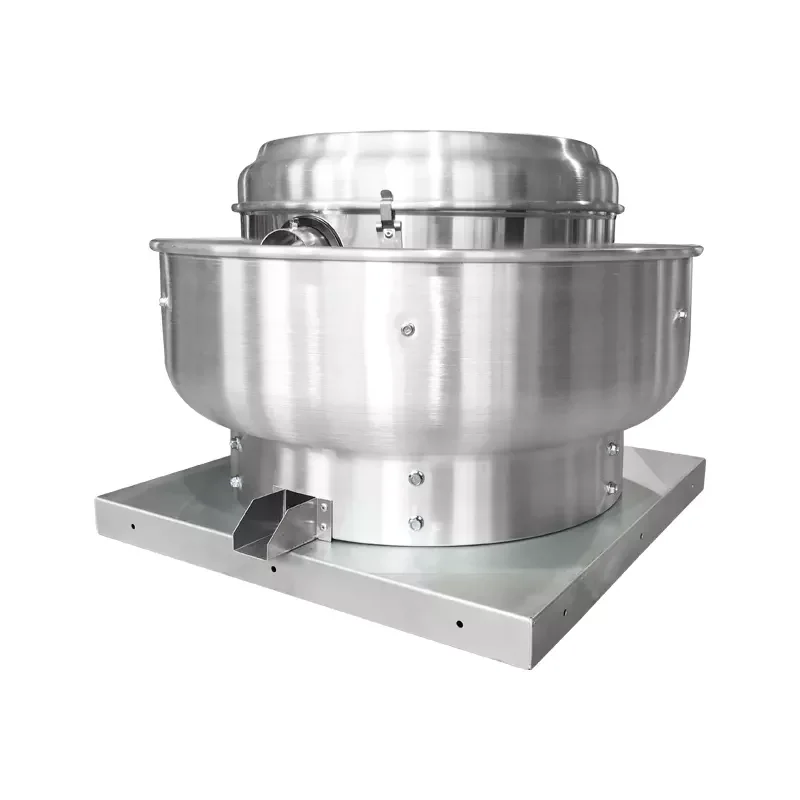

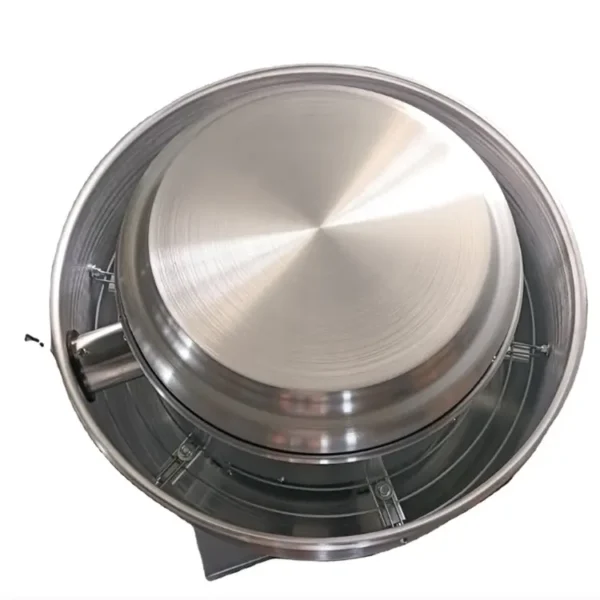

Rooftop Kitchen Smoke Extractor, 110, aluminum

Rooftop kitchen smoke extractor — rated voltage 110/120V 220/240V and other voltage, blade material aluminum. The complete factory specification follows. Made by Qingdao Damuyuan Machinery Manufacturing Co., Ltd. (4 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Rooftop Kitchen Smoke Extractor

• Model Number: 10 inch, 12 inch, 16 inch, 20 inch, 24 inch
• Voltage: Other, 120 V, 220v, 380v, 110v, 440v, 240v, custom
• Rated Voltage: 110/120V 220/240V and other voltage
• Blade Material: aluminum
• Material: Steel cases aluminum blades
• Warranty: 1 Year

Technical Specifications

Product Details

Product Description

Big size big volume exhaust fan axial fan

Product Introduction:

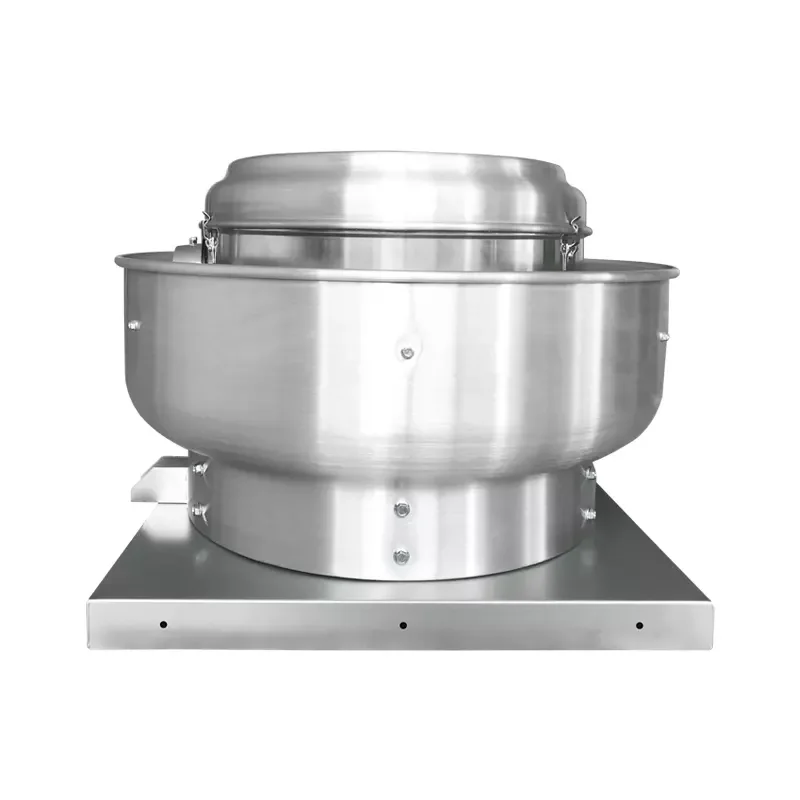

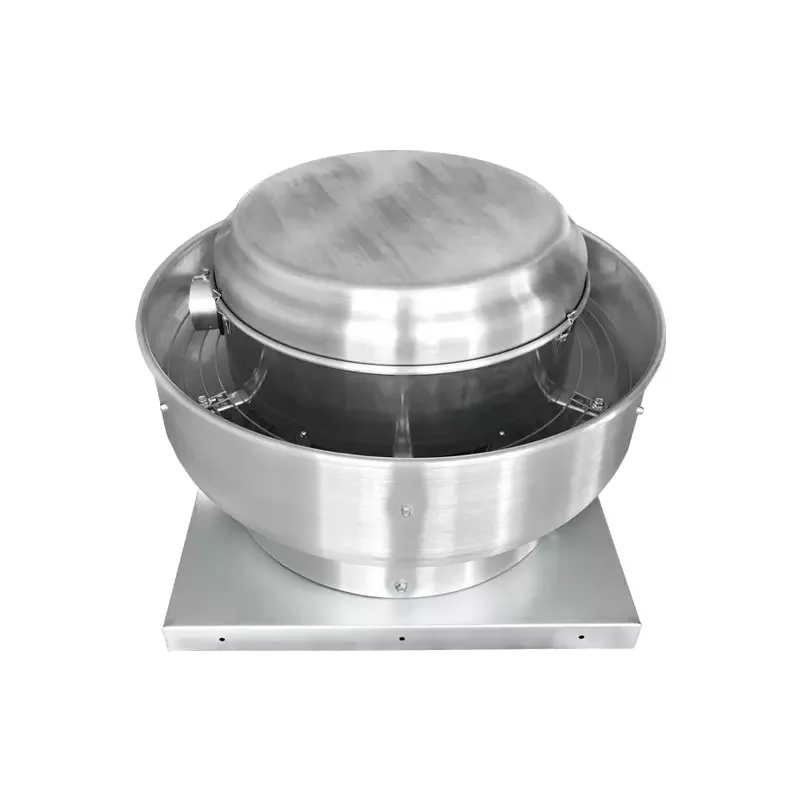

Upblast Roof Fans Are Designed To Provide Efficient And Reliable Operation For Commercial And Kitchen Exhaust Purpose. Our Products Are Manufactured With State Of The Art Laser, Forming, Spinning And Welding Equipment And Ensure Our Quality Control Testing To Ensure Trouble Free Start-up. Our Roof Blowers Are Including Industry Leading Design Features To Ensure Your Ventilation Equipment Has The Latest Technologies Available.

1.This Fan Can Be Used As Smoke Fan

2.Working In High Temperature Environment

3.Full Mold, Aluminum Alloy Structure

4.Pure copper wire Motors are used

5.Direct Drive And Belt Drive Are Available

6.Anti-explosive Type Is Available

7.ISO9001:2018 Controllable Standard

8.The Highest Working Environment Temperature Is 320F

Specification

Model	Power	Fan Speed	Air Flow	Drive	Voltage
RCU315	250W	1420RPM	3700CMH	Direct Drive	220-240V/50HZ
RCU355	550W	1400RPM	5200CMH	Direct Drive	220/240/380/415V-50HZ
		750W	1720RPM	6500CMH	Belt Drive	220/240/380/415V-50HZ
RCU400	750W	1400RPM	6800CMH	Direct Drive	220/240/380/415V-50HZ
		1.1kw	1720RPM	8100CMH	Belt Drive	220/240/380/415V-50HZ
RCU450	750W	1200RPM	9000CMH	Belt Drive	220/240/380/415V-50HZ
		1.1kw	1400RPM	11000CMH	Direct Drive	220/240/380/415V-50HZ
RCU500	1.1kw	960RPM	10000CMH	Belt Drive	220/240/380/415V-50HZ
		1.5kw	1200RPM	12500CMH	Direct Drive	220/240/380/415V-50HZ
RCU560	1.5kw	960RPM	22000CMH	Direct Drive	220/240/380/415V-50HZ
		2.2kw	1200RPM	27000CMH	Belt Drive	380/415V-50HZ
RCU630	2.2kw	960RPM	16000CMH	Direct Drive	380/415V-50HZ
		1.1kw	720RPM	13000CMH	Direct Drive	220/240/380/415V-50HZ
		1.5kw	850RPM	14800CMH	Belt Drive	220/240/380/415V-50HZ
		3kw	1200RPM	20000CMH	Belt Drive	380/415V-50HZ
RCU710	4kw	960RPM	25000CMH	Direct Drive	380/415V,50/60HZ
		2.2kw	720RPM	18000CMH	Direct Drive	380/415V,50/60HZ
		5kw	1150RPM	29000CMH	Belt Drive	380/415V,50/60HZ
RCU800	5.5kw	960RPM	28000CMH	Direct Drive	380/415V,50/60HZ
		4kw	720RPM	21000CMH	Direct Drive	380/415V,50/60HZ
		7.5kw	1100RPM	32000CMH	Belt Drive	380/415V,50/60HZ

Packing & Delivery

We can pack the goods in wooden cases and iron frames according to the requirements of customers, which is convenient for shipping or air transportation.

Company Profile

Qingdao Damuyuan Machinery Manufacturing Co., LTD is the source manufacturer and exporter of Axial Flow Fan,Greenhouse Fan, Exhaust Fan,Garden Greenhouse,Roof Fan etc. we keep exporting fans for more than eight years.We have products ranges include centrifugal fans, axial fans, roof fans，misting fans.，And fan accessories. We are not only specialized in standard & bulk fans & blowers manufacture but also the project solution and fan type selection.Meanwhile we provide custom, semi-custom, OEM fans. We have advanced processing equipments (Laser cuttings, CNC lathers & bendings, Rolling. Dynamic balance) and experienced workers, they ensure the fans with high quality. And the fans be test by airway system so their technical parameters are truth & reliable.

FAQ

Why choose Qingdao Damuyuan Machinery Manufacturing Co., LTD?
1. Good quality, Competitive price, Fast delivery.
2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $299 / piece
  • 10–99 piece: US $199 / piece
  • 100+ piece: US $149 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this rooftop kitchen smoke extractor?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this rooftop kitchen smoke extractor carry?

It is supplied with CCC/CE/ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the rooftop kitchen smoke extractor be supplied for my local voltage?

The standard configuration is Other, 120 V, 220v, 380v, 110v, 440v, 240v, custom. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingdao Damuyuan Machinery Manufacturing Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Qingdao Damuyuan Machinery Manufacturing Co., Ltd. range on HVACR Nexus.
