Key specification for this screw chiller: voltage Customization, power 390.9. Everything below is reproduced from the factory data sheet. Made by TONGSHENG TONGCHUANG INTELLIGENT EQUIPMENT COMPANY LIMITED (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Screw Chiller
- Model Number: PC-140ASCS
- Power: 390.9
- Voltage: Customization
- Refrigerant: R-404A, R134a, R-410A, R-32, R-12, R-22, R-717, R-744, R-290, R404A, R290, R410A, R32, R407C, R417A, R22, R-407C
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | Customization |
|---|---|
| Power | 390.9 |
| Refrigerant | R-404A, R134a, R-410A, R-32, R-12, R-22, R-717, R-744, R-290, R404A, R290, R410A, R32, R407C, R417A, R22, R-407C |
| Compressor Brand | Hitachi |
| Pump Type | Customization |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy to Operate, Competitive Price, High Productivity, Multilayer Co-Extrusion Line, High Safety Level, Other, Famous Brand Low Voltage Components, Long Service Life, Low Noise Level, Energy Saving, Multifunctional, Famous Brand PLC, Low Maintenance Cost |
| Plug Type | Australian Plug |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Container Volume | Customization |
| Model Number | PC-140ASCS |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2800 |
| Brand Name | TongSheng |
| Dimension(L*W*H) | Customization |
| Working Temperature Range | -5 to 50 ℃ |
| Product Name | Water Chiller |
| Application | Industrial Cooling Solutions |
| Function | Circulating Cooling Water |
| Keyword | ChiIler |
| Name | Air Conditioning |
| Selling Units | Single item |
Product Details

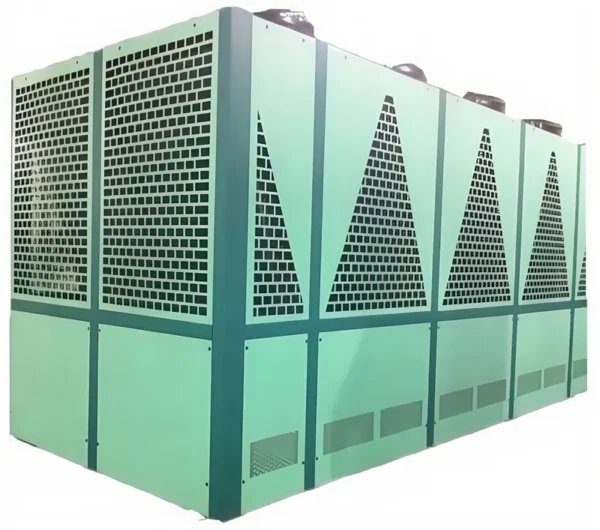

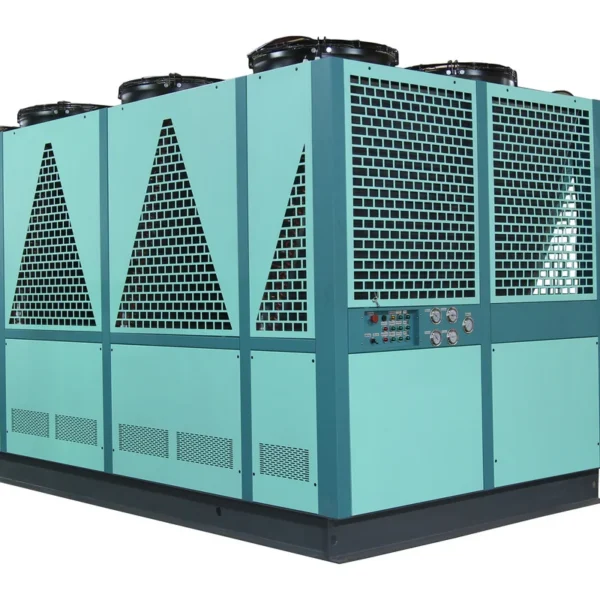

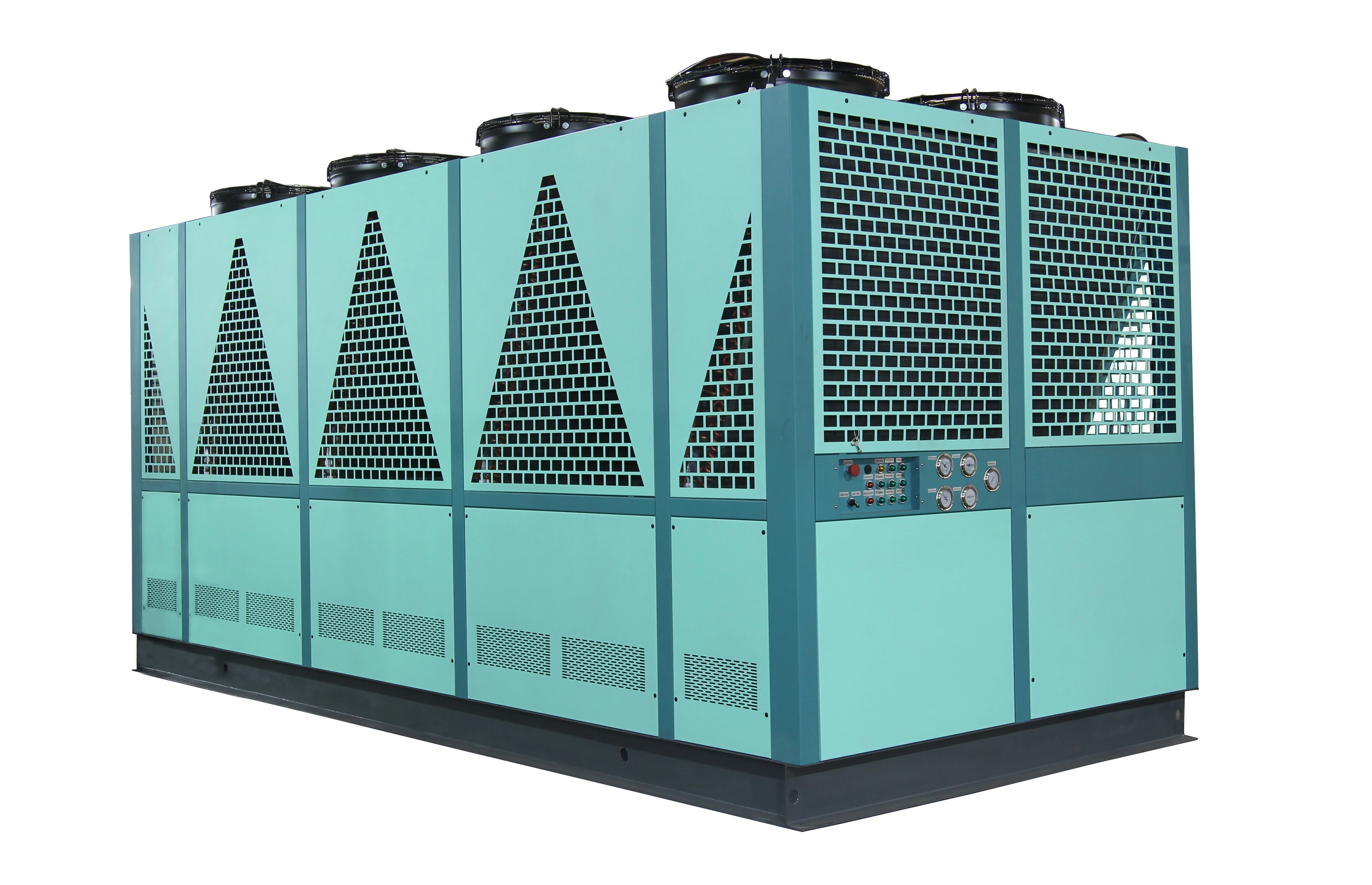

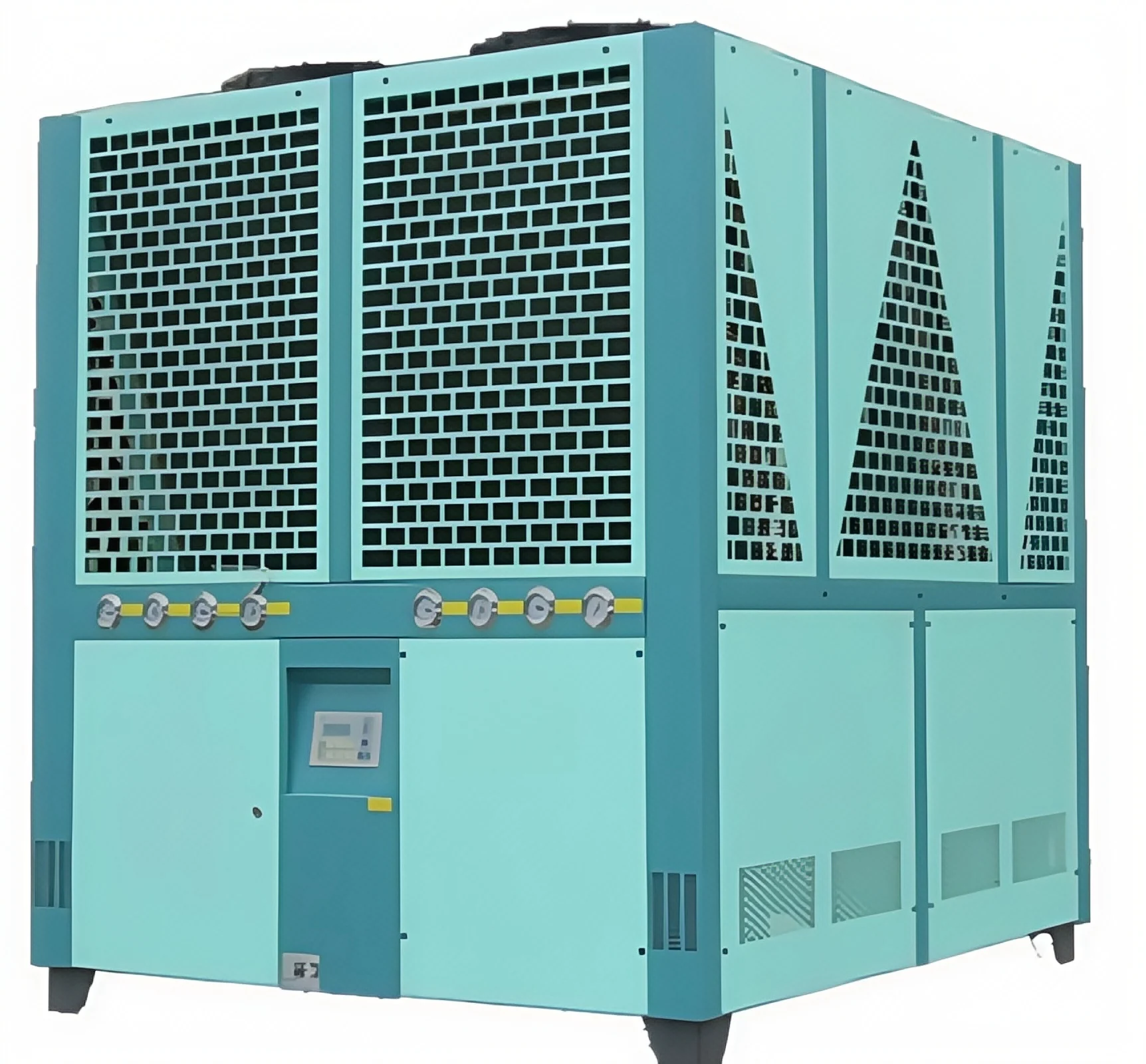

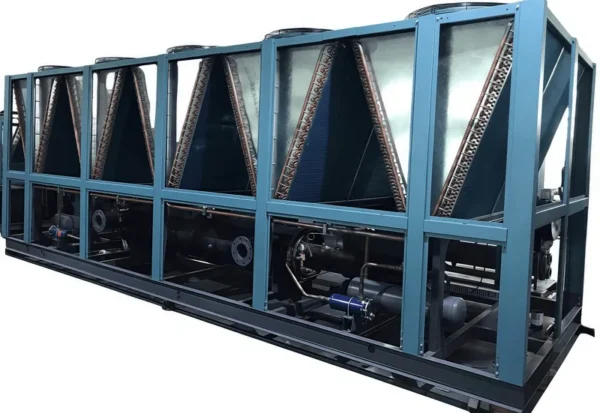

Air-cooled screw chiller
The air-cooled screw chiller is equipped with intelligent temperature control and can provide ice water ranging from -25 ℃ to 10 ℃ (customized for ultra-low temperature units ranging from -30 ℃ to -65 ℃). The temperature control accuracy is around 1 ℃, which shortens the molding cycle and accelerates product shaping. It provides stable working temperature, improves product quality and production efficiency, and increases profits. It has been widely used in industrial refrigeration, biopharmaceuticals, food processing, machinery manufacturing, optics, chemical engineering, metallurgy, batteries, electronics, glass bending and other fields.
Characteristics of air-cooled chiller:
1. An air-cooled water circulation device that does not require a cooling tower. 2. Air cooled chillers are most suitable for environments with high levels of impurities and dust, 3. Air cooled chillers are most commonly used in areas with poor water quality. Can save on cold water towers and their piping 4. Adopting a large capacity condenser, it can operate easily even in hot weather.
Product Specifications
Sort | Single Compressor Series | ||||||||||||||
Type Parameter | PC-40ASCS | PC-50ASCS | PC-60ASCS | PC-70ASCS | PC-80ASCS | PC-100ASCS | |||||||||
RatedCooling Capacity | 50HZ | Btu/h | 391927 | 498103 | 564334 | 654464 | 756542 | 930315 | |||||||
Kcal/h | 98710 | 125451 | 142132 | 164832 | 190542 | 234308 | |||||||||
KW | 114.8 | 145.9 | 165.3 | 191.7 | 221.6 | 272.5 | |||||||||
USRT | 32.6 | 41.5 | 47.0 | 54.5 | 63.0 | 77.5 | |||||||||
Input Power Supply | ~380V/3PHASE /50 Hz | ||||||||||||||
InputPower | KW | 35.5 | 44.2 | 45.6 | 52.9 | 60.5 | 73.1 | ||||||||
Energy efficiency ratio | KW | 3.2 | 3.3 | 3.6 | 3.6 | 3.7 | 3.7 | ||||||||
CoolingLoop | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
Coolant Flow Control | Electronic expension valve | ||||||||||||||
Cooling Media | R22(407C/134A Optional) | ||||||||||||||
Compressor | Pattern | Semi-sealed Sprial Long Rod TyPe | |||||||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
Starting Method | Y-△Starting(Part winding start) | ||||||||||||||
Capacity Control | % | 100-75-50-25 | |||||||||||||
Condenser | Pattern | High Effective Red Copper Pipes Covered Into Aluminum Fins | |||||||||||||
Airflow | CMH | 43200 | 66000 | 66000 | 66000 | 93000 | 99000 | ||||||||
EnginePower | KW | 3.4 | 5 | 5 | 6 | 6.6 | 7.5 | ||||||||

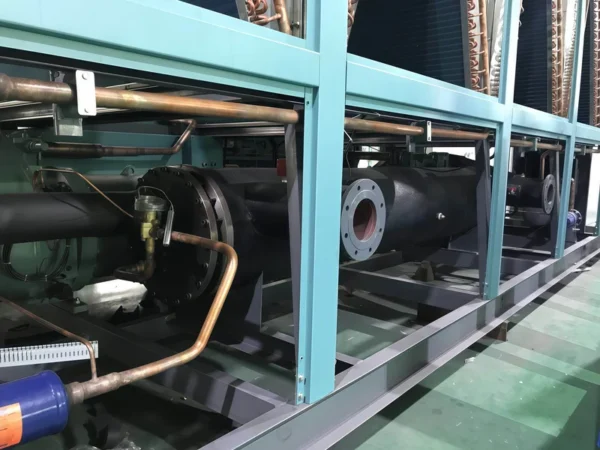

Evaporator | Pattern | High Effective Inner Grooved Copper Pole Shell and tube condenser Made in Kobe,Japan | |||||||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
PressureLoss | Kpa | 72 | 72 | 72 | 72 | 72 | 85 | ||||||||
WaterFlow | m³/h | 22.5 | 28.5 | 31.5 | 36.5 | 42.2 | 51.9 | ||||||||
Controller | micro-computer contrlled system for refrigeration | ||||||||||||||
Pipes Connection | Freezing Water In/Out | Inch | 2-1/2 | 2-1/2 | 3 | 3 | 3 | 4 | |||||||
Machine Weight | Kg | 925 | 1080 | 1200 | 1500 | 1680 | 2000 | ||||||||
Running Weight | Kg | 990 | 1160 | 1300 | 1600 | 1800 | 2100 | ||||||||
If you want more sizes, please contact us for details

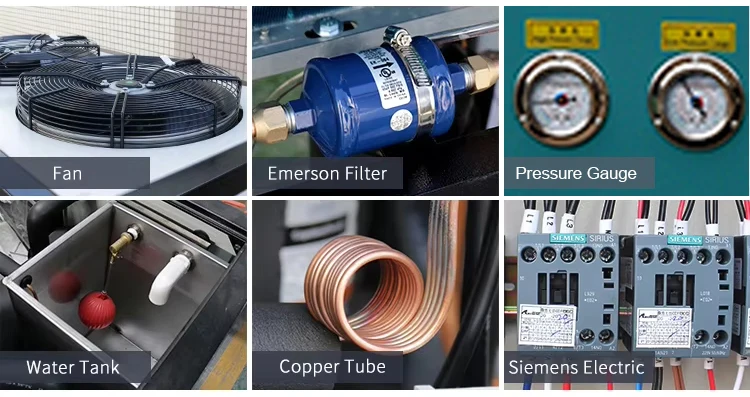

Product Actual Shooting
Projects
1、Well-know brands control panel or Tongsheng control system control panel
As the brain output of the chiller, the software technology is continuously upgraded to pursue, with Tongsheng's own control panel, more humane operation, quick processing of the center output of the unit, convenient and efficient, it can improve production efficiency.

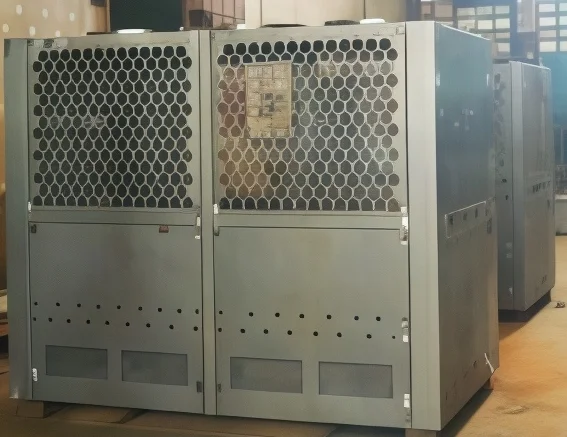

2、Chiller casing production
Using high-quality sheet metal from the production rack, Tongsheng chiller own produces the thick casing by CNC machining center, multiple processes from engineering drawing, polishing and spraying, powder spraying, each step is carefully produced to make the casing fuller ,harder.

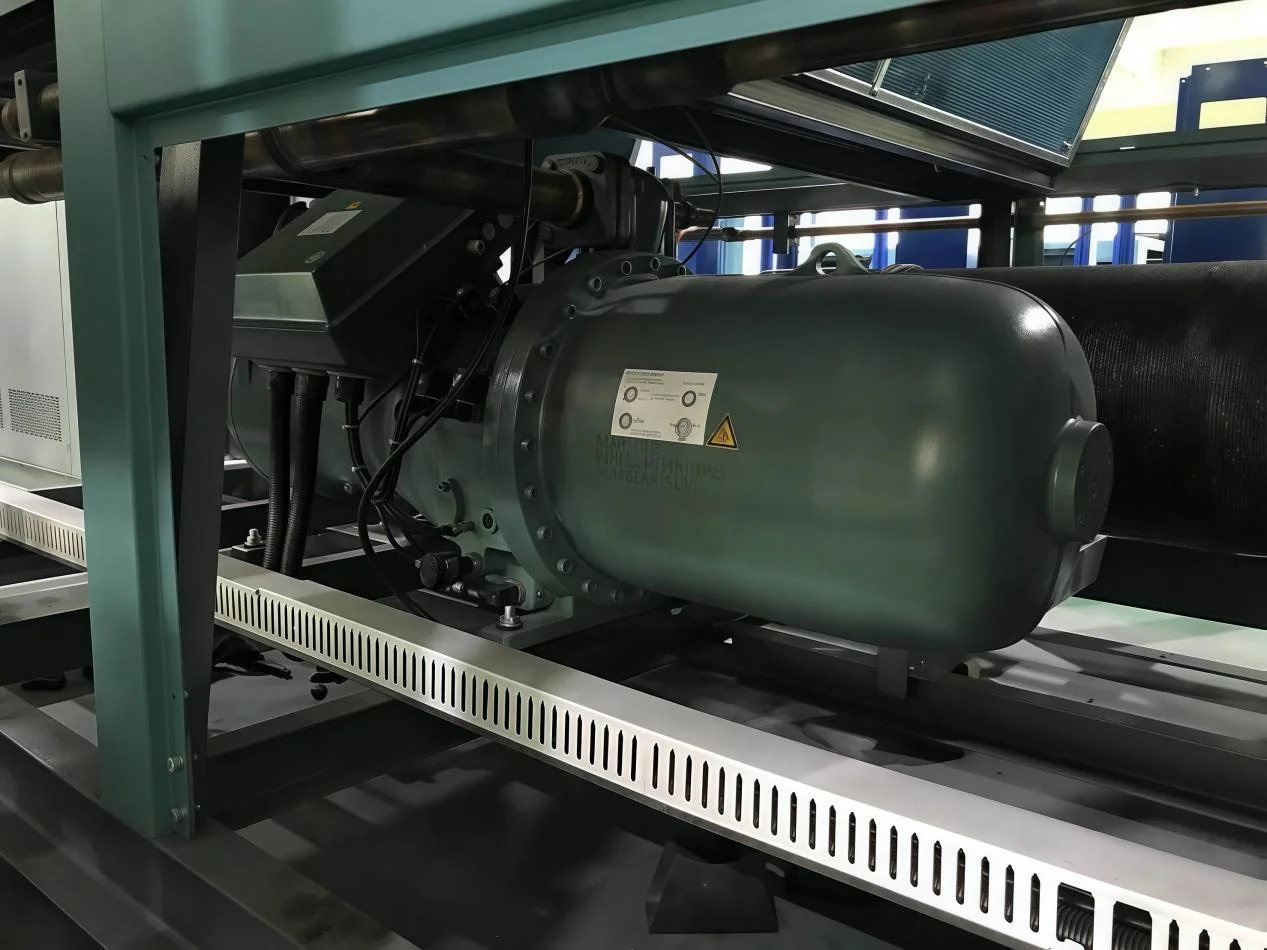

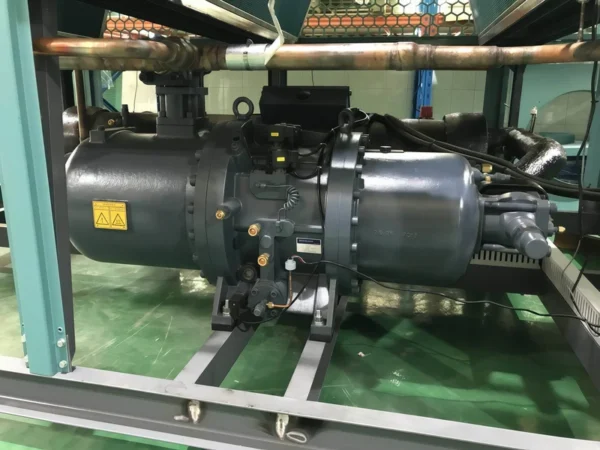

3、Well-known brand screw compressor
As the heart of the chiller, Tongsheng scroll chiller is used: Hitachi Japan, Copeland and other well-known brands, built-in safety protection, low noise, eliminate second-hand refurbished compressor, brand guarantee more durable and safe.

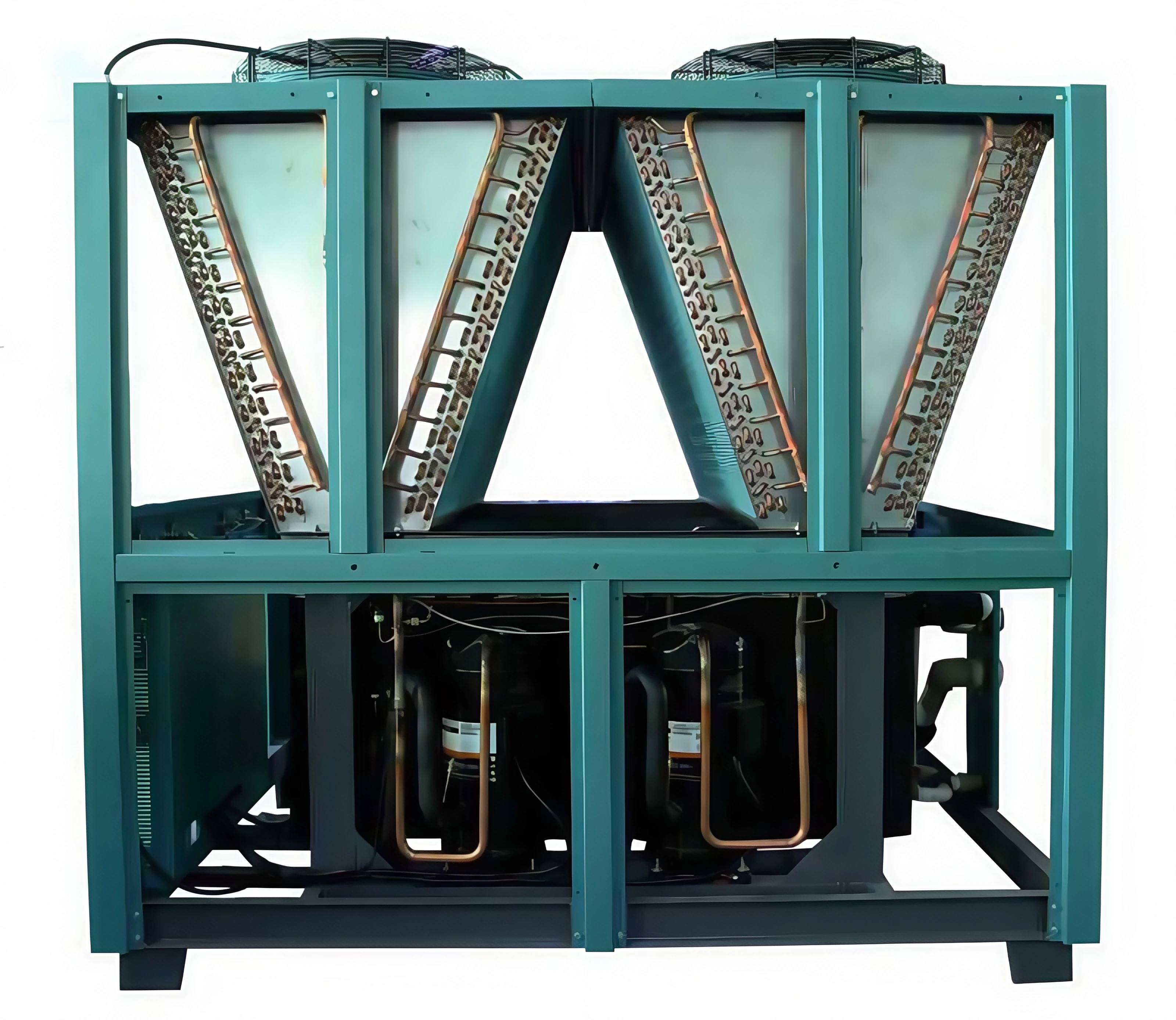

4、Finned condenser
Tongsheng CNC machining center produces aluminum fin condenser, high-speed punch, reliable turning quality, more close contact between copper tube and fin, high heat exchange efficiency, suitable for use in areas with insufficient water resources or high water hardness.
5、Electronic expansion valve
Upgrade from previous thermal expansion valve to electronic expansion valve (optional), fuzzy control of the unit, dynamic matching of the system, automatic adaptation to changing environments, more energy-saving and reliable operation.
protective system
Current overload protection, high and low voltage protection system and electronic delay, as well as abnormal visual display system
application range
Chillers are used in plastic processing machinery mold cooling, electroplating industry, machinery industry, constructionindustry,vacuum coating and food industry.
best-selling
Our company
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $8688 / set
- Ships from: VN
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this screw chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the screw chiller be supplied for my local voltage?
The standard configuration is Customization. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
