Key specification for this series explosion-proof flow heater: voltage Max 690VAC or 660VDC, power source Electric. Everything below is reproduced from the factory data sheet. Made by Dewei Electric Jiangsu Co., Ltd. (8 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Series Explosion-Proof Flow Heater
- Power Source: Electric
- Voltage: Max 690VAC or 660VDC
- Material: Stainless Steel
- Warranty: 1 Year
- Certification: ATEX&IECEX
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Electric |

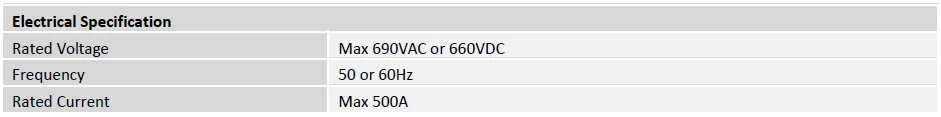

| Voltage | Max 690VAC or 660VDC |
| Material | Stainless Steel |
| Core Components | Other |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Brand Name | Dewei |
| Dimension(L*W*H) | Customized |
| Working Temperature Range | -40 – 55 ℃ |
| Group | II |
| Category | 2 GD |
| Classification | Exd, Extb |
| Gas Group | IIB or IIC |
| Temperature Class | T6 |
| Ambient Temperature | -40° C to +55° |
| Ingress Protection | IP66 |
| After-Sales Service Provided | Free spare parts |
| Certification | ATEX&IECEX |
| Selling Units | Single item |
| Single Package Size | 27X12X7 cm |
| Single Gross Weight | 3.000 kg |
Product Details
Our certificates are true and effective. Please contact us to get more information!

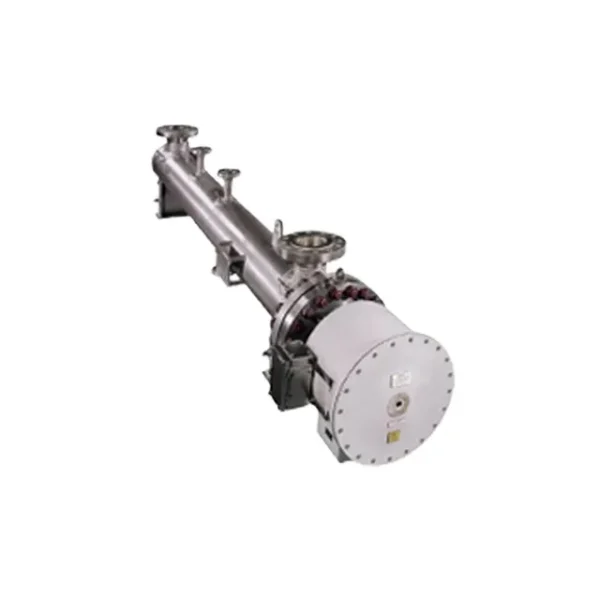

The range of Ex d flameproof flow heaters are are used for heating liquids and gases, providing a clean and efficient heating method for bulk liquid flow applications. The Ex d flameproof flow heaters range is certified for use in hazardous areas where the atmosphere is classified as a Zone 1 or 2 (IIA, IIB, IIC) gas group, or a Zone 21 or 22 (IIIA, IIIB, IIIC) dust group.

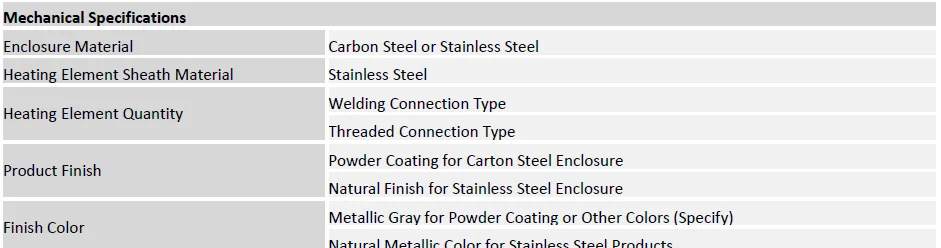

All our heaters are designed and manufactured according to customer's requirements and operating conditions. The material for the electrical connection box is carbon steel painted or stainless steel. Heating elements material is stainless steel. The specific surface load is a measure for the heat transfer onto the heated medium. It must be chosen according to the medium,flow, pressure and mounting conditions as well as the medium temperature and admissible surface temperatures. With a specific surface load wich is optimized for the process, a high thermal efficiency will be reached.

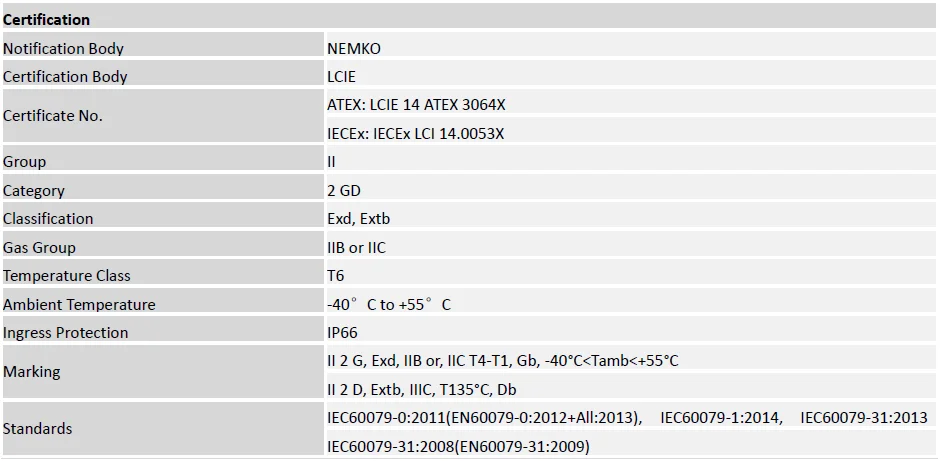

Technical Parameter
| Group | II |
| Category | 2 GD |
| Classification | Exd, Extb |
| Gas Group | IIB or IIC |
| Temperature Class | T6 |
| Ambient Temperature | -40° C to +55° |
| Ingress Protection | IP66 |
| After-sales Service Provided | Free spare parts |
| Certification | ATEX&IECEX |
Pressure vessels
Immersion heaters that are part of a pressure vessel are designed, manufactured and inspected according to the pressure vessel code, Pressure Equipment Directive (PED), ASME VIII or other international codes. The selection of category according to PED should be advised by the customer, according to the conformity assessment.
Specific surface load
The specific surface load is a measure for the heat transfer onto the heated medium. It must be chosen according to the medium, flow, pressure and mounting conditions as well as the medium temperature and admissible surface temperatures. With a specific surface load wich is optimized for the process, a high thermal efficiency will be reached.

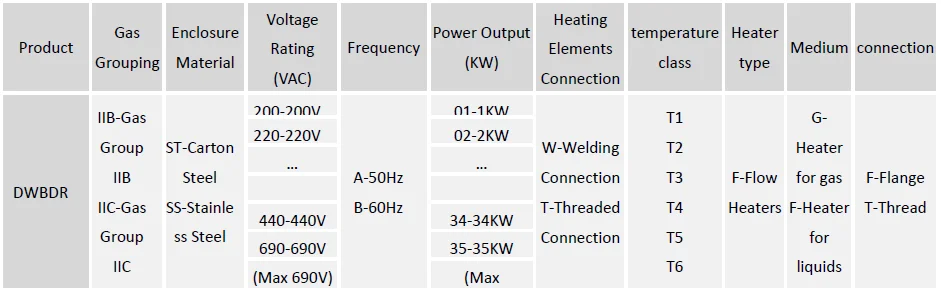

Order Specifications Table
Please refer to the below table for ordering. If you need more information, please contact our sales representative for assistance.
Design Data
All heaters are designed and manufactured according to the individual requirements of our customers.
Design, Manufacturing and Inspection according to European Pressure Equipment Directive (PED, 97/23/EC),ASME code or other international standards.
Design according to AD2000, ASME or other codes.
Explosion protected devices are supplied with EC type examination certificate(according to ATEX directive 2014/34/EU), IECEx certificates are available on project basis.
You will assist us to answer your enquiry within short time, if you give us as much as possible operating data for the required heater with your enquiry:
Medium (if the medium is not common, please advise density, specific heat, heat conductivity and dynamicviscosity)
Tank volume or flow rate for flowing media
Operating temperatures, operating pressure
Required heating capacity, nominal voltage
Flange dimensions and rating, mounting thread
Immersion length, unheated length (e.g. for mounting nozzle)
Mounting position (horizontal or vertical)
Ambient temperatures (standard: -20 I +40°C, special design for -40 I +55 °C)
Materials for flange, heating bundle, connection box
Design pressure, design temperature and design code for pressure vessel parts
Protection (Ex hazardous area classification, IP)
Special ambient conditions (e.g. outdoor mounting, offshore)
Typical applications
Oil heating (lube oil, fuel oil, thermal oil)
Water heating (industrial heating systems)
Air heating (pressurized air, burner air, drying technology)
Gas heating (natural gas, process gases, technical gases)
Environmental technology (exhaust air cleaning, catalytic after burning)
Steam generator, steam super heater (industrial process technology)
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5+ piece: US $800 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this series explosion-proof flow heater?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this series explosion-proof flow heater carry?
It is supplied with ATEX&IECEX documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the series explosion-proof flow heater be supplied for my local voltage?
The standard configuration is Max 690VAC or 660VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
