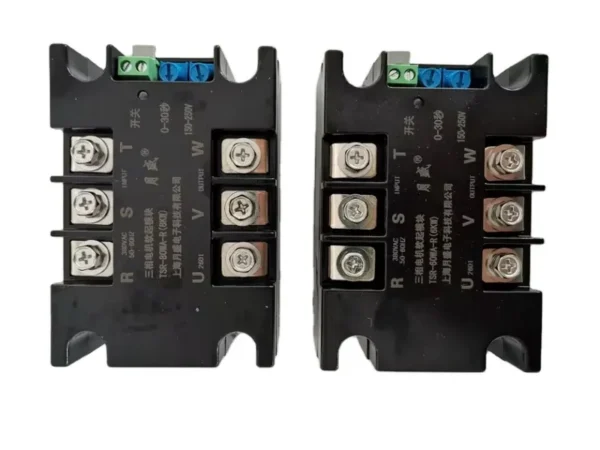

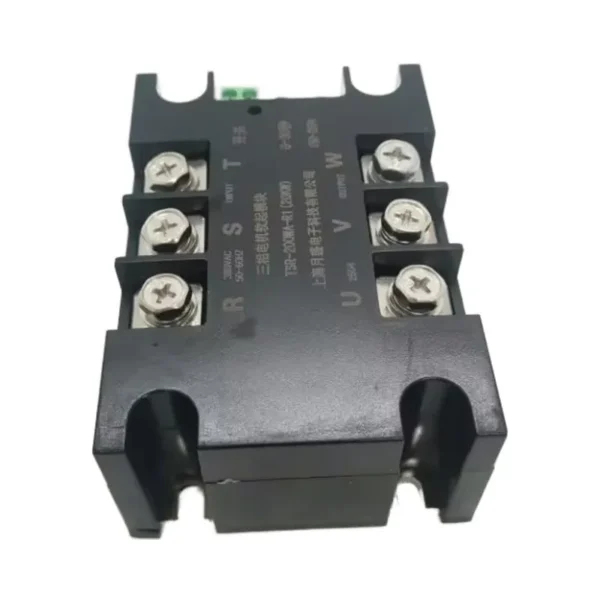

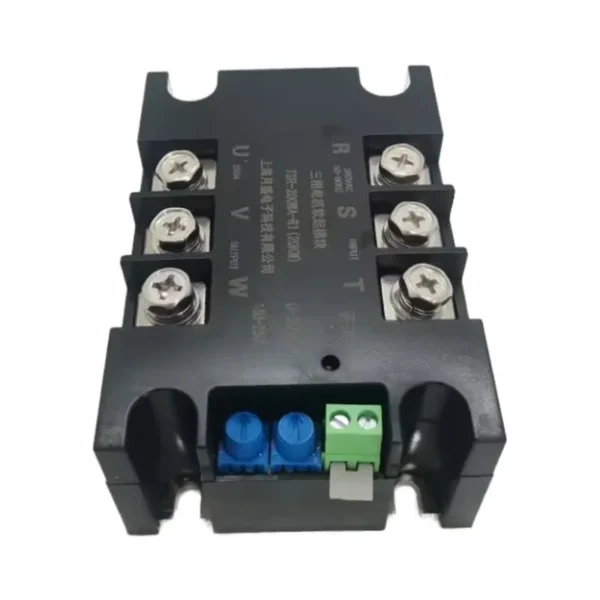

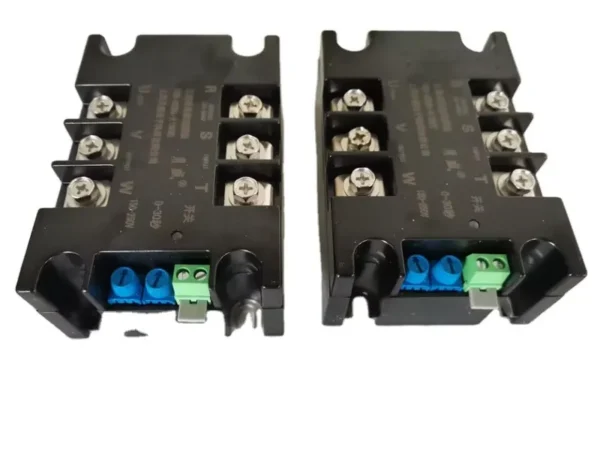

This speed controllers regulators is published with the manufacturer’s full specification — 220V 380V 440V, 1KW 6KW 8KW 10KW 15KW 20KW 22KW. Made by Yueqing Sibo New Energy Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Speed Controllers Regulators
- Model Number: 1KW 6KW 8KW 10KW 15KW 20KW 22KW
- Rated Power: 1KW 2KW 4KW 6KW 8KW 10KW 20KW 22KW
- Wide Power Range: 400 V
- Rated Voltage: 220V 380V 440V
- Place Of Origin: Zhejiang, China
- Single Package Size: 22X18X10 cm
Technical Specifications
| Rated Voltage | 220V 380V 440V |
|---|---|
| Rated Power | 1KW 2KW 4KW 6KW 8KW 10KW 20KW 22KW |
| Frequency | 50/60 Hz |
| Control Way | Soft Starter |
| Protection | Overload Protection |
| Technology | Solid-State |
| Wide Power Range | 400 V |
| Pump Of Number | 1 |
| Place Of Origin | Zhejiang, China |
| Model Number | 1KW 6KW 8KW 10KW 15KW 20KW 22KW |
| Brand Name | SUCCESSPOWER |
| Product Name | Soft Starter |
| Selling Units | Single item |
| Single Package Size | 22X18X10 cm |
| Single Gross Weight | 1.0 kg |
Product Details

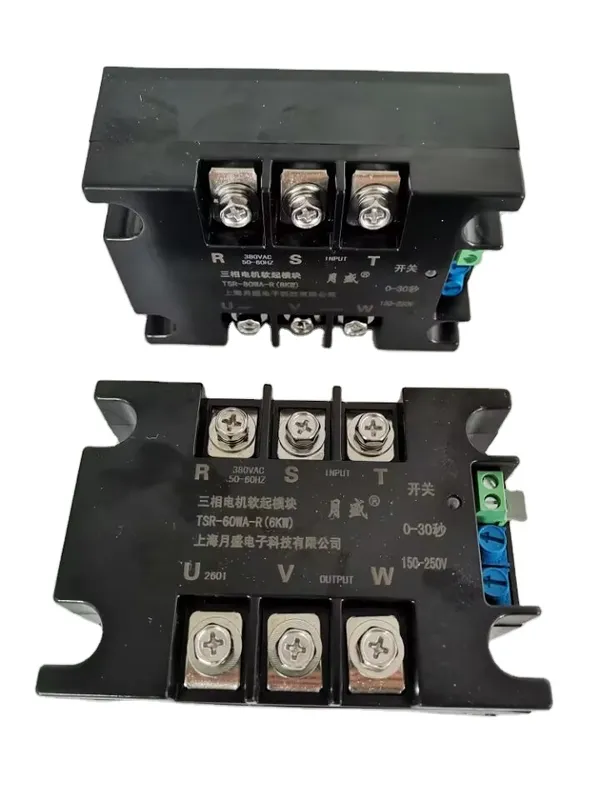

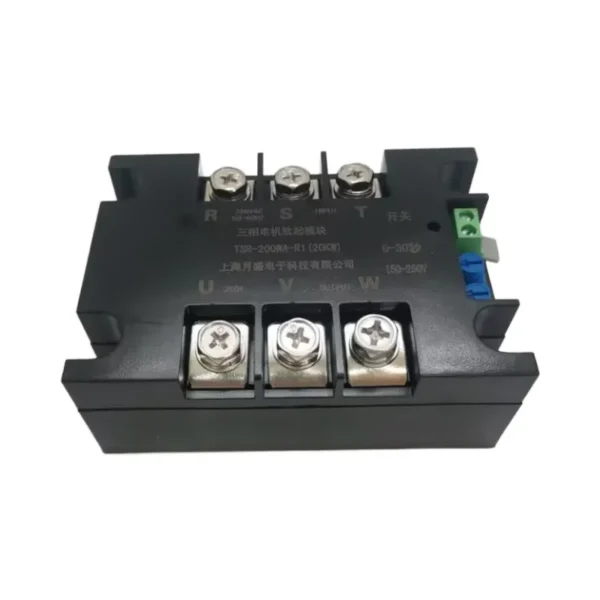

Note: the soft start module of three-phase motor can work for a long time
without conversion contactor. Model selection: 10A for 1kW, 20A for 2kW
and 40A for 3-4kw, 60A for 5-6kw, 80A for 7-8kw, 100A for 10-11kw, 150A for 12-15kw.With 200A for 20kW, the greater the motor power, the larger the heat sink.
How to match this product?Heat sink Please consult for details.
| TSR | Three-phase motor soft starter |
| 20WA | 10WA:1KW 20WA:2KW 30WA:3KW 40WA:4KW 60WA:6KW 80WA:8KW 100WA:10KW 120WA:12KW 150WA:15KW 200WA:20KW 220WA:22KW |
| R1 | R1: soft start; R2: soft start and soft stop; |

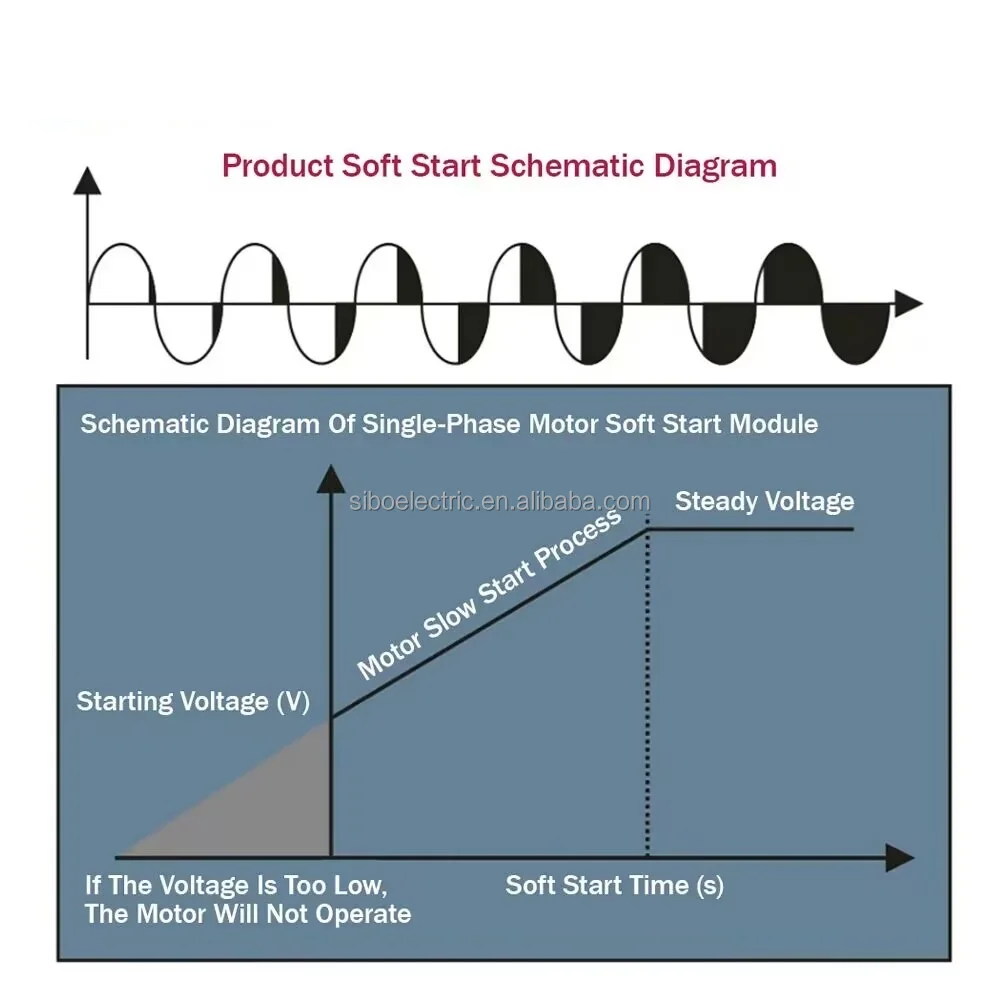

The soft start time is adjustable for 30 seconds (time rise refers to 0-380V).
The initial Voltage is adjustable from 150-250V to the rated Voltage (380V)

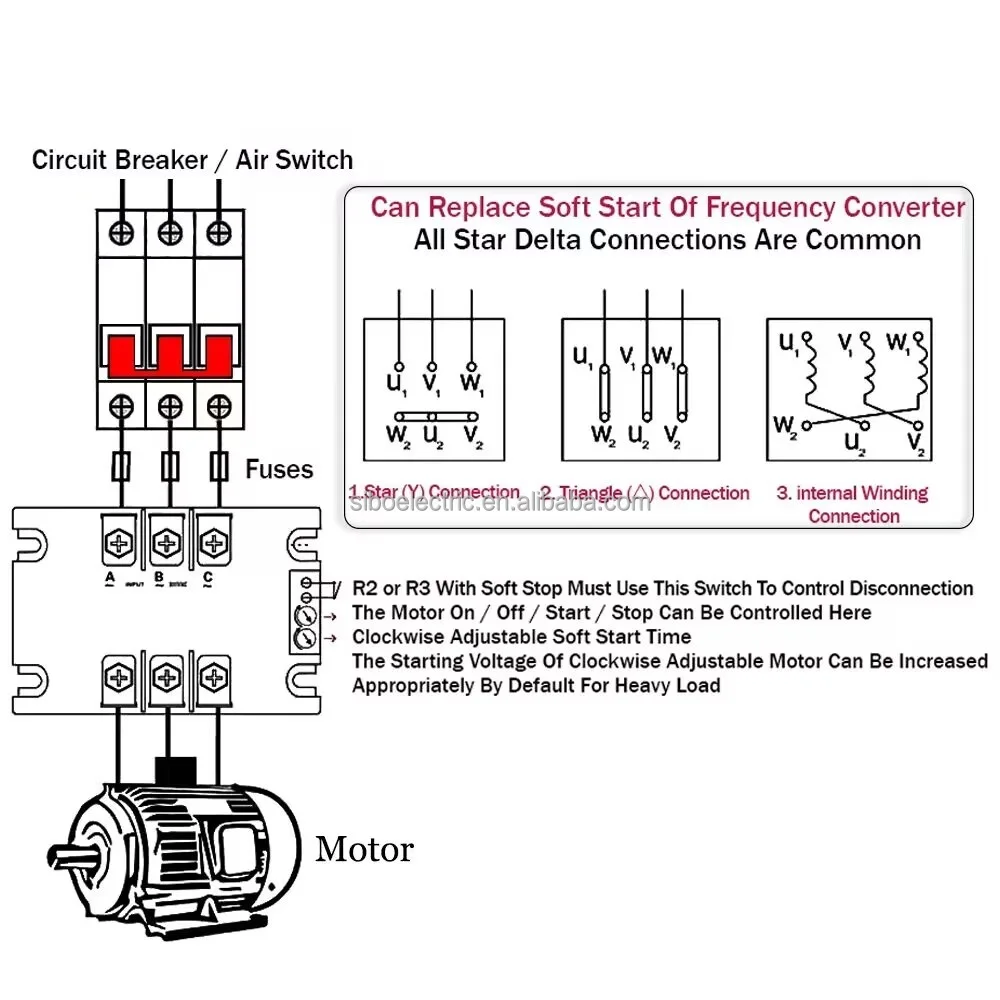

There are two ways to use
1. When the switch is closed, the main power supply is energized and the soft start starts.
2. Use switch to control, close soft start to start, open stop

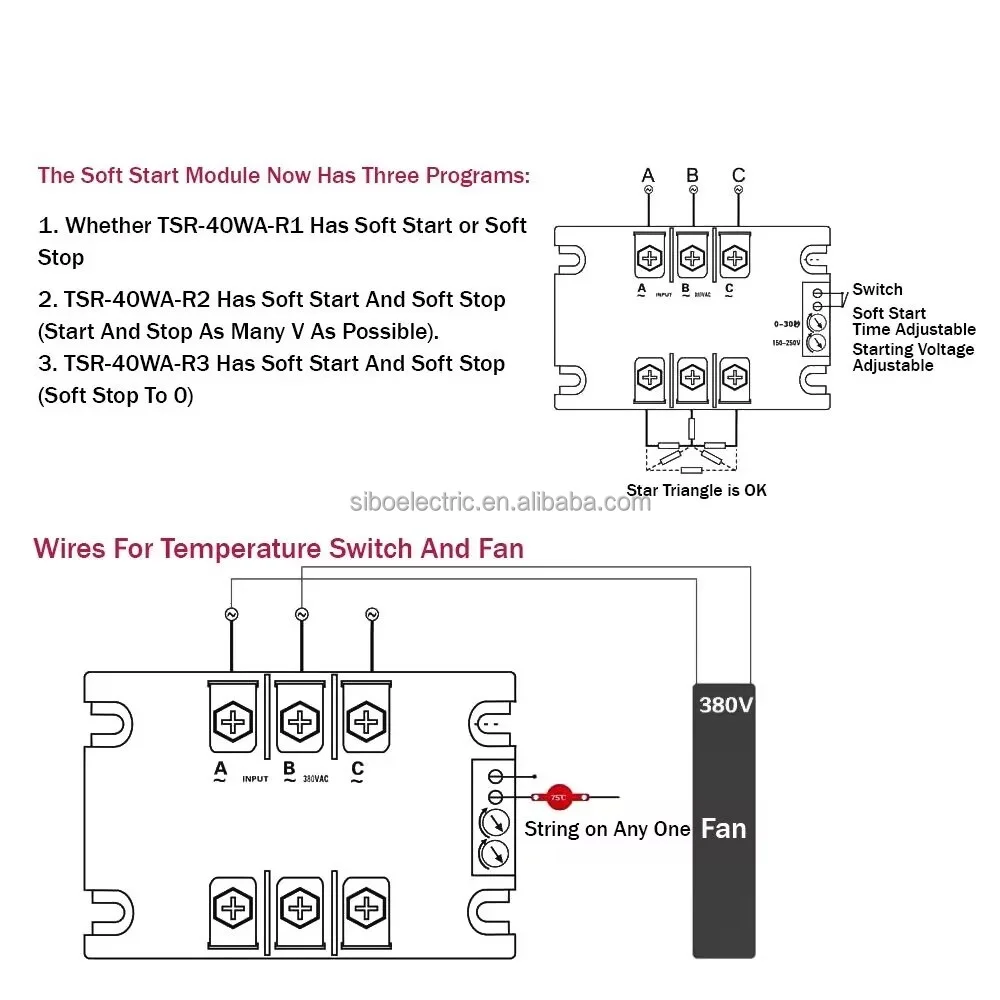

The soft start module now has three programs:
1. TSR-40WA-R1 has soft start without soft stop
2. TSR-40WA-R2 has a soft start and a soft stop (as much as V start, as many V stop)
3. TSR-40WA-R3 has soft start and soft stop (soft stop to 0)
Note: 1. No voltage can be applied to the switch
2. The default R1 is not required
3. Please use this module with heat sink
Models are: 1KW, 2KW, 4KW, 6KW, 8KW, 10KW, 12KW, 15KW, 20KW
Aluminum bottom: TsR-10WA-R, TSR-20WA-R, TSR-40WA-R
Copper bottom: TsR-40WA-R, TSR-60WA-R, TSR-80WA-R, TSR-100WA-R, TSR-120WA-R,
TSR-150WA-R, TSR-200WA-R
When the starting potentiometer is adjusted to half, the starting point is
200V, and the longest time of the soft starting potentiometer is 30
seconds corresponding to the full 380V
For example: when all is adjusted to the minimum: the starting voltage of 150V takes 0 seconds
When fully adjusted to half: start at 200V, soft start time is about 7 seconds
When fully adjusted to the maximum: the initial voltage from 250Vv to 380V takes 10 seconds
General recommendation for selection margin: TSR-10WA-R for 1KW, TSR-80WA-R for 8KW
motor Recommended radiator: radiator S1 for below 4KW, radiator S1+F80 for below 8KW,
Radiator DS1+F90 for under 12KW, radiator S2-120+F120 for under 20KW
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $60 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this speed controllers regulators?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the speed controllers regulators be supplied for my local voltage?
The standard configuration is 220V 380V 440V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
