Jiangsu Hengtai Yitong Amperex Technology lists this speed controllers regulators with its own published specification, unedited. Supplier profile: 5 years on the platform. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Speed Controllers Regulators
- Output Power: 420kW
- Input Voltage: 1000V
- Place Of Origin: Jiangsu, China
- Single Package Size: 910X650X1085 cm
- Single Gross Weight: 850.000 kg
- Interface Standard: CCS
Technical Specifications
| Output Power | 420kW |
|---|---|
| Interface Standard | CCS |
| Input Voltage | 1000V |
| Output Current | DC |
| Purpose | for replace/repair |
| Condition | New |
| Color | White |
| Place Of Origin | Jiangsu, China |
| Brand Name | TESIDA |
| System Topology | Integrated All-in-One Micro-grid |
| Battery Chemistry | Grade A+ LiFePO4 (LFP) |
| PCS Conversion Efficiency | ≥ 98.5% |
| Backend Protocol | OCPP 1.6J |

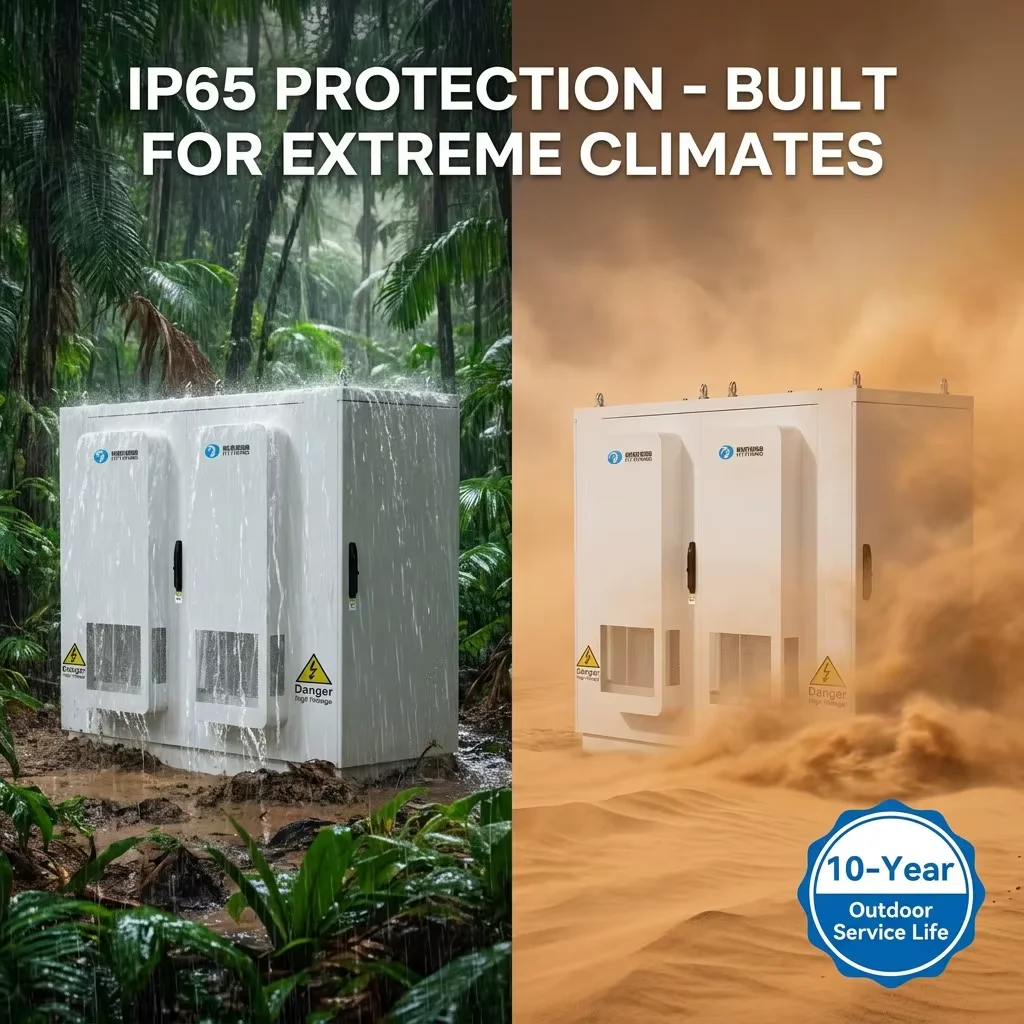

| Protection Level | IP65 Dust & Water Proof |
| Anti-Corrosion Grade | C5-M (Suitable for Coastal Areas) |
| Operating Mode | Seamless On/Off-Grid Switching |
| BMS Communication | CAN / RS485 / Ethernet |
| Thermal Management | Active Variable-speed Fan Cooling |
| Metering Standard | MID / Eichrecht Certified Optional |
| Selling Units | Single item |
| Single Package Size | 910X650X1085 cm |
| Single Gross Weight | 850.000 kg |
Product Details
PRODUCT HIGHLIGHTS

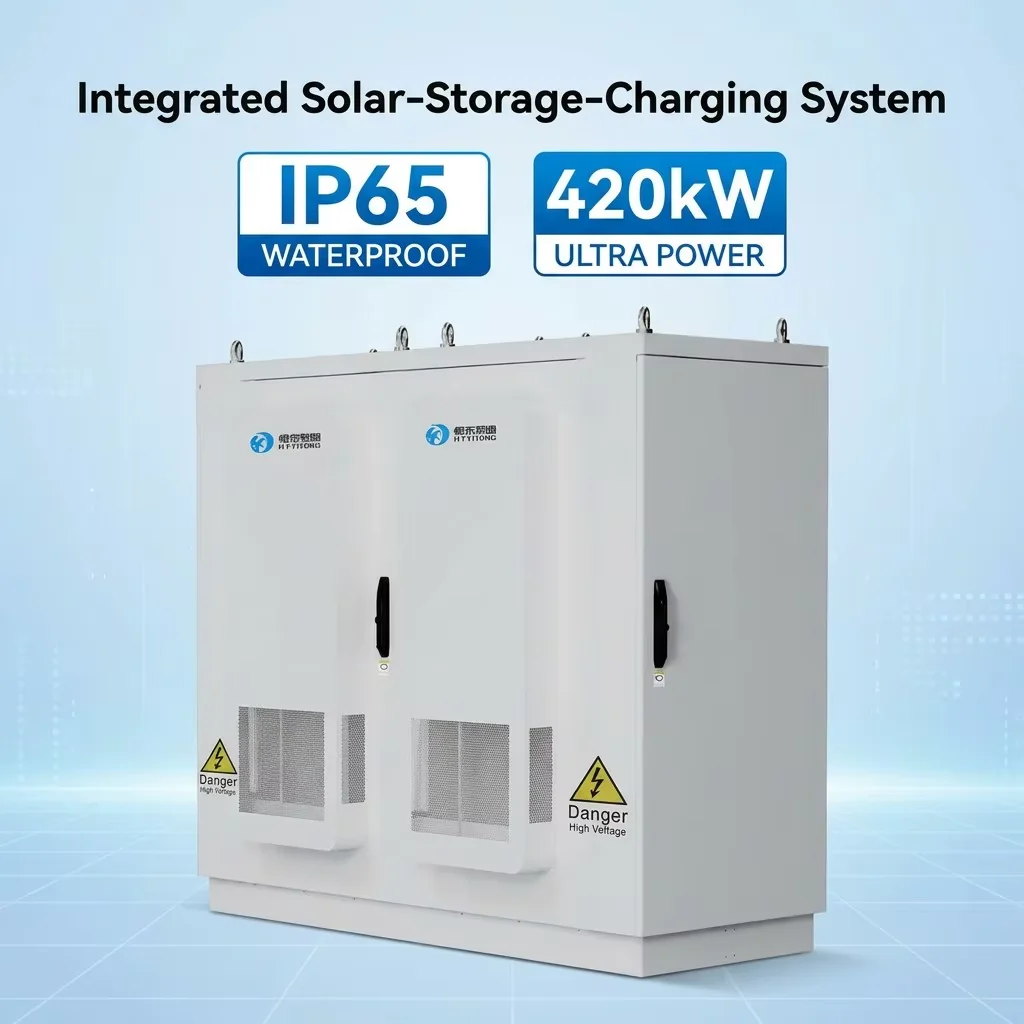

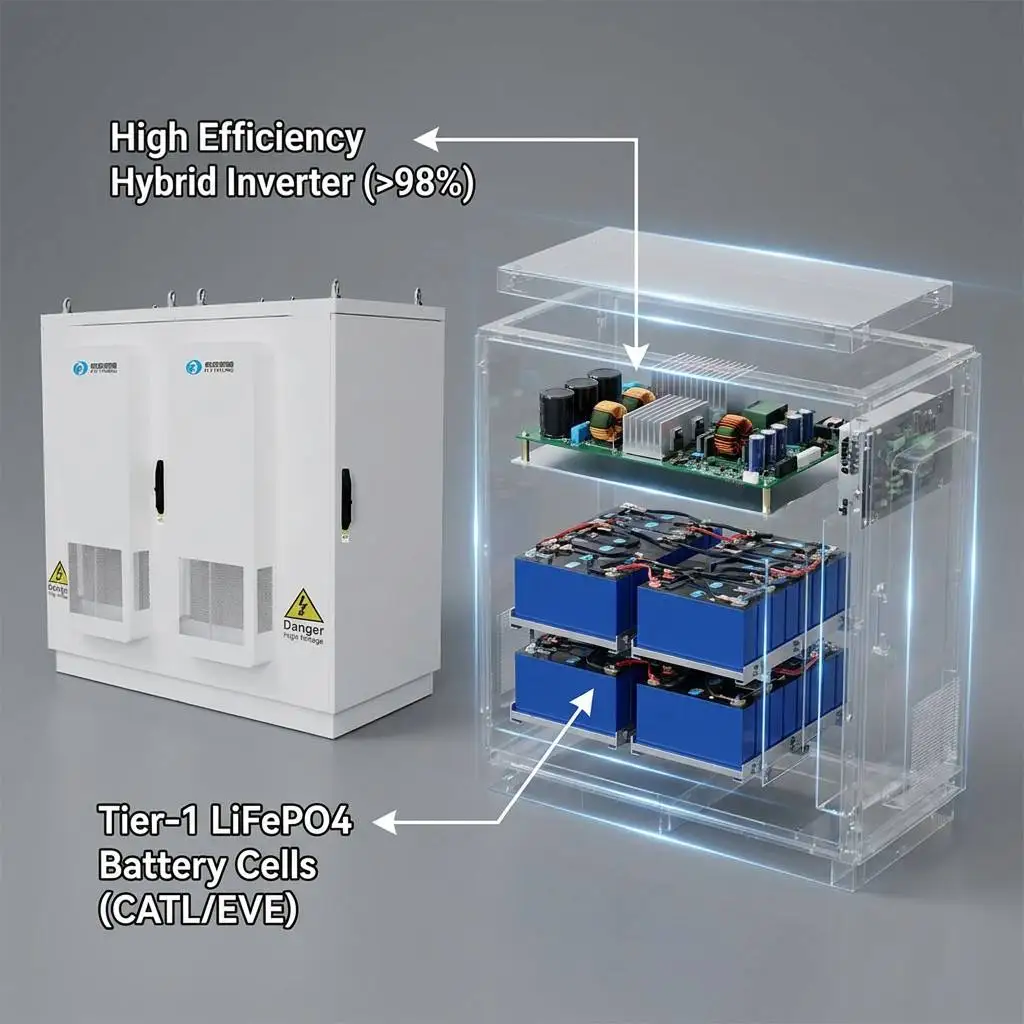

- This system is housed in a standard 20-foot shipping container and integrates a Tier-1 lithium iron phosphate battery array, a 1MW bidirectional PCS inverter, and a 360kW-480kW liquid-cooled DC supercharging module. Through an AI-EMS (Energy Management System), it achieves a system-level efficiency of 98.5%, perfectly supporting ultra-fast turnaround times at highway hubs.

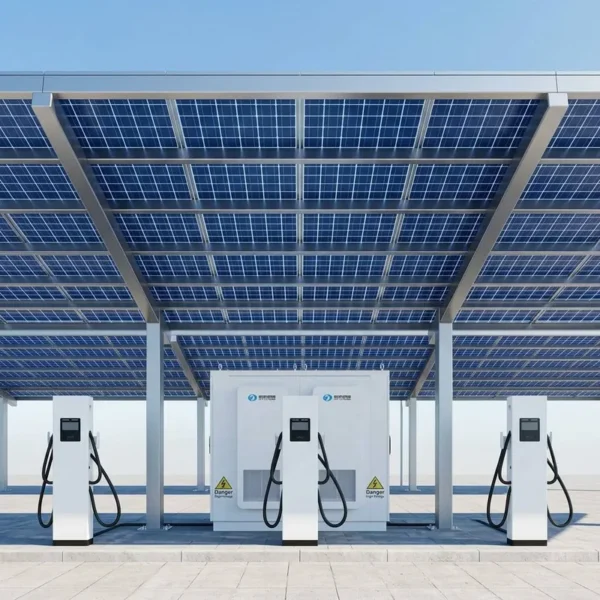

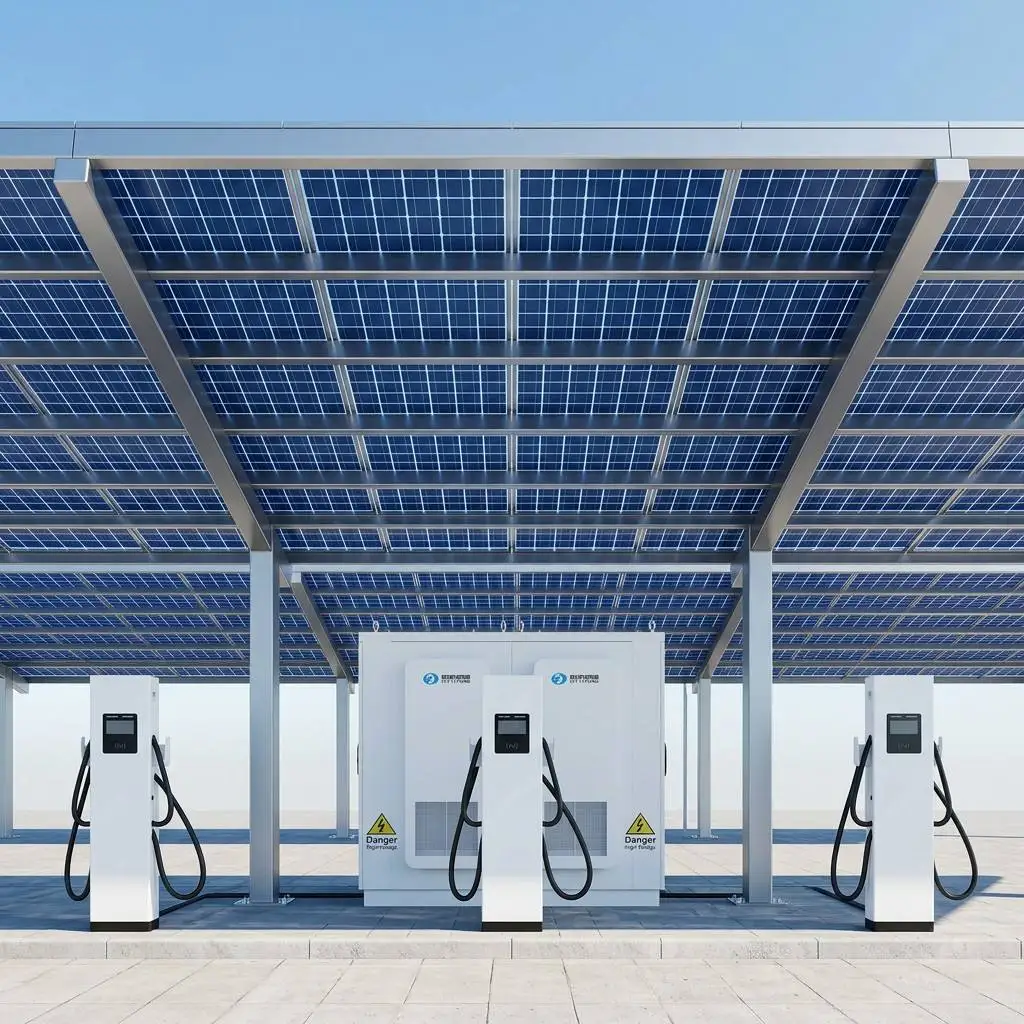

- The core is a distributed architecture, supporting solar carport integration. The system features automatic grid-connected/off-grid switching, ensuring uninterrupted 120kW DC fast charging even in industrial and commercial parks with unstable main grids.
- It is specifically designed for the German public charging market. All billing data packets are digitally signed and transparently verifiable through software. The system hardware uses salt-spray resistant galvanized steel cabinets and integrates MID-certified meters, ensuring not only energy output but also legal compliance.
- The core selling point is "reduced operating costs." The system charges via solar power or the grid during off-peak hours and charges electric vehicles by discharging batteries during peak hours, saving up to 45% on demand charges.
- It features an independent air duct and silent fan design, with full-load noise levels < 60dB. Equipped with slim charging piles (as shown in Attachments 1-3), it occupies only 0.5 square meters, enhancing the hotel's green brand image and attracting high-end Tesla/Porsche owners.
- For urban delivery fleets: Solar power stores energy during the day and charging during off-peak hours at night. Supporting OCPP 1.6J, it can interface with fleet dispatch systems to ensure each vehicle is 100% fully charged before departure.
- A mobile "Galaxy City." Foldable photovoltaic panels + internal energy storage + DC charging cables. Suitable for high-speed rescue and temporary event sites. Supports one-click switching between multiple charging protocols.
Feature/Parameter | 160kW+313kWh-2 Guns | 240kW+418kWh-2 Guns | 320kW+482kWh-2 Guns | 400kW+625kWh-2 Guns | 480kW+1MWh-4 Guns | 960kW+2MWh-4 Guns | ||||||
Battery | ||||||||||||
Rated Energy | 313 kWh | 418 kWh | 482 kWh | 625 kWh | 1000 kWh (1MWh) | 2000 kWh (2MWh) | ||||||
Cooling | Liquid Cooling | |||||||||||
Fast DC Charger | ||||||||||||
Gun Type | CCS2 / GBT | |||||||||||
Max Power | 160 kW | 240 kW | 320 kW | 400 kW | 480 kW | 960 kW | ||||||
Voltage Range | 200 – 1000 Vdc | 200 – 1000 Vdc | 200 – 1000 Vdc | 200 – 1000 Vdc | 200 – 1000 Vdc | 200 – 1000 Vdc | ||||||
Qty | 2 Guns | 2 Guns | 2 Guns | 2 Guns | 4 Guns | 4 Guns | ||||||
Wire Length | 5m / 7m | |||||||||||
DC Recharge | Supported | |||||||||||
AC Recharge | Supported | |||||||||||
PV Recharge | ||||||||||||
Max Power | 100 kW | 150 kW | 200 kW | 250 kW | 300 kW | 600 kW | ||||||
Voltage | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | ||||||
MPPT Range | 200 – 850 V | 200 – 850 V | 200 – 850 V | 200 – 850 V | 200 – 850 V | 200 – 850 V | ||||||
Channels | 2 | 3 | 4 | 4 | 6 | 8 | ||||||
AC OUT (Off-grid) | 50 kW | 100 kW | 150 kW | 200 kW | 250 kW | 500 kW | ||||||
General Parameters | ||||||||||||
Comm | 4G / Ethernet / OCPP 1.6J | |||||||||||
IP Grade | IP54 / IP55 | |||||||||||
Fire Suppression | Aerosol / Perfluorohexanone | |||||||||||
Operating Temp | -30℃ ~ 55℃ | |||||||||||
Humidity | 5% ~ 95% | |||||||||||
44KW Advertising AC EV Charging Station – Italy

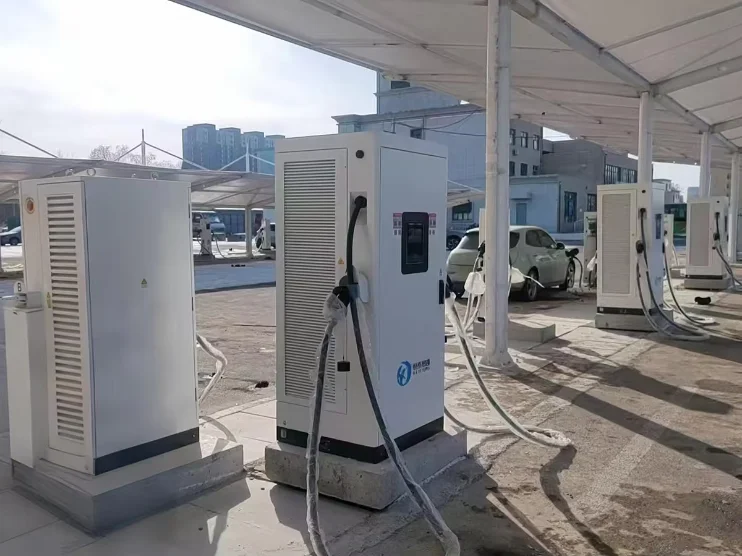

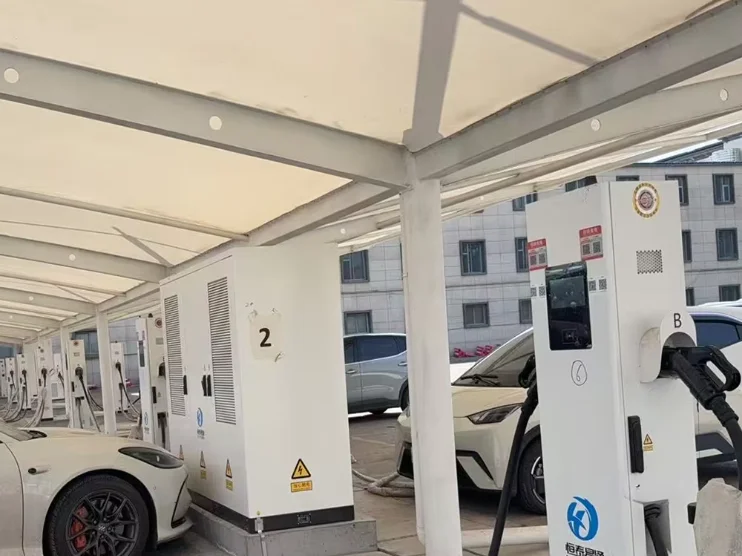

DC EV Charging Station-Public Parking Lots
120kW DC EV Charging Station-Iraq Residential Community
44kW Dual Connectors AC Charging Station -U.K.Residential Communits.
Two sets of 600kW one-to-ten-unit control charging stations
AC EV Floormount Charging Station-Israel

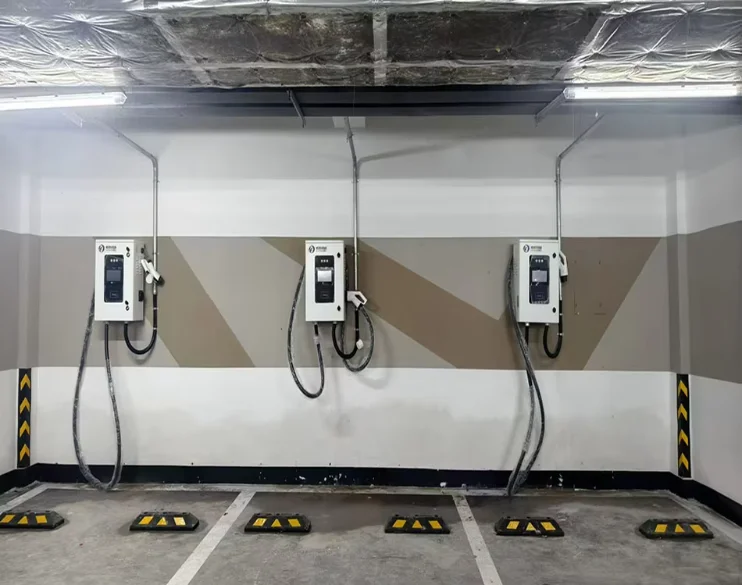

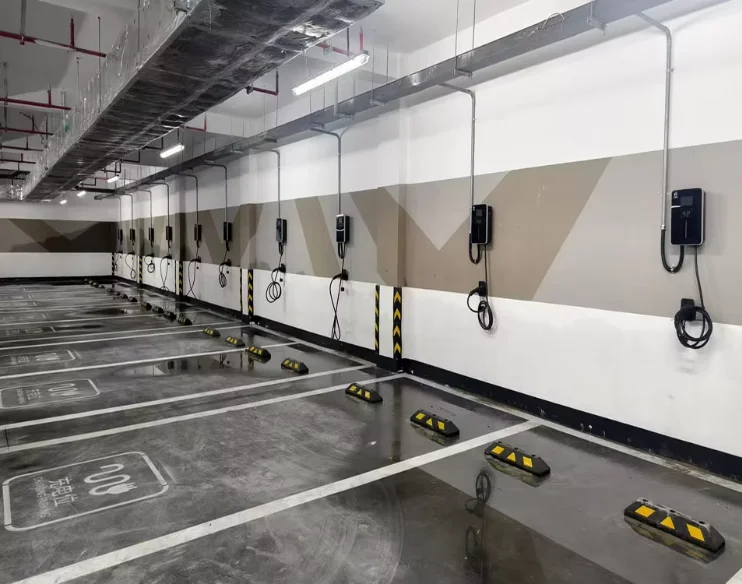

30 units DC wall-mounted chargers – underground garage

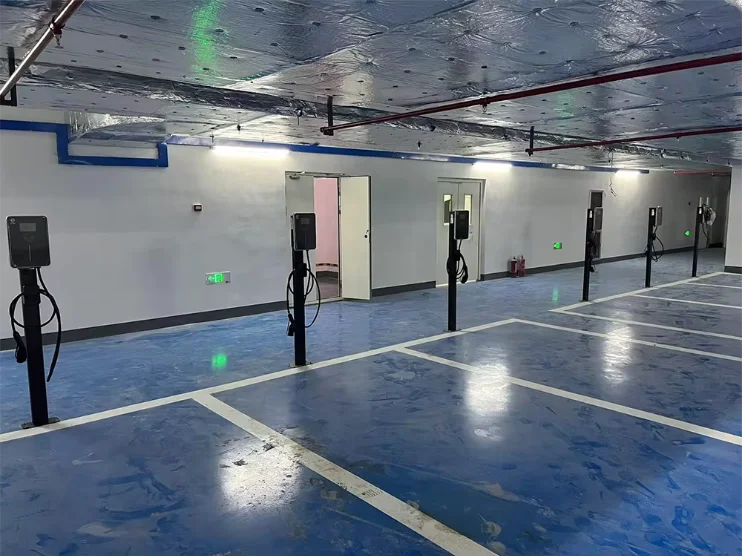

150 AC wall-mounted units – parking lot
10 units of 120kW DC charging stations
5 sets of split-type DC charging piles

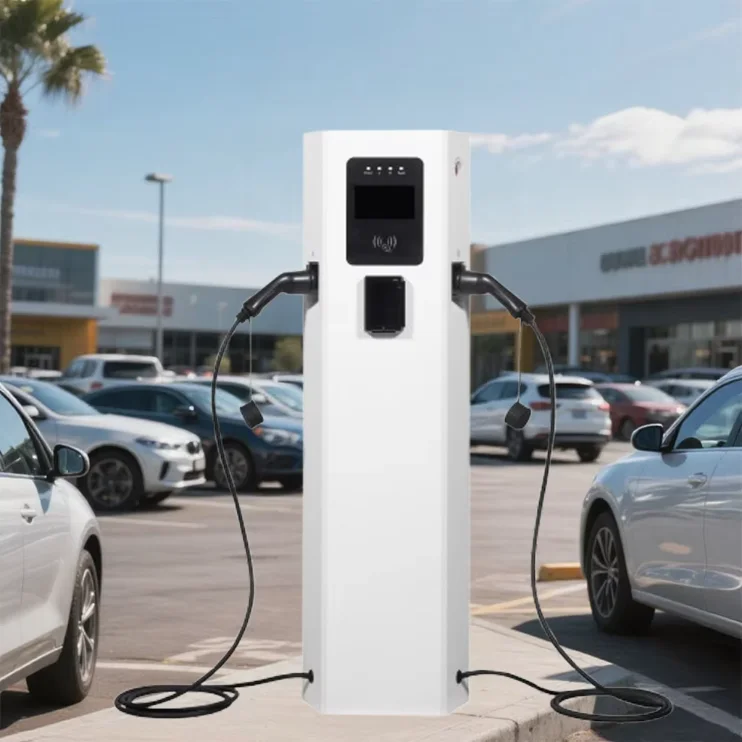

44kW dual-gun charger can be wall-mounted or floor-standing.

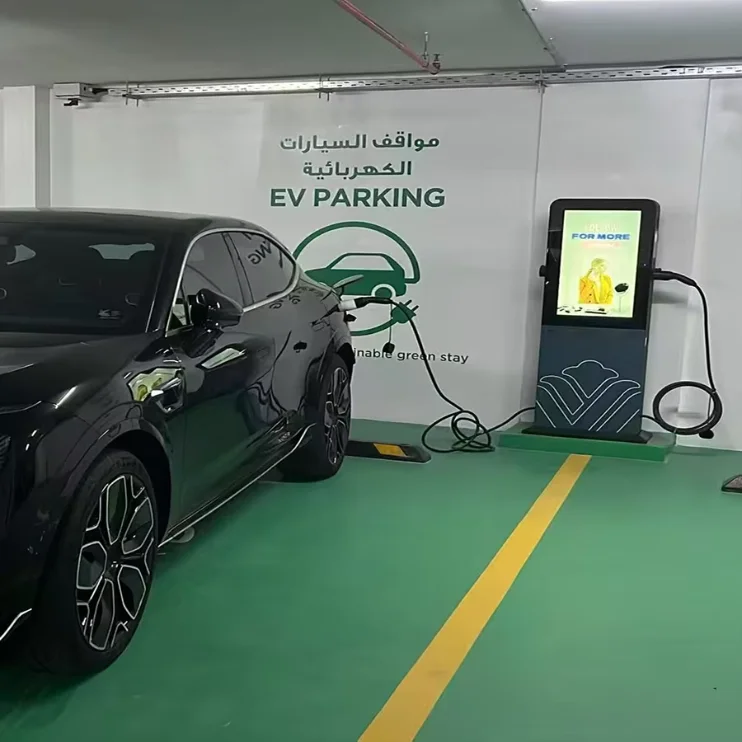

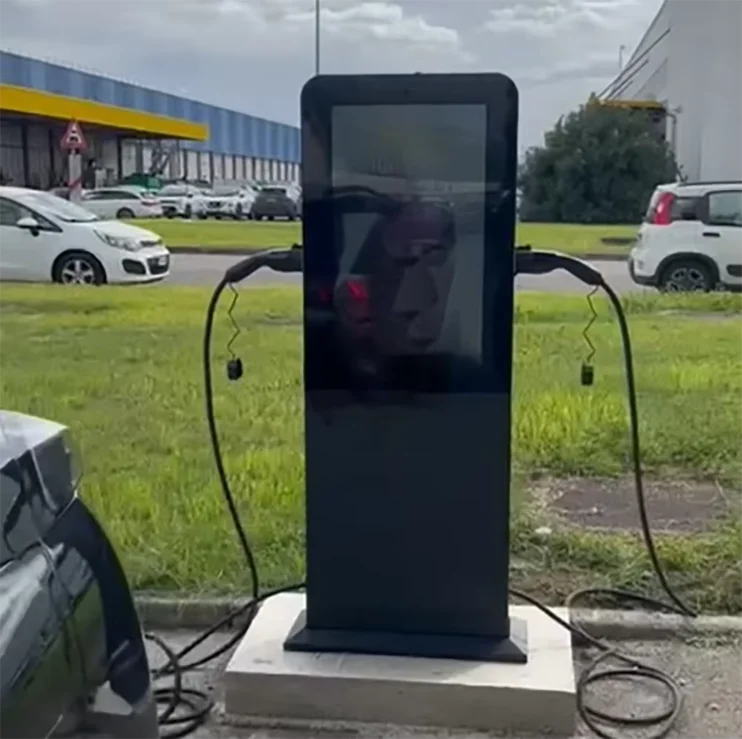

A 44kW dual-gun AC advertising charger with a 32-inch LED screen, capable of charging two vehicles simultaneously.

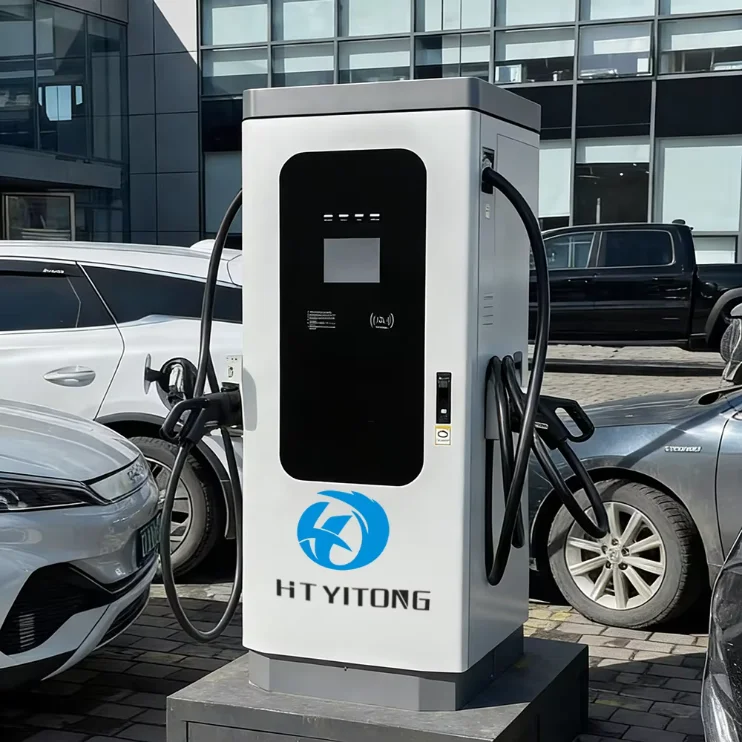

120kW 180kW DC EV Charging Station – Russia

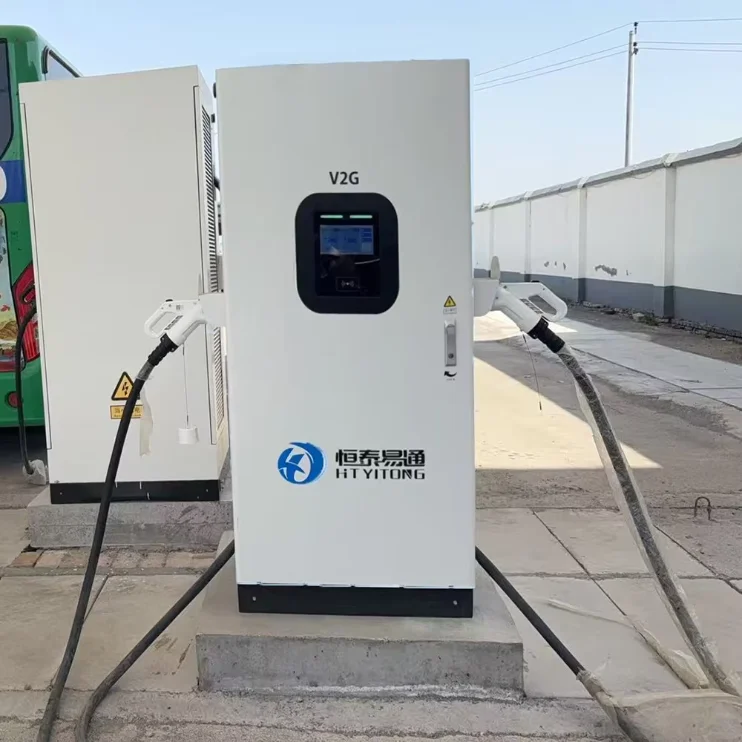

180kW V2G Fast Charging Station

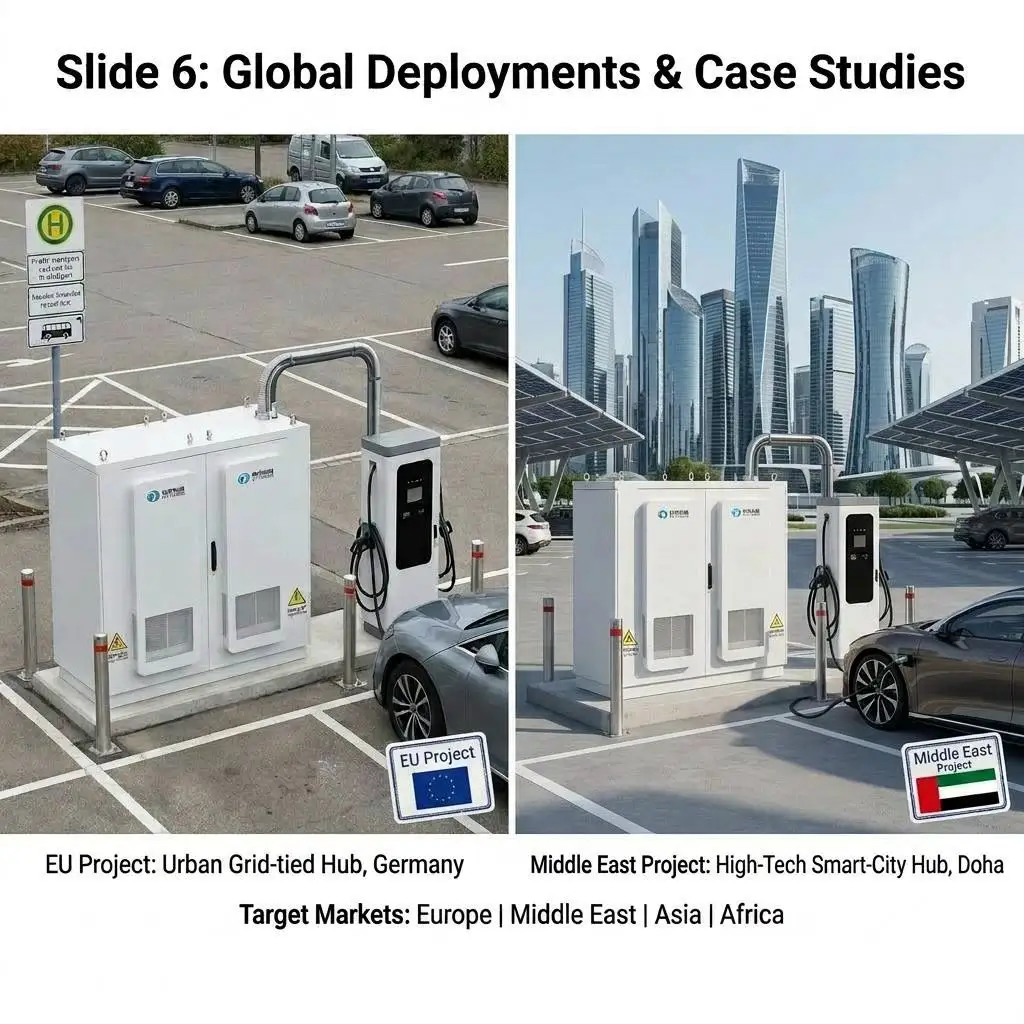

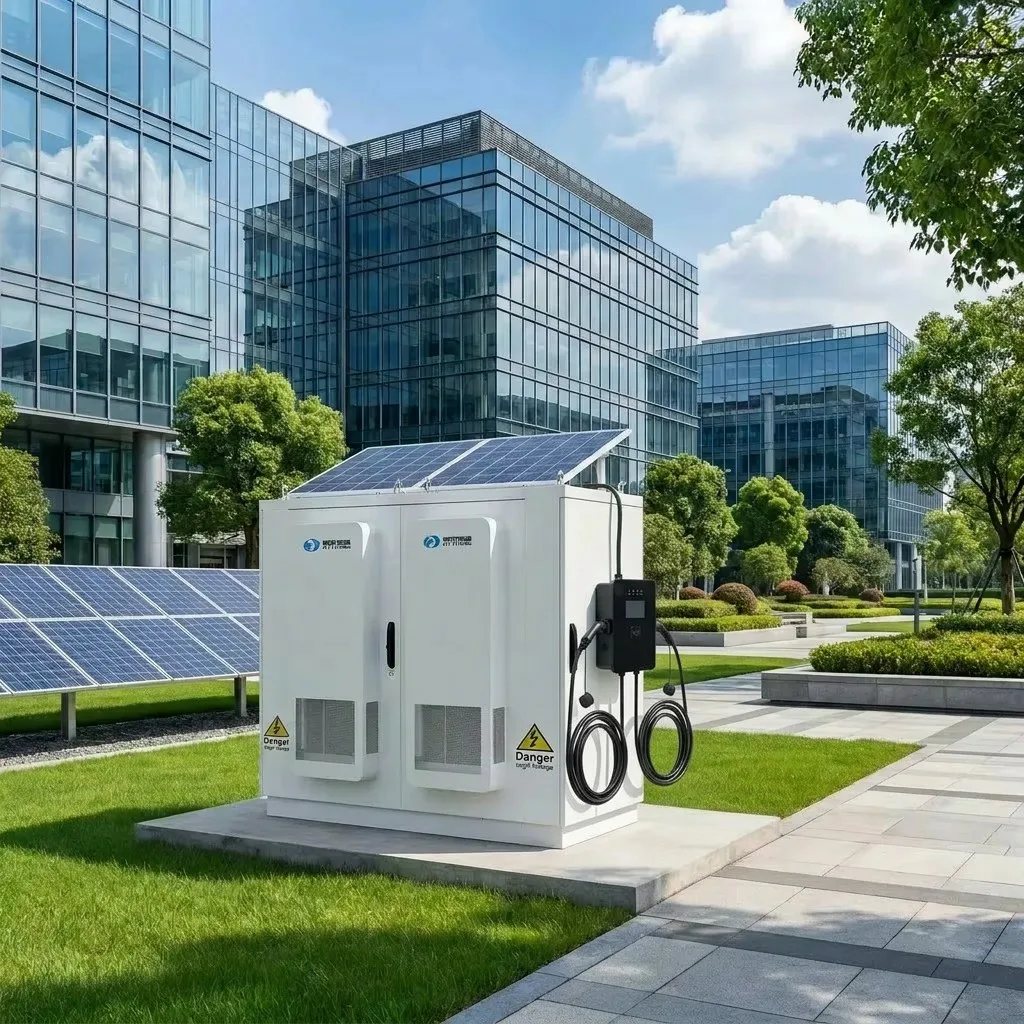

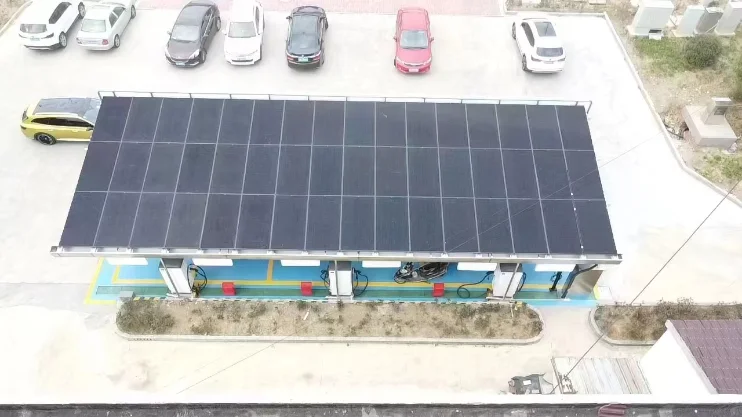

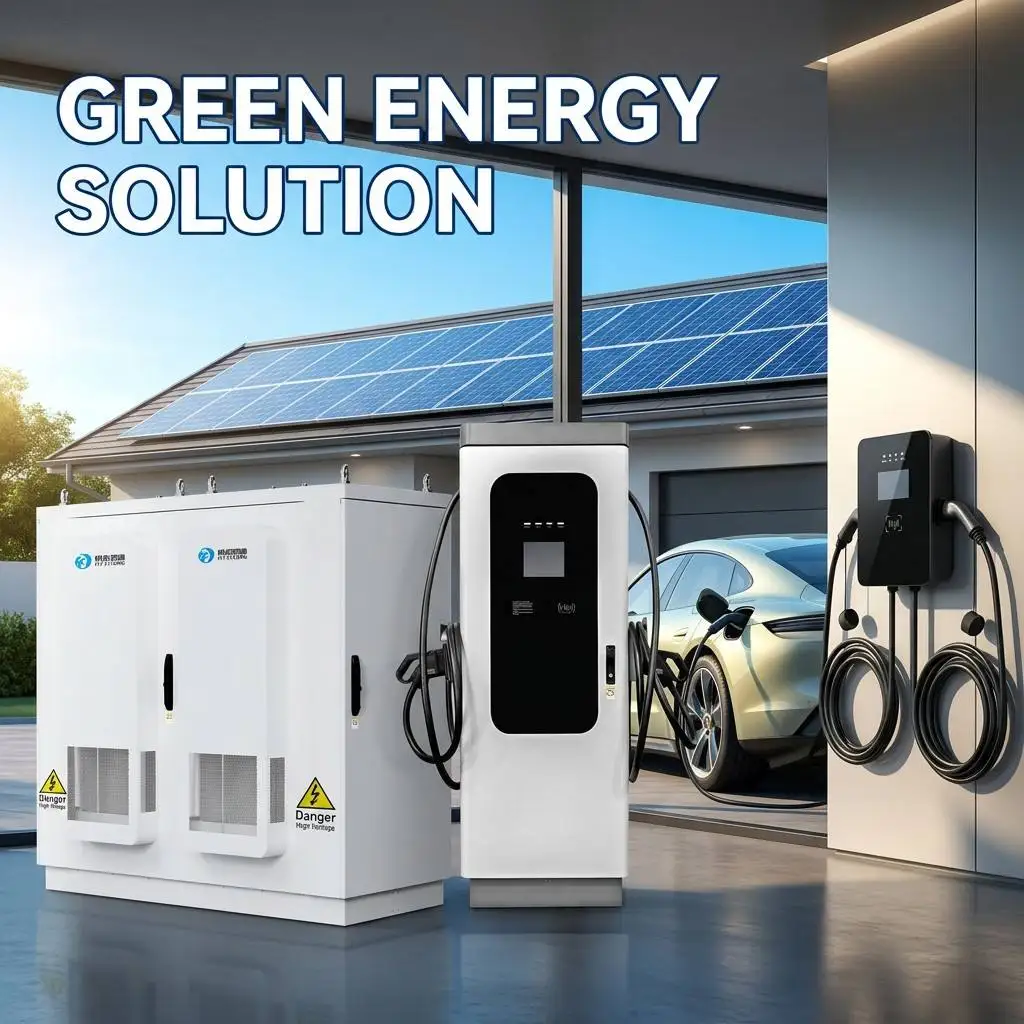

Photovoltaic and energy storage charging stations

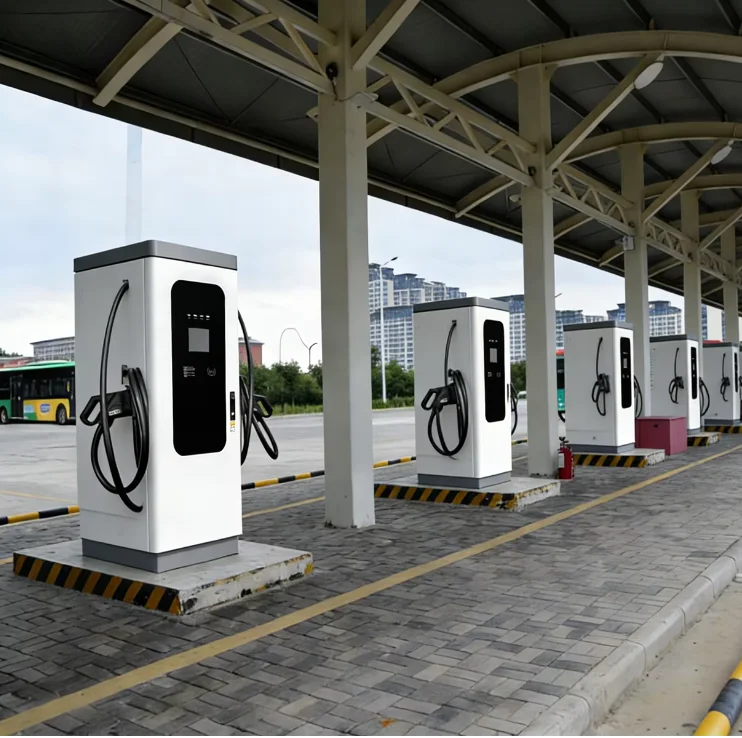

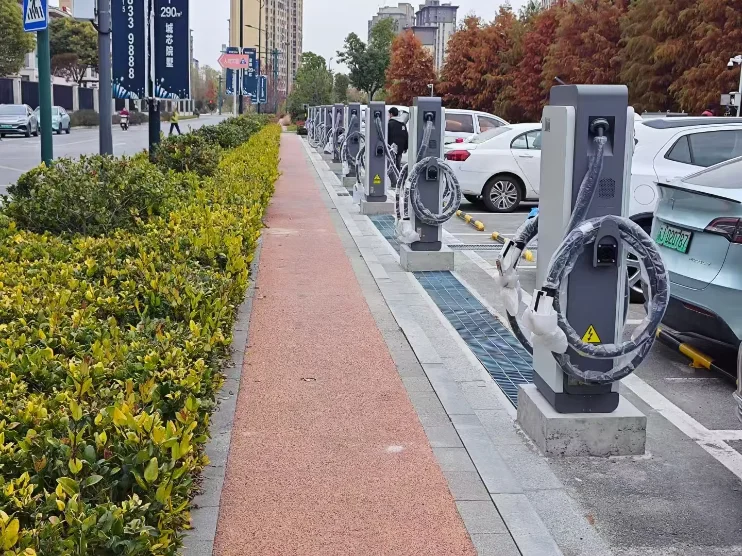

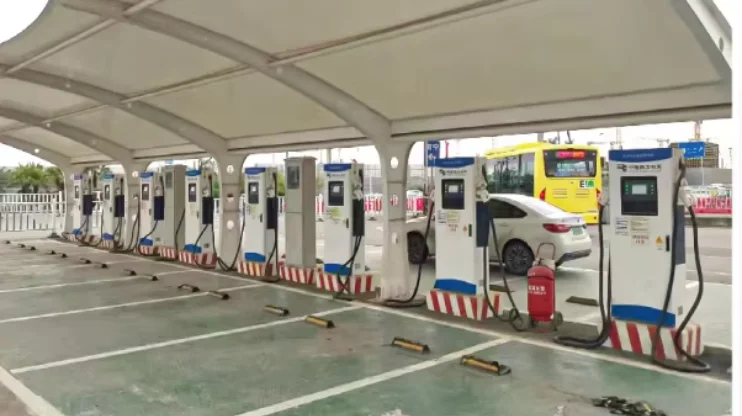

Public parking charging station
FAQs
What is the primary ROI driver for this system?
The ROI is driven by three factors: 1) Peak shaving (avoiding high demand charges), 2) Energy arbitrage (charging low, discharging high), and 3) Premium charging revenue from the high-power 420kW outlets.
How does the system handle grid outages?
It features a Seamless UPS Transition. The EMS detects grid failure and switches to Micro-grid mode in less than 20ms, using the LFP batteries and Solar panels to maintain a stable islanded power supply.
Is the installation complex?
No. HTYITONG utilizes an "All-in-One" Pre-Integrated Design. The batteries, PCS, and EMS are pre-wired and tested in our factory. Field installation is limited to connecting the AC cables and PV strings, reducing labor costs by 60%.
Can we integrate our own billing software?
Yes. The system is fully compatible with OCPP 1.6J (JSON) and supports API integration for third-party CMS and billing platforms.
How does your DC charger manage cooling and heat dissipation under heavy load?
Our DC fast chargers (60kW – 240kW) use an Independent Air Duct Structure to cool the power modules. The cooling airflow path is completely sealed from the control electronics chamber. Air is pulled through high-efficiency front intake filters, routed directly across the power module heat sinks, and forcefully exhausted from the top. This prevents dust, water vapor, or corrosive salt mist from settling on the control circuit boards (PCBs), assuring a service life of up to 10 years in harsh outdoor conditions.
What safety measures are in place for the LFP batteries?
We implement a 4-layer safety protocol: Cell-level BMS, Module-level monitoring, System-level emergency shutdown, and built-in Perfluorohexanone fire suppression.
How can it be used in conjunction with dynamic electricity pricing (such as Octopus Agile)?

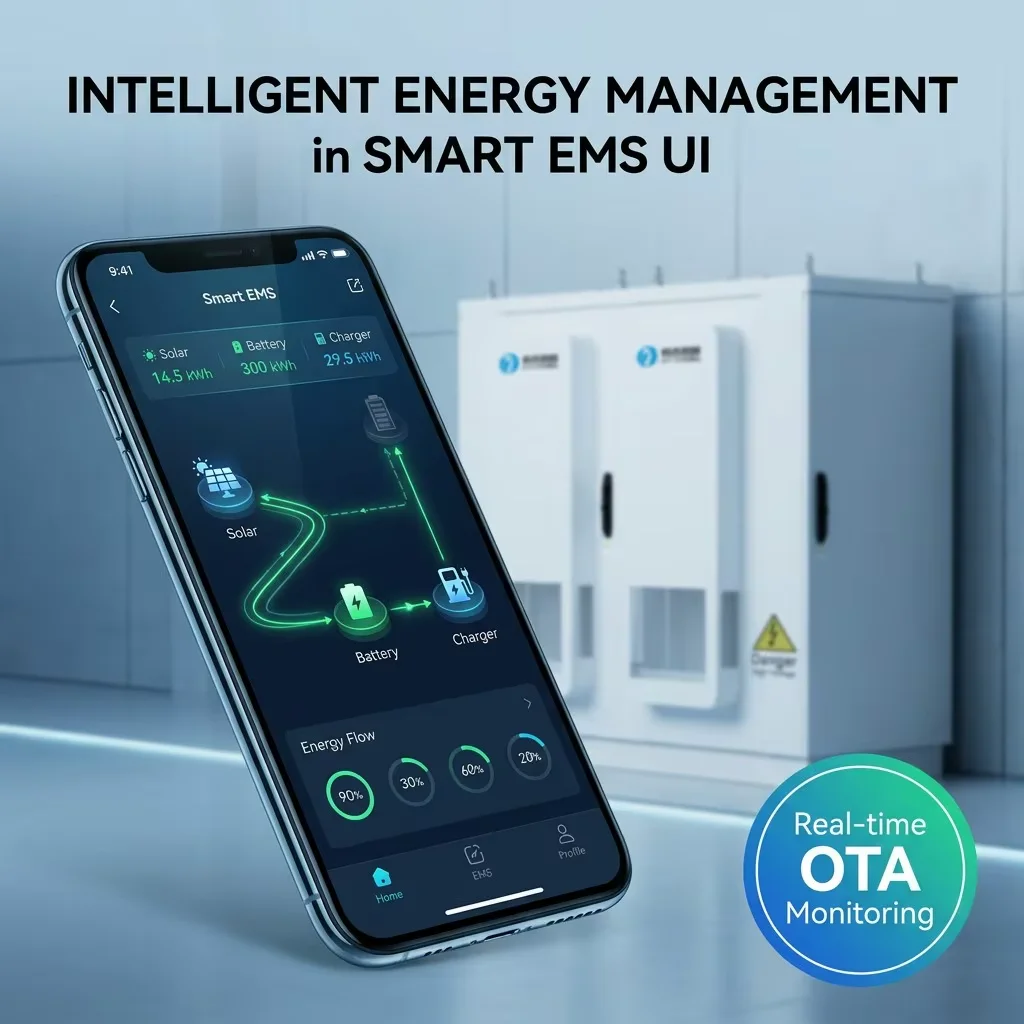

Our smart energy management platform is integrated with mainstream European dynamic electricity price APIs (Octopus Agile / aWATTar / Tibber, etc.). The system automatically charges energy storage during off-peak hours and prioritizes energy storage/PV power during peak hours, while also setting a "most economical time" scheduling strategy for EV charging.

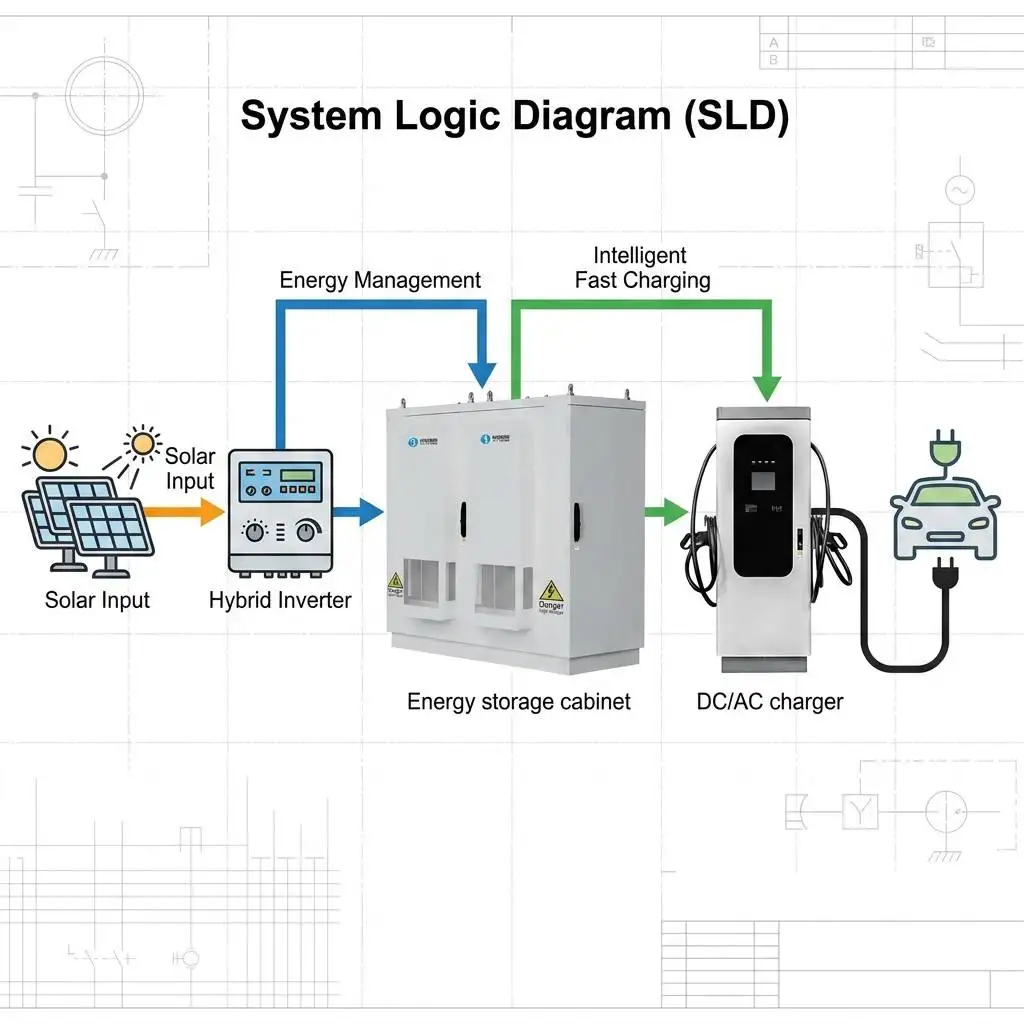

What are the advantages of an integrated photovoltaic, energy storage, and charging system compared to purchasing photovoltaic + energy storage + charging pile separately?
The integrated system is pre-integrated, plug-and-play, eliminating the hassle of multi-brand compatibility and debugging. The photovoltaic inverter, energy storage converter (PCS), and charging pile share a DC bus, reducing losses from multiple AC-DC conversions, resulting in an overall system efficiency 5-8% higher than decentralized procurement. Furthermore, unified cloud platform management enables coordinated optimization of photovoltaic output, energy storage scheduling, and charging power.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $55850 / piece
- 5–19 piece: US $55000 / piece
- 20+ piece: US $50000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this speed controllers regulators?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the speed controllers regulators be supplied for my local voltage?
The standard configuration is 1000V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Hengtai Yitong Amperex Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu Hengtai Yitong Amperex Technology Co., Ltd. range on HVACR Nexus.
