Steam boiler — voltage 12-480v, 1w-10000w. The complete factory specification follows. Made by Hebei Yineng Boiler Co., Ltd. (9 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Boiler
- Power(W): 1w-10000w
- Voltage: 12-480v
- Warranty: 2 Years
- Place Of Origin: Hebei, China
- Type: Natural Circulation
- Weight (Kg): 67890
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Gas |
| Pressure | Low Pressure |
| Structure | Fire Tube |
| Type | Natural Circulation |
| Key Selling Points | High-Accuracy |
| Style | Horizontal |
| Warranty | 2 Years |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 67890 |
| Place Of Origin | Hebei, China |
| Brand Name | YN |
| Dimension(L*W*H) | Cutomer’s Request |
| Heat Transfer Medium | Low-pressure saturated steam and High-pressure saturated steam |
| Design | Flame tube/smoke tube technology |
| Safety Pressure | up to 16bar |
| Max. Temperature | 204°C |
| Power(W) | 1w-10000w |
| Voltage | 12-480v |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Technical Description

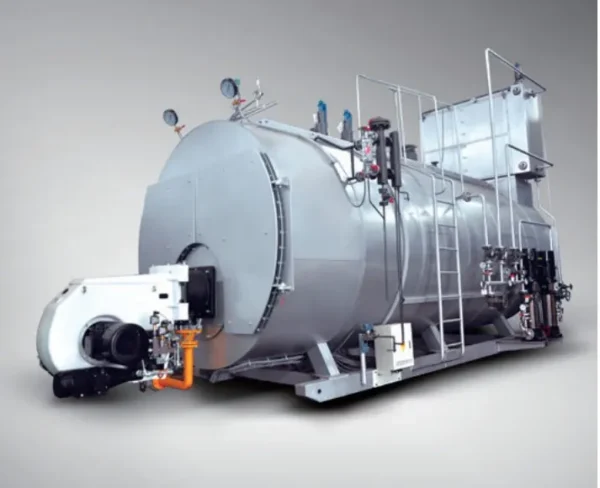

WNS automatic oil(gas)-fired steam boiler is the horizontal, 3-pass, fire-tube boiler, mainly consisted of shell, undee furnace, diversion smoke chamber, fire tubes ,etc. The fuel can be light oil, heavy oil, natural gas, liquefied gas, city coal gas and so on.Tailored solutions for sophisticated steam production: The steam boilers from YN Industriekessel in an output range from 1t/h to 20 t/h are available for a wide range of applications. Product dimensions and equipment levels are tailored to the customer's individual needs, and a wide range of options and variants are available. The result: maximum energy efficiency, excellent conservation of resources and outstanding availability. The intelligent control technology from YNIndustriekessel ensures convenient, fully-automatic steam boiler operation.
Boiler controlling and safety systems
1. The controlling and safety systems are interlocked in an electric control cabinet (ECC).
2. The burning and security operation are controlled by ECC. It has the following basic functions :
Protection program of automatic ignition
Locking and protection program of operation
Protection program of extinction
Protection program of completion
Protection program of water pumps (pressure loss)
Protection program of ignition failure
Protection program of combustion engine malfunction
Protection program of combustion engine flameout
Protection program of gas leakage
3. Alarm system
Sound-light alarm of steam pressure and super-high steam pressure
Sound-light alarm of high and low limit water level
Sound-light alarm of pressure loss in water pumps
Boiler main equipments
Service terms
1.Service before sale:
Provide relative technical datas as customer's requirements. Design the drawings including
foundation (floor plan), layout drawing, basic general drawing and quotation.
2.Service in sale:
After the contract working, we will execute each item, keep ISO9001:2008 standard in every
manufacturing process. Keep in touch with customer and make sure that craft, quality and
technology could meet the requirements.
3.Service after sale:
3-1 Help customers for free to adjust the system and train workers at site.
3-2 One year free quality guarantee except the problems caused by human and natural factors.
3-3 Long-life maintenance. We will charge for the spare and wearing parts at the cost prices.
Technical parameter
Warranty and after-sale service
The top quality of every set of machine and best after sales service as followings :
(A)The boiler body guarantee is 24 month , for accessories 36 month
(B)During the guarantee period , if the main body defective or broken without wrong operating
we must replace the parts for free or prepare the spare-parts for free.
(C)We should provide boiler technical service and operation guidance for whole life long.
(D)Regarding to the installation and training , the buyer should take all the correlative charges
(accommodation and food , round -trip tickets)
Jack shi
Hebei Yineng Boiler Co. Ltd.
Tel.: +86-311-85209553
Mobile:+86-18732126877
Email:bzjack(@)aliyun.com
Skype: jackmase | WhatsApp: +86-13739725060
Wechat: +86-18732126877
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $8888 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the steam boiler be supplied for my local voltage?
The standard configuration is 12-480v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
