Key specification for this steam boiler: material Carbon Steel, Stainless Steel, type Natural Circulation. Everything below is reproduced from the factory data sheet. Made by Henan AIX Equipment Co., Ltd. (1 year on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Boiler
- Material: Carbon Steel, Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application: Textile Mill
- Type: Natural Circulation
- Weight (Kg): 8000
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Gas |
| Pressure | Max. 2.5MPa |
| Structure | Fire Tube |
| Type | Natural Circulation |
| Material | Carbon Steel, Stainless Steel |
| Core Components | Pressure Vessel, PLC, Pump, Engine, Gearbox |
| Key Selling Points | High Safety Level, Energy Saving, Automatic, Low Maintenance Cost, Accurate Temperature Control, High-Accuracy |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 8000 |
| Place Of Origin | Henan, China |
| Brand Name | AIXBOILER |
| Dimension(L*W*H) | 5.8m*2.7m*2.5m |
| Design Fuel | gas |
| Application | Textile Mill |
| Color | Customer’s Requirement |
| Function | Multifunctional |
| Working Pressure | 13Bar (accept Customization) |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product descriptions from the supplier
Video Description
Products Description
Product Advantages
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

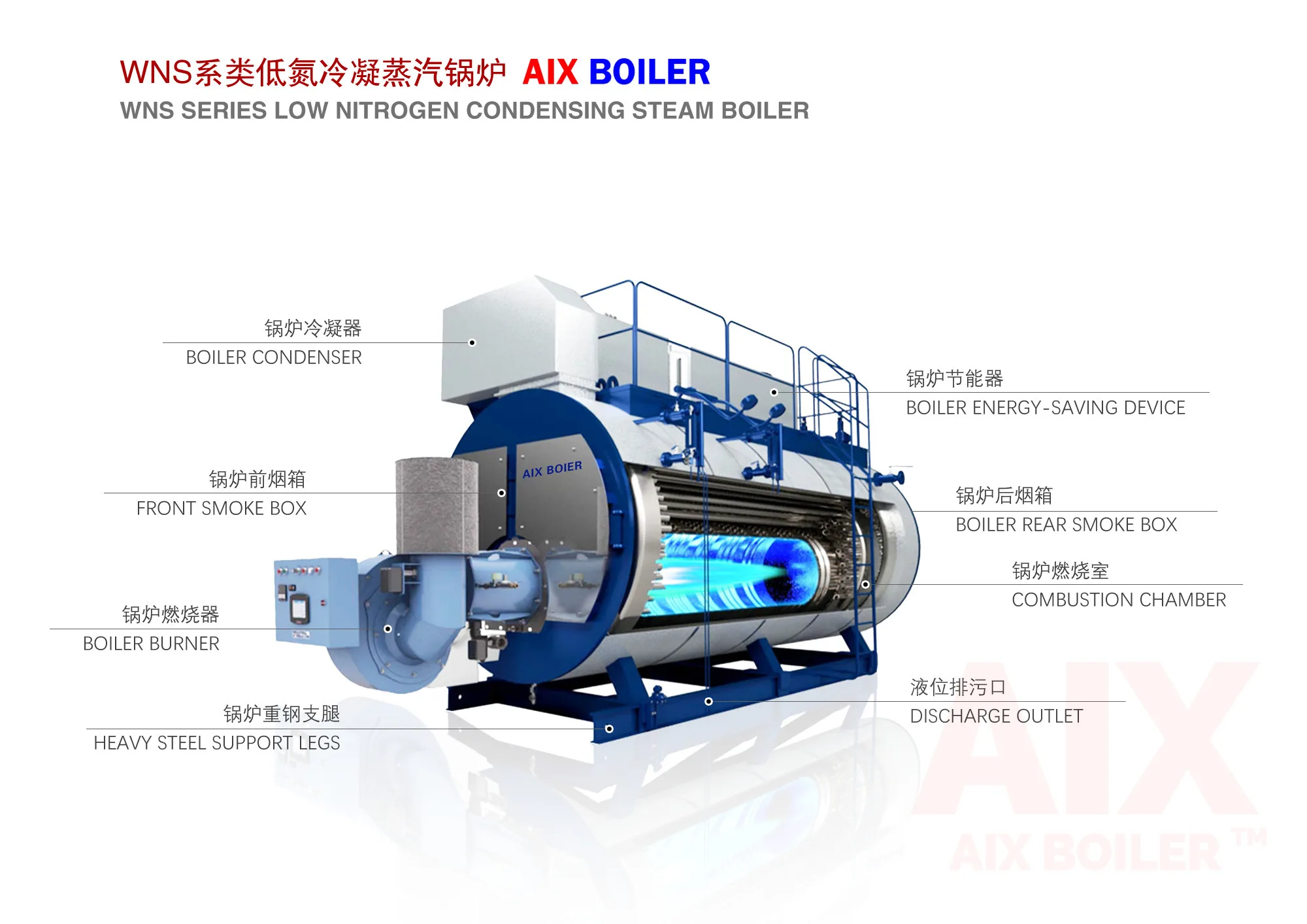

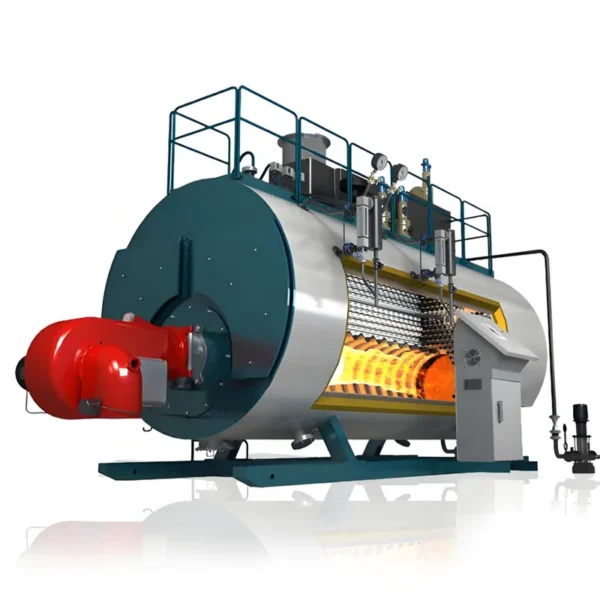

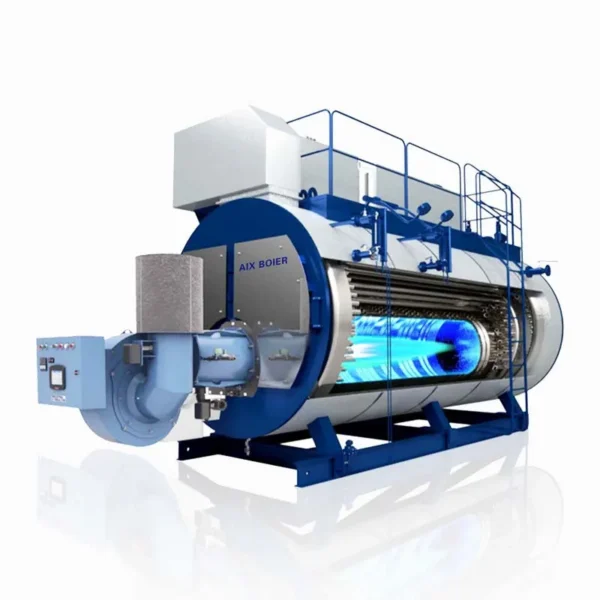

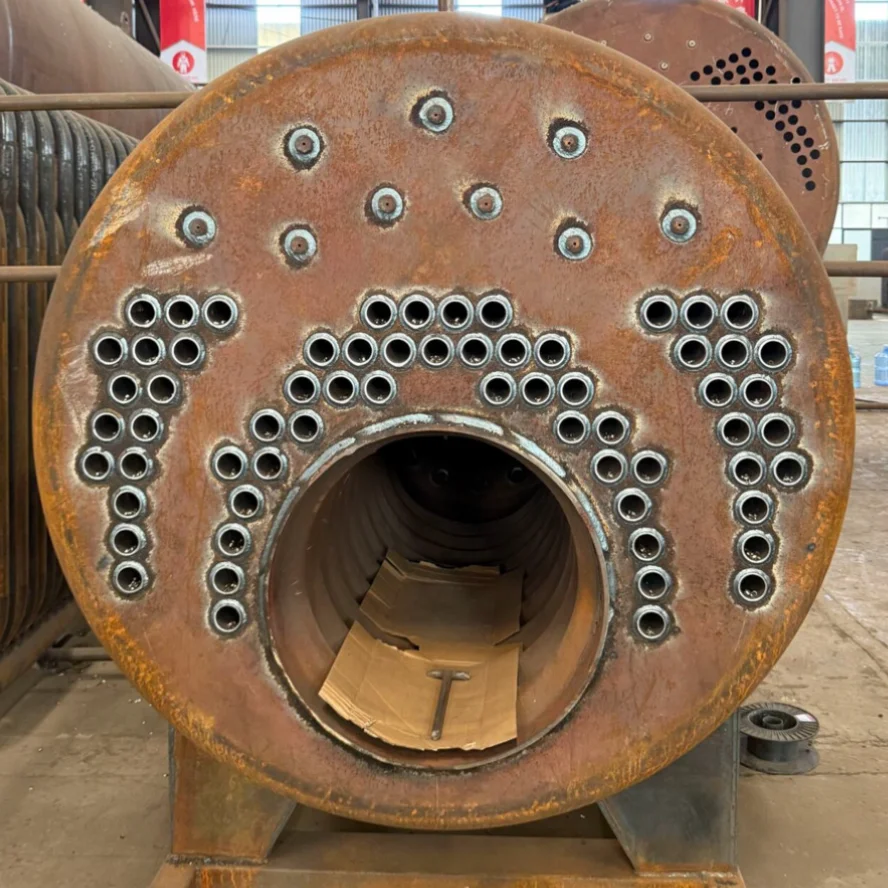

AIX boilers require less fuel while meeting high production demands. The unique three-pass design enhances heat exchange between
high-temperature exhaust gas and water, enabling faster and more thorough thermal transfer. This results in rapid steam generation, significant fuel savings, and a reliable steam supply for production.

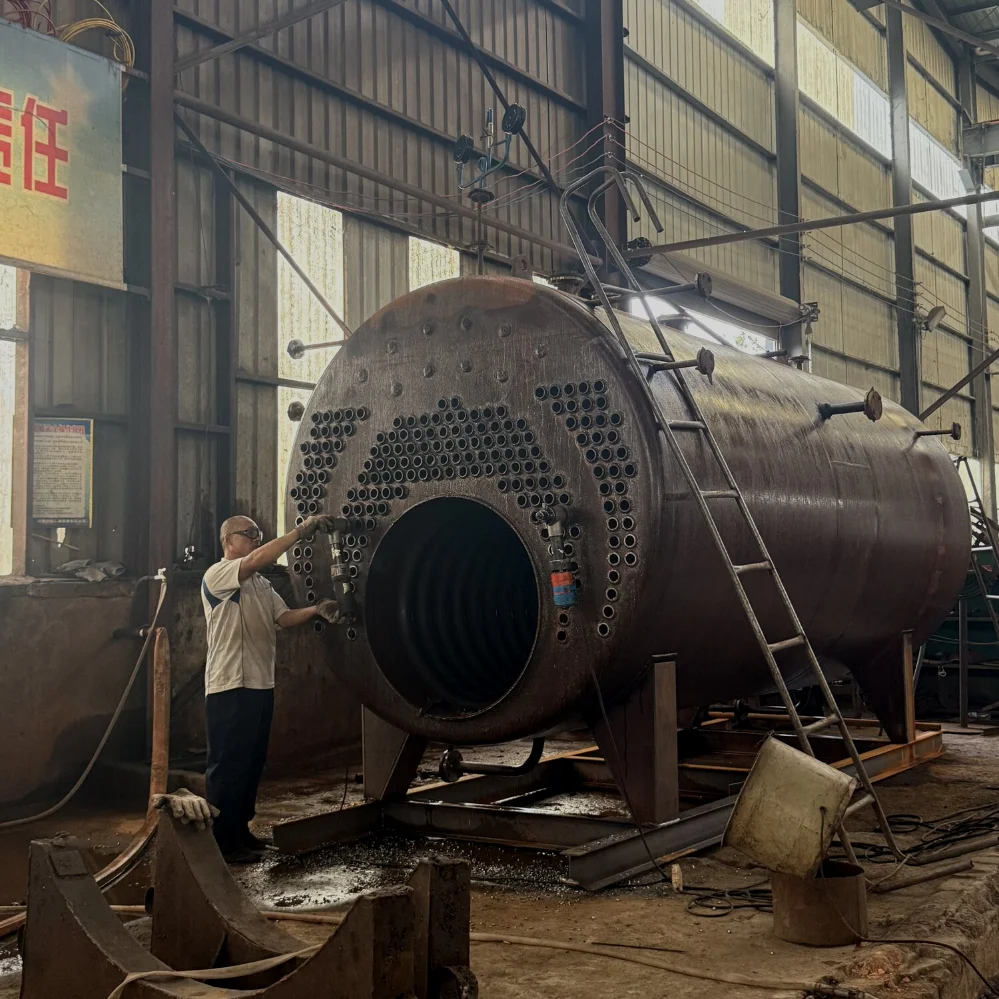

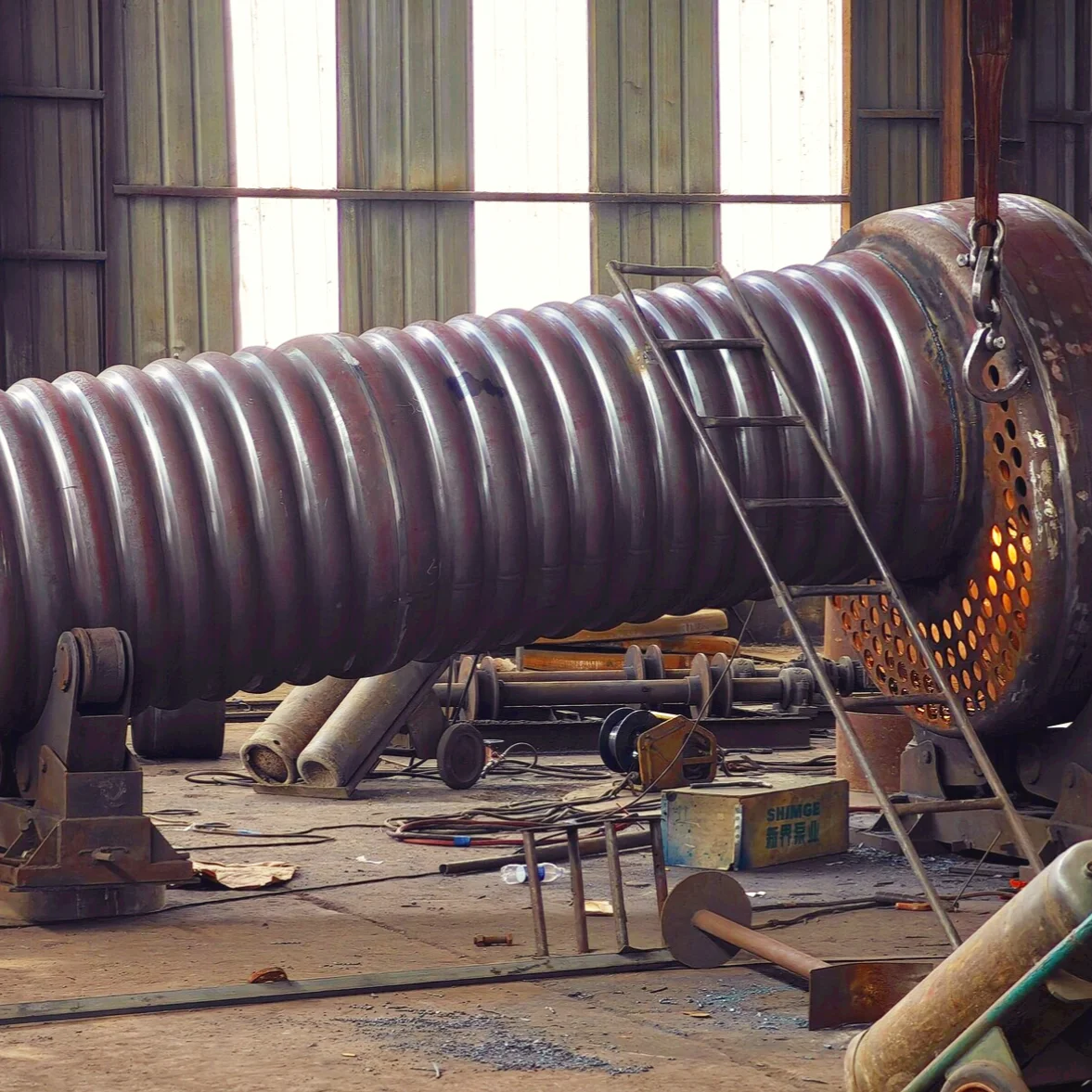

Large diameter corrugated furnace
The boiler combustion chamber is constructed with a large-diameter fully corrugated furnace, featuring large combustion space,
complete fuel combustion, effective absorption of thermal expansion, and large radiant heating surface.
complete fuel combustion, effective absorption of thermal expansion, and large radiant heating surface.

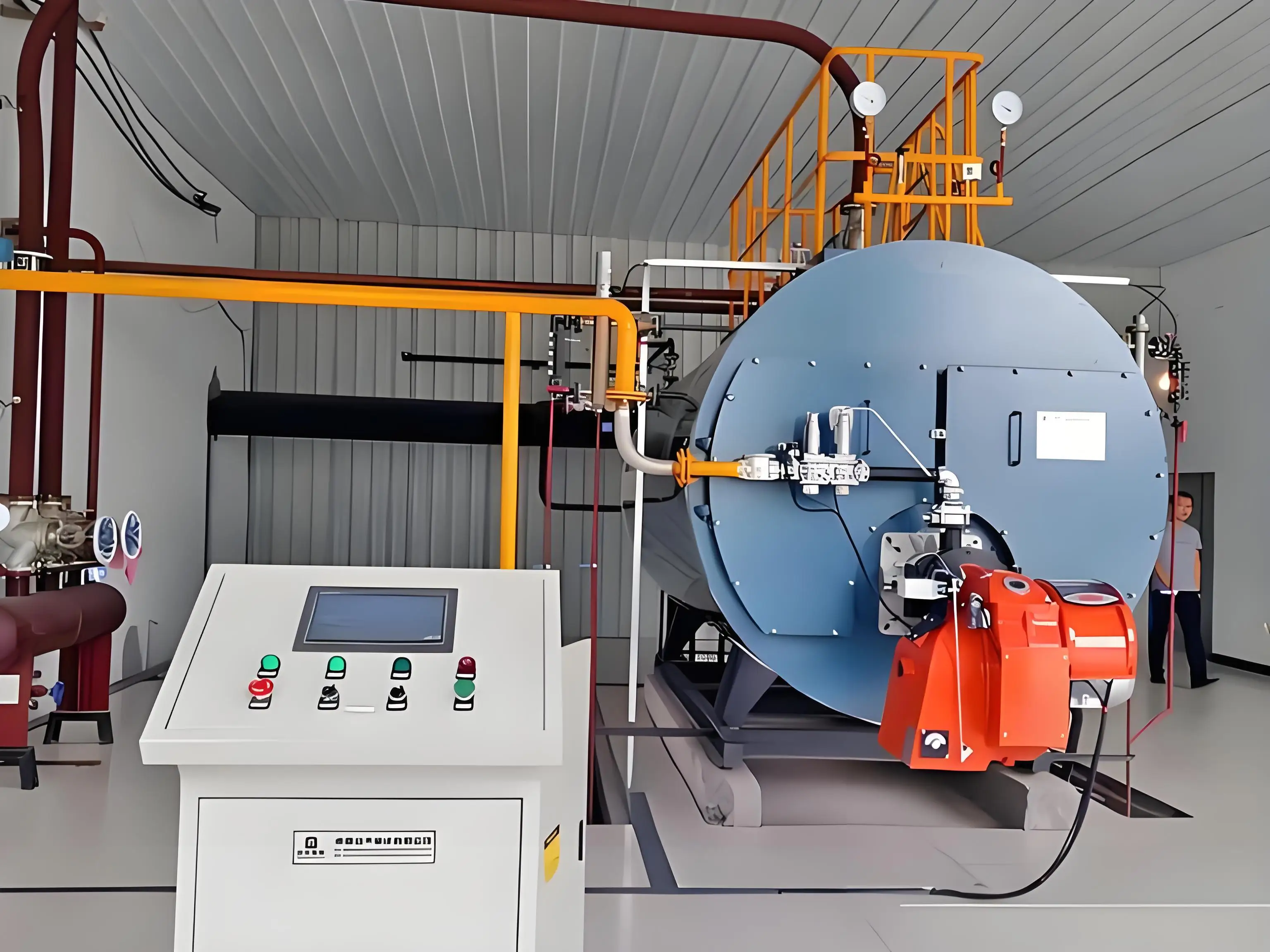

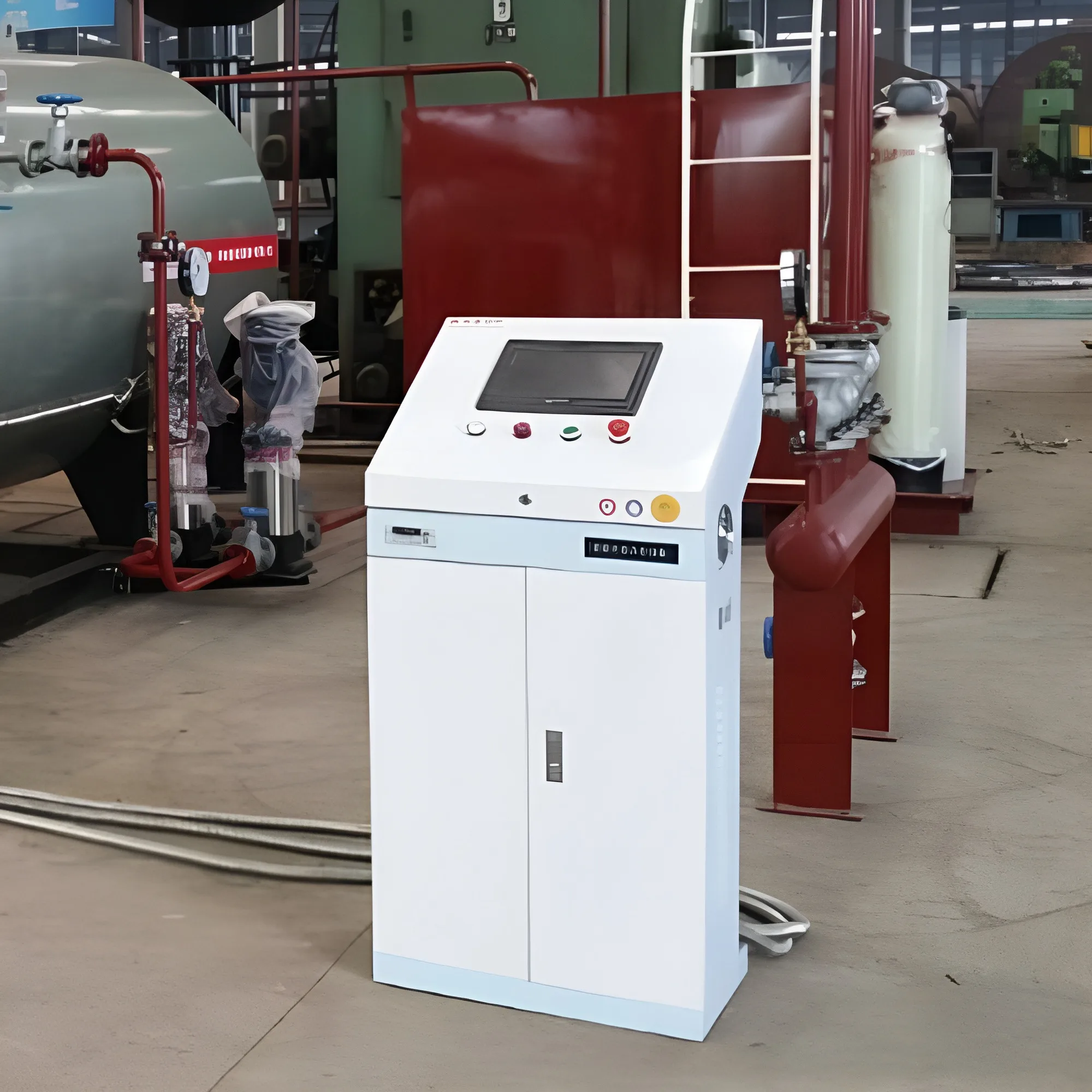

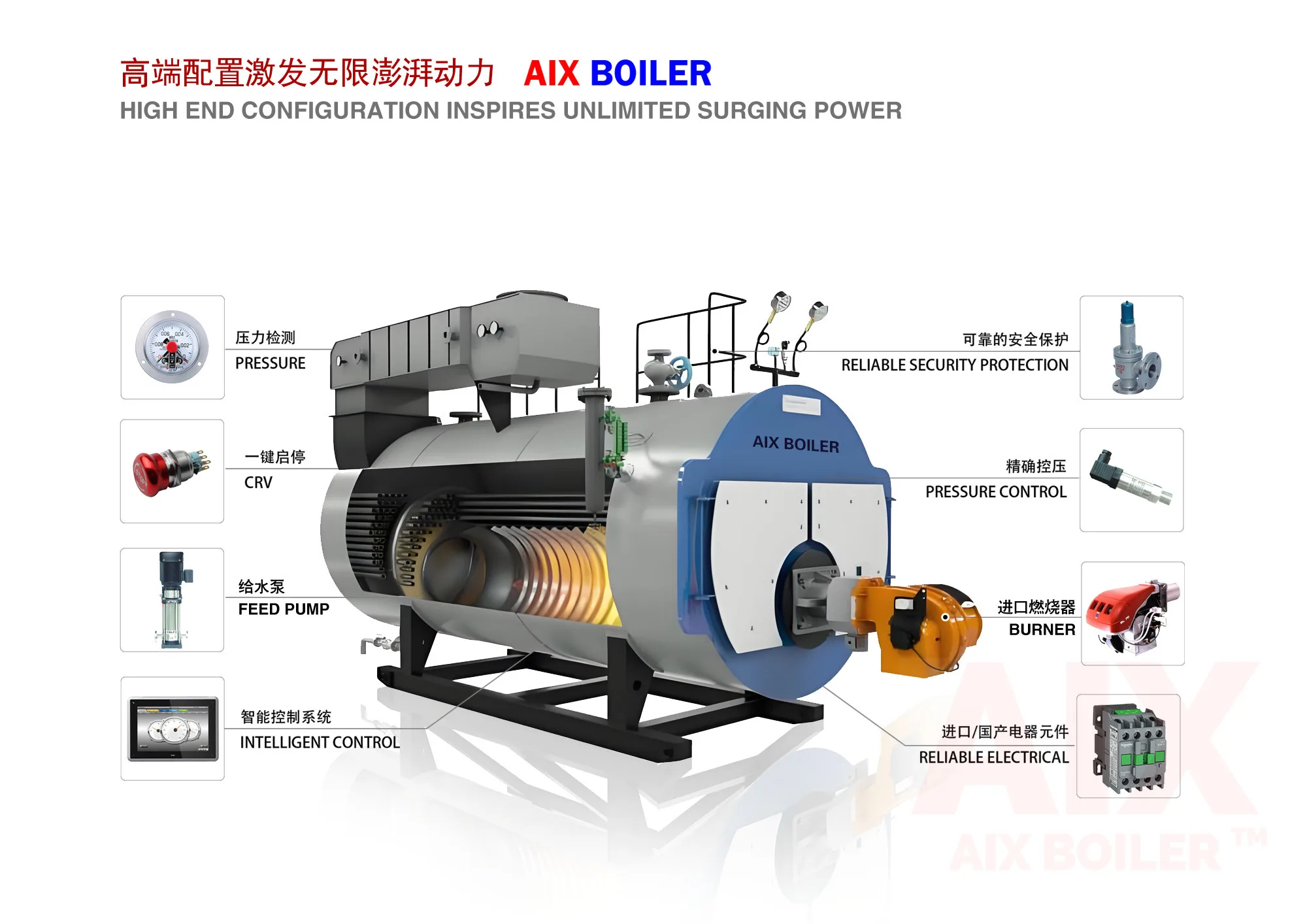

Dedicated Control Pannel System
AIX control system simplifies operation and enhances responsiveness. It incorporates intelligent safeguards to support stable
production operations. Built with premium components from industry-leading brands such as Siemens and Schneider, it guarantees the
reliable performance of the boiler system and contributes to smoother plant operation.
production operations. Built with premium components from industry-leading brands such as Siemens and Schneider, it guarantees the
reliable performance of the boiler system and contributes to smoother plant operation.
WNS Boiler Technical Paramet
Model | Reated capacity(t/h) | Reated pressure (Mpa) | Reated Temperature (c) | Thermal Efficiency (%) | Exhaust gas temperature (c) | Max Transport weight (t) | Max transport size (mm) | Fuel oil consumption (kg/h) | Fire gas consumption (Nm3/h) |
WNS1 | 1 | 0.7 1.0 1.25 | 170 184 194 | ＞98 | ≤60 | 6.8 | 3400*1700*2100 | 61.5 | 75 |
WNS1.5 | 1.5 | ＞98 | ≤60 | 7.7 | 3800*1900*2400 | 94 | 112 | ||
WNS2 | 2 | 1.25 1.6 | 194 204 | ＞98 | ≤60 | 8.2 | 4300*1900*2300 | 125 | 150 |
WNS3 | 3 | ＞98 | ≤60 | 9.9 | 3900*2100*2500 | 187 | 225 | ||
WNS4 | 4 | ＞98 | ≤60 | 12.7 | 4700*2200*2600 | 250 | 300 | ||
WNS5 | 5 | ＞98 | ≤60 | 14.2 | 5200*2300*2700 | 312 | 375 | ||
WNS6 | 6 | ＞98 | ≤60 | 17.5 | 5660*2400*2800 | 375 | 450 | ||
WNS8 | 8 | 1.25 1.6 2.5 | 194 204 225 | ＞98 | ≤60 | 21.3 | 5900*2500*3000 | 500 | 600 |
WNS10 | 10 | ＞98 | ≤60 | 22 | 6600*2700*3200 | 625 | 750 | ||
WNS12 | 12 | ＞98 | ≤60 | 27.2 | 7000*3000*3300 | 750 | 900 | ||
WNS15 | 15 | ＞98 | ≤60 | 35.5 | 7500*3400*3600 | 937 | 1125 | ||
WNS20 | 20 | ＞98 | ≤60 | 45 | 7800*3700*4200 | 1250 | 1500 |

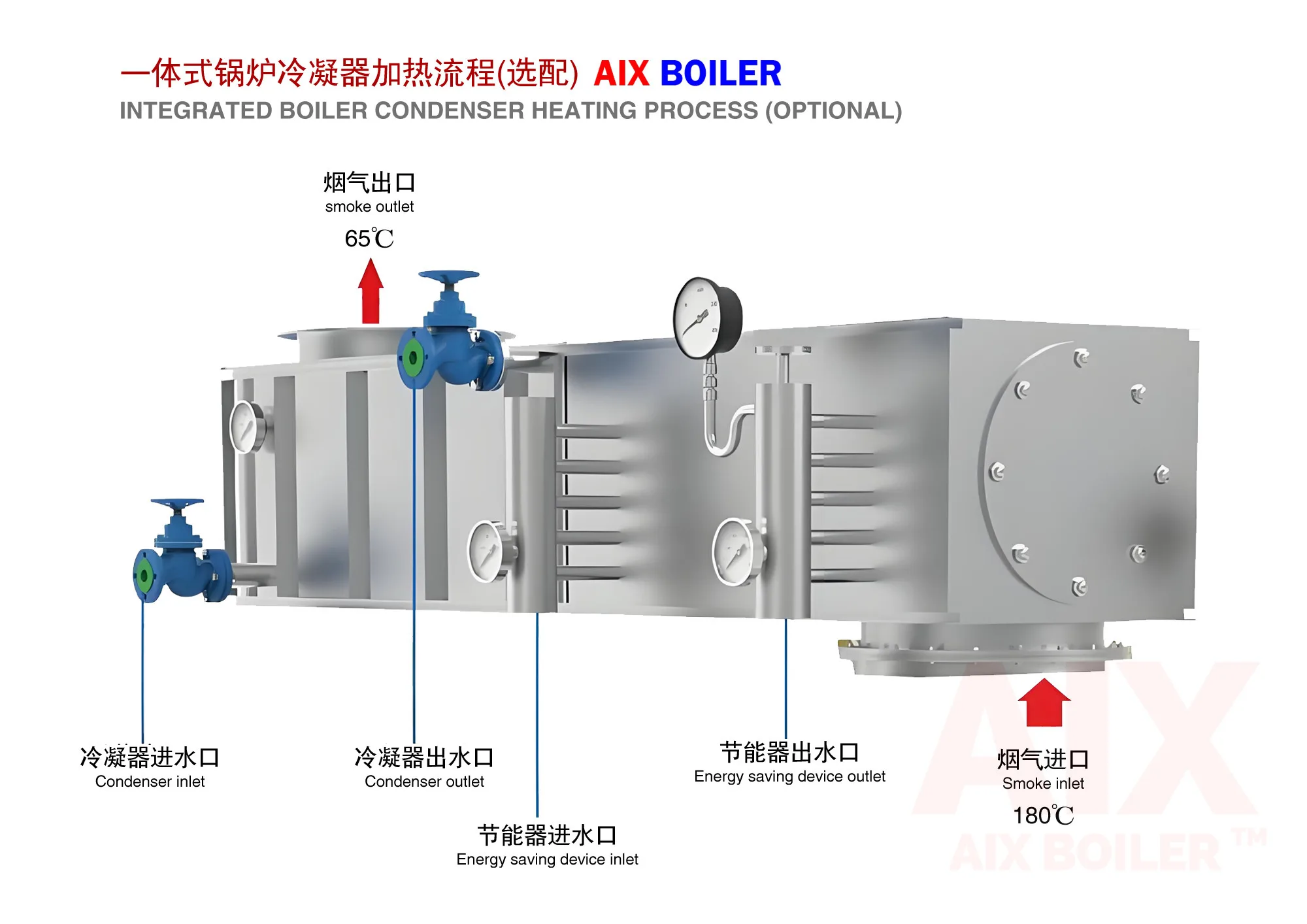

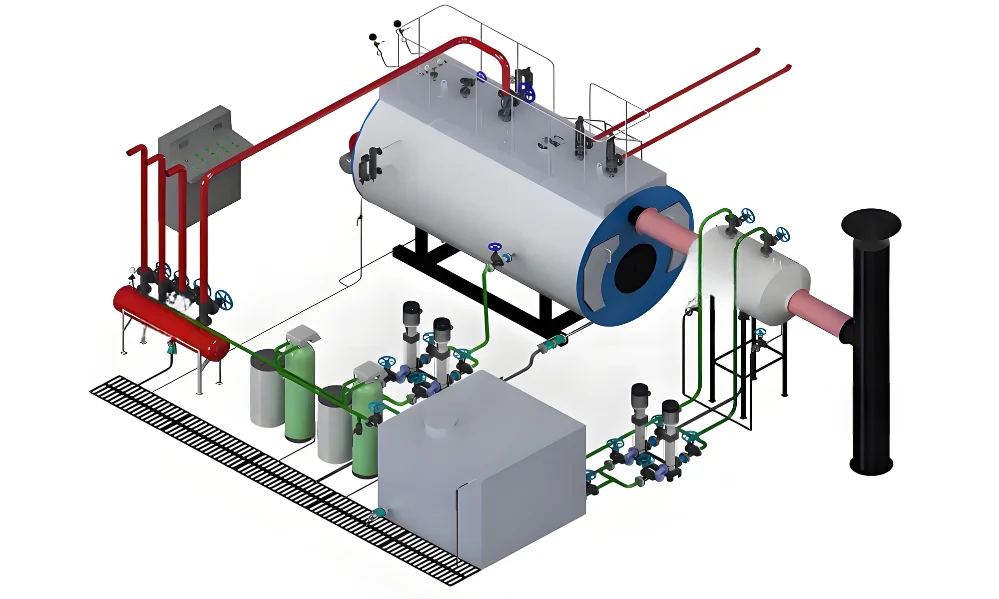

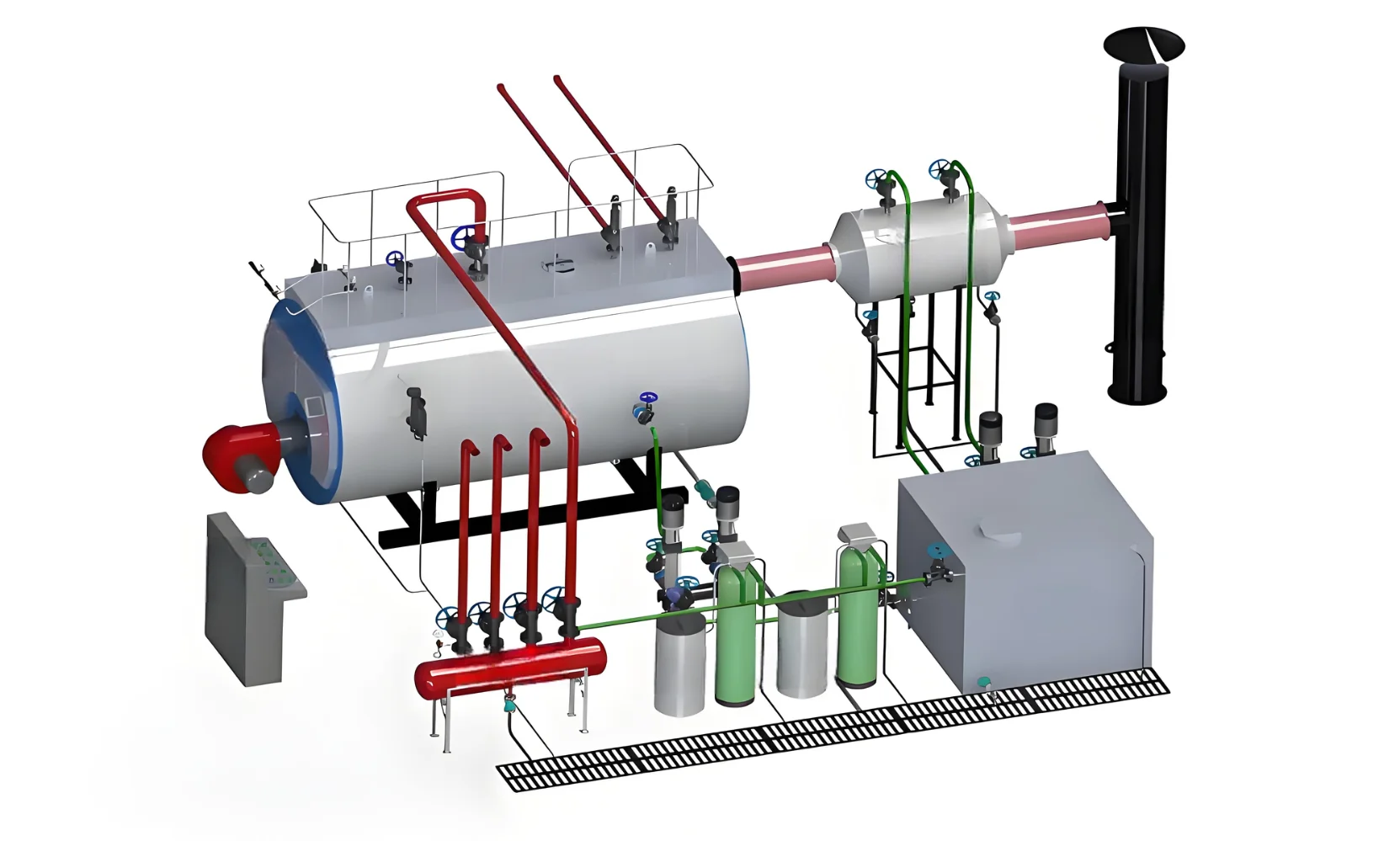

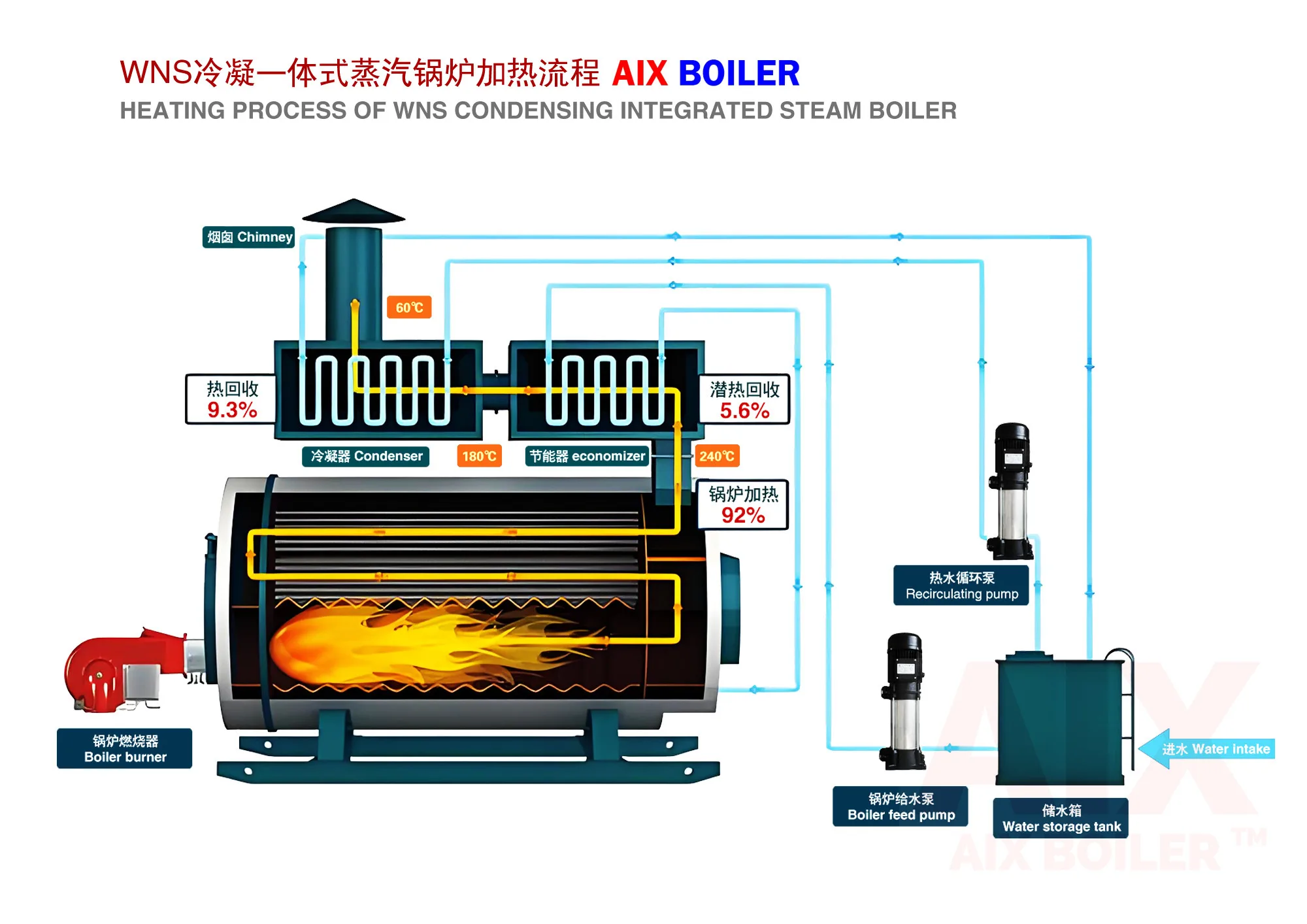

Boiler process diagram
Product Name | WNS Oil/Gas Steam Boiler |
Rated evaporation Capacity(t/h) | 1T~30T |
Water supply Temperature(°C) | 20 |
Thermal Efficiency(%) | 96.2 |
Applicable Fuels | OIL: Heavy Oil, Light Oil, Diesel…. GAS: Natural Gas, LPG,LNG…. |
Applicable industries | Washingindustry, Food industry, Biological industry, Chemicalindustry, Textile industry…. |
APPLICATION

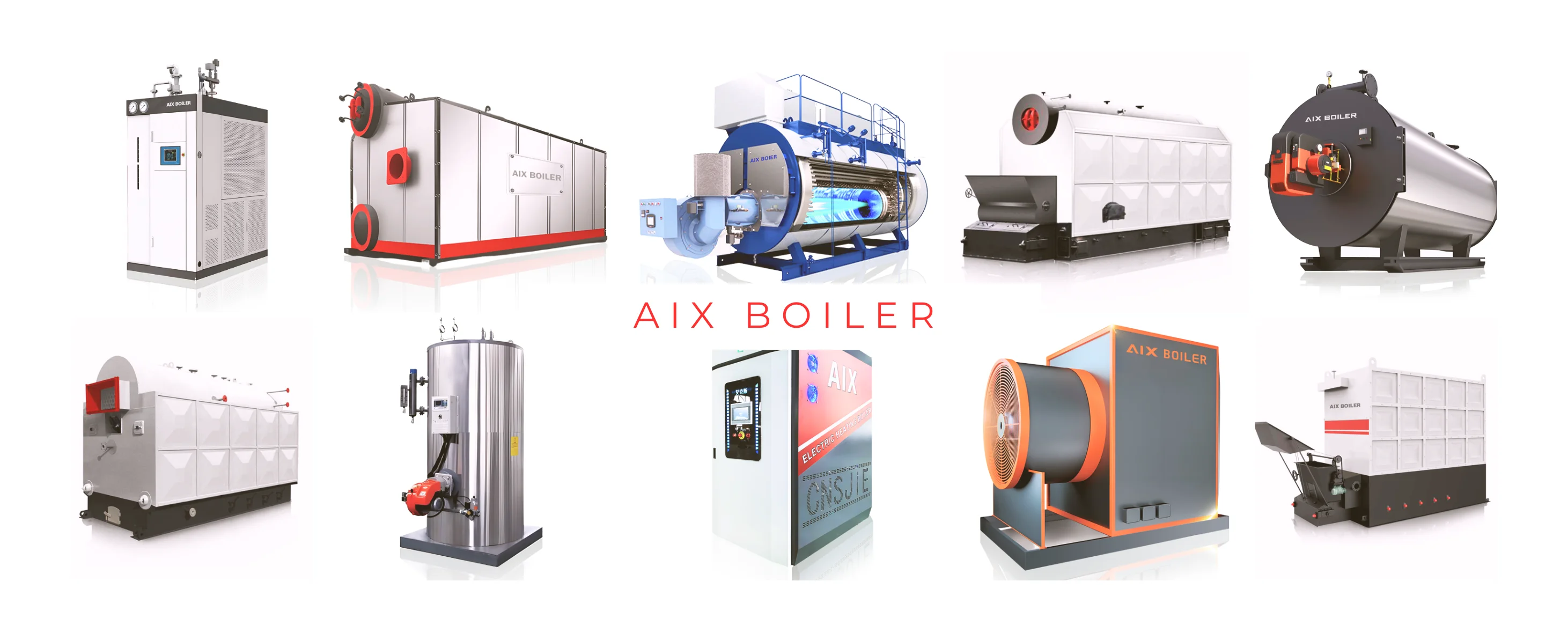

Best-selling Production

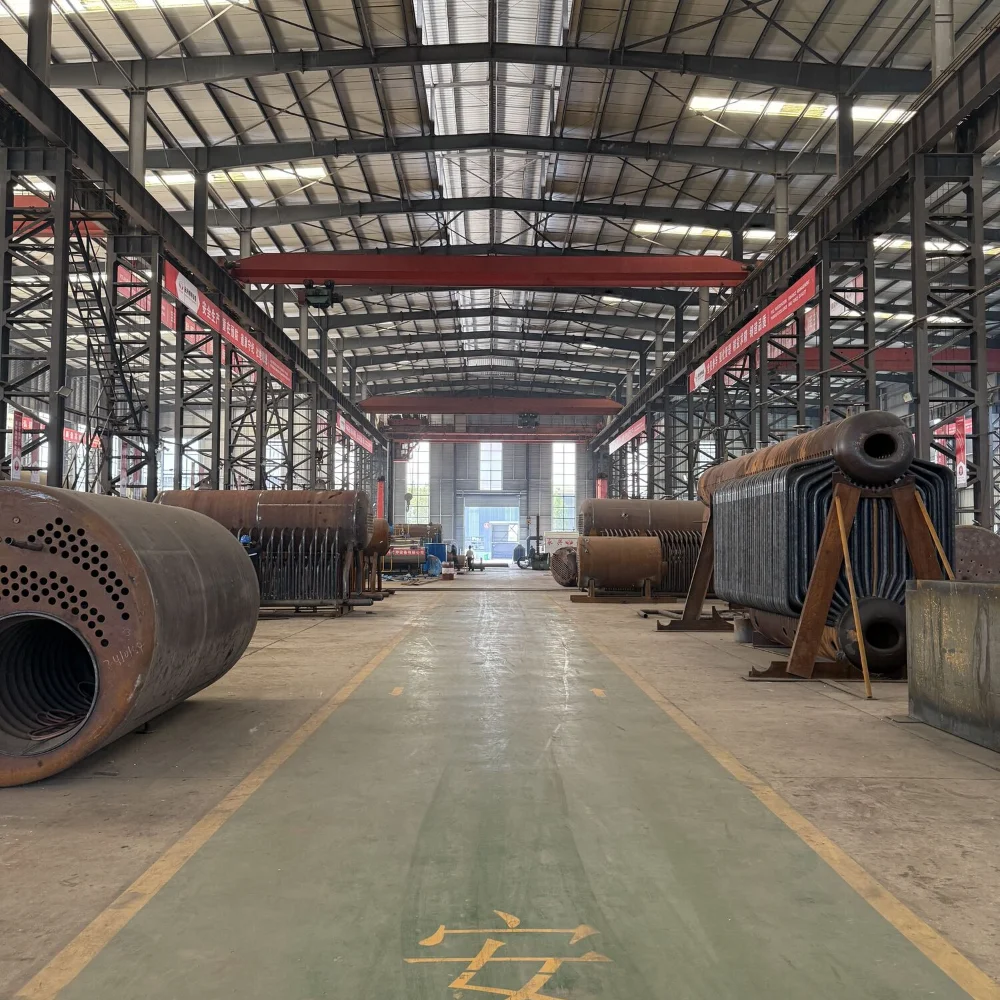

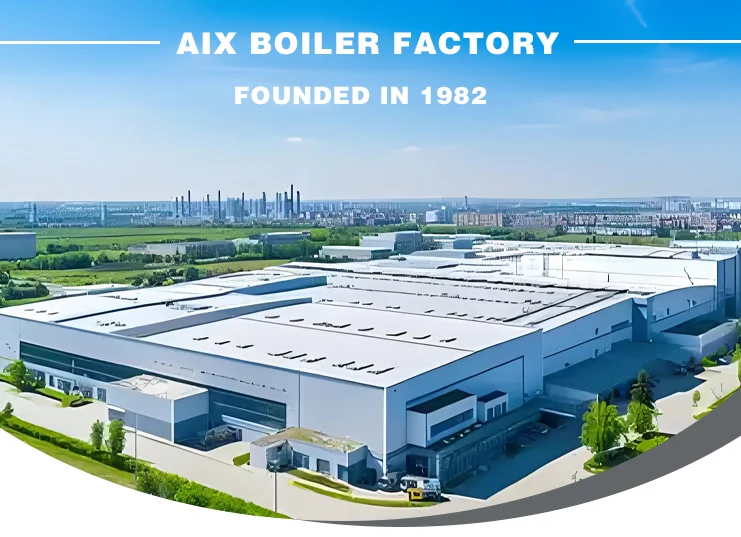

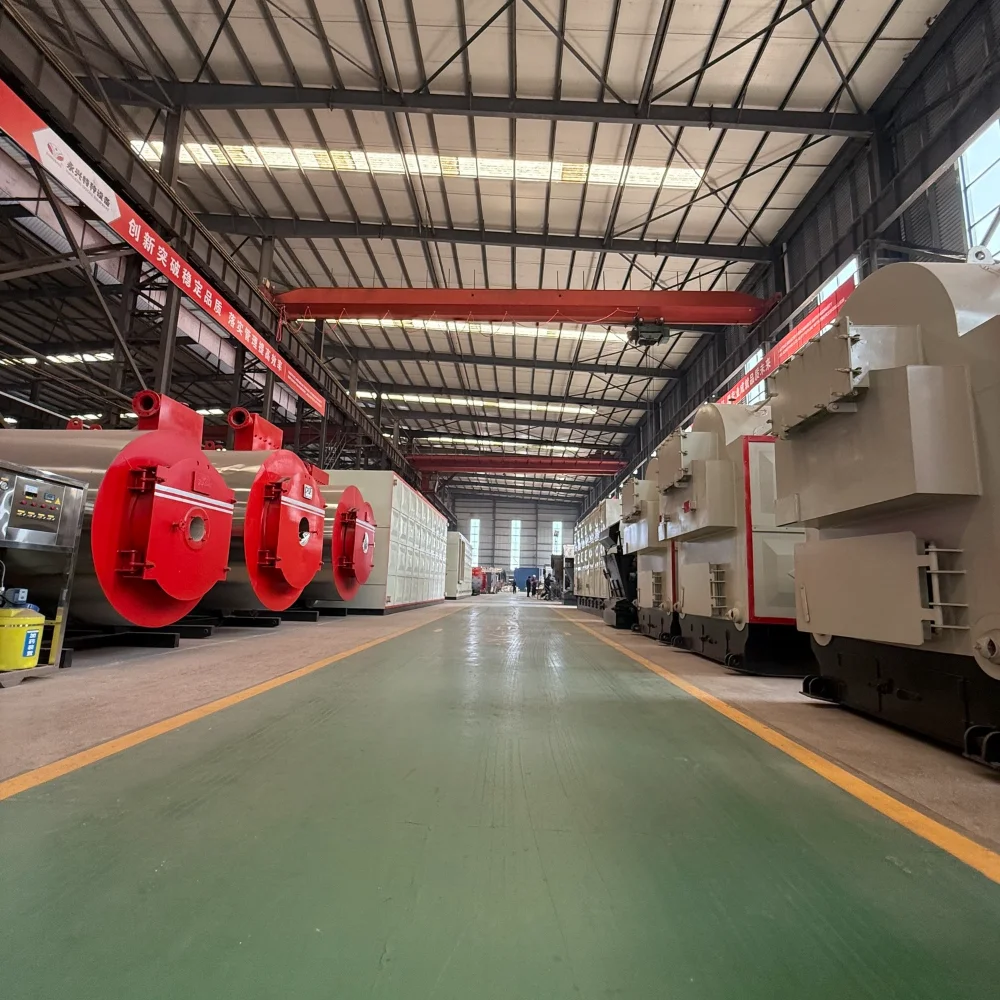

Company Profile
AlX BOlLER is a brand under Henan Shijie Industrial Equipment Co., LtdThe company mainly engages in the research and development, manu-facturing, thermal energy technology training, and import and exporttrade of mid to high end boilers, pressure vessels, and industrial equip-ment.
Over the course of 40 years of research and development, company has over 60 inventions and new patented technolo-gies, and its research and development capabilities are among the top inthe industry. Aix boiler products areexported to more than 80 countries and regions including EuropeAmerica, Africa,and Southeast Asia.

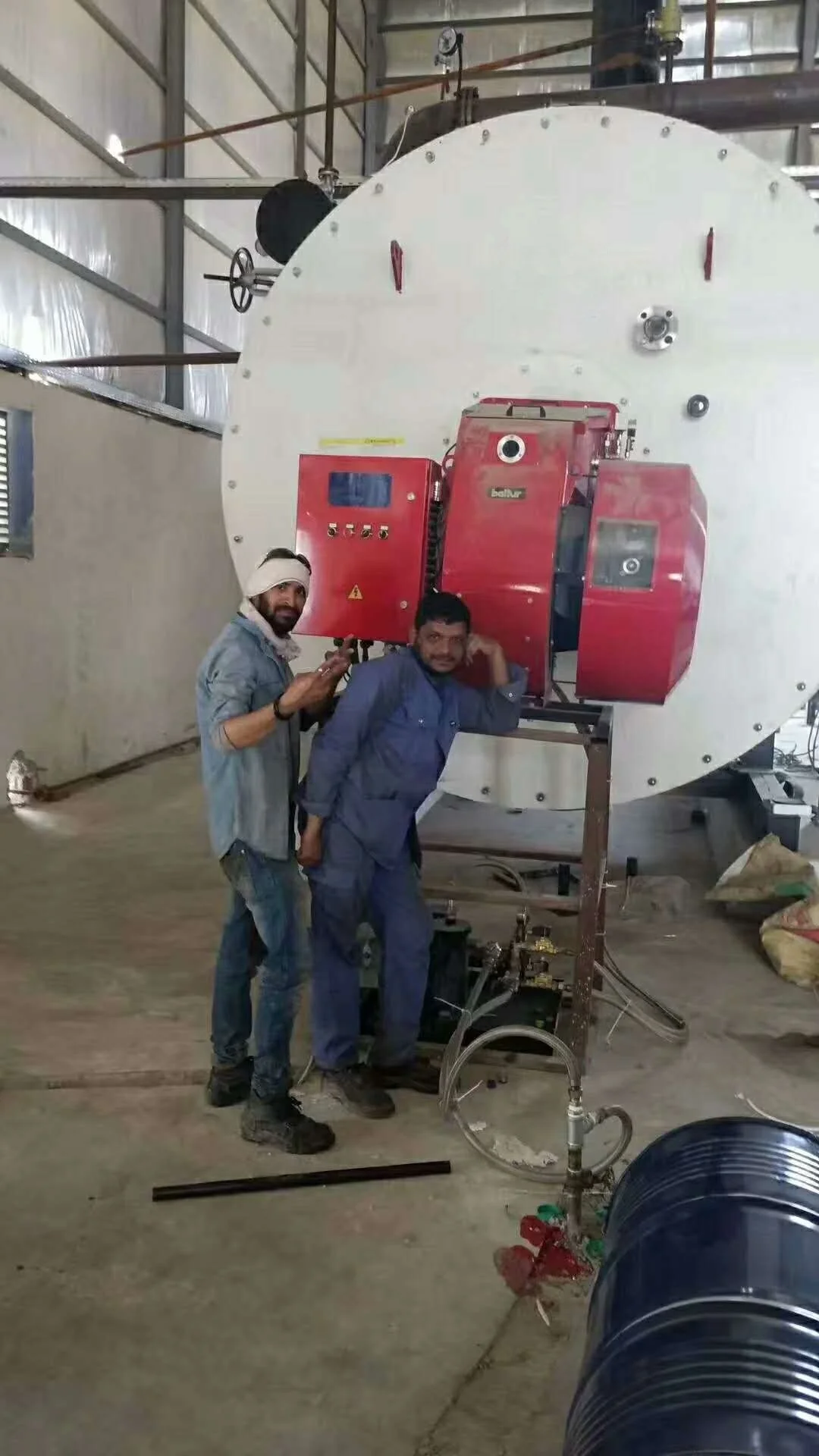

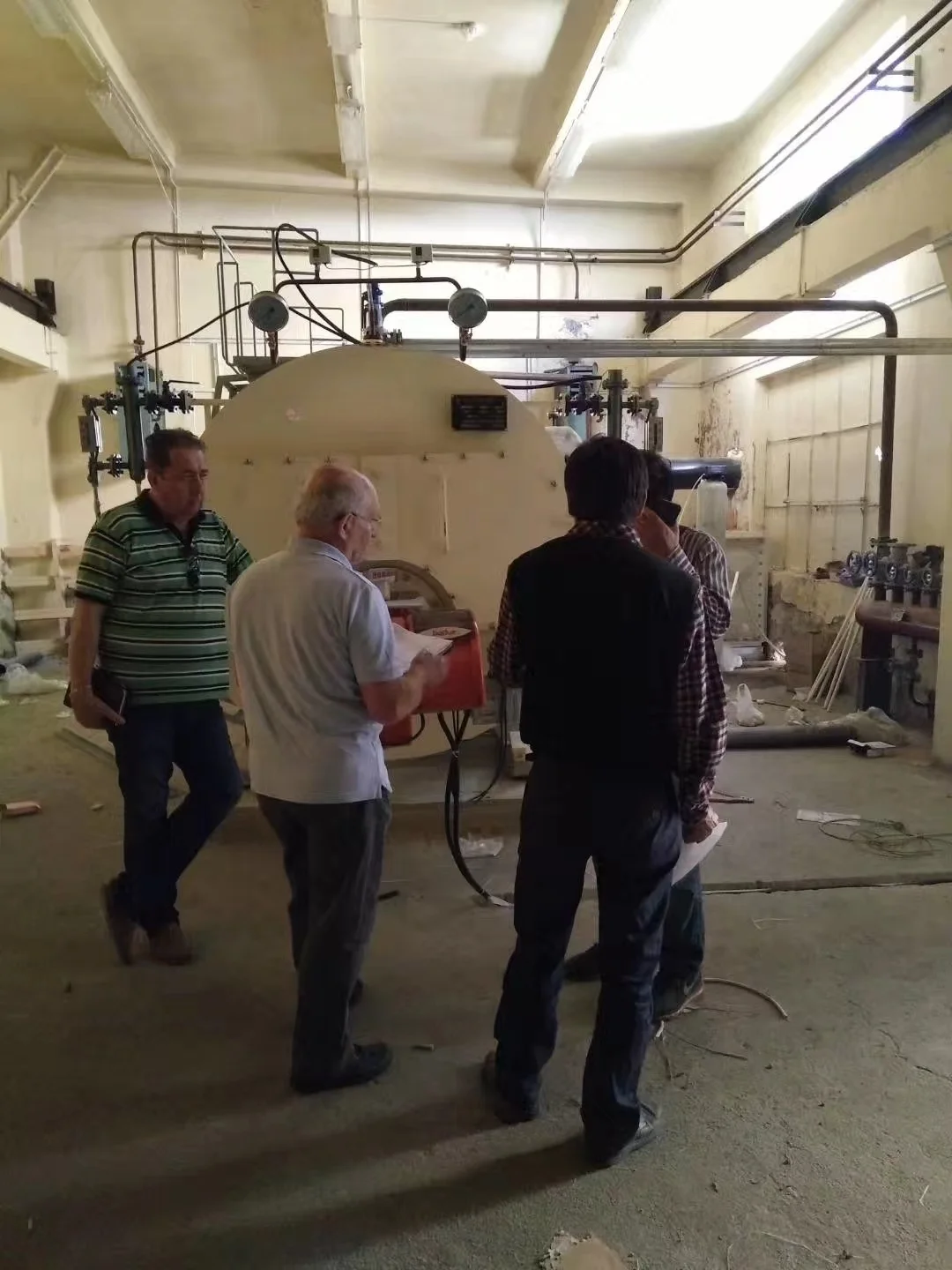

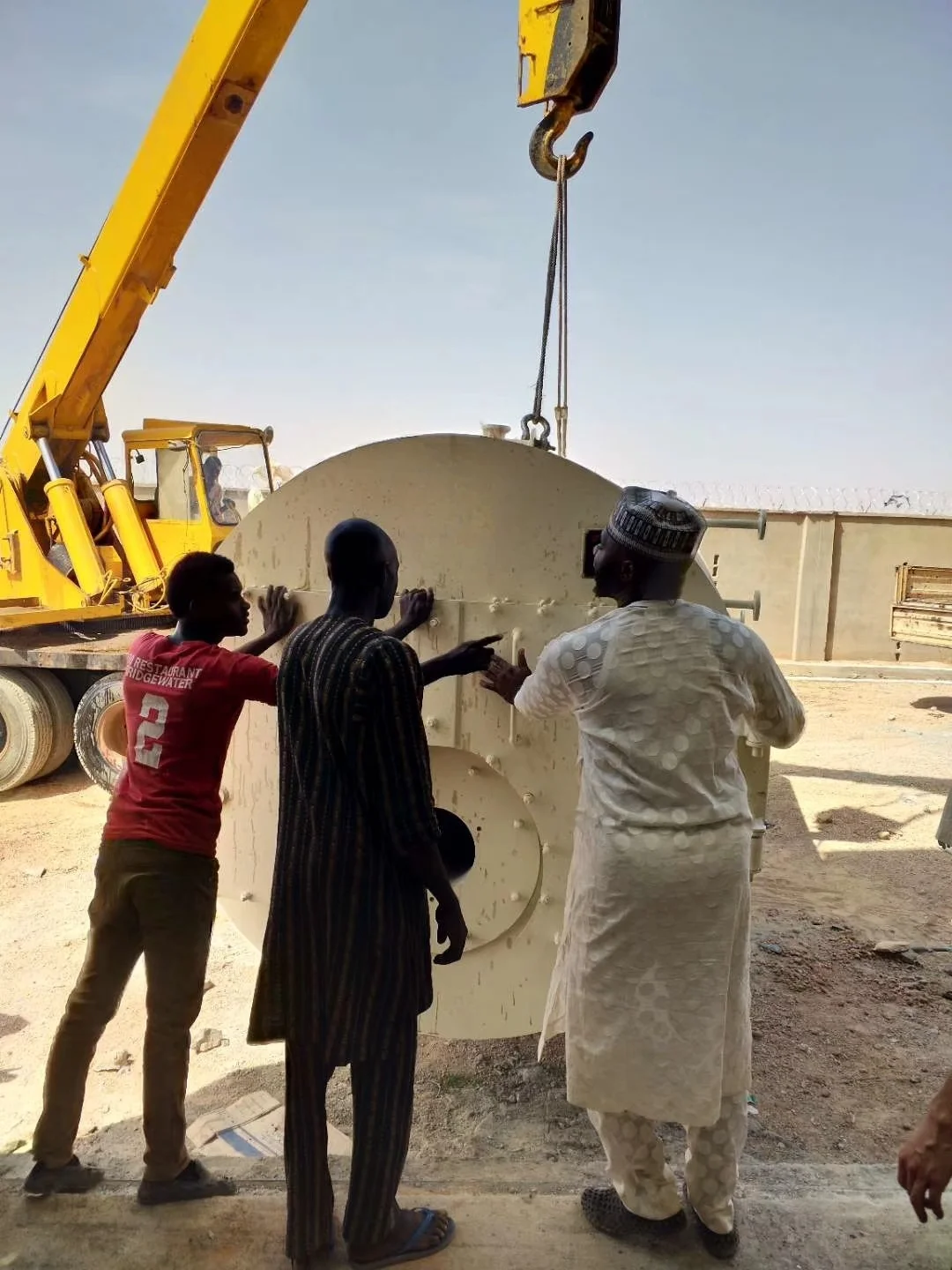

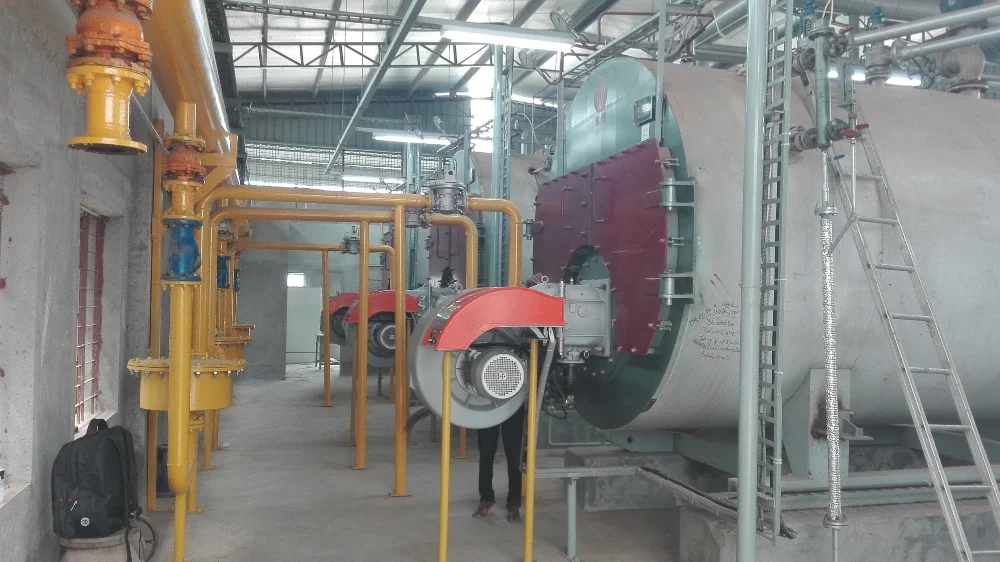

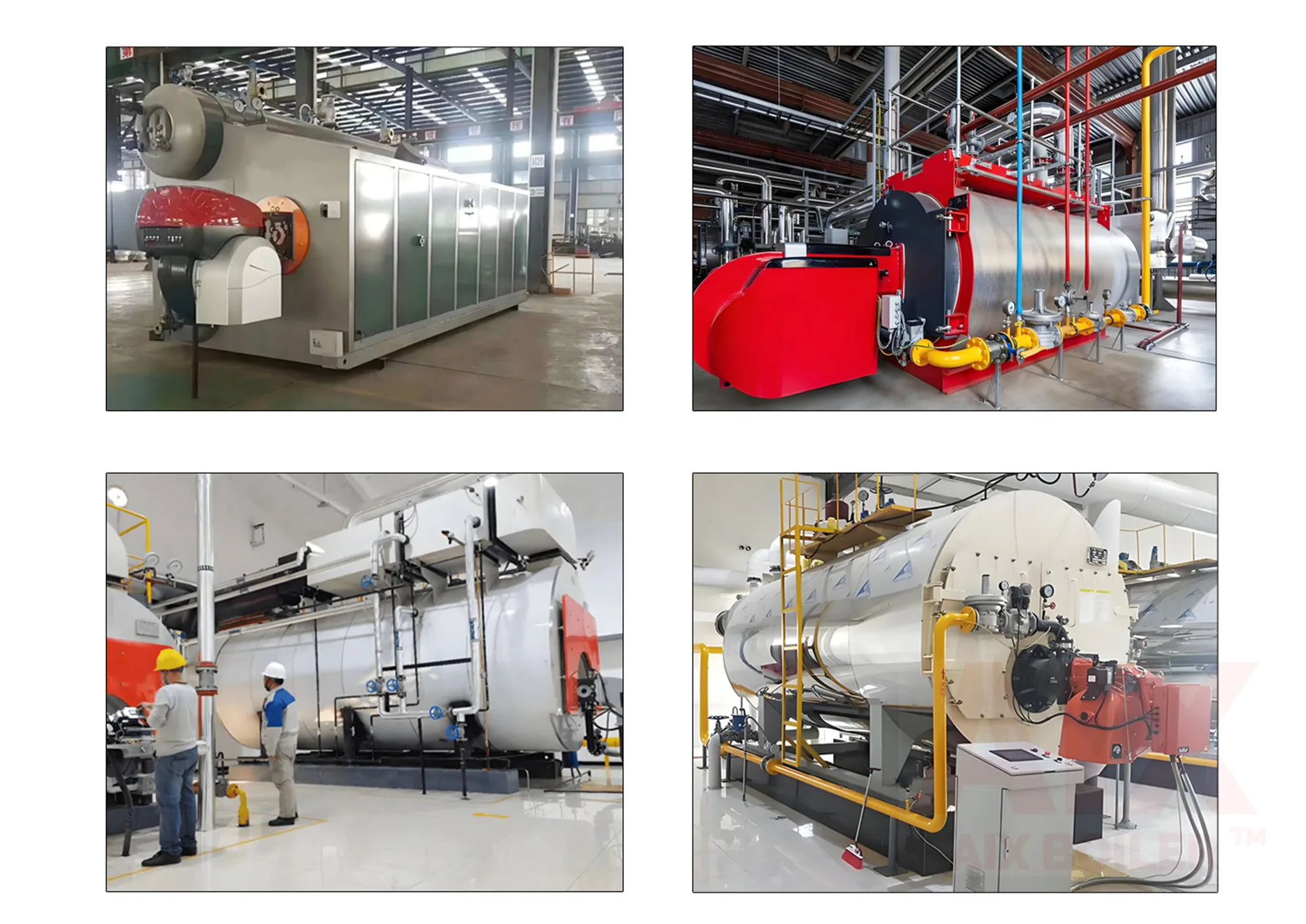

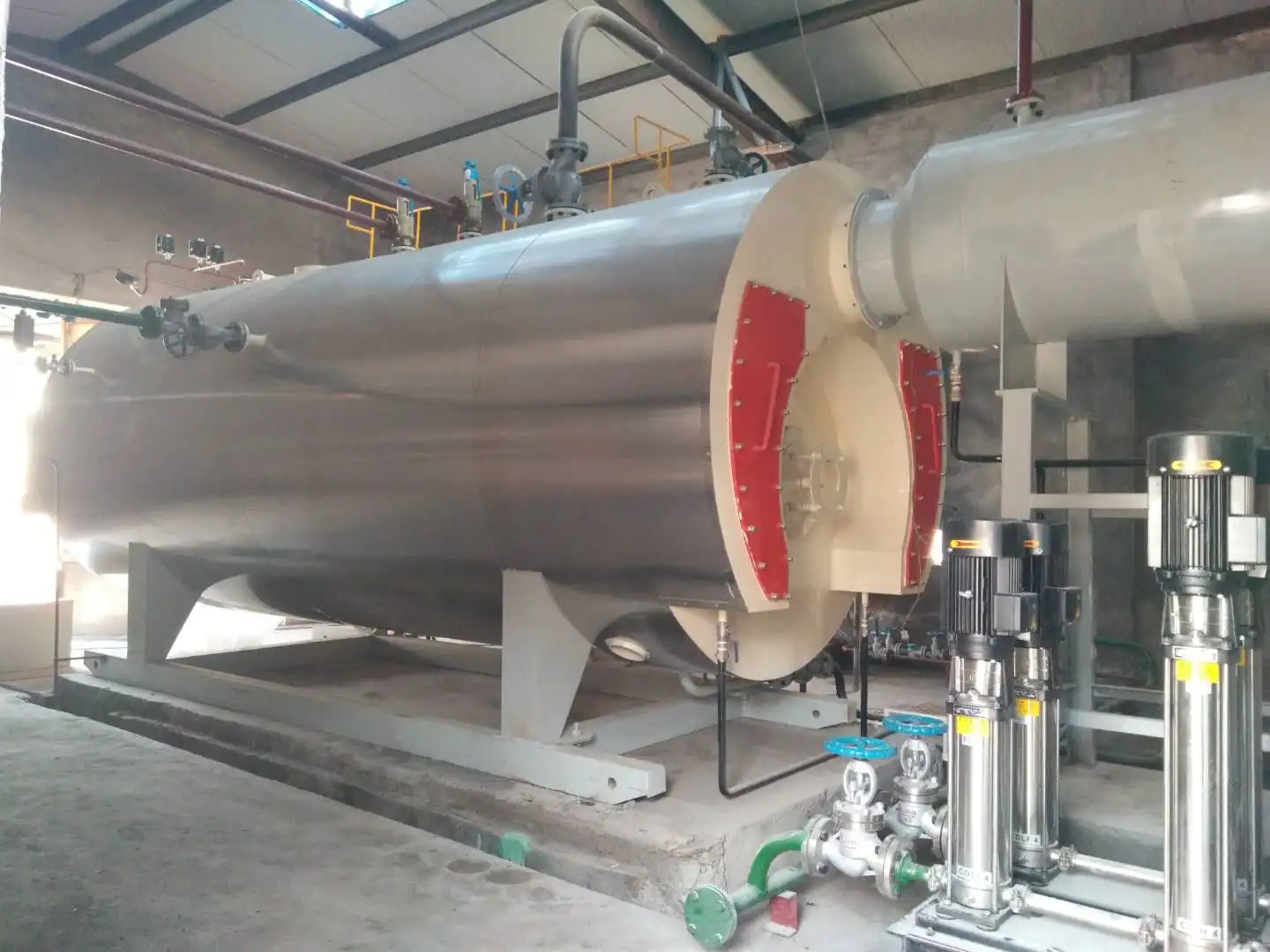

Customer Case
AlX BOlLER is a brand under Henan Shijie Industrial Equipment Co., LtdThe company mainly engages in the research and development, manu-facturing, thermal energy technology training, and import and exporttrade of mid to high end boilers, pressure vessels, and industrial equip-ment.
Over the course of 40 years of research and development, we have accu-mulated mature products and an experienced Sino foreign joint technicalteam.The company has over 60 inventions and new patented technolo-gies, and its research and development capabilities are among the top inthe industry. The company has been awarded honors such as NationalHigh tech Enterprise, Industry Green Factory, Industry Electric HeatingTechnology Laboratory,Industry Quality Benchmark Enterprise, ChineseBidding Enterprise Credit Recommendation Unit, Credit China IntegrityUnit,Boiler Technology Innovation Unit, etc. Aix boiler products areexported to more than 80 countries and regions including EuropeAmerica, Africa,and Southeast Asia Company Honors
FAQ:
Q1: How do you quickly get the best price?
1). We need to know the capacity of the boiler, the fuel you plan to use, and your steam pressure, Yes, then wecan confirm the boiler model.
2). Customers need to provide us with your name, email address, and company name, and we will immediatelysend you a price list. Moreover, if you use WhatsApp, Skype, or Wechat, you can provide us with your iD, which will facilitate ourcommunication
Q2: Why did you choose us?
1). 40 years of boiler manufacturing experience and 10 years of export experience. A-level boiler factory.
2). Free replacement of parts for one year, lifetime maintenance of the host, except for improper operation.
Q3: What is the service life of your boiler?
Q3: What is the service life of your boiler?
The typical desian lifespan of a boiler is 15 years, but with proper operation and good maintenance, theoperational lifespan of the boiler can reach 20-30 years.
Q4: Can you assist us with installation and operation training?
Yes, our company will provide drawings and operation manuals. Our engineers can also provide technicalsupport online.
Q5: Delivery time?
We have brand new inventory products that are usually shipped within 15-30 days. Please contact the salesengineer to confirm the specific time.
Q6: Boiler maintenance period
Q4: Can you assist us with installation and operation training?
Yes, our company will provide drawings and operation manuals. Our engineers can also provide technicalsupport online.
Q5: Delivery time?
We have brand new inventory products that are usually shipped within 15-30 days. Please contact the salesengineer to confirm the specific time.
Q6: Boiler maintenance period
Check every 2-3 weeks, mainly inspecting valves, pipelines, and flanges. lf there are any faults,repair them in atimely manner. Every time, a comprehensive inspection and repair must be conducted.
Dear friend,you can contact us
through my contact information or send us inquirydirectly.
Click "send Inquiry" or "Chat Now"!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $4100 / set
- 2+ set: US $3900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan AIX Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan AIX Equipment Co., Ltd. range on HVACR Nexus.
