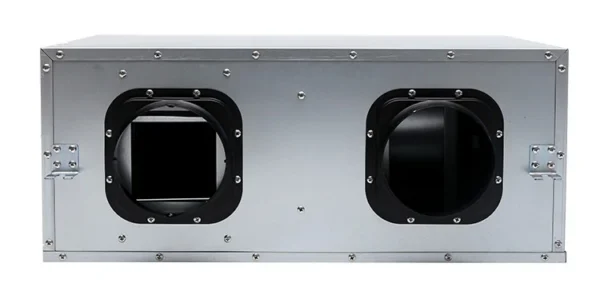

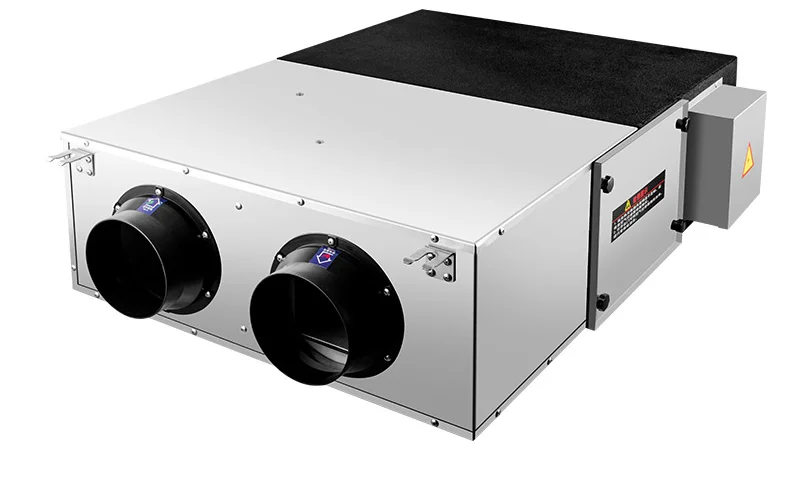

System Wall-mounted Axial Fan, ERV, 220V

Key specification for this system wall-mounted axial fan: 220 V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Wenling Sunshine Machinery Co., Ltd. (10 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This System Wall-Mounted Axial Fan

• Power Source: Electric
• Voltage: 220 V
• Blade Material: Plastic
• Place Of Origin: China
• Fan Type: Mixed Flow Fan
• Type: Wall-Mounted Axial Fan

Technical Specifications

Product Details

Product Description

What is industrial ventilation?

Ventilation is the act of bringing in "fresh" outdoor air or exchanging the air. Ventilation can be thought of as controlling the environment by using airflow.
General or natural ventilation is referred to as "dilution ventilation". Dilution ventilation is used to control exposure to airborne contaminants. It is commonly used to remove contaminants such as fumes, dusts, and vapours in order to provide a healthy and safe working environment. Dilution ventilation can be accomplished by natural means (e.g., opening a window) or mechanical means (e.g., fans or blowers that clear a general space).

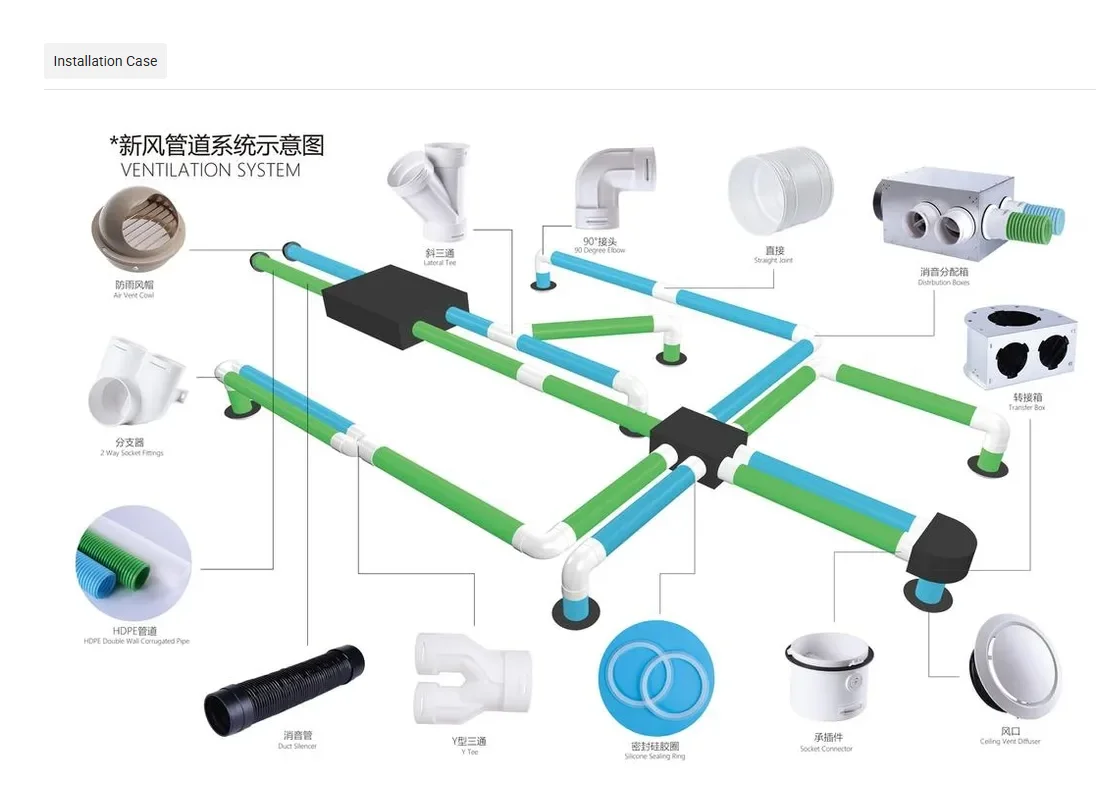

Industrial ventilation systems are designed to move out (exhaust) and bring in (intake) a specific amount of air at a specific speed (velocity), which results in the removal of undesirable contaminants in a specific area or space.

While all ventilation systems follow the same basic principles, each system is designed specifically to match the type of work and the rate of contaminant release by an industrial process.

Specification

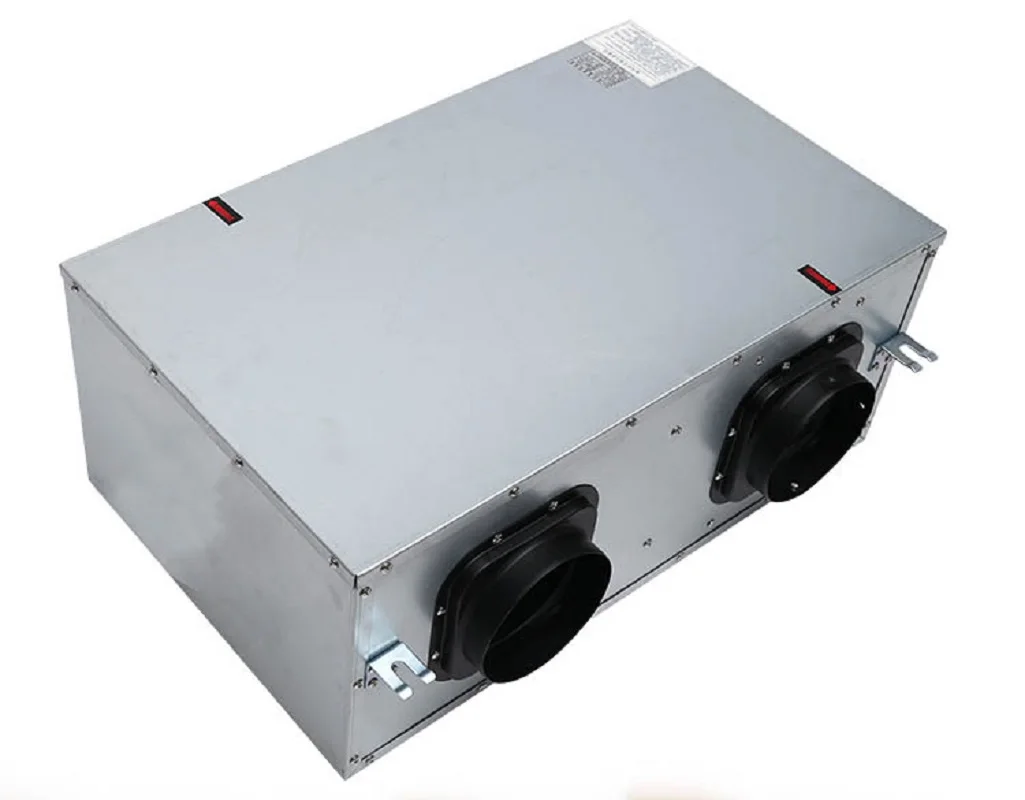

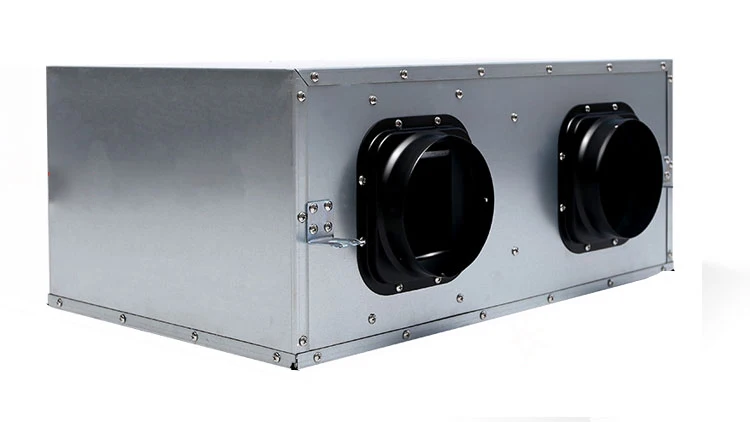

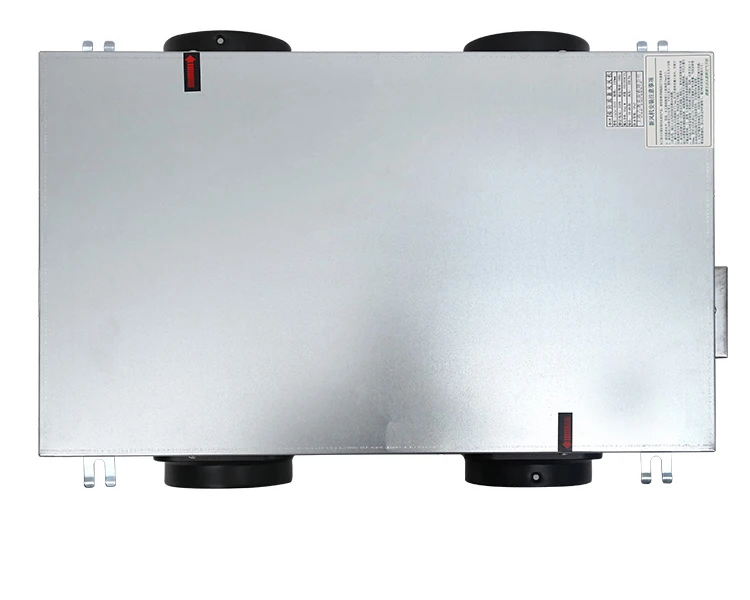

Two-Way Flow Fresh Air Ventilation Fan

Model	Air flow	power	voltage	pressure	connect Pipe diameter
XY-18TH	180	36*2	220V/50HZ	90	100
XY-35TH	350	90*2	220V/50HZ	200	100
XY-37TH	370	47W*2	220V/50HZ	110	150
XY-50TH	500	72W*2	220V/50HZ	130	150
XY-80TH	800	155W*2	220V/50HZ	150	200
XY-100TH	1000	171W*2	220V/50HZ	180	200
XY-120TH	1200	255W*2	220V/50HZ	200	200
XY-150TH	1500	320W*2	220V/50HZ	200	200
XY-170TH	1700	350W*2	220V/50HZ	210	250
XY-190TH	1900	400W*2	220V/50HZ	210	250
XY-210TH	2100	500W*2	220V/50HZ	220	250
XY-230TH	2300	550W*2	220V/50HZ	250	250

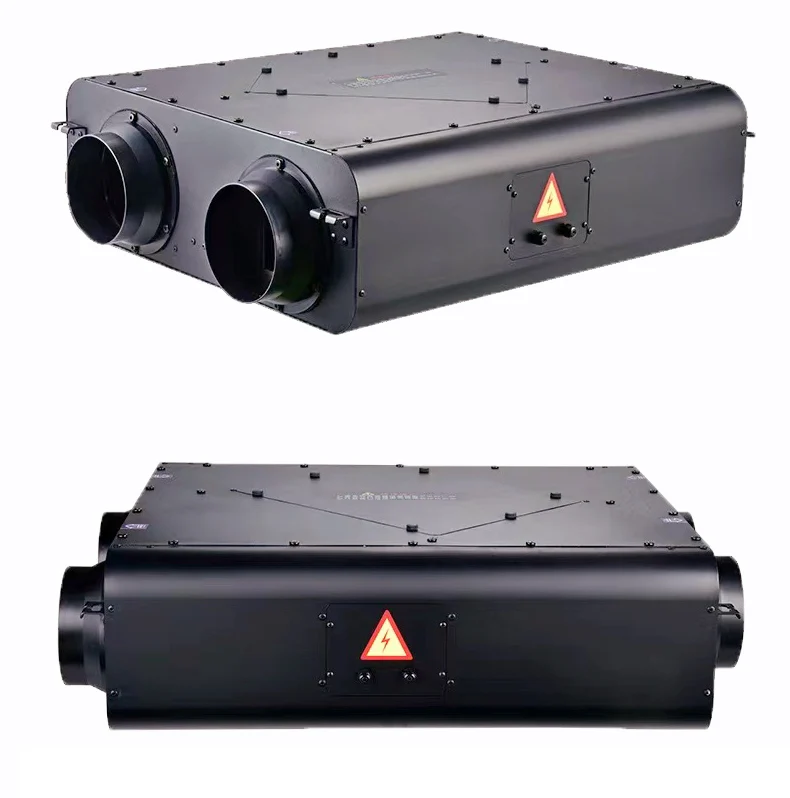

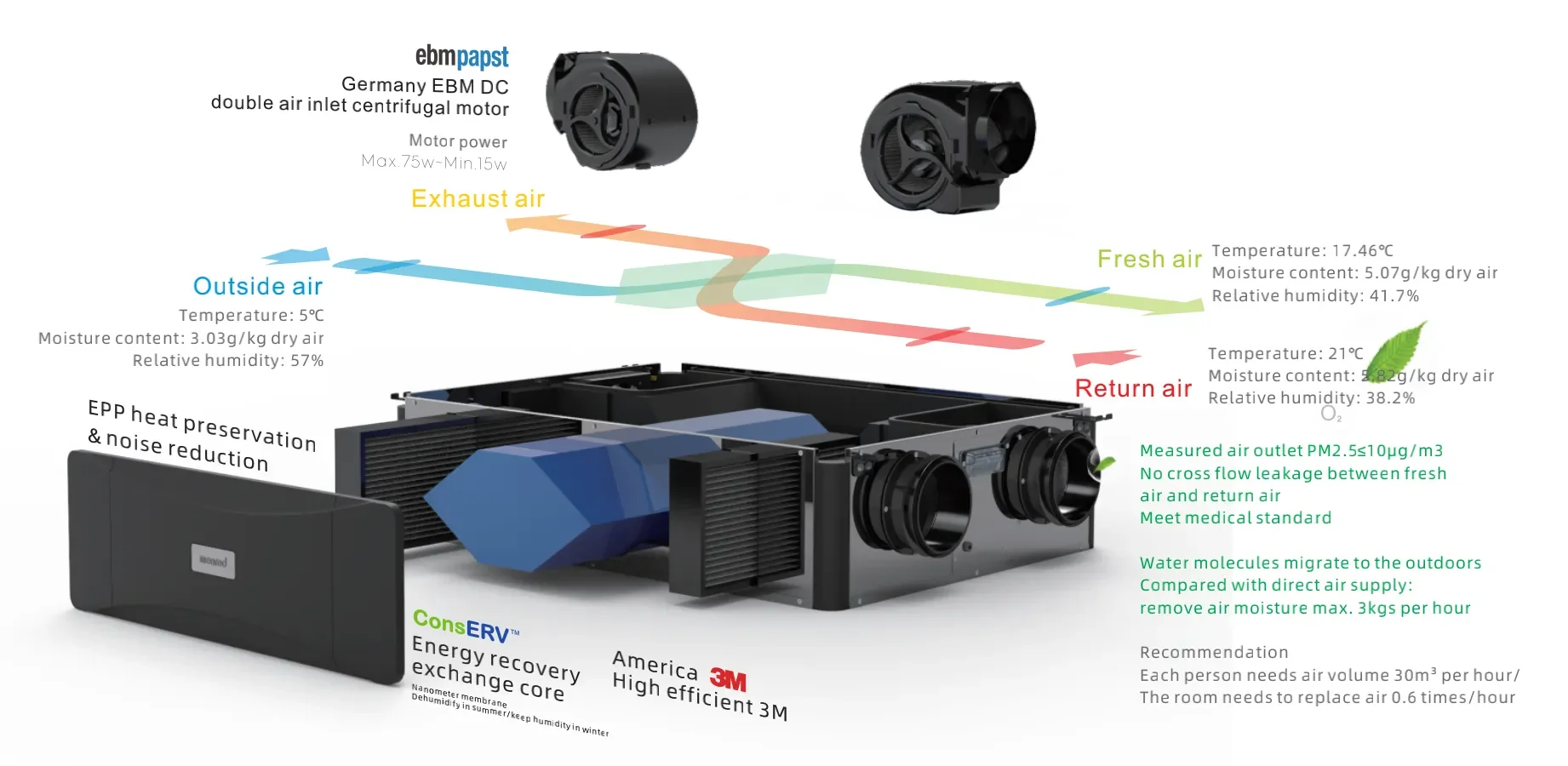

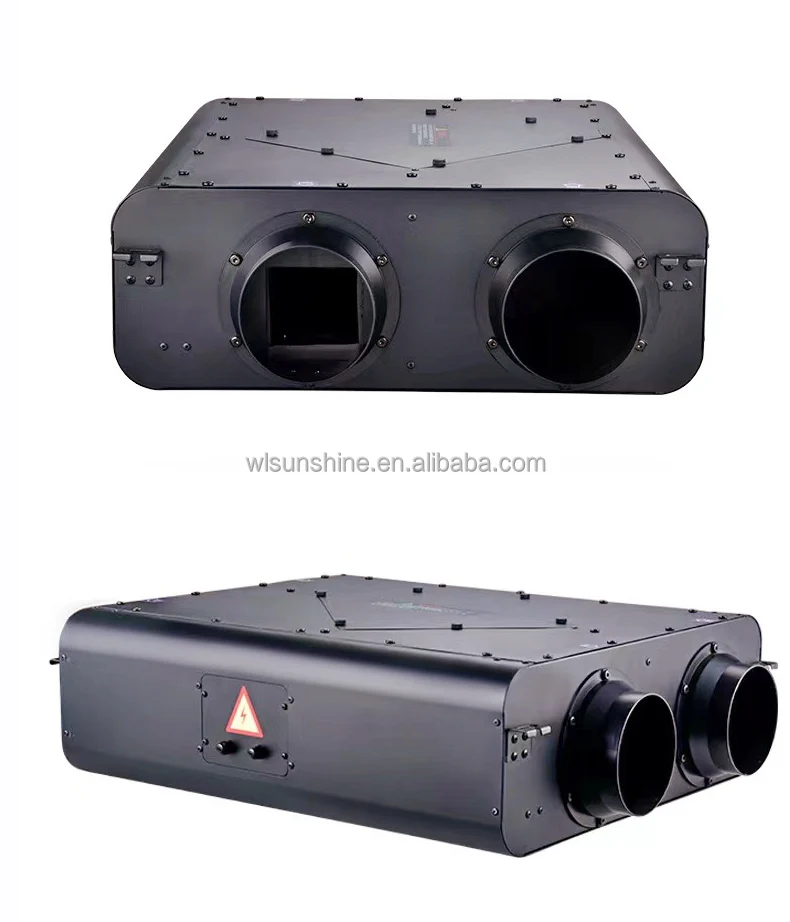

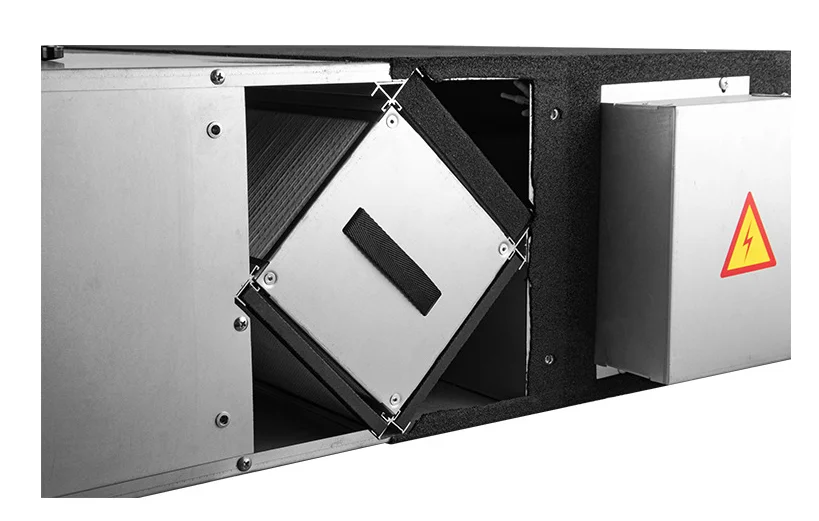

Full Heat Exchange Fresh Air Ventilation Fan

Model	Air flow	power	voltage	pressure	pipe diameter
XY-E15PMA	150	70	220V/50HZ	80	100
XY-E25PMA	250	117	220V/50HZ	120	150
XY-E35PMA	350	159	220V/50HZ	160	150
XY-E50PMA	500	276	220V/50HZ	210	200
XY-E65PMA	650	290	220V/50HZ	230	250
XY-E80PMA	800	310	220V/50HZ	150	250
XY-E100PMA	1000	440	220V/50HZ	160	250
XY-E125PMA	1250	840	220V/50HZ	240	250
XY-E150PMA	1500	860	220V/50HZ	300	250

Household Full Heat Exchanger Type Air Ventilation Fan

Model			Air flow	Power	voltage			pipe diameter	pressure
ST-E15H			150	97	220V/50HZ			150	159/106
ST-E25H			250	180	220V/50HZ			150	300/240
ST-E35H			350	310	220V/50HZ			150	352/274
ST-E50H			500	600	220V/50HZ			200	352/274

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1. How long does the warranty last?

A: 1year.

Q2. What's your payment term?
A: 30% T/T in deposit, the rest against on the copy of B/L.

Q3. What's the MOQ for your production?
A: The MOQ is 1 pcs or depends on your products requirements.

Q4. Is it all right to make customer's own brand name?
A: OEM is ok.

Q5. Where is your loading port?
A: Ningbo/Shanghai, China or else port as your request.

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10+ set: US $125 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this system wall-mounted axial fan?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Can the system wall-mounted axial fan be supplied for my local voltage?

The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Wenling Sunshine Machinery Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wenling Sunshine Machinery Co., Ltd. range on HVACR Nexus.
