This systemevaporative air cooler is published with the manufacturer’s full specification — voltage AC 220V, 1300 m3/h. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Systemevaporative Air Cooler
- Power: 265W
- Voltage: AC 220V
- Air Flow: 1300 m3/h
- Warranty: More Than 5 Years
- Certification: RoHS CE EMC ERP LVD ISO9001
- Place Of Origin: Jiangsu, China
Technical Specifications
| Application | Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Outdoor, Storage and Closet, Exterior, Wine Cellar, Entry, Hall, Home Bar, Staircase, Basement, Garage and Shed, Gym, Laundry |
|---|---|
| Warranty | More Than 5 Years |
| After-Sale Service | Online Technical Support, Onsite Installation, Onsite Training, N/A |
| Design Style | Contemporary, Modern, Minimalist, Industrial |
| Project Solution Capability | total solution for projects |
| Place Of Origin | Jiangsu, China |
| Brand Name | MIA |
| Voltage | AC 220V |
| Power | 265W |
| Air Flow | 1300 m3/h |
| Heat Recovery Rate | 87%-91% |
| Noise | 38dB(A) |
| Size | 1143*809*342mm |
| Hole Diameter | 200mm |
| Weight | 53kg |
| Color | Customize |
| Certification | RoHS CE EMC ERP LVD ISO9001 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Note:
This page only displays the EXW price and distributor price. Please contact us before placing an order to confirm order details and total cost, including shipping and other costs.
Email:anne.miavent@miachina.net
Tel: 0086 400 600 1732
Mob/ WA/ : 0086 17761909290
Web: www.miachina.net
Contacts:
Contact: Anne Wang
Email:anne.miavent@miachina.net
Tel: 0086 400 600 1732
Mob/ WA/ : 0086 17761909290
Web: www.miachina.net
Product Desicription
MIA 800~8500cmh High Efficiency Counterflow Compact Vertical Ceiling Mounted Heat Recovery Ventilation System

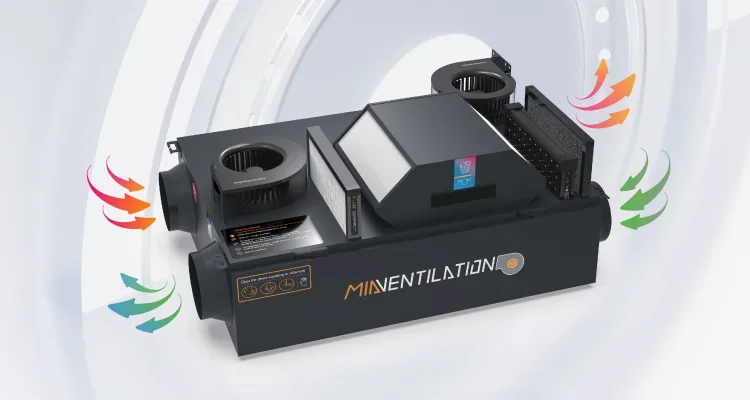

Energy Recovery Exchange principle

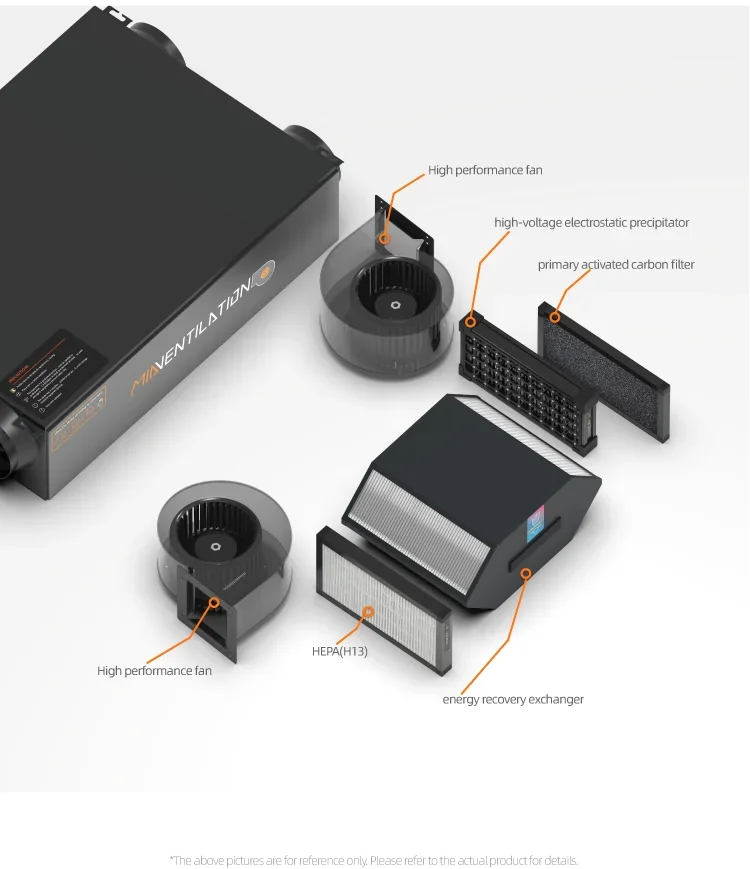

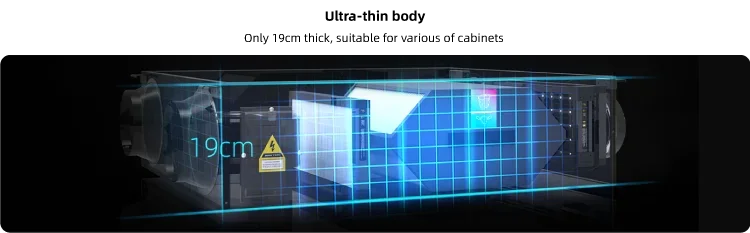

Inside Setting

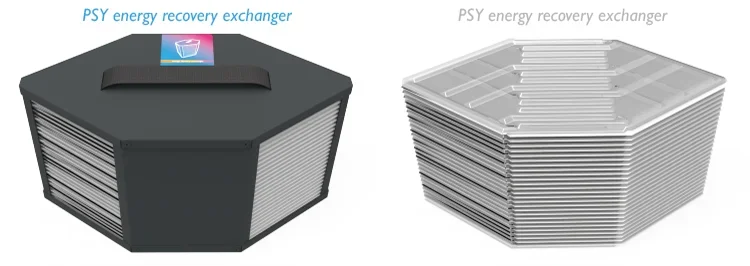

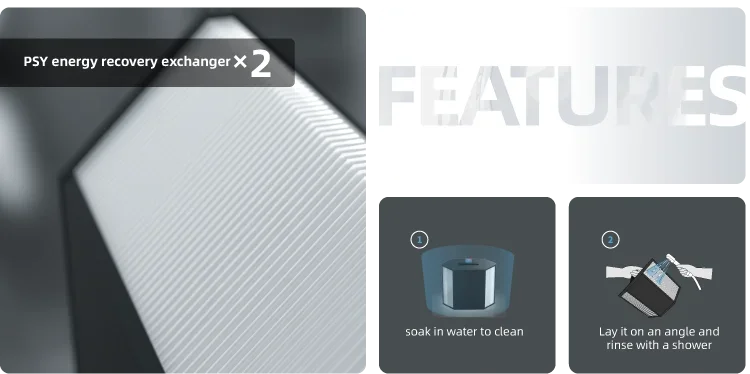

Energy Recovery Exchanger
The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange;with the washable material，also can avoid the problem of bacteria and molds production.

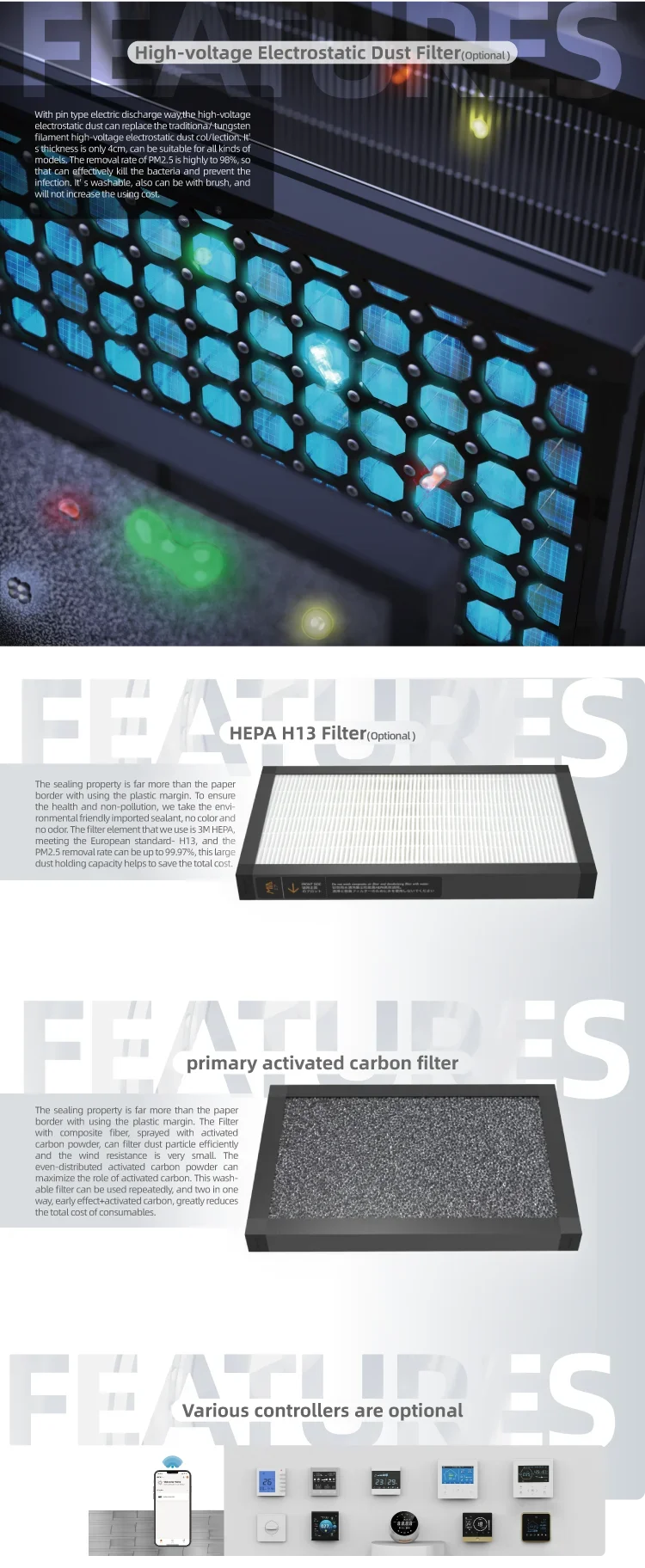

Early Effect + Activated Carbon
The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, it can filter dust particle eficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.
High Efficiency H13 Hepa Filter (Optional)
The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the enviromental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA (European standard-H13). The PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.
High-voltage Electrostatic Dust Collection (Optional)
With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. It' s thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It' s washable, also can be cleaned with brush, and will not increase the using cost.

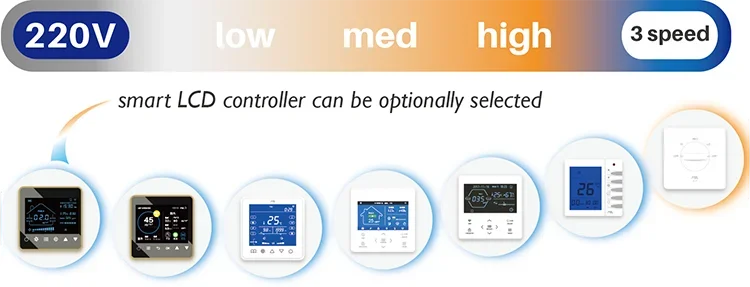

Controller

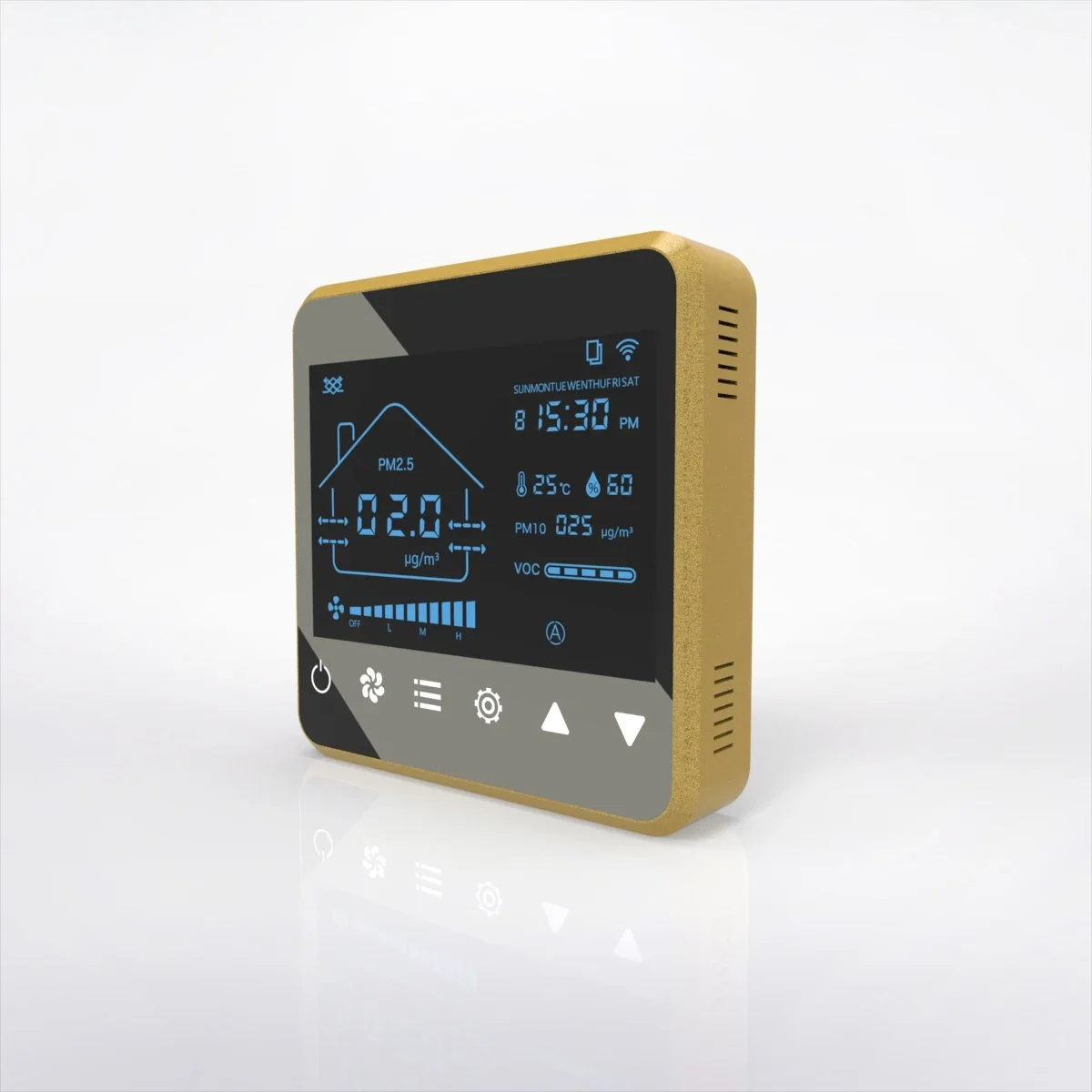

MIA-A900
1. Three-speed control
2. The display of temperature and humidity indoor
3. Manual / automatic mode switching
4. The display of PM2.5 and PM10
5. VOC display
6. Filter replacement reminder
7. Bypass / Inner loop / Electrostatic interface
8. WIFI (APP) control
3. Manual / automatic mode switching
4. The display of PM2.5 and PM10
5. VOC display
6. Filter replacement reminder
7. Bypass / Inner loop / Electrostatic interface
8. WIFI (APP) control
MIA-CY
1. Three-speed control
2. Time setting
3. Filter replacement reminder
4. Indoor temperature dsiplay
3. Filter replacement reminder
4. Indoor temperature dsiplay
5. RS485

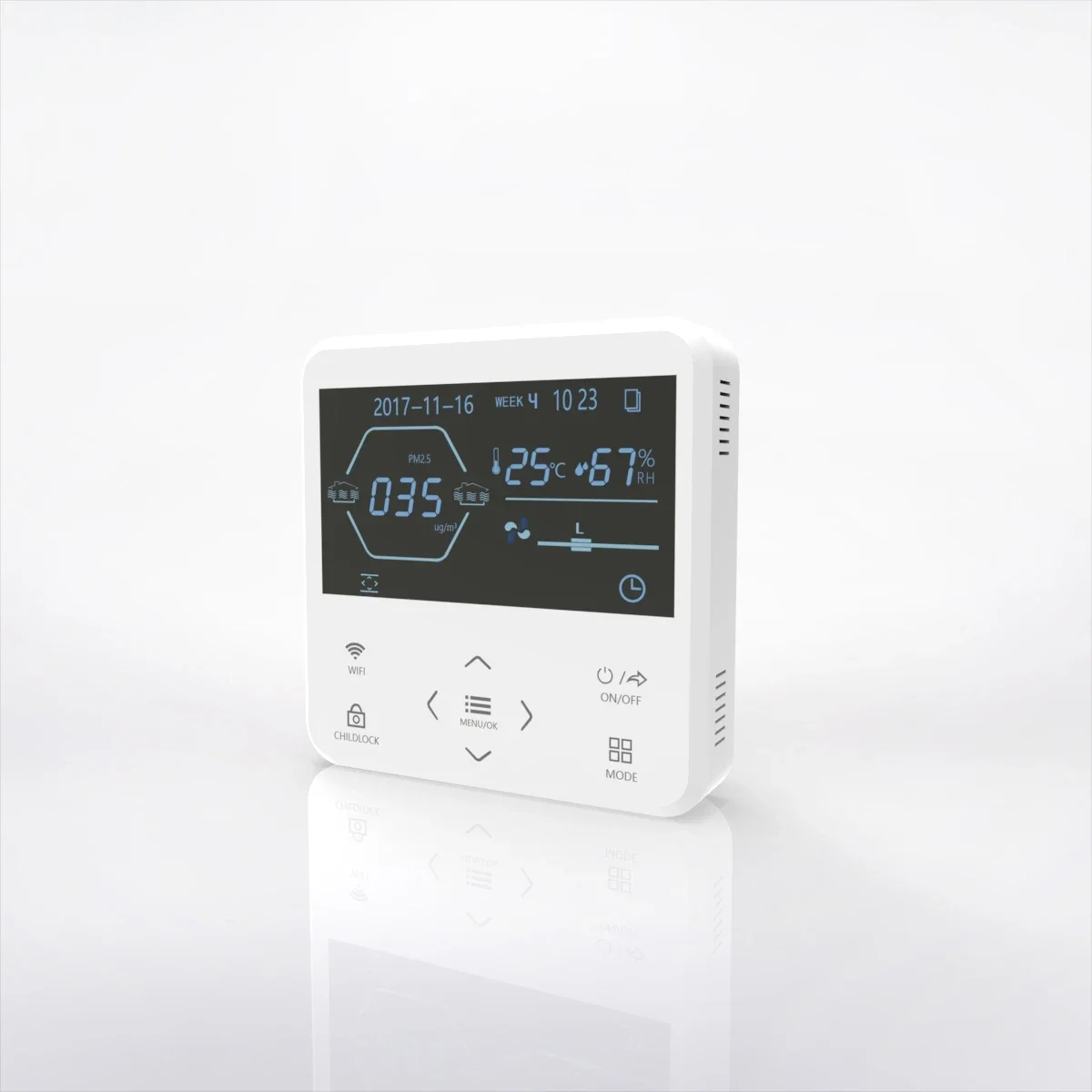

MIA-6G
1. Three-speed control
2. The display of temperature and humidity indoor
3. Time setting
4. Filter replacement reminder
5. Bypass / Inner loop / Electrostatic interface
3. Time setting
4. Filter replacement reminder
5. Bypass / Inner loop / Electrostatic interface
6. PM2.5 display
7. Date and time display
8. WIFI (APP) control

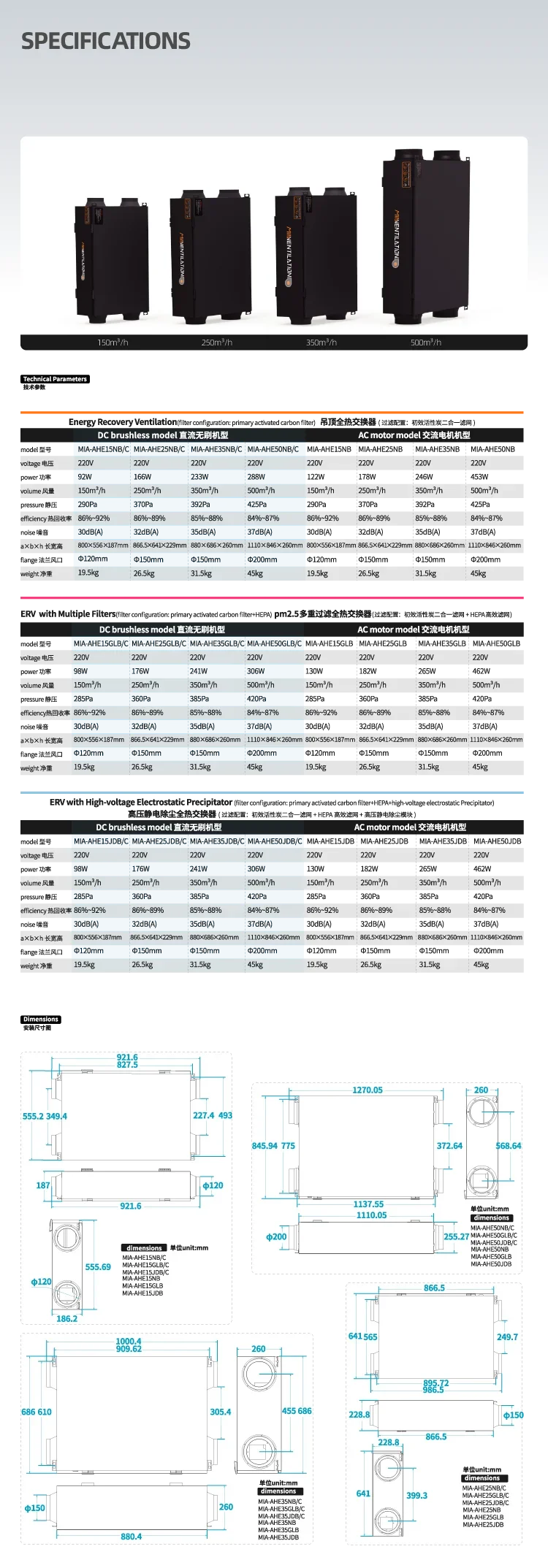

Technical Parameters
How to choose the model?
1. MIA-AHE·N: Ceiling mounted energy recovery ventilator with Early Effect + Activated Carbon Filter.
2.MIA-AHE·GL: Ceiling mounted energy recovery ventilator with Early Effect + Activated Carbon Filter and HEPA H13 Filter.
3. MIA-AHE·JDN: Ceiling mounted energy recovery ventilator with Early Effect + Activated Carbon Filter, HEPA H13 Filter and High-voltage Electrostatic Dust Collection Filter.
Model | Voltage | Power | Volume | Pressure | Efficiency | Noise | Motor |
MIA-AHE80N | 220V | 180W | 800m3/h | 160Pa | 86%~91% | 36dB(A) | AC |
MIA-AHE100N | 220V | 260W | 1000m3/h | 170Pa | 86%~91% | 36dB(A) | AC |
MIA-AHE130N | 220V | 265W | 1300m3/h | 170Pa | 87%~91% | 38dB(A) | AC |
MIA-AHE150N | 220V | 285W | 1500m3/h | 175Pa | 85%~88% | 44dB(A) | AC |
MIA-AHE170N | 220V | 310W | 1700m3/h | 180Pa | 86%~88% | 46dB(A) | AC |
MIA-AHE200N | 220V | 330W | 2000m3/h | 205Pa | 85%~90% | 48dB(A) | AC |
MIA-AHE220N | 220V | 340W | 2200m3/h | 210Pa | 85%~90% | 49dB(A) | AC |
MIA-AHE250N | 220V | 360W | 2500m3/h | 260Pa | 85%~89% | 51dB(A) | AC |
MIA-AHE300N | 220V | 480W | 3000m3/h | 260Pa | 87%~91% | 52dB(A) | AC |
MIA-AHE350N | 220V | 560W | 3500m3/h | 265Pa | 86%~91% | 55dB(A) | AC |
MIA-AHE400N | 220V | 600W | 4000m3/h | 280Pa | 86%~92% | 57dB(A) | AC |
MIA-AHE450N | 220V | 780W | 4500m3/h | 285Pa | 86%~91% | 61dB(A) | AC |
MIA-AHE500N | 220V | 900W | 5000m3/h | 320Pa | 86%~90% | 64dB(A) | AC |
MIA-AHE550N | 220V | 980W | 5500m3/h | 320Pa | 86%~91% | 64dB(A) | AC |
MIA-AHE600N | 220V | 1100W | 6000m3/h | 330Pa | 85%~91% | 65dB(A) | AC |
MIA-AHE700N | 220V | 2.2KW | 7000m3/h | 350Pa | 85%~91% | 65dB(A) | AC |
MIA-AHE750N | 220V | 2.8KW | 7500m3/h | 350Pa | 84%~90% | 65dB(A) | AC |
MIA-AHE800N | 220V | 3.6KW | 8000m3/h | 360Pa | 83%~91% | 66dB(A) | AC |
MIA-AHE850N | 220V | 4.1KW | 8500m3/h | 365Pa | 83%~90% | 66dB(A) | AC |
Model | Voltage | Power | Volume | Pressure | Efficiency | Noise | Motor |
MIA-AHE80GL | 220V | 188W | 800m3/h | 160Pa | 86%~91% | 36dB(A) | AC |
MIA-AHE100GL | 220V | 266W | 1000m3/h | 170Pa | 86%~91% | 36dB(A) | AC |
MIA-AHE130GL | 220V | 272W | 1300m3/h | 170Pa | 87%~91% | 38dB(A) | AC |
MIA-AHE150GL | 220V | 298W | 1500m3/h | 175Pa | 85%~88% | 44dB(A) | AC |
MIA-AHE170GL | 220V | 315W | 1700m3/h | 180Pa | 86%~88% | 46dB(A) | AC |
MIA-AHE200GL | 220V | 335W | 2000m3/h | 205Pa | 85%~90% | 48dB(A) | AC |
MIA-AHE220GL | 220V | 352W | 2200m3/h | 210Pa | 85%~90% | 49dB(A) | AC |
MIA-AHE250GL | 220V | 420W | 2500m3/h | 260Pa | 85%~89% | 51dB(A) | AC |
MIA-AHE300GL | 220V | 510W | 3000m3/h | 260Pa | 87%~91% | 52dB(A) | AC |
MIA-AHE350GL | 220V | 580W | 3500m3/h | 265Pa | 86%~91% | 55dB(A) | AC |
MIA-AHE400GL | 220V | 710W | 4000m3/h | 280Pa | 86%~92% | 57dB(A) | AC |
MIA-AHE450GL | 220V | 820W | 4500m3/h | 285Pa | 86%~91% | 61dB(A) | AC |
MIA-AHE500GL | 220V | 920W | 5000m3/h | 320Pa | 86%~90% | 64dB(A) | AC |
MIA-AHE550GL | 220V | 1020W | 5500m3/h | 320Pa | 86%~91% | 64dB(A) | AC |
MIA-AHE600GL | 220V | 1280W | 6000m3/h | 330Pa | 85%~91% | 65dB(A) | AC |
MIA-AHE700GL | 220V | 2.55KW | 7000m3/h | 350Pa | 85%~91% | 65dB(A) | AC |
MIA-AHE750GL | 220V | 3.46KW | 7500m3/h | 350Pa | 84%~90% | 65dB(A) | AC |
MIA-AHE800GL | 220V | 3.88KW | 8000m3/h | 360Pa | 83%~91% | 66dB(A) | AC |
MIA-AHE850GL | 220V | 4.42KW | 8500m3/h | 365Pa | 83%~90% | 66dB(A) | AC |
Model | Voltage | Power | Volume | Pressure | Efficiency | Noise | Motor |
MIA-AHE80JDN | 220V | 188W | 800m3/h | 160Pa | 86%~91% | 36dB(A) | AC |
MIA-AHE100JDN | 220V | 266W | 1000m3/h | 170Pa | 86%~91% | 36dB(A) | AC |
MIA-AHE130JDN | 220V | 272W | 1300m3/h | 170Pa | 87%~91% | 38dB(A) | AC |
MIA-AHE150JDN | 220V | 298W | 1500m3/h | 175Pa | 85%~88% | 44dB(A) | AC |
MIA-AHE170JDN | 220V | 315W | 1700m3/h | 180Pa | 86%~88% | 46dB(A) | AC |
MIA-AHE200JDN | 220V | 335W | 2000m3/h | 205Pa | 85%~90% | 48dB(A) | AC |
MIA-AHE220JDN | 220V | 352W | 2200m3/h | 210Pa | 85%~90% | 49dB(A) | AC |
MIA-AHE250JDN | 220V | 420W | 2500m3/h | 260Pa | 85%~89% | 51dB(A) | AC |
MIA-AHE300JDN | 220V | 510W | 3000m3/h | 260Pa | 87%~91% | 52dB(A) | AC |
MIA-AHE350JDN | 220V | 580W | 3500m3/h | 265Pa | 86%~91% | 55dB(A) | AC |
MIA-AHE400JDN | 220V | 710W | 4000m3/h | 280Pa | 86%~92% | 57dB(A) | AC |
MIA-AHE450JDN | 220V | 820W | 4500m3/h | 285Pa | 86%~91% | 61dB(A) | AC |
MIA-AHE500JDN | 220V | 920W | 5000m3/h | 320Pa | 86%~90% | 64dB(A) | AC |
MIA-AHE550JDN | 220V | 1020W | 5500m3/h | 320Pa | 86%~91% | 64dB(A) | AC |
MIA-AHE600JDN | 220V | 1280W | 6000m3/h | 330Pa | 85%~91% | 65dB(A) | AC |
MIA-AHE700JDN | 220V | 2.55KW | 7000m3/h | 350Pa | 85%~91% | 65dB(A) | AC |
MIA-AHE750JDN | 220V | 3.46KW | 7500m3/h | 350Pa | 84%~90% | 65dB(A) | AC |
MIA-AHE800JDN | 220V | 3.88KW | 8000m3/h | 360Pa | 83%~91% | 66dB(A) | AC |
MIA-AHE850JDN | 220V | 4.42KW | 8500m3/h | 365Pa | 83%~90% | 66dB(A) | AC |
Recommended Products
Contact Us
Contact: Anne Wang
Email:anne.miavent@miachina.net
Tel: 0086 400 600 1732
Mob/ WA/ : 0086 17761909290
Web: www.miachina.net
Email:anne.miavent@miachina.net
Tel: 0086 400 600 1732
Mob/ WA/ : 0086 17761909290
Web: www.miachina.net
Why Choose Us
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $555 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this systemevaporative air cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this systemevaporative air cooler carry?
It is supplied with RoHS CE EMC ERP LVD ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the systemevaporative air cooler be supplied for my local voltage?
The standard configuration is AC 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Mia Intelligent Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Mia Intelligent Technology Co., Ltd. range on HVACR Nexus.
See more in Air Coolers on HVACR Nexus.
