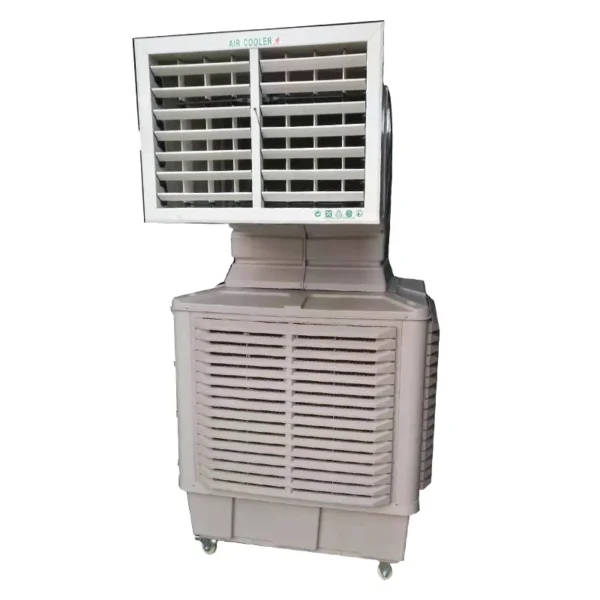

This evaporative industrial air cooler is published with the manufacturer’s full specification — 220V/380V/50HZ, airflow 18000m³/h. Made by Qingzhou Shangxin Power Machinery Co., Ltd. (7 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Evaporative Industrial Air Cooler
- Operating Voltage: 380/400 VAC
- Voltage: 220V/380V/50HZ
- Airflow: 18000m³/h
- Material: ABS +PP Plastic
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Airflow | 18000m³/h |
| Operating Voltage | 380/400 VAC |
| Mounting Type | Wall / Window Mount |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 55 KG |
| Brand Name | SHANGXIN |
| Dimension(L*W*H) | 110*110*95cm |
| Product Name | Evaporative Air Cooler |
| Application | Construction works , Energy & Mining, Food & Beverage Shops |
| Function | Air Cooling System |
| Noise | 70db |
| Color | Customizable |
| Material | ABS +PP Plastic |
| Voltage | 220V/380V/50HZ |
| Packaging Details | Low cost agricultural glass hydroponic growing system greenhouse Packing in cartons, bags and some parts are nude. Also can be customized by your requirements |
| Port Of Dispatch | qingdao/shanghai/guangzhou/yiwu/shenzhen |
| Selling Units | Single item |
| Single Package Size | 110X30X36 cm |
| Single Gross Weight | 30.000 kg |
| Supply Ability | 6000 sets per Month |
Product Details
2.Different air discharge type(including top,down and side)can meet different installation requirements of various applications.
3.Using specially designed axial fan,with large airflow,low noise,low energy consumption and wide applicability.
4.Using high quality aluminum housing motor,with good heat dissipation,high protection grade,waterproof and moisture-proof.
5.Using automatic control of water system and open type water distributor, so water can flow smoothly and distributor is not easy to block.

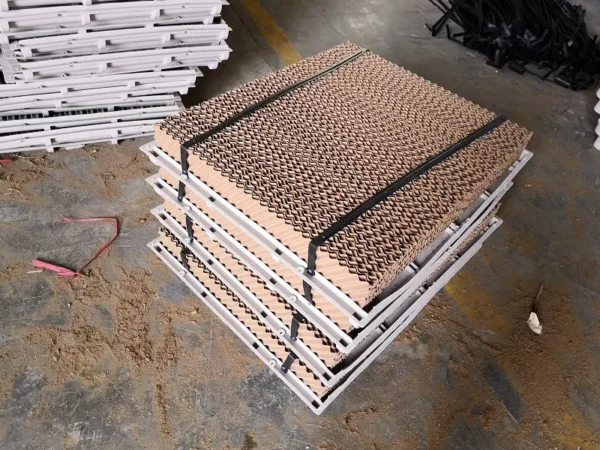

6.Using highly efficient cooling pads with large evaporation capacity,good cooling efficiency and easy cleaning.
Model | 1.1kw | 1.5kw | 1.5kw Big water tank | 2.2kw | 2.2kw Big water tank | 3kw | 4kw |
Air flow | 18000m3/h | 20000m3/h | 20000m3/h | 22000m3/h | 22000m3/h | 30000m3/h | 40000m3/h |
Voltage | 220/380V | 220/380V | 220/380V | 220/380V | 220/380V | 380V | 380V |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Wind pressure | 180 Pa | 180 Pa | 180 Pa | 330 Pa | 350 Pa | 350 Pa | 350 Pa |
Noise | ≤73db | ≤73db | ≤73db | ≤75db | ≤75db | ≤75db | ≤78db |
Water consumption | 10L/h | 15L/h | 15L/h | 18L/h | 18L/h | 30L/h | 30L/h |
Water tank capacity | 30L | 30L | 30L | 50L | 50L | 65L | 80L |
Dimension of air outlet | 65*45cm | 65*45cm | 65*45cm | 65*45cm | 65*45cm | 65*45cm | 65*45cm |
Frame size | 110*110*95cm | 110*110*95cm | 110*110*95cm | 110*110*105cm | 110*110*105cm | 120*20*125cm | 143*143*138cm |
Weight | 55kg | 55kg | 55kg | 65kg | 65kg | 120kg | 120kg |
Air flow style | Axial-flow | Axial-flow | Axial-flow | Axial-flow | Axial-flow | Axial-flow | Axial-flow |
Effective area | 100-120㎡ | 120-150㎡ | 120-150㎡ | 150-200㎡ | 150-200㎡ | 200-280㎡ | 300-400㎡ |

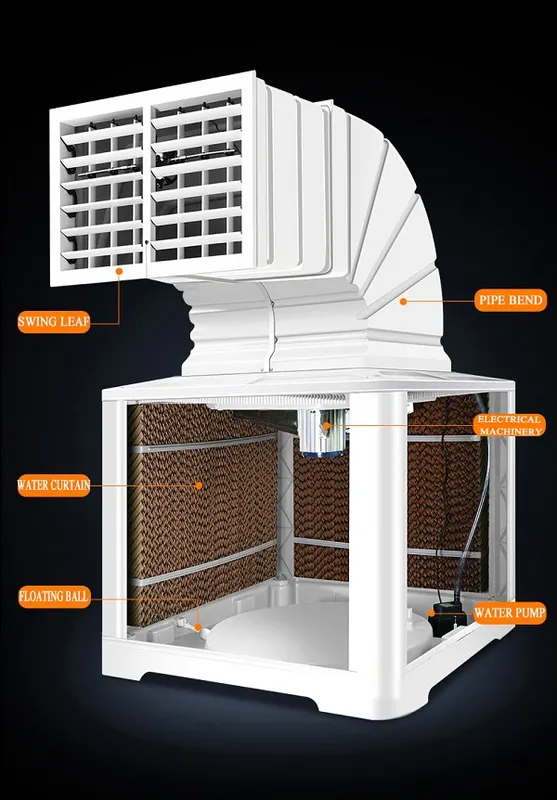

Water pump
Water Outlet

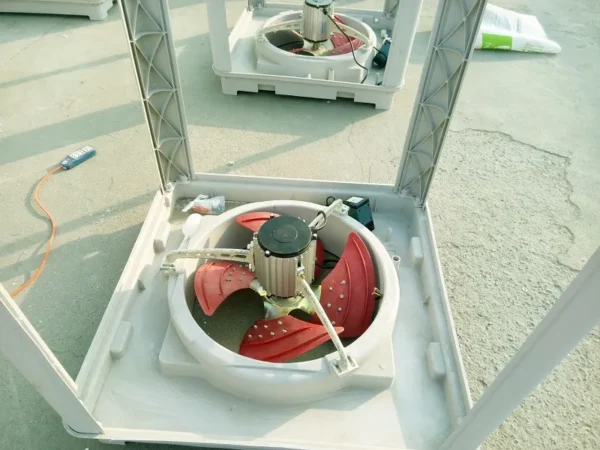

Air cooler motor
Fan blade
Installation method: roof top mounting, wall mounting, standing use with wheel.
Qingzhou ShangXin Power Machinery Co., Ltd. was establised in 2017,located in Qingzhou, shandong Province.We provide best quality machines and solutions for global users in machinery fields. Some of them also visit us and check our machines. From the single machine to the automatic product line, From china to the whole world.Qingzhou Shangxin committed to machine manufacturing and high efficiency producing. We also have development on new material and key technology. We welcome you to visit us and make a deal.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $130 / set
- 5–9 set: US $125 / set
- 10–49 set: US $120 / set
- 50+ set: US $110 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative industrial air cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the evaporative industrial air cooler be supplied for my local voltage?
The standard configuration is 380/400 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
