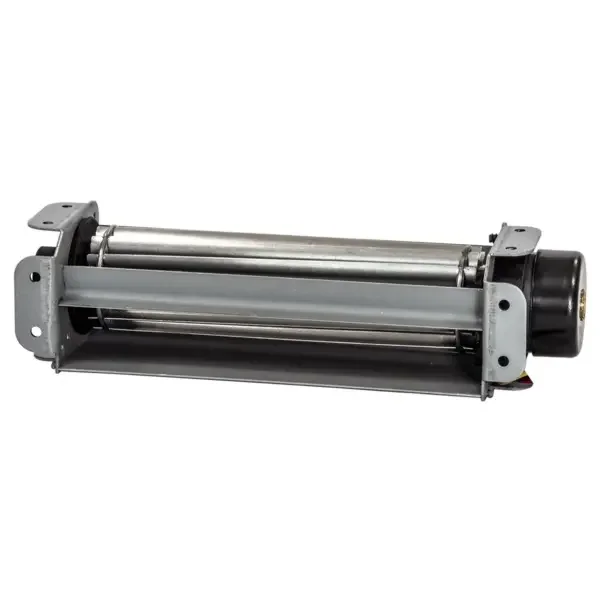

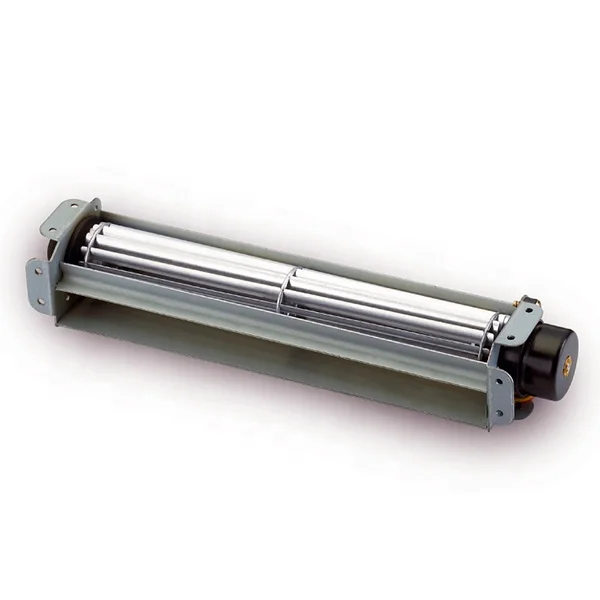

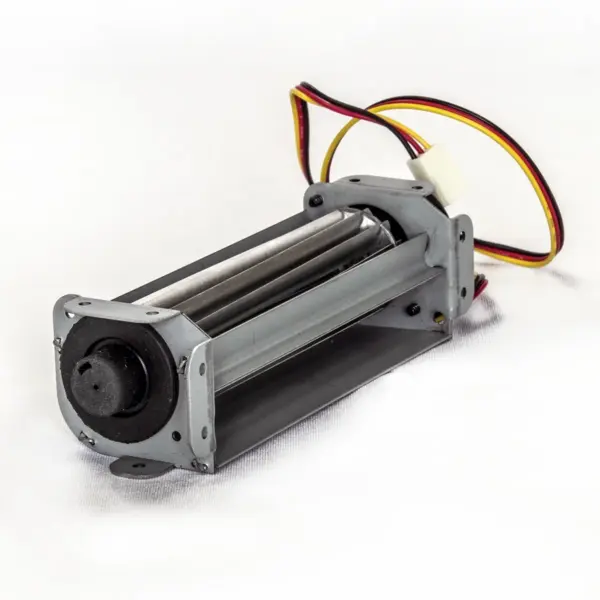

Taiwan DFE25160 25mm 12V Aluminum Alloy Cross Flow Fan OEM





DFE25160 25mm 12V Small Cross Flow Fan



HOUSING	Metal/Aluminum
IMPELLER	Aluminum,Ø25mm
BEARING	Ball
OPERATING TEMPERATURE	0°C to + 45°C
DIELECTRIC STRENGTH	5mA Max. at 500 VAC for 1 minute
INSULATION RESISTANCE	10MΩ  min. @500 VDC
MOTOR TYPE	DC Brushless Motor
ROHS COMPLIANCE	Yes
IP LEVEL	IP21 (Special IP Rating On Request)







Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A)@1M
					inchH2O	mmH2O	CFM	m3/min
DFE25098V12H	12	0.11	1.32	3100	0.06	1.6	11	0.31	32
DFE25160V12H	12	0.13	1.56	2700	0.06	1.4	16	0.45	29
DFE25198V12H	12	0.14	1.68	2500	0.05	1.3	18	0.51	28
DFE25250V12H	12	0.2	2.4	2600	0.07	1.8	25	0.71	32
DFE25298V12H	12	0.21	2.52	2500	0.06	1.6	30	0.85	33

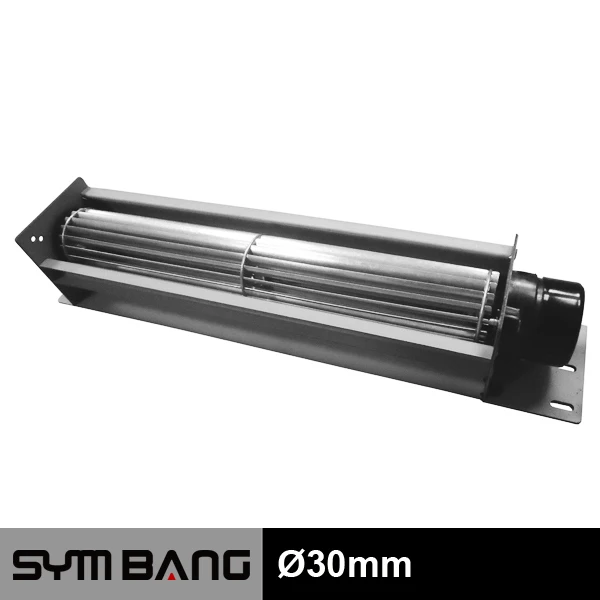

Similar product:



Applications:



• Power Supply Units
• Measuring Instruments
• Electronic Switch Systems
• Automatic Vending Machines
• Air-conditioning & Heating Apparatus
• Computers(CPU, Peripheral & Terminal Equipment)
• Medical Equipment
• Acoustic Equipment
• Flight Instrumentation
• Numerical Control(NC)Units
• Data Communications Terminal Equipment
• Office Machinery Appliances & Copying Machines



Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.



We provide following products:



AC Axial Fans & Blower	DC Axial Fans & Blowers	AC Cross Flow Fans
DC Cross Flow Fans	AC Sirocco Blowers	AC Centrifugal Fans & Blowers
DC Centrifugal Fans & Blowers	EC Centrifugal Fans & Blowers	Air Curtain
EC Axial Fans	Fan Accessories	EC Stand Fan
Blade

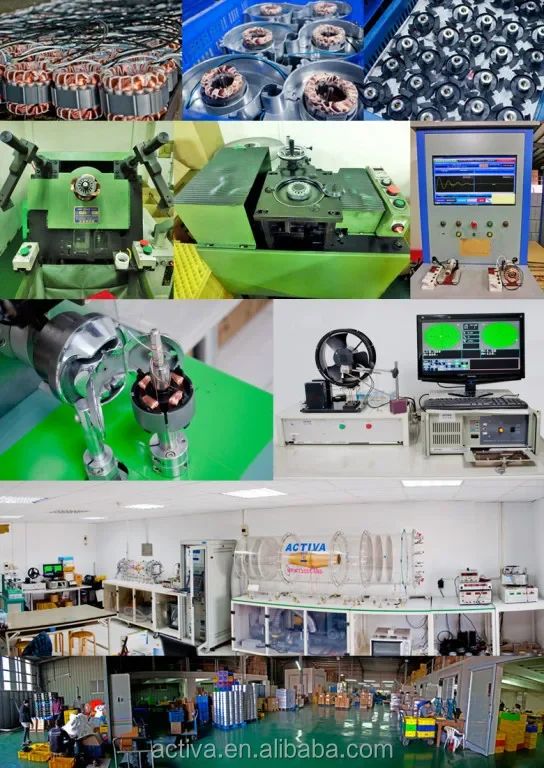

Our factory:













  Our certificate:
