Key specification for this tangential fan: 110V,220V, blade material Aluminum. Everything below is reproduced from the factory data sheet. Made by Shenzhen Topfan Technology Development Co., Ltd. (17 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Tangential Fan
- Model Number: MX30090
- Voltage: 110V,220V
- Blade Material: Aluminum
- Frame Material: Cast Iron
- Noise Level: 32dBA
- Warranty: 1 Year
Technical Specifications
| Voltage | 110V,220V |
|---|---|
| Electric Current Type | AC |
| Mounting | Cooling fan |
| Blade Material | Aluminum |
| Customized Support | OEM |
| After-Sales Service Provided | Free Spare Parts |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | MX/OEM/ODM |
| Model Number | MX30090 |
| Certification | ce |
| Color | black |
| Max Static Pressure | 1.1mmAq |
| Noise Level | 32dBA |
| Weight | 390g |
| Sizes And Other 30series | 30*290mm |
| Frame Material | Cast Iron |
| Motor Type | Brushless |
| Outer Frame Shape | Square Frame |
| Bearing | Ball Bearing |
| Selling Units | Single item |
| Single Package Size | 5X5X110 cm |
| Single Gross Weight | 1.000 kg |
Product Details

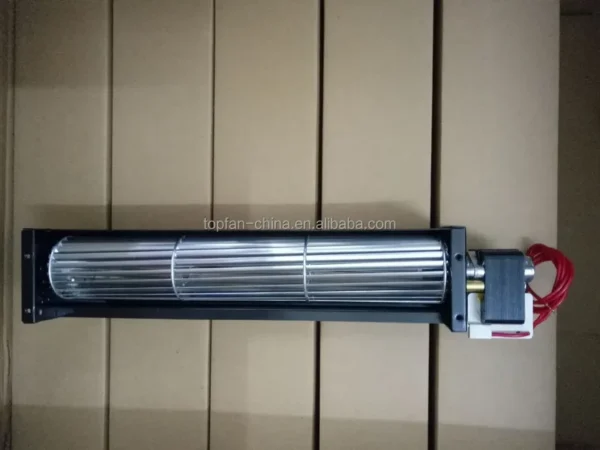

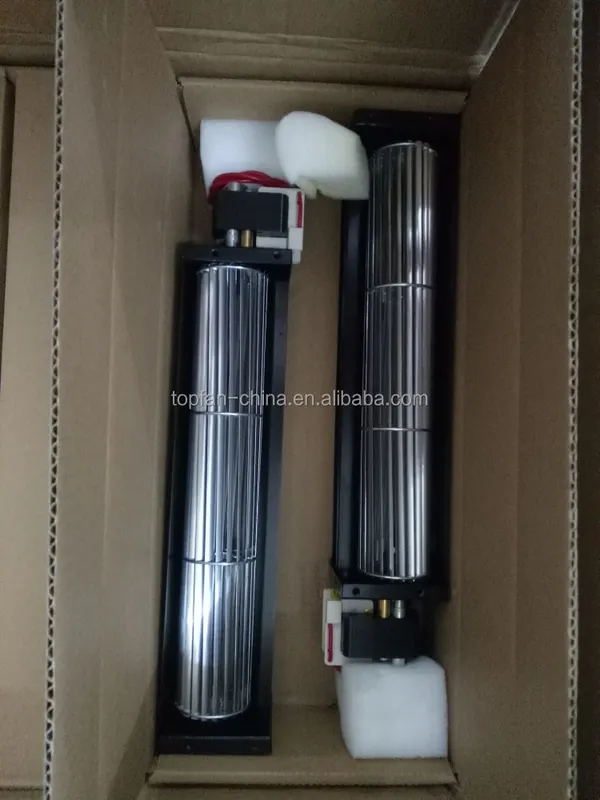

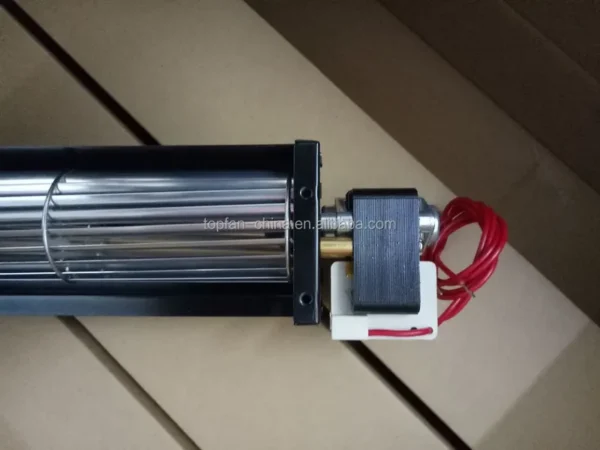

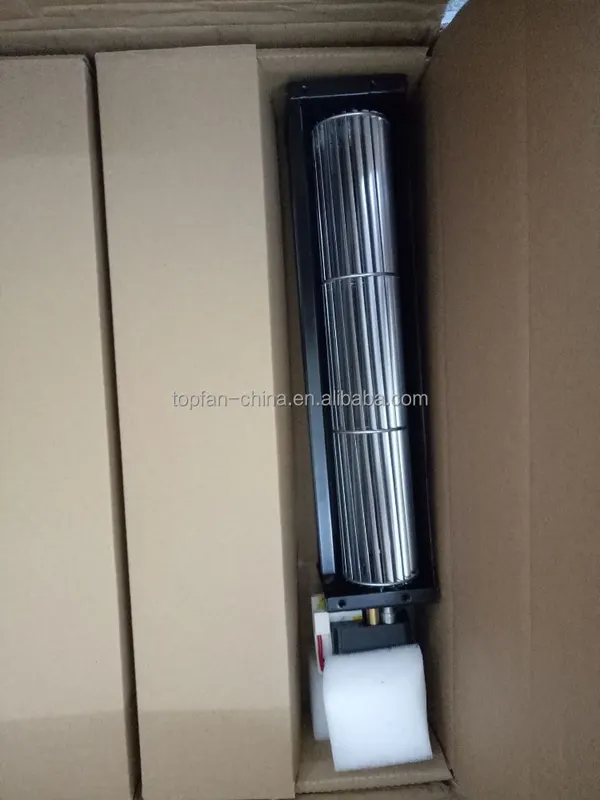

30 x 290 mm Small Tangential Fan, AC Brushless Cross Flow Fan Cooling For Cabinets and Air Conditionerss
Feasure: Light weight, high strength, big air volume, low noise level, low vibration, easy to mount, compact Maintenance-fee, reliable movement, good heat resistance, long life
Description:
- Fan type: Cross flow fan
- Size: 30x290mm, other30x90mm, 30x150mm,30x150mm,30x190mm,30x250mm,
- Frame: Aluminum Alloy
- Impeller: Iron
- Working temperature: Ball bearing: -30 ℃~75℃(Expected life <80000 hours)
- Sleeve bearing: -10℃~70℃(Expected life <35000 hours)
- Speed: High speed , Middle speed, Low speed
- Voltage: 110V AC /120V AC
- Expected life: Ball bearing 50000hours , Sleeve bearing 30000hours(40C )
- Port settings:Terminal or Lead wire
Dimension and Specification:
Specification
Important Note:
Rated Current: Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed: Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage: The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard: Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.
Application
It is widely used in air conditioner /fridge / elevator cooling fan,industry equipment, electronic equipment, lift/elevator,ground control, power supplies, welding machines, packaging and printing equipment, satellite communications, CNC, machinery and office automation products for ventilating and cooling purposes.
Factory
| 1. If you want another rpm or voltage or special functionm Please contact with us directly . |
| 2. The size , voltage, power & speed can be made according to your requirements ! |
| 3. Could be made with waterproof function |
| 4. We're professional manufacturer of cooling fans for 11 years' experience |
| 5. On time delivery |
| 6. We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans |
| 7. We can also provide fans with longer use time. |
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $15.88 / piece
- 500–999 piece: US $14.89 / piece
- 1000+ piece: US $13.28 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this tangential fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 110V,220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Topfan Technology Development Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shenzhen Topfan Technology Development Co., Ltd. range on HVACR Nexus.
