Tangential fan — voltage 110/230 V, blade material aluminum. The complete factory specification follows. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Tangential Fan
- Model Number: AFC60G
- Voltage: 110/230 V
- Blade Material: aluminum
- Speed: Tangential Fan
- Warranty: 1 Year
- Certification: ce
Technical Specifications
| Voltage | 110/230 V |
|---|---|
| Speed | Tangential Fan |
| Mounting | Industrial Equipment |
| Blade Material | aluminum |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Model Number | AFC60G |
| Size | 60mm |
| Series | Tangential Fan |
| Certification | ce |
| Type | CROSS FLOW FAN |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Other |
| Core Components | motor, Bearing |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

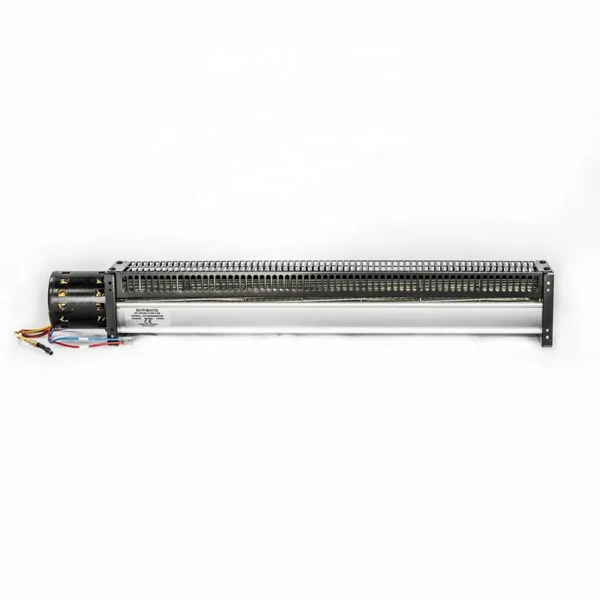

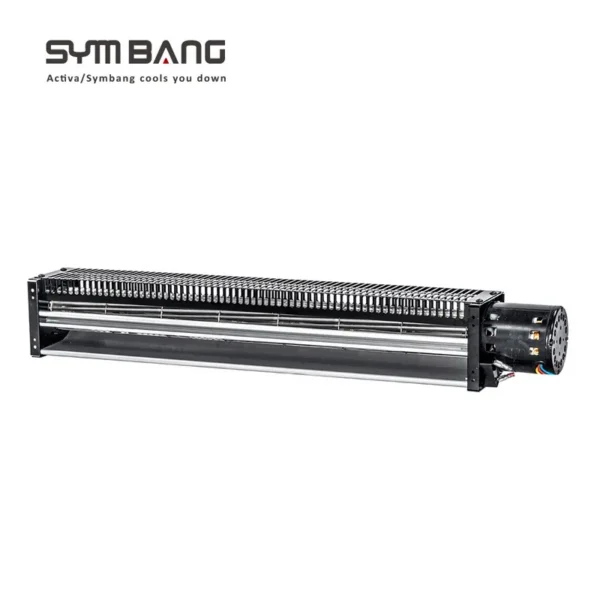

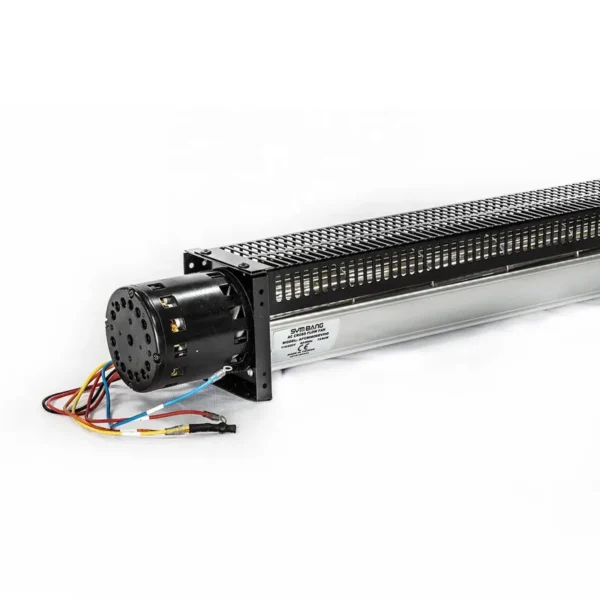

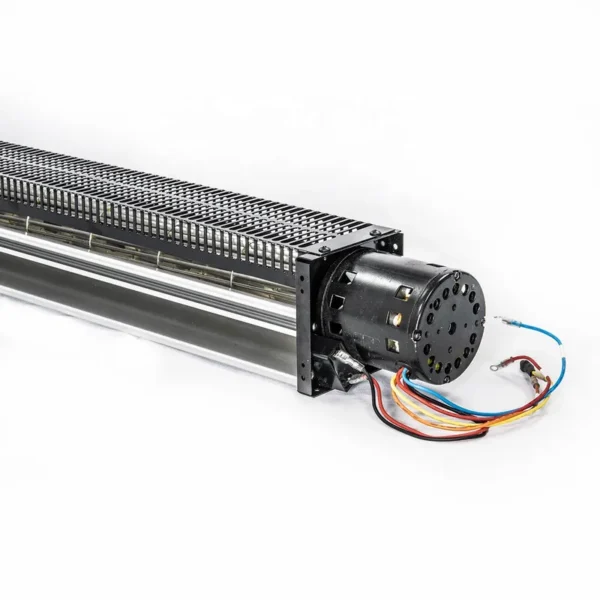

AFC60G 60mm 110V 230V Tangential Fan
| HOUSING | Metal/Aluminum |
| IMPELLER | Aluminum,Ø60mm |
| BEARING | Ball |
| INSULATION | Class A |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING VOLTAGE RANGE | 85 VAC to 125 VAC for 115V Type |
| 185 VAC to 245 VAC for 230V Type | |
| DIELECTRIC STRENGTH | 1,500 VAC for 1 second |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| SAFETY | Thermally Protected |
| MOTOR TYPE | Capacitor Motor |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
| Model No. | RATED | FREQUENCY | RATED | INPUT | SPEED | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A) | ||
| VOLTAGE | (Hz) | CURRENT | POWER | (RPM) | @1M | |||||
| (V) | (A) | (W) | inchH2O | mmH2O | CFM | m3/min | ||||
| AFC60426DVHG | 110 | 50/60 | 0.42/0.56 | 45/62 | 2600/2800 | 0.24/0.28 | 6/7.2 | 300/354 | 8.5/10 | 55/57 |
| AFC60426DVHG | 220 | 50/60 | 0.22/0.29 | 47/64 | 2600/2800 | 0.24/0.28 | 6/7.2 | 300/354 | 8.5/10 | 55/57 |
| AFC60426DVHG | 230 | 50 | 0.22 | 49 | 2700 | 0.26 | 6.5 | 318 | 9 | 56 |
| AFC60426V2LG | 230 | 50 | 0.11 | 26 | 1700 | 0.06 | 1.5 | 177 | 5 | 34 |
| AFC60606DVHG | 110 | 60 | 0.67 | 73 | 2000 | 0.24 | 6 | 354 | 10 | 51 |
| AFC60606DVHG | 230 | 50 | 0.28 | 64 | 2300 | 0.2 | 5 | 424 | 12 | 54 |
| AFC60606V2LG | 230 | 50 | 0.11 | 26 | 1400 | 0.06 | 1.5 | 283 | 8 | 37 |
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Misting Fan |
|
Our factory :
Our certificate:
Ordering and Pricing
- Minimum order quantity: 100 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this tangential fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 110/230 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ACTIVA INC.. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ACTIVA INC. range on HVACR Nexus.
