The tangential fan listed here carries 120V/60 Hz ,230V/50Hz, blade material aluminium alloy, documented exactly as the manufacturer publishes it. Made by Ningbo Longwell Electric Technology Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Tangential Fan
- Voltage: 120V/60 Hz ,230V/50Hz
- Blade Material: aluminium alloy
- Material: Plastic, Aluminum Alloy, Steel
- Housing Material: Galvanized Metal
- Impeller/Blade Material: Aluminum Alloy
- Fan Speed: 1/2/3 speeds available
Technical Specifications
| Voltage | 120V/60 Hz ,230V/50Hz |
|---|---|
| Mounting | Free Standing |
| Blade Material | aluminium alloy |
| Material | Plastic, Aluminum Alloy, Steel |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Video Technical Support |
| Warranty | 1 Year |
| Place Of Origin | Zhejiang, China |
| Brand Name | LONGWELL |

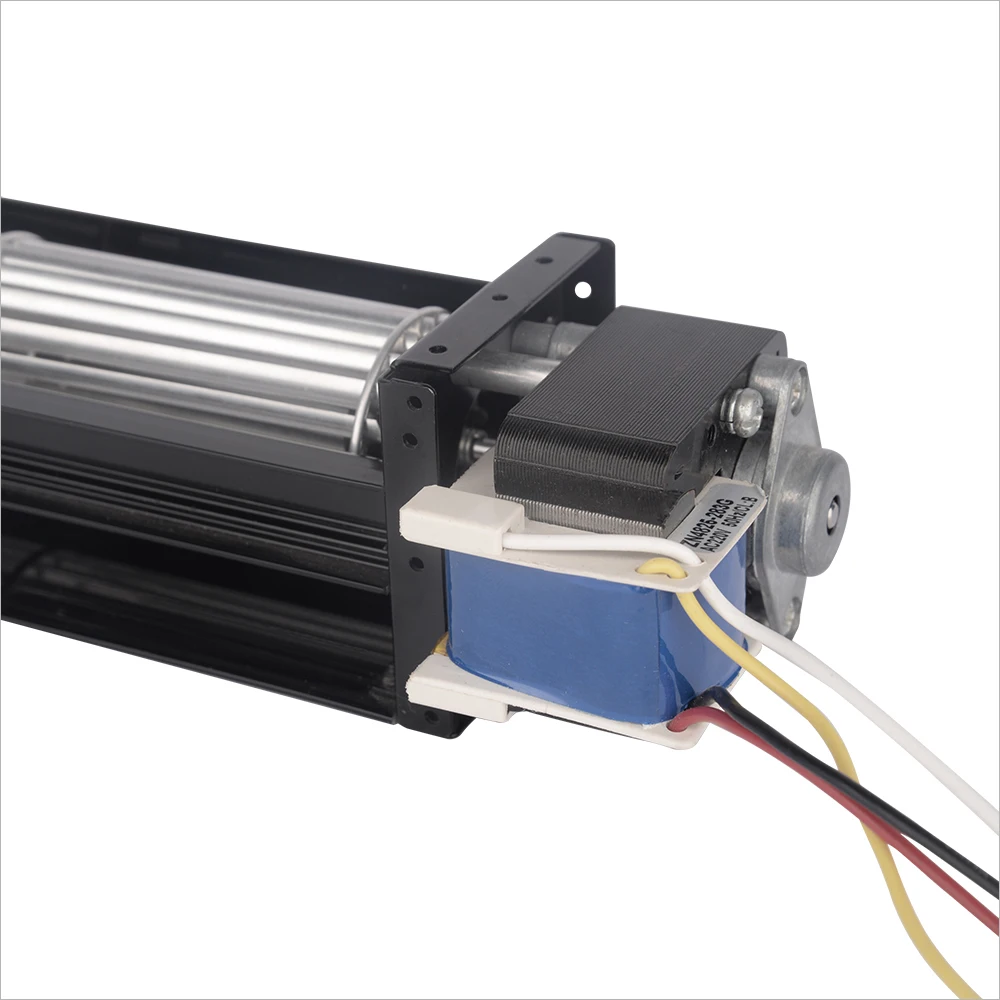

| Motor Type | AC Shaded Pole Motor |
| Housing Material | Galvanized Metal |
| Impeller/Blade Material | Aluminum Alloy |
| Bearing Type | Ball bearing / Sleeve bearing |
| Operating Temperature | – 25 ℃ ~ +60 ℃ |
| Fan Speed | 1/2/3 speeds available |
| Motor Certification | CCC/CE |
| Application | Floor Heating / air curtain / air purifier / microwave oven |
| Related Products | 25~200mm Dia available |
| Type | CROSS FLOW FAN |
| Selling Units | Single item |
| Single Package Size | 50X50X50 cm |
| Single Gross Weight | 3.000 kg |
Product Details

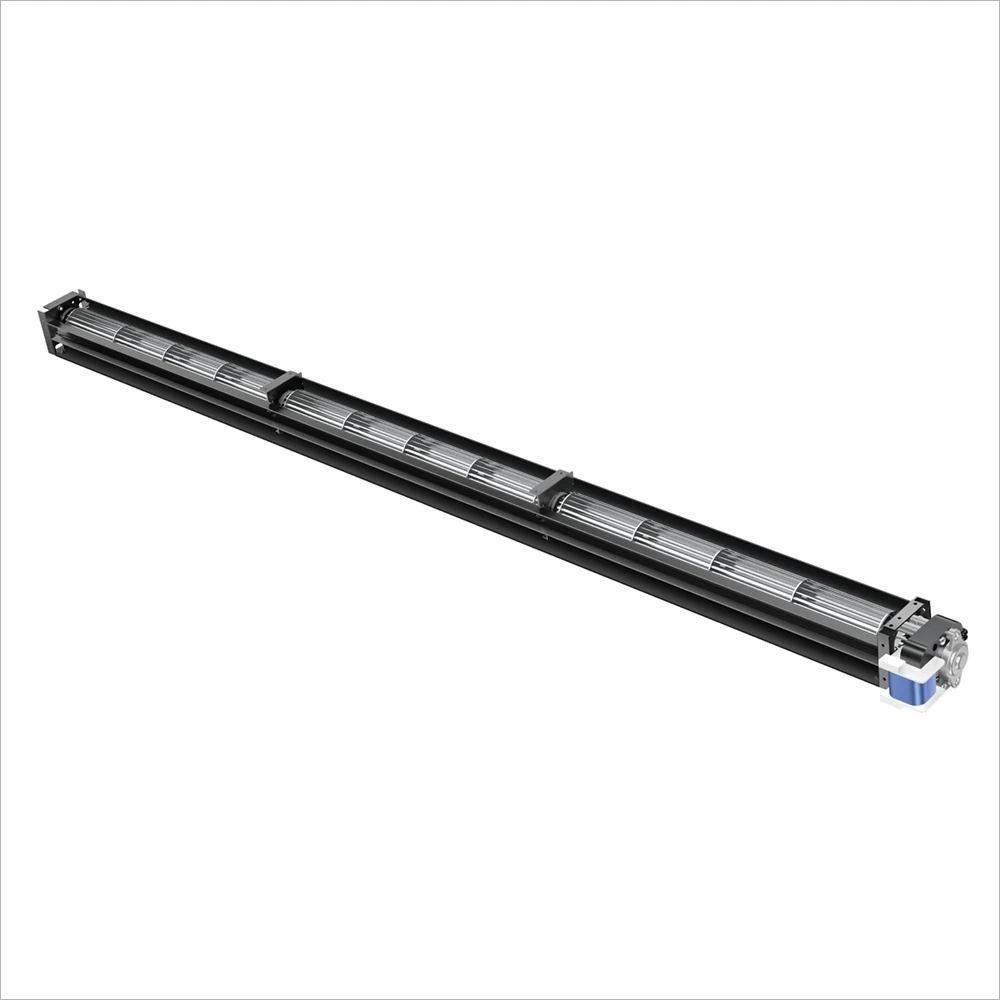

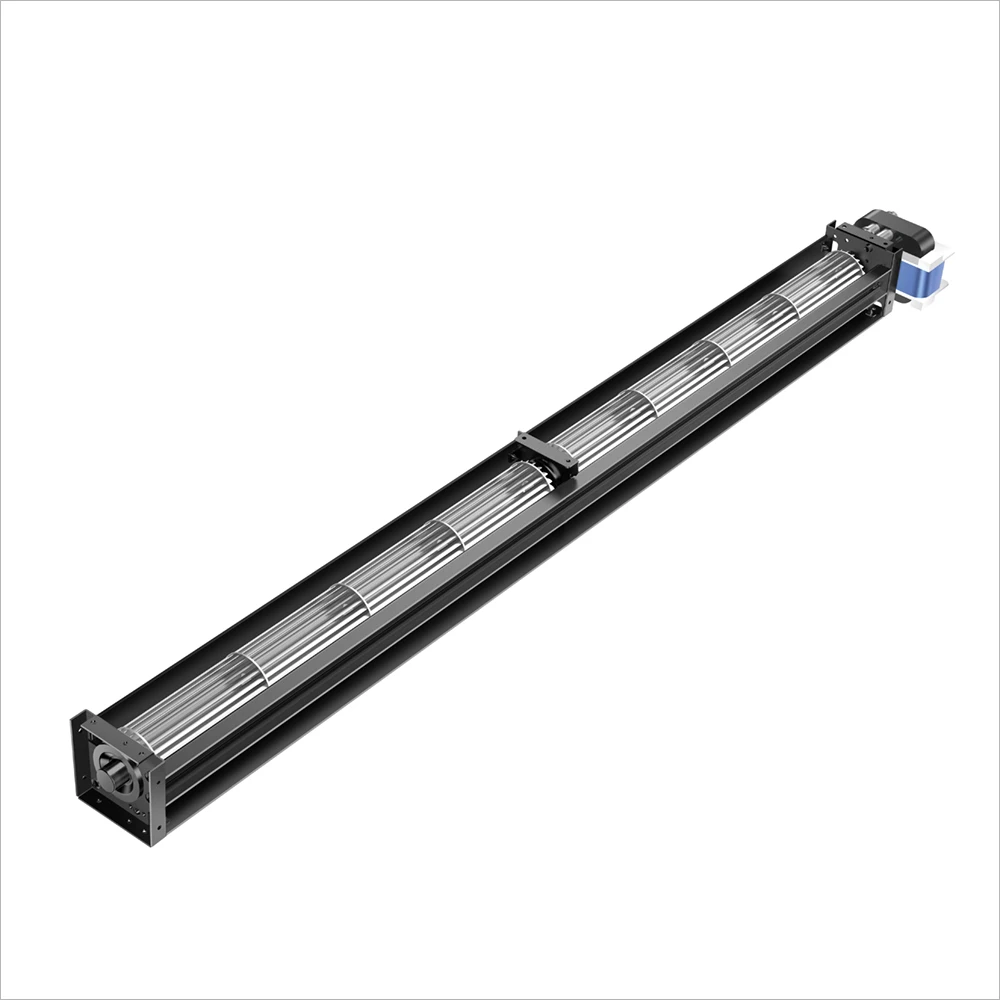

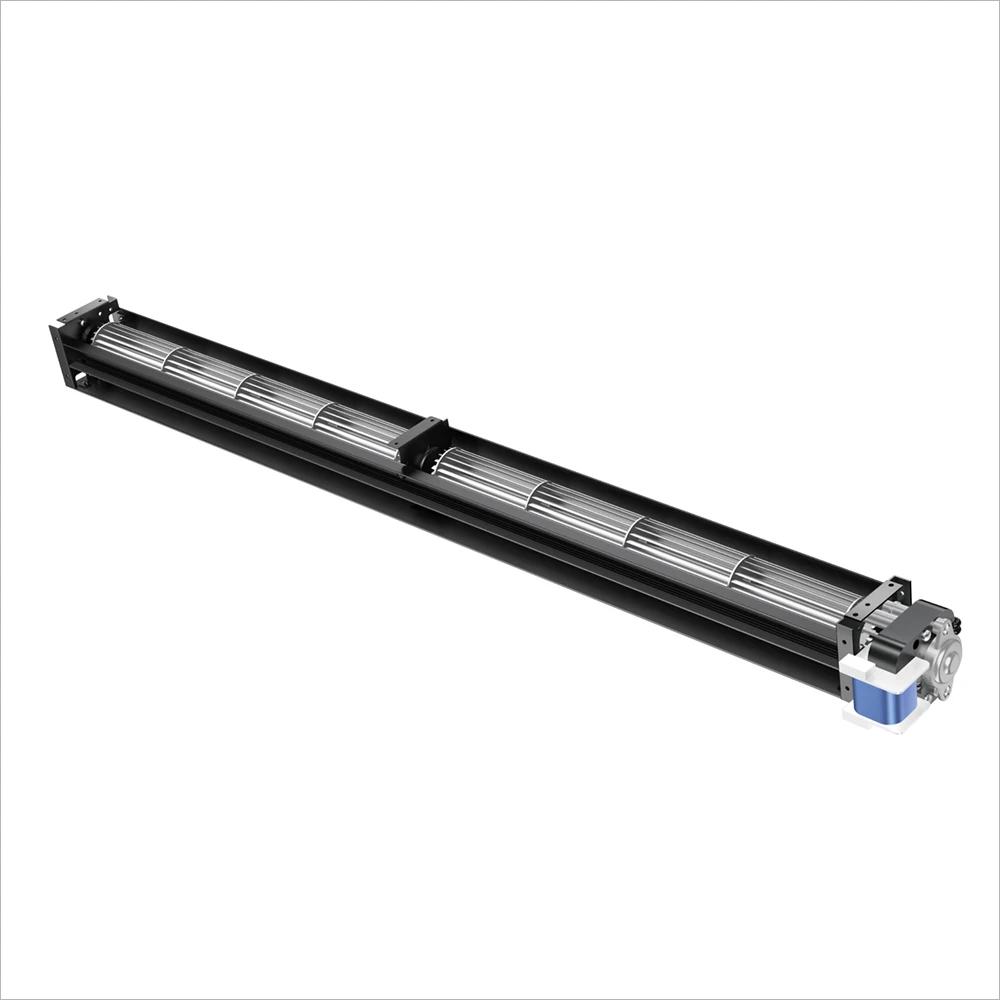

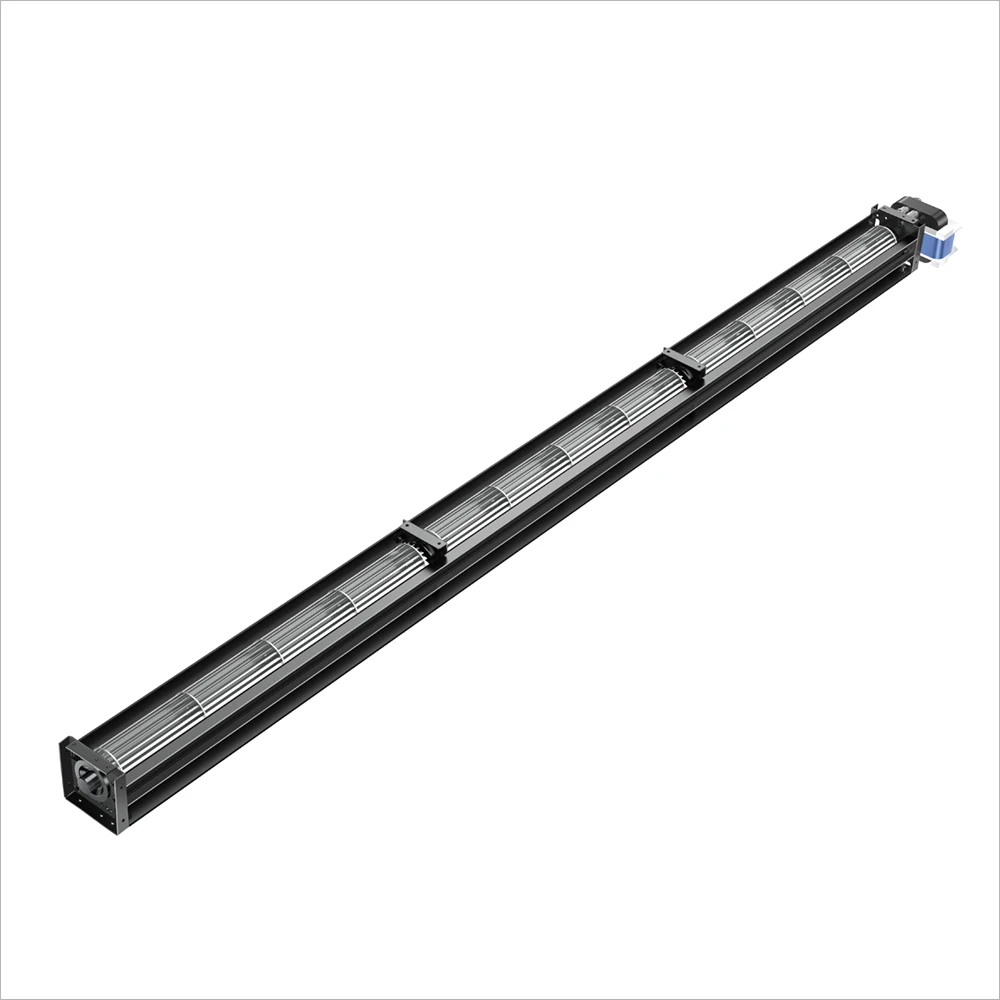

Types : | 40mm 220V 115V Adjustable speed Aluminum alloy impeller tangential fan blower Micro cross flow fan |
Voltage Ranges : | 230V |
Frequency : | 50/60 Hz |
Diamter : | 40mm ( impeller diameters ) |
Motor Types : | BLEC External Rotor Motor |
Speed Control : | 0-10V Signal / PWM / RS485(Optional) |
Max.ambient Temp: | -25℃～ +60℃ |
Certificating : | All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI |
Protection Level: | IP44 ,IP54,IP55 |
Electronic Protection: | Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start |
Working & Storage | Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m |
Balancing | According to JB/T 9101-1999 requirements G6.3 |
Product Standards : | LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3 |
Mainly Applications | AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans |
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100+ piece: US $10 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this tangential fan carry?
It is supplied with CCC/CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 120V/60 Hz ,230V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
