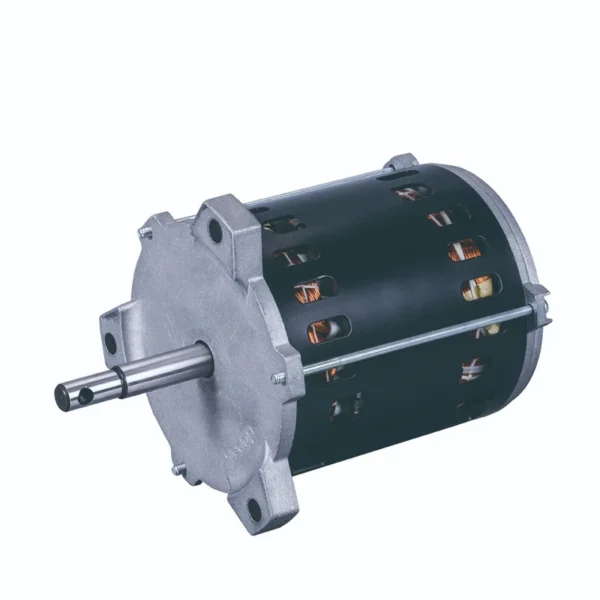

Temperature resistance oven fan — rated voltage 100-240V, material Aluminum alloy housing. The complete factory specification follows. Made by Guangdong Minfei Motor Electric Co., Ltd. (4 years on the platform, typical reply ≤17h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Temperature Resistance Oven Fan
- Model Number: AS9445
- AC Voltage: 100-240V
- Rated Voltage: 100-240V
- Windings Material: Copper
- Material: Aluminum alloy housing
- Max. Speed: 6000RPM
Technical Specifications
| Phase | Three-Phase |
|---|---|
| AC Voltage | 100-240V |
| Type | Induction Motor |
| Protect Feature | Waterproof |
| Efficiency | IE 1 |
| Warranty | 1year |
| Model Number | AS9445 |
| Brand Name | Minfei |
| Place Of Origin | Guangdong, China |
| Frequency | 50/60Hz |
| Application | Official Euqipment |
| Rated Voltage | 100-240V |
| Windings Material | Copper |
| Max. Speed | 6000RPM |
| Insulation Class | A B F H |
| Material | Aluminum alloy housing |
| Packaging Details | Pearl cotton fixed, put into carton, then put into export cardboard. |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1200 pieces per Week |
Product Details
Main Performance Parameters | ||||||||
Voltage/Frequency | 100-240V 50/60Hz | |||||||
Rated Input Power | 25-400W | |||||||
Rated Speed | 1500-7000 RPM | |||||||
Insulation Class | A B F H | |||||||
Typical application | High-temperature oven，industrial equipment | |||||||
A1:We currently produce brushless DC motors, induction motors, high temperature motors, shaded pole motors, gear motors, series excitation motors and so on. You can check the data parameters of the above motors on our official website.
Q2:How to choose the right motor?
A2:If you have motor pictures or engineering drawings to show us, or you have detailed specifications, such as voltage, speed,torque, motor size, motor operating mode, power and other parameters, please feel free to tell us, then we can recommend or design the right motor according to your requirements.
Q3: Can you provide motor customization service?
A3:Yes, we can customize or design the motor according to your requirements, but some mold cost and design cost may be needed, which will be refunded later if we can cooperate successfully.
Q4:I have a sample, can I test it first?
A4:Yes.
Q5:How to ensure the quality of the motor?
A5:We will ensure the quality of the material, and there will be several tests and final performance tests during the production process.
Q6: How long is your delivery time?
A6:Generally speaking, it takes 30 days for our regular standard products, and it may take longer for customized products.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100+ piece: US $35 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this temperature resistance oven fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1year warranty. Spare parts and technical support remain available after the warranty period.
Can the temperature resistance oven fan be supplied for my local voltage?
The standard configuration is 100-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Minfei Motor Electric Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Minfei Motor Electric Co., Ltd. range on HVACR Nexus.
