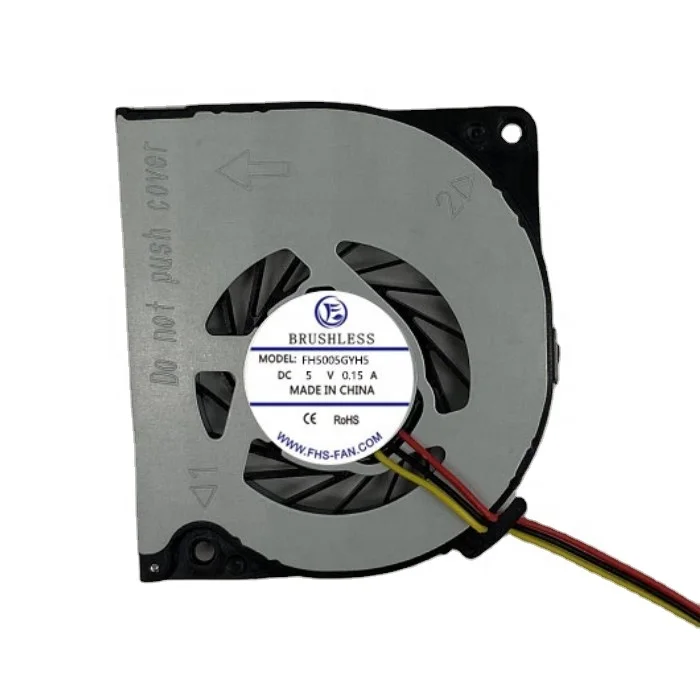

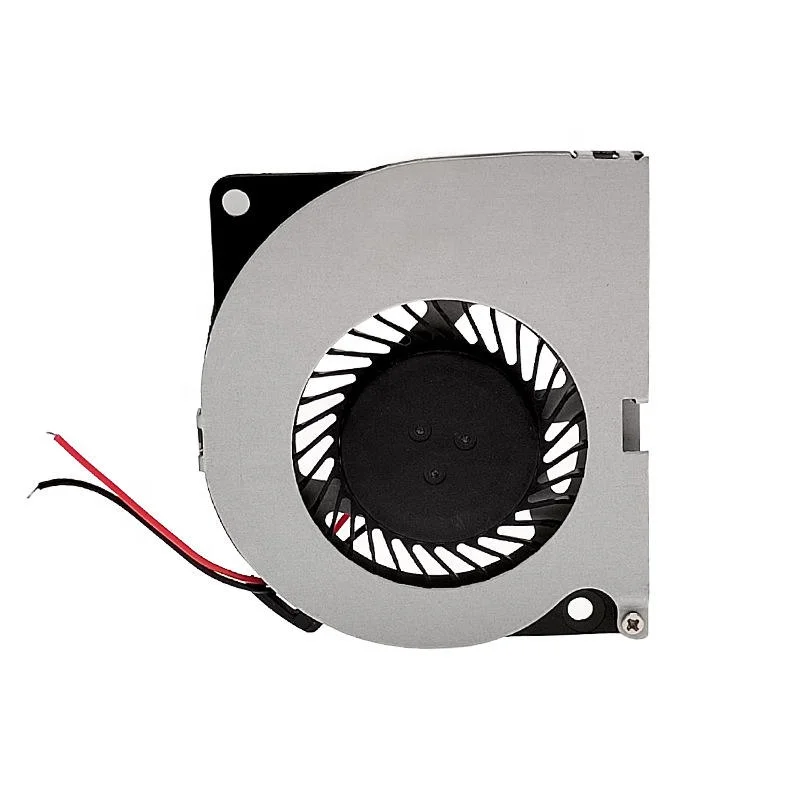

Turbo Blower, 5cm, 50x50x5mm, 5V/12V, Brushless

Key specification for this turbo blower: 5V/12V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Turbo Blower

• Model Number: FH5005GYD5
• Power Source: Electric
• Rated Voltage: 5V/12V
• Voltage: 5V/12V
• Material: Plastic
• Blade Material: Plastic

Technical Specifications

Product Details

Product Description

Product Name	DC Blower Fan
Product Size	50x50x5mm(Length* Width *Thickness)
Material	Plastic & PBT
Rated Voltage	5V DC FAN (12V Optional)
Main Parameter	Rated Speed: 3500RPM(At rated Voltage,Measured after 3Mins.) Air Flow: 1.76CFM (Maximum In Free Air) Air Pressure: 2.0mm-H2O(Maximum When Air Flow = 0) Noise Level:18dBA (At Rated Speed)
Bearing Type	Sleeve bearing
Operating Temperature & Life expantacy	Ball bearing: -30°C to +75°C @ 50000hours at 40°C Sleeve bearing: -10°C to +70°C @ 30000hours at 25°C
Optional Function	PWM Control / FG Tacho / RD Alarm / Auto-restart / Polarity Protection
Wire & Connector & Tube	Wire length & Connector model ( as required )
Package	Carton box,we can also according to the requirements of customers.

Details Images

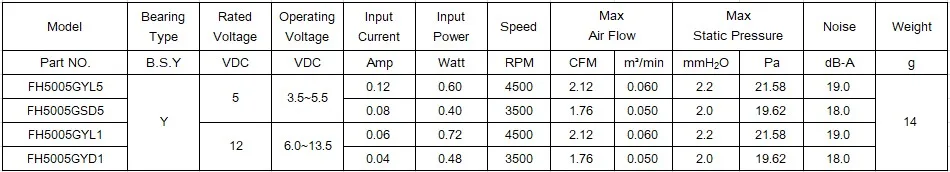

Product Specification

The specifications of some models are as follows:

Remarks

Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. All models could be customized on voltage or any other requirements to fit your needs.

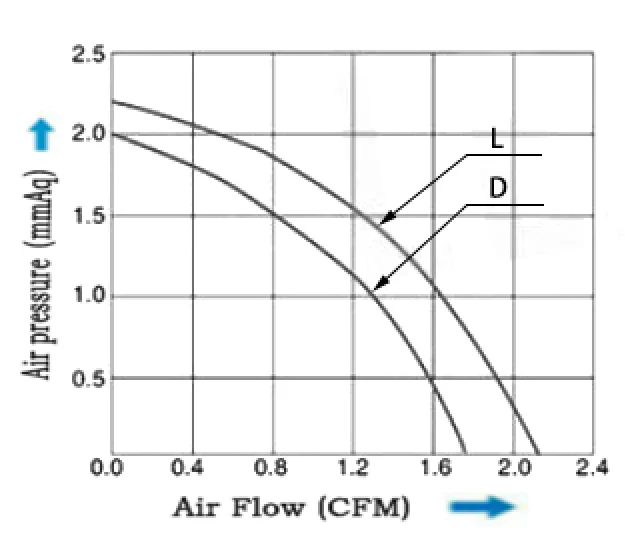

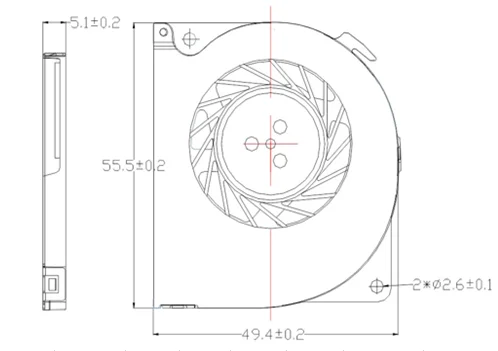

Dimensions(Unit：mm) Fan Performance Curve

Recommend Products

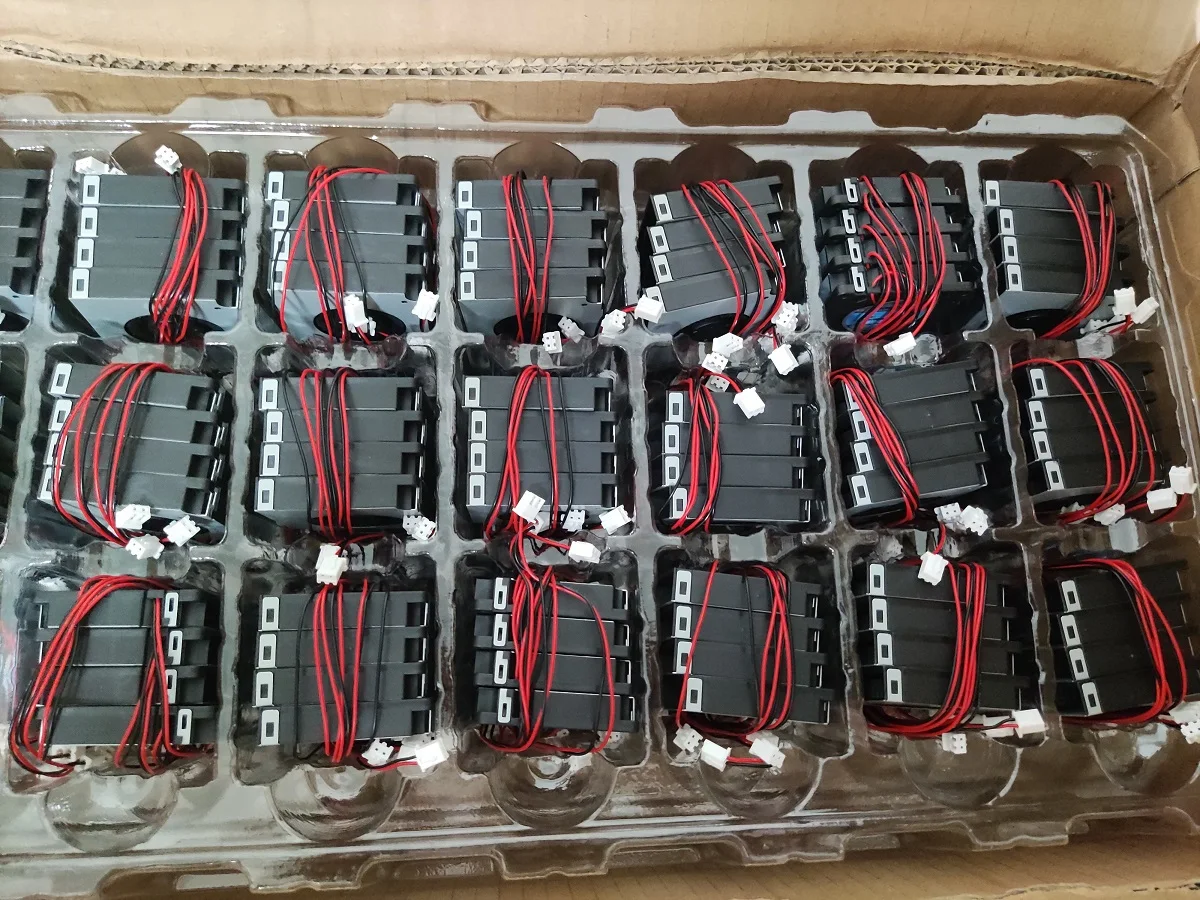

Packing&Shipping

1. Standard Packaging, inside single package, out carton package.

2. Upon customers' request, but the price is different with neutral packing.

Usually we deliver the goods to express by DHL/UPS/FEDEX,ect. If you have any questions, you can also consult The Customer Service Center or our sales for details,thanks for your cooperation.

Company Introduction

Shenzhen Feng Huishun Technology Development Co., Ltd. (Funfan) is a professional manufacturer of brushless cooling fans, including dc axial-flow fans, blower fans, centrifugal fans, cross flow fans, AC/EC fans etc.The products are widely used in the computer information industry, network communication industry, industrial production equipment, air purification, automobile, Commercial household appliances and other fields. The fan of our company has stable quality, good heat dissipation effect, strong air flow, low noise, high temperature resistance, low temperature resistance, long service life, low consumption, beautiful appearance and other advantages. Feel free to contact us for any customized fans solutions.

Factory

Workshop

Workshop

Assembly line 1

Assembly line 2

Quality control

Product test

Packaging

Warehousing

Our Advantages

Our Services & Strength

Our products has the following advanges:

1. Fan with large air volume,low noise, long life (according to your requirements) fire,water,corrosion-resistant and so on.

2. We have a strong design capability,according to customer requirements design and manufacture of special fan.

3. We understand te specific needs of fans in various industries and can provide you with a variety of standard products to choose from.

4. Our fans using high-quality bearings, silicon steel, enameled wire, with higher reliability.
5. We have a complete quality control system. We have a series of inspections from raw materials to production to shipment, as shown below.

5.1 Incoming inspection (including inspection of frame blade, fan blade and other parts).

5.2 Semi finished products (mainly motor stator assembly test).

5.3 OQC test / Complete inspection of finished products (including performance test, appearance inspection, etc.)

5.4 Aging test (about 2-3 days).

5.5 Random sampling inspection.

5.6 Double layer customized packaging (mainly to ensure that customers can receive goods intact)

6. We provide thoughful and meticulous service,as well as fast on-time delivery.

7. We can deisgn and developm customized product.We are able to research best solutions for customers if needs.

Ordering and Pricing

• Minimum order quantity: 50 piece
• Volume pricing:
  • 50–499 piece: US $3 / piece
  • 500–2999 piece: US $2.7 / piece
  • 3000–9999 piece: US $2.5 / piece
  • 10000+ piece: US $2.2 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this turbo blower?

The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 YEAR warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this turbo blower carry?

It is supplied with CE ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the turbo blower be supplied for my local voltage?

The standard configuration is 5V/12V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
