The two doors open stove listed here carries voltage Based on Local, type powder coating oven, documented exactly as the manufacturer publishes it. Made by Linhai Changhe Coating Equipment Co., Ltd. (3 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Two Doors Open Stove
- Power(W): customized
- Voltage: Based on Local
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Type: powder coating oven
- Machine Type: Drying Oven, Curing oven, Coating Equipment
Technical Specifications
| Substrate | Steel |
|---|---|
| Coating | Painting |
| Type | powder coating oven |
| Voltage | Based on Local |
| Core Components | PLC, Engine, Motor |
| Key Selling Points | Easy to Operate |
| Machine Type | Drying Oven, Curing oven, Coating Equipment |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Power(W) | customized |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 6500 |
| Brand Name | Changhe |
| Dimension(L*W*H) | customized |
| Size | customized |
| Heating Energy | electric/gas/diesel/LPG |
| Selling Units | Single item |
Product Details
Products Description
Diesel Heating Powder Coating Curing Oven For Sale
Working Size: Length4000 *Width1700*Height1700 mm
Heating source: could be Electric or Gas / Diesel / LPG
After powder spraying in the spray booth, the workpiece will be placed in the oven for powder curing. The powder is cured by high temperature baking and leveling, and becomes the final coating with different effects.
Heating source: could be Electric or Gas / Diesel / LPG
After powder spraying in the spray booth, the workpiece will be placed in the oven for powder curing. The powder is cured by high temperature baking and leveling, and becomes the final coating with different effects.
Excellent Features
*Suitable for curing powder or paint on the metal surface
*Size can be customized as your workpiece size and needs
*Multi-layer design, galvanized sheet+2 layers of rock wool+skeleton
*Hot air circulate, the temperature is even and consistent.
*Equipped with a trolley, strong bearing capacity, move smoothly
Unique Features

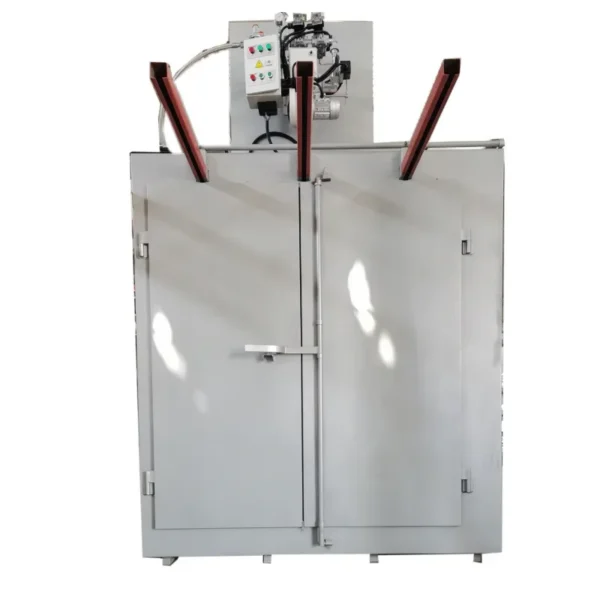

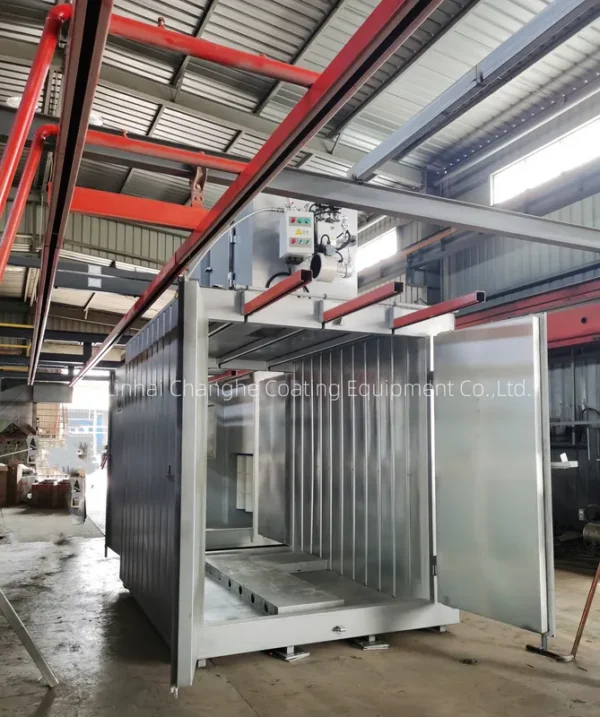

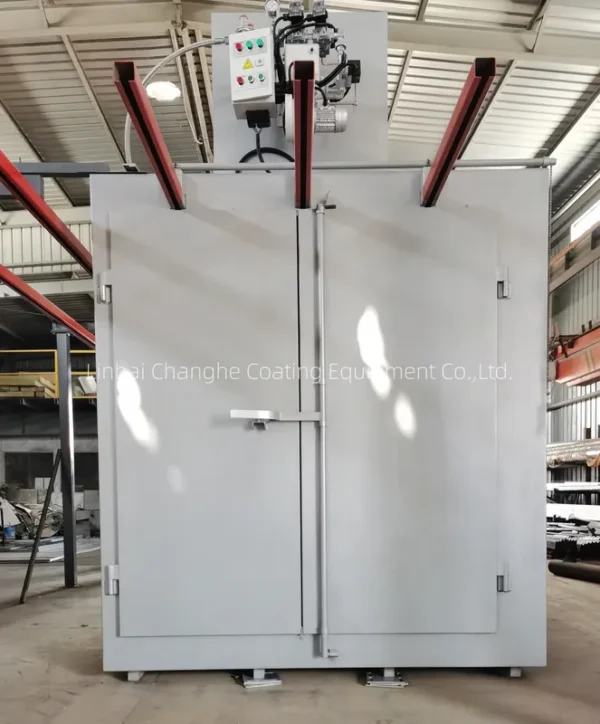

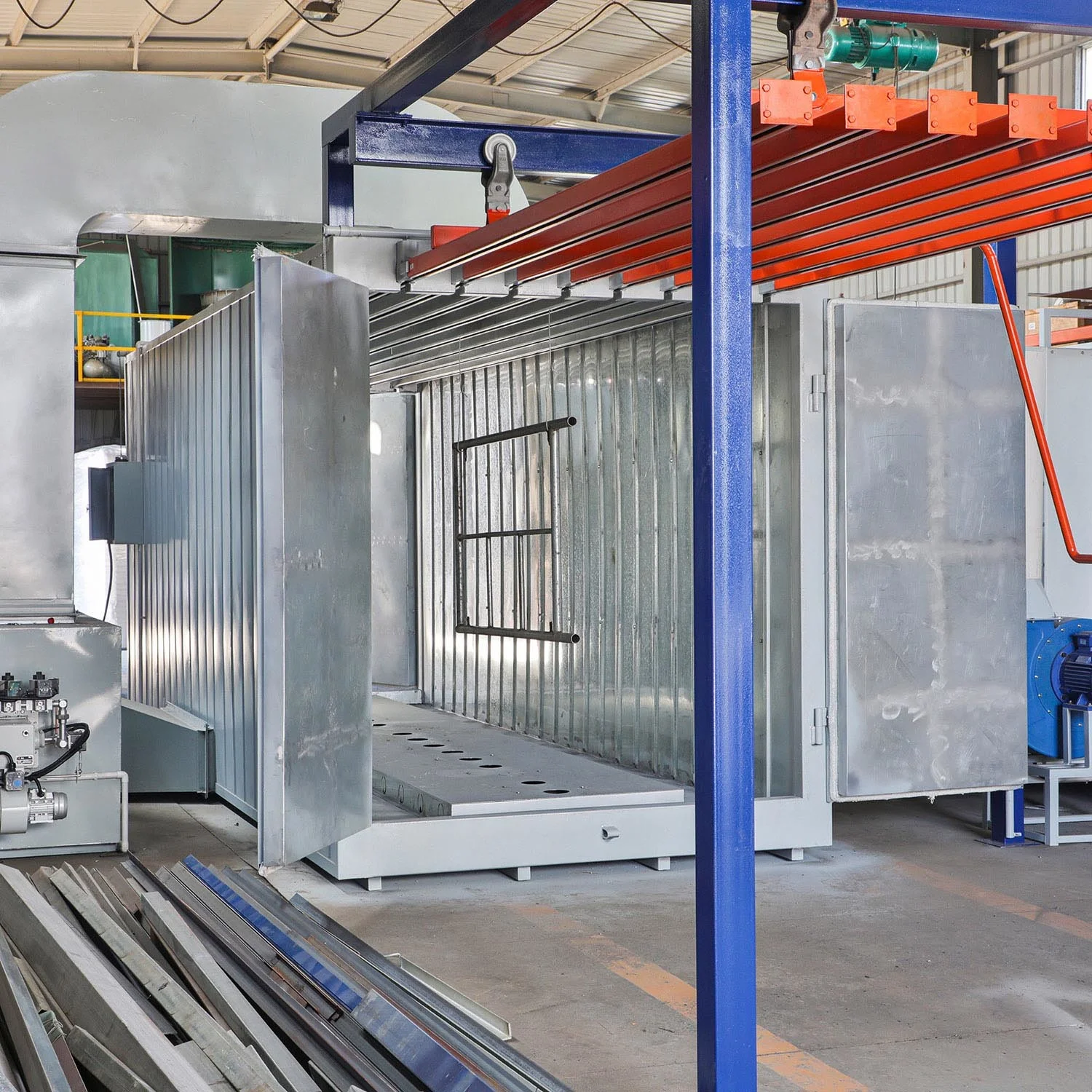

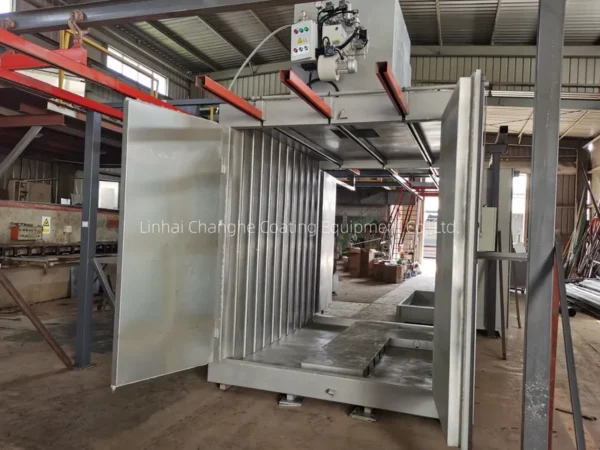

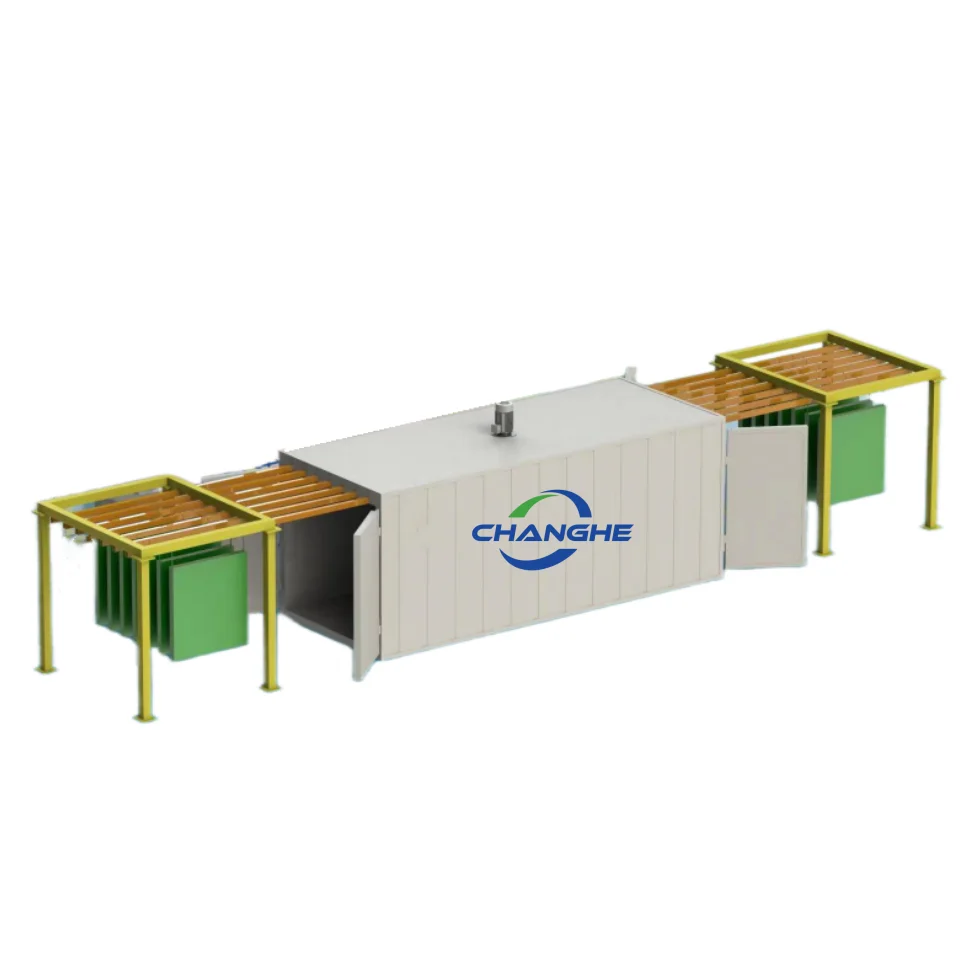

☑Front and rear double doors, pass-through type is convenient for long workpieces to enter and exit through the transport chains.
☑This powder coating oven is designed for curing longer workparts in batches, such as aluminum profiles.
☑It is recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense.
☑It is recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense.
Products Specification
Oven is directly heated by natural gas source. Hot air circulation system is by "Bottom blowing-in and top side air-returning" mode, uniform adjustable air outlets are set up for direct air-pressure bearing duct , which makes the uniform temperature of inner oven.
Model | CH-401717G | |
Working Size (LxWxH)mm | 4000 x 1700 x1700 | |
Heating Source | Natural gas | |
Wall Insulation | 100% new rock wool board with 100 mm thickness | |
Heating Temperature & Time | 180° C (15-30min) | |
Temperature Stability | < ± 3-5°C | |
Voltage/ Frequency | 415V/380V (50-60hz) , customized as local | |
Circulation / Air Flow | Vertical ,Variable through holes on the walls | |
Transportation | Top rail | |
The size, color and specifications can be customized all according to your needs. | ||
Details Images

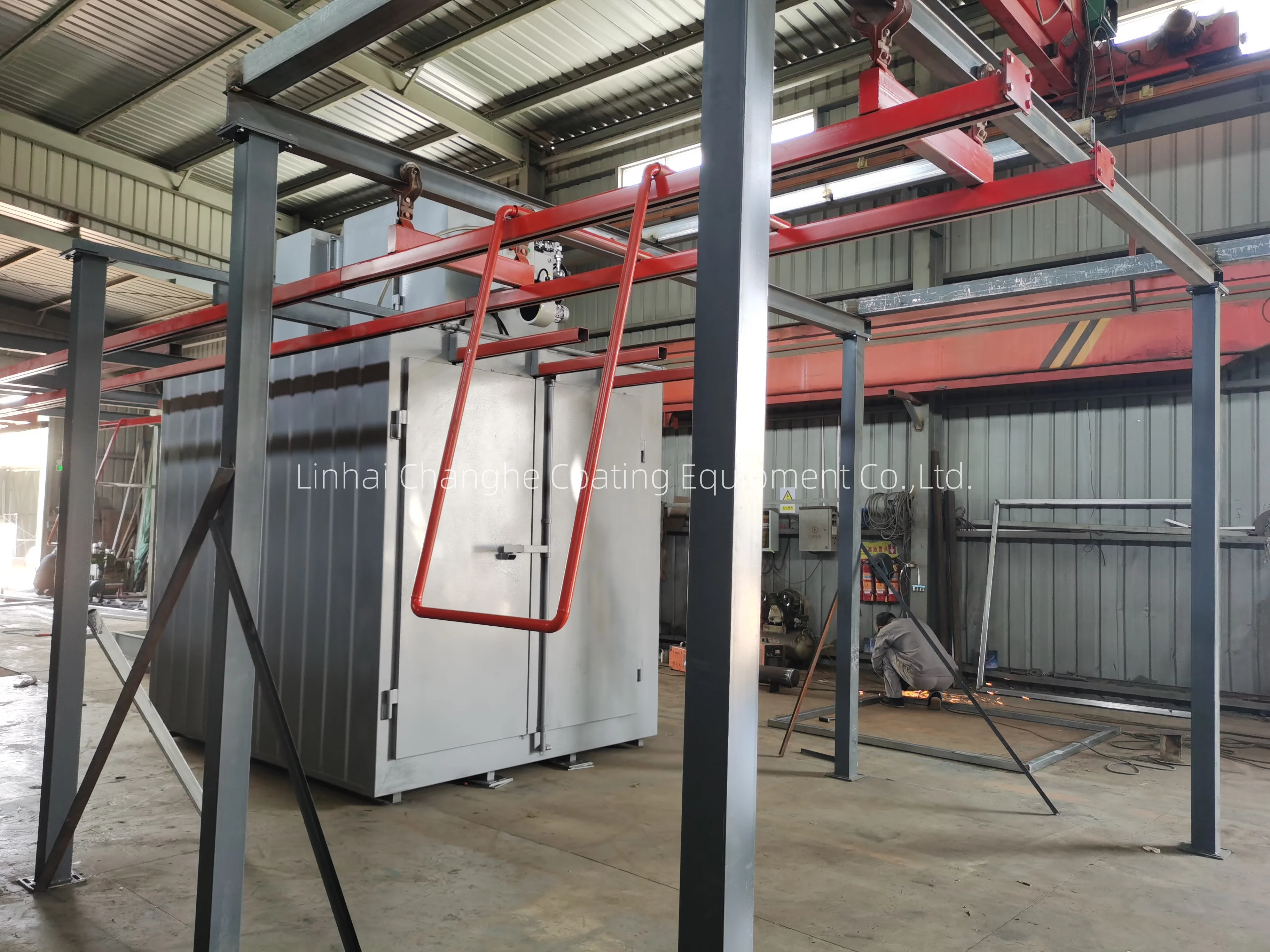

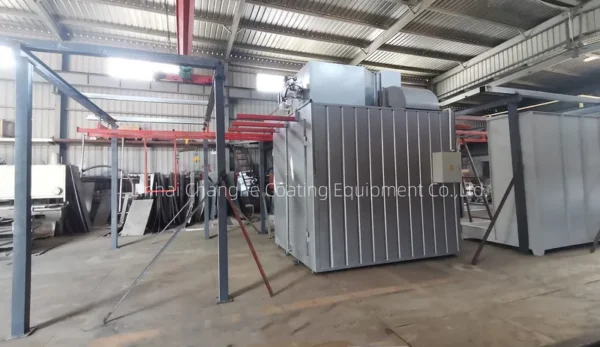

The process of making the oven in our factory
① The outer layer of the oven is formed by folding the edges and corners of galvanized sheet, increasing the firmness.
② Fill in the middle with 2 layers of rock wool, getting a thickness of 100mm.
③ Make the inner layer the oven
④ The door frame is made of bent 2.5 mm iron plate.
③ Make the inner layer the oven
④ The door frame is made of bent 2.5 mm iron plate.
Oven Component
Controller Panel
The user-friendly panel gives you an easy access to set heating temperature, time and working of fan. Once the curing time arrives, the oven will stop heating automatically.
Circulation Fan
Powerful fan circles hot air in the oven chamber, ensures uniform heat distribution with temperature stability less than 3 degree.

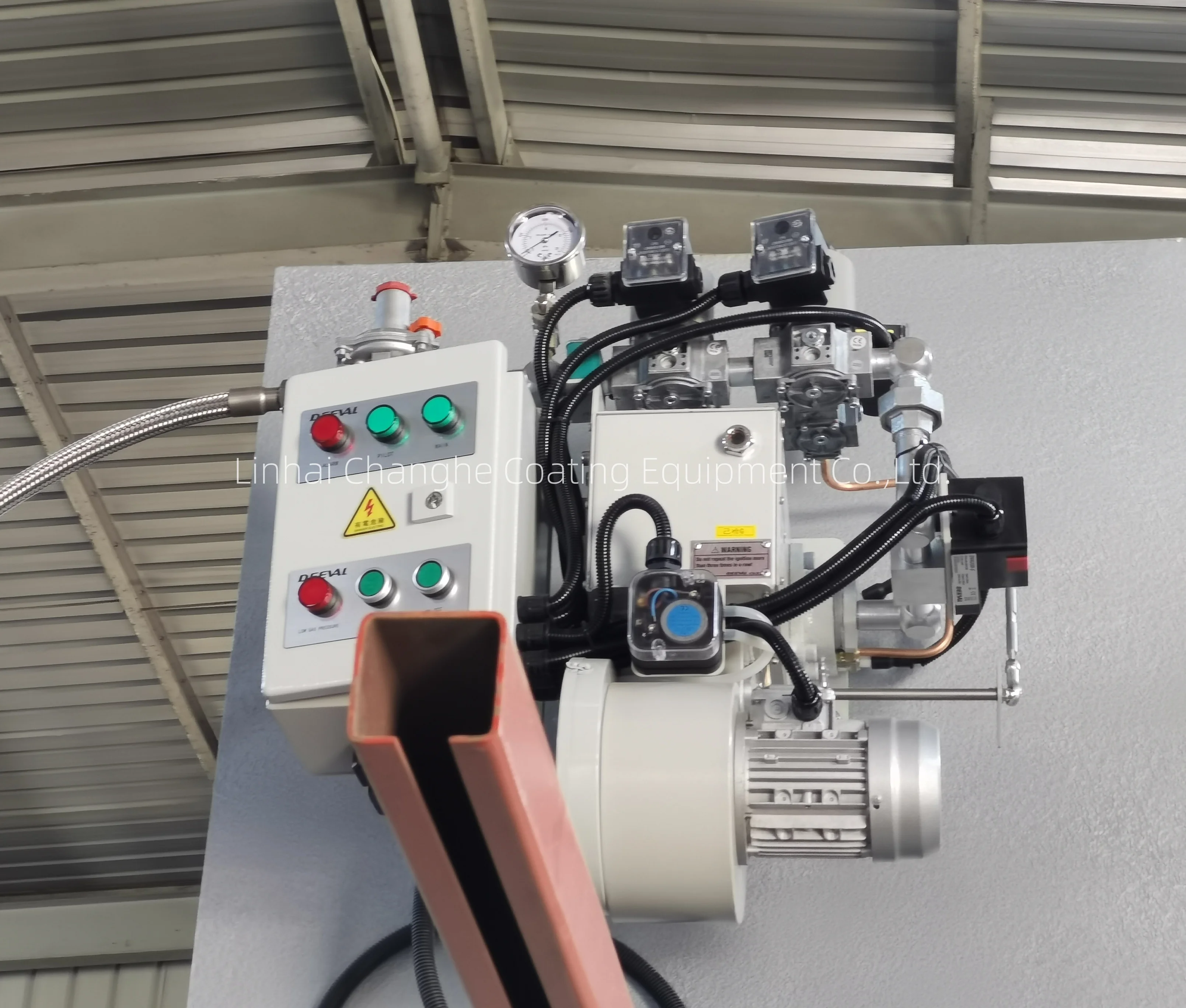

Burning System
-The heating system consists of heating chamber, circulating fan, automatic temperature control probe, etc.
-Imported burner, takes full utilization of fuels,making chamber rapidly and raise to required, temperature.
-The heating chamber is directly transferred to the inside of the oven through the circulating fan, and the circulating fan continuously circulates to make the internal temperature of the oven Continue to rise to the set temperature, the distribution is even and consistent.
100mm Rockwool

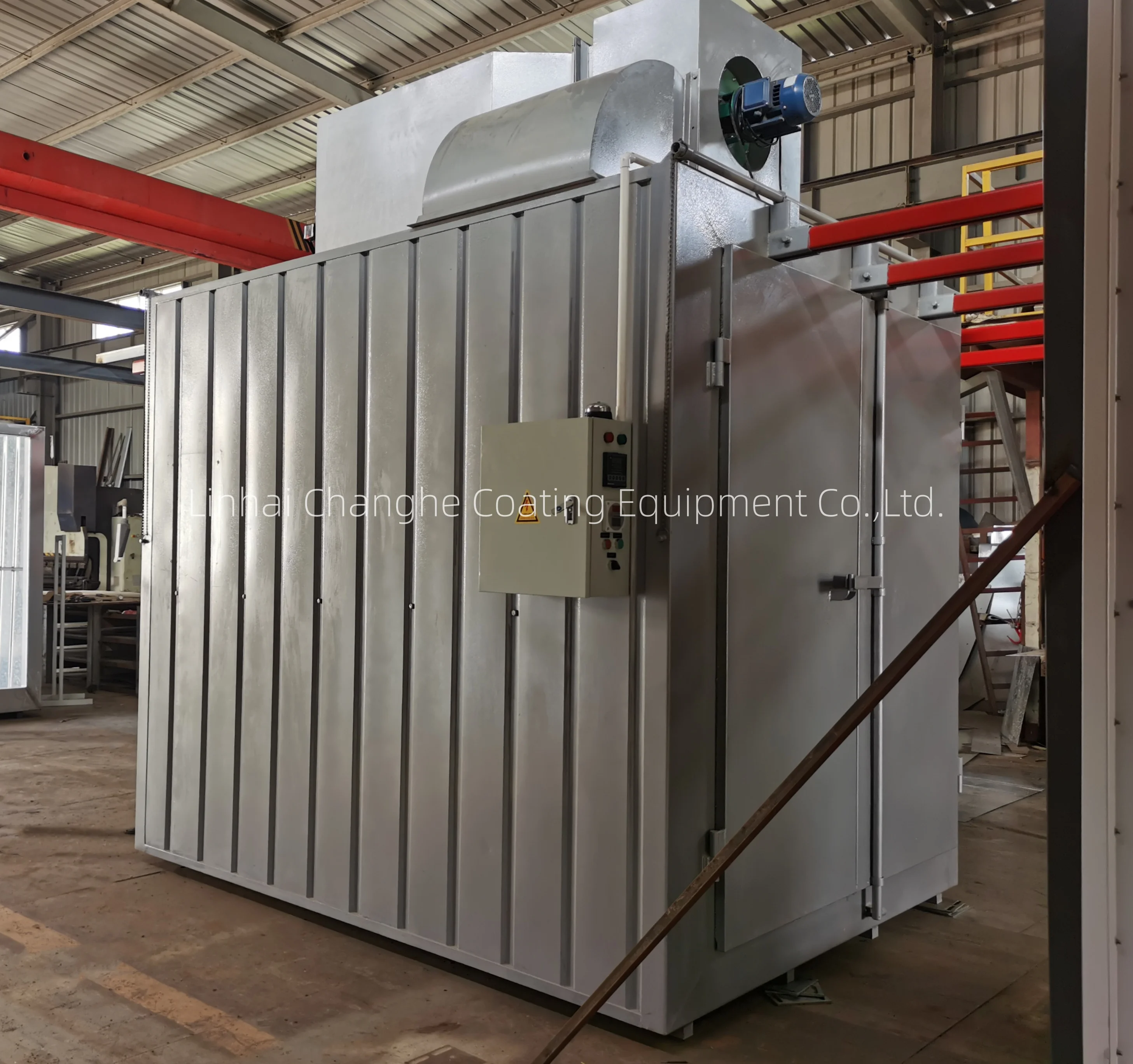

The oven utilizes a sandwich panel design. Rock wool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.

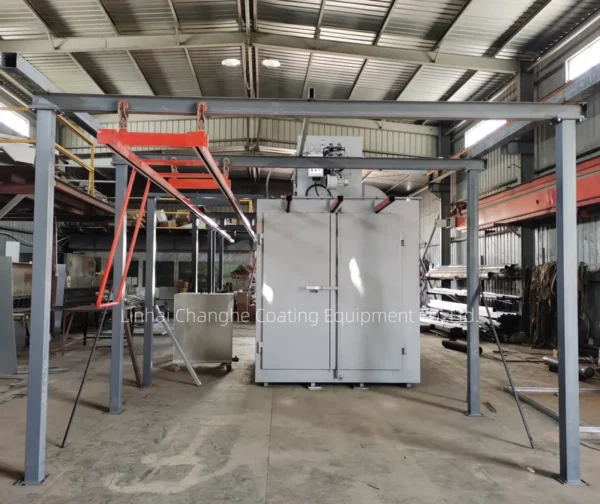

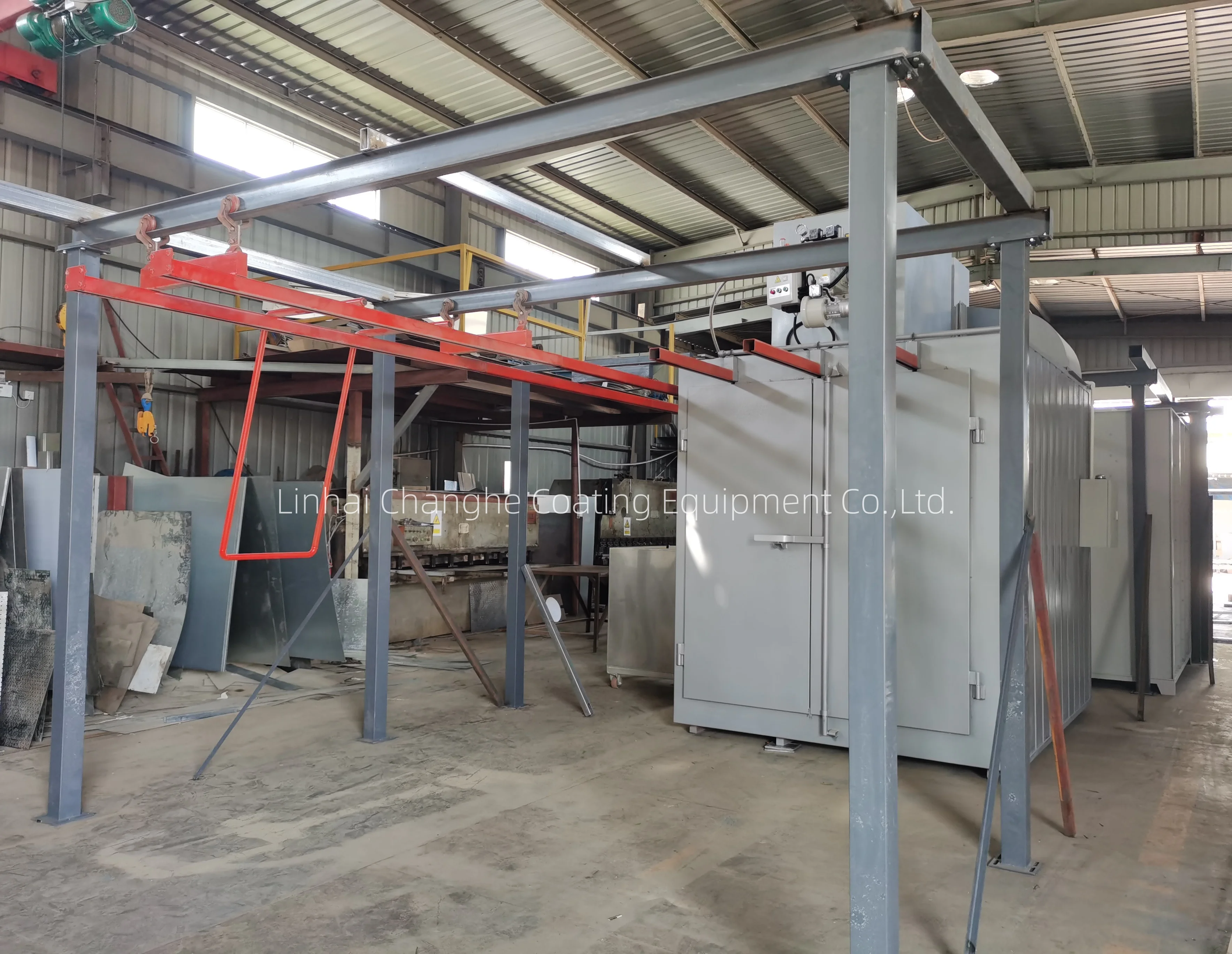

Transportation Rail
Using the QXG 200 transportation chain, the sprayed workpieces are put into the oven in batches, which is smooth, labor-saving and will improve the work efficiency.
Recommend Products
Project Case
Package & Delivery
Company Profile
Linhai Changhe Coating Equipment Co.,Ltd.
Changhe, an experienced manufacturer of electrostatic powder coating equipment since year 2010. Changhe can provide you with innovative, rational and economical powder coating equipment one stop solution. Our team has more than 20 years of experience in coating equipment design, manufacture, installation, commissioning and on-going support. Changhe’ s products apply to aluminum profiles, car wheels, distribution cabinets, metal furniture, hardware, crafts and other metal surface treatment.
FAQ
Q1: Are you a factory ?
Yes, we are manufacturer. We have more than 20 years experience coating equipment industry engineers.
Q2: What kind of coating equipment can you supply?
Most products which are related to the coating industry. Our product is non-standard customized. Our experienced engineer will design the drawing for you according to your needs, product and factory situation.
Q3: I don’t know how to choose the suitable equipment.
Don‘t worry. We have professional technicians who can tailor products for you. Please don’t hesitate to contact us for any questions, we will provide you with the best solution.
Q4: Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
Q5: What about the payment?
We accept T/T, Credit Card, Apple Pay, Google Pay, Paypal,etc.
Q6: What about the lead time?
Generally, 5-7 days for powder coating machine and its spare parts. 15-30 days for powder spray booth and curing oven. 45-60 days for powder coating line.
Yes, we are manufacturer. We have more than 20 years experience coating equipment industry engineers.
Q2: What kind of coating equipment can you supply?
Most products which are related to the coating industry. Our product is non-standard customized. Our experienced engineer will design the drawing for you according to your needs, product and factory situation.
Q3: I don’t know how to choose the suitable equipment.
Don‘t worry. We have professional technicians who can tailor products for you. Please don’t hesitate to contact us for any questions, we will provide you with the best solution.
Q4: Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
Q5: What about the payment?
We accept T/T, Credit Card, Apple Pay, Google Pay, Paypal,etc.
Q6: What about the lead time?
Generally, 5-7 days for powder coating machine and its spare parts. 15-30 days for powder spray booth and curing oven. 45-60 days for powder coating line.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $6299 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this two doors open stove?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the two doors open stove be supplied for my local voltage?
The standard configuration is Based on Local. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
