Running both cooling and heating through the same coil is what makes a chilled water fan coil unit economical over a full year — one installation, one control, and the changeover handled centrally at the plant rather than in each room. Offering AC or DC fan motors lets budget and running cost be traded at specification time. Ultra-thin concealed casing with machinery test report supplied.
Key Features of This Chilled Water Fan Coil Unit
- Warranty: 1 Year
- Place Of Origin: Hebei, China
- Mounting Type: Floor Standing
- Type: Fan Coil Unit
- Fan Motors Type: AC OR DC
- Single Package Size: 120X50X20 cm
Technical Specifications
| Mounting Type | Floor Standing |
|---|---|
| Type | Fan Coil Unit |
| Compressor Brand | none |
| Fan Motors Type | AC OR DC |
| Key Selling Points | Low Maintenance Cost |
| Core Components | Motor |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Hebei, China |
| Weight (Kg) | 20 |
| Brand Name | Langri |
| Selling Units | Single item |
| Single Package Size | 120X50X20 cm |
| Single Gross Weight | 40.000 kg |

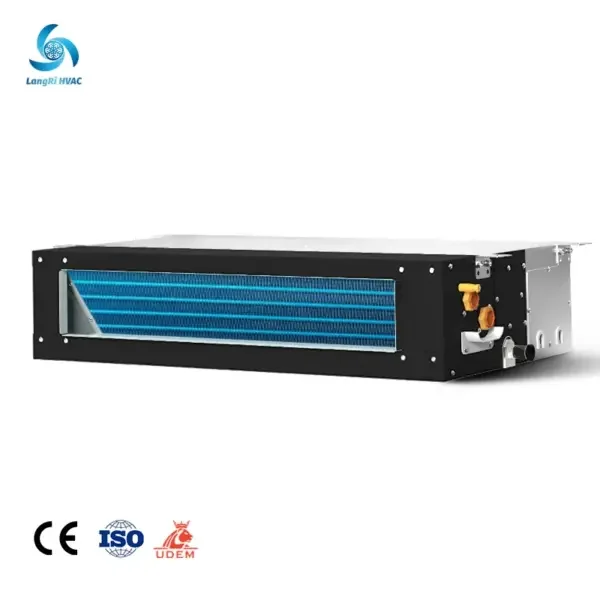

19cm Slim Fan Coil Unit
1.Low noise operation
2.Energy conservation
3.Efficient multi sided air outlet

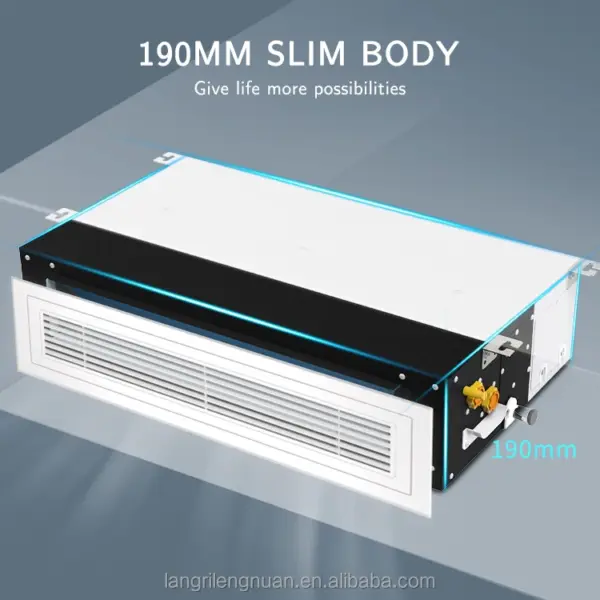

4.190MM SliM Body Give life more possibilities
5.Automatic swing function High quality motor Gree of the same quality

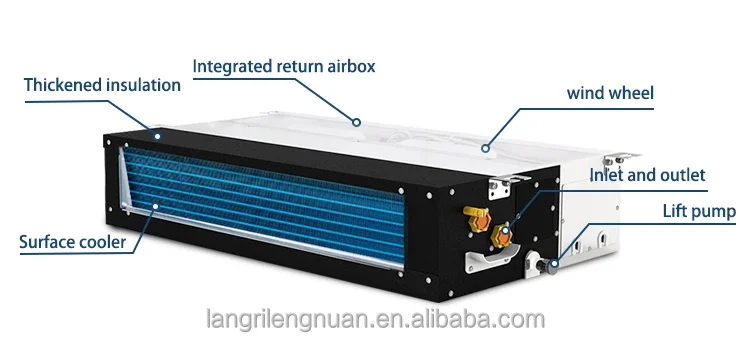

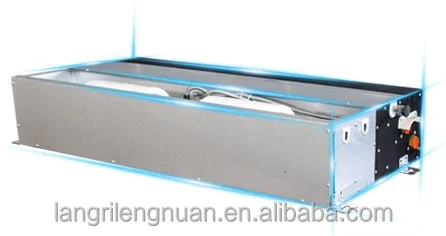

Slim body Design
Ultra thin body design, saving ceiling installation space, combined with lifting pump, beautiful and efficient

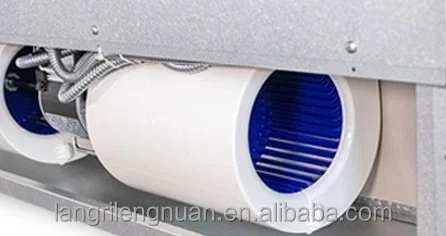

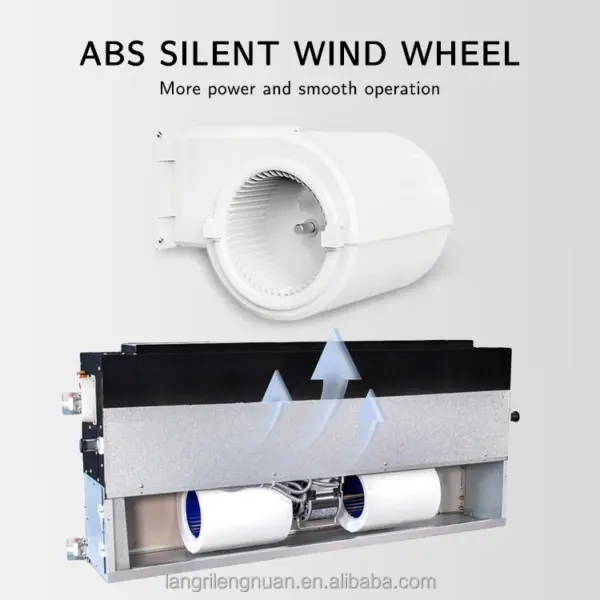

Wind wheel
Using ABS material for the wind wheel.Compared to iron wind wheel,
it has lower noise,
corrosion resistance,
longer lifespan, and higher efficiency.
it has lower noise,
corrosion resistance,
longer lifespan, and higher efficiency.

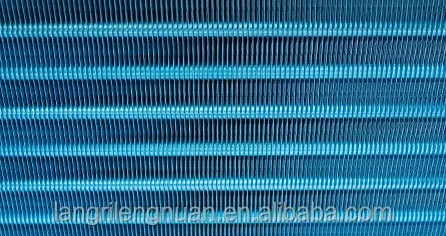

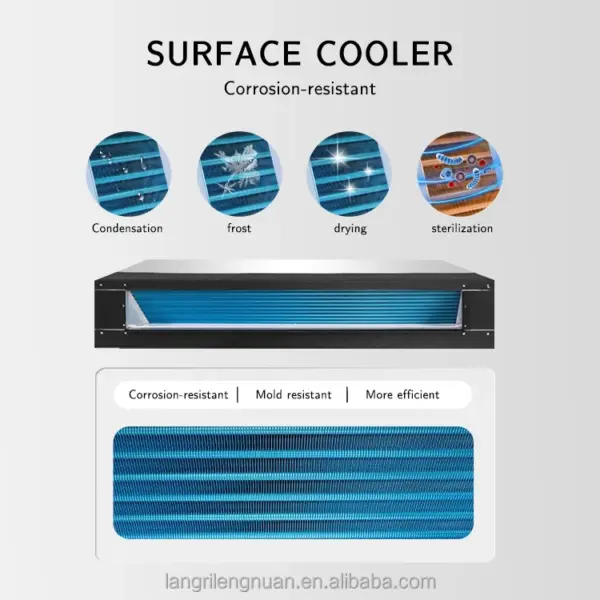

Surface cooler
Hydrophilic aluminum foil, with a thickness of 0.105MM.
Multiple inlet and outlet collection heads can accelerate water circulation and increase water flow.
Efficient heat transfer with a spacing of 1.6-1.8mm.
Multiple inlet and outlet collection heads can accelerate water circulation and increase water flow.
Efficient heat transfer with a spacing of 1.6-1.8mm.

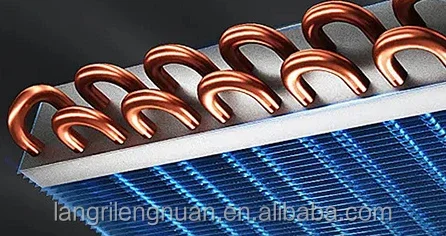

Copper water head
Pure brass collector head with high corrosion resistance and pressure resistance, 0.3mm thick copper tube,
7mm diameter for optimal heat transfer efficiency
7mm diameter for optimal heat transfer efficiency

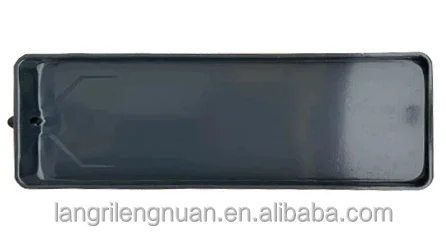

Water tray
The steel water tray adopts high gloss spray coating,with a smooth surface that does not stick to dust and is corrosion-resistant.
It is equipped with insulation cotton to isolate condensed water.
It is equipped with insulation cotton to isolate condensed water.

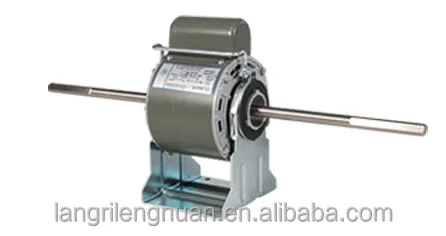

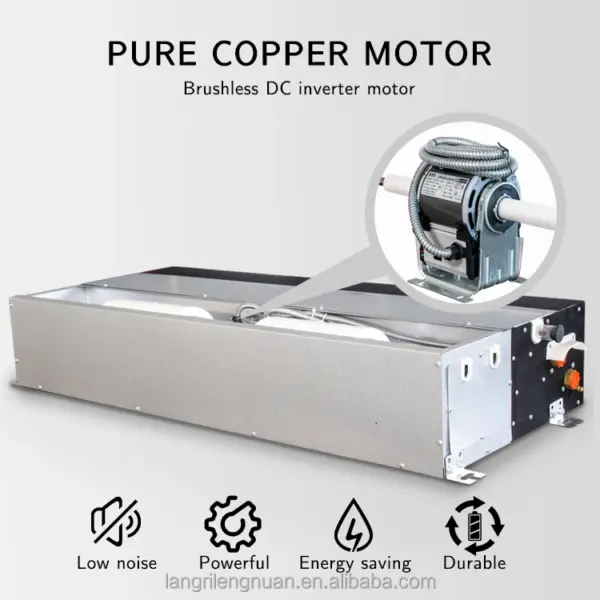

Motor
Yong’an DC brushless motor.In terms of noise life efficiency, it is superior to AC motors.Fixed position upgrade and
strengthened board.
strengthened board.
|
Model
|
FP-51
|
FP-68
|
FP-85
|
FP-102
|
FP-136
|
FP-170
|
|
Air Volume (m³/H)
|
510
|
680
|
850
|
1020
|
1360
|
1700
|
|
Cooling Capacity (KW/H)
|
2.9
|
3.8
|
4.8
|
5.6
|
6.5
|
8.1
|
|
Heating Capacity (KW/H)
|
4.5
|
5.6
|
7
|
8.6
|
11
|
13.6
|
|
Net Weight (KG)
|
13.8
|
15
|
16.5
|
19
|
25
|
27
|
|
Packing Weight (KG)
|
15.8
|
17
|
18.5
|
21
|
27
|
29
|
|
Net Size (mm)
|
913*495*190
|
913*495*190
|
1163*495*190
|
1163*495*190
|
1593*495*190
|
1593*495*190
|
|
Packing Size (mm)
|
1013*595*290
|
1013*595*290
|
1263*595*290
|
1263*595*290
|
1693*595*290
|
1693*595*290
|

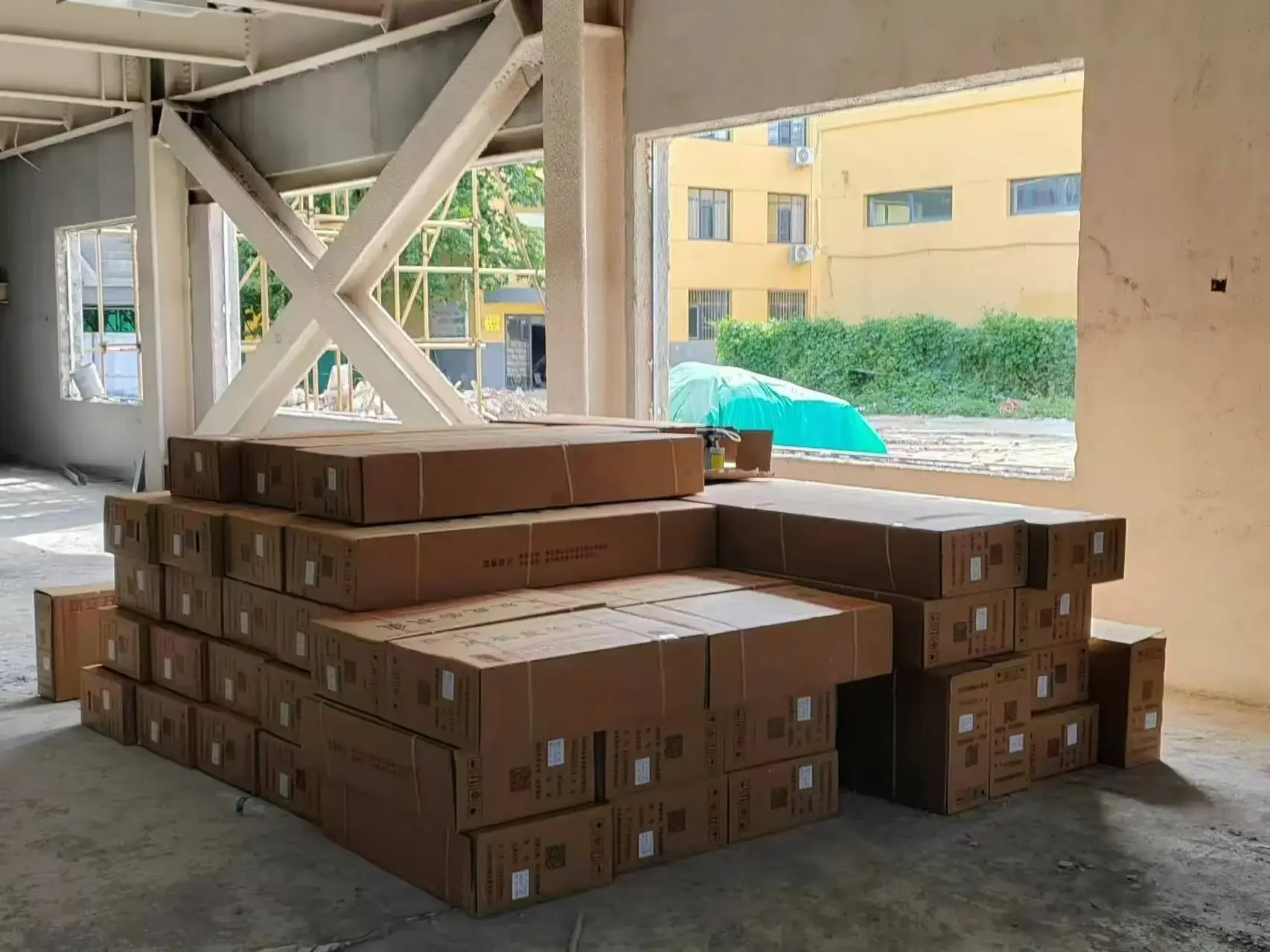

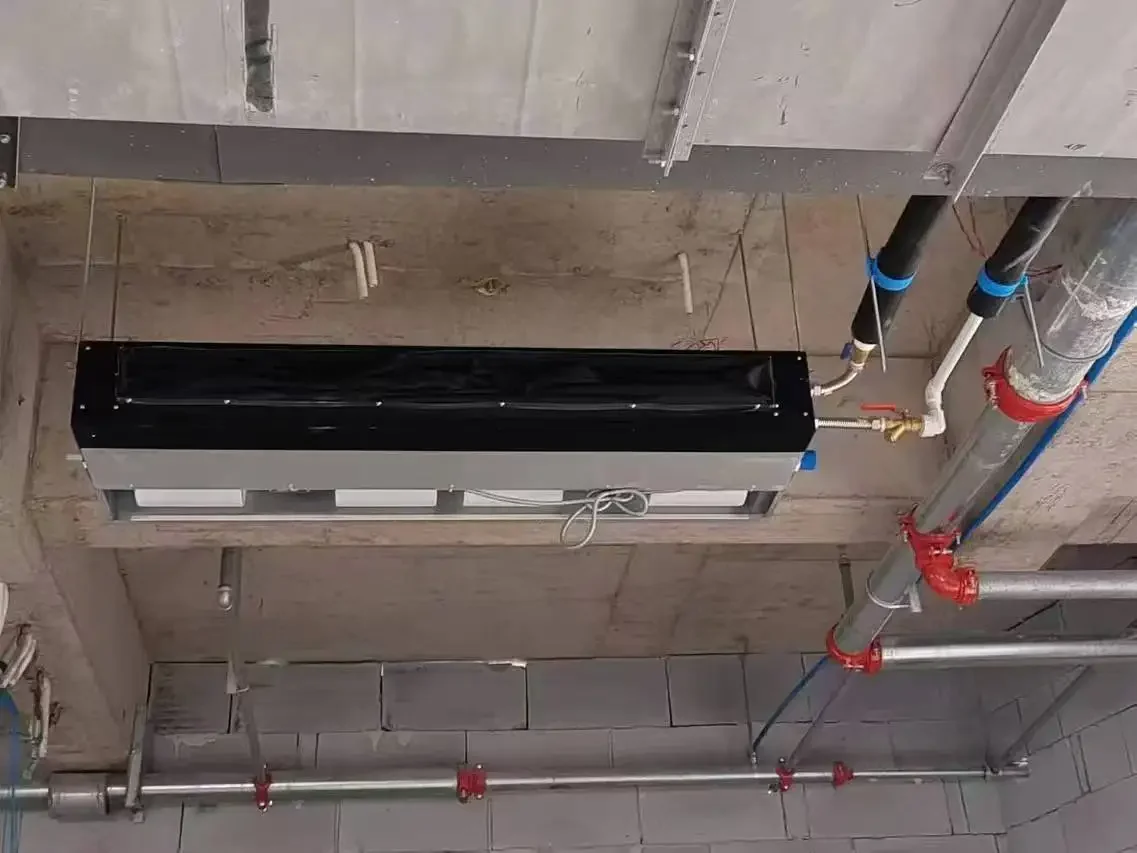

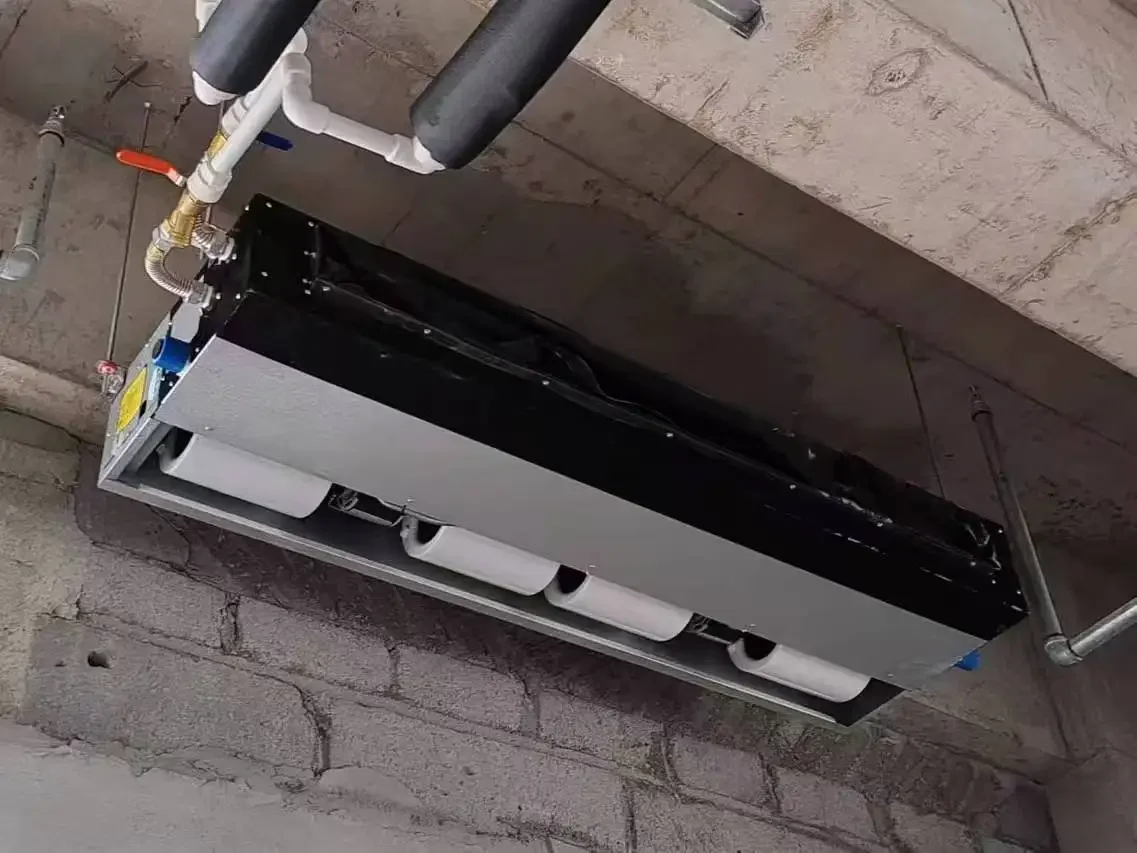

Customer Photos

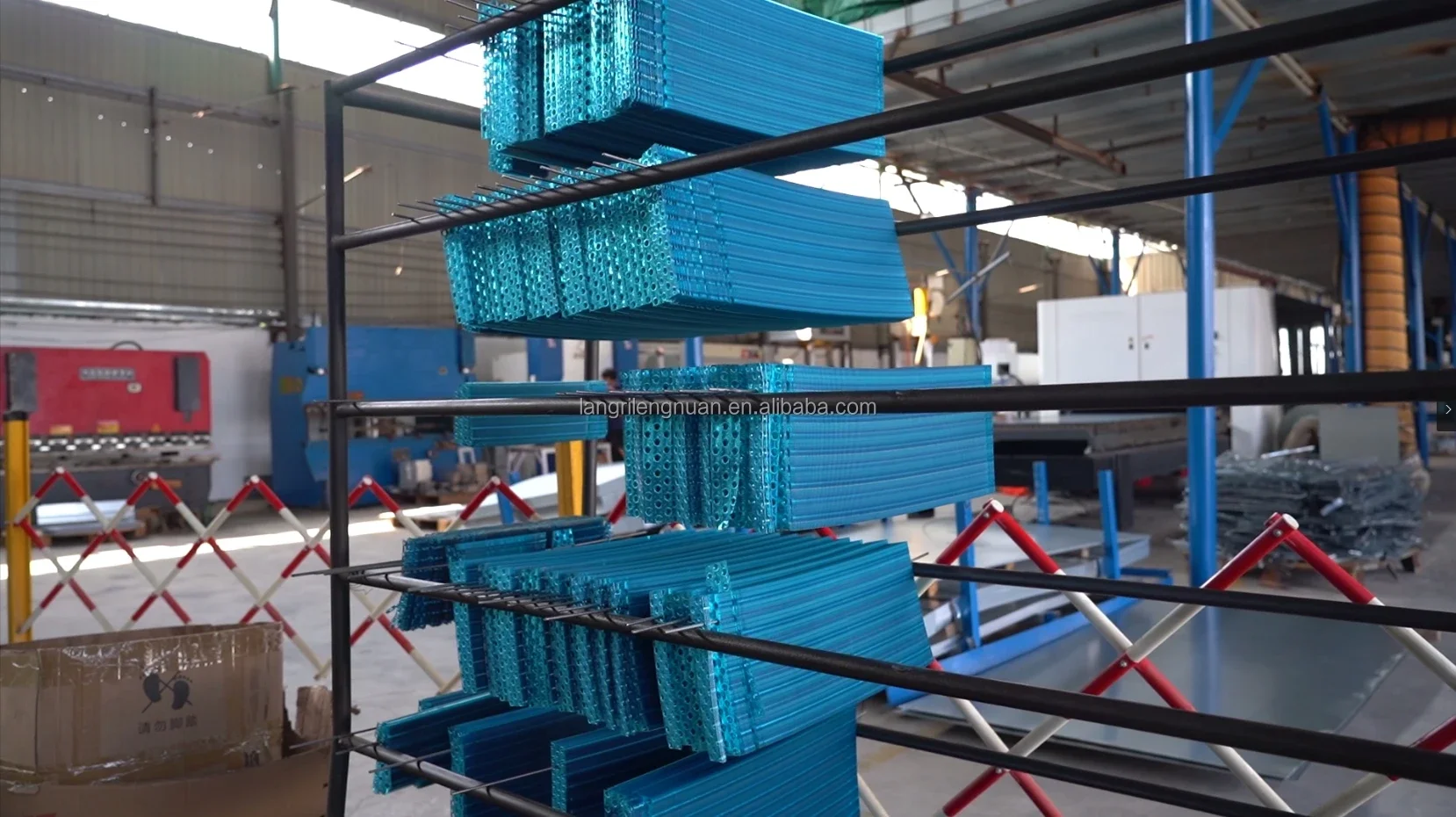

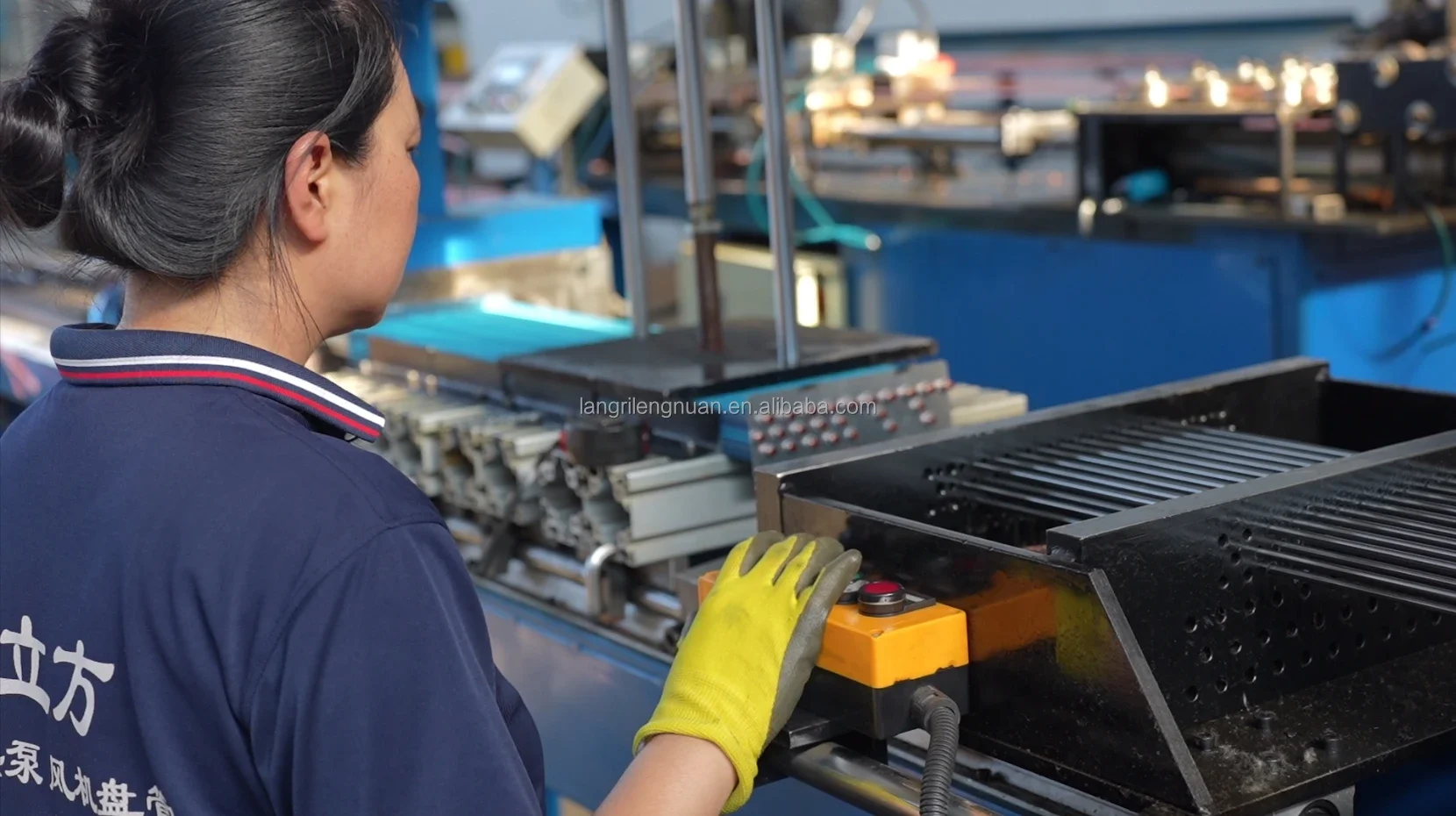

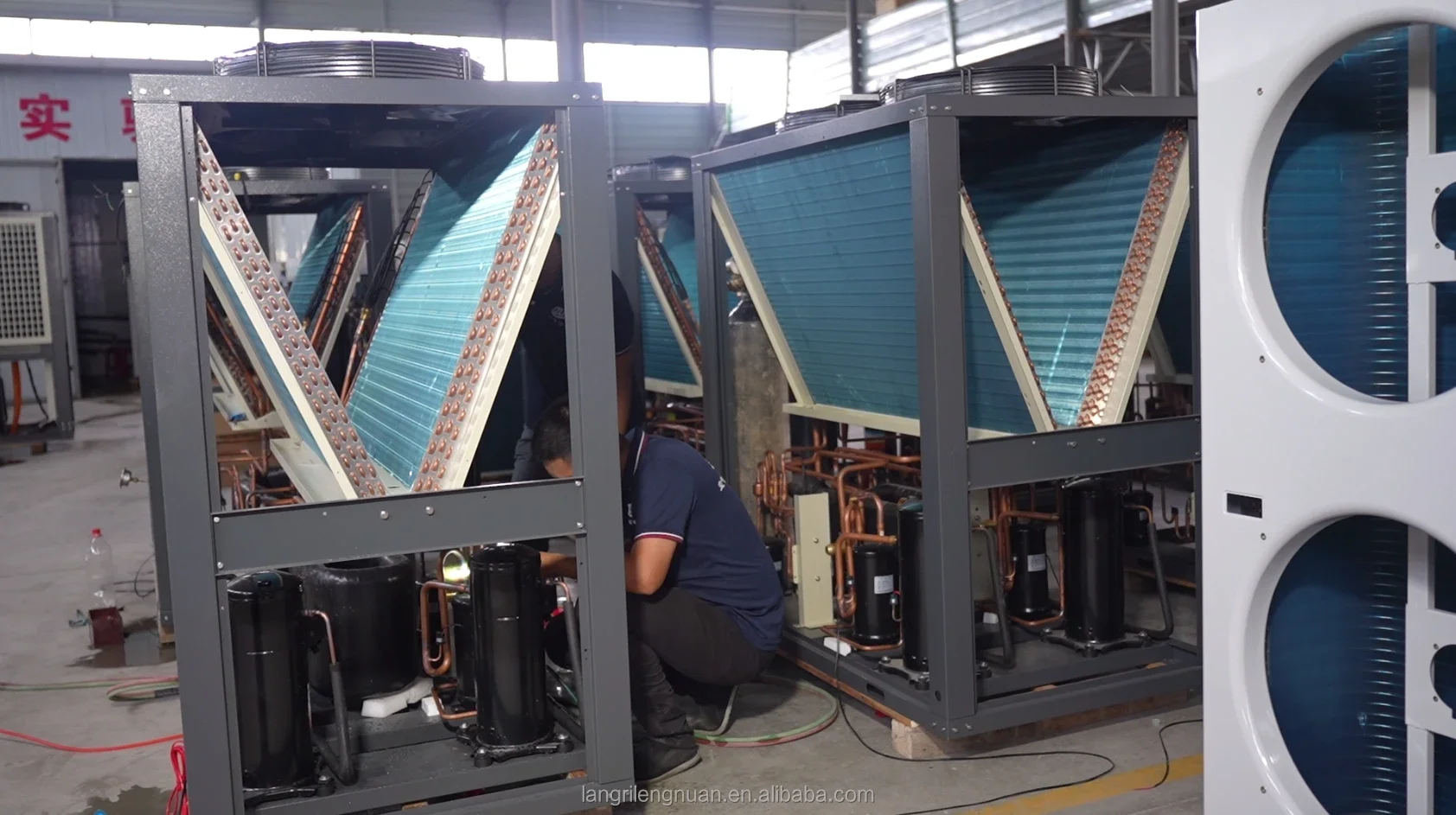

Manufacturing Technique

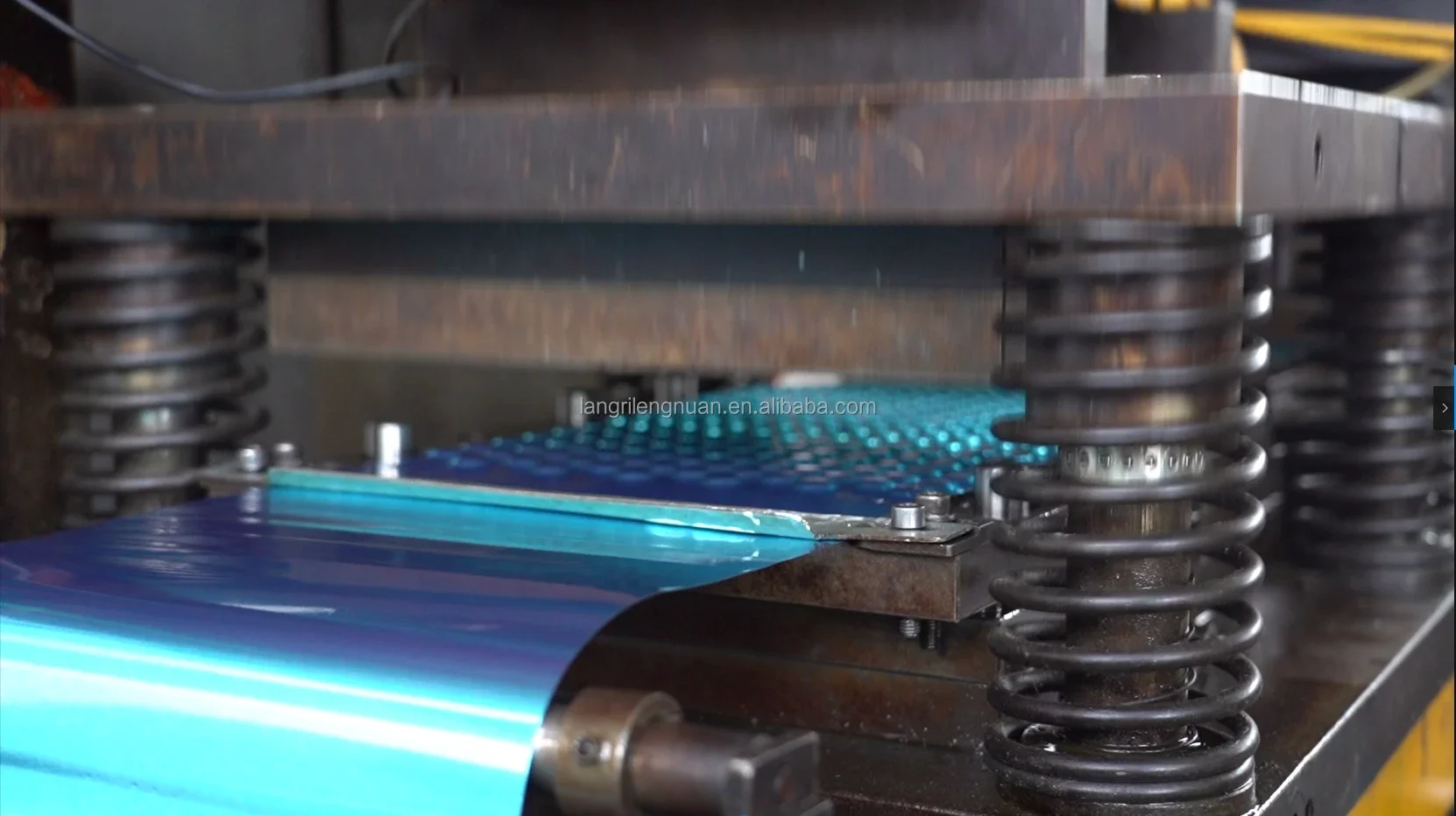

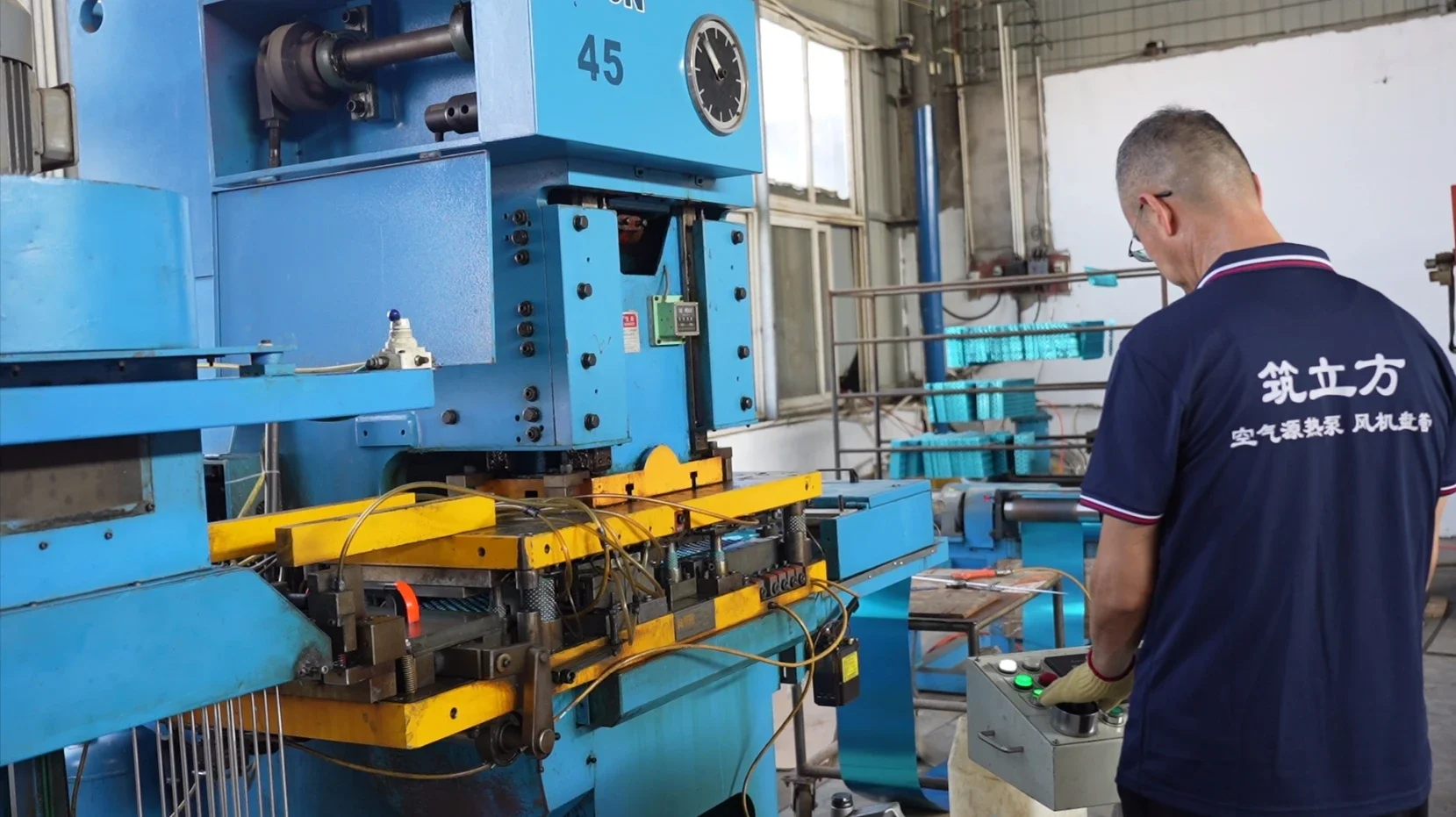

1. Fin stamping
2. Fin collection

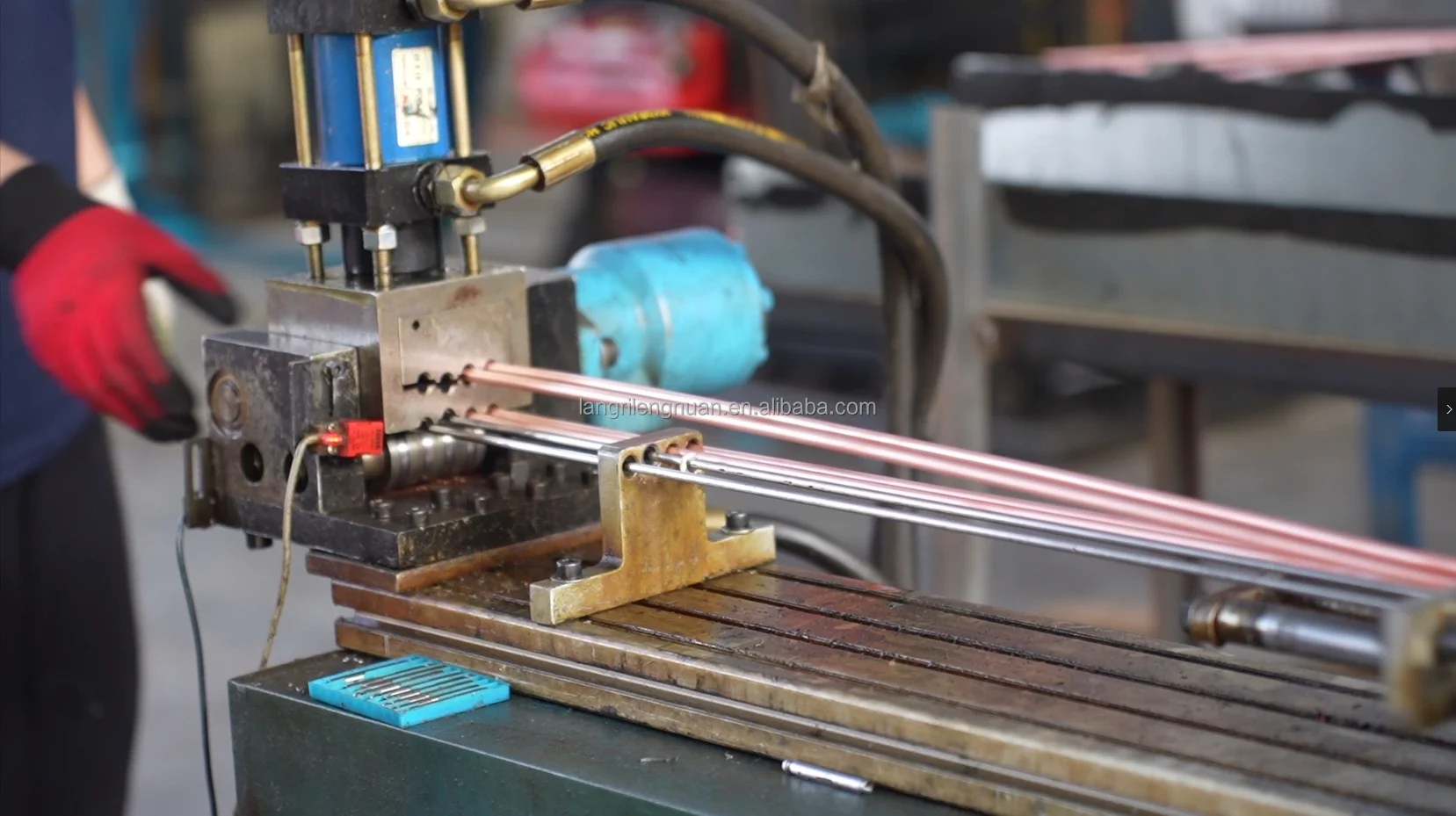

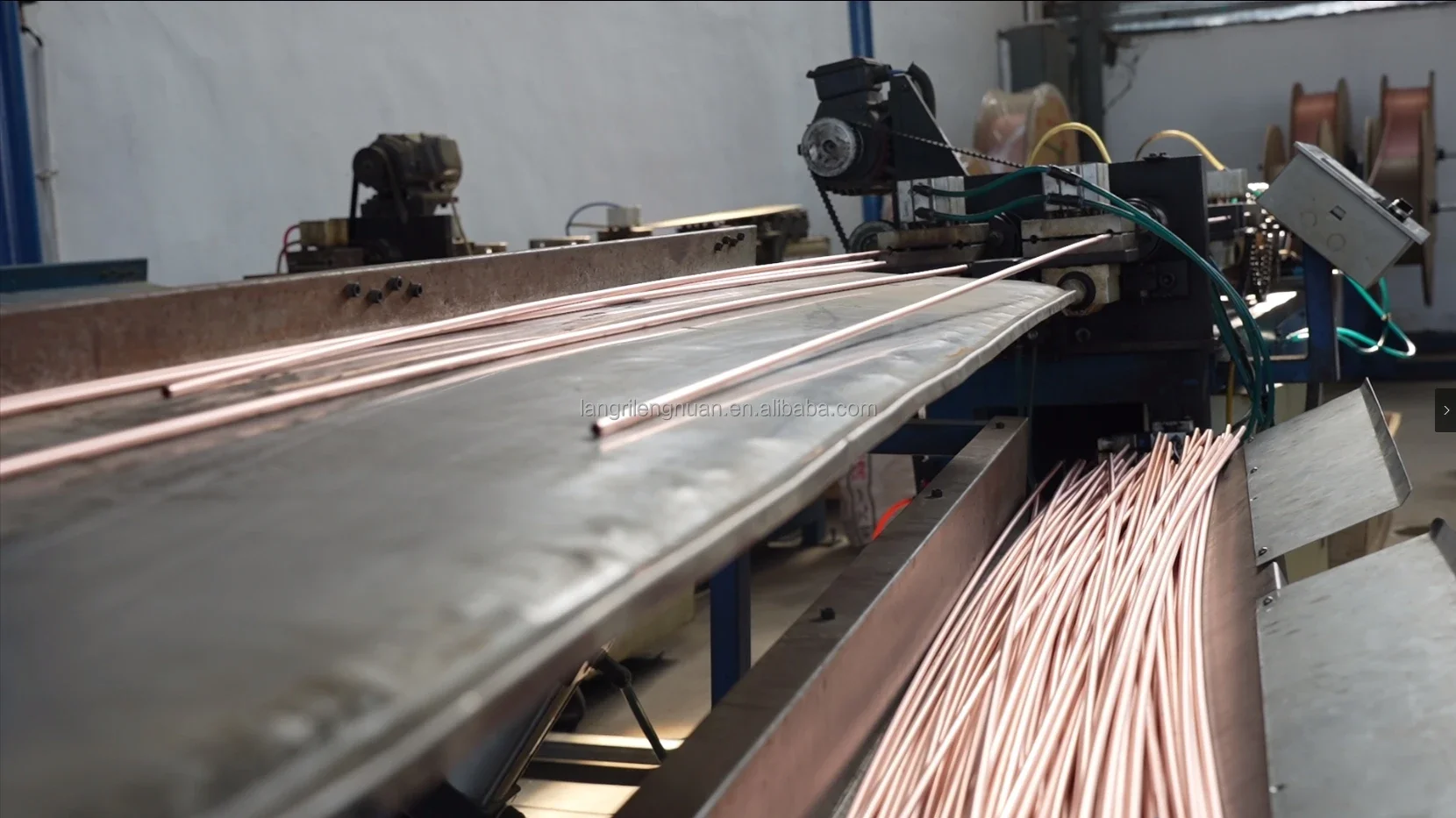

3. Copper pipe cutting
4. Copper tube bending
5. Copper tube expansion link fins

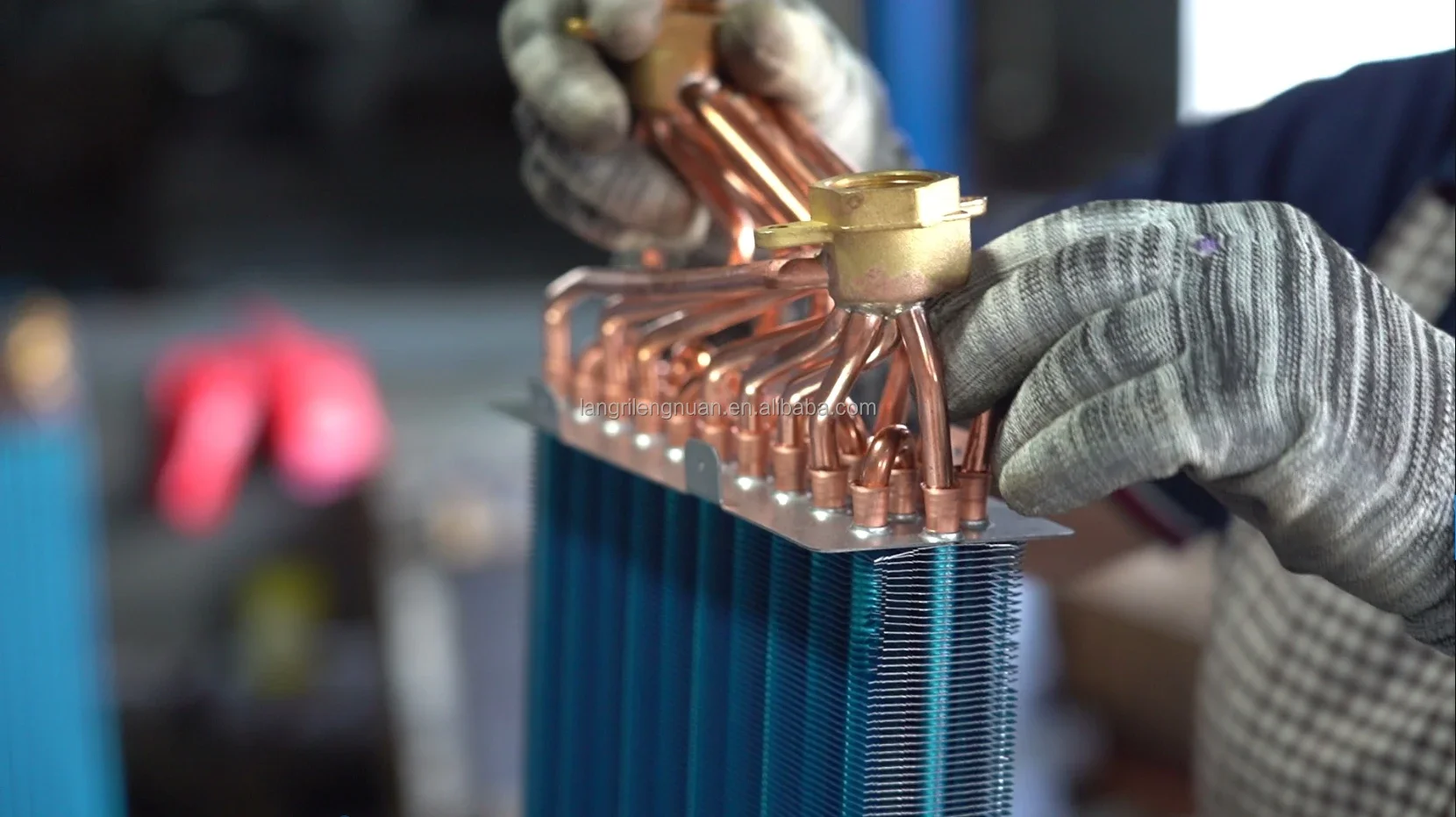

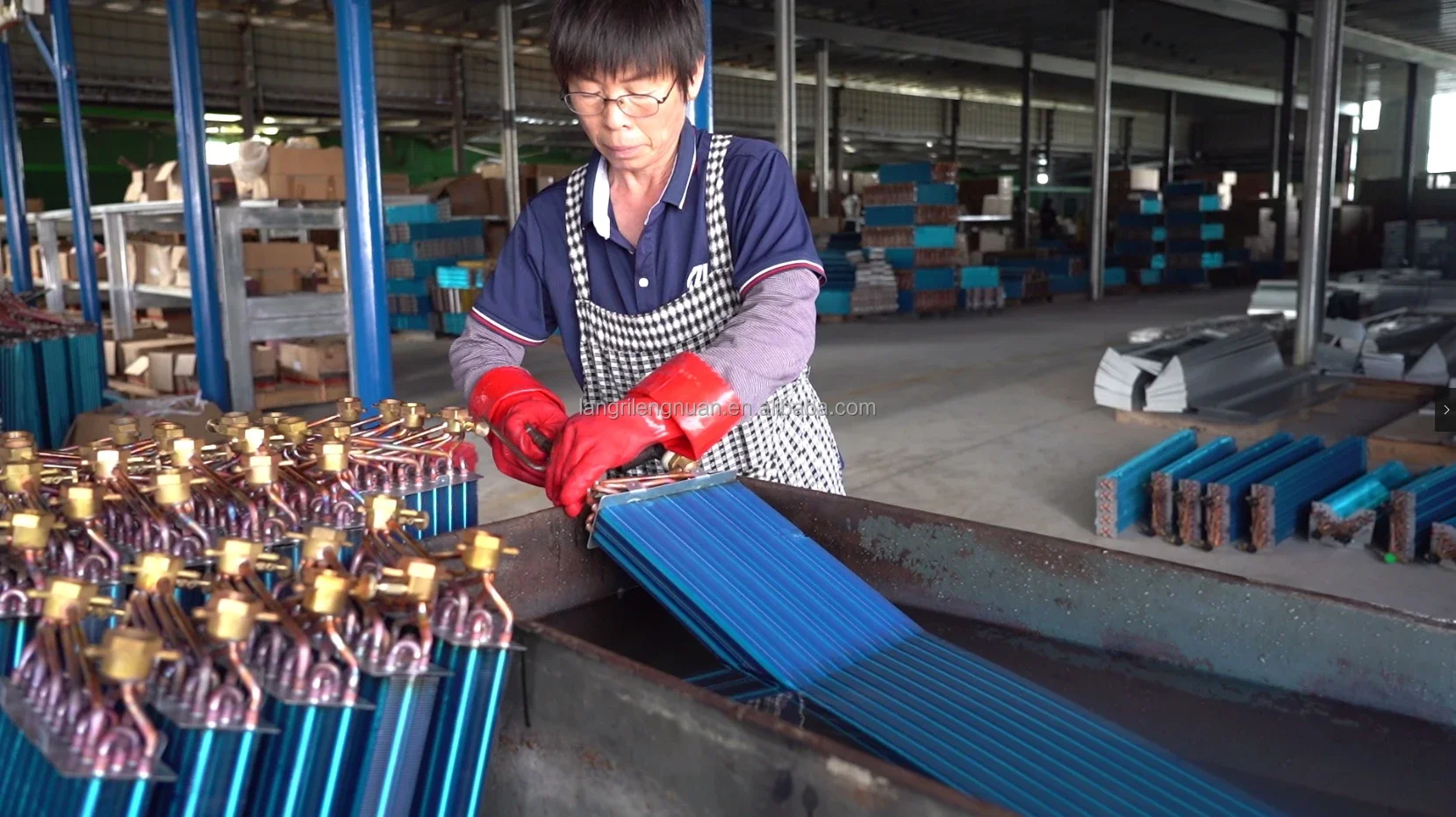

6. Welding water inlet
7. Air pressure and water leakage testing

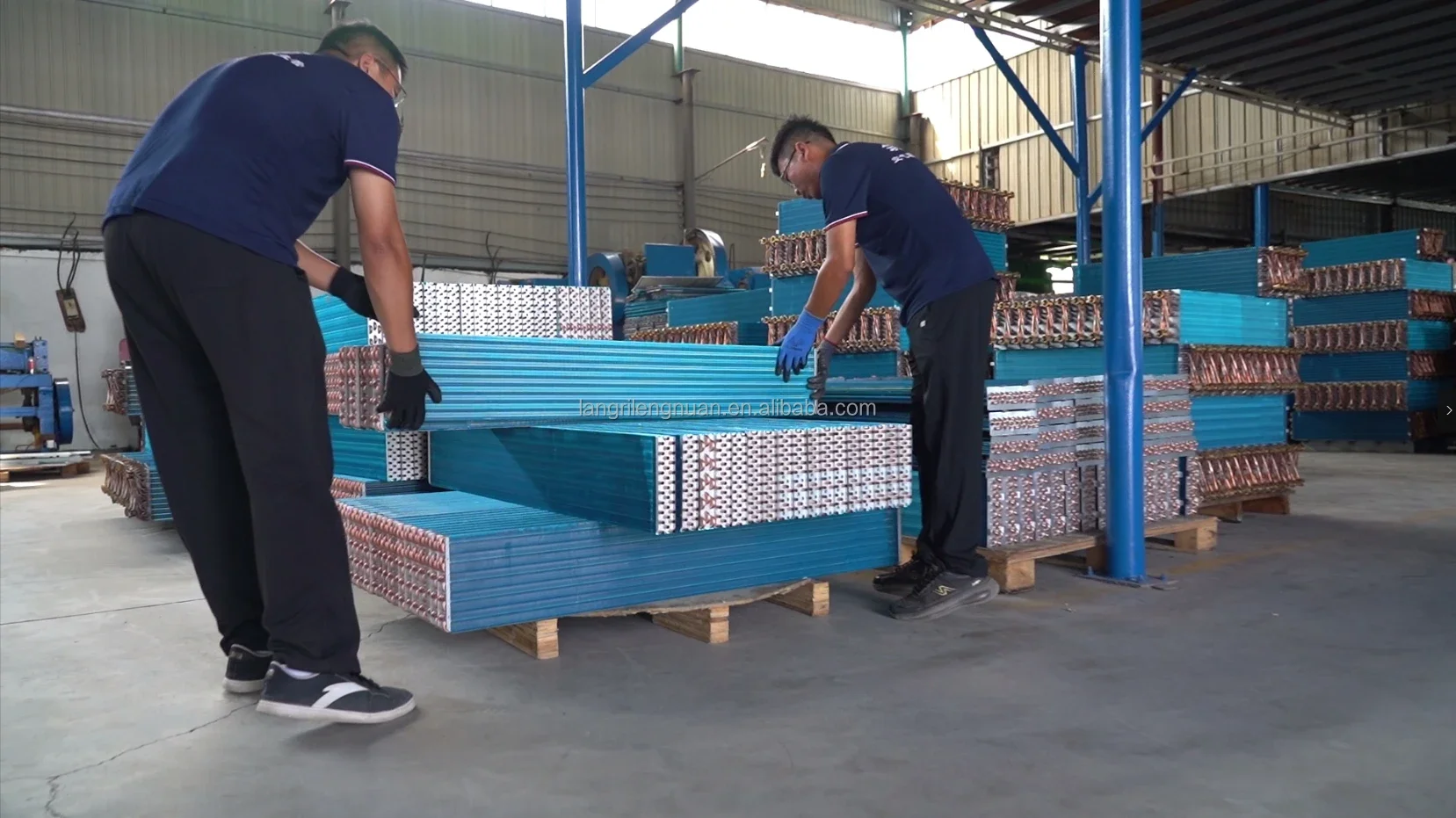

8. Collect and stack

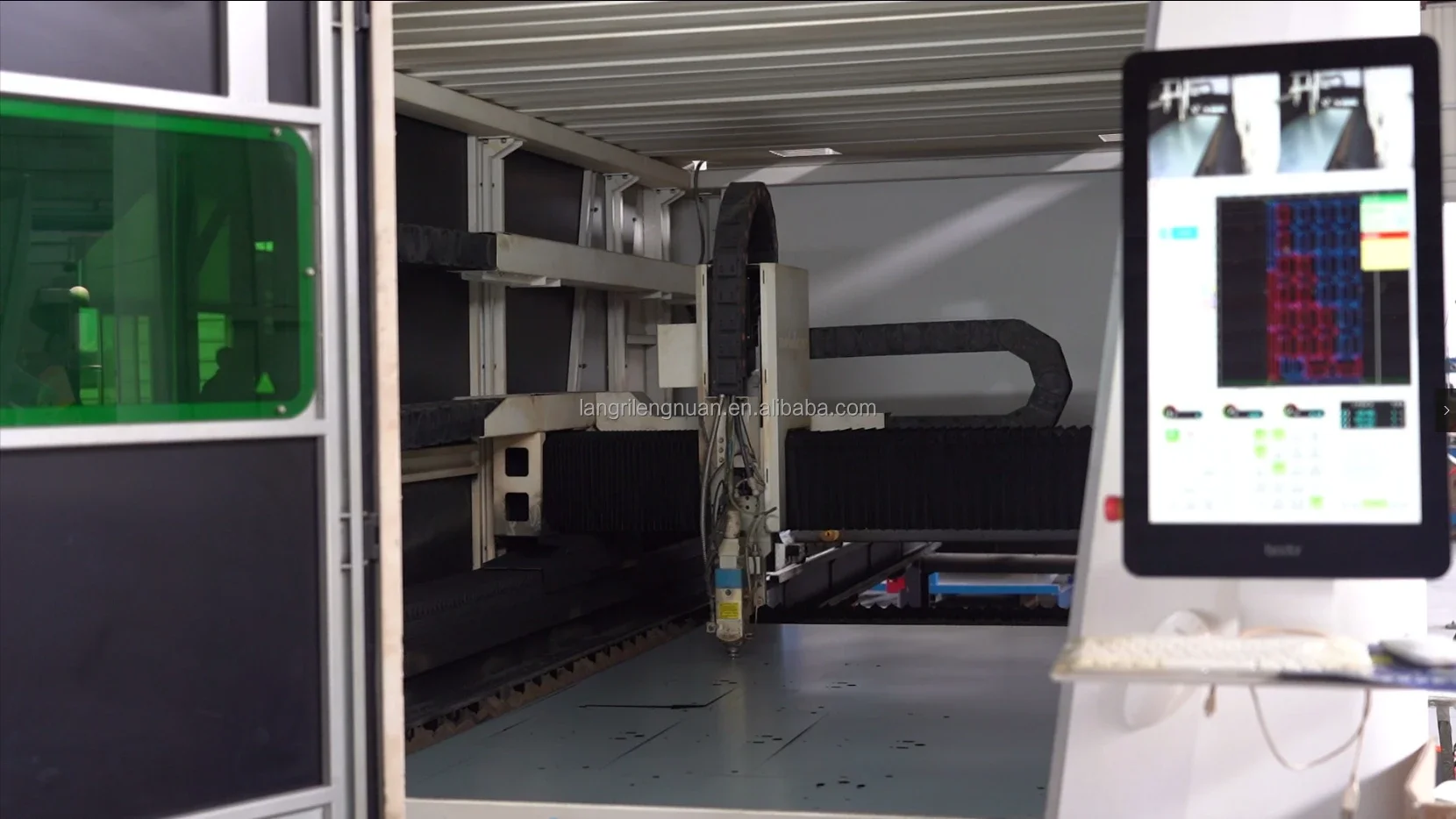

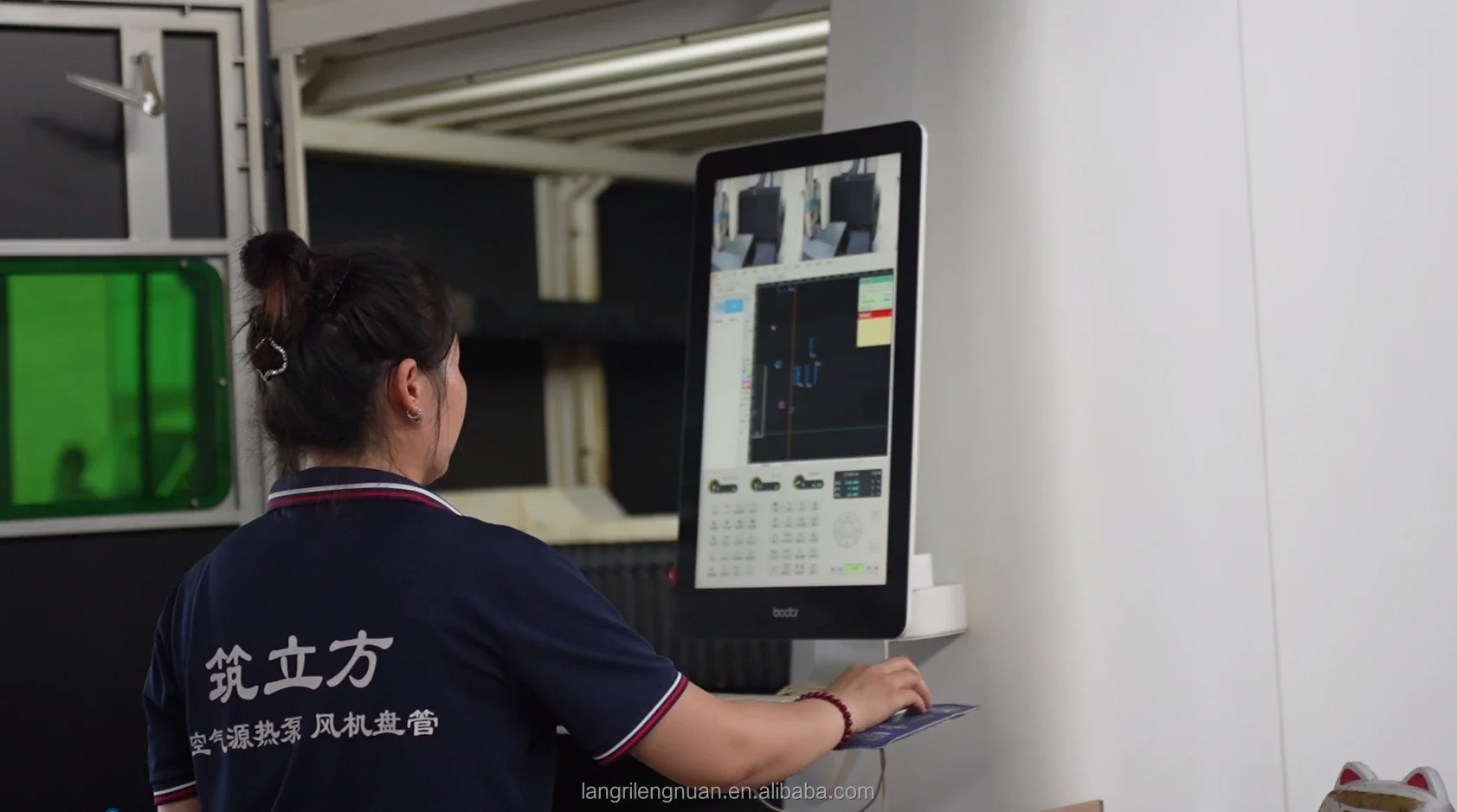

9. Laser cutting shell

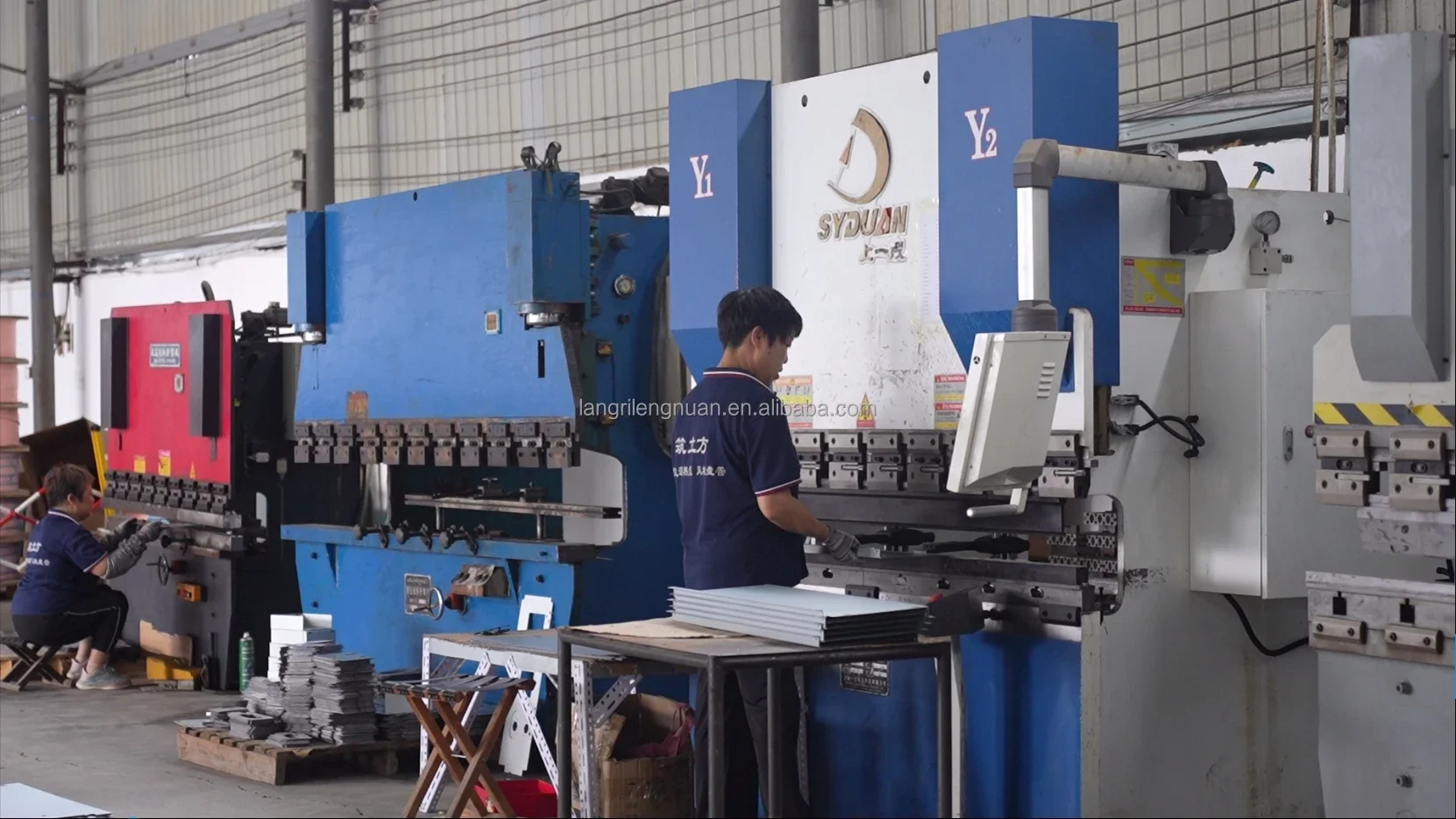

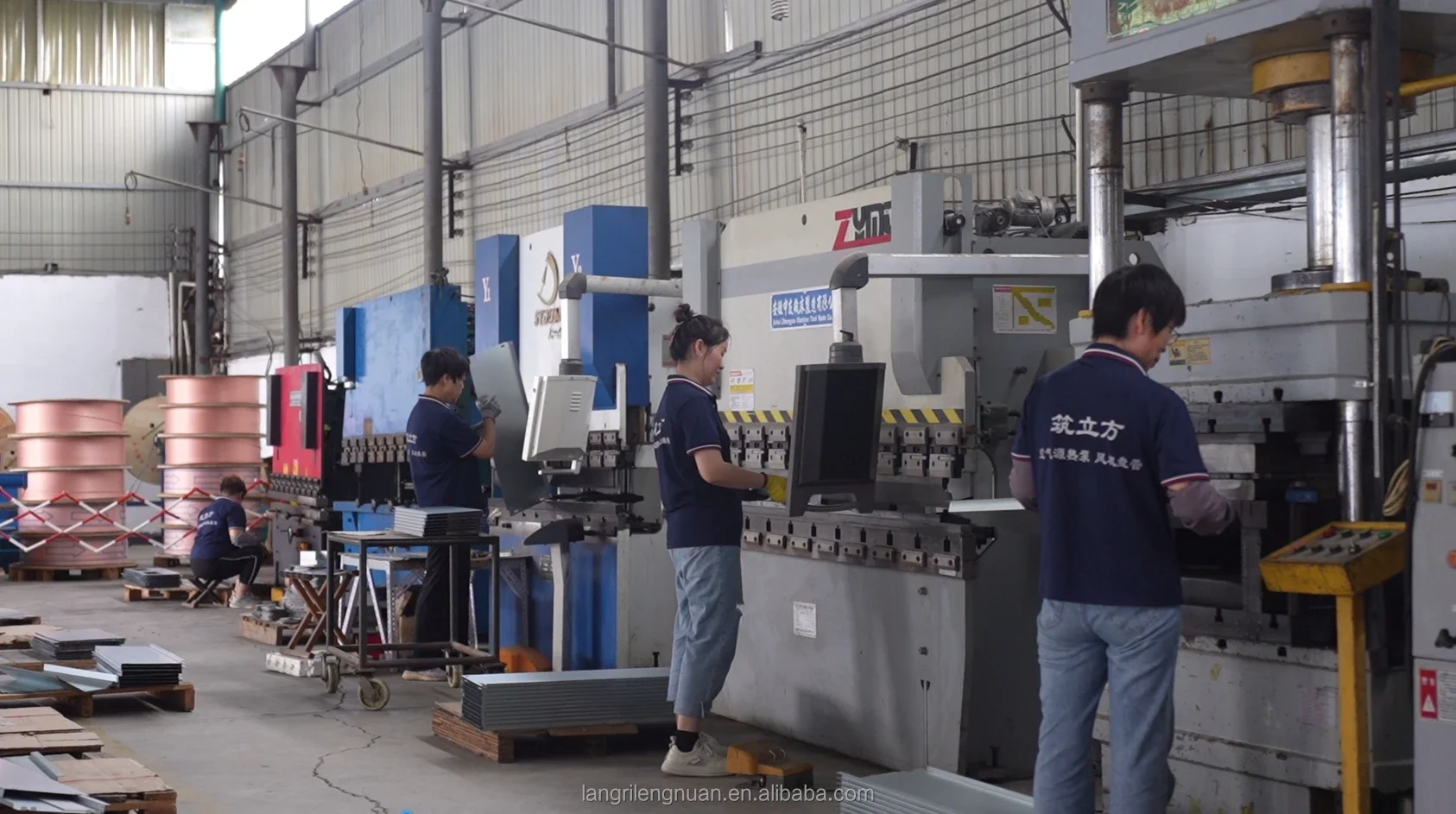

10. Machine bending shell

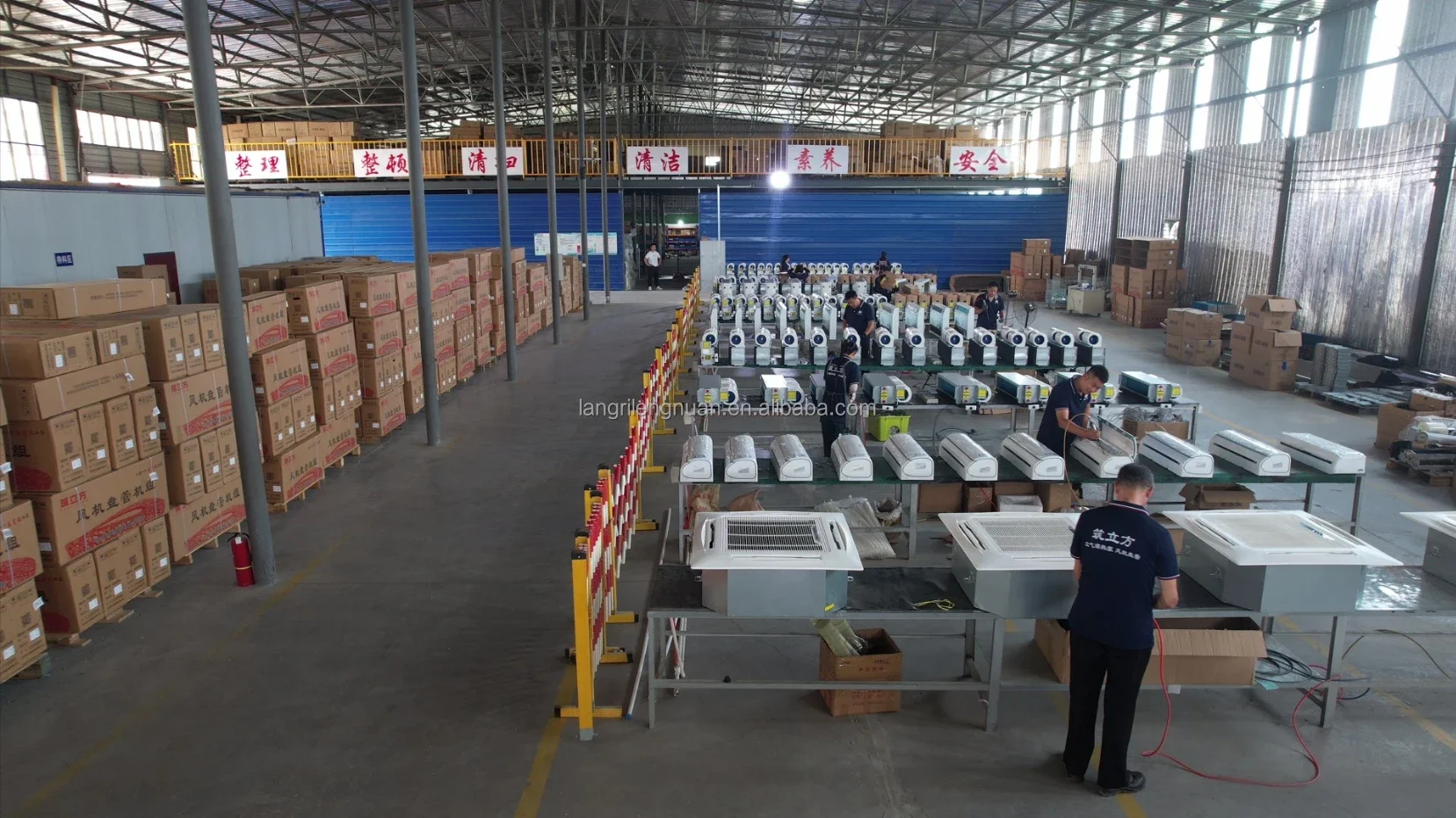

11. Assemble the outer shell and inner unit

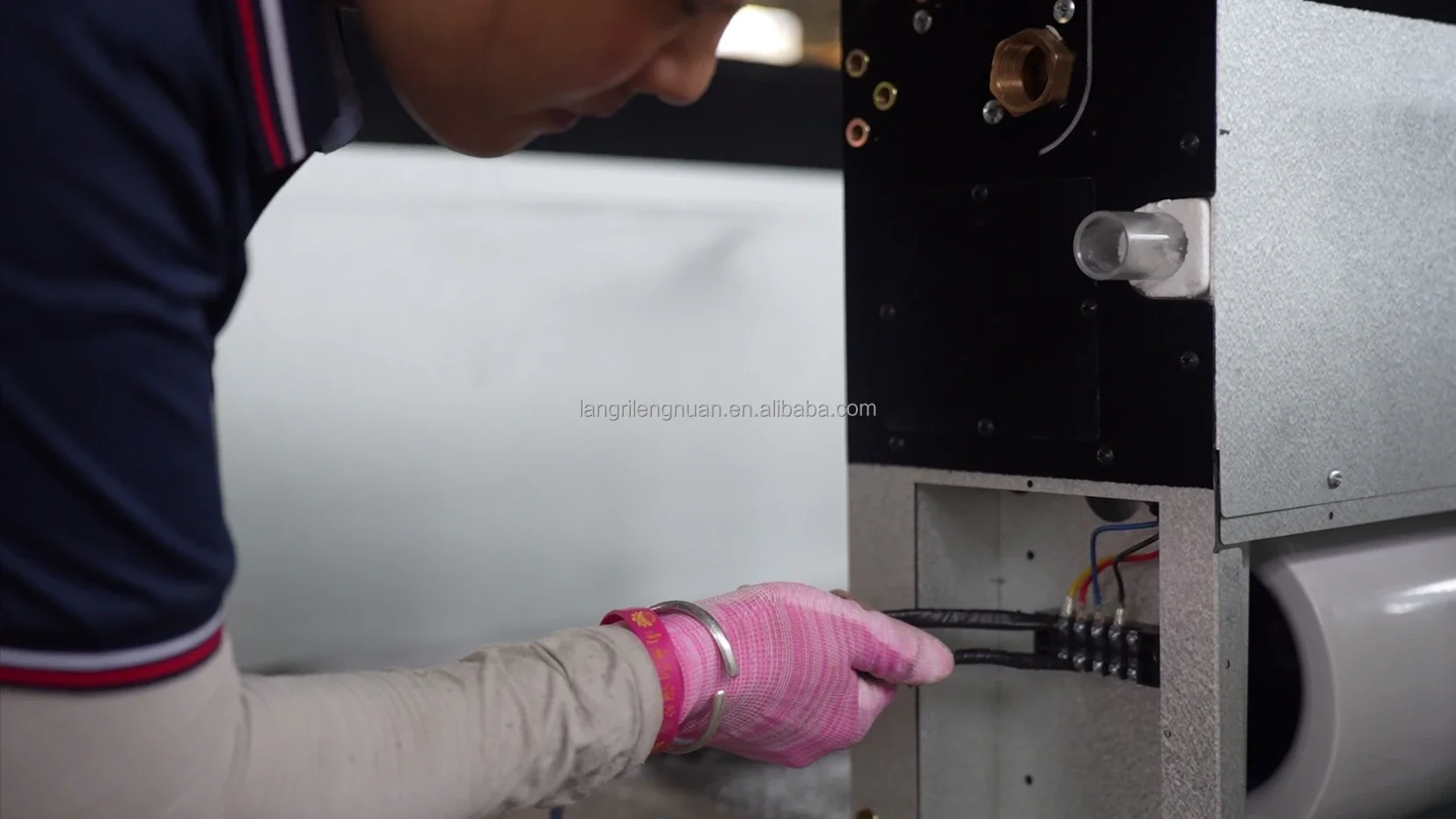

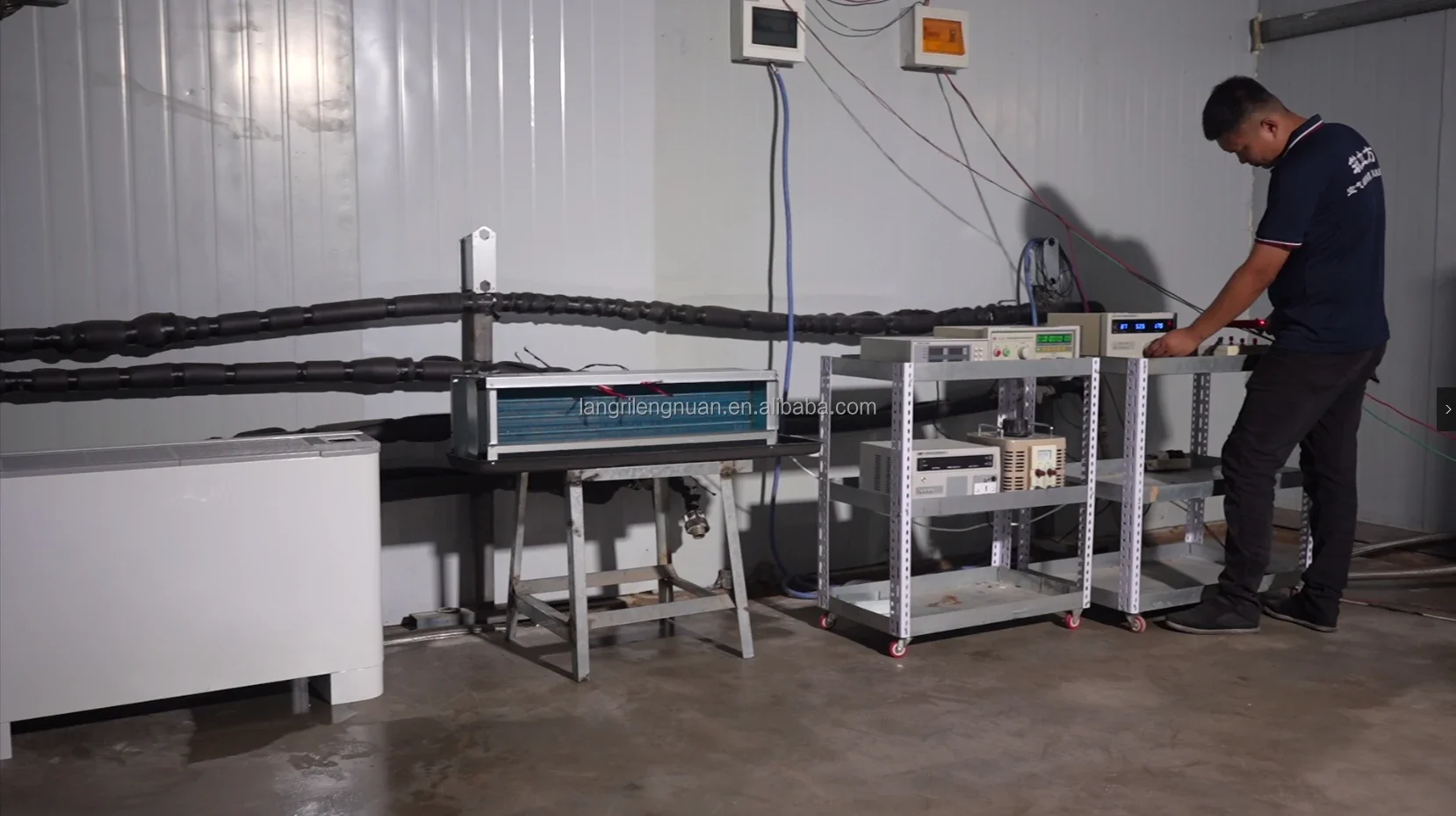

12.Power on test
13. Airflow testing

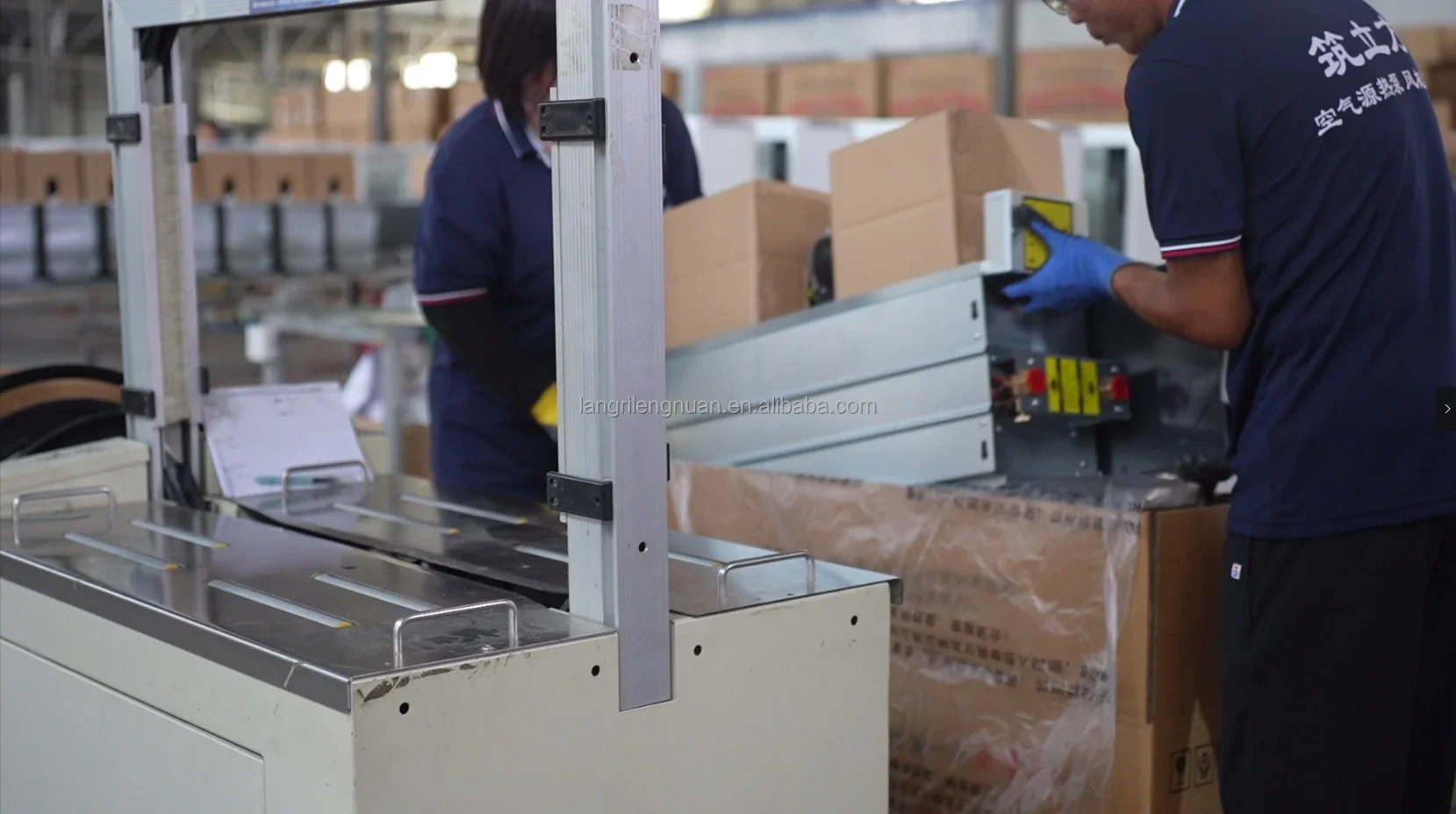

14. Packaged products

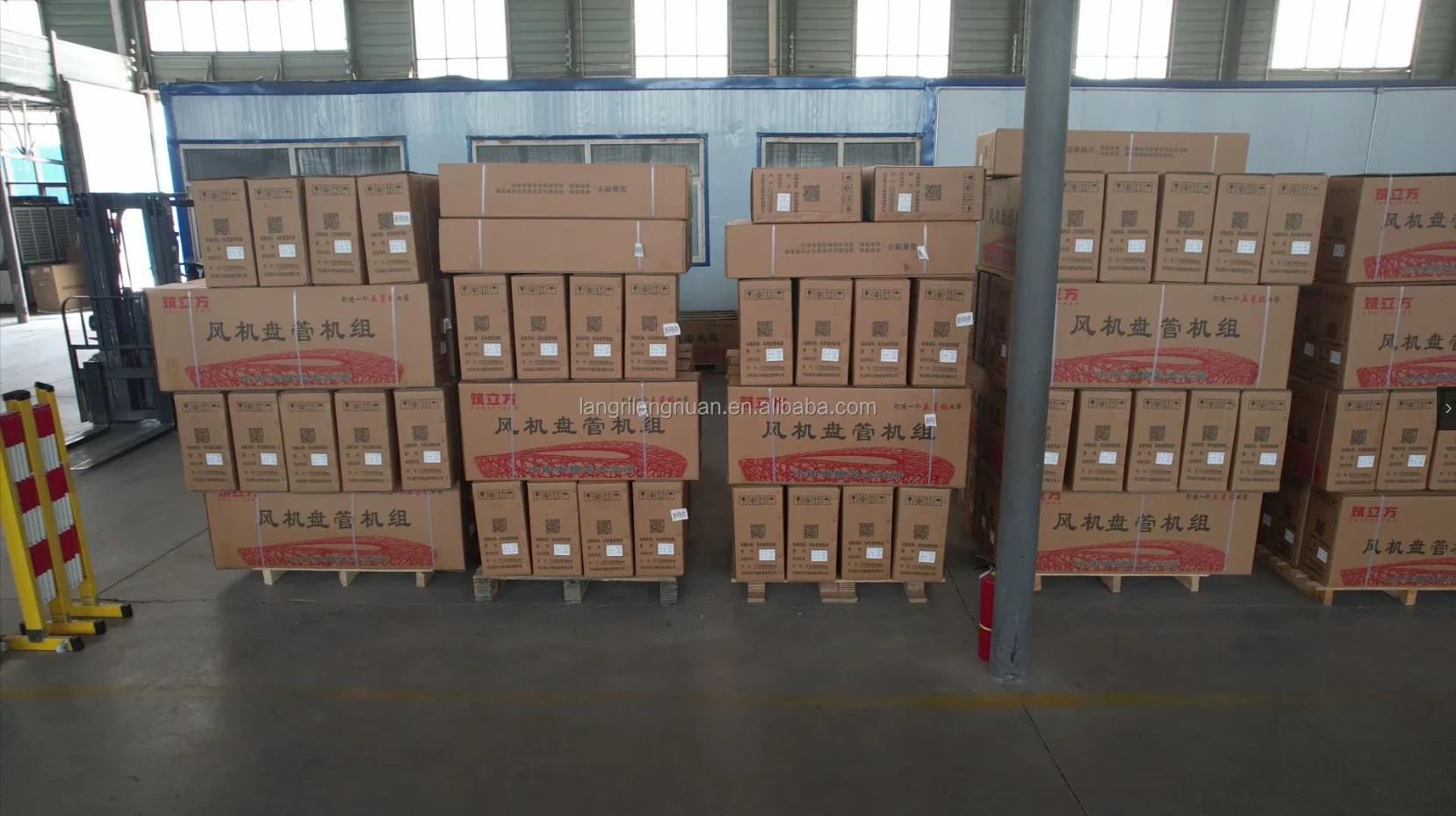

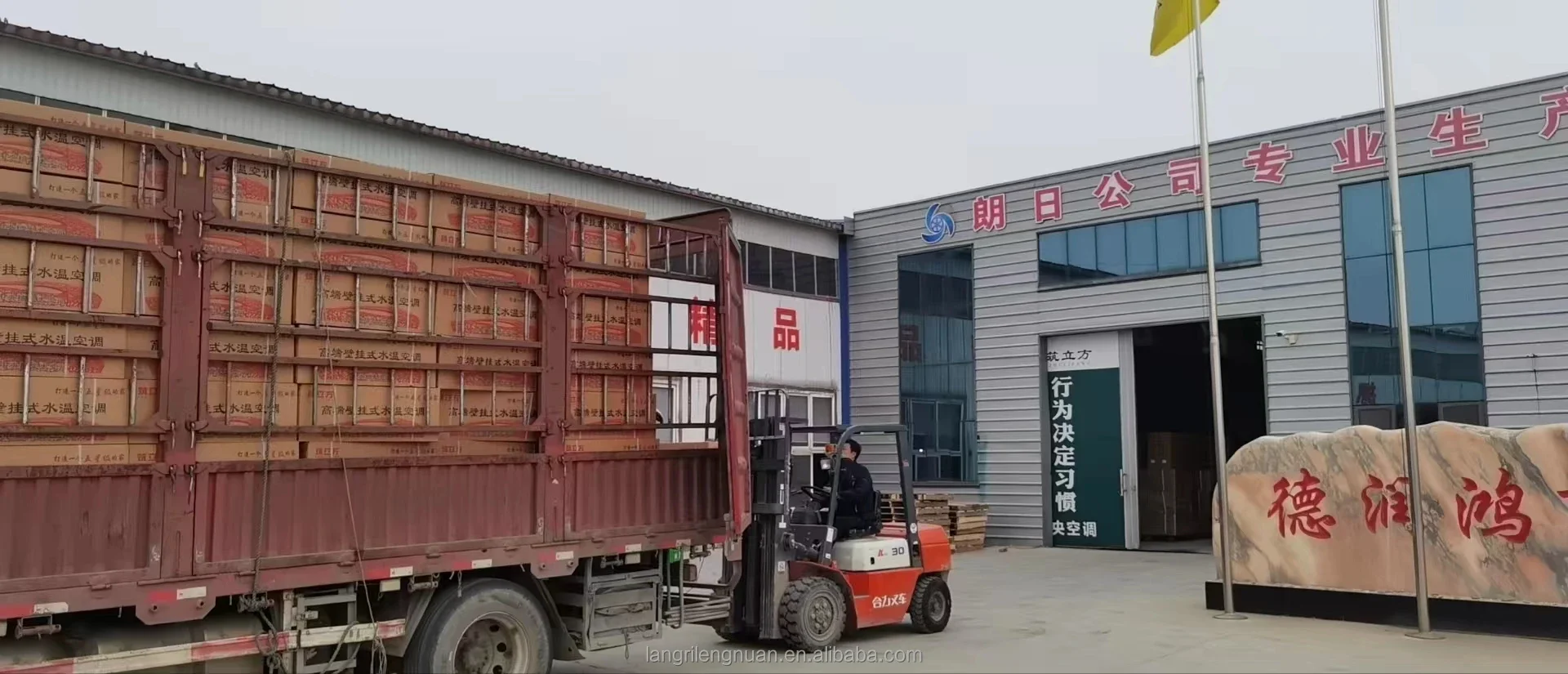

15. Warehouse shipment
Company Profile
Hebei Langri Heating And Cooling Equipment Co., Ltd
Hebei Langri Heating and Cooling Equipment Co., Ltd. is a manufacturer that integrates design, manufacturing, production and sales. Our company mainly provides fresh air exchange units, fan coil units, ventilation equipment, water air conditioning and other heating and cooling equipment. During this period, we have been focusing on the development of the heat pump industry and continuously absorbing advanced technologies from various regions, as well as representative cases of various projects.
Why Choose Us

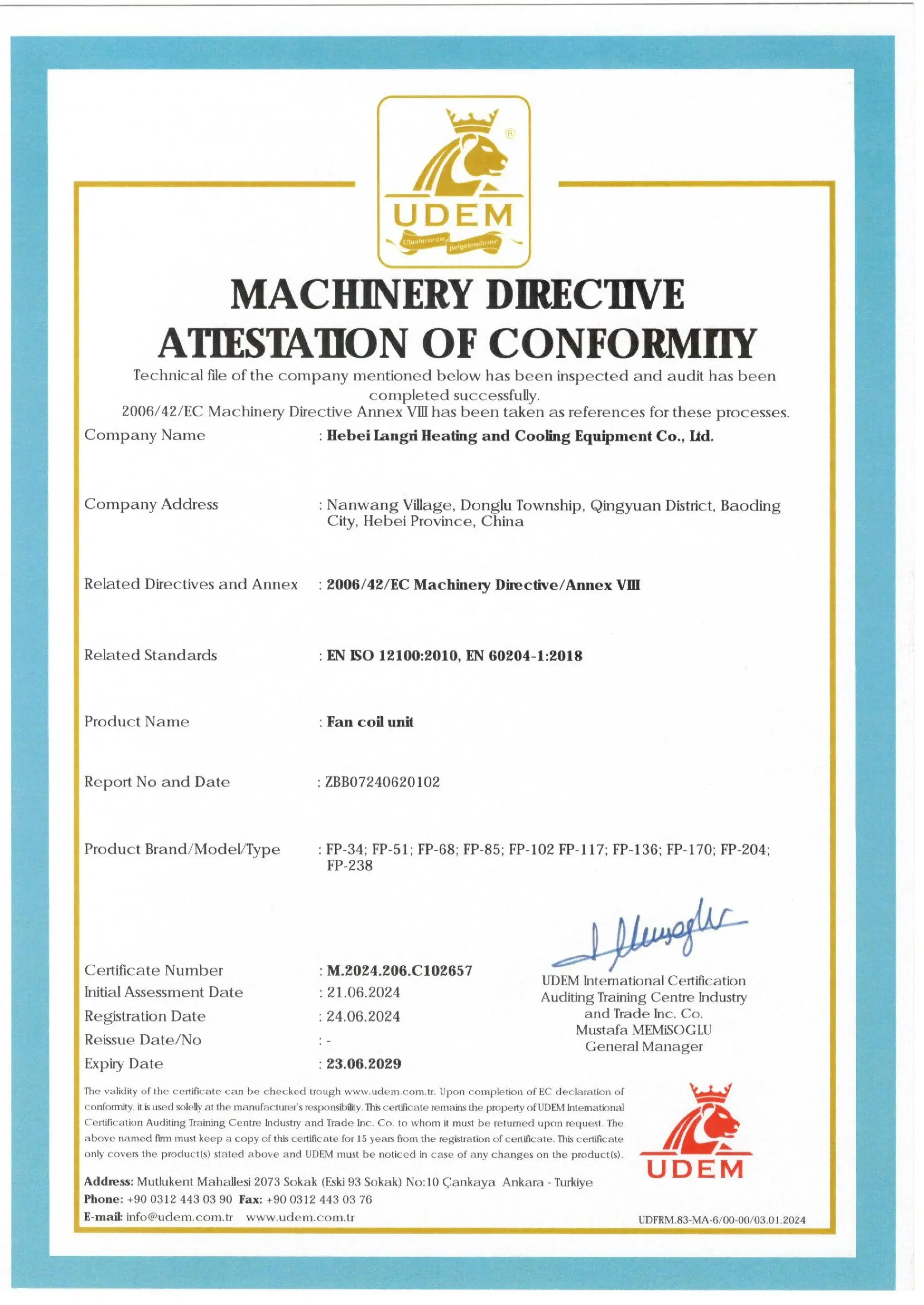

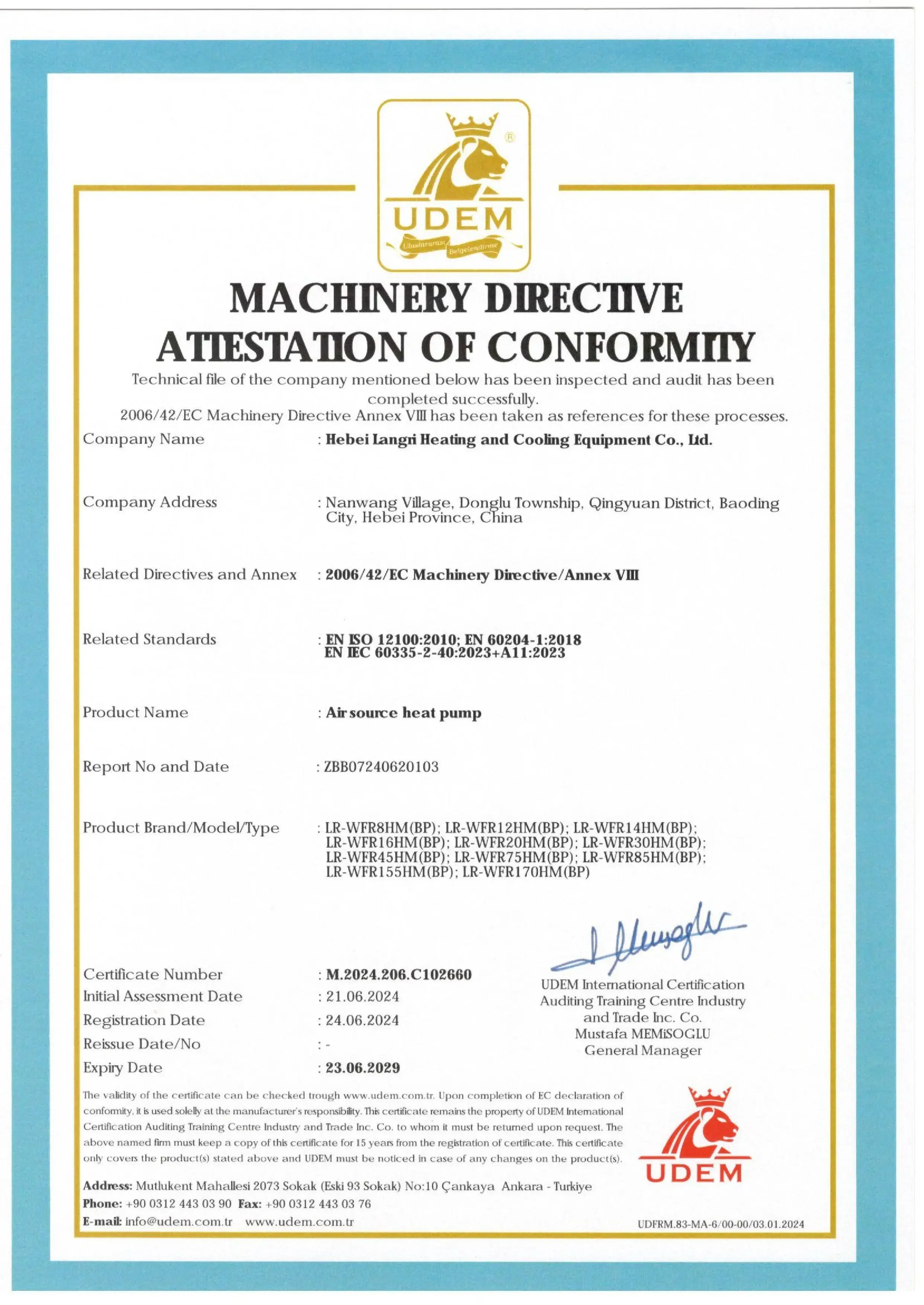

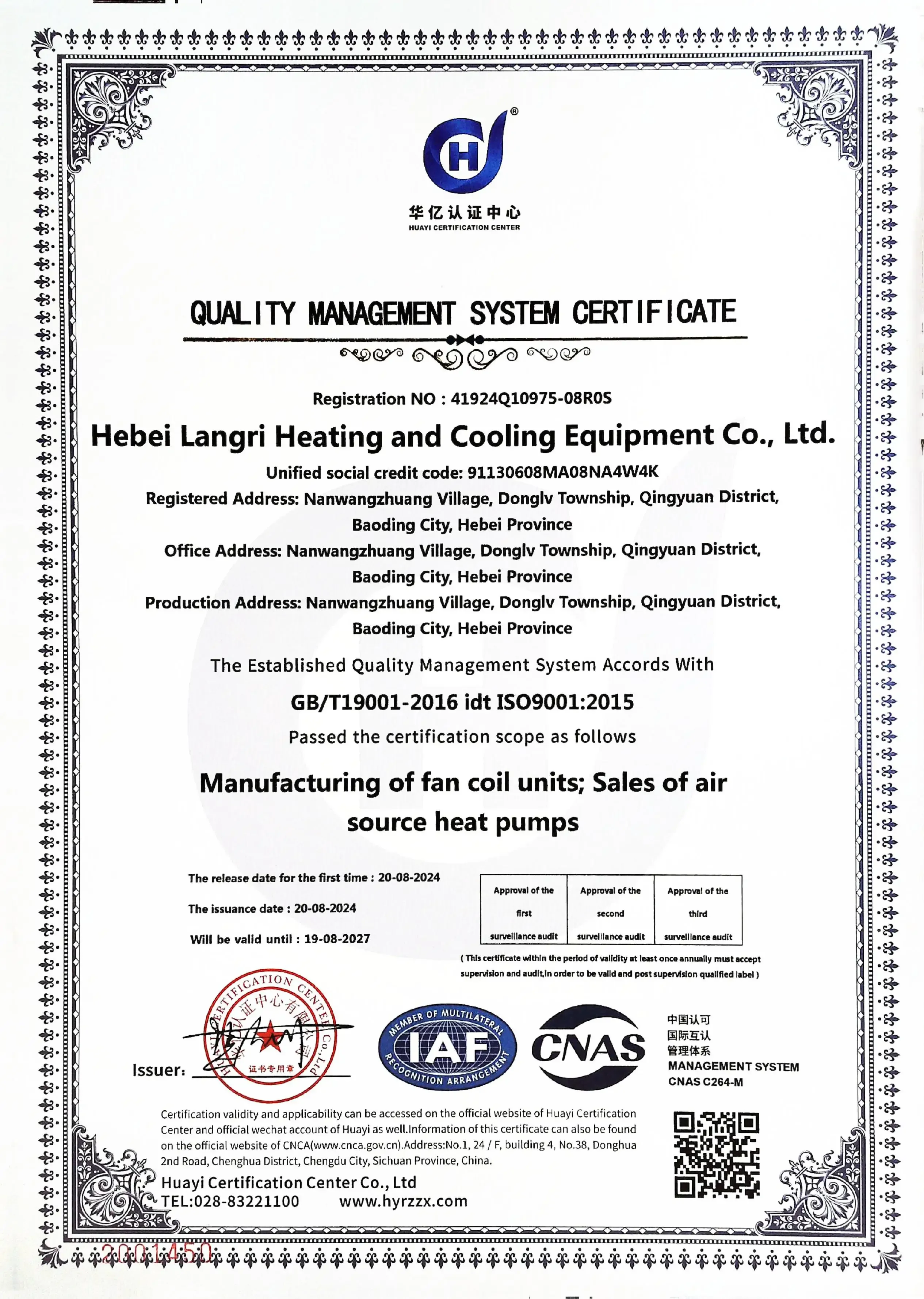

Certifications
Q:Are you a manufacturer or a distributor? A:I’m Langri, a manufacturer.
Q:What is your price term? A:Ex-factory, FOB, CIF
Q:What is the minimum order quantity? A:The MOQ is 5pcs/model, We accept lpc as sample order for testing.
Q:What is the term of payment?
A:T/T or L/C. Also, we accept the order to be placed via Alibaba
Q:How long is the lead time? A:25-30 days for sample order For smaller models under 8KW, 25 days for containerorder For models 9KW and above, 35 days for container order, We have stocks for popluarmodels,which can be dellvered at once.
Q:How long warranty does Langri provide?
A:24 months since delivery date warranty for every heat pump, and 18 months sincedelivery date warranty for every water tank For agency/distributor or any other kind oflong-term cooperation, we can offer longer and better warranty as discussed and con-firmed by both sides.
Q:lf we have a new design of a heat pump, can Langri produce for us? What is the MOQ? A:Yes of course, we offer OEM service for customers, You only need to provide us the technical nformation. Our engineers will design the whole heat pump according to the techni.cal information you provide, and at the same time control the cost and the price. As to the MOQ, it depends on how difficult the OEM project, as well as the possibility this OEMheat pump would be promising.
Frequently Asked Questions
What is the minimum order quantity for this chilled water fan coil unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this chilled water fan coil unit?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
