The ventilation fan listed here carries rated voltage DC 5v 12v 24V 48v, type Axial flow Exhaust Fan, documented exactly as the manufacturer publishes it. Made by SHENZHEN YCCFAN TECHNOLOGY CO., LTD. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ventilation Fan
- Model Number: 6025F
- Rated Voltage: DC 5v 12v 24V 48v
- Warranty: 1year/2years
- Certification Feild: UPS/Inverter/Computer Case
- Certification: CE CCC UL CUL TUV
- Place Of Origin: Shenzhen
Technical Specifications
| Mounting Type | Screw Installation |
|---|---|
| Functional Application | Cooling air |
| Model Number | 6025F |
| Place Of Origin | Shenzhen |
| Brand Name | YCCFAN |
| Type | Axial flow Exhaust Fan |
| Product Name | 60mm ventilation fans |
| Applicable Industries | High-frequency Switching Power Supply/Frequency Converter |
| Certification Feild | UPS/Inverter/Computer Case |
| Certification | CE CCC UL CUL TUV |
| Bearing Type | cycleseal bearing/ball bearing |
| Life Span | 40000 hours/70000 hours |
| Warranty | 1year/2years |
| Rated Voltage | DC 5v 12v 24V 48v |
| MOQ | 1000pcs |
| Selling Units | Single item |
| Single Package Size | 36.4X35.8X29 cm |
| Single Gross Weight | 12.600 kg |
Product Details
YCCFAN 60mm 6025 DC 5V 12V Ventilation Fans 60X60X25 Axial Flow Exhaust Fan
YDU6025B24F
| Bearing System | Dual Ball Bearing | ||
| Rated Voltage | VDC | 24.0 | N/A |
| Operating Voltage Range | VDC | 21.6–26.4 | N/A |
| Start-up Voltage | VDC | 14.0 | N/A |
| Rated Current | Amp | 0.27(MAX:0.41) | At 25℃/Relative Humidity 65% At rated Voltage,Measured after 3Mins. |
| Label Current | Amp | 0.64 | N/A |
| Rated Power | Watt | 6.48(MAX:9.84) | At 25℃/Relative Humidity 65% At rated Voltage,Measured after 3Mins |
| Rated Speed | RPM | 9000±10% | At 25℃/Relative Humidity 65% At rated Voltage,Measured after 3Mins |
| Air Flow | CFM | 46.76(MIN:42.08) | Maximum In Free Air,Refer to 4.2. |
| Air Pressure | mmAq | 17.47(MIN:14.15) | Maximum When Air Flow = 0 |
| Noise Level | dBA | 54.0(MAX:57.0) | At Rated Speed,Refer to 4.3. |

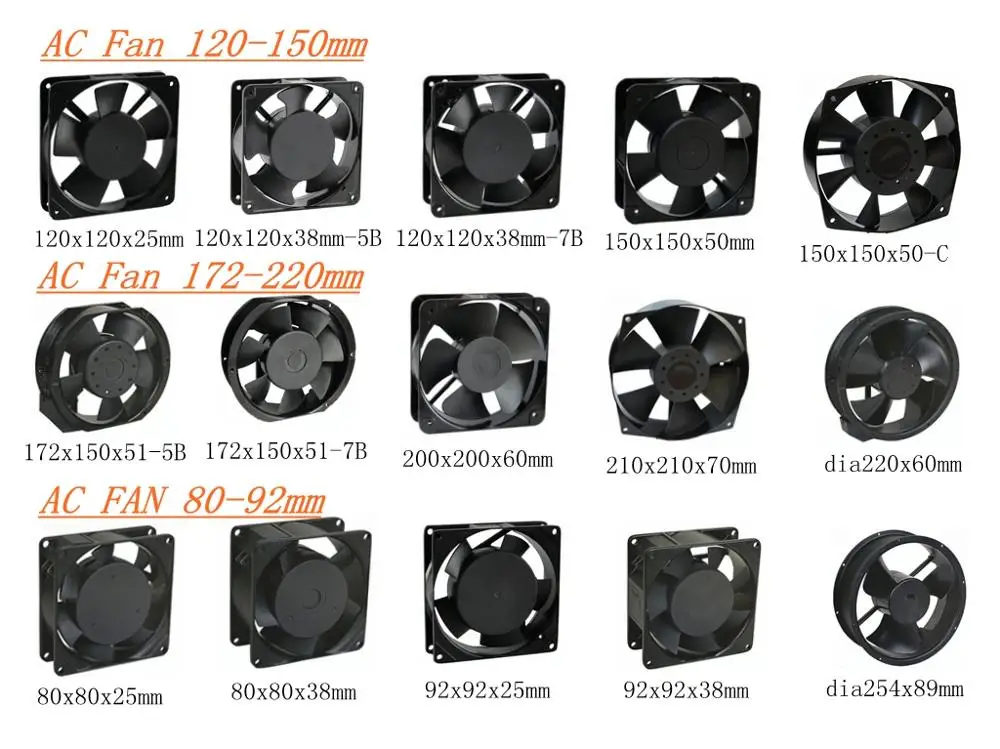

YCCFAN Manufacture AC FAN : 60mm – 200mm

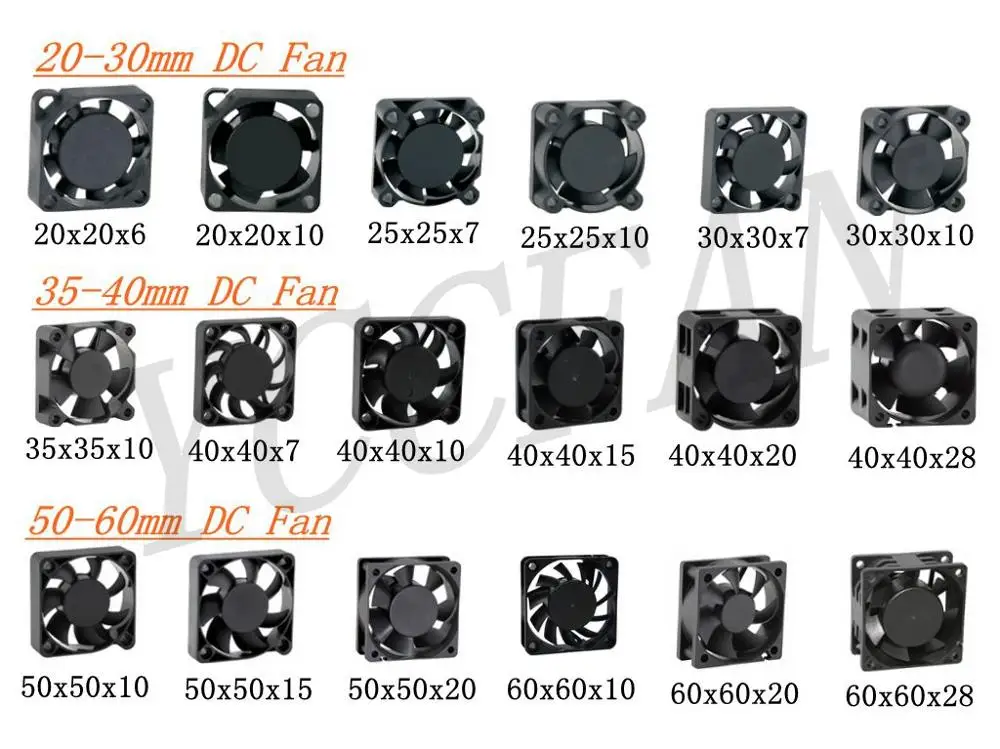

DC FAN : 20mm – 172mm

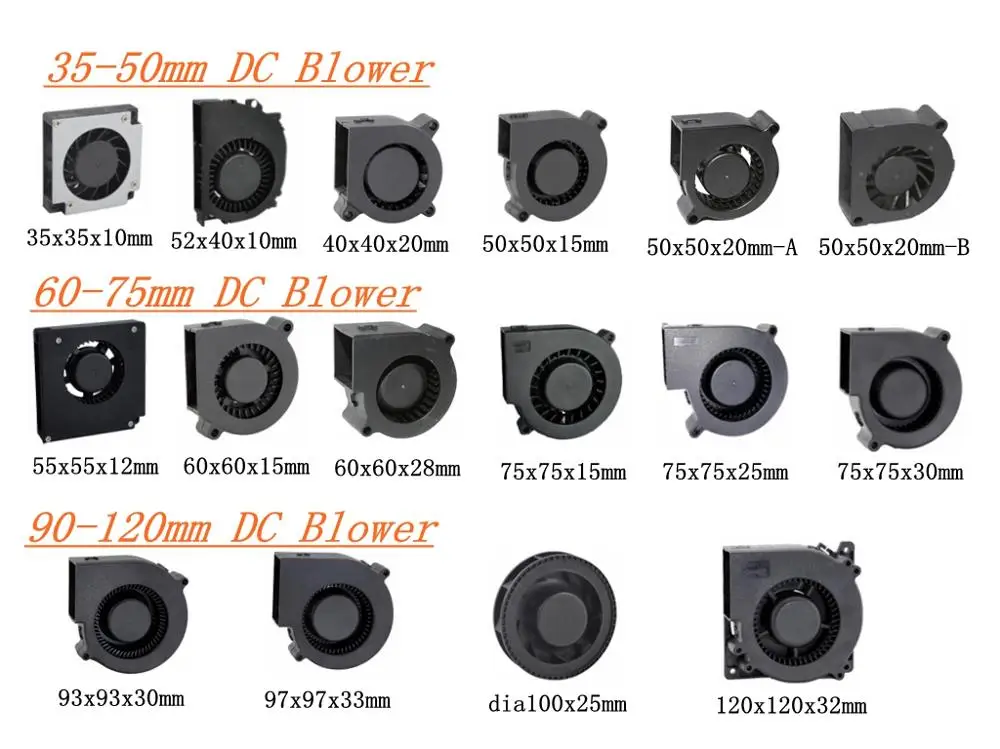

DC BLOWER FAN : 20mm – 120mm
EC FAN : 60mm – 120mm
YCCFAN have our own injection workshop, if any special design fan, just ask freely ,
We can design gor you.
1. Size: L x W x Thickness(We can produce 20mm to 250mm cooling fan)
2. Voltage: DC(3V, 3.3V, 3.7V, 5V, 7V, 9V, 12V, 18V, 24V, 48V…)
AC(100-125v, 220-240v, 380v)
3.Bearing Type:
Sleeve Bearing( 30,000 hours in 25℃ operation temperature with 1 year warranty)
Hypro Bearing ( 30,000 hours in 40℃ operation temperature with 1 year warranty)
CycleSeal Bearing( 40,000 hours in 40℃ operation temperature with 1 year warranty)
Dual Ball Bearing( 50,000 hours in 40℃ operation temperature with 2 years warranty)
4.Parameter: Speed(RPM), Air Flow(CFM), Noise(dBA),
5.Power Joint: Terminal Type
Lead Wire Type (+, -, Tachometer Sensor, Lock Alarm, Speed Control )
6.Dustproof & Waterproof: IP xx(IP 68 is the highest level)
YCCFAN 60mm 6025 DC 5V 12V Ventilation Fans 60X60X25 Axial Flow Exhaust Fan

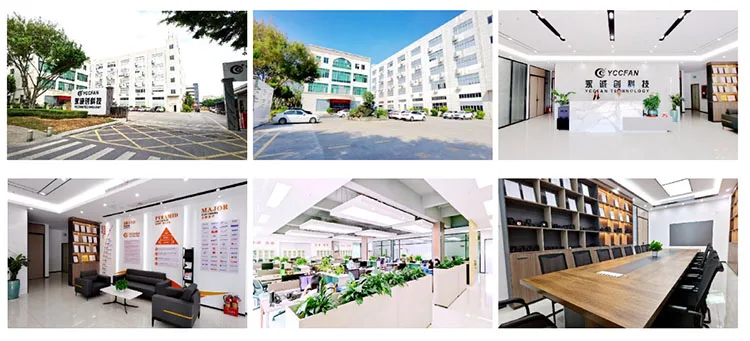

1.Factory Panorama
Founded in 2006,YCCFAN located in Shenzhen,China

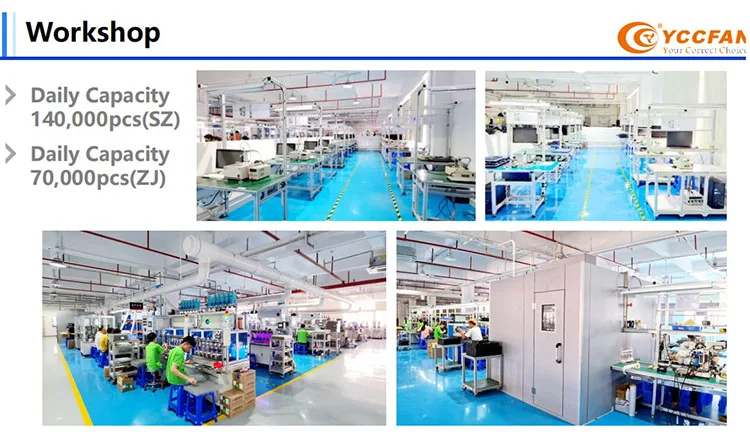

2.Work Shop
DC & AC two plants with automatic equipment

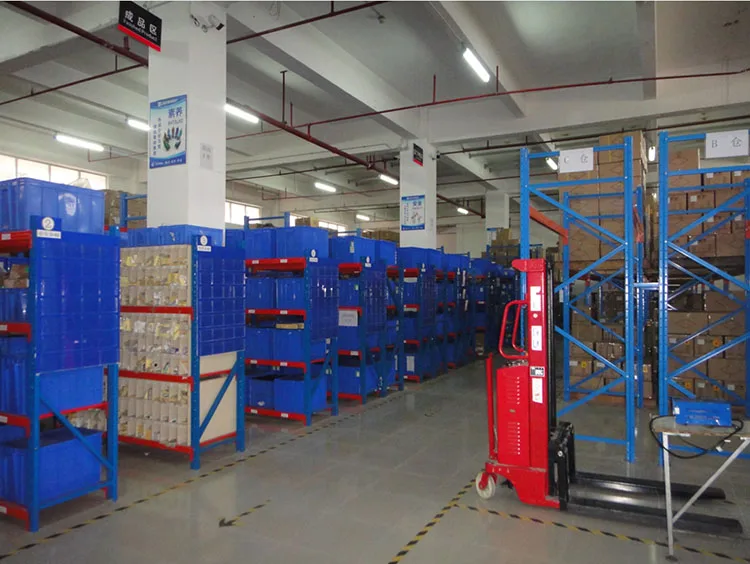

3.Warehouse
Warehouse capacity, material flow and IQC
5. Office
YCCFAN 60mm 6025 DC 5V 12V Ventilation Fans 60X60X25 Axial Flow Exhaust Fan

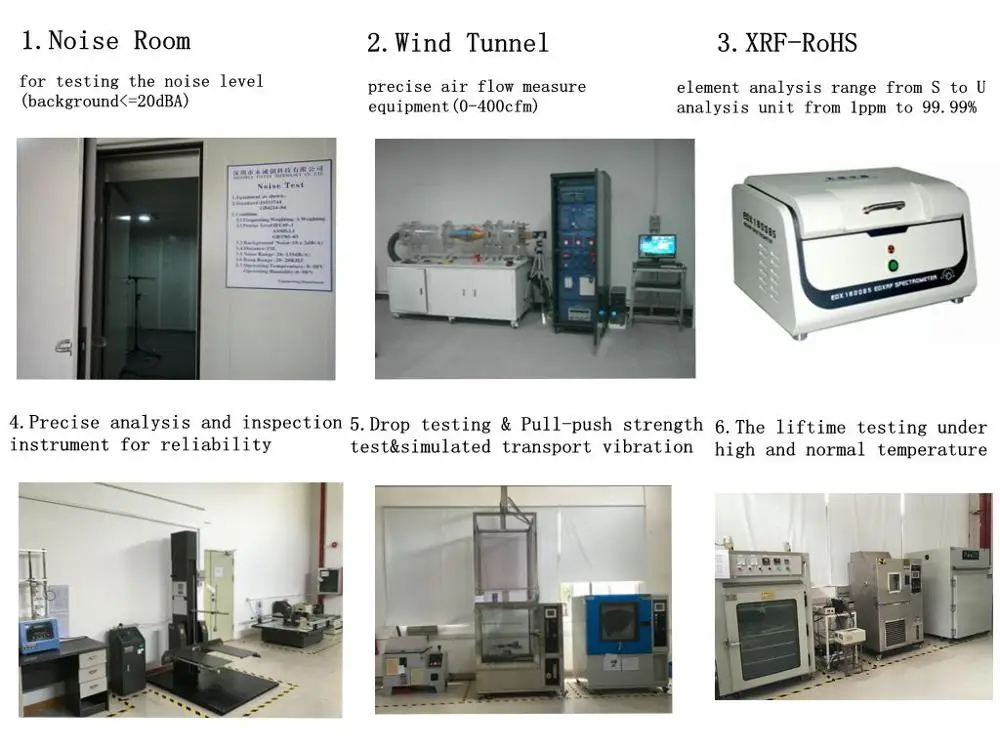

Every year, YCCFAN invest 50% of turnover to R&D new products, purchase experimental and detecting instrument.
Since 2017,YCCFAN are focusing on design a new bearing to prolong life span of cooler fan, now Cycle Seal Bearing is
widely used for 20mm-90mm, precise groove structure & shaft & better qualified greeze to prolong fan's lifespan.
YCCFAN 7025 12V 24V 48V 3 Inch 70mm Mini DC Cooling Fan 70X70X25mm 24v DC Brushless Fan
Cooling fan is widely used for below industry:
————————————————————————–YCCFAN—————————————————————————–
——————————————————————–Main Products ——————-———————————————–
—————————————————————–Your Correct Choice————————————————————-
YCCFAN 60mm 6025 DC 5V 12V Ventilation Fans 60X60X25 Axial Flow Exhaust Fan
UL & CUL & CE & RoHS & SGS & IATF16949 & ISO9001 & ISO14001 &3C and more to be continued.
Quality assurance
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.
4 . Generally 2-3 free sample for testing first ,when quality approved,then mass production,the product quality is totally compliance to sample checked and specification recognized.
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.

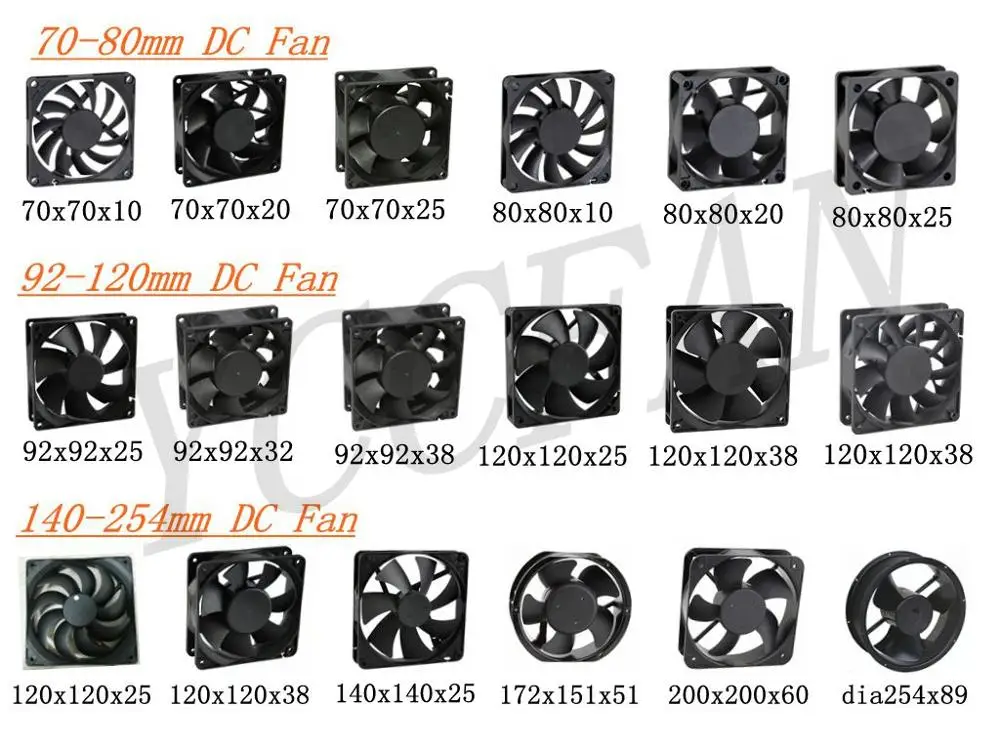

Q2: Can you tell me the normal DC fan Model?
A2:Please refer as below infor:
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm 60*60*15mm
60*60*25mm 60*60*38mm 70*70*15mm 80*80*15mm
80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details…
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
Ordering and Pricing
- Minimum order quantity: 900 piece
- Volume pricing:
- 900–4999 piece: US $4.8 / piece
- 5000–9999 piece: US $4.75 / piece
- 10000+ piece: US $4.7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ventilation fan?
The standard minimum order quantity is 900 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1year/2years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ventilation fan carry?
It is supplied with UPS/Inverter/Computer Case documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ventilation fan be supplied for my local voltage?
The standard configuration is DC 5v 12v 24V 48v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by SHENZHEN YCCFAN TECHNOLOGY CO., LTD., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full SHENZHEN YCCFAN TECHNOLOGY CO., LTD. range on HVACR Nexus.
