Key specification for this wall fan: voltage customizable AC110V; 220; 380V, airflow direction Axial Flow. Everything below is reproduced from the factory data sheet. Made by Changzhou Maxtree Technology Co., Ltd. (3 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Wall Fan
- Model Number: BFAG
- Power: 90-370W
- Shaft Power: 90W; 120W; 150W; 180W; 250W; 370W
- Input Voltage(V): AC 110V; 220V; 380V
- Voltage Customizable: AC110V; 220; 380V
- Airflow Direction: Axial Flow
Technical Specifications
| Application | Industry |
|---|---|
| Input Voltage(V) | AC 110V; 220V; 380V |
| Power | 90-370W |
| Color Temperature(CCT) | / |
| Working Hours | 100000 |
| Lamp Luminous Efficiency(Lm/W) | / |
| Color Rendering Index(Ra) | 80 |
| Support Dimmer | No |
| Material | Aluminum |
| Warranty(Year) | 5-Year |
| Feature | Easy Installation, Eco-Friendly, Waterproof |
| Pattern | Square |
| Style | Eclectic |
| Lighting Solutions Service | / |
| Type | Easy Installation |
| Model Number | BFAG |
| Place Of Origin | Jiangsu |
| Brand Name | Lampsuite |
| Luminous Efficacy(Lm/W) | 0 |
| Product Weight（Kg） | 6 |
| Mounting | Wall Fan |
| Shaft Power | 90W; 120W; 150W; 180W; 250W; 370W |
| Voltage Customizable | AC110V; 220; 380V |
| Airflow Direction | Axial Flow |
| Cable Outer Dia | 10~14mm |
| Number Of Blades | 3/4 |
| Inlet Thread | G3/4" |
| Fan Pressure | Medium Pressure Fan |
| Ex-Mark | ExdIIbt4 GB; ExdIIct4 GB |
| Selling Units | Single item |
| Single Package Size | 40X40X40 cm |
| Single Gross Weight | 7.0 kg |
Product Details
Product Parameters
MODEL | POWER (kW) | AIR VOLUME (m³/h) | SPEED (r/min) | VOLTAGE (V) | |||
BFAG-200 | 0.09 | 760 | 1450 | AC 110V AC 220V AC 380V Customizable | |||
0.15 | 1380 | 2900 | |||||
BFAG-250 | 0.105 | 1260 | 1450 | ||||
0.18 | 2240 | 2900 | |||||
BFAG-300 | 0.12 | 2200 | 1450 | ||||
0.25 | 3900 | 2900 | |||||
BFAG-400 | 0.18 | 2400 | 1450 | ||||
BFAG-500 | 0.25 | 4900 | 1450 | ||||
BFAG-600 | 0.37 | 9500 | 1450 | ||||
COMMON | EX-MARK: | ExdIIBT4 Gb; ExdIICT4 Gb | DEGREE OF PROTECTION: | IP54 | |||
CABLE OUTER DIA.: | Φ10~Φ14 mm | INLET THREAD: | G3/4" | ||||
NOISE: | 60-7dB | VOLTAGE: | AC 110V/220V/380V | ||||
BLADE ANGLE: | 20° | FAN PRESSURE: | Medium Pressure Fan | ||||
AIRFLOW DIRECTION: | Axial-Flow | TURBINE HEAD MATERIAL: | Metal | ||||

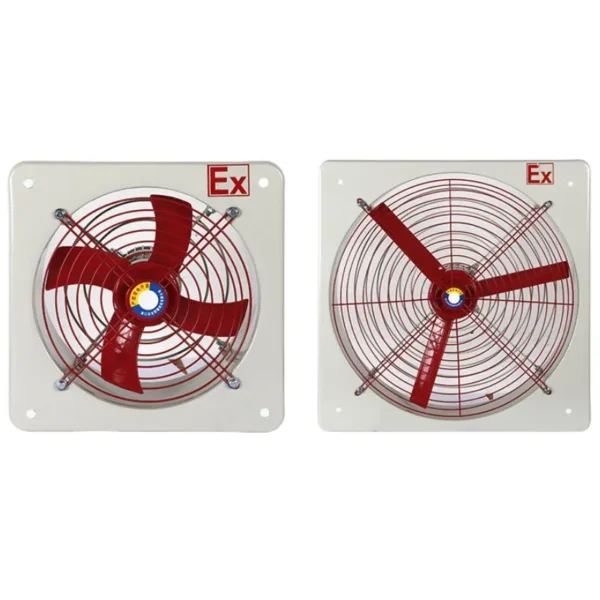

TYPE OF VENTILATOR: | Axial-Flow Ventilator | NUMBER OF BLADES: | 3 or 4 | ||||
CERT | ATEX, CE, IP65, IK10, ROHS, ISO9001 | ||||||
APPL | · Gas Station · Factory And Industry · Dust Explosion Area · Equipment Depot · Petroleum Pipeline · Chemical Plant · Oil Platform · Warehouse · Tunnel · Marine Environments · Explosive Workshop etc. | ||||||
Product Description

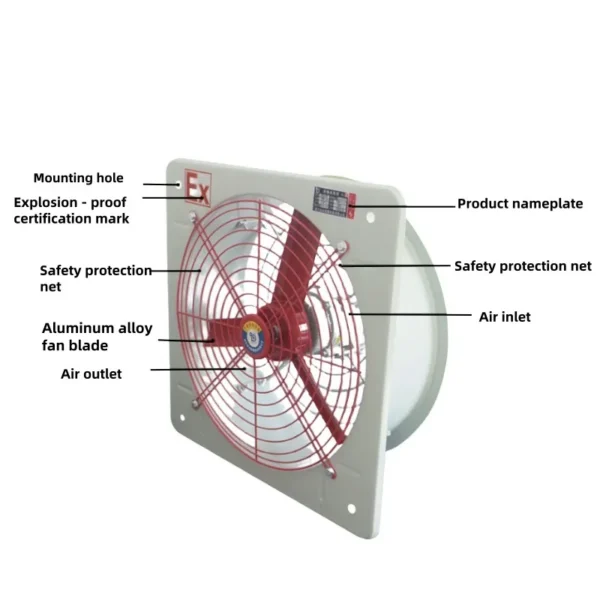

An explosion-proof exhaust fan is a ventilation fan specifically engineered to operate safely in hazardous areas where flammable gases, vapors, or dusts may be present. Unlike standard fans, its core design prevents it from igniting a surrounding explosive atmosphere. This is achieved through features like a rugged explosion-proof enclosure that contains any internal sparks, and controls that ensure its surface temperature remains below the ignition point of specific hazardous substances. It is commonly certified under international standards like ATEX or IECEx for use in industries such as oil and gas, chemical processing, pharmaceuticals, and grain handling.

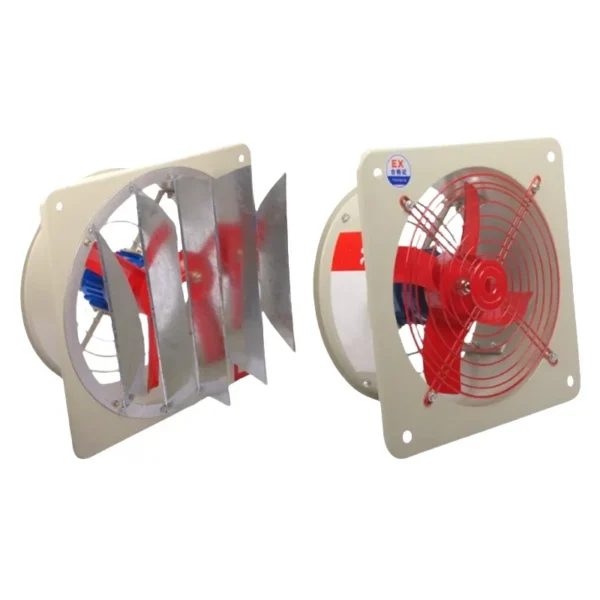

03 / Wind Direction Statement 1 Custom Wind Direction (Reverse wind, Air suction, Air out from motor end) Cannot be used with self – hanging louver windows. The motor should not be exposed to rain.

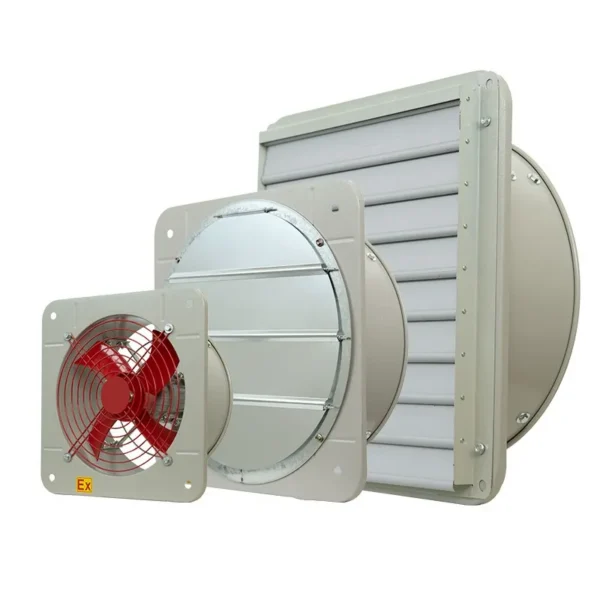

04 / Wind Direction Statement 2 Default Wind Direction (Forward wind, Front blowing, Air out from fan blade end) Can be used with louver windows
Installations&Dimensions
MODEL | A(mm) | B(mm) | C(mm) | D(mm) | NUM of BLADES | E(mm) |
BFAG-200 | 270 | 220 | 250 | 150 | 4 | 242 |
BFAG-250 | 320 | 270 | 250 | 150 | 4 | 292 |
BFAG-300 | 388 | 320 | 245 | 160 | 4 | 350 |
BFAG-400 | 488 | 390 | 245 | 160 | 3 | 450 |
BFAG-500 | 578 | 490 | 275 | 160 | 3 | 550 |
BFAG-600 | 675 | 560 | 275 | 160 | 3 | 650 |
Note: Please perform the below operations with power off
Step 1:
Open the four fixing screws on the motor rear cover
Open the four fixing screws on the motor rear cover
Pass the power cord through the rear cover
(220V 2 – core power cord, 380V 3 – core power cord)
Pass the power cord through the rear cover
(220V 2 – core power cord, 380V 3 – core power cord)
Product Application
Product Applications:
· Gas Station
· Factory And Industry
· Dust Explosion Area
· Equipment Depot
· Petroleum Pipeline
· Chemical Plant
· Oil Platform
· Warehouse
· Tunnel
· Marine Environments
· Explosive Workshop etc.
· Factory And Industry
· Dust Explosion Area
· Equipment Depot
· Petroleum Pipeline
· Chemical Plant
· Oil Platform
· Warehouse
· Tunnel
· Marine Environments
· Explosive Workshop etc.
