Water Cooling Tower, 240V, Metal, IP55, Stainless Steel

This water cooling tower is listed with the manufacturer’s full published specification — voltage 240V, 38OV, 440V, material Metal, type Counter Flow closed cooling tower. It is produced by Luoyang Gaohua Environmental Cooling Technology Co., Ltd., a verified supplier of 7 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Water Cooling Tower

• Voltage: 240V, 38OV, 440V
• Material: Metal
• Coil Material: Stainless Steel
• Warranty: 1 Year
• Place Of Origin: Henan, China
• Application: Industrial Fluids Cooling

Technical Specifications

Product Details

Why Choose Us

GH COOLING is a professional and modern enterprise integrating R & D, manufacturing, marketing, maintenance, and other service in the fields of cooling technology and products. The company is located in Luoyang PengPo Industrial in Henan Province, with a 40000m2 area and 14400m2 production plant area. We focus on continuous innovation around customer requirements and upgrade product quality. Meanwhile, we keep open cooperation with partners, supplying solutions for customers in water treatment, electric power, metallurgy, coal chemical, petrochemical, refrigeration, and other industries. Our main products are air-cooled heat exchangers （air coolers）, evaporative condensers, closed cooling towers, RFP cooling towers, "air cooling + evaporative cooling" composite closed cooling systems, dry wet combined closed water cooling systems, anti-white mist efficient cooling systems, etc. The products are sold in about 30 provinces, cities, or autonomous regions of China, and also exported to Nigeria, Algeria, Chile, Peru, Germany, Canada, Türkiye, Southeast Asia, and other countries and regions.

Products Description

Product Description of Evaporative Condenser

NZL Evaporative Condenser

The NZL evaporative condenser is a energy-saving, water-saving, high-efficiency and eco-friendly cooling tower which uses evaporation and condensation as the main mode of heat exchange. The vapor to be condensed is circulated through a condensing coil, which is continually wet on the outside by a recirculating water system. Air is pulled over the coil, causing a small portion of the recirculating water to evaporate. The evaporation removes heat from the vapor in the coil, causing it to condense. It takes up a small area and is easy to operate and maintain.

Details Description

Details Description of Evaporative Condenser

Product Paramenters

Parameters of Evaporative Condenser

Model	Dimension W×L	Coil Specifications	Axial fan Model	Fan power  (KW)	Air volume	Pump model	Water flow m3/h	Inlet/Outlet Size
NBT-27	1430×1180	1260×1000*6	6.3#	1.1	15000	80/125-0.75/4	25	DN150/DN150
NBT-36	1430×1180	1260×1000*8	6.3#	1.1	15000	80/125-0.75/4	25	DN150/DN150
NBT-45	1430×1180	1260×1000*10	6.3#	1.5	18500	80/125-0.75/4	25	DN150/DN150
NBT-48	2600×1430	1260×2430*4	6.3#	1.1*2	15000*2	80/160-1.1/4	35	DN150/DN150
NBT-72	2600×1430	1260×2430*6	6.3#	1.1*2	15000*2	80/160-1.1/4	35	DN150/DN150
NBT-93	2600×1430	1260×2430*8	9#	2.2*2	26000*2	80/160-1.1/4	35	DN150/DN150
NBT-120	2600×1430	1260×2430*10	9#	2.2*2	26000*2	125/125-2.2/4	60	DN150/DN150
NBT-145	2600×1430	1260×2430*12	9#	2.2*2	26000*2	125/125-2.2/4	60	DN150/DN150
NBT-96	2620×2720	1260×2430*4	13#	4	55000	125/125-2.2/4	60	DN150/DN150
NBT-145	2620×2720	1260×2430*6	15#	5.5	78000	125/125-2.2/4	60	DN150/DN150
NBT-193	2620×2720	1260×2430*8	15#	5.5	78000	125/125-2.2/4	60	DN150/DN150
NBT-241	2620×2720	1260×2430*10	16#	5.5	80000	125/150-3/4	78	DN150/DN150
NBT-290	2620×2720	1260×2430*12	16#	7.5	10000	125/160-4/4	78	DN150/DN150
NBT-181	3190×2720	1260×2430*6	16#	7.5	10000	125/160-4/4	120	DN150/DN150
NBT-241	3190×2720	1260×3000*8	16#	7.5	10000	125/160-4/4	120	DN150/DN150
NBT-302	3190×2720	1260×3000*10	18#	11	125000	125/160-4/4	120	DN150/DN150
NBT-362	3190×2720	1260×3000*12	18#	11	125000	125/160-4/4	120	DN150/DN150

Our Advantages

(1) Power-saving; Water-saving; Space-saving;
(2) High Heat Exchange Ability;
(3) Easy to install;
(4) Low maintenance cost;
(5) Long lifetime.

Main Parts

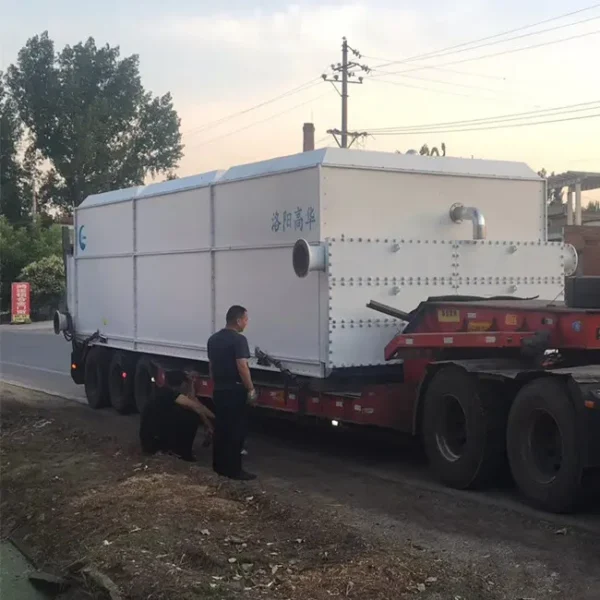

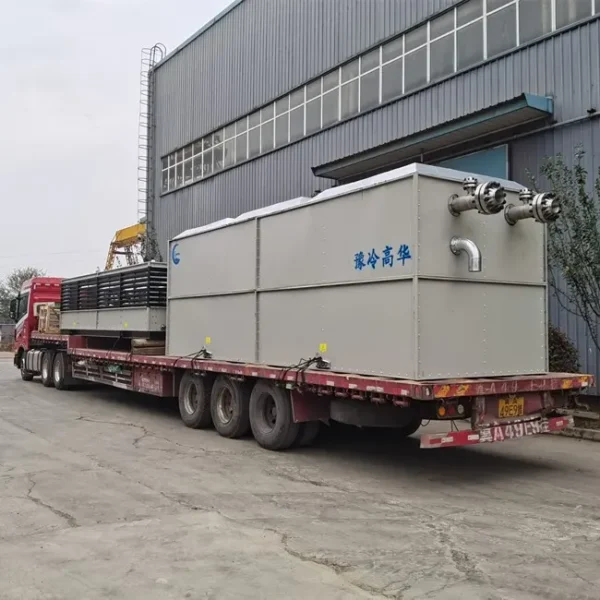

Packaging & Delivery

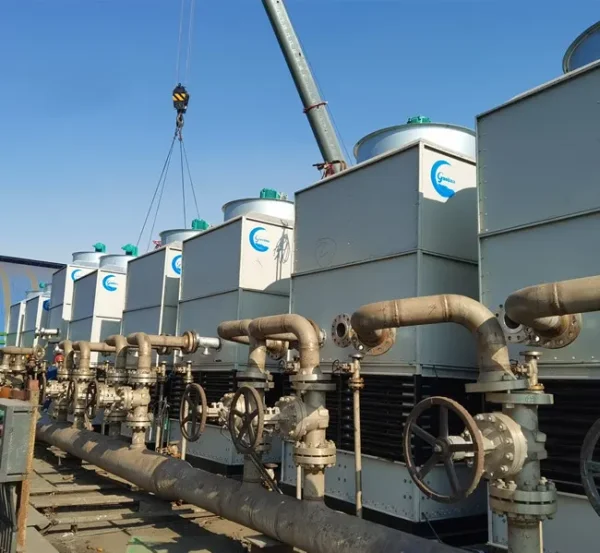

Project cases

You may like

FAQ

Q1. If I want to get a quotation quickly, what necessary parameters should I provide? A: Flow rate, Inlet and Outlet temperature, Wet-bulb temperature. Q2. Which industries can evaporative condensers be used in? A: Evaporative condensers can be used in electric power, metallurgy, petrochemical, coal chemical, food refrigeration and other industries. Q3. What material of heat exchange tube should I choose? A: If the medium of the cooling tower is not corrosive, carbon steel hot-dip galvanizing is recommended, which is cheap; if the medium is corrosive, you can choose stainless steel with high corrosion resistance. Q4. How long is the delivery time? A: Usually, the delivery time is 45 days after receiving the advanced payment and drawing confirm.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $52000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water cooling tower?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the water cooling tower be supplied for my local voltage?

The standard configuration is 240V, 38OV, 440V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Luoyang Gaohua Environmental Cooling Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Luoyang Gaohua Environmental Cooling Technology Co., Ltd. range on HVACR Nexus.
