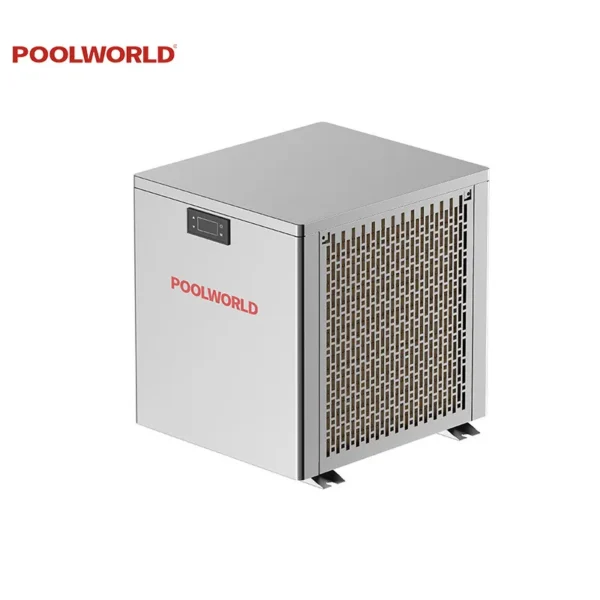

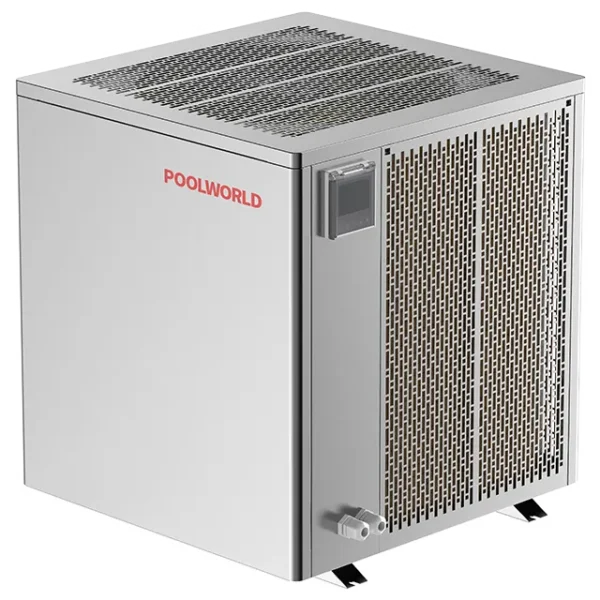

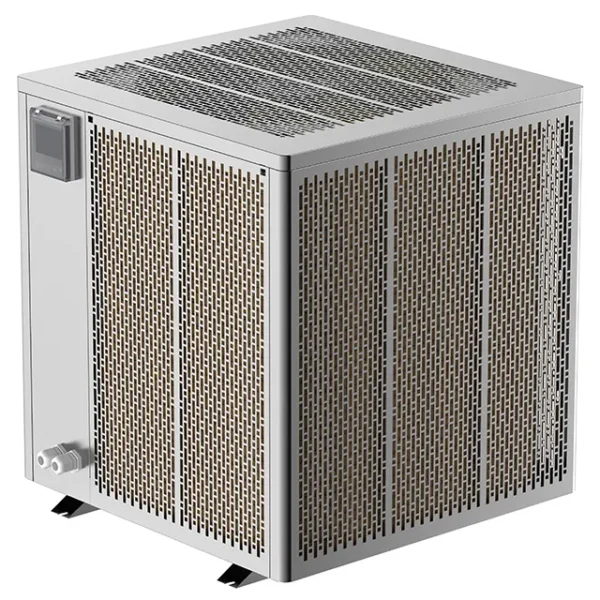

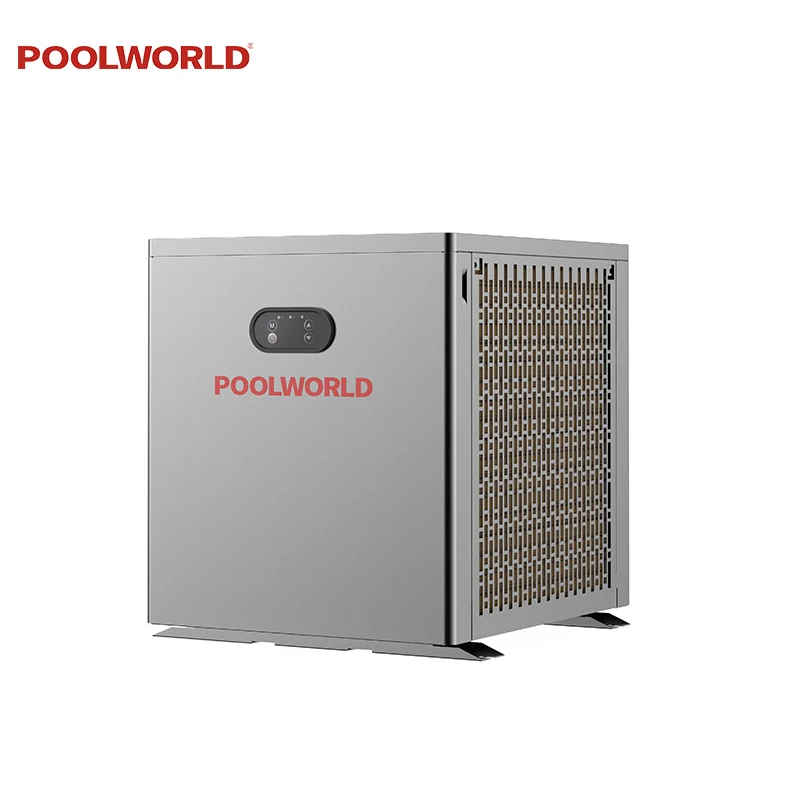

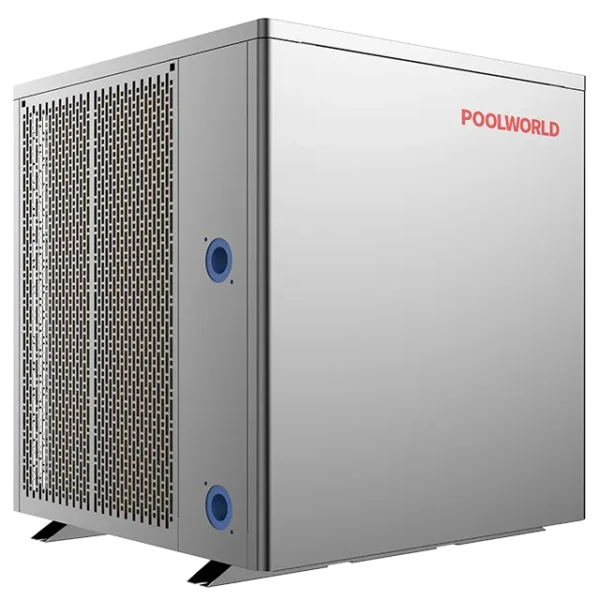

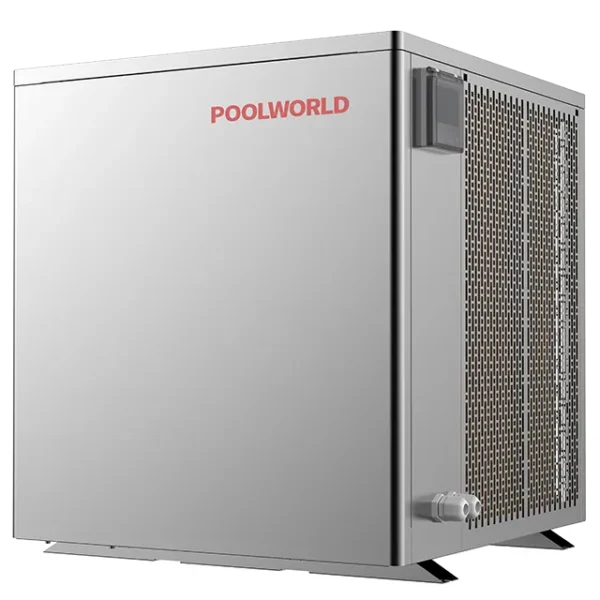

Water heater — power source Electric, material Galvanized Sheet. The complete factory specification follows. Made by Guangzhou Pool World Environmental Technology Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Water Heater
- Model Number: PW08-CY-DCF
- Power Source: Electric
- Housing Material: Galvanized Sheet
- Material: Galvanized Sheet
- Refrigerant: R32
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R32 |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Galvanized Sheet |
| Feature | Easy Operation, Easy Installation |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Place Of Origin | Guangdong, China |
| Brand | Pool World |
| Model Number | PW08-CY-DCF |
| Function | Swimming Pool Heating Cooling |
| Compressor | Copeland |
| Heat Exchanger | Titanium Heat Exchanger |
| COP | 5 |
| Heat Source | Air Source 75%+electricity25% |
| Sound Level | 52dB(1m) |
| Material | Galvanized Sheet |
| Evaporator | Finned Tube Heat Exchanger |
| Item | swimming pool heat pump |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
This series is full inverter designed for fast heating/cooling for above ground pool 25m3,which greatly saves energy and enables you to enjoy swimming without waiting for long time.
Features:
1.INVERTER Version (Two-side Discharge) 2.Heating and Cooling 3.COP as High as 9.6 4.Mini Size & Portable 5.Frosted Silver Sheet Metal Casing & Anti-corrosion 6.R32 Gas Environmentally-friendly & Energy-saving 7.Simple Control Panel 8.APP Control with WIFI Function Standard 9.Silent Operation 10.Quick Installation, Plug & Play 11.Intelligent Defrosting 12.Min Working Temperature -5℃ 13.Max Output Water Temperature 45℃ 14.Patent Design
Our Advantages
PATENT DESIGN
Patented unigue design: Square structure design with arc style corner. The air inlet and outlet are symmetrically design.
SUPER SILENT
Thanks to the patented silent design, it makes a quieter swimming environment and a friendly neighborhood for you. The sound level is only 45dB.
SIMPLE INSTALLATION & OPERATION
Easy plug & play and press & heat controller bring more comfortable and convenient experience to end user.
INTELLIGENT DEFROSTING
Equipped with four-way valve,the unit can automatically defrost efficiently and quickly when ambient temperature is low,perfectly adapting to the needs of different temperature and areas. This also ensures the wide application range from 5 to 43℃.
Product Paramenters
F Series——Inverter Mini Pool Heat Pump | ||||
Model | PW08-CY-DCF | PW15-CY-DCF | ||
Advised pool volume (m3) | 10~20 | 15~25 | ||
Operating air temp. (℃) | -5~43℃ | |||
Performance Condition: Air 27°C, Water 26°C, Humidity 80% | ||||
Heating capacity (kW) | 4.0~1.0 | 5.5~1.4 | ||
Heating capacity(Btu) | 13600~3400 | 18700~4760 | ||
Consumed power (kW) | 0.8~0.11 | 1.1~0.15 | ||
COP | 5.0~9.5 | 5.0~9.6 | ||
Performance Condition: Air 15°C, Water 26°C, Humidity 70% | ||||
Heating capacity (kW) | 2.5~0.65 | 3.7~0.8 | ||
Heating capacity(Btu) | 8500~2210 | 12580~2720 | ||
Consumed power (kW) | 0.6~0.1 | 0.9~0.13 | ||
COP | 4.0~6.1 | 4.0~6.0 | ||
Performance Condition: Air 35℃,Water 28℃, Humidity 80% | ||||
Cooling capacity (kW) | 2.0 | 3.3 | ||
Sound pressure at 1m dB(A) | 46 | 48 | ||
Sound pressure at 10m dB(A) | 30 | 32 | ||
Heat exchanger | Spiral titanium tube in PVC | |||
Casing | Metal Casing | |||
Power supply | 220 ~240V/1Ph/50Hz~60Hz | |||
Water connection (mm) | Φ32 | |||
Rated input current at air 15℃(A) | 2.6~0.4 | 3.9~0.57 | ||
Water flow volume(m³/h) | 1.5-2.0 | 2.0-2.5 | ||
Water pressure drop (max) kPa | 2 | 4 | ||
Net weight/Gross weight(kg) | 26/28 | 34/37 | ||
Net size(mm) | 394*444*435 | 498*499*500 | ||
Package size(mm)(carton) | 420*510*485 | 555*576*542 | ||
Package size(mm)(Polywood) | 437*510*475 | 572*576*545 | ||
Loading QTY (20GP/40GP/40HQ) | 208/416/520 | 144/288/288 | ||
Refrigerant consumption(g) | 180 | To be pending | ||
Refrigerant | R32 | |||
Compressor type/QTY | Rotary type/1 | |||
Defrosting | By four-way valve | |||
Throttle device | Electronic expansion valve | |||
Operating water temp. (℃) heating | 9 ~43 | |||
Operating water temp. (℃) cooling | 9 ~35 | |||
Recommend Products
Company Profile
Guangzhou Pool World Environmental Technology Co., Ltd
Guangzhou Pool World Environmental Technology Co.,Ltd specializes in heat pump R&D, manufacturing and providing comprehensive energy-saving heating solutions to worldwide market since 2008, our factory is located in Dongguan, China,which respectively manufacture heat pumps including pool heat pumpsHeating&Cooling&DHW Heat Pump etc., covering an area of 30,000 square meters, with 4 international laboratory attained EN14511 certificate(TUV certificated) and more than 50 R&D professional engineers, Pool World has obtained 416 patents, the products were certificated by CE,CB, ROHS, and passed the European EN14825 and EN14511 energy efficiency certificate which is complied strictly based on the latest EHPA requirement,most products are exported to Europe, Southeast Asia, South America, Middle East markets.
With over 13 years export experience,Pool World has the rich experience and the good knowledge with our professional, worldwide and customer oriented team are trained to support our partners in finding the right solution that satisfies their requirements. We are conscious that our customers are the most valuable part of our business. Therefore, we focus on giving the product quality and service that exceeds your expectations, with integrity, professionalism, and a teamwork approach.
We will strive to exceed expectations,boost the enterprise energy conservation and keep promoting the environment protection all the time.
OEM & ODM Support
01. OEM
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.
Pre-sales service
01. EXPO Participation
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.
In-sales service
01. Instant Answer and Model Selection
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.
02. Certificate Application
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.
After-sales service
01. Warranty Service
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.
Client feedback
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory with 15,000 sq meters modern factory.
A: We are R&D and manufacturer factory with 15,000 sq meters modern factory.
Q: Do you accept OEM & ODM?
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: What support do you offer to clients?
A: We can provide product certification requirements for local markets; provide catalogs,technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: How about the channel management?
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: How about the channel management?
A: We are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer Pool World’s own brand products and services to dealers.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
My friend,if you are interested in our heat pumps,please don't hesitated to send us your inquiry ,we will send you the latest product catalog and price within 1 hour! Pool World looking forward to cooperating with you!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $352 / piece
- 10–49 piece: US $338 / piece
- 50+ piece: US $265 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Pool World Environmental Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Pool World Environmental Technology Co., Ltd. range on HVACR Nexus.
